remote sensing
Article
Spatial Analysis of Surface Urban Heat Islands in
Four Rapidly Growing African Cities
Matamyo Simwanda 1,2, *, Manjula Ranagalage 1,3 , Ronald C. Estoque 4 and Yuji Murayama 1
 1    Faculty of Life and Environmental Sciences, University of Tsukuba, 1-1-1 Tennodai,
      Tsukuba City 305-8572, Ibaraki, Japan
 2    Department of Plant and Environmental Sciences, School of Natural Resources, Copperbelt University,
      P.O. Box 21692, Kitwe 10101, Zambia
 3    Department of Environmental Management, Faculty of Social Sciences and Humanities, Rajarata University
      of Sri Lanka, Mihintale 50300, Sri Lanka
 4    National Institute for Environmental Studies, 16-2 Onogawa, Tsukuba City, Ibaraki 305-8506, Japan
 *    Correspondence: matamyo.simwanda@cbu.ac.zm; Tel.: +260-978-652214

 Received: 23 May 2019; Accepted: 7 July 2019; Published: 10 July 2019

 Abstract: Africa’s unprecedented, uncontrolled and unplanned urbanization has put many African
 cities under constant ecological and environmental threat. One of the critical ecological impacts of
 urbanization likely to adversely affect Africa’s urban dwellers is the urban heat island (UHI) effect.
 However, UHI studies in African cities remain uncommon. Therefore, this study attempts to examine
 the relationship between land surface temperature (LST) and the spatial patterns, composition and
 configuration of impervious surfaces/green spaces in four African cities, Lagos (Nigeria), Nairobi
 (Kenya), Addis Ababa (Ethiopia) and Lusaka (Zambia). Landsat OLI/TIRS data and various geospatial
 approaches, including urban–rural gradient, urban heat island intensity, statistics and urban landscape
 metrics-based techniques, were used to facilitate the analysis. The results show significantly strong

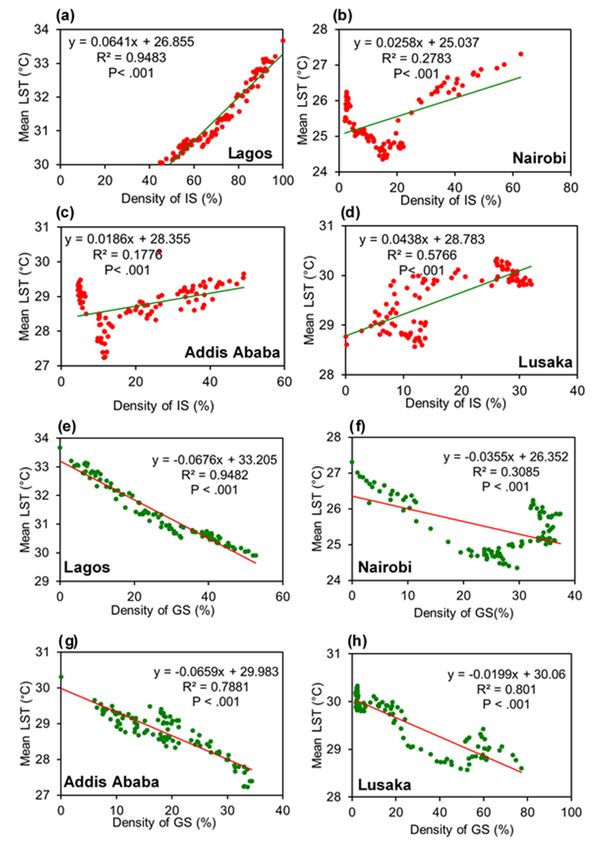

 correlation between mean LST and the density of impervious surface (positive) and green space
 (negative) along the urban–rural gradients of the four African cities. The study also found high urban
 heat island intensities in the urban zones close (0 to 10 km) to the city center for all cities. Generally,
 cities with a higher percentage of the impervious surface were warmer by 3–4 ◦ C and vice visa. This
 highlights the crucial mitigating effect of green spaces. We also found significant correlations between
 the mean LST and urban landscape metrics (patch density, size, shape, complexity and aggregation)
 of impervious surfaces (positive) and green spaces (negative). The study revealed that, although most
 African cities have relatively larger green space to impervious surface ratio with most green spaces
 located beyond the urban footprint, the UHI effect is still evident. We recommend that urban planners
 and policy makers should consider mitigating the UHI effect by restoring the urban ecosystems
 in the remaining open spaces in the urban area and further incorporate strategic combinations of
 impervious surfaces and green spaces in future urban and landscape planning.

 Keywords: urban heat island; land surface temperature; impervious surface; green space; African
 cities; Landsat data

1. Introduction
     Despite Africa being the least urbanized continent, its urbanization is arguably one of the fastest
in the world [1]. Africa’s urban population has been growing at a very high rate, i.e., from an estimated
28% in 1980 [2] to 43% in 2018 and projected to be about 60% by 2050 [3]. Much of the urbanization
in Africa has been unplanned and unregulated, exacerbated by the legacy of colonialism, structural
adjustment and neo-liberalism that has continuously spawned weak urban planning institutions [4].

Remote Sens. 2019, 11, 1645; doi:10.3390/rs11141645                       www.mdpi.com/journal/remotesensing
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote Sens. 2019, 11, 1645                                                                          2 of 20

Most of the African cities have thus emerged as unplanned cities dominated by overcrowded informal
settlements haphazardly located close to urban growth centers such as the central business district and
other industrial and commercial areas [5]. Consequently, ecological and environmental conditions in
African cities are under constant threat.
      One of the ecological consequences of urbanization is the urban heat island (UHI) effect,
a phenomenon that refers to the occurrence of higher temperatures in urban areas than the surrounding
rural areas [6–10]. UHI occurs as a result of land cover transformations, mainly the replacement of
natural vegetation and agricultural lands by impervious surfaces (concrete, asphalt, rooftops and
building walls) associated with urban land use [11]. Some of the negative impacts of the UHI include
increased energy consumption, elevated emissions of air pollutants and greenhouse gases, impaired
water quality as well as causing compromised environmental conditions that affect human health and
comfortability [12,13]. It is for this reason that the UHI phenomenon has become a key research focus
in various disciplines such as urban geography, urban planning, urban ecology and urban climatology.
      Generally, there are two types of UHIs: Atmospheric UHI (AUHI) and surface UHI (SUHI) [13].
AUHIs are measured using air temperature while SUHIs are measured using surface temperature [8,10,13].
The high temporal resolution of air temperature makes AUHIs effective in describing the temporal
variation of UHIs. However, AUHIs have a drawback of failing to depict the spatial variation of UHIs [14].
Conversely, surface temperature patterns can exhibit both the spatial and temporal variation of SUHIs of
entire cities [14,15]. The use of land surface temperature (LST) retrieved from remotely sensed thermal
infrared data has since become widely recognized as an effective tool for examining spatial patterns of
UHIs in relation to urban landscape patterns [14–20]. This study focuses on SUHIs based on LST retrieved
from Landsat data.
      Many studies have shown that LST can be related to land cover, mainly impervious surfaces [6,8,21,22]
and green spaces [14,23–25], to comprehend the SUHI effect in urbanized landscapes. Researchers have
consistently demonstrated that increasing green space or vegetation cover in urban areas has a mitigating
effect on UHIs, while the growth of impervious surfaces increases urban heating [17,24,26,27]. Recently,
techniques such as urban–rural gradient and statistical analysis [8,28,29] as well as UHI intensity
analysis [23,30,31] have been familiar in understanding the effect of landscape patterns on LST (i.e.,
the UHI effect). There has also been increasing interest in the spatial composition and configuration
of impervious surface and green spaces owing to the different mix or complexity of different urban
environments. A proliferation of studies has applied urban landscape metrics-based techniques to show
that the spatial composition and configuration of impervious surfaces and green spaces (e.g., size, patch
density and complexity) affect the magnitude of LST [7,8,14,24,26].
      It is evident from the vast literature that the UHI phenomenon has been extensively studied
in cities worldwide irrespective of their sizes and locations. Several studies have examined the
relationship between LST and the composition and configuration of impervious surfaces and green
spaces. While some recent studies (e.g., [32] in Durban (South Africa), [33] in Lagos (Nigeria) and [34]
in Addis Ababa (Ethiopia)) have been conducted, UHI studies are still very uncommon in Africa.
Moreover, previous studies have been conducted on individual cities based on the specific conditions
of their urban environments. The uncontrolled and unplanned urbanization that has been experienced
in African cities in recent decades makes them interesting case studies for a comparative study of UHIs.
      Therefore, this study conducts a comparative analysis to examine the relationship between LST
and the spatial patterns, composition and configuration of impervious surfaces and green spaces in
four African cities, Lagos (Nigeria), Nairobi (Kenya), Addis Ababa (Ethiopia) and Lusaka (Zambia).
Landsat OLI/TIRS data and various geospatial approaches, including urban–rural gradient, UHI
intensity, statistics and urban landscape metrics-based techniques, were used to facilitate the analysis.
The four cities were selected to get a good representation of African cities based on the following
criteria: (i) Being the largest or capital city; (ii) being the main economic and commercial center of
their country; and (iii) experiencing rapid urbanization with the highest population in their respective
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote Sens. 2019, 11, 1645                                                                                 3 of 20

countries. In 2016, the population of Lagos was estimated at 13.7 million, Nairobi at 4.2 million, Addis
Ababa at 3.3 million, while Lusaka was at 2.3 million [35].

2. Data and Methods

2.1. Study Areas
      The study areas include the city cores of Lagos (Nigeria) located in West Africa, Nairobi (Kenya)
and Addis Ababa (Ethiopia) located in East Africa and Lusaka (Zambia) located in central-southern
Africa (Figure 1). For comparison, we used a 40 km × 40 km subset with a 20 km radius from the
city center of each city as a common unit of analysis (Figure 1). All the study areas are located in the
tropical climate zones of sub-Saharan Africa.

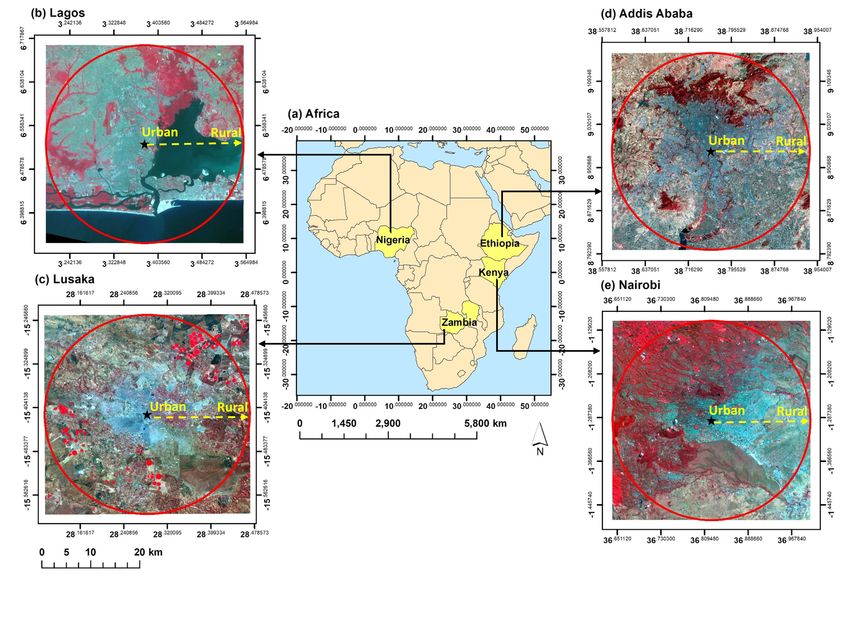

      Figure 1. Location of study areas in Africa. Study areas are displayed using a false color composite of
      Landsat 8 images (band 5—red, band 4—green and band 3—blue).

     According to [36], the climate in Lagos is tropical with two distinct seasons, i.e., a pronounced
dry season in the low-sun months and a wet season is in the high-sun months. The annual mean
temperature in Lagos is approximately 26.5 ◦ C. The climate in Addis Ababa, Nairobi and Lusaka is
generally sub-tropical with moderate seasonality, although there are variations across the cities. Addis
Ababa and Lusaka have a climate characterized by dry winters and mild rainy and hot humid summers
with annual mean temperatures of 15.9 ◦ C and 19.9 ◦ C, respectively. Nairobi has a marine west-coast
climate that is mild with no dry season, warm summers and an annual mean temperature of 17.7 ◦ C.
     The land cover features in the four cities are typical of those in rapidly urbanizing African cities
with built-up lands (impervious surfaces) characterized by various land uses including commercial,
industrial, public institutions and residential areas dominated by informal settlements located close
to urban growth centers, especially the central business district [5,37]. Other land cover features
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote Sens. 2019, 11, 1645                                                                               4 of 20

include forests, woodlands, grasslands, croplands and water surfaces such as the sea, lakes, rivers
and dams [38].

2.2. Satellite Data and Pre-Processing
      The satellite data used in this study were six cloud-free (
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote Sens. 2019, 11, 1645                                                                          5 of 20

                                                                    !2
                                              NDVI − NDVImin
                                    PV =                                                                (4)
                                             NDVImax − NDVImin
                                               ε =mPV + n                                               (5)

where, εs is the soil emissivity, εv is the vegetation emissivity and F is a shape factor whose mean
value, assuming different geometrical distributions, is 0.55 (Sobrino et al., 1990 in [42]). NDVI is the
normalized difference vegetation index derived using the surface reflectance of bands 4 (ρred ) and 5
(ρNIR ) of Landsat-8 (Equation (6)) [8]:

                                                   (ρred − ρNIR )
                                         NDVI =                                                         (6)
                                                   (ρred + ρNIR )

     We applied the values 0.004 for m and 0.986 for n based on the findings of Sobrino et al. (2004) to

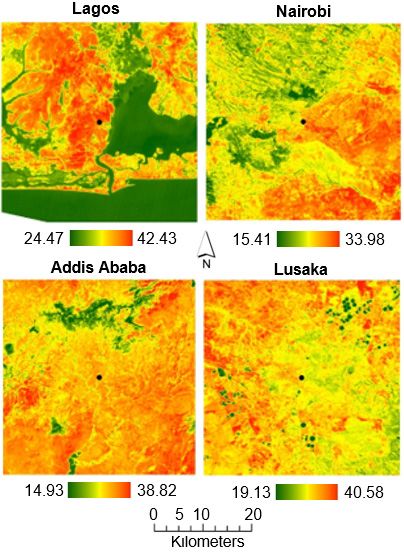

calculate ε. Finally, we converted the brightness temperatures (TB ) obtained through pre-processing
band 10 of Landsat-8 (see Section 2.2) to degrees Celsius (◦ C) [8] and calculated the emissivity-corrected
LST using Equation (7) [6,17,43]:

                                                          TB
                                    LST(◦ C) =                                                          (7)
                                                  1 + (λ × TB /ρ)Inε

where λ = wave- length of emitted radiance (λ = 10.8 µm, for Landsat-8 band 10 [8]); ρ = h × c/σ (1.438
× 10−2 m K), σ = Boltzmann constant (1.38 × 10−23 J/K), h = Planck’s constant (6.626 × 10−34 Js) and
c = velocity of light (2.998 × 108 m/s); and ε is the land surface emissivity.

2.4. Extraction of Land Cover
     Many studies have demonstrated that LST can be related to land cover, mainly impervious
surfaces [6,8,21] and green spaces [14,17,24], to comprehend the SUHI effect in urbanized landscapes.
In this study, we used the pre-processed Landsat-8 images to extract impervious surfaces and green
spaces using spectral indices. Several studies have shown the aptness of the spectral-based approach
in land cover extraction [8,9,28]. Our land cover extraction process was as follows. First, we used
the modified normalized difference water index (MNDWI) to extract water bodies and exclude them
from the images. The MNDWI has been proven to accurately discriminate water from non-water
features [44]. Equation (6) was used to compute the MNDWI for each study area [44]:

                                                  (ρGreen − ρSWIR1 )
                                      MNDWI =                                                           (8)
                                                  (ρGreen + ρSWIR1 )

where ρGreen and ρSWIR1 are the surface reflectance values of bands 3 and 6 of the Landsat-8
images, respectively.

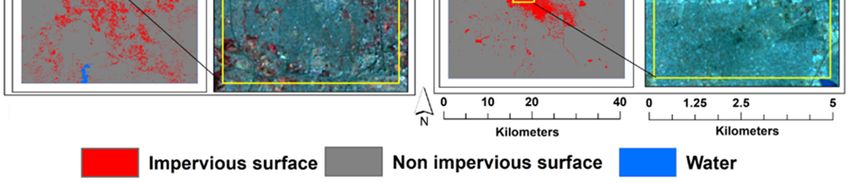

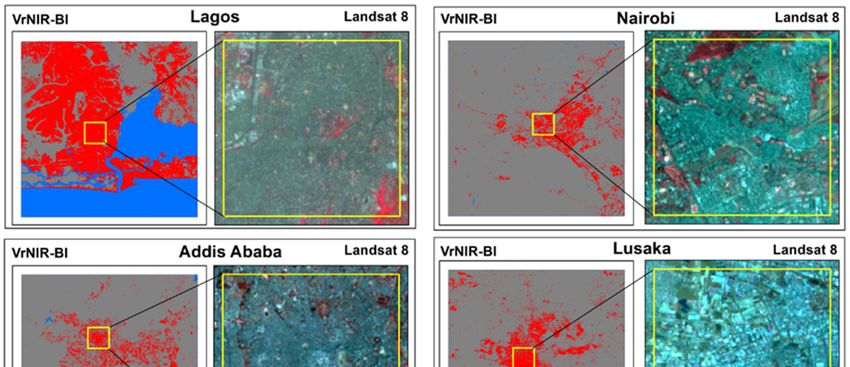

     Afterwards, we used the visible red and NIR-based built-up index (VrNIR-BI) to extract impervious
surfaces. One of the most noted spectral confusions in the land cover classification of African landscapes
is between the impervious surface (IS) and bare lands usually characterized by dry grasslands and
abandoned croplands. The VrNIR-BI can accurately separate impervious surfaces from bare lands [8].
The VrNIR-BI was recommended by [45] after comparing the index to six other spectral built-up
indices, including the commonly applied normalized difference built-up index (NDBI) [46] based on
Landsat ETM+ and Landsat OLI/TIRS images. Equation (9) was used to compute the VrNIR-BI for
each study area:
                                                   (ρRed − ρNIR )
                                       VrNIR-BI =                                                       (9)
                                                   (ρRed + ρNIR )
where ρRed and ρNIR are the surface reflectance values of bands 4 and 5 of the Landsat-8 images,
respectively. To extract the green spaces for each study area, we used the NDVI expressed in Equation
(6) above. NDVI is one of the extensively applied indices when relating LST to green spaces in
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote Sens. 2019, 11, 1645                                                                                   6 of 20

Remote Sens. 2019, 11, x FOR PEER REVIEW                                                                      6 of 21
SUHI studies [17]. Manual thresholding was applied to extract VrNIR-BI and NDVI after several
tests through
 through        visual
           visual      assessments
                  assessments  of theofindex
                                        the index
                                              mapsmapswith with
                                                           close close  reference
                                                                  reference  to thetoLandsat-8
                                                                                      the Landsat-8   images
                                                                                                 images        and
                                                                                                         and high-
high-resolution
 resolution GoogleGoogle
                     earthearth  imagery
                           imagery         in each
                                      in each  study study
                                                       area.area.
                                                             The The   thresholds
                                                                   thresholds        applied
                                                                                applied       to extract
                                                                                          to extract     VrNIR-BI
                                                                                                     VrNIR-BI   for
for Lagos,  Nairobi, Addis  Ababa   and   Lusaka    were  0.45, 0.565, 0.352 and   0.485, respectively.
 Lagos, Nairobi, Addis Ababa and Lusaka were 0.45, 0.565, 0.352 and 0.485, respectively. To extract      To extract
NDVI,
 NDVI,thethethresholds
             thresholdsapplied    were−0.425,
                         appliedwere     −0.425,−0.245,
                                                  −0.245, −0.169  and −0.315
                                                          −0.169 and           for Lagos,
                                                                       −0.315 for  Lagos, Nairobi,
                                                                                           Nairobi, Addis
                                                                                                     Addis Ababa
                                                                                                             Ababa
and
 and Lusaka,
      Lusaka,respectively
               respectively(see
                             (seeFigure
                                  Figure2 2for
                                             fora azoomed-in
                                                    zoomed-in  sample
                                                                 sample ofof
                                                                           VrNIR-BI
                                                                             VrNIR-BI  and  Landsat
                                                                                          and        8 imagery
                                                                                               Landsat           in
                                                                                                         8 imagery
each  study  area).
 in each study area).

      Figure  2. Zoomed-in
       Figure 2.  Zoomed-in sample
                             sample of
                                    of visible
                                       visible red
                                               red and
                                                   and NIR-based
                                                       NIR-based built-up
                                                                 built-up index
                                                                           index (VrNIR-BI)
                                                                                 (VrNIR-BI) and
                                                                                            and Landsat
                                                                                                Landsat 88
      imagery   in each study area.
       imagery in each study area.

     Finally,
     Finally,weweproduced   a land
                     produced         covercover
                                 a land      map for mapeachfor
                                                              study
                                                                 eacharea  containing
                                                                        study          four categories,
                                                                                area containing    four impervious
                                                                                                         categories,
surfaces, green  spaces,  other  and   water.   Impervious      surfaces  included   buildings,
impervious surfaces, green spaces, other and water. Impervious surfaces included buildings,      transport  utilities
and all other
transport     impervious
           utilities       areas.
                      and all  otherGreen   spaces comprised
                                       impervious                 forests,
                                                       areas. Green         grasscomprised
                                                                        spaces    and all healthy  green
                                                                                             forests,    vegetation
                                                                                                      grass  and all
cover, while  other  comprised    all land   cover   features  excluding    impervious   surface,
healthy green vegetation cover, while other comprised all land cover features excluding impervious green space and
water. Water
surface,      included
          green          the sea,
                  space and        lakes,
                               water.      rivers,included
                                        Water       streams, the
                                                               dams,
                                                                   sea,swamps,    reservoirs
                                                                         lakes, rivers,      and ponds.
                                                                                         streams,   dams,The  other
                                                                                                           swamps,
and water  categories   were  excluded    in  all further  analyses.
reservoirs and ponds. The other and water categories were excluded in all further analyses.

2.5. Analysis of Spatial Patterns
2.4. Analysis of Spatial Patterns
2.5.1. Urban–Rural Gradient Analysis
 2.4.1. Urban–Rural Gradient Analysis
      The aptness of the gradient analysis approach in revealing the distribution and spatial variations
       The aptness of the gradient analysis approach in revealing the distribution and spatial variations
of LST along the urban–rural areas has been shown in recent studies [8,28,29]. There are two main
 of LST along the urban–rural areas has been shown in recent studies [8,28,29]. There are two main
urban–rural gradient analysis methods that have been developed and applied in the literature. The first
 urban–rural gradient analysis methods that have been developed and applied in the literature. The
one is the use of directional transects running across the city center with their ends both extending to
 first one is the use of directional transects running across the city center with their ends both
the rural areas [47,48]. The second one applies concentric rings or zones around the city center with
 extending to the rural areas [47,48]. The second one applies concentric rings or zones around the city
standard distance intervals extending to the rural areas [8,48]. The concentric ring gradient analysis
 center with standard distance intervals extending to the rural areas [8,48]. The concentric ring
method is effective in cities exhibiting single-core urban growth patterns around the city center such as
 gradient analysis method is effective in cities exhibiting single-core urban growth patterns around
the four African cities in this study [8,28,49].
 the city center such as the four African cities in this study [8,28,49].
       Therefore, we used the concentric ring gradient analysis method to study the spatial patterns
 and influences of impervious surfaces, and green spaces on LST along the urban–rural landscape of
 each city. Considering that the urban development patterns of all the African cites in this study are
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote Sens. 2019, 11, 1645                                                                          7 of 20

      Therefore, we used the concentric ring gradient analysis method to study the spatial patterns and
influences of impervious surfaces, and green spaces on LST along the urban–rural landscape of each
city. Considering that the urban development patterns of all the African cites in this study are based on
the single-core concept, we selected the city center by identifying the oldest building around the city
center area in each city. We then created multiple concentric rings around the city center of each study
area with distance intervals of 200 m. Subsequently, the densities of impervious surfaces and green
spaces were determined in each zone and plotted across the urban–rural gradient for each study area.

2.5.2. SUHI Intensity Analysis
        The SUHI intensity is a well-known measure of the SUHI effect across the urban–rural landscape.
 It is generally defined as the difference in temperature between an urban and a rural area [50]. The SUHI
 intensity is calculated using either air temperature from meteorological data (e.g., [51,52]) or mean
 surface temperatures using satellite images [23]. Analyzing SUHI intensity patterns and their urban
 and rural area variations has remained an imperative part of SUHI studies [30,53].
        To analyze the SUHI intensity patterns, we divided the study areas into two major areas, urban
 and rural. To delineate the urban and rural areas, we estimated the urban area (also referred to as the
‘built-up footprint’), based on the physical extent of the impervious surface in each city. By way of
 justification, a wide range of social, economic, demographic, administrative or political indicators have
 been used to define urban areas, but there is no consensus on how to construct a consistent definition
 based on any single set of attributes [54]. For example, an administrative boundary of a city cannot
 be relied on as a means of defining an urban area as boundaries frequently change over time, are not
 comparable across cities and are usually over- or under-estimated [55]. The terms ‘urban area’ or
‘urban footprint’ are widely used to basically refer to the spatial extent of urbanized areas on a regional
 scale; a definition which is both fuzzy and inconsistent [56,57].
        As such, defining the urban area based on the physical extent of the built-up land (impervious
 surface), as adopted in most remote sensing urban studies (e.g., [58,59]), is the best potion. We used
 the concentric zones defined in Section 2.5.1 to determine the urban area, i.e., all concentric zones that
 contained impervious surfaces in each city. Accordingly, all concentric zones beyond the maximum
 radius of the urban or built-up footprint were considered as rural. We calculated the SUHI intensity by
 calculating the difference between the mean LST at the city center of each study area (i.e., the kilometer
 0) and the mean LST in each of the 200 m concentric zones created as outlined in Section 2.5.1 across
 the urban–rural landscape. Equation (7) was used to calculate the SUHI intensity for each study area:

                                   SUHI intensity = µLST0 − µLSTi                                     (10)

where µLST0 is the kilometer 0 mean LST at the city center of each study area and µLSTi is the mean
LST in each buffer zone (SZ), where i = 1,2,3 . . . . n and n is the total number of buffer zones in each
study area.

2.5.3. Urban Landscape Metrics Analysis
      One of our other interests in this study was to comprehend how the composition, shape, complexity
and spatial arrangement of impervious surfaces and green spaces could have influenced the spatial
distribution of LST across the landscape of each study area. The use of urban landscape metrics
has been widely proven to enhance the understanding of LST spatial variability in relation to the
configuration of landscape features (e.g., impervious surface and green spaces) [7,14,24,26]. In this
study, we selected five class level spatial metrics, patch density (PD), mean patch area (AREA_MN),
mean shape index (SHAPE_MN), mean fractal dimension index (FRAC_MN) and aggregation index
(AI). The descriptions and equations for calculating each selected spatial metric are presented in Table 2.
To relate the spatial metrics to LST distribution, each study area was first divided into 100 polygon
grids (4 km x 4 km). Then, impervious surfaces and green spaces in each polygon grid were extracted
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote Sens. 2019, 11, 1645                                                                                                                       8 of 20

and used in the computation of spatial metrics in each study area. We computed the class level spatial
metrics using Fragstats software (version 4.2v) [60]. We defined the patch neighbor using the 8-cell rule.

                                           Table 2. Selected class level spatial metrics.

   Metric (Abbreviation)                        Description                              Measure                          Equation
                                 Average patch area—total impervious
      Mean Patch Area            surface or green space area divided by                                                                n
                                                                                                                         1             P
                                                                                       Composition                   10,000×n      ×         ai
       (AREA_MN)                  number of their respective patches -                                                                 i=1
                                               (unit: km2 )
                                 The number of patches per unit area of
                                                                                    Composition and                           n
     Patch Density (PD)          impervious surface or green space (unit:                                                     A   × 106
                                                                                   spatial arrangement
                                          number per km2 ).
                                   Mean value of shape index—it is the
                                    simplest and most straightforward
                                   measure of shape complexity. MSI is
     Mean Shape Index                                                                                                     1       0.25 Pi
                                 greater than one; MSI = 1 would result           Shape and complexity                    n   ×     √
                                                                                                                                      ai
      (SHAPE_MN)
                                 if all impervious surface or green space
                                   patches were circular or square grids
                                               (unit: none).
                                    FRAC_MN also measures shape
                                 complexity. FRAC_MN approaches one
  Mean Fractal Dimension                                                                                              1       2 Ln 0.25 Pi
                                 for shapes with simple perimeters and            Shape and Complexity                n   ×         √
                                                                                                                                Ln ai
    Index (FRAC_MN)
                                 approaches two when shapes are more
                                         complex (unit: none).
                                 The tendency of impervious surface or
                                                                                                                                gi
   Aggregation Index (AI)          green space patches to be spatially             Spatial arrangement             AI =       max−gi       (100)
                                        aggregated (unit: none).
      Note: ai= area of patch i; n = number of patches; A = total class area; pi = perimeter of patch i; gi = number of like adjacencies
      (joins) between pixels of patch type (class) i based on the single-count method; max−gi = maximum number of like
      adjacencies (joins) between pixels of patch type (class) i based on the single-count method (details in [60]). A patch
      is defined as a relatively homogeneous area (i.e., impervious surface or green space in this study) that differs from its
      surroundings [61].

2.5.4. Statistical Analysis
     Statistical analysis was conducted using the Pearson correlation analysis and scatter plots to
examine the relationship of mean LST and the density of impervious surfaces and green spaces in each
of the 200 m buffer zones created as outlined in Section 2.5.1. We further conducted Pearson correlation
analysis to investigate the relationship between mean LST and spatial metrics based on the 100 grid
polygons created as outlined in Section 2.5.3 for each study area.

3. Results

3.1. LST Relationship with Impervious Surfaces and Green Spaces
      The LST and land cover maps for the study areas, Lagos, Nairobi, Addis Ababa and Lusaka, are
shown in Figures 3 and 4. Figure 5 shows the minimum, maximum and mean LST of impervious
surfaces and green spaces, and the percentage of impervious surfaces and green spaces relative to the
total landscape (40 km x 40 km) considered for each study area. The results revealed that Lagos had
the highest percentage of impervious surface (40%). Compared to Lagos, the other three cities had
very low percentages of impervious surface, i.e., Addis Ababa 12%, Lusaka 11% and the lowest being
Nairobi with 8%. However, Nairobi had the highest percentage of green spaces (32%) followed by
Lagos (25%), Addis Ababa (23%) and the lowest in Lusaka (20%) (Figure 5c).
      In terms of the relationship between mean LST and the impervious surfaces and green spaces,
the results revealed that cities with a higher percentage of impervious surface were warmer and vice
versa. The results showed that Lagos was the warmest city and Nairobi was the coolest city, while
Addis Ababa and Lusaka were slightly warmer than Nairobi but cooler than Lagos. Lagos recorded
the highest maximum and minimum LST values of impervious surfaces (i.e., 42.0 ◦ C and 25.1 ◦ C,
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote Sens. 2019, 11, 1645                                                                                                     9 of 20

respectively) while Nairobi recorded the lowest maximum and minimum LST values of impervious
surfaces (i.e., 33.5 ◦ C and 15.4 ◦ C, respectively). The mean LST of impervious surfaces in Lagos was
32.4 ◦ C and 27.8 ◦ C in Nairobi. Addis Ababa and Lusaka had a mean LST of impervious surfaces
of 29.5 ◦ C (Figure 5a). With regard to the LST of green spaces, Lagos still had the highest, with a
maximum of 41.2 ◦ C and a minimum of 24.6 ◦ C, and Nairobi still had the lowest, with maximum and
minimum LST values of 31.5 ◦ C and 16.5 ◦ C, respectively. For the mean LST of green spaces, Lagos
had 28.4 ◦ C, Lusaka had 27.7 ◦ C and Addis Ababa had 25.4 ◦ C, with the lowest being in Nairobi, 23 ◦ C
(Figure 5b).

3.2. LST Relationship with Impervious Surfaces and Green Spaces along the Urban–Rural Gradient
     According to the results, the relationships between mean LST and impervious surface and green
space density
           Remotealong    the
                  Sens. 2019, 11,urban–rural
                                  x FOR PEER REVIEWgradient of Nairobi, Addis Ababa and Lusaka had9similar               of 21  spatial
patterns (Figure 6). The impervious surface and green space density decreased and increased gradually
           versa. The results showed that Lagos was the warmest city and Nairobi was the coolest city, while
along the Addis
            urban–rural         gradient, respectively. However, the mean LST had a similar pattern with
                   Ababa and Lusaka were slightly warmer than Nairobi but cooler than Lagos. Lagos recorded
imperviousthesurfaces      within the
               highest maximum           andurban
                                              minimumfootprint,  decreasing
                                                         LST values             from surfaces
                                                                      of impervious     the city(i.e.,
                                                                                                  center
                                                                                                       42.0 to
                                                                                                             °Cthe
                                                                                                                 andmaximum
                                                                                                                     25.1 °C,    spatial
extent of the urban area
           respectively)    while(i.e.,  around
                                     Nairobi       the cross-point
                                              recorded                of impervious
                                                        the lowest maximum     and minimumand green      space
                                                                                                 LST values       density in Figure 6).
                                                                                                               of impervious
Beyond thesurfaces
             spatial(i.e.,  33.5 °C
                         extent     ofand
                                        the15.4  °C, respectively).
                                             urban    area, the meanThe mean   LST of impervious
                                                                        LST increased                surfaces
                                                                                             gradually,         in Lagos
                                                                                                            similar      was pattern of
                                                                                                                      to the
           32.4 °C and 27.8 °C in Nairobi. Addis Ababa and Lusaka had a mean LST of impervious surfaces of
green space   density. Unlike the other three cities, the mean LST and impervious surface density in
           29.5 °C (Figure 5a). With regard to the LST of green spaces, Lagos still had the highest, with a
Lagos decreased
           maximum   while
                         of 41.2the
                                  °C green     space density
                                      and a minimum              increased
                                                        of 24.6 °C,           through
                                                                    and Nairobi  still had the  urban–rural
                                                                                           the lowest,             gradient
                                                                                                        with maximum     and (Figure 6).
This could be because of urban area spatial extent in Lagos, which dominates the landscape with
           minimum      LST    values   of 31.5 °C  and 16.5 °C, respectively. For  the  mean  LST  of green   spaces, Lagos
almost no had   28.4
            rural     °C, Lusaka
                   areas              had 27.7
                              as defined      in°Cthis
                                                    andstudy.
                                                        Addis Ababa had 25.4 °C, with the lowest being in Nairobi, 23
             °C (Figure 5b).

                Figuresurface
      Figure 3. Land   3. Land surface temperature
                                temperature        (LST)
                                               (LST)     distribution in
                                                      distribution     inthe
                                                                          thestudy areas:
                                                                               study      Lagos,Lagos,
                                                                                       areas:    Nairobi,Nairobi,
                                                                                                          Addis Ababa
                                                                                                                  Addis Ababa
                and Lusaka.
      and Lusaka.
Spatial Analysis of Surface Urban Heat Islands in Four Rapidly Growing African Cities - MDPI
Remote
Remote Sens.Sens.
             2019,2019,
                    11, 11,
                        1645x FOR PEER REVIEW                                                                  10 of1021of 20

      Remote Sens. 2019, 11, x FOR PEER REVIEW                                                                10 of 21

                Figure 4. Land cover maps for the study areas: Lagos, Nairobi, Addis Ababa and Lusaka.
                Figure
            Figure     4. Land
                   4. Land     cover
                            cover    maps
                                  maps  forforthe
                                                thestudy
                                                    studyareas:
                                                         areas: Lagos,
                                                                Lagos,Nairobi,
                                                                       Nairobi,Addis
                                                                                AddisAbaba andand
                                                                                       Ababa   Lusaka.
                                                                                                  Lusaka.

      FigureFigure
          Figure  5.5.LST
              5. LST   LST distribution
                       distribution
                          distribution  and
                                      and
                                       andthethepercentage
                                            the  percentage of
                                                 percentage of impervious
                                                            of impervious surfaces
                                                               impervious  surfaces
                                                                          surfaces (IS) and
                                                                                      (IS)
                                                                                    (IS)    green
                                                                                           and
                                                                                         and      spaces
                                                                                               green
                                                                                             green       (GS)
                                                                                                     spaces
                                                                                                   spaces (GS) inin in
                                                                                                              (GS)
            each
      eacheach
           study study
                   area.
               study    area.
                       area.
areas along the urban–rural gradient (Figure 7). The correlation of impervious surfaces with mean
 LST in Lagos (r2 = 0.9483; slope = 0.0641) and Lusaka (r2 = 0.5766; slope = 0.0438) was relatively high
 compared to Nairobi (r2 = 0.2783; slope = 0.0258) and Addis Ababa (r2 = 0.1776; slope = 0.0186). In
 contrast, the correlation of green spaces with mean LST was relatively very low in Nairobi (r2 = 0.3085;
 slope = –0.0355) compared to Lagos (r2 = 0.9482; slope = –0.0676), Addis Ababa (r2 = 0.7881; slope11= of
Remote Sens. 2019, 11, 1645
                                                                                                       – 20
 0.0659) and Lusaka (r2 = 0.801; slope = −0.0199).

     Figure       Relationships
              6. Relationships
      Figure 6.                   between
                               between   the the
                                              LST LST  and impervious
                                                  and impervious          surfaces
                                                                   surfaces         andspaces
                                                                             and green   greenalong
                                                                                                 spacesthe along
                                                                                                           urban–the
     urban–rural    gradients  of Lagos  (a), Nairobi (b), Addis   Ababa   (c) and Lusaka   (d). Note:   Urban
      rural gradients of Lagos (a), Nairobi (b), Addis Ababa (c) and Lusaka (d). Note: Urban and rural were      and
     rural were   discerned based   on the physical  extent of the built-up  footprint
      discerned based on the physical extent of the built-up footprint for each city.  for each  city.

      The Pearson’s correlation results showed significant relationships (p < 0.001) between the mean
LST and the density of impervious surfaces (positive) and green spaces (negative) in all the study
areas along the urban–rural gradient (Figure 7). The correlation of impervious surfaces with mean
LST in Lagos (r2 = 0.9483; slope = 0.0641) and Lusaka (r2 = 0.5766; slope = 0.0438) was relatively
high compared to Nairobi (r2 = 0.2783; slope = 0.0258) and Addis Ababa (r2 = 0.1776; slope = 0.0186).
In contrast, the correlation of green spaces with mean LST was relatively very low in Nairobi
(r2 = 0.3085; slope = –0.0355) compared to Lagos (r2 = 0.9482; slope = –0.0676), Addis Ababa (r2 = 0.7881;
slope = –0.0659) and Lusaka (r2 = 0.801; slope = −0.0199).

3.3. SUHI Intensity Patterns along the Urban–Rural Gradient
     The SUHI intensity results also showed a different pattern in Lagos compared to Nairobi, Addis
Ababa and Lusaka (Figure 8). In Lagos, the SUHI intensity increased from 0.5 ◦ C to 4.0 ◦ C, which
indicated a high mean LST around the city center compared to other zones along the urban–rural
gradient. For Nairobi and Addis Ababa, the SUHI intensity results showed a similar pattern for Lagos
within the urban area but opposite in the rural areas. The SUHI intensity values for Nairobi ranged
from 0.5 ◦ C to 3.0 ◦ C along the urban area and reduced from 3.0 ◦ C to 1.0 ◦ C along the rural area.
The SUHI intensity values for Addis Ababa ranged from 0.5 ◦ C to 2.5 ◦ C along the urban area and
also reduced from 3.0 ◦ C to 1.0 ◦ C along the rural area. While Lusaka showed a somewhat similar
pattern to Nairobi and Addis Ababa, the SUHI intensity results generally showed an irregular pattern
of decreasing mean LST along the urban–rural gradient. The SUHI intensity values for Lusaka varied
from about −1.6 ◦ C to 0.2 ◦ C across the urban–rural gradient.
Remote Sens. 2019, 11, 1645                                                                                           12 of 20
        Remote Sens. 2019, 11, x FOR PEER REVIEW                                                           12 of 21

                 Correlation
      Figure 7. Figure        between
                       7. Correlation   mean mean
                                      between LST and
                                                   LST density of impervious
                                                       and density            surfaces
                                                                   of impervious surfaces(a–d) and
                                                                                          (a)–(d)   green
                                                                                                  and greenspaces (e–h).
                                                      spaces (e)–(h).
3.4. LST Relationship with Urban Landscape Metrics
     The correlations between mean LST and urban landscape metrics varied across the study areas,
with some variables having stronger positive and negative relationships for impervious surfaces and
green spaces, respectively, and others having no relationship at all. The composition variables (PD and
AREA_MN) had significant positive correlations with impervious surface mean LST in all the cities,
except for the PD in Lagos (p = 0.807) and Lusaka (p = 0.076), and the AREA_MN in Lusaka (p = 0.827).
For the complexity variables, SHAPE_MN showed no relationship with impervious surface mean LST
in Lagos (p = 0.180) and Lusaka (p = 0.758), while FRAC_MN had no relationship in all four cities.
Remote Sens. 2019, 11, x FOR PEER REVIEW                                                                 13 of 21

          3.3. SUHI Intensity Patterns along the Urban–Rural Gradient
               The SUHI intensity results also showed a different pattern in Lagos compared to Nairobi, Addis
Remote Sens. 2019, 11, 1645                                                                                              13 of 20
          Ababa and Lusaka (Figure 8). In Lagos, the SUHI intensity increased from 0.5 °C to 4.0 °C, which
          indicated a high mean LST around the city center compared to other zones along the urban–rural
          gradient. For Nairobi and Addis Ababa, the SUHI intensity results showed a similar pattern for Lagos
The spatial    arrangement variable (AI) had significant positive correlations with impervious surface
          within the urban area but opposite in the rural areas. The SUHI intensity values for Nairobi ranged
density mean
          from 0.5LST   in3.0
                    °C to  all°C
                               the  cities
                                  along  theexcluding
                                             urban area Lusaka    (p =from
                                                        and reduced    0.280).  Fortogreen
                                                                            3.0 °C    1.0 °C space   mean
                                                                                             along the  ruralLST,
                                                                                                              area.PD
                                                                                                                    Theshowed
a significant
          SUHInegative      correlation
                 intensity values          onlyAbaba
                                    for Addis    in Lagos,
                                                       rangedwhile
                                                               fromAREA_MN         had
                                                                     0.5 °C to 2.5 °C    significant
                                                                                       along  the urbannegative
                                                                                                         area andcorrelations
                                                                                                                    also
in all thereduced
            cities.from   3.0 °C to 1.0and
                     SHAPE_MN           °C along  the rural area.
                                             FRAC_MN        had While   Lusakapositive
                                                                  significant    showed acorrelations
                                                                                            somewhat similar
                                                                                                           withpattern
                                                                                                                 green space
mean LST  to Nairobi  and
             in all the     Addisexcept
                          cities,   Ababa,fortheFRAC_MN
                                                 SUHI intensity   results generally
                                                              in Nairobi             showed
                                                                           (p = 0.272).    Theancorrelation
                                                                                                  irregular pattern
                                                                                                               betweenof green
          decreasing mean LST along the urban–rural gradient. The SUHI intensity values for Lusaka varied
space mean LST and AI was insignificant only in Lagos (p = 0.085).
          from about −1.6 °C to 0.2 °C across the urban–rural gradient.

                 Urban
      Figure 8.Figure     heat island
                       8. Urban          intensity
                                 heat island        (∆(∆mean
                                             intensity    meanLST)     patternsalong
                                                                 LST) patterns   along
                                                                                     thethe urban–rural
                                                                                         urban–rural       gradients
                                                                                                     gradients        of Lagos
                                                                                                               of Lagos
      (a), Nairobi   (b), Addis
               (a), Nairobi       Ababa
                            (b), Addis     (c) and
                                        Ababa       Lusaka
                                               (c) and Lusaka(d).
                                                                (d).Note:  Urbanand
                                                                     Note: Urban   and   rural
                                                                                      rural    were
                                                                                            were     discerned
                                                                                                 discerned based based
                                                                                                                 on the on the
      physicalphysical
                extent extent
                         of theofbuilt-up
                                   the built-up footprint
                                            footprint  forforeach
                                                              eachcity.
                                                                    city.

       3.3. LST Relationship with Urban Landscape Metrics
4. Discussion
               The correlations between mean LST and urban landscape metrics varied across the study areas,
4.1. Influence of Impervious
         with some             Surfaces
                    variables having     and Green
                                     stronger       Spaces
                                              positive      on LSTrelationships for impervious surfaces and
                                                       and negative
         green spaces, respectively, and others having no relationship at all. The composition variables (PD
      In this  study, we conducted a comparative study of SUHIs in African cities by examining the
         and AREA_MN) had significant positive correlations with impervious surface mean LST in all the
relationship    of the spatial patterns, composition and configuration of impervious surfaces and green
         cities, except for the PD in Lagos (p = 0.807) and Lusaka (p = 0.076), and the AREA_MN in Lusaka (p
spaces with    LSTFor
         = 0.827).    using   Landsat-8variables,
                         the complexity    OLI/TIRS.    The results
                                                   SHAPE_MN             show
                                                                    showed  no that   Lagos, with
                                                                                 relationship  withimpervious
                                                                                                       the highest     percentage
                                                                                                                   surface
(40%) ofmean
          impervious       surfaces
                 LST in Lagos    (p = relative toLusaka
                                      0.180) and  the study(p = area,
                                                                0.758),was   the
                                                                         while    warmesthad
                                                                                FRAC_MN       city,noi.e., at least 3in◦ Callwarmer
                                                                                                       relationship
         four Ababa
than Addis      cities. The
                          andspatial
                                Lusaka    and 4 ◦ C variable
                                       arrangement    warmer(AI)   thanhad    significant
                                                                          Nairobi.         positive
                                                                                       These    resultscorrelations
                                                                                                           could bewith attributed
         impervious     surface density  mean  LST  in all  the cities excluding   Lusaka  (p =  0.280).
to Lagos being a megacity with a population of over 10 million people while the other three cities        For green  space

still have less than 5 million people [35]. These results are dissimilar to the findings of [8] in Asian
megacities, where they observed a city with the highest percentage of impervious surfaces to be the
coolest and attributed it to geographical location and background climate.
      On the other hand, Nairobi, with the highest and lowest percentage of green spaces and impervious
surfaces, respectively, was the coolest city, i.e., at least 5 ◦ C cooler than Lagos and Lusaka and 2 ◦ C

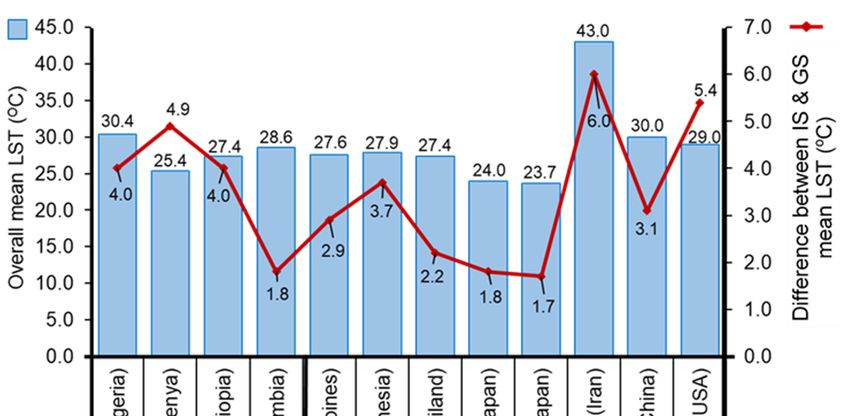

cooler than Addis Ababa. The ratio of green spaces to impervious surfaces was also highest in Nairobi
(4.0) and Lowest in Lagos (0.63), while Lusaka and Addis Ababa had ratios of 1.92 and 1.83, respectively.
Despite this, we observed that, although most African cities have a relatively larger green space to
impervious surface ratio (e.g., Addis Ababa, Nairobi and Lusaka) compared to cities in other regions,
the SUHI effect is still evident. This could be because impervious surfaces have a greater impact on
Remote Sens. 2019, 11, 1645                                                                                            14 of 20

surface temperature than green spaces [8,28,29,34]. Still, this means that, without the mitigating effect
of green spaces that provide the cool island effect, surface temperatures are expected to escalate. For
example, Lusaka, with the lowest percentage of green spaces, recorded the second highest overall
mean LST of 28.6 ◦ C, while Lagos, with the highest percentage of impervious surfaces, had 30.4 ◦ C.
Accordingly, Nairobi had the lowest overall mean LST of 25.4 ◦ C, while Addis Ababa recorded 27.4 ◦ C.
Interestingly, Lusaka had the least overall difference of 1.8 ◦ C between the mean LST of impervious
surfaces and green spaces compared to Lagos (4.0 ◦ C), Addis Ababa (4.0 ◦ C) and Nairobi (4.9 ◦ C).
      Our results are analogous to other SUHI studies in other regions based on Landsat data as shown
in Figure 9. For example, in Japan, the authors of [19] found overall mean LST values of 23.7 ◦ C and
24.0 ◦ C, with differences between the mean LST of impervious surfaces and green spaces of 1.7 ◦ C and
1.8 ◦ C in Tsukuba and Tsuchiura, respectively. The authors of [8] found overall mean LST values of
27.6 ◦ C, 27.9 ◦ C and 27.4 ◦ C with differences between the mean LST of impervious surfaces and green
spacesRemote
         of 2.9 ◦          ◦ C and 2.2 ◦ C in Manila (Philippines), Jakarta (Indonesia) and Bangkok (Thailand),
              Sens.C, 3.711,
                    2019,    x FOR PEER REVIEW                                                                      15 of 21
respectively. In the city of Tehran, Iran, the authors of [62] found both a much higher overall mean
       (Thailand),
LST (43.0    ◦ C) and respectively.
                         difference In(6 the
                                          ◦ C)city of Tehran,
                                               between          Iran, the
                                                          the mean     LSTauthors  of [62] found
                                                                            of impervious            both and
                                                                                               surfaces    a much   higher
                                                                                                                green   spaces .
       overall mean LST (43.0 °C) and difference (6 °C) between the mean LST of impervious surfaces◦and
In another study in Nanjing, China, the authors of [26] found an overall mean LST of 30.0 C and a
       green spaces . In another study in Nanjing, China, the authors of [26] found an overall mean LST of
3.1 ◦ C difference between the mean LST of impervious surfaces and green spaces. In a much earlier
       30.0 °C and a 3.1 °C difference between the mean LST of impervious              surfaces    and green spaces. In a
study,much
        the authors       of [17]
               earlier study,   thefound
                                    authors anofoverall  mean
                                                 [17] found   an LST
                                                                 overall  29.0 ◦LST
                                                                       of mean  C and    a 5.4°C◦ C
                                                                                     of 29.0        difference
                                                                                                  and            between the
                                                                                                       a 5.4 °C difference
meanbetween
        LST of the impervious
                       mean LSTsurfaces        and green
                                    of impervious    surfacesspaces   in Indianapolis
                                                                and green                 City, IN,City,
                                                                           spaces in Indianapolis      USA. IN,The
                                                                                                                USA. variations
                                                                                                                       The
in thevariations
        overall mean in theLST    in this
                              overall mean study
                                              LST and    thestudy
                                                   in this    otherand
                                                                     studies   cited
                                                                        the other     abovecited
                                                                                   studies     could   alsocould
                                                                                                    above     be attributed
                                                                                                                   also be to
geographical
       attributedlocation     and thelocation
                    to geographical     respectiveand local  climates.local climates.
                                                       the respective

            Figure 9. Overall mean LST and differences between the mean LST of impervious surfaces (IS) and
      Figure 9. Overall mean LST and differences between the mean LST of impervious surfaces (IS) and
           green spaces (GS) in African and other cities [8,17,19,26,62].
      green spaces (GS) in African and other cities [8,17,19,26,62].
      4.2. Influence
4.2. Influence       of Impervious
                of Impervious      Surfaces
                                Surfaces andand GreenSpaces
                                              Green   Spaceson
                                                            on LST
                                                               LST and
                                                                   andSUHI
                                                                       SUHIIntensity
                                                                            IntensityPatterns along
                                                                                       Patterns     the the
                                                                                                 along
      Urban–Rural
Urban–Rural Gradient Gradient.
            Considering the relatively small urban/built-up areas of Nairobi (8%), Addis Ababa (12%) and
    Considering the relatively small urban/built-up areas of Nairobi (8%), Addis Ababa (12%) and
     Lusaka (11%) against the unit area of analysis (40 km × 40 km) in this study, for discussion purposes,
Lusaka (11%) against the unit area of analysis (40 km × 40 km) in this study, for discussion purposes,
       we marked urban and rural ranges of the study areas based on the physical extent of the built-up
       footprint as defined in remote sensing urban studies (e.g., [58,59]) (see Figures 6 and 8 and Section
       2.4.2). While all the African cities present evidence of the SUHI phenomenon, the results show an
       interesting variation. Expectedly, the megacity Lagos, which is almost all urban, had the highest
       mean LST and UHI intensity in the zones close to the city center, which decreased gradually towards
       the rural zones. The pattern of mean LST, SUHI intensity and impervious surface density within the
Remote Sens. 2019, 11, 1645                                                                          15 of 20

we marked urban and rural ranges of the study areas based on the physical extent of the built-up
footprint as defined in remote sensing urban studies (e.g., [58,59]) (see Figures 6 and 8 and Section 2.5.2).
While all the African cities present evidence of the SUHI phenomenon, the results show an interesting
variation. Expectedly, the megacity Lagos, which is almost all urban, had the highest mean LST and
UHI intensity in the zones close to the city center, which decreased gradually towards the rural zones.
The pattern of mean LST, SUHI intensity and impervious surface density within the urban area of
Nairobi (0–7 km) and Addis Ababa (0–10 km) along the urban–rural gradient was somewhat similar to
Lagos, with the highest values at the 0 km zone and gradually decreasing to the cross-point of the
urban and rural ranges. The density of green spaces in the two cities gradually increased from the
0 km zone to the cross-point of the urban and rural ranges. Lusaka, on the other hand, showed an
irregular pattern of mean LST, with its peak at about 7 km within the urban area (0–10 km) range.
Likewise, the SUHI intensity results generally showed an irregular pattern similar to mean LST along
the urban–rural gradient. The pattern of the impervious surface and green space density in Lusaka
could help explain the irregular pattern of mean LST and SUHI intensity, which can be likened to
the findings of [8] in Bangkok and Manila. This is because, although the African cities in this study
generally have their green spaces located outside the urban zones, Lusaka appears to have some green
spaces within the urban area, especially in the eastern part of the city.
      Another key observation in this study was the gradual increase in the mean LST (low SUHI
intensity) in Nairobi, Addis Ababa and Lusaka within the defined rural area from the urban–rural
cross-point. This could be explained based on the land cover in the study areas. Unlike Lagos,
where the remaining land cover beyond the urban footprint was dominated by water, the other three
cities’ remaining land cover was mainly characterized by bare lands and abandoned crop fields. This
could have contributed to the observed higher LST values as bare lands can also elevate surface
temperatures [18,63].

4.3. Influence of Spatial Landscape Configuration on LST
     In this study, we used five spatial metrics (Table 3) to assess the influence of the spatial landscape
configuration (i.e., composition, shape, complexity and spatial arrangement) on mean LST. Generally,
the results show that the correlation between mean LST and the selected spatial metrics was statistically
significant, i.e., positive for impervious surfaces and negative for green spaces. These results are
consistent with several previous studies. For example, the authors of [6] found significant relationships
between mean LST and the PD of patches of residential impervious surfaces (positive) and urban
green spaces (negative) in Shanghai, China. In Baltimore, MD, USA, the authors of [7] correlated mean
LST with the AREA_MN and SHAPE_MN and found significant positive and negative relationships
from the patches of impervious surfaces and green spaces, respectively. The authors of [8] also found
significant relationships between mean LST and the AI of the patches of impervious surface (positive)
and green space (negative) in megacities in Asia.
     Our results indicate that cities with large and more aggregated patches of impervious surfaces
experience significant increases in LST, exacerbating the SUHI phenomena [7], than those with
fragmented smaller patches of the impervious surface [8]. Lagos, for example, had the largest patches
and showed significant correlation between mean LST and the AREA_MN and AI of the patches
impervious surfaces, which could explain the high surface temperatures in Lagos. Similarly, Nairobi
recorded significant correlation between mean LST and the AI of the patches of green spaces, despite
having large patches of green spaces. Addis Ababa and Lusaka had more dispersed patches of green
spaces. This explains the higher surface temperatures in Addis Ababa and Lusaka than in Nairobi.
This is in agreement with other studies that have shown that the size of green spaces is an important
factor in mitigating the SUHI effects [6,64]. The spatial arrangement of green spaces is also important
in providing the cool island effect [65]. Larger and contiguous green spaces produce stronger cool
island effects than those of several smaller patches of green space whose total area equals the large,
contiguous patches [14,65].
Remote Sens. 2019, 11, 1645                                                                                        16 of 20

                  Table 3. Correlations between mean LST and selected urban landscape metrics.

                              PD              AREA_MN           SHAPE_MN              FRAC_MN                 AI
   Study Area
                        r          Sig.       r       Sig.       r         Sig.        r     Sig.      r           Sig.
                                        Impervious Surface Mean LST vs.   Spatial Metrics
    Lagos             0.027        0.807    0.519     0.000    0.147       0.180     0.182   0.096   0.432         0.000
    Nairobi           0.339        0.002    0.383     0.001    0.277       0.014     0.148   0.197   0.402         0.000
  Addis Ababa         0.540        0.000    0.244     0.029    0.265       0.018     0.197   0.080   0.289         0.009
    Lusaka            0.199        0.076    0.025     0.827    0.035       0.758     0.097   0.391   0.122         0.280
                                           Green Space Mean LST vs. Spatial Metrics
    Lagos            −0.362        0.001    −0.316    0.004   −0.421     0.000    −0.378     0.000   −0.190        0.085
    Nairobi          −0.151        0.179    −0.281    0.011   −0.418     0.000    −0.123     0.272   −0.700        0.000
  Addis Ababa        −0.135        0.229    −0.221    0.047   −0.489     0.000    −0.485     0.000   −0.321        0.004
    Lusaka           −0.189        0.091    −0.313    0.004   −0.336     0.002    −0.298     0.007   −0.244        0.028

     More interestingly, the results consistently showed a low complexity of the impervious surface
patches in all the African cities. While other factors may be at play, it is plausible to speculate that this
could be caused by the unplanned urban developed pattern in Afrcian cities that tends to be clustered
around the city center [5]. This could also be the reason for the lack of greenspaces within the urban
area. Of note is that this pattern of development is dominated by highly dense informal settlements
that are more susceptible to the SUHI effect.

4.4. Implications for Mitigating SUHIs in African Cities
      The results of this study have shown that, although most African cities have a relatively larger
green space to impervious surface ratio compared to cities in other regions, the SUHI effect is still
evident. Altogether, we observed that there is a clear separation between the impervious surfaces and
green spaces in the African cities. Most of the green spaces are found beyond the urban area. This
could have emanated from the unplanned and uncontrolled urbanization of African cities that has
been well documented. Unplanned urban development has likely worsened the SUHI effects. This
means urban areas have continuously lost ecosystem services in the process. The observed high values
of mean LST and impervious surfaces within the zones close to the city center in this study present a
typical case of cities that follow central business district (CBD)-oriented urban development, which
characterizes most African cities. The implication is that urban planners and policy makers in African
cities, while attempting to control the unplanned development, should consider restoring the urban
ecosystems through a diverse set of habitats by increasing the amount of vegetation in the remaining
opens spaces such as parks, cemeteries, vacant lots, gardens and yards [66]. Increasing vegetation
cover or surface water could significantly decrease LST, and thus help to mitigate excess heat in urban
areas [7].
      This study supports the findings of various other SUHI studies in Africa and other regions that
recommend incorporating strategic combinations of impervious surfaces and green spaces in future
urban and landscape planning to mitigate the SUHI effect. Some of the mitigation strategies in other
studies proposed that African urban planners and policy makers could consider: The use of green walls
that can mitigate indoor temperatures in tropical countries by about 2.4 ◦ C [34,67]; the establishment
of green belts along the main roads and residential areas to promote cool islands that can reduce
heat stress and energy demand for urban dwellers [33]; as well as encouraging vertical, rather than
horizontal, urban development to preserve space for urban greening [68].

5. Conclusions
     Taking four cities, Lagos (Nigeria), Nairobi (Kenya), Addis Ababa (Ethiopia) and Lusaka (Zambia),
a comparative study of SUHIs in African cities was conducted by examining the relationship of the
spatial patterns, composition and configuration of impervious surfaces and green spaces with LST
using Landsat-8 OLI/TIRS data. The study employed various techniques: Urban–rural gradient, urban
Remote Sens. 2019, 11, 1645                                                                               17 of 20

heat island intensity, urban landscape metrics and statistical analysis. The results show a significantly
strong correlation between mean LST and the density of impervious surface (positive) and green space
(negative) along the urban–rural gradients of the four African cities. The study also found high urban
heat island intensities in the urban area zones within the 0 to 10 km distance from the city center,
where the density of green space is low. We also found significant correlations between the mean LST
and urban landscape metrics (patch density, size, shape, complexity and aggregation) of impervious
surfaces (positive) and green spaces (negative). The observed high values of mean LST and impervious
surfaces within the zones close to the city center in this study present a typical case of cities that follow
CBD-oriented urban development, which characterizes most African cities. We, therefore, suggest the
urban planners and policy makers in African cities should consider decentralizing through setting
up satellite economic zones in the periphery rural areas. The SUHI effects can then be mitigated by
restoring the urban ecosystems in the remaining open areas such as parks, cemeteries, vacant lots,
gardens, yards and campus areas; and blue spaces, mainly, streams, ponds and dams.
       This study has further revealed that, although most African cities have a relatively larger green
space to impervious surface ratio compared to cities in other regions, the SUHI effect is still evident.
We found that cities with a larger percentage of urban area relative to the study area unit were warmer,
i.e., they had mean LST values at least 3−4 ◦ C higher than the coolest city, resulting in strong SUHI
effects. Accordingly, the important mitigating effect of green spaces has been highlighted, with the
coolest city having the largest percentage of green space. Another important observation highlighted
in this study is that there is a general separation between the impervious surfaces and green spaces in
the African cities. Most of the green spaces are found beyond the urban area. The results revealed a
distinct variation in the relationship of mean LST with the density of impervious surfaces and green
spaces within and beyond the urban footprint, especially in the cities with relatively small urban
footprints. We attribute this to the unplanned and uncontrolled urbanization of African cities that
have potentially worsened the SUHI effects. It is therefore recommended that urban planners and
policy makers in African cities, while attempting to control the unplanned development, should
consider the dispersion of built-up areas and paved surfaces (e.g., buildings, roads and parking lots)
and maintaining or improving vegetation (e.g., grass, shrubs and trees) cover. The study, therefore,
provides useful information that can help control the effects of the uncontrolled and unplanned
urbanization in Africa to provide better urban environmental conditions for the urban dwellers and
further encourage sustainable urban development in African cities.
       In terms of future research, the current study did not evaluate the sensitivity to grid-spacing when
examining the influence of impervious surface and green space on LST in African cities. This is an area
worth investigating in future studies.

Author Contributions: All the authors (M.S., M.R., R.C.E. and Y.M.) participated in the research concept design
and implementation, data processing and analysis, and writing of the manuscript.
Funding: This research was supported by the Japan Society for the Promotion of Science (JSPS) through
Grant-in-Aid for Scientific Research (B) 18H00763 (2018-20, representative: Yuji Murayama).
Acknowledgments: The authors are grateful to the editor and the anonymous reviewers for their helpful comments
and suggestions to improve the quality of this paper.
Conflicts of Interest: The authors declare no conflicts of interest.

References
1.    Guneralp, B.; Shuaib, L.; Hillary, M.; Parnell, S.; Seto, K.C. Urbanization in Africa: Challenges and
      opportunities for conservation Urbanization in Africa: Challenges and opportunities for conservation.
      Environ. Res. Lett. 2018, 13. [CrossRef]
2.    Roxburgh, C.; Dörr, N.; Leke, A.; Tazi-Riffi, A.; Van Wamelen, A.; Lund, S.; Zeino-Mahmalat, T. Lions on the
      Move: The Progress and Potential of African Economies; McKinsey Global Institute: New York, NY, USA, 2010.
You can also read
Next slide ... Cancel
