Display Speakers and Soundbars Sound and Image in Perfect Harmony
Create impressive presentations and successful conferences
with our display speakers and soundbars.
We developed the speakers and soundbars These discreet speakers have the smallest
in our display series to unite high-quality possible dimensions and are available as
speech reproduction for video conferences standard models or made-to-measure
and a broad frequency spectrum for dynamic products, where the length and width are
music and film reproduction in a universally tailored to your display. This ensures that the
applicable speaker system. The active stereo display and speakers form an elegant visual
speaker systems are equipped with digital unit that can be seamlessly integrated into
signal processors and are tailored specifically a room’s architecture. Customers and other
to this area of application. They reproduce conference participants benefit from the
sound to the highest quality levels in confe- visual harmony and outstanding acoustics.
rence and media rooms of all sizes.
Individual display speakers from
600 mm up to 1600 mm height.
Individual soundbars from 960 mm up to 2350 mm width.
The DL-A 2.0 and SB-A 2.0 models are acti-
ve 2-way stereo systems with 100 watts of
amplifier power. They are ideal for small to
medium-sized conference rooms and multi-
media applications.
SB-A 2.0 / SB 2.0
The passive DL 2.0 and SB 2.0 models are
Active or Passive
designed for use with separate amplifiers.
The DL-A 2.2 and SB-A 2.2 models are
active 2-way stereo systems with integra-
ted subwoofers and 300 watts of amplifier
power. They are perfect for larger confe-
rence rooms and media rooms that require
DL-A 2.0 / DL 2.0
the sophisticated reproduction of music and
DL-A 2.2 SB-A 2.2
Active or passive Active film sound. Active
Special Features
Our display speakers and soundbars come The integrated automatic ON/OFF function
with high-quality aluminum cabinets and activates the speakers on receipt of an audio
trimless front grilles made of precision sheet signal.
metal. The minimalist design comes with a
The speakers switch back to sleep mode
uniform front view. The external dimensions
if they have not received a signal in fifteen
are reduced to the smallest possible size.
minutes. They do not require active operati-
The smaller DL-A 2.0 and SB-A 2.0 models on. In standby mode, power consumption
are just 48 mm deep. is less than 0.5 watts.
On request, we tailor the height of the display We individually manufacture our
speaker cabinets to your display or video wall. soundbars to the width of your display
or video wall.
We use highly efficient class D amplifier
modules and DSPs with multiband limiters
to ensure distortion-free sound reproduction
even at high volumes.

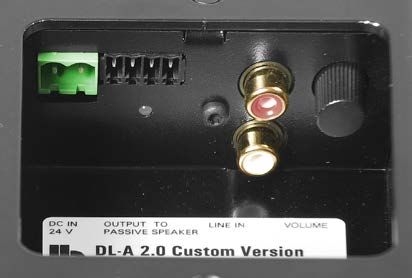

The connections for audio signals and power
supply are recessed at the back of the
speakers, allowing them to be installed with
minimum wall clearance.

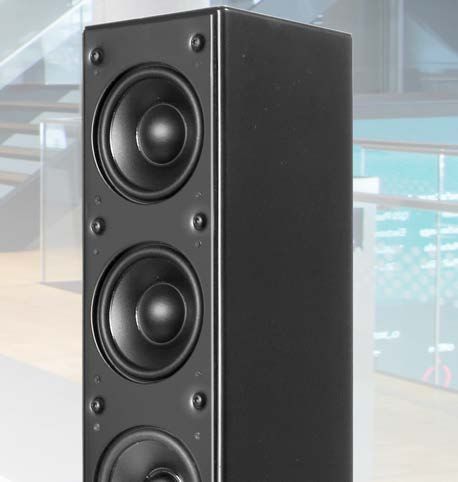

The combination of long excursion subwoofer
drivers and passive membranes enables
powerful, low-frequency characteristics.
The entire speech range is reproduced by
two highly linear, acoustic point sources
in the form of a highly efficient, full-range
drivers. This ensures that speech is repro-
duced to an outstanding level of quality.
Available Models
DL-A 2.0 DL-A 2.2
The DL-A 2.0 series consists of active The speakers’ linear frequency response Our active 2-way speaker pairs in the DL- A The speakers are designed to be positioned
speaker pairs with 2 x 50 watts of amplifier ensures low feedback in video conference 2.2 series are equipped with integrated on the side of a display, allowing even co-
power and an integrated digital signal and voice lift systems. multi-chamber subwoofers and DSP. They verage of the conference area and matching
processor. The cabinet is just 48 mm deep. have a total amplifier power of 300 watts of acoustic and visual perspectives.
The speakers are designed to be positioned
to the left and right of a display, making DL 2.0 and the cabinet is 103 mm deep.
This enables significantly higher playback
Speakers in the DL-A 2.2 series are particu-
larly suited for use in large conference and
them ideal for use in conference rooms – DL 2.0 passive models are designed for
volumes with powerful low-frequency media rooms, and for sophisticated music
the acoustic center of the speakers is in use with separate amplifiers and DSPs.
characteristics. and film sound reproduction.
the middle and therefore aligns with the
display’s visual center.
Dimensions
Beside the standard models DL-A 2.0
and DL-A 2.2 with a height of 700 mm,
Customized version 1200 ... 1600 mm
we manufacture customized versions
Customized version 1200 ... 1600 mm
of our display speakers tailored to the
specific height of individual display
Customized version 900 ... 1200 mm
Customized version 900 ... 1200 mm
models, available from 600 mm
(700 mm for DL-A 2.2) up to 1600 mm.
Customized version 700 ... 900 mm
Customized version 600 ... 900 mm
Key Features
• Conference rooms
• Stand-alone solutions in conference
rooms (DL-A 2.2)
• Exhibitions, trade fairs
DL-A 2.2-1200
DL-A 2.2-1600
DL-A 2.0-1200
DL-A 2.0-1600
• Presentations
DL-A 2.2-900
DL-A 2.0-900
DL-A 2.2
DL-A 2.0
• Gastronomy
• Sales rooms
Available Models
SB-A 2.0 SB-A 2.2 SB-A 2.0
Active stereo-soundbars with 2 × 50 Powerful active 2-way stereo-sound-
SB-A 2.0-1200 Customized version 960 ... 1200 mm
watts of amplifier power, integrated bars with total amplifier power of
digital signal processor and a cabinet 300 watts are equipped with
with just 48 mm deepth. The speakers integrated subwoofers and DSP.
SB-A 2.0-1600
are designed to be positioned below of The cabinet with a depth of 103 mm Customized version 1200 ... 1600 mm
a display, making them ideal for use in and the multi-chamber subwoofers
presentation- and sales rooms. enables significantly higher playback
volumes with powerful low-frequency SB-A 2.0-2000 Customized version 1600 ... 2000 mm
characteristics.
SB 2.0 The SB-A 2.2 series is particularly
SB-A 2.0-2350 Customized version 2000 ... 2350 mm
The passive soundbars SB 2.0 are de- suitable for use in larger conference-
signed for use with separate amplifiers and media rooms that require the
and DSPs. sophisticated reproduction of music
and film sound.
Dimensions Key Features
Beside the standard model SB-A • Conference rooms
SB-A 2.2 1200 mm
2.0 with a width of 960 mm and • Stand-alone solutions in
the standard model SB-A 2.2 with a conference rooms (SB-A 2.2)
width of 1200 mm, we manufacture • Exhibitions, trade fairs
SB-A 2.2-1600
customized versions of our soundbars • Presentations Customized version 1200 ... 1600 mm
tailored to the specific width of indi- • Gastronomy
vidual display models, available from • Sales rooms
960 mm (1200 mm for SB-A 2.2) up SB-A 2.2-2000 Customized version 1600 ... 2000 mm
to 2350 mm.
On request we provide multi-part
SB-A 2.2-2350 Customized version 2000 ... 2350 mm
soundbars for larger displays or video
walls.DL-VESA: mounts for display speakers
The DL-VESA 1150 up to DL-VESA 2400 For alignment to various displays the mounts
mounts are designed for fixing our speakers are adjustable in wide limits. We will be
on the display with VESA-Points at rear. pleased to support you to choose the right
DL-VESA model.
Model widht of display widht of carrier DL(-A) 2.0 DL-A 2.2
DL-VESA 1150 900 – 1150 mm 871 mm × — Backview: mounted display speaker with DL-VESA on display.
DL-VESA 1400 1150 – 1400 mm 1121 mm × ×
DL-VESA 1650 1400 – 1650 mm 1371 mm × ×
DL-VESA 1900 1650 – 1900 mm 1621 mm × ×
DL-VESA 2150 1900 – 2150 mm 1871 mm × ×
DL-VESA 2400 2150 – 2400 mm 2121 mm × ×
The mounts a suitable
Montage mit for all
DL-VESA 1900 standard
an einem VESA-points.
80"-Display mit VESA-Punkten 600 × 400
Befestigungspunkte VESA 200 ... 800
800
Wall-mounts for display speakers
600
400
200
WH 80 SH 50
Montage-Bereich VESA 200 ... 800
Gewindeeinsätze M 6
Befestigungspunkte
VESA 200 ... 400
200
300
400
400
600
Adjustable wall-mount for a wall distance Pivotable wall-mount with
from 35 – 110 mm. (two pairs are needed a wall distance of 30 mm.
for a speaker pair) (two pieces are needed for
a speaker pair)SB-VESA: mount for soundbars
The SB-VESA universal-mount is designed
for fixing our soundbars on the display with
VESA-Points at rear.
For alignment to various displays the mounts
are adjustable in wide limits.
Model for display sizes SB(-A) 2.0 SB-A 2.2
SB-VESA 1150 approx. 40“ – 100“ Zoll × ×
Backview: mounted soundbar with SB-VESA on display.
The mounts a suitable for all standard VESA-points.
Befestigungspunkte VESA 200 ... 800
800
600
Distanz 5 mm 400
200
Wall-mount for display speakers
Befestigungspunkte VESA 200 ... 400
WH 80
200
300
400
Adjustable wall-mount for a wall
distance from 35 – 110 mm.Technical Data
on
s
t
y
ty
tpu
ct i
int
cit
tivi
ly
Po
ne
nts
Ou
Am Capa
p
we e/
×H s
s
n si
up
(W sion
)
ty
tor
y
n
Po danc
×D
ing
e
nty
Ra uenc
er
Co
iple
tivi
rS
ols
on
Se
ec
et
t
plifi
r
del
ten
igh
rre
en
e
ins
nsi
bin
mp
we
ntr
nc
nn
ut
ng
pe
q
Dim
Wa
Mo
We
Fas
Fre
Inp
Ma
Se
Pri
Co
Ca
Co
Co
Po
Im
DL-A 2.0 Active stereo speaker pair 2 × 2.5“ full-range 55 Hz – — 2 × 50 max. Active speaker: Input cinch stereo, Aluminium, -6 dBU for full Volume External 90 – 80 × 700 × 103 mm 6 kg Threaded 3 years
(Standard) with class-D amplifiers drivers + 2 × 2.5“ 20 kHz watts 109 dB pluggable terminals to connect passive front modulation, control, power 240 (per speaker) (pair) inserts M 6
and DSP. Left speaker with woofers + 4 × 2.5“ (1m) speaker and external power supply, precision input-impe- LED ON/ supply V AC Height on measure at rear
DL-A 2.0-900
amplifier module, right passive radiators input cable mini jack 3.5 mm to cinch, steel grille, dance clip at back 24 V DC 600 – 900 mm
DL-A 2.0-1200 speaker passive. 1.5 m; Passive speaker: Connecting powder- 4.7 kohms 900 – 1200 mm
DL-A 2.0-1600 cable with plug coated 1200 – 1600 mm
(Customized)
DL-A 2.2 Active 2-way stereo 2 × 2.5“ full-range 42 Hz – — 2 × 50 + max. Active speaker: Input cinch stereo, Aluminium, -6 dBU for full Volume External 90 – 80 × 700 × 103 mm 9 kg Threaded 3 years
(Standard) speaker pair with class-D drivers + 6 × 2.5“ 20 kHz 2 × 100 112 dB pluggable terminals to connect passive front modulation, control, power 240 (per speaker) (pair) inserts M 6
amplifiers and DSP. woofers + 12 × watts (1m) speaker and external power supply, precision input-impe- LED ON/ supply V AC Height on measure at rear
DL-A 2.2-900 Left speaker with amplifier 2.5“ passive- input cable mini jack 3.5 mm to cinch, steel grille, dance clip at back 24 V DC 700 – 900 mm
DL-A 2.2-1200 module, right speaker radiators 1.5 m; Passive speaker: Connecting powder- 4.7 kohms 900 – 1200 mm
DL-A 2.2-1600 passive. cable with plug coated 1200 – 1600 mm
(Customized)
DL 2.0 Passive stereo speaker 2 × 2.5“ full-range 55 Hz – 2×4 — max. Pluggable terminals Aluminium, — — — — 80 × 700 × 48 mm 6 kg Threaded 3 years
(Standard) pair drivers + 2 × 2.5“ 20 kHz ohms 109 dB front (per speaker) (pair) inserts M 6
woofers + 4 × 2.5“ 2 × 50 (1m) precision Height on measure at rear
DL 2.0-900
passive radiators watts steel grille, 600 – 900 mm
DL 2.0-1200 powder- 900 – 1200 mm
DL 2.0-1600 coated 1200 – 1600 mm
(Customized)
SB-A 2.0 Active stereo soundbar 2 × 2.5“ full-range 55 Hz – — 2 × 50 max. Input cinch stereo, pluggable system Aluminium, -6 dBU for full Volume External 90 – 960 × 80 × 48 mm 5 kg Threaded 3 years
(Standard) with class-D amplifiers drivers + 2 × 2.5“ 20 kHz watts 109 dB terminals to connect external power front modulation, control, power 240 inserts M 6
and DSP woofers + 4 × 2.5“ (1m) supply, input cable mini jack 3.5 mm to precision input-impe- LED ON/ supply V AC Width on measure at rear
SB-A 2.0-1200
passive radiators cinch, 1.5 m steel grille, dance clip at back 24 V DC 960 – 1200 mm
SB-A 2.0-1600 powder- 4.7 kohms 1200 – 1600 mm
SB-A 2.0-2000 coated 1600 – 2000 mm
SB-A 2.0-2350 2000 – 2350 mm
(Customized)
SB-A 2.2 Active stereo soundbar 2 × 2.5“ full-range 42 Hz – — 2 × 50 + max. Input cinch stereo, pluggable terminals Aluminium, -6 dBU for full Volume External 90 – 1200 × 80 × 103 mm 8 kg Threaded 3 years
(Standard) with class-D amplifiers drivers + 5 × 2.5“ 20 kHz 2 × 100 112 dB to connect external power supply, front modulation, control, power 240 inserts M 6
and DSP woofers + 5 × 2.5“ watts (1m) input cable mini jack 3.5 mm to cinch, precision input-impe- LED ON/ supply V AC Width on measure at rear
SB-A 2.2-1600
passive radiators 1.5 m steel grille, dance clip at back 24 V DC 1200 – 1600 mm
SB-A 2.2-2000 (as of 1600 mm powder- 4.7 kohms 1600 – 2000 mm
SB-A 2.2-2350 width 6 × 2.5“ coated 2000 – 2350 mm
(Customized) woofers and
6 × 2.5“ passive
radiators)
SB 2.0 Passive stereo- 2 × 2.5“ full-range 55 Hz – 2×4 — max. Pluggable terminals Aluminium, — — — — 960 × 80 × 48 mm 5 kg Threaded 3 years
(Standard) soundbar drivers + 2 × 2.5“ 20 kHz ohms 109 dB front inserts M 6
woofers + 4 × 2.5“ 2 × 50 (1m) precision Width on measure at rear
SB 2.0-1200
passive radiators watts steel grille, 960 – 1200 mm
SB 2.0-1600 powder- 1200 – 1600 mm
SB 2.0-2000 coated 1600 – 2000 mm
SB 2.0-2350 2000 – 2350 mm
(Customized)
lb Lautsprecher und info@lb-lautsprecher.de Steinerstr. 15 K · 81369 Munich Errors and omissions excepted.
Beschallungstechnik GmbH www.lb-lautsprecher.de Tel +49 89 1893109-0 · Fax -29 © lb Lautsprecher und Beschallungstechnik GmbHYou can also read
