HyLIFT-EUROPE
Fuel Cell Materials Handling Vehicle Market
Developments in Europe
Cristina Maggi
FAST
Federazione delle Associazioni Scientifiche e Tecniche
Geneva, 14th March 2018
Fuel Cell Materials Handling Vehicle Market
Developments in Europe
1 •Materials handling vehicles powered by hydrogen
2
•HyLIFT-EUROPE Project overview
3
•State of the FC MHVs market in Europe
4
•State of the states worldwide
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 2
2-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
Material handling vehicles powered by fuel cell systems
FC forklifts and warehouse trucks
Increase of global consumerism
Governments concern about
increase of emissions
Source: STILL GmbH Source: STILL GmbH
Companies looking for innovative
Forklifts can be divided in classes from I to VII, however
and sustainable solutions only Class I, II, and III forklifts and some Class VI
forklifts are electric.
Type of transportation
Without losing efficiency and even Position of the operator. The load can range from
improving operational less than 1,000 lb to 20 tons
Daily usage
performance and reduce costs. Indoor or outdoor application
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 3
2-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
Advantages on fossil Advantages of fuel cell forklifts
fueled forklifts
No local pollutant emissions
No noise ENVIRONMENTAL BENEFITS
Vibrations are almost zero Fuel cell forklifts
Indoor environment and narrow aisles TIME SAVINGS
Low time and cost for maintenance and repair
No local emissions
3 minutes for refuelling SPACE SAVINGS
Advantages on battery
powered forklifts Full power for an entire shift
Good performance in cold HIGH RELIABILITY
Time savings for refuelling instead of battery
replacement environments
No power loss during the shift Possible indoor operation PRODUCTIVITY GAINS
No battery damage during low temperature No noise and vibration
operations Easy to maintain and repair LOWER OPEX
Reduced space requirements by removing
8-10 years life time
charging room LOWER LOGISTIC COSTS
Low time and cost for maintenance
Reduction of peak demand (electricity load
ENVIRONMENT VERSATILE
profile)
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 4
2-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
CALL: SP1-JTI-FCH.2011.4.1: Demonstration of fuel cell powered Materials Handling
Equipment vehicles including infrastructure
PROJECT AIM:
Plan and ensure supported market deployment of FCMHVs beyond 2018
PROJECT SPECIFIC OBJECTIVES:
1. Deploy more than 200 units of fuel cell powered materials handling vehicles and associated refuelling infrastructure in 2 relevant
sites in Europe, thus realizing the largest fleet deployment of hydrogen fuelled industrial trucks in Europe
2. Demonstrate the maturity of the hydrogen infrastructure as well as the safety of the use of hydrogen in industrial environment.
3. Validate the Total Cost of Ownership and the path towards commercial targets.
4. Provide a best practice guide for hydrogen refuelling stations to build, install and operate them in industrial context.
5. Disseminate the project results targeting early adopters of hydrogen solutions, policy makers, industry stakeholders and the general
public in order to create a network to support European industry.
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 5
2-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
From HyLIFT-DEMO to HyLIFT-EUROPE
HyLIFT-DEMO Sites 137
4 Stark, Denmark > 200 materials handling vehicles
2 Colruyt, Belgium 64 Saint-Cyr-en-Val
2 Egetæpper, Denmark
1 Several potential costumers, Frankfurt,
Germany
1 H2Logic, Denmark
Source: Air Liquide
1 Trials in Hamburg airport/Cologne/Bonn
airport, Germany
11 materials handling vehicles
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 6
2-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
First demonstration at Prelocentre Premises

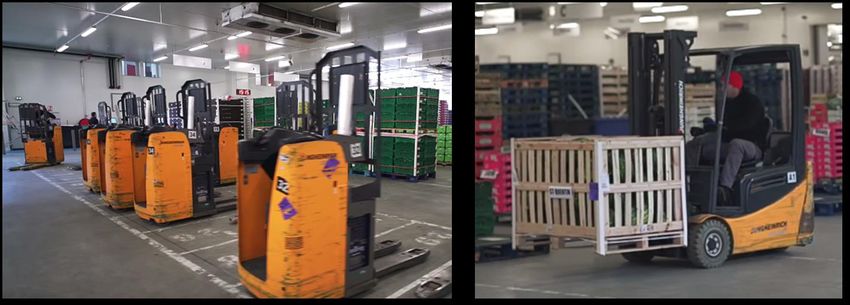

FC MHVs in operation
Source: Air Liquide Source: Air Liquide

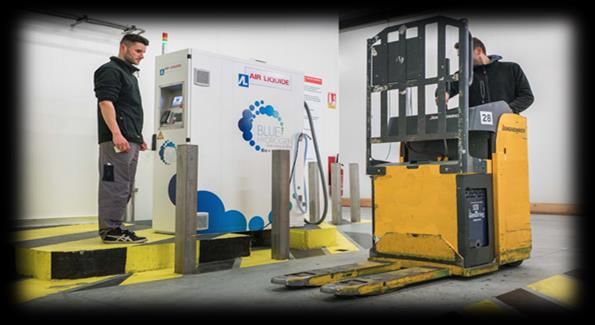

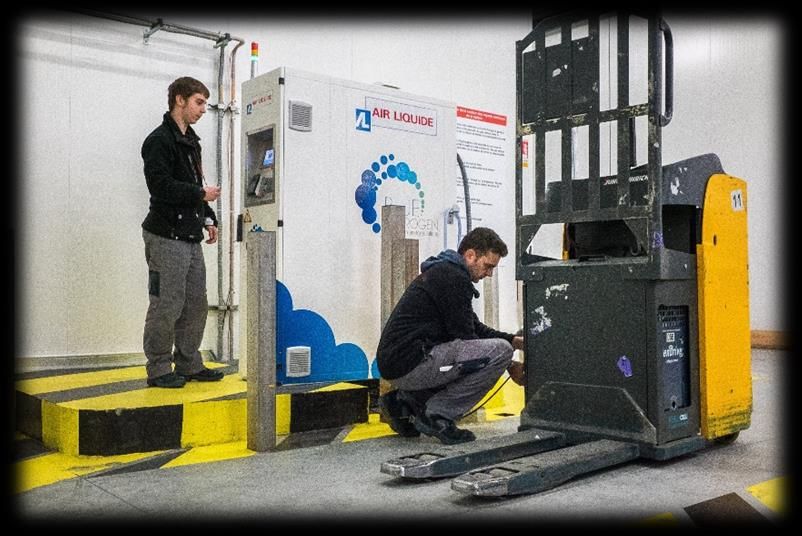

Hydrogen Refuelling Stations (HRS)
Source: Air Liquide

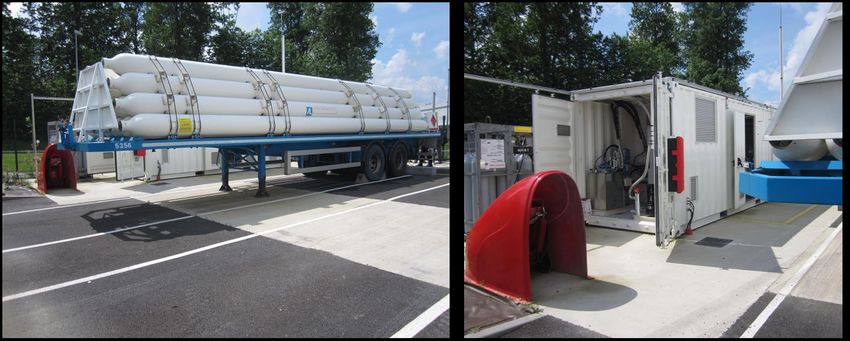

Hydrogen supply and compression station
Source: © Ludwig-Bölkow-Systemtechnik GmbH www.lbst.de
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 7
2-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
Prelocentre feedbacks after > 16 months of operation
Solution very easy to use for the workers
No major disturbance of the operations because of the use of
hydrogen fuel cells forklifts
Reliability of the technology with 100% availability of the fuel cell
thanks to the technician working on site for fuel cell maintenance.
The use of such an innovative technology is still motivating for all the
workers Source: Prelocentre
Based on this positive return of experience, Prelocentre confirms
that they will keep using the H2 fuel cells forklifts solution and
order additional products as the activities are significantly
increasing
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 8
2-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide

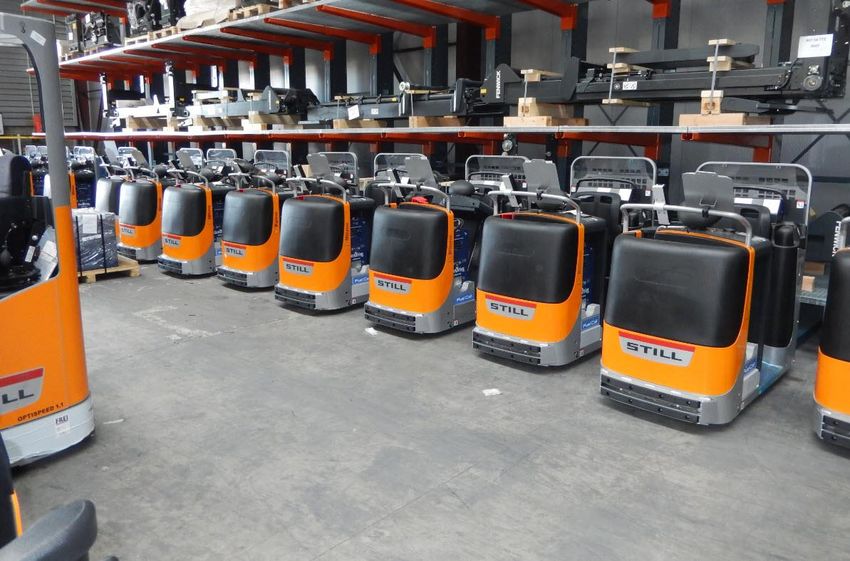

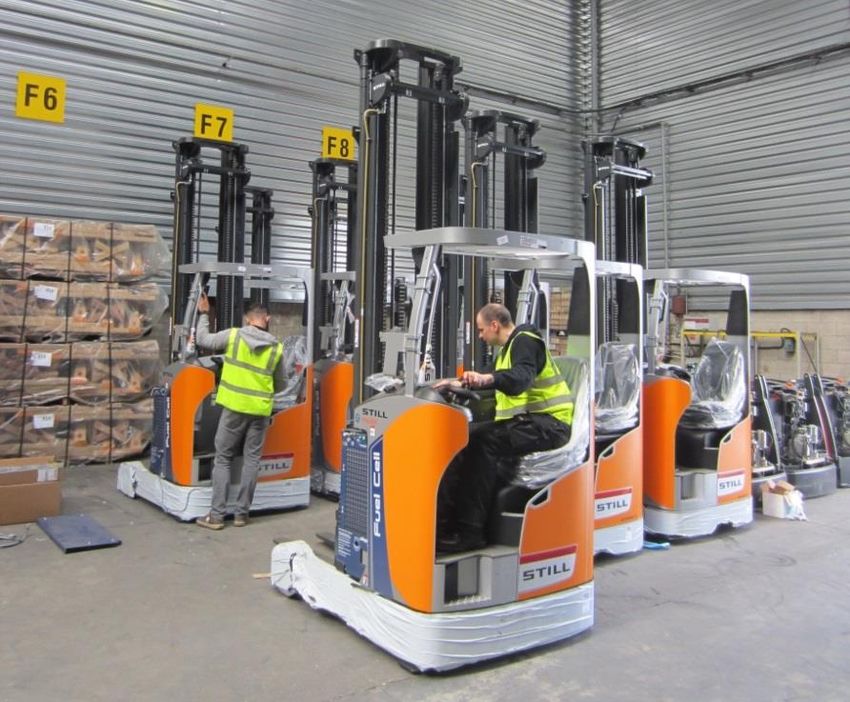

Second demonstration at other supermarket chain
Source: STILL GmbH Source: STILL GmbH
Work in progress….
Stay tuned!
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 9
2-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
FCMHVs level of deployment in Europe
Colruyt
Belgian supermarket company Colruyt plans to Asko
expand its fleet of 75 fuel cell forklifts
PlugPower has a deal with Toyota Material Handling
Norway to supply fuel cell forklifts to the warehouses of
the Norwegian grocer.
Honda UK Daimler
UK's first commercial-scale hydrogen BMW Chosen Air Products’ SmartFuel® hydrogen
refueling facility at a Honda site in refuelling technology to fuel heavy-duty fuel
Swindon, to refuel one forklift cell powered forklifts at the automaker’s
FM Logistic Mercedes Benz Sprinter vans manufacturing
site in Düsseldorf, Germany
FM Logistic´s site in Neuville aux
Bois (France) newly introduced a DB Schenker
fleet of 10 machines running on
hydrogen fuel cells, with a view to The first of a total of 10 pallet trucks with fuel cell
converting the site’s 84 forklifts into hybrid drive have been delivered to logistics
hydrogen-powered fuel cell trucks company in Austria. Using hydrogen reformed
IKEA onsite from biogas
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 102-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
Level of market evolution
Oct2017
Supported market Plug Power, received an order from Toyota Material
deployment Handling Norway to ship GenDrive systems to
Trondheim, where Nel ASA electrolyzers produce
beyond solar-sourced hydrogen at Norwegian wholesaler
Asko.
2018 Feb2018
Denmark-based Nel Hydrogen Solutions has signed
a contract for an H2Station®hydrogen fuelling
solution for Swedish steel producer SSAB EMEA to
Source: Air Liquide refuel large fuel cell powered forklifts.
Further improvements to allow this market to really take-off BMW, Mercedes Benz, Prelocentre…
Early adopters in Europe have paved the way to convince the industry are planning to scale up!
Results of HyLIFT-EUROPE sites will be decisive for further deployment in Europe
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 112-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
Last years evolution of the FCMHVs market worldwide
• 3000 deployed or on order in • Launch of H2USA • Linde reached 1 million hydrogen fuellings • 20000 forklifts
US • FCH JU under horizon at BMW’s plant in Spartanburg, South • Market share of Plug Power 95%
• HyLIFT-DEMO starts 2020 with a budget of Carolina. • Toyota material handling
• Procter & Gamble >200 €1.4 billion • Walmart >3,000 fuel cell forklifts operating announces deployments at ASKO
forklifts in California, • HyLIFT-EUROPE starts at almost a dozen North American sites • FC forklifts at Motomatchi Plant,
Louisiana and North Carolina • 75 forklifts deployed at Colruyt Toyota, in Japan
• Air Products, Suzuki Shokan to fuel Japan • Expansion of the fleet at Kansai
materials handling vehicles Airport by 20 - 30 vehicles per
year to approx. 100 vehicles.
2012 2014 2016
2011 2013 2015 2017
• >4,000 FCMHVs were operating at
nearly 40 locations in 19 states in
USA.
• Plug Power converted 72 lift
trucks from batteries to fuel cells • Boost from: Walmart, Ace • 14000 globally, 13500
at the Mercedes Benz facility in Hardware, and Central in North America
Tuscaloosa, Alabama. Grocers, 8000 only in USA. • Tax credit in USA expires
• Sysco >700 forklifts at 7 sites 31 Dec 2016
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 122-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
FCMHVs level of deployment in USA
Optimal Deployment Environments for FC MHVs
Large fleets – average fleet size in USA is
more than 100 FC MHVs
High utilization rate, 2-3 shifts
High productivity requirements
High labour costs
© Ludwig-Bölkow-Systemtechnik GmbH www.lbst.de
High electricity costs / low H2 costs
Indoor and outdoor operation
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 132-HyLIFT-EUROPE Project 3-State of the market of FC 4-State of the states
1- Forklifts powered by hydrogen
overview MHVs in Europe worldwide
Conclusions
The positive economic impact of the deployment doesn’t not make sense
everywhere, but mostly for large fleets, multi-shift operation, shared infrastructure.
Battery replacement can makes sense in special environment, however potential
environmental impact and LCA should be investigated.
Full-service packages with attractive TCO (including H2 supply!) engages end users
European manufacturers are not as far as North American ones
Financial support is still required in Europe. The transition from demo projects to
full commercialization of the products still needs to be pushed forward, but there
are already signals of developments
Networking of the European key players is necessary to create the lobby.
Cristina Maggi - FAST - Federazione delle Associazioni Scientifiche e Tecniche 14Thankyou for the attention
The project partners would like to thank the EU for establishing the fuel cells and
hydrogen framework and for supporting this activity.
Acknowledgement
The research leading to these results has received funding from the European Union´s 7th Framework Programme (FP7/2007-2013)
for the Fuel Cells and Hydrogen Joint Undertaking Technology Initiative under Grant Agreement Number 303451.You can also read
