Outatime: Using Speculation to Enable Low-Latency
Continuous Interaction for Mobile Cloud Gaming
Kyungmin Lee† David Chu‡ Eduardo Cuervo‡ Johannes Kopf‡
Yury Degtyarev◦ Sergey Grizan Alec Wolman‡ Jason Flinn†
† ‡
Univeristy of Michigan Microsoft Research
◦
St. Petersburg Polytechnic University Siberian Federal University
ABSTRACT 1. INTRODUCTION
Gaming on phones, tablets and laptops is very popular. Gaming is the most popular mobile activity, accounting
Cloud gaming — where remote servers perform game execu- for nearly a third of the time spent on mobile devices [18].
tion and rendering on behalf of thin clients that simply send Recently, cloud gaming — where datacenter servers execute
input and display output frames — promises any device the the games on behalf of thin clients that merely transmit
ability to play any game any time. Unfortunately, the reality UI input events and display output rendered by the servers
is that wide-area network latencies are often prohibitive; cel- — has emerged as an interesting alternative to traditional
lular, Wi-Fi and even wired residential end host round trip client-side execution. Cloud gaming offers several advan-
times (RTTs) can exceed 100ms, a threshold above which tages. First, every client can enjoy the high-end graphics
many gamers tend to deem responsiveness unacceptable. provided by powerful server GPUs. This is especially appeal-
In this paper, we present Outatime, a speculative execu- ing for mobile devices such as basic laptops, phones, tablets,
tion system for mobile cloud gaming that is able to mask up TVs and other displays lacking high-end GPUs. Second,
to 120ms of network latency. Outatime renders speculative cloud gaming eases developer pain. Platform compatibil-
frames of future possible outcomes, delivering them to the ity headaches and vexing per-platform performance tuning
client one entire RTT ahead of time, and recovers quickly — sources of much developer frustration [32, 40, 44] — are
from mis-speculations when they occur. Clients perceive lit- eliminated. Third, cloud gaming simplifies software deploy-
tle latency. To achieve this, Outatime combines: 1) future ment and management. Server management (e.g., for bug
state prediction; 2) state approximation with image-based fixes, software updates, hardware upgrades, content addi-
rendering and event time-shifting; 3) fast state checkpoint tions, etc.) is far easier than modifying clients. Finally,
and rollback; and 4) state compression for bandwidth sav- players can select from a vast library of titles and instantly
ings. play any of them. Sony, Nvidia, Amazon and OnLive are
To evaluate the Outatime speculation system, we use two among the providers that currently offer cloud gaming ser-
high quality, commercially-released games: a twitch-based vices [1–3, 10].
first person shooter, Doom 3, and an action role playing However, cloud gaming faces a key technical dilemma:
game, Fable 3. Through user studies and performance bench- how can players attain real-time interactivity in the face of
marks, we find that players strongly prefer Outatime to wide-area latency? Real-time interactivity means client in-
traditional thin-client gaming where the network RTT is put events should be quickly reflected on the client display.
fully visible, and that Outatime successfully mimics play- User studies have shown that players are sensitive to as little
ing across a low-latency network. as 60 ms latency, and are aggravated at latencies in excess
of 100ms [6,12,33]. A further delay degradation from 150ms
to 250ms lowers user engagement by 75% [9].
Categories and Subject Descriptors One way to address latency is to move servers closer to
C.2.4 [Computer-Communication Networks]: Distributed clients. Unfortunately, not only are decentralized edge servers
Systems—Distributed Applications; I.6.8 [Simulation and more expensive to build and maintain, local spikes in de-
Modeling]: Types of Simulation—Gaming mand cannot be routed to remote servers which further mag-
nifies costs. Most importantly, high latencies are often at-
tributed to the networks’s last mile. Recent studies have
Keywords found that the 95th percentile of network latencies for 3G,
Cloud gaming; Speculation; Network latency Wi-Fi and LTE are over 600ms, 300ms and 400ms, respec-
tively [21, 22, 35]. In fact, even well-established residential
Permission to make digital or hard copies of all or part of this work for personal or wired last mile links tend to suffer from latencies in excess of
classroom use is granted without fee provided that copies are not made or distributed 100ms when under load [5, 37]. Unlike non-interactive video
for profit or commercial advantage and that copies bear this notice and the full cita- streaming, buffering is not possible for interactive gaming.
tion on the first page. Copyrights for components of this work owned by others than Instead, we propose to mitigate wide-area latency via spec-
ACM must be honored. Abstracting with credit is permitted. To copy otherwise, or re-
ulative execution. Our system, Outatime,1 delivers real-time
publish, to post on servers or to redistribute to lists, requires prior specific permission
and/or a fee. Request permissions from permissions@acm.org. gaming interactivity as fast as — and in some cases, even
MobiSys’15, May 18–22, 2015, Florence, Italy.
Copyright c 2015 ACM 978-1-4503-3494-5/15/05 ...$15.00. 1
http://dx.doi.org/10.1145/2742647.2742656. Outatime : License plates of a car capable of time travel.
faster than — traditional local client-side execution, despite siveness on Outatime when operating at up to 120ms RTT
latencies up to 120ms. when compared head-to-head to a system with no latency.
Outatime’s basic approach is to employ speculative execu- Latencies up to 250ms RTT were even acceptable for less ex-
tion to render multiple possible frame outputs which could perienced players. Moreover, unlike in standard cloud gam-
occur RTT milliseconds in the future. While the funda- ing systems, Outatime players’ in-game skills performance
mentals of speculative execution are well-understood, the did not drop off as RTT increased up to 120ms. Over-
dynamism and sensitivity of graphically intensive twitch- all, player surveys scored Outatime gameplay highly. We
based interaction makes for stringent demands on specula- have also deployed Outatime to the general public on lim-
tion. Dynamism leads to rapid state space explosion. Sen- ited occasions and received positive reception [14, 19, 27, 39].
sitivity means users are able to (visually) identify incorrect While we have focused our evaluation on desktop and laptop
states. Outatime employs the following techniques to man- clients experiencing high network latency, our techniques are
age speculative state in the face of dynamism and sensitivity. broadly applicable to phone and tablet clients as well. Outa-
Future State Prediction: Given the user’s historical ten- time’s only client prerequisites are video decode and modest
dencies and recent behavior, we show that some categories GPU capabilities which are standard in today’s devices.
of user actions are highly predictable. We develop a Markov- The remainder of the paper is organized as follows. §2
based prediction model that examines recent user input to reviews game architectures and the impact of latency. §3
forecast expected future input. We use two techniques to im- presents an overview of the Outatime architecture. §4 and
prove prediction quality: supersampling of input events, and §5 detail our two main methods of speculation. §6 and §7
Kalman filtering to improve users’ perception of smoothness. discusses how we save, load and compress state. §8 intro-
duces application to multiplayer. §9 covers the implemen-
State Approximation: For some types of mispredictions,
tation. §10 evaluates Outatime via user study and perfor-
Outatime approximates the correct state by applying error
mance benchmarks. §11 covers related work and §13 dis-
compensation on the (mis)predicted frame. The resulting
cusses implications of the work.
frame is very close to what the client ought to see. Our mis-
prediction compensation uses image-based rendering (IBR),
a technique that transforms pre-rendered images from one 2. BACKGROUND & IMPACT OF LATENCY
viewpoint to a different viewpoint using only a small amount The vast majority of game applications are structured
of additional 3D metadata. around the game loop, a repetitive execution of the follow-
Certain user inputs (e.g., firing a gun) cannot be easily ing stages: 1) read user input; 2) update game state; and
predicted. For these, we use parallel speculative executions 3) render and display frame. Each iteration of this loop is
to explore multiple outcomes. However, the set of all possi- a logical tick of the game clock and corresponds to 32ms
ble states over long RTTs can be very large. To address this, of wall-clock time for an effective frame rate of 30 frames
we approximate the state space by subsampling it, and time per second (fps).2 The time taken for one iteration of the
shifting actual event streams to match event streams that game loop is the frame time. Frame time is a key metric
are “close enough” i.e., below players’ sensitivity thresholds. for assessing interactivity since it corresponds to the delay
These techniques greatly reduces the state space with mini- between a user’s input and observed output.
mal impact on the quality of interaction, thereby permitting Network latency has an acute effect on interaction for
speculation within a reasonable deadline. cloud gaming. In standard cloud gaming, the frame time
State Checkpoint and Rollback: Core to Outatime is must include the additional overhead of the network RTT,
a real-time process checkpoint and rollback service. Check- as illustrated in Figure 1a. Let time be discretized into 32ms
point and rollback prevents mispredictions from propagat- clock ticks, and let the RTT be 4 ticks (128ms). At t5 , the
ing forward. We develop a hybrid memory-page based and client reads user input i5 and transmits it to the server. At
object-based checkpoint mechanism that is fast and well- t7 , the server receives the input, updates the game state,
suited for graphically-intensive real-time simulations like games. and renders the frame, f5 . At t8 , the server transmits the
State Compression for Saving Bandwidth: Specula- output frame to the client, which receives it at t10 . Note
tion’s latency reduction benefits come at the cost of higher that the frame time incurs the full RTT overhead. In this
bandwidth utilization. To reduce this overhead, we develop example, an RTT of 128ms results in a frame time of 160
a video encoding scheme which provides a 40% bitrate re- ms.
duction over standard encoding by taking advantage of the
visual coherence of speculated frames. The final bitrate 3. GOALS AND SYSTEM ARCHITECTURE
overhead of speculation depends on the RTT. It is 1.9× for
120ms. For Outatime, responsiveness is paramount; Outatime’s
To illustrate Outatime in the context of fast interaction, goal is to consistently deliver low frame times (< 32ms) at
we evaluate Outatime’s prediction techniques using two ac- high frame rate (> 30fps) even in the face of long RTTs.
tion games where even small latencies are disadvantageous. In exchange, we are willing to transmit a higher volume of
Doom 3 is a twitch-based first person shooter where re- data and potentially even introduce (small and ephemeral)
sponsiveness is paramount. Fable 3 is a role playing game visual artifacts, ideally sufficiently minor that most players
with frequent fast action combat. Both are high-quality, rarely notice.
commercially-released games, and are very similar to phone The basic principle underlying Outatime is to specula-
and tablet games in the first person shooter and role playing tively generate possible output frames and transmit them to
genres, respectively. the client a full RTT ahead of the client’s actual correspond-
Through interactive gamer testing, we found that even ex- ing input. As shown in Figure 1b, the client sends input as
perienced players perceived only minor differences in respon- 2 1
≈ 32ms for mathematical convenience.
30f ps
TICK = 33ms TICK = 33ms
i5 => f5: rendering for t5 i0 => i’1, i’2, …, i’5 => f’5: prediction for t5
Server Server
t7 t8 t9 t2 t3 t4
…. …. …. …. …. …. …. ….
Client Client
t0 t1 t2 t5 t6 t7 t10 t11 t12 t0 t1 t2 t5 t6 t7 t10 t11 t12
i5: input for t5 f5: frame for t5 i0: input for t0 i5 f’5: frame for t5
frame time frame time
(a) Standard cloud gaming: Frame time depends on net latency. (b) Outatime: Frame time is negligible.
Figure 1: Comparison of frame delivery time lines. RTT= 4 ticks, server processing time = 1 tick.
Client Server impulse, consists of events that are inherently sporadic such
Restore from Update Checkpoint to
as firing a weapon or activating an object, yet are fundamen-
Sample Input tal to the player’s perception of responsiveness. For exam-
Mis-speculation* Simulation Updated State
ple, in first person shooters, instantaneous weapon firing is
core to gameplay. Unlike navigation inputs, the sporadic na-
Navigation: Supersampled Impulse: Parallel
Markov Prediction Timeline Speculation
ture of impulse events makes them less amenable to predic-
tion. Instead, Outatime generates parallel speculations for
Display Frame multiple possible future impulse time lines. To tame state
RTT < threshold? Event Time Shifting space explosion, Outatime subsamples the state space and
Image-Based YES NO time shifts impulse events to the closest speculated timeline.
Rendering This enables Outatime to provide the player the perception
Kalman Shake Partial Cube Map +
Decode Reduction* Depth Map Rendering* that impulse is handled instantaneously. Besides navigation
Bitstream and impulse, we classify other input that is slow relative to
RTT as delay tolerant. One typical example of delay toler-
RX Bitstream TX Bitstream Joint Video Encoding ant input is activating the heads-up display. Delay tolerant
* As needed input is not subject to speculation, and we discuss how it is
handled in §5.
Figure 2: The Outatime Architecture. Bold boxes represent Figure 2 also shows how Outatime’s server and client are
the main areas of this paper’s technical focus. equipped to deal with speculations that are occasionally
wrong. The server continually checkpoints valid state and
restores from (mis-)speculated state at 30 fps. The client ex-
before; at t0 , the client sends the input i0 which happens to ecutes IBR — a very basic graphics procedure — to compen-
be the input generated more than one RTT interval prior sate for navigation mispredictions when they occur. Other-
to t5 . The server receives i0 at t2 , computes a sequence of wise, Outatime, like standard cloud gaming systems, makes
probable future input up to one RTT later as i01 , i02 , ..., i05 (we minimal assumptions about client capabilities. Namely, the
use 0 to denote speculation), renders its respective frame f50 , client should be able to perform standard operations such as
and sends these to the client. Upon reception at the client decode a bitstream, display frames and transmit standard
at time t5 , the client verifies that its actual input sequence input such as button, mouse, keyboard and touch events. In
recorded during the elapsed interval matches the server’s contrast, high-end games that run solely on a client device
predicted sequence: i1 = i01 , i2 = i02 , ..., i5 = i05 . If the input can demand much more powerful CPU and GPU processing,
sequences match, then the client can safely display f50 with- as we show in §10.
out modification because we ensure that the game output is
deterministic for a given input [11]. If the input sequence
differs, the client approximates the actual state by applying
error compensation to f50 and displays a corrected frame.
We describe error compensation in detail in §4.5. Unlike 4. SPECULATION FOR NAVIGATION
in standard cloud gaming where clients wait more than one Navigation speculation entails predicting a sequence of fu-
RTT for a response, Outatime immediately delivers response ture navigation input events at discrete time steps. Hence,
frames to the client after the corresponding input. we use a discrete time Markov chain for navigation infer-
Speculation performance in Outatime depends upon be- ence. We first describe how we applied the Markov model
ing able to accurately predict future input and generate its to input prediction, and our use of supersampling to improve
corresponding output frames. Outatime does this by iden- the inference accuracy. Next, we refine our prediction in one
tifying two main classes of game input, and building specu- of two ways, depending on the severity of the expected er-
lation mechanisms for each, as illustrated in Figure 2. The ror. We determine the expected error as a function of RTT
first class, navigation, consists of input events that control from offline training. When errors are sufficiently low (typi-
view (rotation) and movement (translation) and modify the cally corresponding to RTT< 40ms), we apply an additional
player’s field of view. Navigation inputs tend to exhibit Kalman filter to reduce video “shake”). Otherwise, we use
continuity over short time windows, and therefore Outatime misprediction compensation on the client to post-process the
makes effective predictions for navigation. The second class, frame rendered by the server.
4.1 Basic Markov Prediction its more frenetic gameplay. Based on subjective assessment,
We construct a Markov model for navigation. Time is prediction error below 4◦ is under the threshold at which
quantized, with each discrete interval representing a game output frame differences are perceivable.
tick. Let the random variable navigation vector Nt represent Based on these results, we make two observations. First,
the change in 3-D translation and rotation at time t: for RTT ≤ 40ms (where 98% and 93% of errors are less than
Nt = {δx,t , δy,t , δz,t , θx,t , θy,t , θz,t } 4◦ for Doom 3 and Fable 3 respectively), errors are suffi-
ciently minor and infrequent. Note that the client can de-
Each component above is quantized. Let nt represent an tect the magnitude of the error (because it knows the ground
actual empirical navigation vector received from the client. truth), and drop any frames with excessive error. A frame
Our state estimation problem is to find the maximum like- rate drop from 30fps to 30 × 0.95 = 28.5fps is unlikely to af-
lihood estimator N̂t+λ where λ is the RTT. fect most players’ perceptions. For RTT > 40ms, we require
Using the Markov model, the probability distribution of additional misprediction compensation mechanisms. Before
the navigation vector at the next time step is dependent discussing both of these cases in turn, we first address the
only upon the navigation vector from the current time step: question of how much training is needed for successful ap-
p(Nt+1 |Nt ). We predict the most likely navigation vector plication of the predictive model.
N̂t+1 at the next time step as:
N̂t+1 = E[p(Nt+1 |Nt = nt )] 4.3 Bootstrap Time
= argmax p(Nt+1 |Nt = nt ) Construction of a reasonable Markov Model requires suf-
Nt+1
ficient training data collected during an observation period.
where Nt = nt indicates that the current time step has been Figure 5 shows that prediction error improves as observation
assigned a fixed value by sampling the actual user input time increases from 30 seconds to 300 seconds, after which
nt . In many cases, the RTT is longer than a single time the prediction error distribution remains stable. Somewhat
step (32ms). To handle this case, we predict the most likely surprisingly, having test players different from training play-
value after one RTT as: Y ers only marginally impacts prediction performance as long
N̂t+λ = argmax p(Nt+1 |Nt = nt ) p(Nt+i+1 |Nt+i ) as test and train players are of similar skill level. Therefore,
Nt+λ
i=1..λ−1 we chose to use a single model per coarse-grained skill level
where λ represents the RTT latency expressed in units of (novice or experienced) which is agnostic of the player.
clock ticks.
Our results indicate that the Markov assumption holds up 4.4 Shake Reduction with Kalman Filtering
well in practice: namely, Nt+1 is memoryless (i.e., indepen- While the Markov model yields high prediction accuracy
dent of the past given Nt ). In fact, additional history in for RTT< 40ms, minor mispredictions can introduce a dis-
the form of longer Markov chains did not show a measur- tracting visual effect that we describe as video shake. As a
able benefit in terms of prediction accuracy. Rather than simple example, consider a single dimension of input such
constructing a single model for the entire navigation vector, as yaw. The ground truth over three frames may be that
instead we treat each component of the vector N indepen- the yaw remains unchanged, but the prediction error might
dently, and construct six separate models. The benefit of be +2◦ , −3◦ , +3◦ . Unfortunately, the user would perceive a
this approach is that less training is required when estimat- shaking effect because the frames would jump by 5◦ in one
ing N̂ , and we observed that this assumption of treating the direction, and then 6◦ in another. From our experience with
vector components independently does not hurt prediction early prototypes, the manifested shakiness was sufficiently
accuracy. Below in §4.3, we discuss the issue of training in noticeable so as to reduce playability.
more detail. We apply a Kalman filter [25] in order to compensate for
4.2 Supersampling video shake. The filter’s advantage is that it weighs esti-
mates in proportion to sample noise and prediction error.
We further refine our navigation predictions by supersam-
Conceptually, when errors in past predictions are low rela-
pling: sampling input at a rate that is faster than the game’s
tive to sample noise, predictions are given greater weight for
usage of the input. Supersampling helps with prediction ac-
state update. Conversely, when measurement noise is low,
curacy because it lowers sampling noise. To construct a
samples make greater contribution to the new state. For
supersampled Markov model, we first poll the input device
space, we omit technical development of the filter for our
at the fastest rate possible. This rate is dependent on the
problem. One interesting filter modification we make is that
specific input device. It is at least 100Hz for touch digitizers
we extend the filter to support error accumulation over vari-
and at least 125Hz for standard mice. With a 32ms clock
able RTT time steps; samples are weighed against an RTT’s
tick, we can often capture at least four samples per tick.
worth of prediction error.
We then build the Markov model as before. The inference is
Using the Kalman formulation, we assume a linear model
similar to the equation above, with the main difference being
+
with Gaussian noise, that is:
the production operator incrementing by i = 0.25. A sum- Nt+1 = ANt + ω (1)
mary of navigation prediction accuracy from the user study
described in §10 is shown in Figure 3. Most dimensions of nt = Nt + ν (2)
rotational and translational displacement exhibit little per- for some state transition matrix A and white Gaussian noise
formance degradation with longer RTTs. Yaw (θx ), player’s ω. We assign A = {aij } as a matrix which encodes the
horizontal view angle, exhibits the most error, and we show maximum likelihood Markov transitions where aij = 1 if
its performance in detail in Figure 4 for user traces collected i = nt and j = N̂t+λ , and zero otherwise; ω = N (0, Qω ) is a
from both Doom 3 and Fable 3 at various RTTs from 40ms normal distribution where Qω is the covariance matrix of the
to 240ms. Doom 3 exhibits greater error than Fable 3 due to dynamic noise; ν = N (0, Qν ) is a normal distribution where
1
1 1
0.8
0.8 0.8
30 seconds
CDF (%)
0.6
CDF (%)
CDF (%)
0.6 0.6 60 seconds
RTT 40ms RTT 40ms 90 seconds
0.4
0.4 RTT 80ms 0.4 RTT 80ms 150 seconds
RTT 160ms RTT 160ms 0.2 300 seconds
0.2 0.2
RTT 240ms RTT 240ms 450 seconds
0 0 0
0 50 100
0 20 40 0 20 40
Prediction Error (degree) Prediction Error (degree)
Prediction Error (degree)
Figure 3: Doom 3 Navigation (a) Doom 3 (b) Fable 3 Figure 5: Error Decreases
Prediction Summary. Roll with More Observation Time.
(θz ) is not an input in Doom 3 Figure 4: Prediction for Yaw (θx ), the navigation component Data is for Fable 3 at RTT=
and need not be predicted. with the highest variance. Error under 4◦ is imperceptible. 160ms.
Qν is the covariance matrix of the sampling noise. We assign
covariances Qω and Qν based on a priori observations.
For the base case where the RTT is one clock tick, we
generate navigation predictions N̂t+1|t for time t + 1 given
observations up to and including t as follows: ,
N̂t+1|t = AN̂t|t (3)
Similarly, navigation error covariance predictions Pt+1|t are

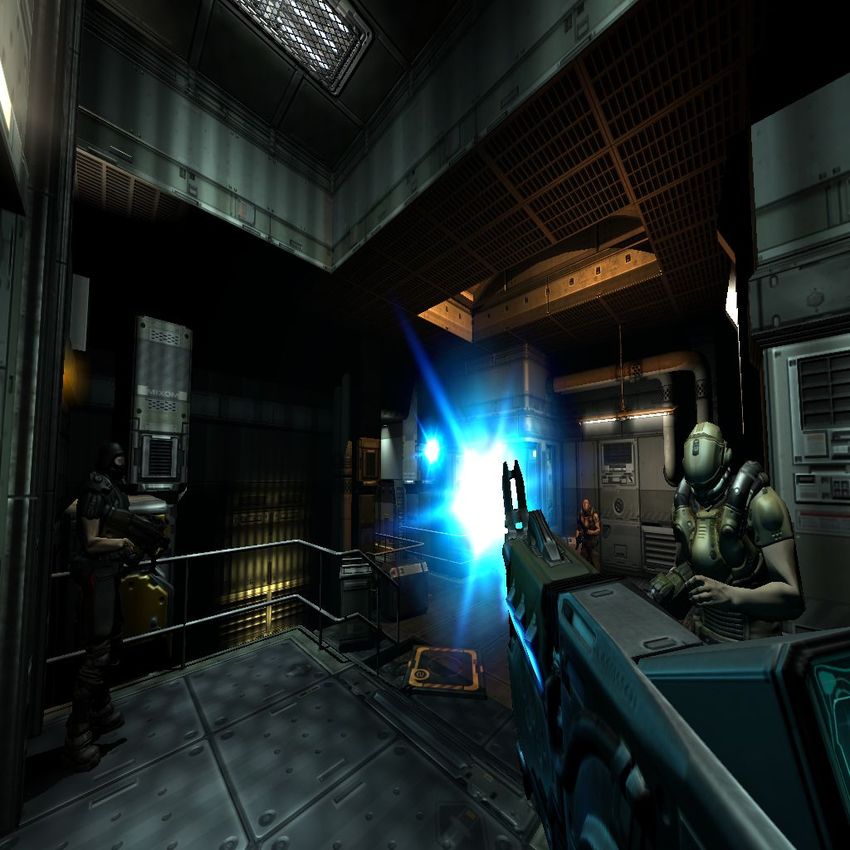

Input Image Input Depth Output Image
computed as follows.
Pt+1|t = APt|t AT + Qω (4) Figure 6: Image-based Rendering Example w/ Fable 3. For-
When a new measurement nt arrives, we update the esti- ward translation and leftward rotation is applied. The dog
mate of both the navigation prediction and its error covari- (indicated by green arrow) is closer and toward the center
ance at the current time step as: after IBR.
N̂t|t = N̂t|t−1 + Gt (nt − N̂t|t−1 ) (5)
Pt|t = Pt|t−1 − Gt Pt|t−1 (6) 4.5.1 Image-based Rendering
where Gt is the Kalman gain, which is: We compensate for mispredictions with image-based ren-
Gt = Pt|t−1 [Pt|t−1 + Qv ]−1 (7) dering (IBR). IBR is a means to derive novel camera view-
Lastly, we initialize the Kalman filter based on the a priori points from fixed initial camera viewpoints. The specific
distribution: N̂1|0 = E[N1 ]. implementation of IBR that we use operates by having ini-
Note the feedback loop between the error covariance and tial cameras capture depth information (f ∆ ) in addition to
Kalman gain weighting favors the measurement nt when 2D RGB color information (f 0 ). It then applies a warp to
the prediction error is high and favors the prediction N̂t|t−1 create a new 2D image (f 00 ) from f 0 and f ∆ [38]. Figure 6
when error is low. Moreover, the weighting naturally smooths illustrates an example whereby an original image and its
shaking caused by inaccurate prediction by favoring the ex- depth information is used to generate a new image from a
isting value of N̂ . novel viewpoint. Note that the new image is both trans-
To extend λ timesteps for predictions of N̂t+λ|t , we com- lated and rotated with respect to the original, and contains
pute λ intermediate iterations of Equation (3),(4), (6) and some visual artifacts in the form of blurred pixels and low
(7). When a new measurement nt+λ is received, the accu- resolution areas when IBR is inaccurate.
mulation of prediction error Pt+λ|t will have increased the To enable IBR, two requirements must be satisfied. First,
gain Gt+λ . The large gain then favors the observation when the depth information must accurately reflect the 3D scene.
adjusting the estimate in Equation (5). Fortunately, the graphics pipeline’s z-buffer precisely con-
tains per-pixel depth information and is already a byproduct
of standard rendering. Second, the original 2D scene must
be sufficiently large so as to ensure that any new view is
bounded within the original. To handle this case, instead of
rendering a normal 2D image by default, we render a cube
4.5 Misprediction Compensation with Image- map [17] centered at the player’s position. As shown in Fig-
based Rendering ure 7, the cube map draws a panoramic 360◦ image on the
When RTT > 40ms, a noticeable fraction of navigation six sides of a cube. In this way, the cube map ensures that
input is mispredicted, resulting in users perceiving lack of any IBR image is within its bounds.
motor control. Our goal in misprediction compensation is Unfortunately, naı̈ve use of the depth map and cube map
for the server to generate auxiliary view data f ∆ alongside can lead to significant overhead. The cube map’s six faces
its predicted frame f 0 such that the client can reconstruct a are approximately3 six times the size of the original image.
frame f 00 that is a much better approximation of the desired
frame f than f 0 . 3
The original image is not square but rather 16:9 or 4:3.
TOP
FRONT
99% Error Coverage (degree)
300
CLIP Doom 3, yaw
250
LEFT Doom 3, pitch
200 Fable 3, yaw
Fable 3, pitch

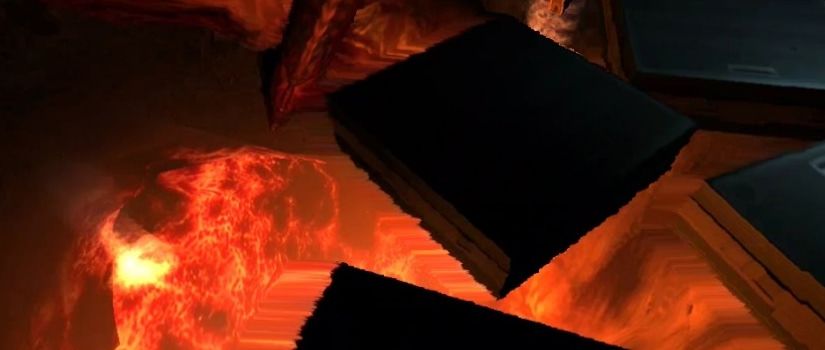

150 (a) Visible Smears
100
50
RIGHT
0
0 100 200 300
(BACK RTT (ms)
not shown) BOTTOM Figure 8: Angular coverage of (b) Patched Smears
99% of prediction errors is much

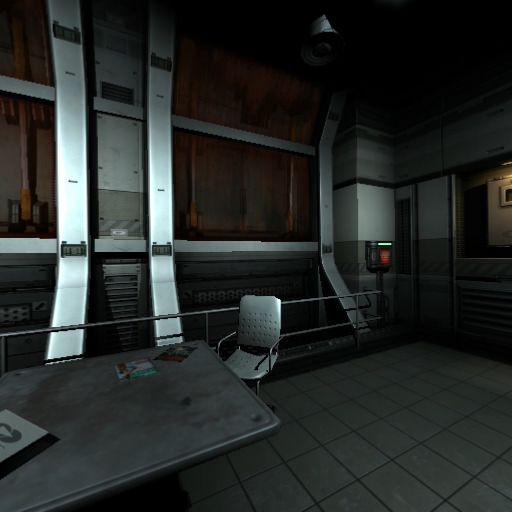

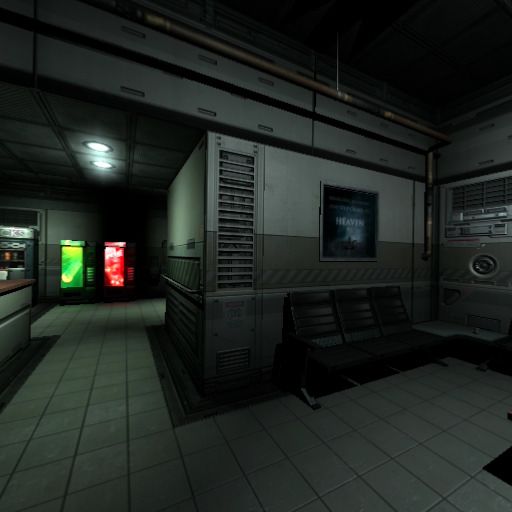

Figure 7: Cube Map Example w/ less than 360◦ even for high Figure 9: Misprediction’s visual artifacts ap-
Doom 3. Clip region shown. RTT. pear as smears which we mitigate.
The z-buffer is the same resolution as the original image, player’s vertical view angle, is very narrow (because players
and depth information is needed for every cube face. Taken hardly look up or down), and both Fable 3’s yaw and pitch
together, the total overhead is nominally 12×. This cost is ranges are modest at under 80◦ even for RTT ≥ 300ms.
incurred at multiple points in the system where data size is Even for Doom 3’s pronounced yaw range, only 225◦ of cov-
the main determinant of resource utilization, such as server erage is needed at 250 ms. The clip parameters are also
rendering, encoding, bandwidth and decoding. We use the applied to the depth map in order to similarly reduce its
following technique to reduce this overhead. size.
In theory, compounding translation error on top of rota-
4.5.2 Clipped Cube Map tion error can further expand the clip region. It turns out
that translation accuracy (see Figure 3) is sufficiently high
We observe that it is unlikely that the player’s true view to obviate consideration of accumulated translation error for
will diverge egregiously from the most likely predicted view; the purposes of clipping.
transmitting a cube map that can compensate for errors in
360◦ is gratuitous. Therefore, we render a clipped cube map 4.5.3 Patching Visual Artifacts
rather than a full cube map. The percentage of clipping
depends on the expected variance of the prediction error. If Lastly, we add a technique to mitigate visual artifacts.
the variance is high, then we render more of the cube. On These occasionally appear when the navigation prediction
the other hand, if the prediction variance is low, we render is wrong and there is significant depth disparity between
less of the cube. The dotted line in Figure 7 marks the clip foreground and background objects. For example, in Fig-
region for an example rendering. ure 9a, the floating stones are much closer to the camera
In order to size the clip, we define a cut plane c such that than the lava in the background. As a result, IBR reveals
the clipped cube bounds the output image with probability “blind spots” behind the stones as indicated by the green
1 − . The cut plane then is a function of the variance of the arrows, which are manifest as visual “smears”.
prediction, and hence the partial cube map approaches a full Our blind spot patching technique mitigates this problem,
cube when player movement exhibits high variance over the as seen in Figure 9b. As part of IBR, we extrude the object
subject RTT horizon. To calculate c, we choose not a single borders in the depth map with lightweight image processing
predicted Markov state, but rather a set N of k states such which propagates depth values from foreground borders onto
that the set covers 1 − of the expected probability density: the background. However, we keep the color buffer the same.
X This way blind spots will exhibit less depth disparity and
N = {nit+1 | p(Nt+1 = nit+1 |Nt = nt ) ≥ 1 − } will share adjacent colors with the background, appearing as
i=1..k more reasonable extensions of the background. The results
The clipped cube map then only needs to cover the range are more pleasing scenes especially when near and far objects
represented by the states in N . For a single dimension such are intermingled.
as yaw, the range is then simply the largest distance dif-
ference, and the cut plane along the yaw axis is defined as
follows: 5. SPECULATION FOR IMPULSE EVENTS
cyaw = max yaw(nit+1 ) − min yaw(njt+1 ) The prototypical impulse events are fire for first person
nit+1 ∈N j
nt+1 ∈N
shooters, and interact (with other characters or objects)
This suffices to cover 1 − of the probable yaw states. for role playing games. We define an impulse event as be-
In practice, error ranges are significantly less than 360◦ ing registered when its corresponding user input is activated.
and therefore the size of the cube map can be substantially For example, a user’s button activation may register a fire
reduced. Figure 8 shows the distribution of cyaw and cpitch event.
in Fable 3 and Doom 3 for = 0.01, meaning that 99% The objective for impulse speculation is to respond quickly
of mispredictions are compensated. Doom 3’s pitch range, to player’s impulse input while avoiding any visual inconsis-
Impulse Timeline 5.2 Time-Shifting
33ms RTT = 8 ticks
To address the shortcomings of subsampling, time-shifting
causes activations to be registered either earlier or later in
time in order to align them with the nearest subsampled
t0 t1 t2 t3 t4 t5 t6 t7 t8
tick. Time shifting to an earlier time is feasible using specu-
shift forward shift backward shift forward lation because the shift occurs on a speculative sequence at
the server — not an actual sequence that has already been
Speculative Sequences committed by the client. Put another way, as long as the
X,X f’,18 client has not yet displayed the output frame at a particular
X,? tick, it is always safe to shift an event backwards to that
X,~X f’,28
?,? tick.
~X,X f’,38
~X,?
Specifically, for any integer k, an activation issued be-
X: activation
~X: no activation
~X,~X f’,48 tween tσ∗k− σ2 and tσ∗k−1 is deferred until tσ∗k . An activa-
Speculative tion issued between tσ∗k+1 and tσ∗k+ σ2 −1 is treated as if it
frames had arrived earlier in time at tσ∗k . Figure 10a illustrates
(a) Speculative timeline and state branches
14combined subsampling and time-shifting, where the activa-
tions that occur at t1 through t2 are shifted later to t3 and
activations that occur at t4 are shifted earlier to t3 . The
corresponding state tree in Figure 10a shows the possible
event sequences and four resulting speculative frames, f801 ,
f802 , f803 and f804 . Note that it is not necessary to handle ac-
tivations at t0 within the illustrated 8 tick window because
(b) ∼X, ∼X (c) ∼X, X (d) X,∼X (e) X,X speculations that started at earlier clock ticks (e.g. at t−1 )
would have covered them.
Figure 10: Subsampling and time-shifting impulse events
The ability to time-shift both forward and backward al-
allows the server to bound speculation to a maximum of
lows us to further halve the subsampling rate to double σ
four sequences even for RTT= 256ms. Screenshots (b) –
without impacting player perception. Using 60ms as the
(e) show speculative frames corresponding to four activation
threshold of player perception [6, 33], we note that time-
sequences of weapon fire and no fire.
shifting forward alone permits a subsampling period of σ = 2
(64ms) with an average shift of 32ms. With the added abil-
tencies. For example, in a first person shooter, weapons ity to time-shift backward as well, we can support a subsam-
should fire quickly when triggered, and enemies should not pling period of σ = 4 (128ms) yet still maintain an average
reappear shortly after dying. The latter type of visual (and shift of only 32ms. For σ = 4 and RTT≤ 256ms, we gen-
semantic) inconsistency is disconcerting to players, yet may erate a maximum of four speculative sequences as shown
occur when mispredictions occur in a prediction-based ap- in Figure 10a. When RTT > 256ms, we further lower the
proach. Therefore, we employ a speculation technique for subsampling frequency sufficiently to ensure that we bound
impulse that differs substantially from navigation specula- speculation to a maximum of four sequences. Specifically,
tion. Rather than attempt to predict impulse events, instead σ = λ2 . While this can potentially result in users noticing
we explore multiple outcomes in parallel. the lowered sample rate, it allows us to cap the overhead of
An overview of Outatime’s impulse speculation is as fol- speculation.
lows. The server creates a speculative input sequence for all
possible event sequences that may occur within one RTT, 5.3 Advanced Impulse Events
executes each sequence, renders the final frame of each se- While binary impulse events are the most common, some
quence, and sends the set of speculative input sequences and games provide more options. For example, a Fable 3 player
frame pairs to the client. Upon reception, the client chooses may cast a magic spell either directionally or unidirection-
the event sequence that matches the events that actually ally which is a ternary impulse event due to mutual ex-
transpired, and displays its corresponding frame. clusion. Some first person shooters support primary and
As RTT increases, the number of possible sequences grows secondary fire modes (Doom 3 does not) which is also a
exponentially. Consider an RTT of 256ms, which is 8 clock ternary impulse event. With a ternary (or quaternary) im-
ticks. An activation may lead to an event registration at pulse event, the state branching factor is three (or four)
any of the 8 ticks, leading to an overwhelming 28 possible rather than two at every subsampling tick. With four par-
sequences. In general, 2λ sequences are possible for an RTT allel speculative sequences and a subsampling interval of
of λ ticks. We use two state approximations to tame state σ = 128ms, Outatime is able to support RTT ≤ 128ms
space explosion: subsampling and time-shifting. for ternary and quaternary impulse events without lowering
the subsampling frequency.
5.1 Subsampling
We reduce the number of possible sequences by only per- 5.4 Delay Tolerant Events
mitting activations at the subsampling periodicity σ which We classify any input event that is slow relative to RTT
is a periodicity greater than one clock tick. The benefit is as delay tolerant. We use a practical observation to simplify
λ
that the state space is reduced to 2 σ . The drawback is handling of delay tolerant events. According to our mea-
that subsampling alone would cause activations not falling surements on Fable 3 and Doom 3, delay tolerant events
on the sampling periodicity to be lost, which would appear exhibited very high cool down times that exceeded 256ms.
counter-intuitive to users. The cool down time is the period after an event is registered
during which no other impulse events can be registered. For pages are discarded. During speculation, the allocator also
example, in Doom 3, weapon reloading takes anywhere from defers page deallocation resulting from object delete until
1000ms to 2500ms during which time the weapon reload commit because deleted objects may need to be restored if
animation is shown. Weapon switching takes even longer. the speculation is later invalidated.
Fable 3 delay tolerant events have even higher cool down For object-level checkpointing, we track lifetimes of ob-
times. We take the approach that whenever a delay toler- jects rather than pages for any object the developer has
ant input is activated at the client, it is permissible to miss marked for tracking. To rollback a speculation, we delete
one full RTT of the event’s consequences, as long as we can any object that did not exist at the checkpoint, and restore
compress time after the RTT. The time compression pro- any objects that were deleted during speculation. More-
cedure works as follows: for a delay tolerant event which over, we take advantage of inverse functions when available
displays τ frames worth of animation during its cool down to quickly undo object state changes. Many SSOs in games
(e.g. a weapon reload animation which takes τ frames), we expose custom inverse functions that undo the actions of
may miss λ frames due to the RTT. During the remaining previous state change. For example, for geometry objects
τ − λ frames, we choose to compress time by sampling τ − λ that speculatively execute a move(∆x) function, a suitable
frames uniformly from the original animation sequence τ . inverse is move(−∆x). Identifying and tracking invertible
The net effect is that delay tolerant event animations ap- functions is a trade-off in developer effort; we found the sav-
pear to play at fast speed. In return, we are assured that ings in checkpoint and rollback time to be very significant
all events are properly processed because the delay tolerant in certain cases (§10).
event’s cool down is greater than the RTT. For example,
weapon switching or reloading immediately followed by fir-
ing is handled correctly. 7. BANDWIDTH COMPRESSION
Navigation and impulse speculation generate additional
6. FAST CHECKPOINT AND ROLLBACK frames to transmit from server to client. As an example, con-
As with other systems that perform speculation [30, 42], sider impulse speculation which for RTT of 256ms transmits
Outatime uses checkpoint and restore to play forward a spec- four speculative frames for four possible worlds. Nominally,
ulative sequence, and roll back the sequence if it turns out this bandwidth overhead is four times that of transmitting
to be incorrect. In contrast to these previous systems, our a single frame.
continuous 30fps interactivity performance constraints are We can achieve a large reduction in bandwidth by ob-
qualitatively much more demanding, and we highlight how serving that frames from different speculations share sig-
we have managed these requirements. nificant spatial and temporal coherence. Using Figure 10a
Unique among speculation systems, we use a hybrid of as an example, f801 and f802 are likely to look very simi-
page-level checkpointing and object-level checkpointing. This lar, with the only difference being two frames’ worth of a
is because we need very fast checkpointing and restore; whereas weapon discharge animation in f801 . Corresponding screen-
page-level checkpointing is efficient when most objects need shots Figure 10b–10e show that the surrounding environ-
checkpointing, object-level checkpointing is higher perfor- ment is largely unchanged, and therefore the spatial coher-
mance when few objects need checkpointing. In general, ence is often high. In addition, when Outatime speculates
it is only necessary to checkpoint Simulation State Objects for the next four frames, f901 -f901 , f901 is likely to look similar
(SSOs): those objects which reproduce the world state. Check- not only to f801 , but also to f802 , and therefore the temporal
pointing objects which have no bearing on the simulation, coherence is also often high. Similarly, navigation specula-
such as buffer contents, only increase runtime overhead. There- tion’s clipped cube map faces often exhibit both temporal
fore, we choose either object-level or page-level checkpoint- and spatial coherence.
ing based on the density of SSOs among co-located objects. Outatime takes advantage of temporal and spatial coher-
We currently make the choice between page-level or object- ence to reduce bandwidth by joint encoding of speculative
level manually at the granularity of the binaries (executables frames. Encoding is the server-side process of compressing
and libraries), though it is also conceivable to do so auto- raw RGB frames into a compact bitstream which are then
matically at the level of the compilation units. transmitted to the client where they are decoded and dis-
For page-level checkpointing, we intercept calls to the de- played. A key step of standard codecs such as H.264 is to
fault libc memory allocator with a version that implements divide each frame into macroblocks (e.g., 64 × 64 bit). A
page-level copy-on-write. At the start of a speculation (at search process then identifies macroblocks that are equiv-
every clock tick for navigation and at each σ clock ticks for alent (in some lossy domain) both intra-frame and inter-
impulse), the allocator marks all pages read-only. When a frame. In Outatime, we perform joint encoding by extend-
page fault occurs, the allocator makes a copy of the original ing the search process to be inter-speculation; macroblocks
page and sets the protection level of the faulted page to read- across streams of different speculations are compared for
write. When new input arrives, the allocator invalidates and equivalence. When an equivalency is found, we need only
discards some speculative sequences which do not match the transmit the data for the first macroblock, and use pointers
new input. For example in Figure 10a, if no event activa- to it for the other macroblocks.
tion occurs at t3 , then the sequences corresponding to f801 The addition of inter-speculation search does not change
and f802 are invalid. State changes of the other speculative the client’s decoding complexity but does introduce more
sequences up until t3 are committed. In order to correctly encoding complexity on the server. Fortunately, modern
roll back a speculation, the allocator copies back the original GPUs are equipped with very fast hardware accelerated en-
content of the dirty pages using the copies that it created. coders [23, 31]. We have reprogrammed these otherwise idle
The allocator also tracks any pages created as a result of hardware accelerated capabilities for our speculation’s joint
new object allocations since the last checkpoint. Any such encoding.
8. MULTIPLAYER executing, and returns framebuffers as encoded bitstream
Thus far, we have described Outatime from the perspec- packets to the master using shared memory. To support nav-
tive of a single user. Outatime works in a straightforward igation speculation, we add an additional slave command:
manner for multiplayer as well, though it is useful to clarify rendercube, which produces the cubemap and depth maps
some nuances. As a matter of background, we briefly review necessary for IBR. The number of slaves spawned depends
distributed consistency in multiplayer systems. The stan- on the network latency. When RTT exceeds 128 ms, four
dard architecture of a multiplayer gaming system is com- slaves can cover four speculative state branches. Otherwise,
posed of traditional thick clients at the end hosts and a game three slaves suffice. The client is a simple thin client with
state coordination server which reconciles distributed state the ability to perform IBR.
updates to produce an eventually consistent view of events. We implemented bandwidth compression with hardware-
For responsiveness, each client may perform local dead reck- accelerated video encode and decode. The server-side joint
oning [8,16]. As an example, player one locally computes the video encode pipeline and client-side decode pipeline used
position of player two based off of last reported trajectory. the Nvidia NVENC hardware encoder and Nvidia Video
If player one should fire at player two who deviates from Processor decoder, respectively [31]. The encode pipeline
the dead-reckoned path, whether a hit is actually scored consists of raw frame capture, color space conversion and
depends on the coordination server’s reconciliation choice. H.264 bitstream encoding. The decode pipeline consists of
Reconciliation can be crude and disconcerting when local H.264 bitstream decoding and color space conversion to raw
dead-reckoned results are overridden; users perceive glitches frames. We implemented the client-side IBR function as an
such as: 1) an opponent’s avatar appears to teleport if the OpenGL GLSL shader which consumes decoded raw frames
opponent does not follow the dead-reckoned path, 2) a player and produces a compensated final frame for display.
in a firefight fires first yet still suffers a fatality, 3) “sponging” Lastly, we also examined the source code for Unreal En-
occurs — a phenomenon whereby a player sees an opponent gine [16], one of several widely used commercial game en-
soak up lots of damage without getting hurt [4]. gines upon which many games are built, and verified that
With multiplayer, Outatime applies the architecture of the modifications described above are general and feasible
Figure 2 to clients without altering the coordination server: there as well. Specifically, support exists for rendering mul-
end hosts run thin clients and servers run end hosts’ cor- tiple views, the key primitive of rendercube [15]. Other
responding Outatime server processes. The coordination key operations such as checkpoint, rollback and determinism
server — which need not be co-located with the Outatime can be implemented at the level of the C++ library linker.
server processes — runs as in standard multiplayer. Ou- Therefore, we suggest speculative execution is broadly ap-
tatime’s multiplayer consistency is equivalent to standard plicable across commercial titles, and can be systematized
multiplayer’s because dead-reckoning is still used for oppo- with additional work.
nents’ positions; glitches can occur, but they are no more or
less frequent than in standard multiplayer. As future work, 10. EVALUATION
we are interested in extending Outatime’s speculative ap- We use both user studies and performance benchmark-
proach in conjunction with AI-led state approximations [7] ing to characterize the cost and benefits of Outatime. User
to better remedy glitches that appear generally in any mul- studies are useful to assess perceived responsiveness and vi-
tiplayer game. sual quality degradation, and to learn how macro-level sys-
tem behavior impacts gameplay. Our primary tests are on
Doom 3 because twitch-based gaming is very sensitive to la-
9. IMPLEMENTATION tency. We confirm the results with limited secondary tests

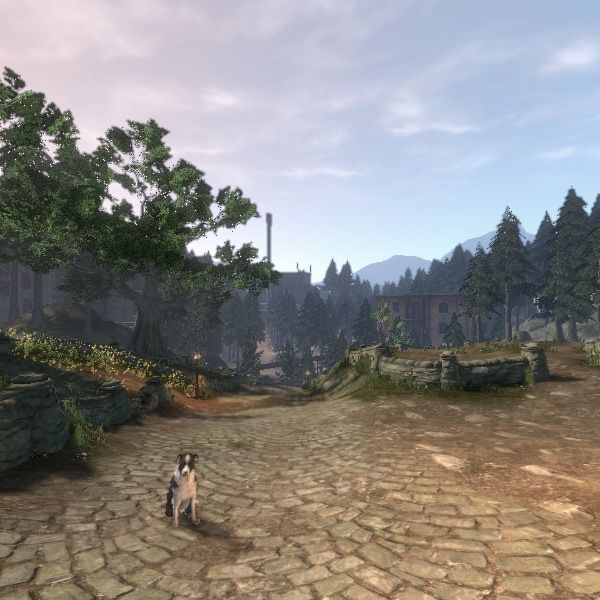

To prototype Outatime, we modified Doom 3 (originally on Fable 3. A summary of our findings are as follows.
366,000 lines of code) and Fable 3 (originally 959,000 lines
of code). Doom 3 was released in 2004 and open sourced • Based on subjective assessment, players — including
in 2011. Fable 3 was released in 2011. While both games seasoned gamers — rate Outatime playable with only
are several years old, we note that the core gameplay of first minor impairment noticeable up to 128ms.
person shooters and role playing games upon which Outa-
• Users demonstrate very little drop off of in-game skills
time relies has not fundamentally changed in newer games.
with Outatime as compared to a standard cloud gam-
The following section’s discussion is with respect to Doom 3.
ing system.
Our experience with Fable 3 was similar
We have made the following key modifications to Doom 3. • Our real-time checkpointing and rollback service is a
To enable deterministic speculation, we made changes ac- key enabler for speculation, taking less than 1ms for
cording to [11] such as de-randomizing the random number checkpointing app state.
generator, enforcing deterministic thread scheduling, and re-
placing timer interrupts with non-time-based function call- • Speculation imposes increased demands on resource.
backs. To support impulse speculation, we spawn up to four At 128ms, bandwidth consumption is 1.97× higher
Doom 3 slaves, each of which is a modified instance of the than standard cloud gaming. However, frame rates
original game. Each slave accepts the following commands: are still satisfactorily fast at 52fps at 95th percentile.
advance consumes an input sequence and simulates game
logic accordingly; render produces a frame corresponding to 10.1 Experimental Setup
the current simulation state; undo discards any uncommitted We tested Outatime against the following baselines. Stan-
state; commit makes any input applied thus far permanent. dard Thick Client consists of out-of-the-box Doom 3, which
Each slave receives instructions from our master process re- is a traditional client-only application. Standard Thin Client
garding the speculation (i.e., input sequence) it should be emulates the traditional cloud gaming architecture shown in
5
120
Task Completion Time (s)
Mean Opinion Score
4.5
4 100
3.5
80
3
2.5 60
2
1.5
40 Outatime
Standard Thin Client Standard Thin Client
1
Outatime 20 Standard Thick Client
0.5 Standard Thick Client
0 50 100 150 200 250 300 350 400 0
Network Latency RTT (ms) 0 100 200 300 400
RTT (ms)
Figure 11: Impact of Latency on User
Figure 12: Remaining Health Figure 13: Task Completion Time
Experience
Figure 1a, where Doom 3 is executed on a server without 10.2 User Perception of Gameplay
speculation, and the player submits input and views output The user study centered around three criteria.
frames on a client. The server consists of an HP z420 ma-
chine with quad core Intel i7, 16GB memory, and an Nvidia • Mean Opinion Score (MOS): Participants assign a sub-
GTX 680 GPU w/4GB memory. For Thin Client and Out- jective 1–5 score on their experience where 5 indicates
atime, we emulated a network with a defined RTT. The em- no difference from reference, 4 indicates minor differ-
ulation consisted of delaying input processing and output ences, 3 indicates acceptable differences, 2 indicates
frames to and from the server and client by a fixed RTT. annoying differences and 1 indicates unplayable. MOS
The client process was hosted on the same machine as the is a standard metric in the evaluation of video and
server in order to finely control network RTT. We also used audio communication services.
the same machine to run the Thick Client. User input was
issued via mouse and keyboard. We configured Doom 3 for
a 1024 × 1024 output resolution. We conducted formal user • Skill Impact: We use the decrease in players’ in-game
studies with sixty-four participants overall over three sepa- health as a proxy for the skill degradation resulting
rate study sessions. Two studies were for Doom 3 and con- from higher latency.
sisted of twenty-three participants (Study A) and eighteen
participants (Study B). The third was for Fable 3 (Study C)
and is described in more detail later in this section. Both • Task Completion Time: Participants are asked to fin-
Study A and Study B consisted of coworkers and colleagues ish an in-game task in the shortest possible time under
who were recruited based on their voluntary response to a varying latency conditions.
call for participation in a gaming study. The self-reported
age range was 24–42 (39 male, 2 female). The main dif- Each participant first played a reference level on the Thick
ference between the studies was that Study B’s participants Client system, during which time they had an opportunity
were drawn primarily from a local gaming interest group and to familiarize themselves with game controls, as well as ex-
were compensated with a $5 gift card, whereas Study A’s perience best-case responsiveness and visual quality. Next,
participants were not. Prior to engagement, all participants they re-played the level three to ten times with either Outa-
were provided an overview of the study, and consented to time or Thin Client and an RTT selected randomly from
participate in accordance with institutional ethics and pri- {0ms, 64ms, 128ms, 256ms, 384ms}. Among the multiple
vacy policies. They also made a self-assessment regarding replays, they also played once on Thick Client as a control.
their own video game skill at three granularities: 1) overall Participants and the experimenter were blind to the system
video game experience, 2) experience with the first person configuration during re-plays. Some of the participants re-
shooter genre, and 3) experience with Doom 3 specifically. peated the entire process for a second level. We configured
While all Study A’s participants reported either Beginner the level so that participants only had access to the fastest
(score=2) or No Experience (score=1) for Doom 3, Study firing weapon so that any degradations in responsiveness
B’s participants self-reported as being “gamers” much more would be more readily apparent.
frequently, with 72% having previously played Doom 3. For After each re-play, participants were asked to rank their
both Study A and B, participants first played the unmod- experience relative to the reference on an MOS scale ac-
ified game to gain familiarity. They then played the same cording to three questions: (1) How was your overall user
map at various network latency settings with and without experience? (2) How was the responsiveness of the con-
Outatime enabled. Participants were blind as to the network trols? (3) How was the graphical visual quality? We also
latency and whether Outatime was enabled. solicited free-form comments and recorded in-game vocal ex-
clamations which turned out to be illuminating. Lastly, we
recorded general player statistics during play, such as re-
maining player health and time to finish the level.You can also read
