About Kohler
Uninterruptible Power              4
                                       Service Solutions          Contents
                                                                      56
                                       Maintenance                    58
Kohler Uninterruptible Products    8
                                       Monitoring                     58
Three Phase                       11
                                       Batteries                      59
 Kohler PW 5000/TP                12
                                       On-site                        60
 Kohler PW 6000                   16
                                       Technical Specifications       62
 Kohler PW 8000DPA                20
 Kohler PW 9000DPA                26
 Kohler PW 9250DPA                32
 Kohler PW 9500DPA                38
 Kohler MF1500 DPA                44
 Lithium-ion Batteries            48
 Battery Monitoring               52

                                                                           3
Product & Service Catalogue - Kohler Uninterruptible Power
About Kohler
Uninterruptible
        Power
                  Total vertical and
                  horizontal scalability
                  using hot swap
                  modularity
Product & Service Catalogue - Kohler Uninterruptible Power
What makes us different?                       Why choose us?                               The Kohler Uninterruptible
Our aim is simple – to be the best             Kohler Uninterruptible Power takes a         Power mission
power protection company there is.             comprehensive, end-to-end approach

Together with our parent company, the
                                               to meeting our customers’ specific and
                                               demanding requirements. From initial
                                                                                            To continuously
Kohler Company’s Power Group, Kohler
Uninterruptible Power is a driving force
                                               contact through installation, service,
                                               maintenance and disposal, Kohler
                                                                                            delight our
within the power protection industry
offering pioneering product technology,
                                               Uninterruptible Power provides its
                                               customers with an unrivalled partner
                                                                                            customers through
service excellence and global reach.           for complete peace of mind.
                                                                                            the provision of
Best in class power protection solutions
                                               We understand that every client is
                                               different and each has its own specific
                                                                                            industry-leading
Central to our product portfolio is a range
                                               opportunities to consider and
                                               challenges to overcome. The key, we
                                                                                            Power Protection
                                                                                            Solutions and
of the highest quality, class-leading three-
                                               believe, is to spend the time required to
phase and single-phase uninterruptible
                                               truly understand the business and how
                                                                                            Support Services.
power supplies. Developed to offer the
                                               it operates. Only then can we apply our
highest levels of efficiency, availability,
                                               comprehensive product range,
scalability and flexibility.
                                               combined with our broad support
                                               services offering, to provide power
Leveraging Kohler’s technical leadership
                                               protection solutions which exceed
in global power protection, the full power
                                               expectations.
protection portfolio includes:
                                               This also means Kohler Uninterruptible
Uninterruptible power supply (UPS)
                                               Power continuously invests in product
Battery systems                                and system development, the talent of
                                               its employees, broadening its range of
Software and ancillaries
                                               services, and improving its service
Service excellence guaranteed                  delivery. By doing so, Kohler
                                               Uninterruptible Power expertly meets
Kohler Uninterruptible Power has built         the present and future needs of its
an outstanding reputation for service          customers and achieves its objective –
excellence through its unrivalled pre and      to be a leader of power protection
post sales support. Our wide range of          solutions and services.
services includes initial site surveys,
system design, installation and
commissioning, preventative
maintenance, training, and technical
                                               About Kohler Co.
support.
                                               Established in 1873, Kohler Co. has
With 24/7 availability, all these services
                                               a pedigree for quality, innovation and
are delivered by a dedicated and
                                               exceptional craftsmanship. In 1920,
extensive network of trained service
                                               it launched the world’s first engine
engineers and service support staff -
                                               powered electric generator. Since then,
ensuring lifelong and reliable operation of
                                               it has been developing products for
the power protection solutions it provides.
                                               every aspect of critical load protection
                                               and is one of the world’s largest power
                                               protection equipment manufacturers
                                               with products in use on every continent.

                                               Together, Kohler Uninterruptible Power
                                               and Kohler bring a potent, global force of
                                               longevity, pedigree, pioneering product
                                               technology, service excellence and
                                               global reach to the power protection
                                               industry.

                                                                                                                         5
Product & Service Catalogue - Kohler Uninterruptible Power
Total vertical and
horizontal scalability
using hot swap
modularity
Product & Service Catalogue - Kohler Uninterruptible Power
Product overview:                         Market overview
Industry-leading products

Kohler Uninterruptible Power’s product    From financial services and Colo
portfolio contains some of the most       providers to retail and manufacturing
technologically advanced power            giants, Kohler Uninterruptible Power’s
protection products. At the core of its   products are being utilised in a broad
product portfolio is a range of high      range of markets, supporting an even
quality and reliable three-phase and      broader range of applications.
single-phase uninterruptible power
supplies.                                 Our teams of sales managers and
                                          engineers have extensive experience in
Three-phase transformerless UPS from      developing tailor-made solutions,
10-1200 kVA scalable up to 9.6 MVA        specifically designed to meet your
                                          particular challenges and ensure that any
Battery systems
                                          requirement can be satisfied, no matter
Switchgear                                the business or area of operation.
Software and ancillaries

Service overview

24/7 onsite service
Initial site survey
System design
Installation
Commissioning
Preventative maintenance
Repair
Battery maintenance, replacement
and testing
Capacitor replacement
Load bank testing
Witness testing
Disposal

                                                                                      7
Product & Service Catalogue - Kohler Uninterruptible Power
8
Product & Service Catalogue - Kohler Uninterruptible Power
Kohler Uninterruptible

9
                Products
Product & Service Catalogue - Kohler Uninterruptible Power
10
Kohler Uninterruptible Power’s
                                 Three Phase
product portfolio contains
some of the most
technologically advanced
power protection products.
At the core of its product
portfolio is a range of
high quality and reliable
three-phase uninterruptible
power supplies.

                                           11
12
     Kohler PW 5000/TP
               (10–50 kVA)
Three-phase UPS for midsize               Kohler PW 5000/TP
server rooms, networks,                   Capacities from 10 kVA to 50 kVA

telecommunication systems
                                          three phase
                                          On-line double conversion,
and industrial processes.                 transformerless technology for high
                                          reliability
                                          Parallel capability of up to 20 units
                                          Intelligent battery management
                                          95.5% efficiency across a wide load
                                          range
                                          Integral batteries
                                          Near unity input power factor (0.99)
                                          Low input harmonic distortion
                                          (THDi
Flexible battery configuration              Highest load availability                     High efficiency for
                                                                                               lowest lifetime costs

     Optimal sizing of battery capacity          Productivity maximised, ‘downtime’            High efficiency at partial and rated loads
                                                 minimised
     10–50 kVA with different sized cabinets                                                   Low carbon footprint
     Extended autonomy with matching             Paralleled systems are designed to
                                                                                               With a transformerless design and
     battery cabinets                            ensure availability by significantly
                                                                                               Energy Saving Inverter Switching (ESIS)
                                                 increasing system redundancy. In the
                                                                                               technology, Kohler PW 5000/TP delivers
     Kohler PW 5000/TP is available in three     case of a power failure, should a UPS unit
                                                                                               efficiency at partial and rated loads (up
     cabinet sizes, enabling you to choose       fail, the remaining units are still able to
                                                                                               to 95.5%). This level of efficiency
     the ideal capacity and required             continue to support the critical load.
                                                                                               dramatically reduces the total cost of
     autonomy for your critical load. The        Redundant paralleled systems also
                                                                                               ownership of the UPS during its lifecycle.
     smaller 10-25 kVA units are available in    enable regular maintenance to be carried
     two cabinet sizes, dependent on the         out on the system without any
                                                                                               Ripple-free and optional temperature
     required level of autonomy, with the        requirement to remove the critical load
                                                                                               controlled battery chargers protect
     larger units (25–50 kVA) available in a     from conditioned power.
                                                                                               batteries and extend the lifetime
     third cabinet size, which can house both
                                                                                               performance, further reducing running
     7/9 Ah and 28 Ah batteries.
                                                                                               costs.
     Additional battery cabinets that match
                                                                                               These benefits combine to make the
     perfectly with the UPS for scaling
                                                                                               Kohler PW 5000/TP a truly eco-friendly
     autonomy time.
                                                                                               solution for all power protection
                                                                                               requirements.

     Space saving

     Reduced footprint
     Valuable floor space maximised

     With a footprint of only 0.4m2 at 50 kVA,
     the Kohler PW 5000/TP has a power
     density of up to 100 kW/m2. As a result,
     substantial and valuable space savings
     are achieved even at the highest power
     ratings.

     LCD display

     Output contacts and
     SNMP card (optional)

     Customer inputs
     RS232 interface

     Rectifier and
     bypass fuses

     Batteries

     Battery fuses

     Maintenance
     bypass switch

     Parallel isolator

     Battery containment

     Input/output connection

14
Kohler PW 5000/TP range

UPS cabinet A (10–20 kVA)                    UPS cabinet B (10–25 kVA)         UPS cabinet C (25–50 kVA)

Dimensions (W x D x H)                       Dimensions (W x D x H)            Dimensions (W x D x H)
345 x 710 x 720 mm                           345 x 710 x 1045 mm               440 x 910 x 1420 mm

Weight without battery                       Weight without battery            Weight: 7/9 Ah cabinet without battery
10 kVA:   60 kg                              10 kVA:   88 kg                   25 kVA:   151 kg
15 kVA:   62 kg                              15 kVA:   90 kg                   30 kVA:   160 kg
20 kVA:   64 kg                              20 kVA:   92 kg                   40 kVA:   165 kg
                                             25 kVA:   94 kg                   50 kVA:   170 kg
Weight with 48 x 7/9 Ah battery
10 kVA:   180 kg                             Weight with 96 x 7/9 Ah battery   Weight: 28 Ah cabinet without battery
15 kVA:   182 kg                             10 kVA:   328 kg                  25 kVA:   135 kg
20 kVA:   184 kg                             15 kVA:   330 kg                  30 kVA:   145 kg
                                             20 kVA:   332 kg                  40 kVA:   150 kg
                                             25 kVA:   334 kg                  50 kVA:   155 kg

                                                                               Weight with 144 x 7/9 Ah battery
                                                                               25 kVA:   540 kg
                                                                               30 kVA:   550 kg
                                                                               40 kVA:   555 kg
                                                                               50 kVA:   560 kg

                                                                               Weight with 48 x 28 Ah battery

Available in three different cabinet sizes                                     25 kVA:   605 kg

Cabinet A: 10 – 20 kVA                                                         30 kVA:   615 kg

Cabinet B: 10 – 25 kVA                                                         40 kVA:   620 kg

Cabinet C: 25 – 50 kVA                                                         50 kVA:   625 kg

                                                                                                                        15
Kohler PW 6000
                 (60–500 kVA)
Parallelable up to 5 MVA/MW
The best combination of                    Kohler PW 6000
energy efficiency, reliability             Single unit capacities from 60 kVA/kW to

and low cost of ownership
                                           500 kVA/kW
                                           Capacity up to 5 Megawatts
– capacity from 60 kVA/kW to               (5 MVA/MW) with 10 units in parallel

5 MVA/MW.                                  Power density of up to 363 kW/m2
                                           High efficiency and minimum cost of
                                           ownership
                                           Low input harmonic distortion:
                                           THDi = 3.5%
                                           Near unity input power factor of 0.99
                                           Fully rated output power (blade friendly)
                                           Full front access maximises system
                                           serviceability
                                           Transformerless design

Three-phase UPS with unity
power delivers the best
combination of availability,
energy efficiency, overall
power performance and
lowest total cost of
ownership in its class.

Offering both intelligent energy
management and maximum power
protection it uses less energy, achieves
significant cost reductions, saves on
valuable floor space (leaving room for
revenue-earning equipment) and has a
reduced impact on the environment.

                                                                                       17
Improved input performance                   Flexible batteries

     Low input harmonic distortion (THDi)        Bespoke configuration
     Near unity input power factor               Extended battery life
     Reduced installation costs
                                                  Front access for ease of installation
                                                  and servicing
     Kohler PW 6000 manages the Total
     Input Harmonic Distortion (THDi) at a low    Kohler PW 6000 allows the freedom
     level (3.5% at 100% load). It does this by   to tailor the battery installation to the
     neutralising the emission of harmonics       requirements of the critical load at the
     at the input of the UPS. Low harmonic        lowest possible cost. By adding external
     distortion saves unnecessary oversizing      battery cabinets, it enables each battery
     of generators, cabling and ancillary         configuration to match the required
     equipment (such as circuit breakers),        autonomy, ensuring smallest system
     avoids extra heating of input                footprint and easy usability.
     transformers (thus wasting less energy)
     and extends the lifetime of all input        Running costs are further reduced by
     components.                                  ripple-free and temperature controlled
                                                  chargers that protect batteries and
     High efficiency is further enhanced by       extend lifetime performance. Front
     removing any requirement for additional      access also aids easy installation and
     phase compensating devices.                  servicing.

     Product range
     60–120 kVA            160–200 kVA            250–300 kVA                                  400–500 kVA

     Dimensions            Dimensions             Dimensions                                   Dimensions
     W x D x H (mm)        W x D x H (mm)         W x D x H (mm)                               W x D x H (mm)
     615 x 480 x 1954      850 x 750 x 1820       1100 x 750 x 1920                            1650 x 850 x 1994

     Footprint: 0.3 m2     Footprint: 0.64 m2     Footprint: 0.82 m2                           Footprint: 1.4 m2

     Blade friendly                               Space saving                                 Connectivity

     Supports high powered servers such as        Reduced footprint                            Multiple interface options
     blade servers
                                                  Valuable floor space maximised              Supports monitoring and control
     Supports leading power factors
                                                  Kohler PW 6000’s class-leading power         Kohler PW 6000 is equipped with
     Blade servers typically have a leading       density (up to 363 kW/m2) is driven by       multiple interfaces that can be used
     power factor and this can present            the UPS’s small physical footprint of        for local and remote monitoring, status
     problems to those UPS systems that are       0.3 m2 up to 100 kVA/kW, 0.64 m2 up to       signalling, control, maintenance and
     not designed to manage such loads. The       200 kVA/kW, 0.82 m2 up to 300 kVA/kW,        firmware upgrade.
     Kohler PW 6000 is designed to power all      and 1.4 m2 up to 500 kVA/kW. As a
     types of electrical loads, including high-   result, substantial and valuable space
     powered servers. It can provide fully        savings are achieved even at the highest
     rated output power to power factors          power ratings.
     from 0.9 leading to 0.9 lagging.
                                                  For data centres in particular, this helps
                                                  to maximise floor space for revenue-
                                                  earning servers.

18
Understanding efficiency and power

            AC–AC efficiency (60—120)                                                                                                    Top-of-market 96.0% efficiency
                                                                                                                                         in double conversion mode
             100
                                                                                             96.0
                                                                                                                                         reduces running costs without
                        95.7                            95.8                                                                 95.0
95.0                                                                                                                                     compromising reliability. This
               95
                                                                                                                                         UPS has a very flat efficiency
               90                                                                                                                        curve so high efficiency is
                                                                                                                                         reached at low load levels.
               85

               80

               75
                                 Linear load (cosphi = 1)

100% load               25%                              50%                                  75%                            100% load

            AC–AC efficiency (160—500)                                                                                                   AC–AC
                                                                                                                                         With a efficiency (60—120)design
                                                                                                                                                transformerless
            AC–AC efficiency (160—500)                                                                                                   and Energy
                                                                                                                                         AC–AC        Saving
                                                                                                                                               efficiency     Inverter
                                                                                                                                                          (60—120)
             100                                                                                                                          100
                                                       96.0
                                                                                                                                          Switching95.7(ESIS) technology,
                                                                                                                                                                     95.8    the      96.0
             100        95.5                                                                 95.5                            95.0          100                                                    95.0
              95                                                                                                                          Kohler
                                                                                                                                            95    PW 6000 delivers high
            AC–AC efficiency      96.0
                       95.5 (160—500)                                                        95.5                                        AC–AC        95.7 (60—120)
                                                                                                                                                 efficiency          95.8             96.0        95.0
                                                                                                                             95.0         efficiency   at partial and full load
              95                                                                                                                            95
              90
             100                                                                                                                          (up
                                                                                                                                            90to 96.0% in double
                                                                                                                                           100
              90       95.5       96.0                                                       95.5
                                                                                                                                          conversion
                                                                                                                                            90           online mode).
                                                                                                                                                      95.7          95.8This          96.0        95.0
3.5           85                                                                                                             95.0           85 of efficiency dramatically
              95                                                                                                                          level
                                                                                                                                            95
              85                                                                                                                          reduces
                                                                                                                                            85      the total cost of
              80                                                                                                                            80
                                                                                                                                            90
              90                                                                                                                          ownership     of the UPS system
              80                                                                                                                            80
                                                                                                                                          during  its life cycle.
              75
              85                                                                                                                            75
                                                                                                                                           85
100% load                        Linear load (cosphi = 1)                                                                                                  Linear load (cosphi = 1)
              75                                                                                                                           75
              80                                                                                                                           80
                        25% Linear load (cosphi = 1) 75%
                                      50%                                                                                    100% load               25% Linear load (cosphi = 1) 75%
                                                                                                                                                                   50%                            100% load

              75        25%                             50%                                   75%                            100% load     75        25%             50%              75%         100% load
                                Linear load (cosphi = 1)                                                                                                   Linear load (cosphi = 1)
0.990
            Input current total harmonic distortion (THDi)
                        25%                            50%                                   75%                             100% load               25%            50%               75%         100% load
            Input
               12 current total harmonic distortion (THDi)                                                                               The Kohler PW 6000 actively                   Low harmonic distortion saves
                                                                                                                                         manages the input current total               unnecessary oversizing of
              12
              10                                                                                                                         harmonic distortion (THDi) at a               gensets, cabling and circuit
            Input current9.0
                          total harmonic distortion (THDi)
              10                                                                                                                         low level (3.5% at 100% load).                breakers, avoids extra heating of
                        9.0
              128                                                                                                                        Kohler PW’s unique technology                 input transformers and extends
                8                                        6.0                                                                             neutralises the emission of                   the overall service life of all
              106                                                                                                                        harmonics at the input of the UPS             upstream components.
                        9.0                              6.0                                  4.5
                6                                                                                                                        system, providing greater
                                                                                                                              3.5
               84                                                                             4.5
                                                                                                                                         reliability of operations for circuit
                4                                       6.0                                                                   3.5
               62                                                                                                                        breakers and extending the
100% load
                2
                                                                                              4.5                                        overall service life of the
               40                                                                                                            3.5         equipment.
                        25%                             50%                                   75%                            100% load
               0
               2        25%                             50%                                   75%                            100% load

            Input
               0 power factor versus load
                        25%                            50%                                   75%                             100% load
            Input
              1.0 power factor versus load
                                                                                              0.990                          0.990
              1.0                                        0.985
                                                                                              0.990                          0.990
            Input power factor versus load
                                       0.985                                                                                             Thanks to the near-to-unity input
                        0.960                                                                                                            power factor of 0.99, the Kohler
             1.0
                        0.960                                                                 0.990                          0.990       PW 6000 reduces the input
             0.95                                       0.985
                                                                                                                                         installation costs by enabling the
             0.95                                                                                                                        use of smaller cables.
                        0.960
                                                                                                                                         Furthermore, it avoids the
                                                                                                                                         unnecessary use of additional
            0.95
  Lagging                                                                                                                                phase compensating devices,
              0.9                                                                                                                        which consequently keeps the
                        25%                             50%                                   75%                            100% load
              0.9                                                                                                                        overall UPS efficiency high.
                        25%                             50%                                   75%                            100% load

             0.9(%)
            kW
                        25%                            50%                                   75%                             100% load
            kW
             100(%)
                                                                                      1 =1

             100
                                                                                                                     ,9 ,9
                                cos cos

                                                                                 cos=phi

                                                                                                                   =0 =0

            kW80(%)
                                   phi phi

                                                                                                              0,8 0,8
                                co

                                                                                                             phi phi
                                                                              1 phi

              80
                                      s p os p

                                      =0 =0

                                                                                                                   =

             100
                                                                                                       cos cos
                                                                    cos phi =cos

              60
                                         hi hi

                                                                                                                 i
                                         c

                                                                                                               h
                                          ,9 ,9

                                                                                                      sp sp
                                           =

                                                                                                            =
                                             0

                                                                                                   co 0,c9o

                                                                                                                                                                                                                           19
                                              c,8os ,8

              60
                                                                                                        h i

              80
                                                  =

              40
                                                                                                     =
                                                    0
                                                    phi

                                                                                                  0,8
                                                      co

                                                                                                 phi
                                                        sp

                                                         =0

              40
                                                                                                =
                                                                                             cos

              60
                                                           hi

                                                                                             hi
                                                            ,

              20
                                                                                                       sp
                                                              9
                                                              =
                                                                0

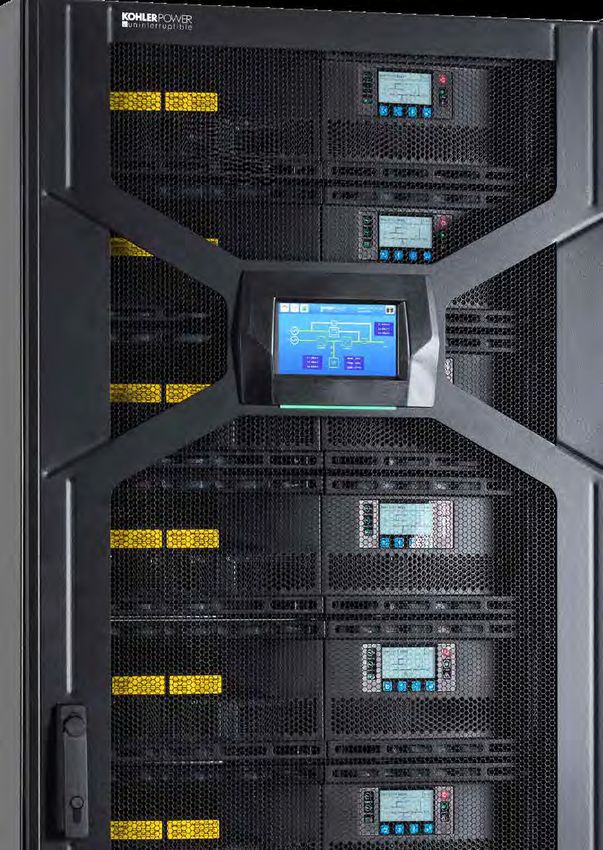

Kohler PW 8000DPA
               (10–200 kVA/kW)
  Parallelable up to 400 kVA/kW
Modular UPS designed                       Kohler PW 8000DPA
for low and medium                         Capacities from 10 kVA/kW to

power applications.
                                           200 kVA/kW in 10 kVA/kW or 20 kVA/kW
                                           modular steps
                                           Parallelable frames up to 400 kVA/kW
                                           Available as tower (ST) or
                                           19” rack-mountable (RI) solutions
                                           Fully rated output power (blade friendly);
                                           20 kVA = 20 kW
                                           N+1 redundancy up to 180 kVA/kW N+1
                                           in a single frame
                                           ‘Six nines’ (99.9999%) availability
Key benefits                               Up to 95.5% efficiency across a wide
Individual static switches per module      load range

Each module has its own display and        Near unity input power factor at partial
controller                                 and full loads (PF = 0.99 @ 100% load)

Each module has its own control logic      Low input harmonic distortion
                                           (THDi
The right solution –                         Advanced Decentralised Parallel              Easy to replace ‘hot-swap’
     Kohler PW 8000DPA is available               Architecture (DPA)                           modules
     in two versions
                                                  Distributed control and power                 eplace or add modules with
                                                                                               R
     Kohler PW 8000DPA ST (tower)                                                              no downtime
                                                  Independent hot-swap modules
     is available for high-density applications                                                Cost effective scalability & ‘right sizing’
     requiring a standard power protection        No single points of failure
     solution including frame, UPS, battery                                                    Simple power upgrade
     and communication. This solution             Decentralised Parallel Architecture (DPA)
                                                                                               Future proof investment
     delivers power protection from               means each UPS module contains all
     10–200 kVA/kW (180 kVA/kW N+1) in            the hardware and software required
                                                                                               True ‘hot-swap’ modularity enables the
     10 kVA/kW or 20 kVA/kW modular steps         for full-system operation. They share no
                                                                                               safe removal and/or insertion of UPS
     to provide a maximum power density of        common components so a DPA parallel
                                                                                               modules into a Kohler PW 8000DPA
     472 kW/m2. Kohler PW 8000DPA                 system offers extremely high availability.
                                                                                               system without risk to the critical load
     cabinets can be paralleled horizontally to   In addition, potential single points of
                                                                                               and without the need to either transfer
     increase the capacity up to 400 kVA/kW.      failure are eliminated and system uptime
                                                                                               the critical load onto raw mains or
                                                  is maximised. Kohler PW 8000DPA
                                                                                               remove power from the critical load. This
     The Kohler PW 8000DPA RI (19” rack-          UPS modules can be paralleled to
                                                                                               directly addresses today’s requirement
     mountable) solution includes UPS,            provide redundancy (parallel
                                                                                               for continuous uptime, reducing mean
     battery and communication, which can         redundancy) or to increase the system’s
                                                                                               time to repair (MTTR).
     be integrated into any 19” rack              total capacity.
     (independent of manufacturer) and
     provides up to 80 kVA/kW (60 kVA/kW
     N+1) making it ideal for integrated IT,
     telecom or other applications.

     Kohler PW 8000DPA ST (tower)

     Up to 10 UPS modules

     Slot for optional
     SNMP card

     Customer inputs and
     volt-free outputs /
     RS232 serial interface

     Maintenance bypass
     switch

     Parallel interface

     AC input terminals

     AC output terminals

     Battery terminal rail

     Earth bar

22
High reliability                              Blade friendly                              Generator friendly

Reliability maximised                         Supports blade servers                      Generator compatible
Automatic parallel redundant operation        Supports leading power factors               oft start – introduces the generator
                                                                                          S
                                                                                          load in steps
Parallel redundant (N+1) UPS systems          Blade servers typically have a leading
provide the highest level of reliability by   power factor, which can present             The Kohler PW 8000DPA offers a highly
ensuring that the number of UPS               problems to UPS systems, particularly if    effective solution when introducing a
modules in a system is a minimum of           they are not designed to power such         generator to the critical load. If the load
one over and above the number required        loads. The Kohler PW 8000DPA is             exceeds 50 per cent of the generator’s
(N) to fully support the critical load.       designed to power all types of electrical   standby rating, switching the load in a
                                              loads, including blade servers. It can      single step presents a number of
The Kohler PW 8000DPA is designed             provide fully rated output power to         dangers. To negate this, each of the
to automatically operate as a parallel        power factors in the range of 0.9 leading   ‘hot-swap’ modules within the Kohler
redundant system, ensuring that the           to 0.8 lagging.                             PW 8000DPA’s modular frame come
critical load always receives the highest                                                 equipped with ‘soft start’ capability. This
level of power protection.                                                                allows the modules to be switched on
                                                                                          sequentially, introducing the generator to
                                                                                          the load in more manageable steps.

Kohler PW 8000DPA RI (19” rack-mountable)

UPS modules

Internal battery storage

RS232 serial interface

Customer inputs and
volt-free outputs

Maintenance bypass switch

Slot for optional SNMP card

Battery fuses

                                                                                                                                        23
High energy efficiency – low total                                                                              Additionally, Kohler PW 8000DPA has a
     cost of ownership                                                                                               near unity input power factor at full load
                                                                                                                     (and even partial loads) reducing the size
     Very high operating efficiency                                                                                 of the input cable and fuses, thereby
                                                                                                                     saving on materials and costs.
     Reduced installation and upgrade costs
      ear unity input power factor and low
     N                                                                                                               Input current total harmonic distortion
     input (THDi) – reduces running costs                                                                            (THDi) of less than 3% virtually
                                                                                                                     eliminates harmonic distortion of the
     The PowerWAVE 8000DPA’s high energy                                                                             mains supply. This saves unnecessary
     efficiency of up to 95.5% is delivered                                                                          oversizing of gen-sets, cabling and
     across a wide load range, significantly                                                                         circuit breakers; avoids extra heating of
     reducing system running costs and site                                                                          input transformers; and extends the
     air conditioning costs.                                                                                         overall lifetime of all input components.

                                                                                                                     All these benefits ensure that the Kohler
                                                                                                                     PW 8000DPA offers one of the lowest
                                                                                                                     ‘total cost of ownerships’ and smallest
                                                                                                                     carbon footprints of any UPS system in
                                                                                                                     its class.

           Input power factor versus load (Leading)                                                                  Kohler PW 8000DPA has a near unity input
           Input power 0.960
                       factor versus load
                                      0.985(Leading) 0.990
           Input1
                                                                                                        0.990
                                                                                                                     power factor at full load (and even partial loads)
           Input power factor
                       factor versus
                 power 0.960  versus load
                                     load  (Leading)
                                      0.985(Leading) 0.990                                              0.990
                                        1
                                                  0.960            0.985               0.990
                                                                                       0.990
                                                                                                        0.990
                                                                                                        0.990
                                                                                                                     reducing the size of the input cable and fuses,
                                        1         0.960            0.985
                                      0.8
                                        1
                                                                                                                     thereby saving on materials and costs.
                                      0.8
                            factor

                                      0.8
                                      0.6
                                      0.8
                        factor
                    power
                     factor

                                      0.6
                   factor

                                      0.6
                power

                                      0.4
                                      0.6
             power
              Input
            power

                                      0.4
          Input

                                      0.4
                                      0.2
                                      0.4
       Input
     Input

                                      0.2
                                      0.2
                                        0
                                      0.2
                                                  25%               50%          75%                    100%
                                       0                                Load (%)
                                       0          25%               50%          75%                    100%
                                       0
                                                  25%               50% Load (%) 75%                    100%
                                                  25%               50% Load (%) 75%                    100%
                                                                        Load (%)

                                      6.0                                                                            Input current total harmonic distortion (THDi) of
                                      6.0
                                      5.5
Kohler PW 8000DPA ST
ST tower range – 10–200 kVA/kW

ST 40 – 2 modules            ST 60 – 3 modules            ST 80 – 4 modules            ST 120 – 6 modules             ST 200 – 10 modules
Dimensions W x D x H:        Dimensions W x D x H:        Dimensions W x D x H:        Dimensions W x D x H:          Dimensions W x D x H:
550 x 770 x 1135 mm          550 x 770 x 1975 mm          550 x 770 x 1135 mm          550 x 770 x 1975 mm            550 x 770 x 1975 mm
No. of internal batteries:   No. of internal batteries:   External battery ONLY        External battery ONLY          External battery ONLY
2 x 40 x 7.2/9Ah             3 x (2x40) x 7.2/9Ah
Total 80 blocks              Total 240 blocks

Kohler PW 8000DPA RI
19” rack-mountable range – 10–80 kVA/kW

With batteries
RI 11 – 1 module                    RI 12 – 1 module                    RI 22 – 2 modules                      RI24 – 2 modules
Dimensions W x D x H:               Number of batteries: 80             Dimensions W x D x H:                  Dimensions W x D x H:
448 x 735 x 487 mm (11 HU)                                              448 x 735 x 665 mm (15 HU)             448 x 735 x 798 mm (18 HU)
Number of batteries: 40                                                 Number of batteries: 80                Number of batteries: 160

Without batteries
RI 10 – 1 module                    RI 20 – 2 modules                   RI 40 – 4 modules
Dimensions W x D x H:               Dimensions W x D x H:               Dimensions W x D x H:
448 x 735 x 310 mm (7 HU)           448 x 735 x 440 mm (10 HU)          448 x 735 x 798 mm (18 HU)

                                                                                                                                              25
Kohler PW 9000DPA
                 (10–250 kVA)
    Parallelable up to 1.5 MVA
Designed to meet the                    Kohler PW 9000DPA
requirements of today –                 Up to 250 kVA (200 kVA N+1) in a

and tomorrow.
                                        single frame
                                        Parallelable up to 1.5 MVA
                                        Transformerless technology
                                        96% true online efficiency
                                        Near unity input power factor at partial
                                        and full loads (0.99% @ 100% load)
                                        Low input harmonic distortion
                                        (THDi
In today’s ‘on demand’
     world, highly reliable power
     protection systems are
     essential to the protection of
     critical data and to ensure
     24/7 availability for business
     applications.

                                                                                             Mains 1        Mains 2

                                                                                                              Static
                                                                                              UPS            bypass

                                                                        Battery

                                                                                                              Static
                                                                                              UPS            bypass

                                                                        Battery
                                                                                                                                Critical
                                                                                                                                 load

                                                                                                              Static
                                                                                              UPS            bypass

                                                                        Battery

     Advanced Decentralised                       Easy to replace                               Future proof installation
     Parallel Architecture (DPA)                  ‘hot-swap’ modules

     Distributed control and power                eplace or add modules with no
                                                  R                                             Investment protection
                                                  downtime/no risk
     Independent hot-swap modules
                                                                                                Future proof installation is assured with
                                                  Simple power upgrade
     No single points of failure                                                               the Kohler PW 9000DPA’s scalability
                                                                                                and ability to supply the most
                                                  True ‘hot-swap’ modularity enables the
     Decentralised Parallel Architecture (DPA)                                                  demanding of modern loads.
                                                  safe removal and/or insertion of UPS
     means each UPS module contains all the
                                                  modules into a Kohler PW 9000DPA
     hardware and software required for full
                                                  system without risk to the critical load
     system operation. They share no
                                                  and without the need to either transfer
     common components, so a DPA parallel
                                                  the critical load onto raw mains or
     system offers extremely high availability.
                                                  remove power from the critical load.
     In addition, potential single points of
                                                  This directly addresses today’s
     failure are eliminated and system uptime
                                                  requirement for continuous uptime,
     is maximised. Kohler PW 9000DPA UPS
                                                  reducing mean time to repair (MTTR).
     modules can be paralleled to provide
     redundancy (parallel redundancy) or to
     increase the system’s total capacity.

28
Smallest footprint                             Maximum availability
saves space

Extremely high power density                  Six nines availability 99.9999%
Uses less valuable floor space
                                               Kohler PW 9000DPA maximises
                                               availability by combining the benefits of
Class-leading power density of
                                               Decentralised Parallel Architecture,
342 kW/m2 significantly minimises the
                                               parallel redundancy and ‘hot-swap’
floor space required to accommodate
                                               modularity with low MTTR.
the Kohler PW 9000DPA. This is
particularly important in data centres
where space must be maximised to
accommodate revenue-earning
equipment.

                                                                                             Vertical scalability

                                  Horizontal scalability

High reliability                               Low running costs                           Blade friendly

Reliability maximised                          igh operating efficiency, regardless
                                               H                                           Supports blade servers
                                               of loading
Automatic parallel redundant operation                                                    Supports leading power factors
                                                educed installation and upgrading
                                               R
Parallel redundant (N+1) UPS systems           costs                                       Blade servers typically have a leading
provide the highest level of reliability by                                                power factor, which can present
                                                ear unity input power factor and low
                                               N
ensuring that the number of UPS                                                            problems to UPS systems, particularly if
                                               input THDi
modules in the system is a minimum of                                                      they are not designed to power such
one over and above the number required                                                     loads. The Kohler PW 9000DPA is
                                               By delivering energy efficiency, scalable
(N) to fully support the critical load. The                                                designed to power all types of electrical
                                               flexibility and ergonomic design, the
Kohler PW 9000DPA is designed to                                                           loads, including blade servers. It can
                                               Kohler PW 9000DPA offers a low total
automatically operate as a parallel                                                        provide fully rated output power to
                                               cost of ownership and easy
redundant system, ensuring that the                                                        power factors in the range of 0.9 leading
                                               serviceability.
critical load always receives the highest                                                  to 0.8 lagging.
possible level of power protection.

                                                                                                                                       29
Capacity                                                                             Right sizing
     120%
                                                                                          Cost-effective scalability
     100%                                                                                  bility to ‘right size’ the system over
                                                                                          A
                                                Room capacity
                                                                                          time
                                                Expected load
      80%
                                                                                          Simple installation of new modules
                                                Installed capacity
      60%
                                                                          Minimal waste   UPS modules can be added in cost-
                                                                          due to load     effective incremental steps as the critical
                                                                          matching
      40%                                                                                 load power requirement grows. This
                                                                                          ‘right sizing’ reduces initial cost,
                                                Actual load
      20%                                                                                 optimises operating efficiency and helps
                                                                                          reduce total cost of ownership.
       0%
            0       1   2   3   4   5   6   7    8         9         10
                                                                                          Up to five UPS modules can be
            Years                                                                         paralleled in a single rack-format cabinet
                                                                                          to enable up to 200 kW (342 kW/m2) of
                                                                                          power capacity per cabinet, providing
                                                                                          ‘vertical scalability’. If more capacity is
                                                                                          required, cabinets can be paralleled
                                                                                          providing ‘horizontal scalability’.

30
AC- AC Efficiency                                                                                                  The Kohler PW 9000DPA’s 96%
                     100%
                                                                                                                                        true online efficiency, significantly
                                                                                                                                        reduces system running costs and
                     96%                                                                                                                site air-conditioning costs. This
                                                                                                                                        helps reduce the organisation’s
                     90%
                                                                                                                                        carbon footprint.
Efficiency %

                     85%

                     80%

                     75%

                               0                    25%                         50%                   75%                     100%
                               Load

                      Input power factor                                                                                                Near unity input power factor, at
                      1.00
                                                                                                                                        partial and full load, reduces
                                                                                                                                        the required size of the input cable
                                                                                                                                        and fuses, thereby reducing the
Input power factor

                                                                                                                                        materials (and costs) associated
                      0.80                                                                                                              with the system’s electrical
                                                                                                                                        installation.

                      0.60

                               0                        25%                     50%                    75%                       100%
                               Load

                      THDi                                                                                                              Input current total harmonic
                       6                                                                                                                distortion (THDi) of
32
     Kohler PW 9250DPA
        (50–300 or 250 N+1 kVA/kW)
True modular UPS for
medium power
applications in critical,
high-density computing
environments such as
small to medium-sized
data centres, plus
industrial automation       The 9250DPA’s highly
                            efficient modular
processes and               architecture offers the best
healthcare facilities.      reliability for environmentally
                            conscious organisations
                            that also need zero
                            downtime and low cost of
                            ownership.
                            The UPS sets the standard for the next
                            generation of UPS progress with
                            advanced features such as its
                            transformer-free IGBT converters that
                            include three-level topology and
                            interleaving controls to enable market-
                            leading efficiency of 97.6 per cent.

                            It also supports Xtra VFI, which further
                            minimises power consumption by
                            intelligently configuring the number of
                            modules required to support the current
                            critical load. When Xtra VI is enabled, the
                            number of active modules required will
                            adjust accordingly, with modules not
                            needed switching to a standby state of
                            readiness but primed to become active
                            again if the load increases.

                                                                          33
Kohler PW 9250DPA
                                                                          98.0

     Five frames can be connected in parallel
     for 1.5 MW total system power.
                                                                          97.5

     Frame-rated power 300kW or 250KW
     N+1 (hosting up to six modules).
                                                                          97.0
     Module-rated power 50 kW.                                                                               97% efficiency reached through
                                                                                                              wide operating range, typical
                                                                                                               for majority of applictions
     Unity power factor.                                                  96.5

     Efficient – up to 97.4% at system level.
                                                                          96.0
     Scaling the UPS capacity to match the                                            Xtra VFI function                                            Xtra VFI mode
     load power is simple.                                                            increases efficiency                                         Double conversion

                                                         Efficiency (%)
                                                                                      when load is low                                             mode
                                                                          95.5
     Xtra VFI mode: the smart way to
     enhance efficiency at low load levels.
                                                                          95.0
     Energy storage: lithium-ion, VRLA, NiCD
                                                                                 10       20          30         40         50         60     70        80         90      100
     battery; common battery (per frame) or
     dedicated battery for each UPS module.                                      Load (% of rated power)

     Adding redundancy to increase
     availability and reliability is easy.
     Rated voltage 380/ 400/ 415 Vac.
     Robust ring-bus communication for
     increased reliability.

     Designed for even easier access to
     consumable parts in order to further
     improve availability and reduce mean
     time to repair (MTTR).

                                                                                                                                                             Vertical
                                                                                                                                                             scalability
                                                                                                                                                             to 300 kW
                                                                                                                                                             or 250 kW
                                                                                                                                                             (N+1)

                                                Horizontal scalability up to 1.5 MW
                                                       (up to 30 modules)

34
50–250 kW [N+1] uninterrupted power in a single frame

The use of DPA™ (Decentralised Parallel      Wiring options secure compliancy
Architecture) ensures each module has        for any site installation need
all the hardware and software needed for
autonomous operation: rectifier, inverter,   Supports top or bottom cable entry.
battery converter, static bypass switch,
                                             Supports single or dual input feed.
back-feed protection, control logic,
display and mimic diagram for                Separate (per module) or common
monitoring and control. If one module is     battery.
lost, the others take up the load,
meaning that the system is fault tolerant
                                             Integrated switchgears complete
and there are no single points of failure.
Uptime is guaranteed, and availability is    the system
maximised.
                                             Output isolation switch to disconnect
                                             the UPS from downstream.
Scalability and redundancy inside
one single frame                             Optional maintenance bypass switch for
                                             enhanced serviceability.
Ability to host up to six 50 kW UPS
modules with N+1 redundancy for up to
                                             Easy to monitor and manage
250 kW N+1 clean, secured power in
single UPS cabinet with small footprint.
                                             Intuitive, graphical system user interface.
Features DPA™ where each
                                             Each module features dedicated display
UPS module is a comprehensive and
                                             for module specific data access.
independent functional unit for true
redundancy.                                  Advanced software and connectivity
                                             options.

From 50 kW up to 1.5 MW secured power

Featuring superior 97.6 per cent UPS         High efficiency and
module efficiency and 97.4 per cent          proven technology
system efficiency, the 9250DPA reduces
energy losses that create pure costs as      Minimises TCO by facilitating top-of-
direct electricity spend and costs for       market efficiency of over 97%,
cooling. Thanks to three-level               leveraging 3-level converter technology
interleaved technology, the 9250DPA          and featuring efficiency optimising Xtra
achieves an efficiency of over 97 per        VFI – double-conversion mode.
cent in a wide-operating range, when the
                                             Secures highest availability thanks to
load is between 25 and 75 per cent of
                                             inherently redundant modular concept,
nominal capacity.
                                             with decentralised parallel architecture
                                             (DPATM) and robust ring-bus
True modular UPS for medium
                                             communication between modules.
power applications
                                             Compact design saves floor space –
50 kW module-based UPS solution to           0.73m2 footprint.
medium-power commercial
applications.
300 kW UPS frame can host up to six
modules for N+1 redundancy.
Scaling of power easily and securely
from 50 kW to 1.5 MW.

                                                                                           35
Features

     DC (battery) breakers                                                                  Up to 6 x 50 kW UPS module
     DC breakers for energy storage                                                         Integrated UPS module with all
     connection on each module                                                              UPS essential functions:
     separately.                                                                            rectifier, inverter, static bypass,
                                                                                            control logic and display.

     Maintenance bypass
     (optional)
     Integrated MBS is available as                                                         Output isolation switch
     an option for enhanced service                                                         Included in the standard
     ability with single frame                                                              configuration to allow
     installations.                                                                         disconnection of complete
                                                                                            UPS cabinet from load supply.

     I/O section and DC wiring                                                              Connectivity section
     Wiring area has good space for                                                         Two slots for connectivity
     service. Single and dual input                                                         cards, e.g. SNMP web card
     feed supported as well as                                                              and relay board. USB and
     common or separate battery.                                                            RS-232 communication ports.
     Top or bottom cable entry                                                              Building alarm inputs/relay
     supported.                                                                             outputs. Connection point for
                                                                                            parallel system communication
                                                                                            cable.

                                      User interface

                                      System graphical display                   DPA module display

                                      Touch screen interface – one per system.   240 x 128 pixel graphical display.
                                      Interactive mimic diagram.                 Five-line menu.
                                      Coloured and graphical display.            Capacitive buttons/key.
                                      Integrated buzzer for alarms.              Status LED RG/RGB.
                                      18-languages selection.                    Allows for easy module level data access
                                                                                 and module management.
                                      Extended events log (1,000 events).
                                      Clear system overview, measurements
                                      and system status.
                                      Navigation into module level, module
                                      level measurements and status.
                                      System level commands.

36
Kohler PW 9500DPA
              (100–500 kVA/kW)
   Parallelable up to 3 MVA/MW
500 kVA/kW                                   Kohler PW 9500DPA                                   Dimensions and clearances

modular UPS,                                 Up to 96% true online efficiency                    Dimensions

designed with high                           Eco-mode efficiency ≥ 99%                          Width 1580 mm
                                                                                                 Depth 940 mm
efficiency and                                ost effective scalability to ‘right size’
                                             C
                                             system                                              Height 1975 mm

maximum flexibility                          Unity power factor and low input THDi              1.49 m2 footprint

at its core.                                 Up to 500 kVA/kW (400 kVA/kW N+1) in
                                             a single frame
                                                                                                 Weight (with 5 modules) 975 kg

                                             Scalable to 3 MVA/MW                                Minimal clearances

                                             Transformerless technology                          Front 1000mm

                                             Hot swappable 100 kVA/kW modules                    Back 300mm (air outlet)

                                             Low total cost of ownership
Total vertical and horizontal
                                             99.9999% (six nines) availability
scalability using hot swap
                                             Small footprint/high power density
modularity.
                                             Unity power factor (kW = kVA)
                                             Low input harmonic distortion
Key benefits
                                             (THDi
Hot swappable modules

      eplace or add modules with
     R
     no downtime
     Simple power upgrade
     Future proof investment

     True ‘hot-swap’ modularity enables the
     safe removal and/or insertion of UPS                                   Hot swappable
     modules into a Kohler PW 9500DPA                                       module
     system without risk to the critical load
     and without the need to either transfer
     the critical load onto raw mains or
     remove power from the critical load.

     Modules can be replaced or added
     without any system downtime. Simple
     power upgrades are therefore possible
     as the critical load power requirements
     grow. Additionally, modules can easily
     be removed for service or replaced if
     faulty without compromising the                                        Graphical touchscreen
     availability of the system.                                            system display

                  Kohler PW 9500DPA UPS 500 kVA/kW      500 kVA/kW

                                                     Vertical scalability

40
Six nines availability                      Advanced Decentralised Parallel              Graphical touchscreen display
                                            Architecture (DPA)

99.9999% availability                      Distributed control and power               System level display
                                            Independent hot-swap modules                Individual module displays
By combining the benefits of
Decentralised Parallel Architecture,        No single points of failure
                                                                                         The 7” colour touchscreen display
parallel redundancy and hot swap
                                                                                         provides a clear overview of the UPS at a
modularity, Kohler PW 9500DPA has a         Decentralised Parallel Architecture (DPA)
                                                                                         system level. Graphical and intuitive, the
high mean time between failure (MTBF)       means each UPS module contains all the
                                                                                         display provides easy navigation to drill
and a much reduced mean time to repair      hardware and software required for full
                                                                                         down on the performance and status of
(MTTR). This delivers six nines             system operation. They share no
                                                                                         the individual modules within the
availability – a highly desirable quality   common components so a DPA parallel
                                                                                         system. Additionally, each module has
required by data centres in pursuit of      system offers extremely high availability.
                                                                                         its own display.
zero downtime.                              In addition, potential single points of
                                            failure are eliminated and system uptime
                                            is maximised. UPS modules can be
                                            paralleled to provide redundancy
                                            (parallel redundancy) or to increase the
                                            system’s total capacity.

                                                                                                        Top cable entry

                                                                                                        Smart connection
                                                                                                        interface

                                                                                                        Optional inbuilt
                                                                                                        maintenance
                                                                                                        bypass switch

                                                                                                        Individual module
                                                                                                        isolator

                                                                                                        Inbuilt backfeed
                                                                                                        protection

                                                                                                        Bottom cable entry

                                                                                                                                      41
Scalable up to 3 MVA/MW                          Input and output characteristics

     Vertical and horizontal scalability                Power
                                                         Powervsvspower
                                                                   powerfactor
                                                                           factor
     Cost effective ‘right sizing’               100
                                                 100
                                                                                                                                                     No derating in the range
     Kohler PW 9500DPA can be scaled                       75
                                                                                                                                                     0.9 leading to 0.6 lagging
                                                        75
     vertically in 100 kVA/kW modular steps
     to provide up to 500 kVA/kW of power in
     a single frame. This enables power to be           50
                                                           50

     added as requirements grow, without the
     impact on footprint. Horizontal                       25
                                                        25
     scalability is also possible, with up to                              kVA
                                                                           kW
     six frames in parallel, to increase total                    0
                                                                           kVA
                                                                           kW
     power up to 3 MVA/MW. This two-                             0       -0.8 -0.85 -0.9 -0.95 1.00 0.95 0.90 0.85 0.80 0.75 0.70 0.65 0.60
                                                                        cosphi
     dimensional scalability means that there                            -0.8         -0.9     1.0       0.90       0.80       0.70       0.60
                                                                        cosphi
     is no need to overspecify the original
     configuration, as modules and/or frames
     can be added to optimise the power                Input power factor
     requirements and increase/decrease
                                                                        1.00
     power to meet future requirements.
                                                                                                                                                     Near unity input power factor, at
                                                                                                                                                     partial and full load, reduces
                                                   Input power factor

                                                                        0.80                                                                         the required size of the input cable
                                                                                                                                                     and fuses, thereby reducing the
                                                                                                                                                     materials (and costs) associated
                                                                        0.60                                                                         with the system’s electrical
                                                                                                                                                     installation.
                                                                               0             25%            50%              75%              100%
                                                                               Load

     Scalable up to 3 MVA/MW
     Vertical scalability:
     one to five modules in one single cabinet

     Horizontal scalability:
     six cabinets in parallel configuration up to 3 MVA/MW

42
43
44
     Kohler MF1500 DPA
             (250–1500 kVA/kW)
        Scalable to 6000 kVA/kW
Exceptionally resilient, flexible           Kohler MF1500 DPA
and scalable high power                     Online double conversion UPS

modular UPS offering                        250 kW to 1500 kW -
                                            parallelable to 6000 kW
best-in-market VFI mode                     Slide-in vertical modules

energy efficiency. Redefines                Cable free internal connections

lifetime cost for data centres              Extra-long life wear parts
                                            Market leading 97.4% efficiency
and other high density
applications without
compromising reliability.

Innovation with purpose.

Designed with a clear goal to define that
reliability does not require excess, and
high power can exist alongside efficient
use of energy, the MF1500 DPA modular
UPS system combines proven DPATM
technology with the latest advances in
components and software.

Innovative, vertical slide-in modules
enable resilient, high power density
protection by reducing UPS footprint up
to 45% over traditional approaches,
without compromising access for
installation and maintenance.

That protection is achieved with best-in-
market 97.4% VFI energy efficiency,
reducing environmental impact,
optimising PUE measures and delivering
significant financial savings in energy
and cooling costs.

                                                                              45
DPATM – Resilient. Reliable.                  Effective efficiency.
     Flexible.
                                                   Advanced components enable the
     Decentralised Parallel Architecture           MF1500 DPA to deliver the best energy
     (DPATM) products contain all the essential    efficiency in its class, up to 97.4% at
     components of a UPS within each               system level in VFI mode (i.e. Voltage
     module, including the static switch,          and Frequency Independent, the
     allowing independent operation                most commonly used and most
                                                   protective mode)
     DPATM modules can be hot-swapped
     without affecting the rest of the system,      lus, design focus to ensure efficiency
                                                   P
     easing maintenance, reducing system           can be effectively used, means 97.4%
     repair times to minutes and dramatically      efficiency is not solely delivered in a
     increasing availability                       narrow sweet spot but across a wide,
                                                   practical load band
     With 1000 kW and 1500 kW frame
     size options and 250 kW modules,              Effective use of energy efficiency is
     systems can be sized for an initial load      enhanced further by Xtra VFI mode
     and scaled up or down depending on            functionality. Often when load falls
     future requirements                           below 25%, UPS efficiency rapidly
                                                   deteriorates. By automatically
     For flexibility and additional resilience,   adjusting the number of active modules
     each DPATM module can be fed from an          according to load and redundancy
     independent or common battery system          requirements, and reverting unneeded
                                                   modules to standby, Xtra VFI avoids this.
                                                   Intelligent switching rotates active
                                                   modules, equalising aging and
                                                   extending service life

     DPA modules – each contains all components
     of a UPS

     A 1.5MW MF1500 DPA system with six 250 kW modules flanking the central connections cabinet

46
In a 1.5 MW installation,
over 10 years the 0.7%
extra efficiency of the
MF1500 DPA vs a
competitor at 96.7% can
save over €190k in
electrical and cooling costs.

Engineered. Inspired. Informed.

 esigned for ease of use from the first
D                                                  An advanced visual interface and display                                                    Additional control and monitoring
moment of installation, module cabinets            allows an operator to observe                                                               features include:
are easily transported to the UPS and              performance, events and alarms                                                              • I/O dry ports
slide into place on integrated wheels              onscreen, including battery voltage, UPS                                                    • Remote shutdown
                                                   output and critical component status                                                        • Castell interlock function
To make them easy, safe and error free,
wired connections are entirely                     Comprehensive control and monitoring                                                        • Battery temperature input
eliminated by use of slide-in modules              keeps operators and service teams                                                           plus compatibility with Kohler’s battery
and innovative, pre-engineered power               fully informed. Information can be                                                          management and monitoring systems
and distribution frames                            accessed remotely via SNMP, Modbus
                                                   TCP/IP or Modbus RS-485 and
Advanced design maximises life of
                                                   integrated with associated systems
consumables, eg fans and capacitors,
                                                   e.g. BMS, DCIM or EPMS
with replacement only once in a
15-year period
Recognising pressure on space,
intelligent physical design delivers
a power density of up to 493 kW/m2,                                                    98.0
some 45% better than traditional
approaches, without compromising
                                           Double conversion measured efficiency (%)

                                                                                       97.5
access

                                                                                       97.0
                                                                                                                           97% efficiency reached through
                                                                                                                            wide operating range, typical
                                                                                                                             for majority of applictions
                                                                                       96.5
                                                                                                                                                                   Xtra VFI mode
                                                                                                                                                                   Double
                                                                                                                                                                   conversion mode
                                                                                       96.0
                                                                                                   Xtra VFI function
                                                                                                   increases efficiency
                                                                                                   when load is low
                                                                                       95.5

                                                                                       95.0
                                                                                              10          20          30      40         50         60       70   80      90         100

                                                                                                                                   Load (% of rated power)

                                                                                                                                                                                           47
Lithium-ion Batteries
Reliable, lightweight and   Lithium-ion battery solution
compact UPS energy          Outstanding performance

storage for critical
                            Higher reliability than VRLA
                            Single cell temperature, current, voltage
applications such as        and charge status are all monitored

data centres, healthcare,
                            Fast charge and discharge rate
                            Higher power and efficiency
building infrastructures,   Low total cost of ownership

transportation, and         Lower maintenance overhead

manufacturing.              Less need for cooling
                            Longer battery life
                            Increased power density
                            Reduced footprint and volume
                            Wide operating temperature range
                            High safety level
                            Scalable
                            Lightweight (60–80% less than VRLA)

For additional battery
capacity, cabinets can be
installed in parallel to
increase capacity up to
5 MW per single system.

                            When you want power protection for a
                            data centre, production line or any other
                            type of critical process, lithium-ion
                            battery solutions provide peace of mind
                            and the performance you need.

                            Housed in a tough enclosure, lithium-ion
                            battery technology provides reliable,
                            lightweight and compact energy storage
                            for UPS systems.

                                                                        49
Why lithium-ion batteries?                    Battery management system

     Valve-regulated lead acid (VRLA)
     batteries – sometimes known as sealed         Features
     lead–acid batteries – have many               Each battery cabinet has dedicated
     advantages and have traditionally been        battery management systems at single
     the battery of choice for backup power        module and rack level, plus fuse, circuit
     in UPS systems. However, battery              breaker protection and a dedicated 24 V
     technology has progressed rapidly in          power supply
     recent years.
                                                   A single cabinet configuration of 34.6
     Today, lithium-ion battery technology is      kWh comprises one switchgear, one
     an attractive option – especially where       switched mode power supply (SMPS)
     high energy density and low weight are        and 17 battery modules
     important. Advantages such as longer          Switchgear collects all information about
     lifespan, smaller size and weight, shorter    each battery cell and controls all battery
     recharging times and falling prices only      module management systems
     add to the appeal of lithium-ion battery      calculating state of charge (SoC) and
     solutions.                                    state of health (SoH). It also contains a
                                                   moulded case circuit breaker and a
     For best performance and lifetime, it is      shunt resistor
     essential to keep VRLA battery rooms at
     a reasonably constant temperature             SMPS supplies the power for BMS and
     (20–25°C). Keeping things cool can be         communicates with UPS and other racks
     problematic and costly, especially in hot     in parallel. It is available in two versions
     countries. With lithium-ion batteries, this   with or without BMS for single or
     problem virtually disappears, as              multiple parallel configuration
     lithium-ion batteries are much more           Battery module contains eight series-
     tolerant to changes in environmental          connected 67 Ah, 3.8 V cells and a
     temperature and can operate over a            dedicated battery module management
     broader temperature range.                    system

     Lithium-ion batteries are easy to handle      Accommodated in a standard
     too – they are safe and do not contain        19̎˝ cabinet
     mercury, lead, cadmium, or other              Battery cabinets can be connected in
     hazardous materials. In most cases,           parallel to achieve the power needed
     traditional batteries would need to be
     replaced multiple times before a
     lithium-ion battery is replaced once.
     When it comes to operating expenses,
     lithium-ion batteries offer a lower total
     cost of ownership.

50
Switchgear

Battery management system

Switched-mode power supply (SMPS)

Battery module

Runtime and performance                        Lithium-ion batteries can be charged
                                               much more quickly than conventional
Lead acid                     Lithium-ion      batteries, so after use they can be
                                               charged back up to full strength in a
                              Faster charge    shorter time. This means full availability
                              and higher       in less time.
                              discharge rate
Charge 0.1C                   Charge 0.5C      Lithium-ion batteries also provide higher
Discharge 2C*                 Discharge 6C*    power density and efficiency, especially
                                               under heavy discharge rates. This means
                                               that no battery oversizing is needed.
                              Less space
                              and weight
                                               Low weight (60–80 percent less than
Weight 2500kg                 Weight 550kg     VRLA) means reduced civil engineering
Volume 2m3*                   Volume 0.8m3*    overheads and easier physical
                                               installation.
                              Longer life

3–7 years*                    15 years*

*Example 190 kW power/10 min autonomy

                                                                                            51
Battery Monitoring
      Battery system care
Battery design, installation                   Battery monitoring services
and continuous care.                           Advice on battery system design
                                               ‘Made to measure’ battery installation
                                               service
                                               Battery impedance testing to track
                                               battery condition
                                               Inspection, cleaning and maintenance
                                               options to ensure battery working life
                                               is optimised
                                               Battery replacement programme for
                                               a wide range of battery supported
                                               products
                                               Safe battery disposal
                                               Monitoring and regulation of batteries
                                               to extend battery life and prevent
                                               unexpected failure using Battery
                                               Monitoring

Pioneering solutions
for total power protection.
The battery plays a key role in the overall
reliability and availability of a power
protection system. It supplies the energy
required by the critical load in the event
of a mains utility failure or when the input
mains voltage and frequency are outside
the acceptable values. Moreover, the
battery represents an important share of
the total cost of the UPS, and therefore
battery care and management are of
paramount importance when a UPS is
designed.

Kohler Uninterruptible Power provides a
range of remote monitoring and
diagnostics services to provide early
fault detection and prevention. Battery
Monitoring is the most advanced
monitoring product on the market today.

                                                                                        53
Power vs Power Factor
     Battery Monitoring
                                                  16
     Extends battery life by equalisation         15
                                                  14
     Monitors and regulates the battery           13                                                                                                             Block voltage
     charging process and avoids                  12
     undercharging                                11
                                                  10
     Indicates battery problems before failure     9

     Monitors condition of every battery           09:12                   09:42              10:12            10:42           11:12           11:42
     individually including temperature           16
                                                  15
     The Battery Monitoring system from           14
     Kohler Uninterruptible Power is the most     13

     advanced product on the market today,        12
                                                  11
     providing an ethernet-network
                                                  10
     integrated battery monitoring and
                                                   9
     management system. Using web-
                                                       0   1   2   3   4   5   6   7   8   9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
     management technology, it checks the
     internal resistance, temperature and              Battery block numbers
     voltage of every single battery
     sequentially. Through the equalisation
     process, the system corrects the
     charging voltage operating range. This      Battery Monitoring reporting                                              The graph above demonstrates that
     prevents gassing, dry-out and thermal                                                                                 battery 6 is weak after 30 minutes of
     runaway. The constant monitoring and        The reporting system displays the status                                  discharge into a 45-minute run. This
     controlling of the individual charging      of all lead-acid batteries. Any change in                                 early warning system enables the user to
     voltages for each battery guarantees the    impedance, temperature and voltage is                                     replace the weak performing battery and
     availability of the battery at all times.   displayed and stored. Reports can be                                      thus increase the lifetime of the
                                                 run regularly On-site, enabling constant                                  complete battery system.
                                                 monitoring of the system using the
                                                 Battery Monitoring viewer. Through
                                                 regular monitoring of key parameters,
                                                 the system will provide a warning when
                                                 attention is required.

54
Inspection, cleaning                         Replacement and upgrade
and maintenance
                                             We supply and fit batteries of all types
Regular maintenance optimises the            into all models of UPS and secure power
working life of a battery installation and   systems. Additionally, Kohler
ensures early detection of weak or faulty    Uninterruptible Power offers a battery
battery blocks. If not replaced, a           replacement programme for a wide
compromised battery would threaten the       range of battery supported products.
integrity of the whole power protection      These include AC UPS, DC equipment,
system. Routine battery maintenance          and generator starting batteries.
provided by our skilled team of specialist
engineers includes:

– Checking the open circuit battery and      Disposal
  UPS float voltages
– Inspecting the physical condition of       We manage the safe and environmental
  batteries, terminals and connections       disposal of batteries and replacement
– Environmental checks – ambient             UPS batteries in line with Hazardous
  temperature of battery room                Waste Regulations. As a registered
                                             carrier of such waste, KUP ensures that
– Checking the cleanliness of
                                             all the legal requirements associated
  equipment
                                             with the removal, transportation and
– Assessing the condition of battery         disposal of waste batteries are fully
  cabinets                                   complied with.
– Performing a detailed examination
  of individual cells for post and
  interconnector corrosion
– Taking voltage readings – block and
  string voltages

Impedance testing

Our impedance testing provides a
means of assessing the internal
condition of batteries. Almost any
battery problem will lead to an increase
in internal impedance. Recorded at
regular intervals, impedance testing will
track battery condition and enable
end-of-working-life prediction. This
service is included as part of the Battery
Monitoring system or can be purchased
separately.

                                                                                        55
56
     Service Solutions
Flexible service plans,                     Service solutions
load bank testing and
UPS rental.
                                            Maintenance
                                            UPS maintenance contracts

                                            Batteries
                                            Battery replacement and upgrade
                                            Load bank testing
                                            Impedance testing
                                            Lithium-ion batteries
                                            Battery disposal

                                            Monitoring
                                            Battery Monitoring
                                            SNMP onsite monitoring

                                            Onsite
                                            Site survey
                                            Installation and commissioning
                                            Black building testing
                                            Load bank testing
                                            UPS relocation and disposal

Pioneering solutions for
total power protection.

At Kohler Uninterruptible Power, our
core business is the design, installation
and maintenance of secure power
protection systems. Delivered by our
trained engineers and support staff, we
offer the most comprehensive and
cost-effective service plans available
ensuring your power protection systems
are expertly maintained on a regular
basis and ready to support your
business load.

                                                                              57
Maintenance                                  Monitoring

     UPS maintenance contracts                    Battery Monitoring and care

                                                  All UPS systems rely on the integrity of
     Kohler Uninterruptible Power’s               batteries to protect the critical load in the
     maintenance plans offer the flexibility to   event of a power failure. To ensure
     choose the level of service needed to        the integrity of your secure power
     ensure that risks and costs are              system is not compromised, we provide
     minimised. They all provide regular          a comprehensive range of battery
     maintenance visits and you can choose        services including design installation,
     the level of service time you need to suit   maintenance, monitoring, replacement
     your business requirements. To               and disposal.
     maximise the reliability of your UPS, a
     service plan from Kohler Uninterruptible     See pages 52–55.
     Power also ensures critical component
     degradation is identified and that repairs
     or replacements are carried out before a
     fault occurs. Immediate spares               SNMP onsite monitoring
     availability is assured through our
     extensive spares inventory.
                                                  Connect your UPS directly to your
                                                  computer network as a network device
     Features                                     with Kohler Uninterruptible Power’s
     Routine inspection and preventative          SNMP solution.
     maintenance
                                                  Contact us on +65 6302 0702 for more
     Emergency call-out options including         information.
     guaranteed speed of response, 24 hours
     a day, 365 days a year
     Battery maintenance
     A range of cover available

     Key benefits
     Comprehensive plans competitively
     priced optimising UPS availability – with
     no unscheduled budgetary surprises
     Guaranteed response times to site –
     we’re there when we say we’ll be there
     24/7 telephone support for an instant
     response to your service needs
     Extensive network of trained field service
     engineers
     Service for a wide range of UPS brands
     Support contracts tuned precisely to
     each installation, so you only pay for the
     service level you need
     Remote monitoring options to
     complement telephone support
     Extensive spare parts inventory ensuring
     maintenance and repairs are carried out
     without delay

58
You can also read
