www.concept.co.nz “Driving change” – Issues and options to maximise the opportunities from large-scale electric vehicle uptake in New Zealand Prepared for Orion, Unison, and Powerco 7 March 2018
About Concept Concept Consulting Group Ltd (Concept) specialises in providing analysis and advice on energy-related issues. Since its formation in 1999, the firm’s personnel have advised clients in New Zealand, Australia, the wider Asia-Pacific region and Europe. Clients have included energy users, regulators, energy suppliers, governments, and international agencies. Concept has undertaken a wide range of assignments, providing advice on market design and development issues, forecasting services, technical evaluations, regulatory analysis, and expert evidence. Further information about Concept can be found at www.concept.co.nz. Disclaimer While Concept has used its best professional judgement in compiling this report, Concept and its staff shall not, and do not, accept any liability for errors or omissions in this report or for any consequences of reliance on its content, conclusions or any material, correspondence of any form or discussions, arising out of or associated with its preparation. No part of this report may be published without prior written approval of Concept. © Copyright 2018 Concept Consulting Group Limited All rights reserved
Contents Executive summary ................................................................................................................................. 3 1 Introduction .................................................................................................................................... 7 1.1 Background ............................................................................................................................. 7 1.2 Purpose of study ..................................................................................................................... 7 1.3 Issues addressed in study ....................................................................................................... 8 1.3.1 The nature of the problem.............................................................................................. 8 1.3.2 How do we encourage consumers to charge their EVs in a smart fashion?................... 9 1.3.3 Public charging issues ................................................................................................... 10 2 Estimation of the costs of large-scale EV uptake under ‘passive’ and ‘smart’ charging futures .. 11 2.1 How soon might large-scale uptake of EVs occur? ............................................................... 11 2.2 What would be the impact on electricity demand of such large-scale EV uptake? ............. 13 2.2.1 What pattern of EV charging is likely to emerge? ........................................................ 14 2.2.2 Can EV’s be charged in a ‘smarter’ fashion? ................................................................. 17 2.3 Estimating the cost of meeting EV demand from these different approaches .................... 19 2.4 Emissions impacts of different EV charging approaches ...................................................... 20 2.5 The cost and emissions impacts of passive versus smart charging are likely to be even greater than set-out above ............................................................................................................... 22 3 Options for incentivising better outcomes ................................................................................... 25 3.1 Introduction .......................................................................................................................... 25 3.2 Time-of-use pricing ............................................................................................................... 25 3.3 Coincident maximum demand charging ............................................................................... 30 3.4 General issues with TOU and CMD prices............................................................................. 31 3.4.1 The potential for bill shock ........................................................................................... 31 3.4.2 Limited ability to deliver very-smart charging approaches .......................................... 32 3.5 Managed charging ................................................................................................................ 32 3.6 Other emerging energy technologies face similar issues ..................................................... 37 3.7 Conclusion on incentivising better EV charging outcomes ................................................... 38 4 Policy issues around public charging infrastructure ..................................................................... 41 Appendix A. Projections of EV uptake ............................................................................................... 42 Appendix B. What pattern of ‘passive’ EV charging at residential properties is likely to emerge based on current electricity prices?...................................................................................................... 51 Comparison with overseas ................................................................................................................ 59 Appendix C. Electricity system costs of meeting EV-driven demand growth ................................... 61 Network cost impacts ....................................................................................................................... 61 Generation cost impacts ................................................................................................................... 63 Appendix D. Commercial and Heavy freight EV impacts, and public charging ................................. 64 EV Study v1.0 2 Saved: 7-Mar-18
Executive summary What is this report about? Concept and the three network companies who have sponsored this report, think electric vehicles (EVs) have the potential to be a fantastic opportunity for New Zealand, both in terms of massive gains to the environment, and in terms of delivering genuinely cheaper transport services. However, we believe that current electricity supply arrangements will frustrate realisation of these benefits – and will also result in EV uptake causing unnecessary costs. There is the potential to change our electricity supply arrangements to maximise the good outcomes from EV uptake and minimise the bad. However, there are some real challenges to overcome before we get there, with some difficult choices and industry coordination challenges. Further, with mass EV uptake just around the corner and greenhouse reduction targets getting ever-more urgent, there is a real time imperative to resolving this issue. We hope this report will be a useful contribution to the broader industry and consumer / political discussion about how we can make the changes to deliver the best outcomes for New Zealand. A continuation of current electricity pricing approaches will result in higher costs and emissions Large-scale uptake of low emission vehicles is arguably the single most important element required to meet the government’s target of net-zero greenhouse gas emissions by 2050. Further, it looks increasingly likely this need will be met by electric vehicles (EVs), as falling battery costs offer the prospect of genuinely cheaper transport compared to internal combustion engine (ICE) vehicles. However, the current approach for charging for electricity – i.e. predominantly ‘flat’ $/kWh prices which don’t vary across the day1 – will frustrate achievement of the benefits and also result in unnecessary costs being incurred: • EV-owners will pay significantly more than they should for charging their vehicles. This will slow the rate of uptake of EVs, significantly increasing New Zealand’s emissions and increasing overall economic costs. • Those households who do purchase EVs will mostly adopt a ‘passive’ approach for re-charging their batteries: i.e. simply plugging-in and starting charging as soon as they get home. Unfortunately, the time most people get home – early evening after getting back from work – is also the time of peak electricity demand. The scale of demand from EVs is such that this will soon start to trigger expensive network capacity investments in many areas. Plus, additional fossil-fuelled generation will be required if charging is done at times of peak usage. Overall, we estimate that a permanent continuation of current pricing approaches will result in unnecessary increased costs of approximately $4bn (in present value terms, or $14bn in future cost terms), and CO2 emissions from internal combustion engine vehicles (ICEs) being over one-third greater in 2050. These financial and environmental costs are avoidable with smarter, more cost-reflective electricity prices which encourage EV-owners to charge their vehicles smoothly overnight in off-peak periods. Such smarter pricing, working in tandem with the technology embedded in EVs and their chargers, will: • make EV charging much cheaper – thereby facilitating EV uptake; and 1 We estimate that over 95% of New Zealand households are on flat rate pricing EV Study v1.0 3 Saved: 7-Mar-18
• avoid causing a material increase in peak power demand and associated costs and emissions. Electricity pricing options which apply to the whole of a household will likely be inadequate to meet the special challenges of EVs However, identifying and transitioning to smarter electricity prices will itself have some challenges: • ‘Time-of-use’ (TOU) pricing (e.g. having a simple peak / off-peak pricing structure based on pre- set times) might be appropriate for most household electricity demand, but will not deliver good long-term outcomes in relation to EV demand. TOU pricing will likely create new demand spikes with a majority of EVs simultaneously charging from the start of the off-peak period. While such issues won’t matter for very low-levels of EV uptake, our analysis suggests for EV penetrations of 15-20% and above (i.e. approximately 1-in-6 households owning an EV), the peak demand arising from everyone following a TOU pricing approach would be greater than if everyone had continued to follow a ‘passive’ charging approach and the peak period will shift to 9pm, from nearer 6pm now. Aside from not avoiding the need for expensive network investment, TOU pricing applied to EV demand could also potentially create network stability issues with a very rapid step change in demand occurring at the start of off-peak periods. This rapid step change in demand is not observed with flat rate charging, and will be made much worse if vehicle to grid technology becomes mainstream2. Thus, while TOU pricing may be appropriate for sending efficient signals to consumers for some of their electricity decisions, it is potentially a worse solution than flat rate pricing over the long term when applied to EV demand given the special ‘storage’ characteristics of EV demand.3 • ‘Peak demand’ pricing4 could overcome this problem by adjusting prices based on actual demand conditions. But this may be unsuitable for most residential consumers, due to the lack of pricing predictability5, and issues around bill shocks, higher winter costs, and the ability of consumers to make good decisions in response to such complex pricing approaches. In addition, both of the above pricing approaches will likely need to apply to the whole of a household’s electricity consumption, not just the EV demand. Changing consumer pricing structures, will inevitably lead to ‘winners’ and ‘losers’, with some of the losers potentially facing significant bill shocks. This raises some challenging policy choices: • On the one hand, having a phased transition to smarter cost-reflective pricing over many years may be desirable to avoid many of the poor outcomes from bill shocks for some consumers. • On the other hand, delaying the transition to smarter cost-reflective pricing, will also delay the time when consumers will be fully incentivised to make good vehicle decisions. This will tend to slow the uptake of EVs which, given that vehicles tend to be 20-years old by the time they are 2 Vehicle to grid, or V2G, technology provides the ability for EV battery charge to be injected back into the grid. 3 We characterise storage energy technologies as those where the timing of energy consumption can be significantly altered within a day, without fundamentally affecting delivery of the energy service (e.g. an EV battery can be charged overnight rather than during periods of peak electricity demand, but this doesn’t affect the ability of the consumer to drive whenever they want during the day), ditto for hot water where households can have a shower anytime during the day (including peak demand periods) but the cylinder can be heated up outside of these periods of peak). 4 We refer to this as coincident maximum demand (CMD) pricing in the main body of the report, as that term is more widely used in the industry. 5 Not just in real time, but pricing predictability regarding knowledge of what the price will be in a few hours’ time. In other words, if consumers react to a real time high price and delay using electricity, will may create a further peak and higher pricing later. This future price predictability is difficult to overcome. EV Study v1.0 4 Saved: 7-Mar-18
scrapped, will lock-in many more high-emissions vehicles over the next few decades than is necessary.6 EV-specific managed-charging pricing will likely be necessary – but with challenges to implement A possible alternative pricing approach to enable the adoption of emerging technologies like EVs, whilst minimising customer bill shock and without compromising carbon goals, is ‘managed- charging’ pricing which only applies to a household’s EV demand. This would involve consumers agreeing to another party (e.g. retailer, load aggregator, or network company) managing their EV charging, in return for discounted network and/or energy pricing for such managed EV load. This approach recognises the distinct nature of EV load, with its storage characteristics, and would deliver materially better outcomes of smoothed coordinated charging of New Zealand’s EV fleet and lowering the cost of EV charging to consumers, but in a way which has reduced risk of causing bill-shocks for consumers. Managed-charging would be similar in some ways to the approaches taken to manage hot water cylinders, with consumers being rewarded with cheaper electricity for hot water load being managed at times of peak network demand. Luckily, the technology coming within EVs and dedicated EV-chargers, and broader internet-based communications technology, not only provides the means to enable these smarter ways of charging our EV fleet, but to do so in a much more sophisticated way than the relatively crude ripple control that is currently used for hot water management. Thus vehicle-specific management is feasible, with the ability to recognise a variety of factors – such as how empty different EV batteries are, where along a low-voltage network (of approximately 50-100 houses) EVs are located, or consumer requirements for when they need to next drive their EV – in order to coordinate which EVs should be charged, and when, in order to meet consumer requirements without imposing excessive supply costs. However, to take advantage of such technology requires EV-owners to receive price signals or rewards which are of sufficient size to encourage them to take-up such managed-charging options. It remains to be seen what form such managed-charging pricing options could or should take, or whether/how to develop NZ-wide standards and/or mandate open access to the technology to deliver EV charging management. It also remains to be seen how many EV-owners will be willing to pass control of their charging to third parties such as retailers and networks. We believe these options should be voluntary for consumers to choose, and it is possible that many consumers may suffer anxiety that handing over control may mean that their vehicle may not be charged when they need it.7 However, what this study highlights is that, if we are to achieve mass-EV uptake without significant electricity supply cost impacts, we will need significant uptake of managed EV-charging pricing options. A final additional consideration around the development, and extent of consumer uptake, of managed-charging options is that if consumers opt not to take up a managed-charging option, we 6 A long transition to cost-reflective pricing will also result in distorted consumer decisions in relation to other energy technologies in addition EVs. In many cases this will also result in poor economic, environmental and (in some cases) social outcomes such as the costs from a technology choice being made by one consumer being ‘shifted’ onto other consumers. Consideration of these other matters is out of scope for this study. 7 While these consumer concerns are reasonable, we think well-designed managed charging options should enable good electricity supply outcomes, without impacting on consumers’ ability to have their vehicles charged for when they need them. EV Study v1.0 5 Saved: 7-Mar-18
believe they should face any increased electricity supply costs they impose on the system – rather than cause such costs to be ‘shifted’ onto others. This highlights a general issue with current, non-cost-reflective prices: Not only are they causing higher electricity supply costs, but with the advent of new technologies such as EVs, solar PV and static batteries, they are resulting in consumers who purchase such technologies being able to ‘shift’ the electricity supply costs they are responsible for onto other consumers who don’t have (sometimes because they can’t afford) such technologies. Broadening and deepening the debate Addressing all of the above challenges and questions requires coordinated pan-industry effort in conjunction with government, regulator(s) and transport authorities. Some of this is starting to happen, in particular through the electricity networks association (ENA) progressing its network pricing reform initiative, and the Electricity Authority through its various market development programmes. However, to-date, most of this focus has been on pricing options that will apply to the whole of a property, rather than the specific challenges of EVs (and other storage technologies) whose special characteristics may require specific pricing solutions. Further, changes to consumer electricity prices will also require broader community and political engagement to help make the inevitable tough choices which carry the risk of bill shocks for some consumers in the short-term, but which will help deliver better economic, environmental, and social outcomes in the long-term. The three network companies who have commissioned this study all strongly support a shift to EVs and they hope that this study will be a valuable contribution to this broader public debate. All are aware that time is of the essence in terms of putting in place arrangements to facilitate the most positive EV outcomes before mass uptake starts to happen, and all believe that pricing and managed charging – be it by a retailer, aggregator, network company or other third party – is central to this debate. EVs offer an enormous positive opportunity for New Zealand – the question is, how do we maximise that opportunity? EV Study v1.0 6 Saved: 7-Mar-18
1 Introduction 1.1 Background The New Zealand government has set a target of achieving net-zero greenhouse emissions by 2050. In 2015 road transport accounted for 43% of New Zealand’s energy-related greenhouse emissions, and road transport has been one of the fastest growing sources of New Zealand’s emissions. Therefore, to achieve the government’s target will require a transformation of New Zealand’s transport fleet away from internal combustion engine vehicles (ICEs), to alternative, low-carbon fuels. Currently, electric vehicles (EVs) are the most economic low-carbon transport alternative, and are projected to become increasingly cost-effective as battery costs and technology improve. It therefore looks likely that mass uptake of EVs will be the most cost-effective means of achieving this transport transformation – particularly for the light fleet. This is a view that is increasingly becoming mainstream around the world, with governments and industry bodies projecting that EVs will rapidly replace ICEs, and with governments developing policies to facilitate this transformation. For example, some countries and cities are implementing policies which will completely ban the purchase of new ICEs from 2025. However, large-scale replacement of ICEs by EVs has the potential to significantly increase electricity consumption. For example: • If all light private vehicles were changed overnight to EVs, annual residential electricity consumption would increase by approximately 50%8 • If all vehicles (including trucks) were changed overnight to EVs, this would increase total New Zealand electricity consumption by approximately 16 TWh – a 41% increase9 1.2 Purpose of study Concept Consulting and the three networks who have commissioned this study firmly believe that EVs are a great opportunity for New Zealand – both from an environmental and consumer perspective. We all strongly support EVs. However, we also acknowledge that there are likely to be some challenges associated with the large- scale uptake of EVs, particularly associated with the manner in which EV batteries are charged. Our aim with this study is to promote debate on how EVs can be charged in a manner that is acceptable to consumers, at lowest financial and environmental cost to the country, and ensures a continued reliable electricity system. In particular, while EVs and EV-chargers are arriving with increasingly advanced technology to enable sophisticated charging, this study addresses concerns that the significant potential benefits will not be maximised unless consumers are sent appropriate price signals to incentivise them to charge their vehicles in a ‘smart’ fashion. The aim of the report is not to discourage or dampen enthusiasm for EVs, but rather ensure we as a country seek to optimise the benefits they bring. We don’t want a situation where we look back in twenty years’ time and regret big missed opportunities. 8 Assuming: average electricity demand per residential property ≈ 7,050 kWh/yr; the average annual quantity of electricity required to charge a light private EV travelling an average distance each year is ≈ 2,000 kWh/yr; and the average number of vehicles per household is ≈ 1.75. 9 In 2015, approximately 200 PJ of fuel was consumed in New Zealand’s land transport fleet, and assuming that EVs are approximately 3.5 times more efficient on average at converting stored energy to motive power. EV Study v1.0 7 Saved: 7-Mar-18
1.3 Issues addressed in study 1.3.1 The nature of the problem Put simply, the key issue is that current electricity supply arrangements provide no incentive for most consumers to avoid charging their EVs at times which will impose significant costs on the electricity system. This study sets out analysis which shows that the current predominant ‘flat’ $/kWh consumption price will result in consumers adopting a ‘passive’ EV charging approach. i.e. simply plugging-in and charging as soon as they get home. Unfortunately, the time at which most people get home – early evening – also coincides with the time of peak electricity system demand. Figure 1 illustrates that if every household had one EV10 which was charged passively, this would substantially increase winter evening peak demand. Figure 1: Impact on an average household demand profile of charging an EV passively11 Given that a substantial amount of network and generation costs are driven by the need to meet peak demand, passive charging of EVs will substantially increase electricity supply costs as EV penetration rates grow. However, it doesn’t need to be like this. Most vehicles are not driven between the hours of 9pm and 7am. This is ample time to re-charge EV batteries for the vast-majority of journeys undertaken in the previous day – even for vehicles being charged slowly using a standard domestic plug. 10 One EV per household equates to approximately 57% of cars being EVs, given that the average household owns 1.75 vehicles. 11 This profile is based on the average household demand profile, and assumes that each household owns one EV. EV Study v1.0 8 Saved: 7-Mar-18
Figure 2 shows that if EVs were charged in a ‘smart’ fashion – i.e. predominantly overnight, with the charging across all EVs staggered across the night period to ‘smooth’ demand – there need not be any impact on peak demand. Figure 2: Impact on an average household demand profile of charging an EV ‘smartly’ Section 2 of this report estimates the likely nature and scale of electricity system cost impacts from large-scale EV uptake under: • current consumer electricity supply arrangements – with most EVs charged ‘passively’ • alternative consumer electricity supply arrangements which incentivise ‘smarter’ EV charging This analysis is the principal purpose of this report, and is intended to demonstrate that this is a significant issue for New Zealand. Section 2 also addresses the fact that the current ‘flat’ electricity price structure which is a key cause of ‘passive’ charging, will also result in EV-owners paying significantly more than they should for charging their vehicles. This will likely frustrate the rate of uptake of EVs, significantly increasing New Zealand’s emissions and reduce the overall economic benefits possible from EVs. 1.3.2 How do we encourage consumers to charge their EVs in a smart fashion? Given that the current predominant ‘flat’ price structure is the problem driving poor EV outcomes, it is likely that changes to consumer prices to make them more cost-reflective will be a necessary part of the solution to drive better EV outcomes. However, changing consumer prices is never easy, with inevitable ‘winners’ and ‘losers’, and the potential for unintended poor outcomes. The secondary purpose of this study, detailed in Section 3, is to start to explore the options for achieving better EV charging, in a way which maximises the good outcomes and minimises the bad. EV Study v1.0 9 Saved: 7-Mar-18
In particular, it explores whether the special characteristics of EVs may mean that more cost- reflective electricity pricing approaches which may be appropriate for the rest of a household’s electricity consumption, may not be appropriate for EVs which might require EV-specific pricing approaches. 1.3.3 Public charging issues Although the principal focus of this study is on charging of EVs at consumers’ premises, in undertaking this study Concept gained better understanding of issues in relation to public charging – i.e. charging of EVs away from home using commercial public chargers. These issues could affect the rate of EV uptake, and thus the extent to which the benefits of EVs are realised. Section 0 briefly outlines these issues, but does not address them in any detail. EV Study v1.0 10 Saved: 7-Mar-18
2 Estimation of the costs of large-scale EV uptake under ‘passive’ and ‘smart’ charging futures This section of the report presents the results of Concept modelling on the outcomes relating to large-scale EV uptake under different EV pricing and charging approaches. Sections 2.1 to 2.4 estimate the likely cost and emissions consequences from large-scale uptake of EVs, under two different EV charging approaches: • ‘Passive’ charging whereby consumers simply plug-in and charge their vehicles as soon as they get home. This charging approach is likely to occur based on current consumer prices. • ‘Smart’ charging, whereby EVs are charged predominantly in a smoothed fashion through the night Section 2.5 addresses the fact that the current ‘flat’ electricity price structure which is a key cause of passive charging, will also result in EV-owners paying significantly more than they should for charging their vehicles. This will likely frustrate the rate of uptake of EVs, significantly increasing New Zealand’s emissions and increasing overall economic costs. 2.1 How soon might large-scale uptake of EVs occur? Appendix A presents the results of the modelling Concept has undertaken to project the potential level of EV uptake. Two main projections are presented: • Projections consistent with the central Ministry of Transport (MoT) projection in its recent report “New Zealand Transport Outlook: Future State”. • Projections consistent with New Zealand seeking to achieve net-zero greenhouse gas emissions by 2050. Figure 3 illustrates the differences between these two projections in terms of the proportion of the light private fleet (i.e. cars) which are EVs. Figure 3: Proportion of light private fleet which are EVs EV Study v1.0 11 Saved: 7-Mar-18
It is understood that the projection developed by MoT reflects current policy settings and expected levels of EV cost reduction that will anyway occur. i.e. the MoT projection recognises that EVs are likely to become increasingly cost-effective transport options for New Zealand, irrespective of specific climate-related policies. Under this projection, the level of uptake is such that ≈ 40% of the overall vehicle fleet is electric by 2040 (with the proportion of the light fleet being much higher than for the heavy fleet). By 2040, almost all light vehicles entering New Zealand will be EVs. The second projection reflects the fact that the New Zealand government has recently re-confirmed its ambition of achieving net-zero12 emissions by 2050, and is in the process of developing and consulting on policies to achieve this goal. We have used our models of the New Zealand transport sector, plus our models of whole-of-New Zealand greenhouse emissions, to estimate the level of EV uptake required to meet the target of net-zero greenhouse emissions by 2050. This NZ-net-zero-by-2050 projection has a very rapid uptake of EVs, such that by 2030 almost all new light vehicles (private & commercial) entering New Zealand will need to be EVs. The reason why there is a need for such a rapid transformation of vehicle purchasing patterns is because vehicles entering the NZ fleet remain in the fleet for many years: the average age of a vehicle scrapped in New Zealand is 20 years. Thus, an ICE vehicle purchased in 2030 could still be on the road and producing exhaust emissions in 2050. While this rate of uptake may have seemed fanciful a few years ago, rapid reductions in battery costs mean that EVs are close to purchase cost parity with ICEs – making rapid uptake of the scale projected here plausible. Further, this is consistent with projections and policies in other countries, with a growing number of countries implementing policies which will effectively ban new ICE vehicles from around this time. For example: 2025 for Norway, 2030 for the Netherlands, 2032 for Scotland, and 2040 for France and the UK. Other major countries and economies such as China, India and California are also in the process of developing similar policies, with many other European and Asian countries, and some US states, setting ever-more ambitious targets for EV uptake. That said, it should be noted there is a significant degree of uncertainty around the projections set out in Appendix A given that the rate and scale of EV uptake will be significantly affected by a number of factors which are subject to significant inherent uncertainties, including: • future battery cost reductions, which will in turn be significantly affected by future international policies by the world’s major economies on climate change generally, and EVs specifically.13 • the development of autonomous vehicles, which may also materially affect outcomes in a hard- to-predict fashion.14 12 ‘Net’ emissions are calculated as New Zealand’s gross emissions, less any sequestration achieved through re- forestation. 13 Japan’s policies on de-carbonising its transport fleet may have a particular effect on New Zealand, given that a very large proportion of New Zealand’s vehicles come second-hand from Japan. Thus, if Japan heads down the hydrogen-fuelled vehicle route, whereas America and Europe head more down the battery EV route, this will be likely to materially affect New Zealand’s transport de-carbonisation abilities. 14 It is hard to know whether autonomous vehicles would materially decrease overall light passenger travel by car. However, it would almost certainly reduce rates of car ownership, and consequent impacts on household electricity demand. EV Study v1.0 12 Saved: 7-Mar-18
• the rate of NZ population growth, which will also significantly affect the scale of EV uptake and associated impact on national electricity demand All of these factors are very hard to predict. Nonetheless, these uncertainties around future EV uptake are considered differences in degree, rather than fundamental uncertainties over the nature and scale of outcomes. Thus, we have a high degree of confidence that, to de-carbonise our transport fleet to meet our emissions reductions targets, the rate and scale of EV uptake over the next few decades will be large and rapid – of a magnitude consistent with the projections set out in Appendix A. Further, the purpose of this report is not to try and accurately forecast EV uptake, but to use order- of-magnitude forecasts to highlight the nature and broad scale of outcomes arising from electricity sector settings which will apply to EV charging, and also to highlight the nature and scale of issues which could emerge from rapid large-scale EV uptake. 2.2 What would be the impact on electricity demand of such large-scale EV uptake? EV uptake of the scale set out in these two projections would materially increase electricity consumption. Figure 4 below shows that on an annual energy basis, large-scale EV uptake would give rise to significant electricity consumption growth. Figure 4: Projected New Zealand electricity consumption (GWh)15 15 The projections for non-EV demand are for illustrative purposes, and not based on any detailed modelling. For the years 2017 to 2026, non-EV demand is projected to grow at the rate projected by Transpower for its basecase in its 2017 Annual Security of Supply Assessment, and then continue at the same rate beyond then (1% per annum). EV Study v1.0 13 Saved: 7-Mar-18
This increase in consumption will inevitability give rise to a need for increased electricity generation. Crucially, the type and cost of electricity generation to meet this consumption will be strongly driven by the pattern of EV charging: • EV charging which occurs at times of peak demand will give rise to increased ‘peaking’ generation – i.e. generation which is required relatively infrequently to meet peak demand. In New Zealand (and indeed all countries around the world) this is predominantly from fossil- fuelled gas and coal-fired generation. • EV charging which occurs during off-peak periods will predominantly be met by increased ‘baseload’ generation – i.e. generation which operates almost continuously. In New Zealand, the most economic form of new baseload generation is renewable power in the form of wind or geothermal power stations. The pattern of EV charging will also determine the impact on network costs (i.e. the costs of building and operating the transmission and distribution wires): • An increase in peak demand will, over the long-term, give rise to a need to invest in additional network capacity. • An increase in demand in off-peak periods, if ‘smoothed’ across the off-peak periods, will not have any material impact on network costs. Sub-section 2.2.1 below estimates the likely pattern of charging which will occur based on current electricity supply arrangements, with sub-section 2.2.2 estimating the potential impact on demand if EV charging were to occur in a ‘smarter’ fashion. 2.2.1 What pattern of EV charging is likely to emerge? Appendix B presents the results of modelling undertaken by Concept to estimate the likely pattern of residential EV charging undertaken by consumers if they face no price signal as to when they should charge their EV. This is currently the case for the vast majority of consumers (we estimate over 95%) in that they face a ‘flat’ variable $/kWh consumption price for charging their EV which doesn’t change by time of day. Experience in NZ and overseas indicates that a significant proportion of individuals will simply plug-in their vehicles to start charging as soon as they get home – a charging approach we refer to as ‘passive’ charging. Unfortunately, most people tend to arrive home in the early evening – which in winter is the time of system peak demand. With the capacity drawn from residential EV charging ranging from 1.8 kW (for charging through a standard domestic socket) through to 7 kW (from installing a dedicated EV residential charger), this has the potential to significantly increase average residential peak demand above its current levels. However, the modelling in Appendix B indicates that there is a significant amount of diversity associated with EV charging. In particular: • Diversity of when people arrive home. i.e. the majority of people arrive home over a 3.5 hour window. • Diversity of how empty their batteries are when they arrive home. Based on typical travel patterns, most EV batteries won’t be that empty, and will only require a relatively short time charging – particularly if they are using a 7kW charger. EV Study v1.0 14 Saved: 7-Mar-18
This combination of diversity factors means that there is reduced overlap of people charging at the same time. Our modelling projection of a likely after-diversity16 ‘passive’ residential EV charging profile is shown in Figure 5. Figure 5: Modelled 'passive' after-diversity average per-EV residential charging profile Despite the diversity effects, an increase in after-diversity peak demand of approximately 0.8 kW per EV is a substantial amount when compared with average residential peak demands. This is illustrated in the following diagram. (Note, this is in a situation of one EV per household which, given average car ownership in New Zealand of 1.75 vehicles per household, equates to an EV penetration rate of approximately 57%. This is the penetration rate forecast to be reached by around 2040 if New Zealand is to achieve net-zero greenhouse gas emissions by 2050. If all vehicles in New Zealand were converted overnight to an EV, this EV charging impact per household could be up to 1.75 times greater.) 16 ‘After-diversity’ means the average across a large number of consumers. EV Study v1.0 15 Saved: 7-Mar-18
Figure 6: Impact on an average household demand profile of charging an EV passively Figure 7 shows our projected modelling of the impact on national peak demand. Figure 7: Projected New Zealand peak MW demand impact of EVs with passive charging17 17 The non-EV demand projection is not based on any detailed modelling, but is for illustrative purposes. It uses the simple assumption that peak MW demand will grow at the same rate as annual GWh energy – i.e. using the Transpower figures for GWh growth. EV Study v1.0 16 Saved: 7-Mar-18
Thus, if EV uptake occurs at the levels projected, and the majority of consumers continue to face non-cost-reflective ‘flat’ electricity prices for charging their EVs, New Zealand peak demand could grow by approximately 3,000 MW by around 2050 – an additional 50% on top of today’s peak MW levels. This matters because, as set out in more detail in section 2.3, an increase in peak demand will give rise to a need to build generation and network capacity to meet this peak, which can be very expensive. Further, as first mentioned on page 14, peaky demand growth will likely increase the proportion of generation from fossil stations. These emissions impacts of EV charging are explored in more detail in section 2.4 later. 2.2.2 Can EV’s be charged in a ‘smarter’ fashion? However, increased peak demand isn’t an inevitable consequence of EV uptake. As Figure 6 above shows, the periods of lowest non-EV demand on the system are overnight when most people are asleep. This also coincides with when most people are not using their vehicles. If people charged their vehicles overnight, with such charging undertaken in a ‘smoothed’ fashion across the night, there need not be a material net increase in peak demand. Our modelling indicates that, even with using a standard domestic plug, there is plenty of time to re-charge vehicles during the hours between 9pm and 7am for the vast majority of daily journeys undertaken by private vehicles. Figure 8 shows a simulation of the impact on average residential demand if EVs were charged ‘smartly’ – i.e. predominantly overnight and smoothly through the night. This shows that such smart charging would not result in any material increase in peak demand. EV Study v1.0 17 Saved: 7-Mar-18
Figure 8: Impact on an average household demand profile of charging an EV ‘smartly’18 Figure 9 shows the revised impact on peak demand for the two projections if all vehicles were charged in such a ‘smart’ fashion. This shows that instead of peak demand due to EV charging growing by approximately 3,000 MW by 2050 with ‘passive’ charging, peak demand would only increase by approximately 500 MW with ‘smart’ charging.19 18 This analysis is based on an average of one EV per household. 19 Figure 8 shows no impact on peak demand. However, this assumes that all vehicles have complete flexibility around charging times. In reality, there will be some (relatively small) proportion of vehicles who absolutely must re-charge during early-evening peaks in order to meet driving requirements later in the evening. The analysis in Figure 9 attempts to reflect this scale of need. EV Study v1.0 18 Saved: 7-Mar-18
Figure 9: Comparison of projected New Zealand peak MW demand for high EV-uptake between passive and smart EV-charging approaches 2.3 Estimating the cost of meeting EV demand from these different approaches Appendix C sets out our analysis on the network and generation costs of meeting demand growth. It highlights that: • Network costs are largely driven by growth in peak demand, with the combined transmission and distribution network cost estimated to be approximately $160-220/kW/yr • Generation costs are driven by a combination of kWh energy and peak kW requirements. A relatively ‘peaky’ profile such as a passive EV charging profile is estimated to cost approximately $90/MWh on average, whereas a smart EV charging profile would cost approximately $70/MWh on average. Table 1 below shows the results of bringing all these various modelling components together. i.e. • Projections of EV uptake, and associated GWh electricity demand. • Projections of the profile of ‘passive’ and ‘smart’ EV charging approaches. • Estimates of the electricity system costs of meeting the associated peak demand increase (for network costs) and GWh profiles (for generation costs) for the different projections and charging profiles. EV Study v1.0 19 Saved: 7-Mar-18
Table 1: Projected electricity system costs of meeting EV-related demand growth under different EV-uptake scenarios, and Passive vs Smart charging approaches ($bn)20 This highlights that large-scale EV uptake with passive charging approaches is likely to cost New Zealand of the order of 8-12 billion dollars in additional electricity system costs (2 to 3.5 billion in present value terms) – largely through causing significant extra network investment. As noted previously, there is a reasonable degree of uncertainty as to these estimates, due to uncertainties over the timing and scale of network investments (including the extent of cost impact on the low-voltage parts of the distribution networks), and uncertainties over the rate of uptake of EVs for different parts of the transport fleet. Thus, it is possible that the ‘true’ value could be higher or lower than the estimates presented here. Nonetheless, these uncertainties are considered differences in degree, rather than fundamental uncertainties over the nature and scale of outcomes. Thus, we have a high degree of confidence that, if non-cost-reflective electricity pricing for charging EVs was to continue over the next few decades, the consequent passive charging of EVs would result in many billions of dollars of unnecessary electricity system cost impacts. 2.4 Emissions impacts of different EV charging approaches As first mentioned on page 14, the pattern of EV charging will also affect what type of electricity generation meets the increase in consumption: • EV charging which occurs at times of peak demand will give rise to increased ‘peaking’ generation – i.e. generation which is required relatively infrequently to meet peak demand. In New Zealand (and indeed all countries around the world) this is predominantly from fossil- fuelled gas and coal-fired generation. • EV charging which occurs during off-peak periods will predominantly be met by increased ‘baseload’ generation – i.e. generation which operates almost continuously. In New Zealand, the most economic form of new baseload generation is renewable power in the form of wind or geothermal power stations. This issue was explored in some detail in a 2016 Concept report: “Electric cars, solar panels and batteries – how will they affect New Zealand’s greenhouse gas emissions?”.21 The key results from this analysis were that, in the medium-to-long-term, an increase in EV demand would largely be met by increased renewable generation (largely wind, but some geothermal), but 20 The discounted present value numbers, use a discount rate of 6% to bring back costs which occur in the future to a present value. 21 This report is available for download at http://www.concept.co.nz/publications.html EV Study v1.0 20 Saved: 7-Mar-18

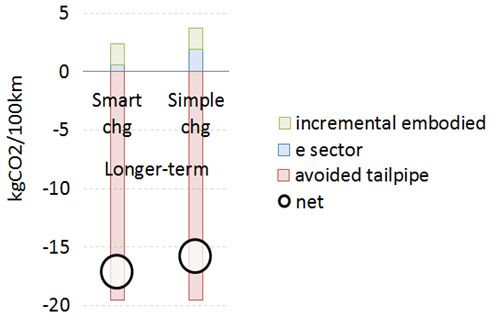

with the extent of renewable versus fossil generation varying between passive and smart charging approaches: • Under a passive EV charging approach, approximately 20% of the generation to meet the demand would be from increased fossil generation, with the remainder from renewable generation.22 • Under a smart EV charging approach, just over 5% of the generation to meet the demand would be from increased fossil generation. Figure 23 of that 2016 report indicates that the long-term emissions intensity of generation to meet a passive charging profile would be 0.1 kgCO2/kWh, whereas that of a smart charging profile would only be 0.035 kgCO2/kWh. Therefore, not only would passive EV charging have significant (and unnecessary) economic costs, it would give rise to unnecessary environmental costs. That said, it should be noted that, even for the passive charging regime, the overall environmental effect of EV uptake is strongly positive due to the electricity-generation-related emissions being more than offset by the avoided exhaust emissions from ICE vehicles. This is illustrated in Figure 10 below (which is taken from Figure 24 in the 2016 report). (Noting that ‘passive’ charging was referred to as ‘simple’ charging in the 2016 report.) Figure 10: Estimated longer-term emissions impacts of EV uptake23 22 The reason that passively-charged EV demand doesn’t give rise to a greater amount of fossil generation is because on a within-year basis, EV demand is effectively baseload. This substantially affects the type of generation required to meet an increase in demand. Further, the modelling assumed that over the medium- to-long-term CO2 prices would rise above current levels. This lowers the threshold capacity factor below which it is more cost-effective to use fossil stations rather than renewables. 23 The ‘incremental embodied’ emissions indicate the higher greenhouse emissions associated with manufacturing an EV compared with manufacturing an ICE vehicle (noting that battery production is very energy intensive), but spread over the typical number of km travelled by a vehicle over its lifetime. The ‘e sector’ emissions represent the emissions from any fossil-fuelled generation used to re-charge EV batteries. The ‘avoided tailpipe’ emissions represent the avoided ICE exhaust emissions that would otherwise have occurred from driving an ICE vehicle. EV Study v1.0 21 Saved: 7-Mar-18
2.5 The cost and emissions impacts of passive versus smart charging are likely to be even greater than set-out above The above analysis compares the cost and emissions impacts of passive versus smart charging, for a given level of EV uptake. However, the price signals from the current predominant ‘flat’ prices that give rise to ‘passive’ charging approaches will also result in EV-owners paying more to charge their EVs than they would if they charged overnight and paid a (low) cost-reflective price for such overnight charging. The current low-fixed charge regime exacerbates this effect. This is illustrated in Figure 11 which shows the price paid/received by consumers for using/generating electricity for four different consumer appliances including EVs (and also solar PV which is a generation technology). Figure 11: Demand (or generation)-weighted average price seen by different consumer technologies24 These distorted price signals will harm the economics of EVs relative to ICEs for vehicle owners, and likely result in EV uptake being supressed relative to what could be achieved. Appendix A details how a projection was developed which estimates the extent to which EV uptake would be frustrated if all other factors which gave rise to the net-zero-by-2050 projection were in place (e.g. battery cost reductions, CO2 price increases), but consumer electricity prices continued with a non-cost-reflective structure. This is illustrated in Figure 12 below. 24 LFC = ‘low-fixed charge’ EV Study v1.0 22 Saved: 7-Mar-18
Figure 12: Projected impact on the proportion of the light private fleet which are EVs due to delayed uptake due to a continuation of non-cost-reflective consumer electricity prices Table 2 below illustrates how this altered rate of uptake translates into a significant increase in emissions for New Zealand’s light private fleet. Thus, by 2050, emission from the light private fleet will be 37% higher if uptake is delayed due to a continuation of non-cost-reflective prices. This is due to: • Higher exhaust emissions from the increased number of ICE vehicles • Electricity generation emissions being higher due to a higher proportion of fossil generation to meet the peakier demand profile of EVs. Table 2: Projected difference in emissions outcomes due to a continuation of non-cost-reflective consumer electricity prices (MtCO2-e) This delayed uptake due to non-cost-reflective electricity prices will also deliver poor economic outcomes: • Higher electricity system costs due to EV demand being significantly peakier from a passive charging profile. (This significantly outweighs the impact from reduced GWh from delayed EV uptake) EV Study v1.0 23 Saved: 7-Mar-18
• Higher vehicle costs, principally from increased oil purchases to fuel the greater number of ICE vehicles. Table 3 sets out the estimates of this economic impact. Table 3: Projected economic impact of delayed EV uptake due to a continuation of non-cost- reflective consumer electricity prices ($bn) EV Study v1.0 24 Saved: 7-Mar-18
3 Options for incentivising better outcomes 3.1 Introduction The preceding section has identified that the current pricing approach for electricity – i.e. predominantly ‘flat’ $/kWh prices which don’t vary throughout the day – will result in poor EV outcomes: • EV-owners will pay significantly more than they should for charging their vehicles. This will slow the rate of uptake of EVs, significantly increasing New Zealand’s emissions and overall economic costs. • Those households who do purchase EVs will mostly adopt a ‘passive’ approach for re-charging their batteries – i.e. simply plugging-in and charging as soon as they get home – resulting in a significant increase in peak demand and associated costs. These outcomes have been identified by the Electricity Authority (and others, including the Electricity Networks Association) as being symptomatic of the current predominant electricity pricing approach not being cost-reflective. This section starts to explore what opportunities may exist to move to more cost-reflective pricing approaches which may achieve the ‘win-win’ of increased EV uptake, but with EV charging undertaken in a way which doesn’t materially increase peak demand and associated costs. The purpose of this section is not to identify specific solutions, but to start to highlight: • the range of possible options • the types of challenges associated with each option • possible areas for the industry to progress to resolve such challenges. 3.2 Time-of-use pricing One potential option to encourage EV owners to charge their vehicles away from peak periods is the use of time-of-use pricing: i.e. having time-differentiated variable c/kWh consumption prices with a ‘peak’ period and an ‘off-peak’ period. This is a form of cost-reflective price that seeks to signal to consumers the periods where increased demand will result in increased cost of supply – and is one of the three main families of options that the ENA has identified as potentially being appropriate to deliver more cost-reflective prices.25 Experience overseas, and with trials in New Zealand26, indicates that this does result in a substantial shift in EV charging behaviour, with people using the built-in functionality within their EVs or wall chargers to program charging to begin within the off-peak period. 25 The other two main options are peak demand-based, and capacity-based prices. The ENA’s main report on these issues is available here: http://ena.org.nz/news-and-events/news/final-pricing-guidance-report- published/ 26 For example, see: http://www.energynews.co.nz/news-story/electric-vehicles/35753/overnight-tariffs-drive- ev-charging-shift-mercury EV Study v1.0 25 Saved: 7-Mar-18
For example, a United States study on EV charging patterns27 highlighted the significant differences in charging behaviour between: • customers who faced a time-of-use electricity price (as shown in Figure 13 below for San Francisco, where Pacific Gas & Electric offered EV-owning customers a time-of-use price with an off-peak period starting at midnight.) • customers who faced a flat electricity price. (as shown in Figure 14 below, for Nashville) Figure 13: Weekday EV charging demand for San Francisco (Note: x-axis starts at 8am) 27 “A First Look at the Impact of Electric Vehicle Charging on the Electric Grid in The EV Project”, EVS26, May 2012 https://energy.gov/sites/prod/files/2014/02/f8/evs26_charging_demand_manuscript.pdf EV Study v1.0 26 Saved: 7-Mar-18
Figure 14: Weekday time-of-day EV charging demand for Nashville (Note: x-axis starts at midnight) While TOU pricing has shown to be successful in shifting EV demand out of the current peak, such success is a double-edged sword in that it creates a likelihood of a new, greater peak: • As almost all EVs have the functionality to set the vehicle to start charging at a certain time, there is a risk that large numbers of EV-owners will set their vehicles to start charging at the start of the off-peak period. (As has been observed in the San Francisco case shown in Figure 13 above.) This is because, even if vehicle technology allows a later start time for charging, there is no economic advantage for a driver to set the start time of their vehicle charging at any time later than the start of the TOU period. Indeed given the (albeit small) risk of electrical outage there is disadvantage to doing so. • Such a charging approach would lose all the diversity benefits associated with people starting their EV charging at different times. Figure 15 illustrates the potential charging outcome in New Zealand if every EV owner who arrives home prior to 9pm were to start charging their vehicle at 9pm (‘Home TOU’) compared with the previously estimated passive charging outcome for consumers who plug-in whenever they get home because they face a ‘flat’ price. EV Study v1.0 27 Saved: 7-Mar-18
