Bell 429 Medical Interior

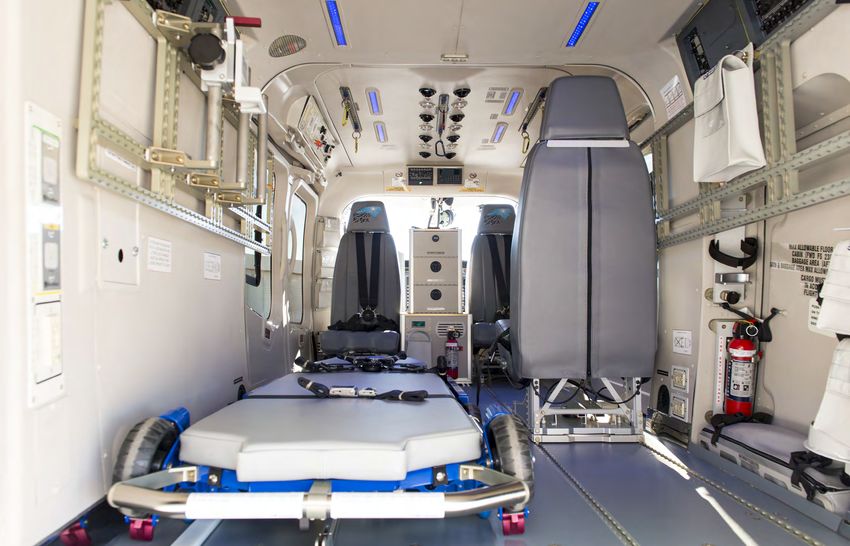

The United Rotorcraft Bell 429 interior accomodates a single, dual, or specialty mission transport (such as an isolette or
intra-aortic balloon pump patient). Combined with the large cabin, the medical interior allows for full body patient
access. The ability to carry two patients with both medical attendants at the head creates a more efficient medical
environment.
Patient Loading System & Crew Medical Panels & Equipment
Seating Wall

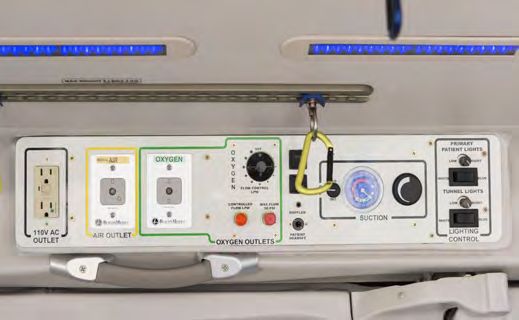

Our Roll-On Fold-Up Litter System loads through the aft clamshell Three medical panels are mounted above the patient
doors on the LH side of the cabin. A loading ramp, integrated into areas and the aft left end of the aircraft. The primary
the machined floor overlay, protects the airframe during litter panel supplies power, oxygen, air, and suction; the
loading and helps minimize lifting. United Rotorcraft also offers a secondary supplies lighting controls, suction, and oxygen;
Ferno 28 litter option (RH install). Up to four crash attenuating the third supplies oxygen, air and power.
medical seats track forward and backward and the right aft seat
swivels for improved patient access. Each is equipped with a four-
point harness.

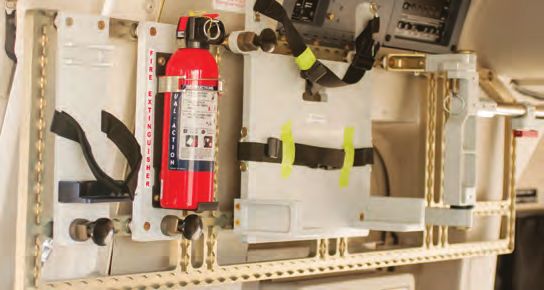

The medical equipment wall provides easily accessible
mount locations for medical equipment. Modular
equipment mounts for most medical equipment are
available
BELL 429
Storage Systems

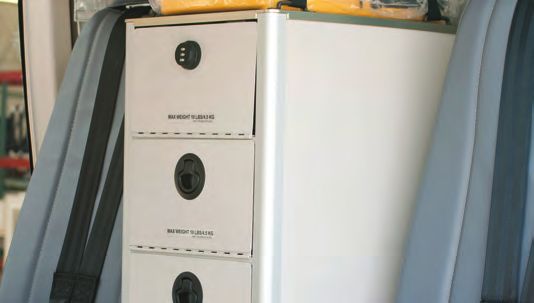

The forward storage unit can be configured with doors,

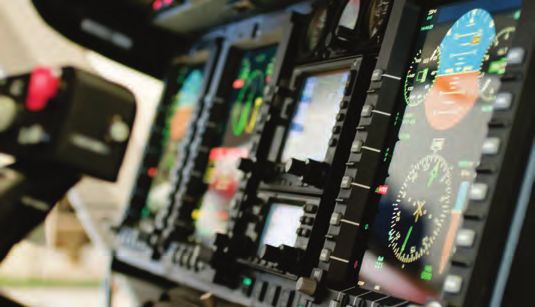

Avionics Systems
drawers, or netted compartments and is equipped with
Night vision goggle lighting, helicopter terrain avoidance
dual locking storage. The second storage area is located
warning system, XM satellite weather, GPS navigation,
behind the pilot and co-pilot seats and accommodates
and satellite tracking equipment are integrated to
large medical equipment. Additional storage is available
enhance safety.
in the rear of the medical cabin and soft goods pouches
are available throughout.
Overhead Ceiling Panels/
Oxygen System
The liquid oxygen system is installed in the base
Medical Lighting

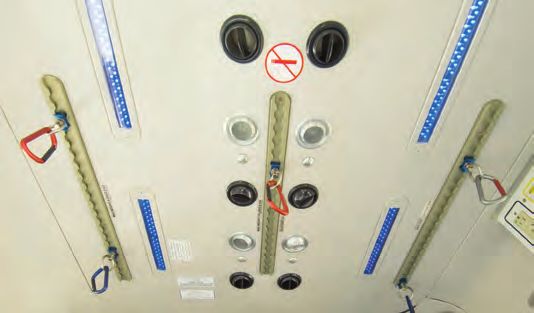

cabinet of the forward storage unit. The gaseous Custom overhead ceiling panels maximize crew head
oxygen system is installed between the pilot seat and aft room and include tracks that accommodate IV hooks,
facing crew seat. and medical interior LED lighting controls. The lighting
includes white and blue night vision goggle compatible
modes.
