Overview of dCache Systems at BNL

 Iris Wu
 Hiro Ito
 Jane Liu
 dCache workshop 2018
 DESY, Hamburg Germany

                         1
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
Outline
●   Overview

●   Future operation

●   Needs help from developers

                                 2
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
ATLAS dCache                           Belle II dCache            Simon's dCache              PHENIX dCache
    Largest ATLAS T1 site                  Belle II T1 site           Version 2.1.6               PHENIX experiment T0 site

    Core server 3.0.11,NFS: 3.0.38,        Version 3.0.11             0.26PB disk space           In the progress of upgrade
    pool:3.043
                                           1.7 PB disk space                                      TAPE backend
    17.5 PB
                                           TAPE backend
    TAPE backend

                                                                                                     atlasdcache::pool::data:
Puppet Management                                               services
                                                                                                      dc016:
                                                                                                       1:
• Efficient                                                                                              diskspace: 51938544204217
                                                                           SRM                           lan: 1000
• Automation                                                   GFTP                       Admin          wan: 10
                                                                                                         p2p: 20
                            common modules                     door                                      pp: 16
                                                                                                         rh: 1000
                                                                                                         st: 2
                         autofs       certificates                          pool                         checksum: ADLER32
                                                                                                         type: disk
                                                     HSM       xrootd                                    tags: CDCE
                            ldap       LVM                                                               disk: data
                                                                           Chimera                       device: /dev/md0

                                   mdadm

                                                                      3
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
US ATLAS Tier1

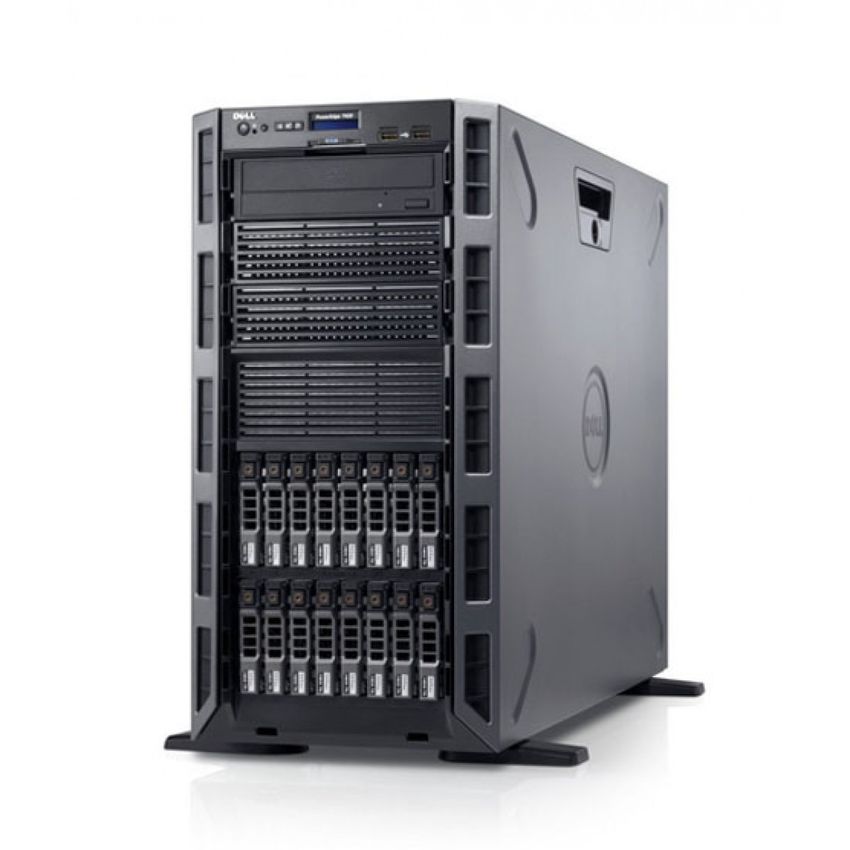

NFS4.1/pNFS       dCache                   Disk pool nodes          dCache @BNL

HTTP/WebDav

                                       primary          secondary       Disk cache
                   Admin nodes
                                          Resilience Management

 Globus Online
 GFTP                                                     read
                                                          pools

                                                       write
                                                       pools
                 Data transfer nodes

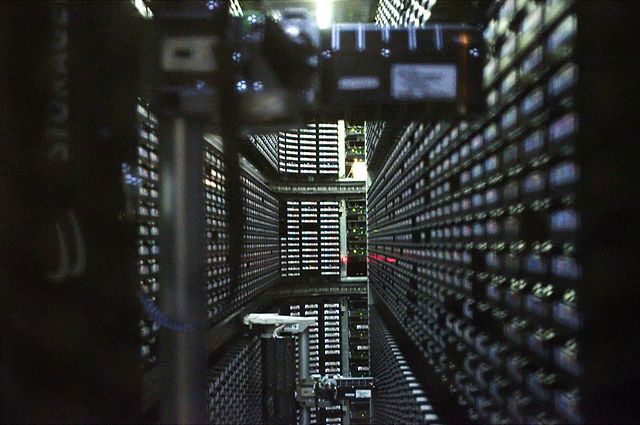

                                          Tape pool nodes

                                                  4
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
Protocols
NFS 4.1
●                                                ●   XRootD
–Mounted     in the Linux farm                   –Read    is in production
–US   ATLAS Tier3 facility                       –Write    is tested through
                                                 ●   GSI authentication
              /pnfs/usatlas.bnl.gov/users/

                                                      Support of XRootD third party
                                                      transfer?

                                             5
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
Protocols

                                                                 Globus Gridftp Server
                                                                           +
                                                                    dCache NFS4.1
   dCache Native Gridftp Server
                                                      • Pros
                                                          • It is a native Globus. The server is always
 • Pros                                                      supported by Globus.
     • It is a native dCache!!!                           • NFS4.1 is a standard.
     • Performance and stability is great             • Cons
 • Cons                                                   • The performance is not as good as the
     • Can dCache developer keep supporting?                 dCache gridftp option.
     • Can it be officially supported by Globus           • The stability issue has been reported.

                                                  6
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
BNLBox (Cloud
storage/Owncloud)                            •   Pros
                                                  • Easiest to transfer data in/out
                                                      dCache
                                                  • Automatic sync
                                             •   Cons
                                                  • SFTP can be a problematic.
                                             •   Can we natively support?
                                                  • Like CERN box with EOS?
    Own Cloud

                       External Storage
                    dCache NFS4.1 via SFTP              dCache
                                   7
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
Customization - Deletion
  namespace                 pool                           database
                                   Tune Cleaner to
                                   efficiently remove           Remove records
       Files were removed                                       from srmspacefile
                                   files physically from
       from namespace by                                        in srm database on
                                   pool
       clients                                                  time
                                   favor pools with most
                                   deleted files

                               query t_location_trash
                                                                                 Dark
                                                                                 Data

                                                 8
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
Customization– schema change
     dcache. srmspacefile
id    vogroup    vorole     spacereservation   sizeinbytes       creationtime   pnfsid   state

       id   vogroup vorole spacereservation       sizeinbytes creationtime pnfsid state          chimerapath

                                                             9
Overview of dCache Systems at BNL - Iris Wu Hiro Ito Jane Liu dCache workshop 2018 DESY, Hamburg Germany
Future operation-Splitting read pools for Tape area
•    Disk space crunch!
       • Various experiments and users have more                       read pools
           data than the size of spinning disks                        (Finite size)
           available to them. And, it is expected to
           grow further.                                             newly written
                                                                         files                 HPSS disk cache
•    The tape storage is still cheaper than the
     spinning disks (or SSDs).
•    Would like to use the archive storage (aka TAPE)
                                                                                                          limited
     as effective as reasonably possible.
                                                        Tape          stage pools                         resource
       • TAPE requires a particular access to get the
           optimum performance.                         write                                                        HPSS Tape drives
                                                        pools

    The callback option for the future?                                      Non blocking
                                                                                            CHIMERID to
                                                                                             Namespace
                                                                             pulling
                                                                                            (ChimeraDB)

                                                                10
Future operation – Ceph Pools
 • Pros:
    • Separate pool service hosts from actual storages.
         • remove the association of files in Ceph pools with t_location
    • Erasure codes allows the resiliency without duplicate copy

    Pool Host A               Pool Host X               Pool Host A        …      Pool Host X
    Pool A0--AN
                       …      Pool X0--XN
                                                                   Ceph librados pools
            Regular Storage
                                                                           Ceph
 • Questions
    • Performance of partial read???
    • Scalability of Erasure code???

                                                 11
Needs help from developers
●   continue the support for Ceph pools

●   continue the support for Globus online

●   support XRootD 3td party transfer

●   the issue with Resilience Management

                                        12
