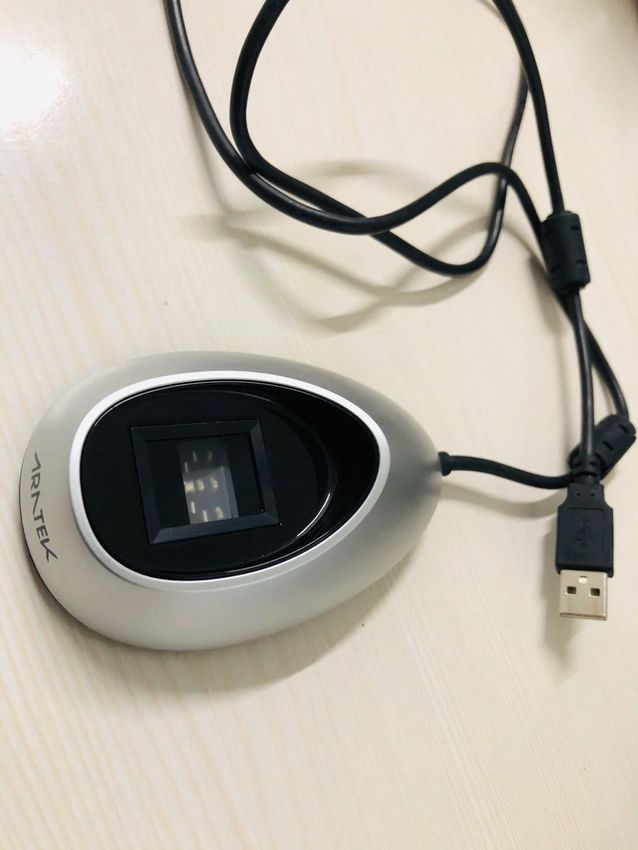

ARATEK A600 FAP 20 Optical Finger Print Scanner - image

ARATEK
A600 FAP 20 Optical Finger Print Scanner

ARATEK A600

Dependable fingerprint capture for your most demanding
                    requirements.

Specifications
Dimension-                      98.9*61.5*35.7mm(LWH)
Capture Mode-                    Optical Touch
Platen Size-                     16.0*21.0 mm
Sensing Area-                   15.24*20.32 mm
Fingerprint Image Size-         300*400 pixels
Communication Interface-        USB 1.1/2.0
Temperature-                    0°C~55°C
Humidity-                       10~93%R.H
ESD-                             Contact: +/- 8KV, Air: +/- 15KV
Image Resolution-               500 dpi
Gray level-                     256 level
Fingerprint Image Distortion-   ≤2%

Optical Finger Print Scanner

▪ FBI Certified
▪   FAP20
▪   STQC/UIDAI Certified
▪   International Standard
▪   High Image Quality with 9 Infared LED

Application

 •   PC/Network Security
 •   Hospitality
 •   Finance and Banking
 •   Telecommunication
 •   Healthcare
 •   Law Enforcement
 •   High Speed USB

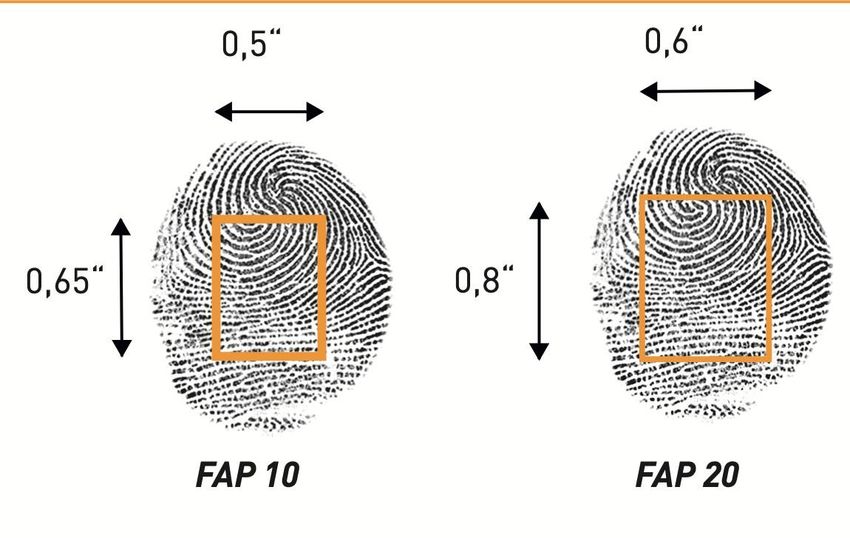

FAP 10 and FAP 20 ADVANTAGES
Size    Specifica   Image capture   Types of
        ti on FBI   area (WxH       fingerprints
        EBTS        inches)         collected
FAP10   PIV-071006 0.5 x 0.65       1- Flat
FAP20   PIV-071006 0.6 x 0.8        1-Flat

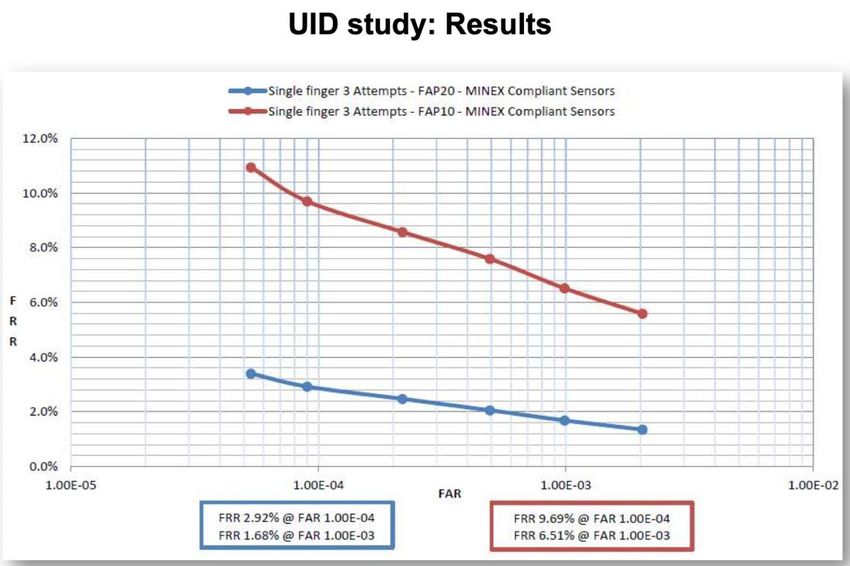

                                              FAP 20 will give you bigger image with more minutiae
                                              points for faster verifications and lesser failattempts

Key Points
  Certification-
        FBI PIV specification, Mobile ID FAP 20 /STQC/UIDAI

• It has 9 LED infrared tech for better image quality capture.
• Interface support:
     • TYPE A

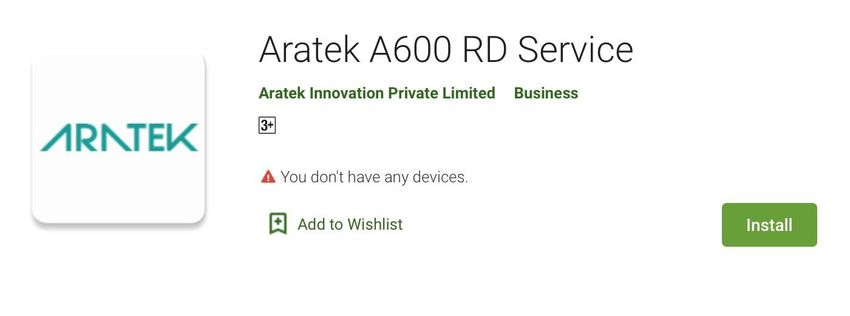

     • USB TYPE C         A600 RD Service APKLink
     • Micro USB
     • Mini USB
• Size: FAP 20

https://play.google.com/store/apps/details?id=co.aratek.asix_gms.rdservice&hl=en

ARATEK
     A400 Capacitive FingerPrint Scanner
FBI PIV specification, Mobile ID FAP10 / STQC

A400 SPECIFICATION
⚫   Physical Parameters
⚫   Dimension                         100*50*15mm (L*W*H)
⚫   CaptureMode                      Capacitive Touch
⚫   PlatenSize                       15.4*19.7 mm
⚫   SensingArea                      12.80*18.0 mm
⚫   Fingerprint ImageSize            256*360 pixels
⚫   Image Resolution                 508 dpi
⚫   Graylevel                        256 level
⚫   Temperature                      0°C~55°C
⚫   Humidity                         20~93%R.H
⚫   SupportedOS
⚫   Windows XP / 7 /8 / 10, Android,Linux

Finger Print Scanners comparison
 ARATEK A600       Secugen Hamster pro 20       Nitgen HFDU08   Precision PB510   StartekFM220

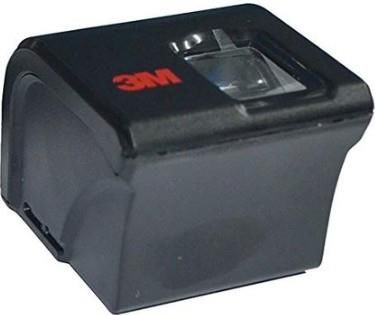

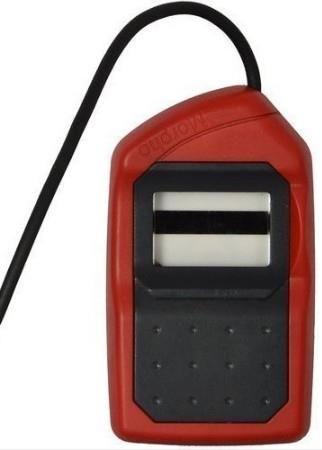

               Cross matchDigital   Cogent 3M       Morpho E3   Mantra MFS 100     TatvikTMF20
ARATEKA400          persona

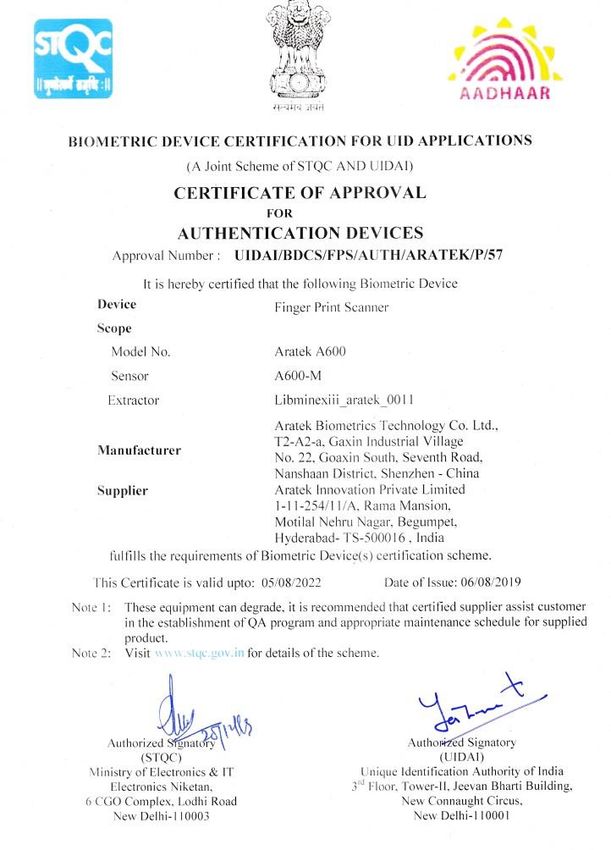

A600 UIDAI certification

i

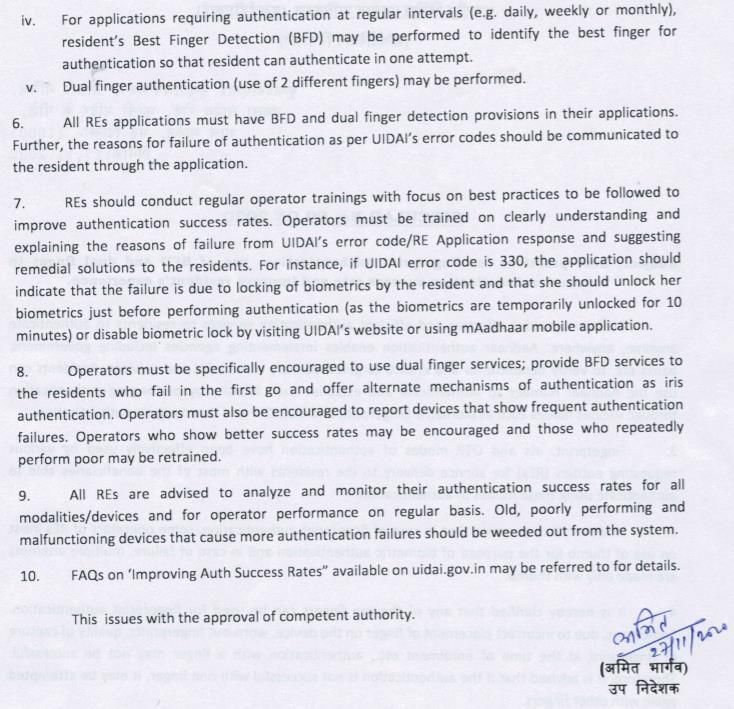

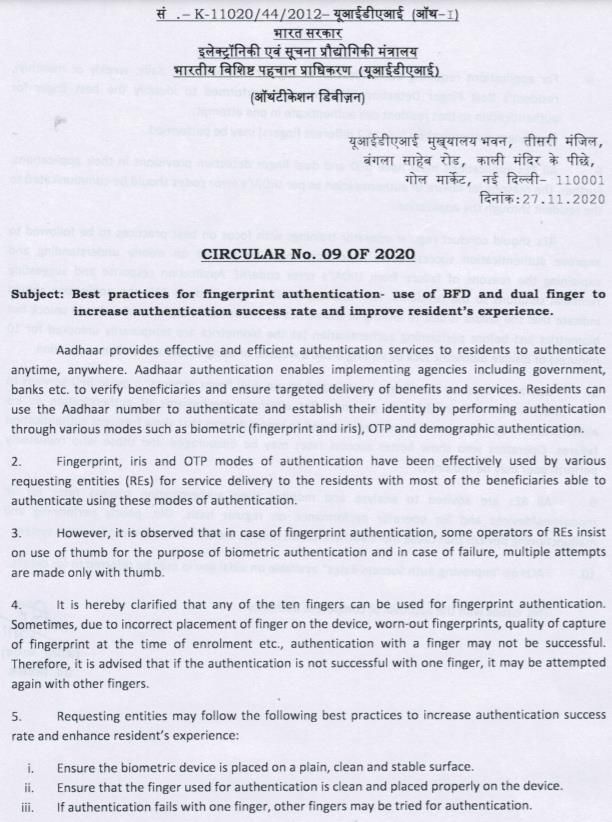

    Important Circular Notice:-

1. Operators must be specifically encouraged to use dual finger services; provide BFD services
to the residents who fail in the first go and offer alternate mechanisms of authentication as iris
authentication. operators must also be encouraged to report devices that show frequent
authentication failures. Operators who show better success rates may be encouraged and
those who repeatedly perform poor may be retrained.

2. All REs are advised to analyze and monitor their authentication success rates for all
modalities/devices and for operator performance on regular basis. Old, poorly performing and
malfunctioning devices that cause more authentication failures should be weeded out from
the system'

3. FAQs on "lmproving Auth Success Rates" available on uidai.gov.in may be referred to for
details'

NPCI Mail
  Hello,
  Greetings from National Payments Corporation of India!!

  Hope you are doing good and staying safe in this pandemic situation. I am a product lead for Aadhaar Enabled Payment System[AePS] at National Payments
  Corporation of India[NPCI]. AePS is a platform which enables the basic banking services through biometric authentication of the Aadhaar holder (predominately
  fingerprint). In the Q1 only, AePS has clocked 1.2 billion+ Aadhaar authentication transactions. There are 1.4-1.5Mn+ devices in the market which are
  operated to perform AePS transactions by business correspondents. Currently, most of these devices supports fingerprint authentications only.
  From the data, it has been derived that 1 out of 5 transactions are getting declined because of “Bio-Metric Mismatch” ultimately leading to hindrance of
  service delivery. In current situation, where effectiveness of service delivery has become a crucial factor, NPCI & product g overning body has taken a decision
  to improve approval rate for the Bio-Metric mismatch.

  We want to explore the ways by which fingerprint mismatch can be reduced to almost half.
  What all enhancement can be done which will lead to higher success rate? i.e.
            o whether increasing the size of the pid block will lead to higher success rate?
            o Whether implementation of minimum minutiae can be verified prior to transactions initiation will lead to rejection of transac tions prior to
                initiation itself?
            o MFIQ checks can be implemented?
  We are working on the same to galvanize banks to deploy such devices where success rates are much higher. In order to take th is further, I would be needing
  below set of inputs from your side.
     ➔ Device type & its success rate
     ➔ What kind of measures have you taken to reduce the fingerprint mismatch?
  With this we invite you to deliberate over fingerprint mismatch reduction. You may reach out to me at undersigned for further discussion.

➢ 90% of the AEPS devices are with Mantra/Startek/Morpho.
➢ You need high resolution quality image capture for better verification results .
➢ Aratek with A600 Infra Red sensor has high quality image capture capability with best verification results

Thank
         Thank you
      THANKyou
            YOU!
Rajesh Kmar
 8882023300
Aratek Innovation Private Ltd.
#1-11-254/11/A, Rama Mansion,
Motilal Nehru Nagar, Begumpet,
Hyderabad,
Telangana 500016,
India
 +91-40-27760888
Vipin :- 7674828423
