IC40-R: Management of Recalcitrant Carpal Tunnel Syndrome
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
IC40-R: Management of Recalcitrant Carpal
Tunnel Syndrome
Moderator: Alexander Lauder, MD
Faculty: Duretti T. Fufa, MD, Fraser J. Leversedge, MD and Suhail K. Mithani, MD
Session Handouts
OnDemand
76TH ANNUAL MEETING OF THE ASSH
SEPTEMBER 30 – OCTOBER 2, 2021
SAN FRANCISCO, CA
822 West Washington Blvd
Chicago, IL 60607
Phone: (312) 880-1900
Web: www.assh.org
Email: meetings@assh.org
All property rights in the material presented, including common-law copyright, are expressly reserved to the speaker or the ASSH. No statement
or presentation made is to be regarded as dedicated to the public domain.
7/30/2021
Introduction
Management of • Clinical challenge
• Understanding of anatomy and pathophysiology
Recalcitrant Carpal • Conservative management
Tunnel Syndrome • Surgical management
• Revision neuroplasty
Alexander Lauder, MD
Duretti Fufa, MD • Neurolysis
Fraser Leversedge, MD • Reconstruction
Suhail Mithani, MD • Flap coverage
1 2
Carpal tunnel syndrome Revision carpal tunnel release
• Most frequent compressive neuropathy • Less successful than primary CTR
• incidence 1-3.5 per 100,000 person-years • Up to 40% have unfavorable outcomes
• Prevalence 3-10% (variations with region, sex, occupation)
• >500,000 CTR performed annually
• Economic impact >$2 billion
• High success with CTR; persistence or recurrence in 3-20%
HAND 2012;7:242
PRS 2001;107:1830 JHS 2013;38:1530
3 4
Outline
• Pertinent Anatomy, Classification, and Differential Diagnosis
• Diagnostic Considerations and Workup (Fufa)
• Surgical Management (Leversedge)
• Flap Options, Management, and Outcomes (Mithani)
Case
5 6
1
7/30/2021
43 year old lady 57 year old man
• oCTR 1 year ago • oCTR 1 year ago
• Never had significant improvement • Numbness & tingling resolved; night symptoms improved
• Symptoms may have worsened after CTR • Pain/dysesthesias over the palm of the hand
• Tried OT, desensitization, splinting, no relief • Hypersensitivity
• Exam: + tinel median nerve prox. wrist crease, +compression, +phalen • Tried OT, desensitization, splinting, no relief
• Repeat EDS: no significant change from pre-op exam • Exam: + tinel at the FCR/wrist crease, neg compression, neg phalen
• Repeat EDS: conduction improvement along median nerve
7 8
Anatomy, Disclosures
pathophysiology, • None
differential
Alexander Lauder, MD
9 10

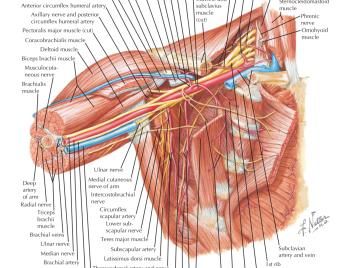

Anatomy:
Neck
• Nerve roots C5-T1
Anatomy: • Medial/lateral cords
median nerve Axilla
• Median nerve
Arm
• Descends adj to brachial
artery (brachialis/biceps)
11 12
2
7/30/2021
Anatomy Anatomy

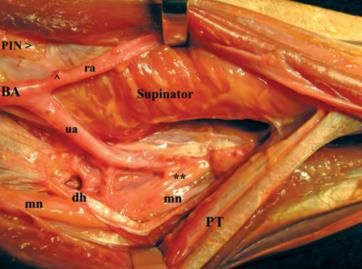

Elbow Forearm
• medial to brachial artery • Pronator teres
• deep to lacertus
Leversedge, Goldfarb, Boyer, Primus manus 2010 Leversedge, Goldfarb, Boyer, Primus manus 2010
13 14
Anatomy Anatomy
Forearm Forearm
• Deep to FDS • PL, FCR,
• FDS/FDP FDS, +/-FDP
• AIN
Leversedge, Goldfarb, Boyer, Primus manus 2010 Leversedge, Goldfarb, Boyer, Primus manus 2010
15 16
Anatomy Anatomy
Forearm Forearm

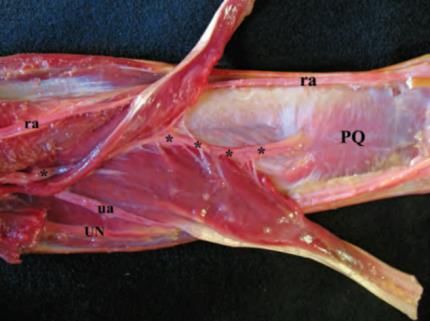

• AIN deep to FDP • FDS/FDP interval
• Innervates
PQ/wrist
Leversedge, Goldfarb, Boyer, Primus manus 2010
Leversedge, Goldfarb, Boyer, Primus manus 2010
17 18
3
7/30/2021
Anatomy Anatomy
Wrist/Hand: Wrist/Hand

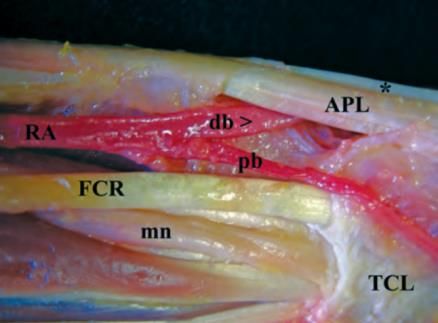

• FDS/FCR • PCBMN (PL/FCR)
