IHM-Introduction 2019-02-21 For your competitive sustainability
GSR Services
Support for compliance with HKC and EU-SRR for maritime industry
• Key services:
• IHMs for new and existing ships (for shipyards, shipowners, suppliers)
• Including online tracking and maintenance of IHM (IHM-App with NFC-Tags)
• HKC-Compliance projects (for ship recycling facilities)
• Recycling planning & supervision (for owners)
• Global network of IHM Professionals (capacity of ~1000 IHMs/a)
2019-02-21
Legislation
IMO:
“Hong Kong International Convention for the Safe and Environmentally Sound Recycling of Ships”
EU:
“Regulation of the European Parliament and of the Council on ship recycling …”
• Applicable to:
• all merchant ships* > 500GT
• all EU-flagged and non EU-flagged
ships* calling at an EU port > 500GT
• All ship recycling facilities (SRF)
involved in recycling of above ships
"ship" means a vessel of any type whatsoever operating or having operated in the marine environment, and includes submersibles, floating craft, floating platforms, self-
2019-02-21
elevating platforms, Floating Storage Units (FSUs), and Floating Production Storage and Offloading Units (FPSOs), as well as a vessel stripped of equipment or being towed
IHM deadlines
• New ships: from 30.12.2018 (building contract, EU-flag)
• Exst. ships: until 30.12.2020 (regardless of flag)
New Ships Existing Ships
Definition On or after EiF / application: “not a new ship”
(a) building contract is placed; or
(b) keel is laid six months later; or
(c) delivery thirty months later.
Responsibility Shipyard Shipowner
Scope Table A & B Table A (min.)
Method Documents from suppliers Inspection & sampling
(SDoC & MD)
EU + PFOS & HBCDD + PFOS
IHM-Deadline after EiF / 5 years after EiF /
EU: 30.12.2018 EU: 30.12.2020
2019-02-21
Key Requirements for ships – IHM Part I
!
= EU Annex 1
= EU Annex 2
2019-02-21
Key Requirements for ships – IHM Part I
• Non-EU-flagged ships = “IMO-IHM”
• Without the additional EU-substances (in red)
• Existing ships = min. Table A
• New ships & installations = Table A&B
• EU-flagged ships = “EU-IHM”
• Existing ships = min. Annex 1
• New ships & installations = Annex 2 IMO
EU
Annex Table
1 A
All = EU
Annex 2 IMO
Table
B
2019-02-21

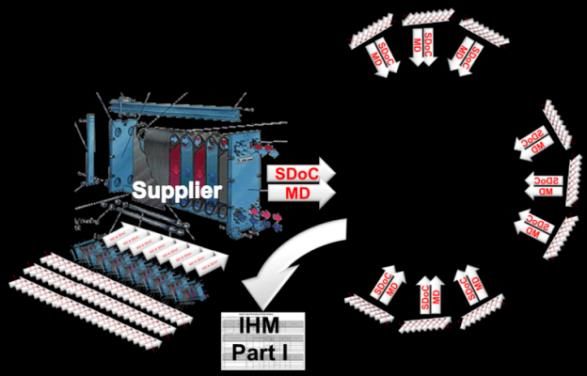

IHM Part I for New Ships
• Shipyard responsible
• IHM is based on information delivered by suppliers
• Supplier provides for each product
• Suppliers Declaration of Conformity (SDoC)
• SDoC is a legally relevant statement
• Overtaking full responsibility for information provided in MD
• Material Declaration (MD)
• Suppliers often depend on information
from own suppliers
• „asbestos free declaration“ not appropriate
• „understanding“ different
• Wrong statements = compensation claims possible
• Think about own control regime
(required by ISM from ship owners)
2019-02-21
IHM Part I for Existing Ships Owner is responsible • IHM preparation by IHM Expert • IHM-certification independent of ships´ class • IHM-Development consists of ~7 steps 2019-02-21
IHM Part I: Demand & Supply
• HKC = ~48.000 ships
• Has not entered into force yet
• EU = ~30.000 ships
• Entry into force: 2013
• Deadline existing ships: Dec. 2020
≈ 69 ships/day*
• Limited capacity of IHM-Experts
• Half of fleet will be w/o IHM!
*: 2 years, 220 working days/a
2019-02-21
Tool for efficient preparation
of IHM Reports
2019-02-21 For your competitive sustainabilityDocumentation of IHM-activities

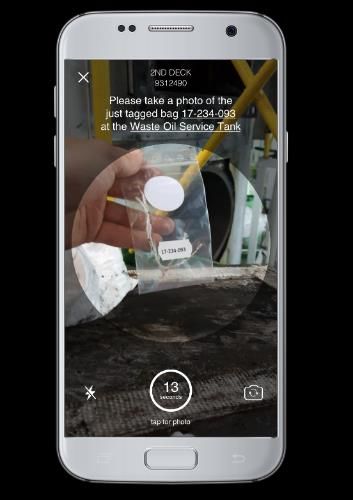

1 Create a new sample by describing a 2 Assign a location to the sample 3 Reading out of NFC tag on bag,
material and expected hazmat directly in general arrangement followed by taking one or more photos.
material in smart entry form. plan.
2019-02-21Easy way to integrate results and prepare full
report
Integrate laboratory and grant
them access (App, API or Web-
based) to provide lab. results
Report
& IHM
Input Generat Output
Lab. results, ion
interpretations,
certificates & other
Website offers access to all data and documents
uploading of various supporting
documents (e.g. AFS-Certificate)
2019-02-21A completely digital survey offers
various advantages, such as: a simple
maintenance
2019-02-21Advantages of IHM-App
• Reduction of report preparation time to few minutes
• Guidance through onboard inspections
• Impossible to forget a marking in ship plan, taking a photo etc.

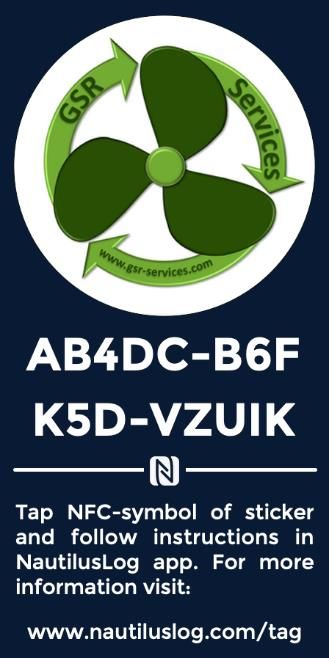

• Full traceability by NFC-Tags
• Laboratory
• Certifier
• Owner / crew
• Useful for IHM-maintenance
• Full overview of what has been sampled
and related results
2019-02-21Conclusions
• IHM = technical file; quality important
• Avoiding claims by future owners or recyclers
• Safeguarding crew during ship operations
• Supporting safe and environmentally sound recycling
• Avoiding new deliveries to contain banned
hazardous materials (asset values)
• Maintainability
2019-02-21Conclusions for owners
• IHM-Deadlines are fixed
• EU-flagged NB: contract after 2018 = IHM required
• FiS: from end of 2020 all EU-flagged and EU-visiting ships >500GT
• Huge number of ships addressed
• IHM-activities are sharply increasing
• Lack of resources foreseeable Existing Fleet New Builds Last Voyage Operation
• IHMs • IHM latest by • Include IHM • EU-flagged • Set up or use
• required for planning of recycling 2020 in building
specification
ships: repository
for IHM data
• Order • Have
• No IHM: no safe & sound HazMat • Get class for certified IHM • Set up
recycling possible! Experts for certification on board system to
IHM of IHM • Select request
• To be maintained by owner preparation Recycler documentati
• Get class for from on
• “Designated Person” certification European • Nominate
of IHM List designated
person
Requires intensive communication with the supply chain and may take long time to implement!
2019-02-21Thank you!
GSR Services GmbH
www.gsr-services.com
2019-02-21Why GSR Services
• Experience ensures:
• Accuracy
• Quick process onboard (8-10 hrs)
• Effective sampling
• No disturbance of ship operations
• Analysis in accredited laboratories acc. to analysis methods
specified by IMO
• Perfect guidance and full service for clients
• GSR is:
• At the forefront of all developments
• Fully understanding all aspects and provide guidance for
effective HKC- and EU-SRR compliance
• Full member of IHMA
• Approved by:
2019-02-21Your cooperating partner
Henning Gramann
Environmental Engineer (Dipl.-Ing.), University of Apllied Sciences Bremen
Massey University, Palmerston North, New Zealand
Current positions
• Managing owner GSR Services GmbH
• Partner GSR Sentinels LLP – India
• Chairman & Treasurer IHMA
• Guest-Professor World Maritime University (WMU)
Experience
2005 – 2010 Germanischer Lloyd AG: Global Head of Practice – Ship Recycling
2003 – 2004 Environmental Officer “AIDAblu” (ex. ArosaBlu)
2001 –2003 Project-Manager GAUSS gem.mbH; maritime environmental legislation & technology
Awards
