Information System
for the Remote Monitoring and Control
of Professional Refrigerators
VOPOS AND SFU DETAILS
2
2
WHAT
IS SMARTFREEZE
3
The system
It’s a system (*) for sampling
the refrigerator/s working parameters,
even remotely and in real time,
and to transmit them
to a web based information system
or, through SMS,
to a mobile phone.
(*) Patent Pending
4
4
SMARTFREEZE
SYSTEM
COMPONENTS
5
The system components
High performance Temperature Controllers for
refrigerators with positive and negative
temperature:
VOPOS – Compact Model (32x74)
VOPOS PRO – Free installation Model
ad installazione libera with remote
display
Smartfreeze Unit for Remote Monitoring and
Control of Refrigerators
6
The system components
Web Based Information System:
SMS Info System WEB System
stores fleet management data;
enables remote diagnosis and
refrigerator parameters fine
tuning;
Display frigo
SMS Information System for rapid dispatching of refrigerators
diagnosis and faults messages (directed for example to the
maintenance team).
7
VOPOS Controllers
MAIN FEATURES
Regulation of refrigeration systems
Monitoring and control of electrical power
consumptions, also for diagnosis
Energy Saving function on refrigeration cycle and
cold room lights
Recording of temperatures (HACCP) with USB data
transfer
Automatic detection of frost and defrost start
Detection of gas discharge
Automatic controller set-up (Genius Function)
User interface in 5 languages with sliding words
Climate control with humidity sensor
Refrigeration component list resident on the
controller memory
Door openings records and related timing
Built-in cooling programs for specific foods
Water and dust resistant Touch Pad
8
VOPOS Controllers
TECHNICAL SPECIFICATIONS
Mechanic
• ABS case - size 32x74mm
Power
• switching 110-230V 5o/6oHz with back up
power connector
Probes
• S1: ntc thermostat (-50.0, +50.0°C) 0,1°C
• S2: ntc evaporator (-50.0, +50.0°C) 0,1
• S3: ntc condenser/alarm (-20.0, +80.0°C)
0,1°C
• S4: digital/4-20mA (10-99 Rh%) 1%
• Probe pcb board (0.0, +99.9°C) 1°C
• Probe for current consumptions (0-20A) 0,1A
Relay
• 4 relays 30A-8A-5A-5A
9 VOPOS Controllers TECHNICAL SPECIFICATIONS User interface • touch pad keys • led display with 3 graphic digits 7x5 dots with sliding words • USB Port for firmware upgrading, parameters programming and temperature logged data downloading Communication • RS485 for Smartfreeze Unit (SFU) and local networks
10
VOPOS Controllers
USER INTERFACE11

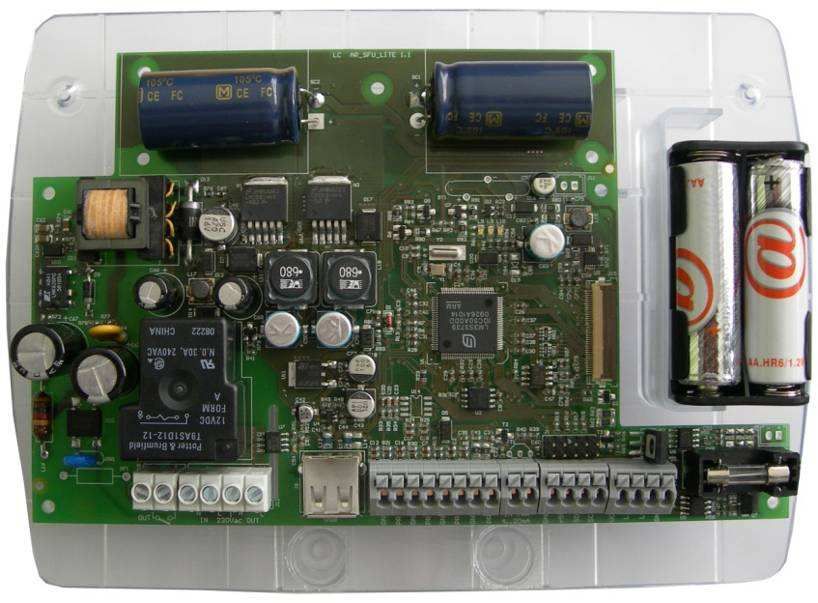

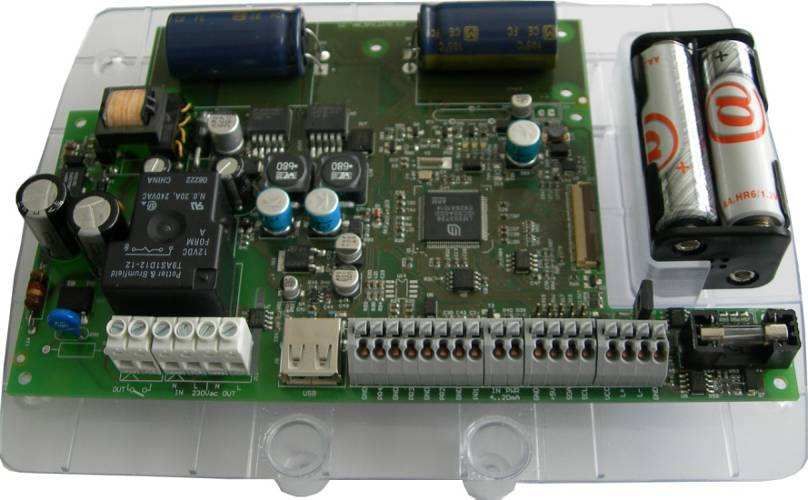

Smartfreeze Unit (SFU)
TECHNICAL SPECIFICATIONS
Mechanic
• electronic board in ABS case antenna GSM + SIM
Card slot
Probes
• S1: ntc thermostat (-50.0, +50.0°C) 0,1°C
• S2: ntc evaporator (-50.0, +50.0°C) 0,1°C
• S3: ntc condenser/alarm (-20.0, +80.0°C) 0,1°C
• S4: digital/4-20mA (10-99 Rh%) 1%
• Probe pcb board (0.0, +99.9°C) 1°C
• Probe for current consumptions (0-20A) 0,1A
Relay
• 1 relay (30 A/250V)12
Smartfreeze Unit (SFU)
TECHNICAL SPECIFICATIONS
User interface
4 mechanical keys and graphical display 128x32
4 led for infomatrix
USB Port for firmware upgrading, parameters
programming and temperature logged data
downloading
Power
switching 110/230 Vac 50/60 Hertz
4 rechargeable back-up batteries or
supercapacitor (optional)
Further specifications
microcontroller ARM7 GSM/GPRS
Quadriband modem
Communication
RS 485 for Vopos connection and MODBUS
protocol for other controllers connection
Events recording on flash memory13
13
SMARTFREEZE SYSTEM
INNOVATIVE FEATURES14
The innovative features
Energy Saving – (for VOPOS and SFU)
SMART DEFROST
Automatically detects the presence of frost on the evaporator and
initiates defrost only when necessary, maintaining, at the same time,
efficient operation of the refrigerator and reducing consumption
compared to traditional timed defrost.
For refrigerators at positive temperature, the SMART DEFROST lets
you switch from 3 days to 1 defrost in a defrosting every 3 days.
INTELLIGENT ENERGY SAVING
The ruleset is incremented by a default value (+1 / +2 ° max) when
passed an operating time with percentage of use compressor that
exceeds the threshold parameterized.
The restoration is set for early detection of a percentage lower than
the threshold allowed.15
The innovative features
Energy Saving – (for VOPOS and SFU)
NIGHT & DAY
During the night, if the nature of the stored product allows, you can
raise the temperature set a default value (+1 °C / +2 °C max).
During the activation of the night set , the lights are switched off in
vain.
THERMOSTATIC FAN CONDENSER (CAPACITOR)
The condenser fans are thermostat controlled with reference to the
probe installed at the exit of the condenser and the set point of
consensus.
Consumptions are minimized turning off the fan when the temperature
is below the set of consensus. In this way you can also optimize the
thermodynamic efficiency of the refrigerator in an environment of low
temperature.
ALERT “DOOR OPENED” DOOR OPENED
Scrolling message alerts you that the door is opened. If the opening
time is prolonged, it activates the buzzer.16
The innovative features
Energy Saving – (for VOPOS and SFU)
ENERGY SAVING
It is possible to view on display the estimated energy savings achieved thanks to all the
functions of the Energy Saving.
• Kw last hour • € last hour
• Kw 24h • € 24h
• Kw months • € months
• Kw years • € years
• Kw from installation • € from installation17
The innovative features
Data Management
RS485 FOR SFU AND LOCAL NETWORKS
USB PORT FOR:
Firmware upgrade,
Programming the parameters of the refrigerator,
USB port for downloading data for the self-test (self test) by the manufacturer,
Download Registry HACCP - MULTICHANNEL TERMOREGISTER
Every minute, 20 operating variables are stored. These variables,
variables, once discharged with a
pen-
pen-drive, via the USB ports, situated on the front panel, are read by SMARTVIEWER
software, which lets you view graphs of the events of temperature
temperature.18
The innovative features
Maintenance tools
BILL OF REFRIGERATOR, stored in the memory of the controller;
PART NUMBER
INDICATED
DIAGNOSIS OF MAINTENANCE through the calculation of the
electricity consumption on each relay;19
The innovative features
Calculation of electricity consumption of refrigerator
• Kw last hour • € last hour
• Kw 24h • € 24h
• Kw months • € months
• Kw years • € years
• Kw from installation • € from installation
The calculation of consumption is displayed.20
The innovative features
Touch Pad
(water and dust resistant, with no mechanical components)
Graphical displays (dot matrix) to display sliding text and icons21
The innovative features
Static control of humidity (with a specific probe)
SMARTCLIMA
Inside the refrigerated compartment is implemented the humidity control in the neutral
zone with dehumidifying action of the static operating refrigerator.
This is an important feature for pralines without actuators.22
The innovative features
Automatic controller set-up of the probes (Self Configuration)
GENIUS
It is an automatic procedure to configure the operating parameters of the refrigerator,
with particular reference to the temperature sensors installed.
Allows you to avoid / correct the frequent errors of inversion probes being installed.
With this function, the controller will also be able to determine the defrost mode to
implement.
Probe 1
Probe 3
Probe 223
The innovative features
Monitoring of refrigerators network by the GSM / GPRS connection
SFU
SFU
SMARTFREEZE SERVER
FLEET
SMS FLEET SMS MAINTENANCE
MANAGEMENT
It is possible to monitor max 10 refrigerators, with VOPOS controller
installed, using a single SmartFreeze Unit.24
The innovative features
Testing of the refrigerator functioning through simulation
techniques (Hardware in the Loop)
Smartfreeze, in collaboration with university researchers, has developed a system that
allows you to emulate the operation of all components of a refrigerator, in order to test,
so fast (up to 15 times more), the behavior of the VOPOS controller.25 25
