info@xicato.com PRODUCT CATALOG Linear Lighting and Controls June 2021
Index About Our Company
03. About our Company Xicato is defining the future of smart buildings
delivering the absolute best quality, highest
04. Xicato Flexible Linear - XFL
performing, and most reliable portfolio of spot
14. Xicato Channel Collection - XCC and linear lighting with Bluetooth wireless
controls.
22. Xicato Linear Accessories - XLA
Xicato’s well-known light sources have set the
25. Xicato Smart Controls standard for quality of light and are installed in
thousands of locations over 30 countries – they
32. Meanwell Drivers
are the go-to option when people care about
33. Available Soon the quality of light.
34. Product Selector Xicato’s smart lighting solutions inspire
architects, designers and building owners to
35. How to Order
create beautiful and healthier environments with
smarter and connected experiences.
TRANSFORM YOUR SPACE
Channels Controls
Xicato offers the widest selection of high quality aluminum Xicato’s Bluetooth® Lighting Controls are installed all over
extruded channels to meet every requirement - you want it, the world and integrated with a range of luminaires and
we have it, even if it’s not advertised. Our channels, combined building management systems. They deliver cost savings
with a wide array of covers, end caps, and accessories, offer from installation through operation, and provide scene-
universal use for every application. You now have unlimited setting capabilities that are second to none. Smart controls
imagination to transform your space. enable building energy efficiencies, reduced maintenance
and operational costs, resulting in a more productive and
comfortable environment.
XICATO STATIC WHITE
FLEXIBLE HIGH DENSITY
LINEAR FULL SPECTRUM
LIGHTING SIDE EMITTING
ULTRA SLIM
TUNABLE WHITE
DIM TO WARM
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 4
“
Xicato’s new offering of LED linear lighting
solutions is exactly the type of product we were
looking for – it is superior quality and has the
latest technology from a brand that has been
trusted in the market for many years.
24V across entire portfolio
Sean Hounslow, Managing Director, Prime Light, UK BEST OF BREED Broad range of CCTs & common wattages
BENEFITS Supported by Xicato Bluetooth Mesh Controls
Superior construction for higher reliability, long
Unmatched Performance of CRI, R9, lifespan and heat management
Fidelity & Gamut
IP22 dry location & IP67 wet location
10-year warranty across all XFL products
Lighting design uniformity for both Xicato spot and
linear lighting
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 6
XFL XICATO FLEXIBLE LINEAR

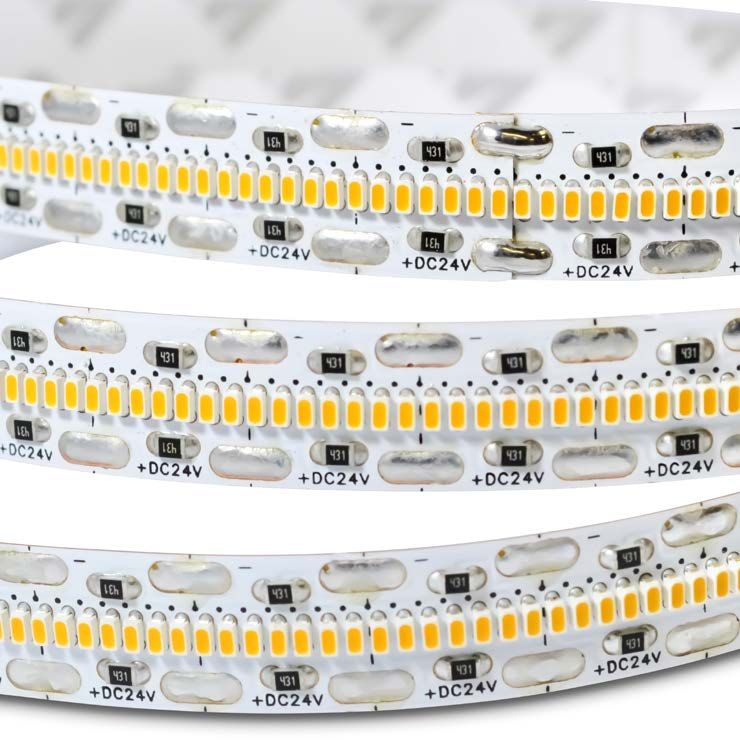

Static White High Density Full Spectrum
95 CRI, 10mm small profile, energy Gold-plated, 95 CRI diffused light, no Delivers the full spectrum of light to
efficient, easy to install on its own or in hot spots, also comes in ultra slim 4mm closely match natural light for a healthy
a channel. version. experience.
CCTs: 2200-4100 CCTs: 2200-4200 CCTs: 4000, 5000, 5700
Lumens: 220-1720/m, 67-526/ft Lumens: 585-1560/m, 188-476/ft Lumens: 750-1330/m, 228-405/ft
Wattages: 1, 3, 4.4, 5, 6 Wattages: 3, 4.4, 5, 6.6 Wattages: 3, 4.4, 5, 6
LEDs: 240/meter LEDs: 700/meter LEDs: 120/meter
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 8
XFL XICATO FLEXIBLE LINEAR
Side Emitting Ultra Slim Tunable White
Light is projected at a 90° angle Ultra narrow 4mm high-density profile CCT tunable linear lighting with
allowing for hard to light spaces and with excellent light output on its own advanced on-board circuitry for a
wall grazing applications. or in a channel. 2-channel driver. New CCT range to
6500 coming soon.
CCTs: 2700, 3000, 3500 CCTs: 2200-5000 CCTs: 2200-3000, 2400-3500
Lumens: 660-680/m, 200-210/ft Lumens: 740-855/m, 225-260/ft Lumens: 650-1220/m, 200-373/ft
Wattages: 3.0 Wattages: 3.7 Wattages: 3, 4.4, 5.2, 6
LEDs: 120/meter LEDs: 238/meter LEDs: 240/meter
XFL supply: bluebottle
Lighting Design: Benjamin Cisterne Design
Architectural Design: Nazia Kachwalla - Tonkin Zulaikha Architects
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 10
XFL XICATO FLEXIBLE LINEAR
Dim to Warm Linear Accessories Custom Cut
Popular dim to warm linear lighting for Choose from a variety of connectors, XFL is also available as a factory
bright and candlelight lighting with an boot (standard hole or no hole) and finished custom fixture or custom cut
all-in-one unique design. mounting accessories. to your specified length and lead wire.
Available Soon Datasheet on xicato.com quotes@xicato.com
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 12
XCC XICATO CHANNEL COLLECTION Most channels can be customized as a wet location
XICATO CHANNEL COLLECTION
fixture by using waterproof sealant/silicone.
Standard Slim Standard Micro Recessed Standard In-Ground
Small dimensions (just 6mm/0.25” high), Slim design with narrow collar High load bearing capacity ideal for
extrusion can fit slim designs and thin enables unaesthetic grooves for easy high-traffic areas such as sidewalks,
furniature pieces. Lightweight, easily assembly. Recessed shallow housing bike paths, driveways. Environmentally
disperses heat. Internal and external masks the edges of the groove, fits in friendly with special frosted cover.
bending radius of 150mm. 0.47”/12mm thick drywall.
XCC-C-SLM XCC-C-MRC XCC-C-GND
Closet
22 67 Closet
22 67 22 67
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 15
XCC XICATO CHANNEL COLLECTION Most channels can be customized as a wet location
fixture by using waterproof sealant/silicone.
Standard 45 Standard Micro Square Standard Square 12 Standard Square 15 Ultra Slim Square Ultra Slim Rectangle

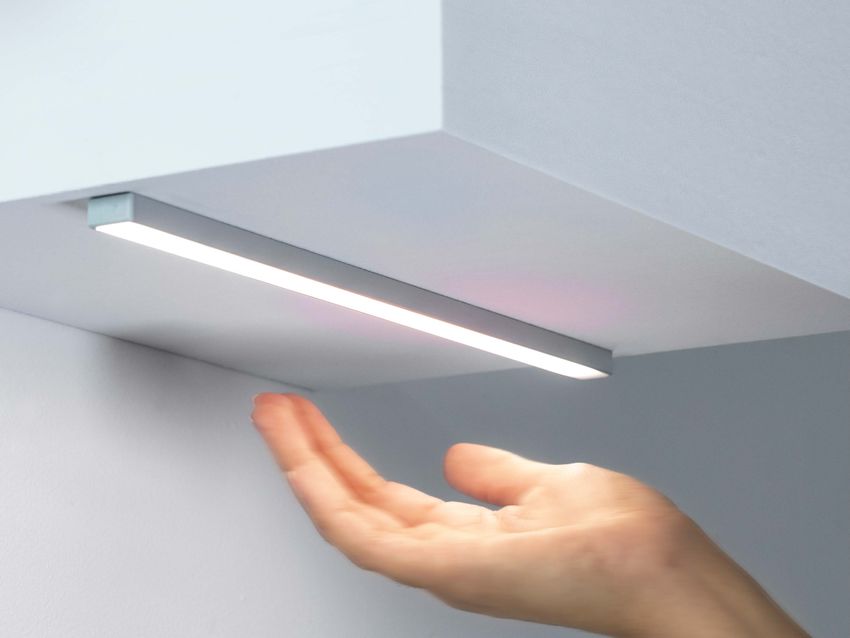

Provides 45° illumination for interior of Intended for small linear lighting fixtures Designed for the construction of indoor Allows the use of efficient, transparent Small and square profile of 7mm for those Smallest extrusion for a single narrow
cabinets, shelving and more. Smooth with concealed mounting bracket. Easy lighting fixtures with increased ingress covers while eliminating glare. Offers narrow hard to light applications. Bendable into line of light for interior design, furniture
sides that creates a line of light. snap-in assembly. protection. Can be bent in the plane adjacent beam angle. Good for backlighting, interior gentle curves at the plane adjacent to the and exhibitions. Mounted with two-
to the LED strip with internal bending radius architecture and furniture. LED strip with 150mm bending radius. sided adhesive.
180mm and external bending radius 200mm.
XCC-S-45 XCC-C-MSQ XCC-C-SS12 XCC-C-SS15 XCC-C-USS XCC-C-USR
Closet
22 67 22 67 22 67 22 67 Closet
22 Closet
22
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 16 info@xicato.com Product Catalog | Lighting & Controls | 2021 June 17
XCC XICATO CHANNEL COLLECTION Most channels can be customized as a wet location
fixture by using waterproof sealant/silicone.
Cove Slim Cove Recessed 17 Cove Recessed 32 Designer 45 Designer Round Designer Round Smooth
Set of two profiles designed for recessed Set of two extrusions designed for Cove lighting system consisting of the Designed for mounting on surfaces with Round extrusion with 18.5mm A modern smooth finish circular extrusion
illumination with a slim profile. Mounting recess illumination for ambient lighting mounting base and extrusion enabling internal 90° corners that directs light at 45° circumference for construction of linear that can be easily designed as a finished
strip and separate extrusion recessed inside of architectural niches located a short parallel and perpendicular direction angle. suspended lighting fixtures. lighting fixture.
for parallel light direction. distance from the wall. of light against a wall. Illumination of
niches.
XCC-C-CSL XCC-C-R17 XCC-C-R32 XCC-C-D45 XCC-C-RND XCC-C-RSM
Closet
22 67 Closet
22 67 Closet
22 67 Closet
22 67 Closet
22 67 Closet
22 67
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 18 info@xicato.com Product Catalog | Lighting & Controls | 2021 June 19XCC XICATO CHANNEL COLLECTION Most channels can be customized as a wet location
fixture by using waterproof sealant/silicone.
Designer Square 12 Designer Square 16 Designer Square Conceal 16 Designer Conceal 22 Designer Recessed Specialty Focus
Small 12mm height that offers flexibility 16mm extrusion with smooth side Similar design as the Designer Square 16 profile Profile of 22mm height for narrow light Recessed with width of 11.3mm and Movable insert enables five different lighting
for those hard to light applications. Easily surfaces equipped with a small lock with a concealed mounting bracket. Clean shape, angle hiding the light source. The recessed height of 12.2mm with a lip for a angles depending on the application. Beam
embedded in narrow grooves or for for system fasteners and extrusion not distorted by technical detail, such as an cover minimizes the glare. Width of 14.4mm smooth line that disappears. angles - 10, 30, 45, 60 and 90 degrees.
backlighting luminaries. connectors. external mounting bracket. is compatible with most IP67 lighting.
XCC-C-DS12 XCC-C-DS16 XCC-C-CS16 XCC-C-C22 XCC-C-REC XCC-C-SPF
Closet
22 67 Closet
22 67 Closet
22 67 22 67 Closet
22 67 Closet
22 67
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 20 info@xicato.com Product Catalog | Lighting & Controls | 2021 June 21CHANNEL LENS & COVER
Universal Clear & Universal Clear & Extreme Clear & Focusing Lens Black Transition Lens Ultra Slim Frosted
Frosted Frosted - Pro Frosted
Basic 13mm wide and 4mm in height lens Easy snap-in lens allows for simplified 13mm wide and 4mm in height, these Semi-transparent satin lens offers Matte black surface that turns white when Narrow cover that is compatible with
that is compatible with most of Xicato’s field installation measuring 13mm wide rigid covers are durable under extreme homogenous line of light for focused the light is turned on. The cover is made the Ultra Slim Square and Ultra Slim
channels, not UV resistant so best for and 4mm in height. Increased UV resistant climate conditions. Double-sided UV lighting applications. Benefits include high of UV-resistant PC measuring 13mm wide Rectangle channels. UV resistant with
indoor applications. with 80% light transmission in the frosted protection withstanding temperatures of transparency, quality and uniform cross- and 4mm in height. When the LEDs are off, good light diffusion.
version. up to 248F. The frosted lens has 70% light section. 14.53mm wide by 6mm in height. the cover is black. The best visual effect is
transmission. obtained in profiles that are black inside.
XCC-L-UNV-CL XCC-L-PRO-CL XCC-L-EX-CL XCC-L-SPF-CL XCC-L-TL-BK XCC-L-US-FR
XCC-L-UNV-FR XCC-L-PRO-FR XCC-L-EX-FR
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 22 info@xicato.com Product Catalog | Lighting & Controls | 2021 June 23CHANNEL LENS & COVER
In-Ground Frosted End Caps and Mounting
Sturdy lens that easily adapts to the In- Xicato has a wide range of end caps (with hole and without)
Ground channel to seal the fixture. Lens and mounting options available. Please download the XCC data
has good fire and mechanical resistance sheet for compatible lens, end caps and mounting accessories.
with complete UV protection.
Visit xicato.com/support for details on XFL accessories
XCC-L-GND-FRXICATO SMART CONTROLS
Xicato’s Smart Bluetooth® Controls are integrated with a wide array of luminaires, building
A Complete Solution Under One Roof: management systems and other 3rd party applications. They deliver cost savings from
HARDWARE, SOFTWARE & SERVICES installation through operation, and provide scene-setting capabilities that are second to none.
Our scalable, smart, and wireless controls are designed to provide the ultimate in control and
monitoring. Tens of thousands of nodes can share a single, highly secure network, joined with
tens of thousands of other networks, all while being installed and commissioned in just hours/
days. Powerful features such as groups, scenes, schedules, and sensor control are easily within
reach without expensive wires, hubs or dedicated control gear. You now have fully automated
lighting that delivers flexibility, reliability and savings.
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 26 info@xicato.com Product Catalog | Lighting & Controls | 2021 June 27SMART CONTROLS SYSTEM
XSW is module only
Xicato Intelligent Gateway Xicato Intelligent Sensor Xicato Smart Switch Xicato Relay Nodes
XIG XIS XSW XRN
Provides wired or wireless IP access to a wireless These are compact, wireless nodes that transmit XSW is a programmable switch that can be field Xicato Relay Nodes are compact, DC-powered,
Bluetooth network of XIM LED modules, sensors, sensor data over the BLE network for use by installed and converts a standard 0-10V dimming wireless Bluetooth nodes that allow users to
and other devices Securely monitor and control lighting, environmental management, or other switch or low voltage momentary contact switch extend the reach of Bluetooth networks used for
an unlimited number of BLE devices over applications. XIS can sense motion, ambient light, into a sophisticated Bluetooth controller. Enables a lighting control, environmental monitoring, or
any geographic distance, using any internet temperature, and relative humidity. standard single-channel, 0-10V dimming switch to other building management applications. Now
browser. Monitor temperature, intensity, power control a single, dimmable light source or lighting integrators and users can extend their control of
consumption, input voltage, and total operating XIS communicates directly with light sources group via Bluetooth. XSW broadcasts data directly their Bluetooth network into hard to reach places,
hours. Control individual lights or lighting groups that uses Xicato’s XID driver. Control intelligence to lighting nodes using Bluetooth - no central remote corners, or across enormous spaces
and pre-programmed scenes. including sensor response is built into the XIM and controller, gateway, hub or extra hops required. without additional expensive or complex pieces of
XID nodes, which can respond individually to one This means instant response and maximum equipment.
or more sensors, switches, local mobile or remote reliability using minimum power. XSW is compatible
BMS commands, or even to other lights. with many standard switches on the market today.
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 28 info@xicato.com Product Catalog | Lighting & Controls | 2021 June 29SMART CONTROLS SYSTEM
Intelligent Driver Key Features & Benefits
XID XID can be programmed by the luminaire manufacturer or
distributor using the Xicato Configuration Tool
XID are compact, deep-dimming constant current Deep, smooth dimming to 0.1% with flicker-free performance
drivers that enable Bluetooth and/or wired control of
most indoor LED light sources with a warranty of 5-years. Accepts 24V or 48V DC input
Their small size and circular form factor make them
particularly well suited for track, spot, and down light Controls LED arrays with voltages from 2.5V up to 45V
applications as well as an excellent choice for linear
luminiares such as troffers. Xicato’s XID accepts either
Contains sensors that detect temperature of the electronics
24V or 48V DC input and provides smooth, IEEE 1789-
compliant dimming performance to 0.1%, programmable Output currents: 350mA, 700mA, 1400mA at 13W, 25W and
with beacons, and provides detailed operating data over 50W - other currents available down to 175mA with XCT
Bluetooth. programming tool
5-year warranty
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 30SMART CONTROLS SYSTEM
Minature Driver Key Features & Benefits
XMD DC driver is specifically designed to fit into a highly space-
constrained environment
Maximum current output factory limited using Xicato
XMD was created to fit into compact track adapters for
Configuration Tool to 50% and 100% of rated maximum
a finished elegant design. With its narrow, rectangular
and low-profile footprint, this form factor enables fixture IEEE 1789-compliant dimming to 0.1% with Bluetooth
wireless control
designs to completely hide the driver. The XMD is capable
of deep 0.1% flicker-free dimming and smart driver control Controls LED arrays with voltages from 2.5V up to 45V
with wireless BLE option. These constant drivers are also
available with Bluetooth SIG mesh for intelligent wireless Stores a histogram of intensity settings and temperature for
lighting control. the life of the device
Output currents: 350mA, 700mA, 1050mA at wattages 15W,
30W and 45W - other currents down to 175mA with XCT
programming tool
5-year warranty London Science Museum, Kris Humphreys Photography
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 32MEANWELL DRIVERS AVAILABLE SOON
RGBW NEON
Combines both alternating color changing LEDs and single LED neon lighting simulates the look of glass neon yet its
white light in one. XFL RGBW gives you absolute control modern design is flexible and easy to install. Available in
OWA PWM LPV over any environment. white CCTs and RGBW.
OWA Series works like an adapter Dimmable AC/DC LED driver Series of single output switching
as a single-output external LED featuring the constant voltage power supplies with constant
power supplies that simplifies mode with PWM style output voltage design. Universal AC input
the connection with LED lighting maintaining brightness when with fully encapsulated case for
fixtures without extra wiring driving linear lighting. Option with IP67 applications.
efforts. Class 2, universal AC input, DALI control technology.
UL listed.
XLD-ND-MW-OWA-60U-24-P1M XLD-D010-MW-PWM-60-24 XLD-ND-MW-LPV-100-24 TUNABLE WHITE Xicato AC Drivers
XLD-ND-MW-OWA-90U-24-P1M XLD-D010-MW-PWM-90-24 XLD-ND-MW-LPV-60-24
XLD-DALI-MW-PWM-90-24-DA Tunable white lighting offers a wider spread of warm and XAD offers guaranteed reliability of a 10-year warranty
white lighting to choose from in one single light application. combined with Xicato’s patented technology for
CCT range is 2700 to 6500. smooth, flicker-free dimming to 0.1% and network-ready
compatibilities.
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 34 info@xicato.com Product Catalog | Lighting & Controls | 2021 June 35ONLINE PRODUCT SELECTOR HOW TO ORDER
Submit purchase orders to orders@xicato.com
BUILD YOUR CUSTMIZED LIST OF COMPATIBLE PRODUCTS
If you would like a quote for a lighting project or custom fixtures to match your exact specifications, email us at
USING THIS ONLINE PRODUCT SELECTOR TOOL quotes@xicato.com or contact your local partner in your region found on xicato.com/contact.
XFL XCC XLA XLD
FLEXIBLE CHANNELS LINEAR DRIVERS
LINEAR ACCESSORIES
IF YOU DON’T NEED A CHANNEL, SKIP TO XLA – LINEAR ACCESSORIES
STEP 1 STEP 2 STEP 3
CHOOSE LINEAR CHOOSE CHANNEL CHOOSE DRIVER
Select the type of linear lighting by Select the compatible channel, lens, Select the compatible driver for your
CCT, wattage and spool length. end cap and mounting accessories. LED project - OWA, PWM or LPV.
Product Selector can be found online at xicato.com
info@xicato.com Product Catalog | Lighting & Controls | 2021 June 36Xicato Global Headquarters Contact Us
102 Cooper Court Tel: +1 866 223 8395
Los Gatos, CA 95032 info@xicato.com
2021 Xicato, Inc. Product specifications are subject to change without notice. Xicato and the Xicato stylized logo design are registered trademarks of Xicato.You can also read
