TE MANA O TĀNE
ŌPANUKU LINK HENDERSON
CO N CEPT D EVELO PM ENT 2 019
PROPOSAL FOR SCULPTURE ON THE GULF GATEWAY PAVILION 2019
|
Ō PAN U KU LI N K H EN D ER S O N
Karakia ki a Tāne
Kakariki powhaitere
TO I TŪ H E WH EN UA
I te Wao-nui-a-Tane, PROJECT THEME
I te urunga tapu
Kua ara, kua ara
A Tane ki runga;
The designs are inspired by the
Kua kotia nga putake Māori story of Rata. This story is
O te rakau o te whare nei; important because in it we learn
important lessons about
Kua waiho atu kaitiakitanga, respecting the
I te urunga tapu; environment and respecting the
Kua kotia nga kauru atua (deity) who reside over the
parts of Te Ao Mārama. As Tāmaki
O te rakau o te whare nei; Makaurau grows at an ever
Kua waiho atu increasing pace we must ensure
that we meet the new challenges
I te Wao-nui-a-Tane. to the whenua (land), ngā awa
Kua tae au (waterways) and many forms of life
Ki nga pukenga, in a way that is tika (correct from a
Māori worldview) and sustainable.
Ki nga wananga,
Ki nga tauira. In order to do things tika, our
process asserts the mana of local
Patua kuru, hapu and iwi Māori as active
Patua whao, partners in these developments. In
Patua te toki a Tai-haruru. support of this is a conceptual
framework that is also shaped by
Kua piki hoki nei mātauranga Māori. Here, concepts
Ki te maro-hukahuka-nui including kaitiakitanga
(environmental stewardship) and
A Tangaroa, manaakitanga (hospitality) further

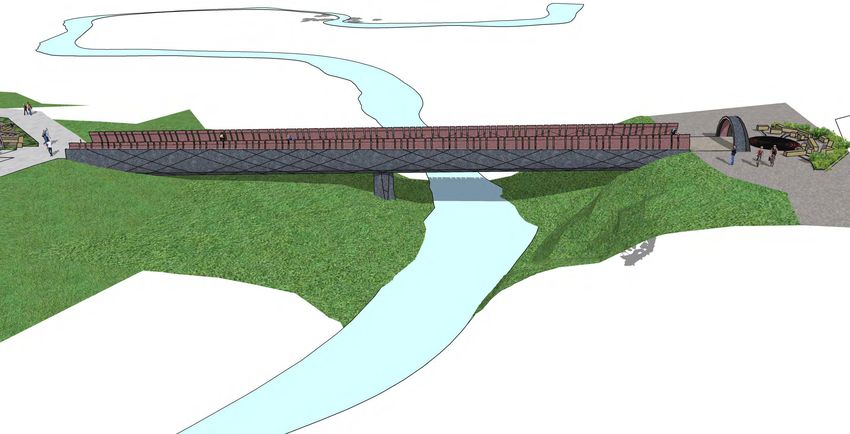

Te ngaru ai e whati ai Our designs for the Opanuku shape the process of engagement
E Nuku-tai-maroro. bridge and supporting elements and the narrative of the design.
take the shape of a fallen tree.
Kaore ko au The main structure which spans The karakia (prayer) for felling
E kimi ana, e hahau ana the river represents the trunk. trees, seen on the preceding
I nga uri o te whanau a Rata The supporting elements on each page, relates directly to the central
landing – an ashen sculptural theme of our concept. This being
Hai pokapoka ia Tane stump and abstracted branch to consider, acknowledge and
E tu-i-i. forms – are used to help further respect the environment in all our
convey the idea that the bridge mahi.
Kaore i kitea, relates to a tree form.
Kua mate noa atu
I te awa i Pikopiko-i-Whiti.
Ma te maranga mai ai
Ko hiki-nuku e!
Ta taua rangi!
Witehira / White 01
TE M AN A O TĀN E
DESIGN CONCEPT
Sculptural Element / Sculptural Element / Trunk of log with tex- Sculptural Sculptural Element /
charred stump Circular Portal tural patterning Element / vertical branch
horizontal
branches
Witehira / White 02
ŌPANU K U LIN K H EN DE RSON
DESIG N INSPIRATION
RATA NARRATIVE + MĀORI METHODS FOR FELLING TREES
The images on the preceding page then be hollowed out with toki
provide visual examples of where our (adzes). While the use of black as a
designs take inspiration from; the colouring element will be used across
legend of Rata and traditional Māori the designs, its reference to this
methods for felling trees. practice for felling trees will be made
Charred Wood / felling Tree felling / waka build + Rata narrative explicit in the sculptural tree stump
Structurally the bridge and supporting element placed on the Corban Estate
elements are based on the idea of a side of the stream.
felled tree from the Rata narrative.
Texturally, the designs also reference A circular portal element, which wraps
this narrative. We intended to use over and around a part of the bridge,
timber (with steel) as a key element places those on the bridge inside the
for the construction. At the same time, trunk. This is another visual reference
we are interested in developing to the bridge as a tree trunk. With this
patterns and textures inspired by how covered space there is an opportunity

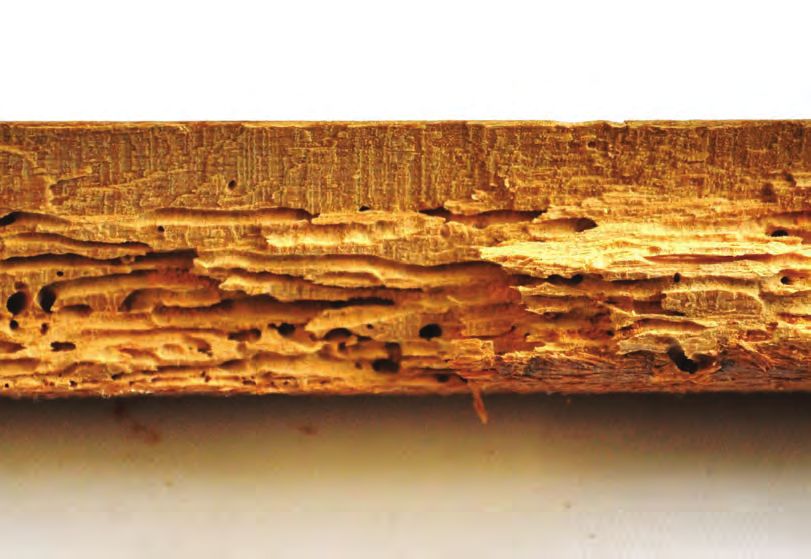

insects move through and across to have designs applied or cut into the
wood. This relates to the Rata narrative shell structure. Natural light could
in which insects played a key part in then come through into the space.
reconstructing the tree after Rata has Alternatively, lighting could also be
cut it down. It also relates to both internally and externally to to
customary Māori carving practices in this part of the bridge.
which the term whakairo (carving)
means the movement of the iro (worm
whakairo / wood chips / maggot) through wood. The

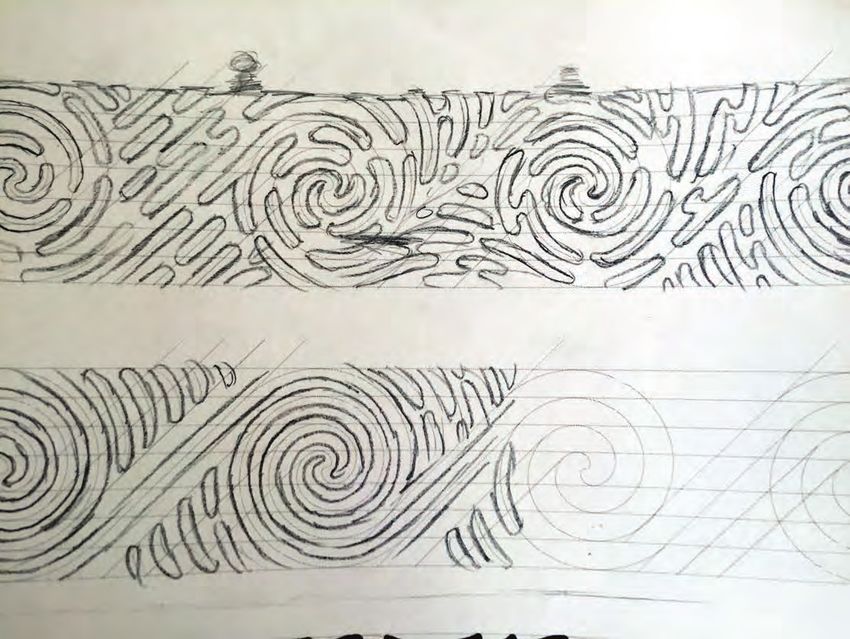

balustrade design elements are also
influnced by the iro (worm). We have
created a number of unique rauru
(spiral) patterns influenced by the
whakairo and the movement of
insects through wood.
Looking to colour, we intend to use
black and charcoal as a key part of the
design. This links to traditional Māori
methods for felling large trees. In the
past small fires would be burnt at the
base of large trees. The fires, which
would be carefully tended, would
create burnt out sections which could
Witehira / White 03
whakairo / wood chips adzed wood / texture
ŌPA NU KU LINK HE ND ER SON
PROPOSE D FABRIC ATION
MATERIALS + LIGHTING
TIMBER MONOCOQUE CONSTRUCTION
Lighting / insects
Lighting: Ngā Tamariki o Tāne
LED strip lighting is proposed as the
primary means of lighting the bridge
structure. This is both in terms of function-
al lighting for path surfaces and feature
lighting integrated within the structure of
Toki / tiheru seating
the bridge. This feature lighting is used as
Timber monocoque structure / abstracted log shape Timber Monocoque Construction a means of further referencing ngā tamari-
We are proposing to use a glulam timber, ki a Tāne through programmed pulsating
steel, or mix of timber and steel, monoco- and shifting LED lighting, reflecting their
que construction technique for the work to reinstate the felled tree. Here
primary structure of the bridge. This colour is also used connect to the use of
method provides a means of connecting fires in waka building. While used to fell
to traditional construction techniques trees, fire was also used to burn the inside
through the treatment of the structure as for the hull. Critically, the referencing of
a single integrated element rather than fire here links to the important Māori
individual pieces. This technique also concept of ‘ahi kā’, burning fires of occupa-
provides the ability to prefabricate off-site tion. Here the ahi kā are those maintained
and opportunities to reduce (or reuse) by mana whenua.
material wastage, in turn reducing envi-
ronmental impacts / footprint of the Other Landscape Elements
structure. It is proposed that other elements within
adjacent landscape areas reinforce the
Rauawa Laser-cut Steel Design broader theme of the bridge through the
Nelson St Bridge Alternative girder with additional cladding Rauawa and other ‘carved’ elements of the use of complimentary forms. This could
structure are reinterpreted with the use of include making reference to other histori-
CNC routing. cal elements associated with the felling
and carving of trees, such as toki (adze).
Witehira / White 05
REFERENCE AND MATERIALS
CARVED SURFACE (INSIDE OF WAKA) SEAMLESS
TREATMENT FOR BRIDGE DECK AND BALUSTRADE:
• MOLDED CAST (DUCTILE) IRON TILES
• FINISHED SURFACE TO PROVIDE REQUIRED
LEVEL OF SLIP RESISTANCE
OUTER SURFACE OF BRIDGE REFERENCES KAURI
TREE BARK: SCALLOPED ‘SCALES’ AT MICRO
LEVEL, CROSS HATCHING AT MACRO.
• ABSTRACTED AND INCORPORATING
GEOMETRIC PATTERNS - TAKARANGI ETC.
• MOLD CREATED IN OVERLAPPING FACES -
WRAPPING AROUND THE BRIDGE FORM.
whakairoiro
whakairoiro
movement of iro / insect through wood
whakairoiro
Witehira / White 05
DRAFT
SUBJECT TO CHANGE
SECTIONAL ELEVATION
1:400
60.00 m
5.10 m
4.70 m
4.00 m
1.50 m
BRIDGE PLAN
1:250
3.68 m
3.15 m
EXPOSED AGGREGATE CONCRETE 20MM X 1500MM HIGH CAST IRON (DUCTILE IRON)
AND CAST IRON BRIDGE DECK BALUSTRADE ALTERNATING 1M/2M PANELS WITH
2.35 m
REFER SK02 FOR DETAILS 100MM SPACING BETWEEN
60 - 70% VISUALLY PERMEABLE
FINAL PATTERN TO BE CONFIRMED
200MM PRE-CAST CONCRETE PANEL
BRIDGE CROSS SECTION BRIDGE ELEVATION WITH MOLDED PATTERN
1:50 1:250
ALLOW FOR 8% OXIDE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK02
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE OPANUKU BRIDGE DETAILS
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE AS STATED FOR INFORMATION100MM INSITU EXPOSED AGGREGATE CONCRETE
ALLOW FOR INCLUSION OF DECORATIVE PEBBLE
DRAFT
AND 8% OXIDE - COLOUR TBC SUBJECT TO CHANGE
ALLOW FOR SANDBLASTING/ACID ETCHING
TO CREATE PATTERNED SURFACE
20MM CAST IRON (DUCTILE IRON) DECK PLATE.
PERFORATIONS INCORPORATED INTO ARTISTIC
PATTERN TO ALLOW DRAINAGE OF SURFACE WATER.
LED STRIP LIGHTING INCORPORATED UNDER PLATES
TO PROJECT LIGHT THROUGH PERFORATIONS
20MM X 1500MM HIGH CAST IRON (DUCTILE IRON) BALUSTRADE
ALTERNATING 1M/2M PANELS WITH 100MM SPACING BETWEEN
60 - 70% VISUALLY PERMEABLE
FINAL PATTERN TO BE CONFIRMED
200MM PRE-CAST CONCRETE PANEL WITH MOLDED
PATTERN
ALLOW FOR 8% OXIDE
FINISHED HEIGHT OF PANELS VARIES ACROSS BRIDGE
SPAN FROM 200MM TO 1000MM ABOVE BRIDGE DECK
200MM PRE-CAST CONCRETE PANEL
PRE-CAST CONCRETE BRIDGE BEAM 30M (X2) WITH MOLDED PATTERN
ALLOW FOR 8% OXIDE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK03
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE OPANUKU BRIDGE DETAIL
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE - FOR INFORMATIONDRAFT
CORBAN ESTATE SUBJECT TO CHANGE
GR
EAT
NO
RT
HR

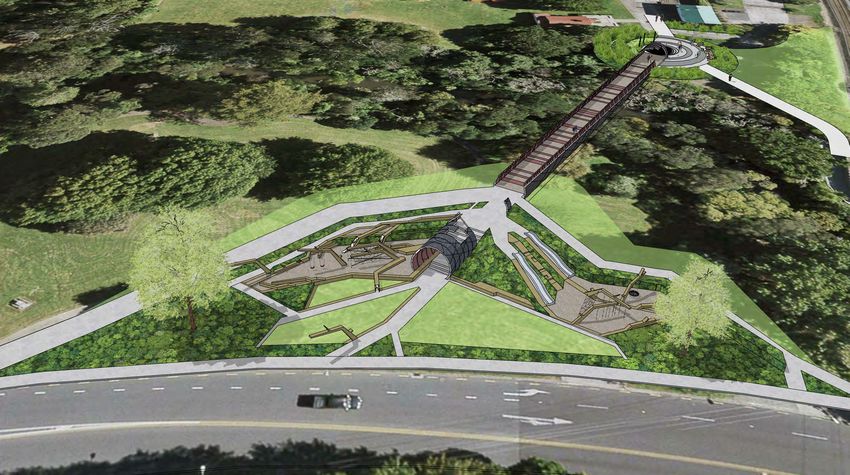

OPANUKU BRIDGE LANDING
OA
CORBAN ESTATE
D
TWIN STREAMS CYCLEWAY
STREAM
UKU
OPAN
OPANUKU BRIDGE

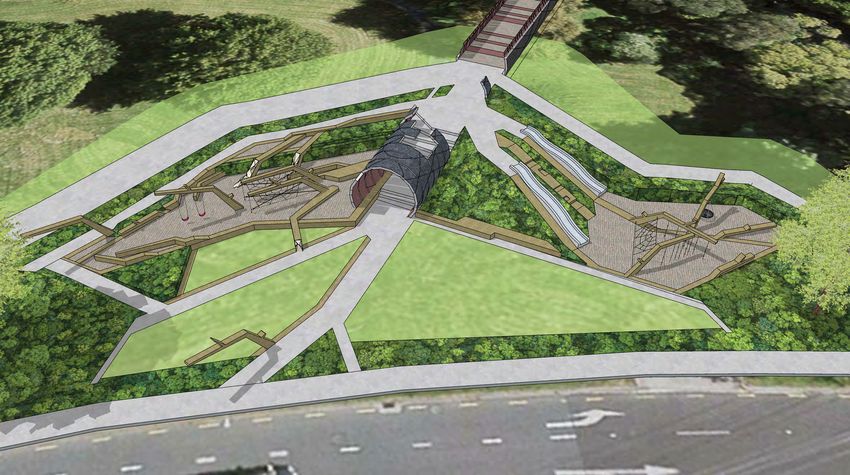

OPANUKU RESERVE PLAYGROUND
D
OPANUKU RESERVE Y ROA
LLE
SO N VA
ENDER
H
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK01
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE SITE ARRANGEMENT PLAN
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE 1:750 @ A3 FOR INFORMATIONOur Framework for Exploring Play
Rongomaraeroa / Rongomatāne
Ko Rongo mā Tāne te atua o te kūmara
me ngā kai whakatō
without peace there is no play
Hine Raukatauri = Hine Raukatamea
Ko Hine Raukatauri te atua o Ko Hine Raukatamea te atua
ngā taonga pūoro katoa o ngā mahi a te rēhia
pūrakau | foundational narratives | te whare tapere | Tinirau/kae/ Hine Raukatauri wāhine toa narrative
Hauhake Manaaki Tākaro
entertainment related to the harvest entertainment for visitors entertainment for children
Seasonal, related to different times Related to utu and reciprocal Similar to nature play / free play for
of the year and day. Te pō, Te Ao transactions. tamariki and adults.
Mārama. Ngā whētu. Matariki,
Maramataka, Puanga. Whaikōrero, waiata, haka, karakia, Physical agility a focus including
connecting rangi and papa running, jumping, throwing,
Connections to whare tapere, climbing and swimming.
pūrakau, kōrero. Transmission of Entertainment including games,
mātauranga through kōrero me te contests and challenges Mental agility also emphasized in
kemu games of memory, word games,
whai (string games) and transmis-
Related to planting, gathering, sion of mātauranga through play
growing, karakia1.8M WIDE SHARED FOOTPATH
DRAFT
RAMPS AT 1:20 SUBJECT TO CHANGE
EXPOSED AGGREGATE CONCRETE
+11.25
WITH DECORATIVE PEBBLE AND 8% OXIDE
4.00M WIDE SHARED PATH SEE SK06 FRO DETAIL
RAMPS AT 1:20 +11.25
+9.00
SEE SK05 FOR DETAIL
+10.50
+10.48
+9.50
1:4 GRASSED BANK
LAWN
TO EDGE OF FOOTPATH
+9.00
MIXED NATIVE SHRUBS UP TO 1M HIGH
ALLOW FOR SOIL CONDITIONING
AND MINIMUM 100MM MULCH
+9.75
1.8M FOOTPATH
EX. TREE RETAINED
+9.00
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK04
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE SITE ARRANGEMENT PLAN
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE 1:300 @ A3 FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
4.00M WIDE SHARED PATH RAMPS AT 1:20
EXPOSED AGGREGATE CONCRETE
WITH DECORATIVE PEBBLE AND 8% OXIDE
CONCRETE STEPS THROUGH PORTAL TO LOWER LAWN AREA
400MM WIDE HARDWOOD TIMBER BALANCE BEAMS
GREEN WALL
1.20M WIDE RAMPING PATH 1:20
EXPOSED AGGREGATE CONCRETE
WITH DECORATIVE PEBBLE AND 8% OXIDE
500MM WIDE HARDWOOD TIMBER
CLIMBING BEAMS
TRUNK ‘PORTAL’ CLIMBING WALL REFER SK08
MIXED NATIVE SHRUBS UP TO 1M HIGH
ALLOW FOR SOIL CONDITIONING
AND MINIMUM 100MM MULCH EXPOSED AGGREGATE CONCRETE
ALLOW FOR INCLUSION OF DECORATIVE PEBBLE
ROPE WALK/CLIMB. REFER SK09 AND 8% OXIDE - COLOUR TBC
SOFTFALL BARK 400MM HARDWOOD TIMBER EDGING
BRANCH SWING LAWN
TIMBER BALANCE BEAM
VERTICAL HARDWOOD TIMBER
‘BRANCH’ REFER SK09
EXISTING TREE RETAINED
VERTICAL HARDWOOD TIMBER ‘BRANCH’ REFER SK09
1.8M WIDE EXPOSED AGGREGATE CONCRETE
FOOTPATH TO ROAD EDGE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK05
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE PLAYGROUND ARRANGEMENT DETAIL PLAN
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE 1:150 @ A3 FOR INFORMATION500MM WIDE HARDWOOD TIMBER
CLIMBING BEAM
DRAFT
SUBJECT TO CHANGE
STAINLESS STEEL SLIDE
BRANCH SWING. REFER SK09
SOFTFALL BARK
1.8M WIDE PATH RAMPS AT 1:20
EXPOSED AGGREGATE CONCRETE
WITH DECORATIVE PEBBLE AND 8% OXIDE
TRUNK ‘PORTAL’
CLIMBING WALL.
REFER SK08
EXISTING TREE RETAINED
1.8M WIDE EXPOSED AGGREGATE CONCRETE
FOOTPATH TO ROAD EDGE
ROPE CLIMB. REFER SK09
MIXED NATIVE SHRUBS UP TO 1M HIGH
ALLOW FOR SOIL CONDITIONING
AND MINIMUM 100MM MULCH
1:750 LAWN
HARDWOOD TIMBER SEATING
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK06
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE PLAYGROUND ARRANGEMENT DETAIL PLAN
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE 1:150 @ A3 FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
3.5M WIDE EXPOSED AGG. CONCRETE
SHARED PATH
‘KAURI STUMP’ SURFACE SCULPTURE ‘FIRE SCAFFOLD’ FOOTPRINTS (X4)
HONED CONCRETE WITH INSET LIGHTING 150 X 150MM IN-GROUND CERAMIC TILES
ALLOW FOR INCLUSION OF DECORATIVE
PEBBLE AND 8% OXIDE - COLOUR TBC 400 X 400MM HARDWOOD TIMBER SEATING
LED LIGHT STRIPS INCORPORATED
INTO STUMP SCULPTURE
NATIVE REVEGETATION
PLANTING
2.5M HIGH ’FIRE SCAFFOLD’ (X3)
150 X 150MM POLE WITH
CARVED RELIEF
TRUNK ‘PORTAL’ REFER SK08
MIXED NATIVE SHRUBS AND
GROUNDCOVER UNDER 500MM
ALLOW FOR SOIL CONDITIONING
AND MINIMUM 100MM MULCH
MIXED NATIVE SHRUBS UP TO 1M HIGH 3.5M WIDE EXPOSED AGG.
ALLOW FOR SOIL CONDITIONING CONCRETE SHARED PATH
AND MINIMUM 100MM MULCH
ALTERNATING BANDS OF EXPOSED AGGREGATE
CONCRETE
ALLOW FOR INCLUSION OF DECORATIVE PEBBLE
AND 8% OXIDE - COLOUR TBC
ALLOW FOR SANDBLASTING/ACID ETCHING
CONTEXT PLAN GENERAL ARRANGEMENT PLAN TO CREATE CONTRAST BETWEEN BANDS
1:500 1:200
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK07
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE CORBAN ESTATE LANDING - SITE ARRANGEMENT PLAN
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE AS STATED FOR INFORMATION1000MM WIDE X 200MM THICK PRE-CAST CONCRETE COMPONENT
WITH MOLDED PATTERN ON EXTERIOR SURFACE - ALLOW FOR 8% OXIDE.
DRAFT
COMPONENTS SPACED AT 1100MM CENTRES SUBJECT TO CHANGE
20MM CAST IRON (DUCTILE IRON) LINING
FINAL PATTERN TO BE CONFIRMED
RED LED STRIP LIGHTING INCORPORATED
INTO EDGE OF LAST COMPONENT FACING
CORBAN ESTATE
1.64 m
TYPICAL PORTAL COMPONENT
2.51 m
CORBAN ESTATE PORTAL COMPONENTS
CLIMBABLE SURFACE FOR BOULDERING
(INTEGRATED GROOVES AND HANDHOLDS)
ON WESTERN FACES OF PORTAL
1.50 m
4.15 m
3.28 m
1:200
PLAYGROUND PORTAL COMPONENTS
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK08
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE TRUNK PORTAL COMPONENTS
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE 1:150 @ A3 FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
5.59 m
2 X ‘BRANCHES’ TO CREATE ROPE WALK
2.89 m
400MM WIDE HARDWOOD
TYPICAL BRANCH FORM SWING NET CLIMB / ROPE WALK
ROPE CLIMB BASKET SWING BALANCE BEAM / SEAT
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK09
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE VERTICAL BRANCH ELEMENTS
Takapuna
Auckland 0622 N DATE 12.11.19
T: 64 22 394 1353 SCALE 1:50 @ A3 FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK10
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE SITE ARRANGEMENT - PERSPECTIVE VIEW
Takapuna
Auckland 0622 DATE 12.11.19
T: 64 22 394 1353 SCALE - FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK11
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE PLAYGROUND ARRANGMENT - PERSPECTIVE VIEW
Takapuna
Auckland 0622 DATE 12.11.19
T: 64 22 394 1353 SCALE - FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK12
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE CORBAN ESTATE LANDING - PERSPECTIVE VIEW
Takapuna
Auckland 0622 DATE 12.11.19
T: 64 22 394 1353 SCALE - FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK13
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE CORBAN ESTATE LANDING - PERSPECTIVE VIEW
Takapuna
Auckland 0622 DATE 12.11.19
T: 64 22 394 1353 SCALE - FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK14
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE CORBAN ESTATE LANDING - PERSPECTIVE VIEW
Takapuna
Auckland 0622 DATE 12.11.19
T: 64 22 394 1353 SCALE - FOR INFORMATIONDRAFT
SUBJECT TO CHANGE
CLIENT PANUKU DEVELOPMENT AUCKLAND DRAWING NO: SIZE: A3
REV:
SK15
B:Hive Smales Farm PROJECT OPANUKU LINK
72 Taharoto Rd TITLE CORBAN ESTATE LANDING - PERSPECTIVE VIEW
Takapuna
Auckland 0622 DATE 12.11.19
T: 64 22 394 1353 SCALE - FOR INFORMATIONYou can also read
