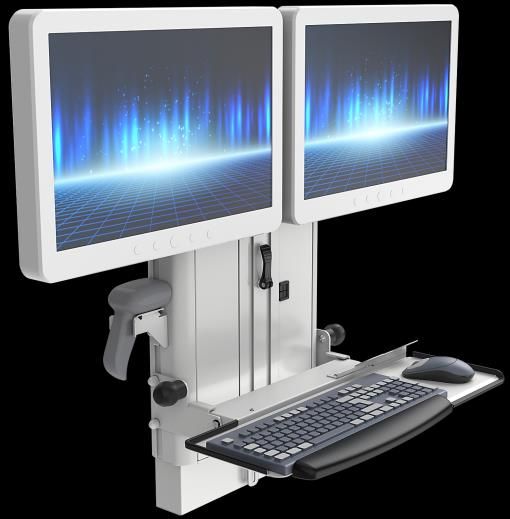

Balance-Lift І Smart-Lift
Made
In
Germany
3 year
warranty
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Table of Contents
Product overview „Balance-Lift“ ............................................................................................................................................. 3
Height adjustment „Balance-Lift“ ................................................................................................................................................. 4
Base unit ................................................................................................................................................................................ 4
Adapter ........................................................................................................................................................................................ 5
to horizontal standard rails (European rails) 25 x 10 mm │ to carrier rail........................................................................ 5
Adapter ........................................................................................................................................................................................ 6
to wall ..................................................................................................................................................................................... 6
Adapter ........................................................................................................................................................................................ 7
Cart ......................................................................................................................................................................................... 7
Mounts ........................................................................................................................................................................................ 8
for monitor ............................................................................................................................................................................. 8
Plates │Console .......................................................................................................................................................................... 9
for keyboard, mouse, etc...................................................................................................................................................... 9
Attachment parts ....................................................................................................................................................................... 10
Accessories ......................................................................................................................................................................... 10
…............................................................................................................................................................................................... 11
Product overview „smart-lift“................................................................................................................................................. 11
smart-lift on wall ...................................................................................................................................................................... 11
smart-lift on standard rails 25 x 10 mm (European rails) ......................................................................................................... 12
smart-lift on carrier rail ............................................................................................................................................................. 13
smart-lift on Cart ...................................................................................................................................................................... 14
Mounts ...................................................................................................................................................................................... 15
for monitor ........................................................................................................................................................................... 15
Keyboard plates ........................................................................................................................................................................ 16
for keyboard, mouse, etc.................................................................................................................................................... 16
Keyboard plate │Shelf ............................................................................................................................................................... 17
for keyboard, mouse, scanner, printer etc. ....................................................................................................................... 17
Consoles ................................................................................................................................................................................... 18
with and without lateral standard rails .............................................................................................................................. 18
Attachment parts ....................................................................................................................................................................... 19
Accessories ......................................................................................................................................................................... 19
Attachment part ......................................................................................................................................................................... 20
Power supply for K-21071 .................................................................................................................................................. 20
Description ................................................................................................................................................................................ 21
Attachment part power supply .......................................................................................................................................... 21
Attachment part ......................................................................................................................................................................... 22
Energie chain for K-25081 І K-25091 І K-25101 ........................................................................................................... 22
Attachment part ......................................................................................................................................................................... 22
Carrier rail for K-21091 ....................................................................................................................................................... 22
…............................................................................................................................................................................................... 23
Conditions................................................................................................................................................................................ 23
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -1-
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -2-
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Product overview „Balance-Lift“Product overview
Adapter Base Attachment parts
Item-no.: Item-no.: Item-no.:
M-25011
Wall plate M-25024
(Optional with Mount for large
spacer plate) display
M-25015)
K-25000
Height adjustment
M-25021
„Balance-Lift“ Simple mount
Base unit for monitor
M-25013 M-25023
Adapter to Double mount
carrier rail for monitor
M-20095
Mount for
monitor
tiltable +/- 15°
M-25030-A
Fold-up
keyboard plate
M-25016
Adapter to wall
supply
(2 standard rails /
european rails) M-25046-A
Shelf plate with
extendable
keyboard plate
M-25045
Console with
2 lateral
standard rails
M-25014
Adapter M-25041
Cart Holder for
computer
Z-10550
Holder plate for
cable
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -3-
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Height adjustment „Balance-Lift“
Base unit
Item-no. Designation │ Description Image
K-25000 Balance-Lift
Height adjustment, base unit
Mechanical height adjustment,
with adjustable counterbalance
For fastening any components,
such as monitors,
input-terminals, keyboards, etc.
Continuous grooves;
so components can be placed
at any height
Integrated cable management
Sled with a lockable handle
Easy installation through hook-in
Attractive design
Easy to clean
Height adjustment: 380 mm
Weight range: 3,5 kg to 33 kg
Cross section of cable in the
energy chain: 10 x 40 mm
Dimensions: height sled: 683 mm
total height: 785 mm
width: 391 mm
depth: 88 mm
Weight: approx. 16 kg
Color: pure white matt
Illustration: Lift
completely at the
bottom (380 mm)
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -4-
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Adapter
to horizontal standard rails (European rails) 25 x 10 mm │ to carrier rail
Item-no. Designation │ Description Image
M-25016 Adapter to wall supply
with 2 standard rails (European rails)
With adjustable holding profiles
With plate to hook in
Dimensions approx.:
height 785 x width 375 x depth 45 mm
Weight: 9 kg
Load capacity: up to 50 kg
Material: steel, galvanized
M-25013 Adapter to carrier rail
With plate to hook in
Dimensions approx.:
height 890 x width 375 x depth 18 mm
Weight: 5 kg
Load capacity: up to 50 kg
Material: steel, galvanized
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -5-
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Adapter
to wall
Item-no. Designation │ Description Image
M-25011 Wall plate
With mounting material
6 x Pan Head 6 x 60, with dowel
Size: height 400 x width 340 mm
Weight: 2,3 kg
Load capacity: up to 50 kg
Material: steel, galvanized
M-25015 Wall plate with spacer plate
Wall plate with spacer plate for
simple cable laying behind the balance lift.
Distance balance-lift to the wall:
approx. 45 mm
With mounting material
6 x Pan Head 6 x 60, with dowel
Size: height 780 x width 340 mm
Weight: 7,5 kg
Load capacity: up to 50 kg
Material / color:
galvanized steel / pure white matt
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -6-
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Adapter
Cart
Item-no. Designation │ Description Image
M-25014_9010 Cart
(Illustration without adapter plate)
Adaptation unit on cart:
dimensions approx.: height: 1750 mm
width: 570 mm
depth: 510 mm
Double castors 100 mm, 2 castors lockable
Weight: 22 kg
Load capacity: up to 50 kg
Color: pure white matt
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -7-
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Mounts
for monitor
Item-no. Designation │ Description Image
M-25021 Simple mount for monitor
Easy to hook-in
Tilt adjustable 0 / + 8 °
VESA 75x75 │100x100 │ 200x100 mm
Throat depth: 28 mm
Weight: 0,5 kg
Load capacity: up to 25 kg
Color: pure white matt
M-25023 Double-mount for monitor
Easy to mount
Holder fix (2-piece)
Tilt adjustable 0 / + 8 °
2x VESA-standard 75 / 100 mm
Distance mid-mid: 508 to 608 mm
Throat depth: 18 mm. Weight: 1 kg
Load capacity: up to 2x 12 kg
Color: pure white matt
M-25024 Mount for large monitor
Easy to hook-in
Tilt adjustable 0 / +5°
VESA from 100x100 to 400x400 mm
Throat depth: 115 mm
Weight: 2,4 kg
Load capacity: up to 30 kg
Color: pure white matt
M-20095 Mount for monitor, tiltable
Easy to mount
Tilt ± 15°
VESA Standard 75 / 100 mm
Throat depth: 86 mm
Weight: 1,2 kg
Load capacity: up to 25 kg
Color: pure white matt
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -8-
Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Plates │Console
for keyboard, mouse, etc.
Item-no. Designation │ Description Image
M-25030-A_BL Fold-up keyboard plate
asymmetric
Including mouse catch
Internal dimension: 190 x 630 mm
Folding angle 103° (end position damp.)
Throat depth, till end of hand rest:
approx. 350 mm
With edge protection and softly hand rest on
the left, in anthracite (optional in blue)
Weight: 3,8 kg
Load capacity: up to 5 kg
Color: pure white matt
Illustration: folded up
M-25046-A_BL Shelf plate with
extendable keyboard plate
Total throat depth to end of hand rest:
approx. 525 mm
Extendable (105 mm) keyboard plate:
depth: 208 mm, inside measure variable:
shifting gradual from 412 - 682 mm,
shelf for mouse optional left or right,
with edge protection and softly hand rest
in anthracite (optional in blue)
Shelf: 440 x 308 mm
Weight: 4,8 kg
Load capacity: up to 5 kg
Color: pure white matt Illustration: Illustration:
fully retracted, fully extended,
mouse plates mouse plates
mounted innermost mounted outermost
M-25045_BL Console
with 2 lateral standard rails
Drawer extendable 300 mm
Dimensions:
width 400 x depth 400 x height 145 mm
Dimensions of the standard rails:
25 x 10 x 400 mm
Weight: 6.2 kg
Load capacity: up to 10 kg
Color: pure white matt
Illustration: drawer fully extended (300 mm)
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] -9-Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Attachment parts
Accessories Devices not included
Item-no. Designation │ Description Image
M-25041 Holder for computer, 2-piece
To keep PCs, for example, IGEL
To mount on top of the Balance-Lift
Space for computer: length: 365 mm,
depth adjustable from 52 to 66 mm
Weight: 0,3 kg
Load capacity: up to 5 kg Illustration:
Color: pure white matt with IGEL-computer +
power adapter
M-25042 Scanner holder plate,
on right side
To keep scanner with stand
Fixing with rotating locking bolt at
the right side of the Balance-Lift
Supporting surface:
width: 100 mm x length: 175 mm
Load capacity: up to 2 kg
Illustration:
Weight: 0,4 kg. Color: pure white matt with scanner station
M-25044 Scanner holder rake, on left side
To accommodate the scanner control
unit
Fixation with rotary bolt, on the left side
of the Balance-Lift
Weight: 0,4 kg
Load capacity: up to 2 kg Illustration:
Color: pure white matt with control unit
of the scanner
Z-10550 Holding plate for cable
To lead out the cable
without cable drag
With fastening material
To mount in sled M-25005
(cable retainer clip included there)
Dimensions approx.:
height 220 mm x width 56 mm
Weight: 0.1 kg
Material: steel, galvanized
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 10 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
… smart – lift …
Mechanical height adjustment
Product overview „smart-lift“ Product Overview
smart-lift on wall Devices not included
Illustration with attached parts Base unit, item-no.: K-25101 Illustration with attached parts and devices
Item-no. Designation │ Description Image
K-25101 smart-lift on wall
Base unit
Mechanical height adjustment Illustration: lift
completely at the
Height adjustment range: 380 mm bottom (380 mm)
Total height max.: 986 mm
For mounting on wall
To attach any components, such as
monitors, input terminals, keyboards, etc.
Components are placeable at any height
Weight range of the attachments:
optionally 5 - 10 kg or 11 - 16 kg
Dimensions of sled:
height: 688 mm, width: 177 mm, depth: 92 mm
Color: Pure white matt. Weight: approx. 10 kg
(Optional with external energy chain Z-10565)
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 11 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
smart-lift on standard rails 25 x 10 mm (European rails) Devices and standard rails not included
Illustration with attached parts
and standard rails
Base unit, item-no.: K-25081 Illustration with attached parts and devices
Item-no. Designation │ Description Image
K-25081 smart-lift on standard rails
Base unit
Illustration: lift
Mechanical height adjustment
completely at the
Height adjustment range: 380 mm bottom (380 mm)
Total height max.: 996 mm
For mounting on 2 standard rails (European rails)
Distance max.: 900 mm
To attach any components, such as. monitors,
input terminals, keyboards, etc.
Components are placeable at any height
Weight range of the attachments:
optionally 5 - 10 kg or 11 - 16 kg
Dimensions of sled:
height: 688 mm, width: 177 mm, depth: 92 mm
Color: Pure white matt
Weight: approx. 13 kg
(Optional with external energy chain Z-10565)
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 12 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
smart-lift on carrier rail Devices and carrier rail not included
Illustration with attached parts; Illustration with attached parts and devices;
Base unit, item-no.: K-25091 mounted on carrier rail
mounted on carrier rail
Item-no. Designation │ Description Image
K-25091 smart-lift on carrier rail
Base unit
Mechanical height adjustment
Height adjustment range: 380 mm Illustration: lift
completely at the
Total height max.: 986 mm bottom (380 mm)
For mounting on carrier rail
(Please order separately)
To attach any components, such as. Monitors,
input terminals, keyboards, etc.
Components are placeable at any height
Weight range of the attachments:
optionally 5 - 10 kg or 11 - 16 kg
Dimensions of sled:
height: 688 mm, width: 177 mm, depth: 92 mm
Color: Pure white matt
Weight: approx. 11,5 kg
(Optional with external energy chain Z-10565)
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 13 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
smart-lift on Cart Devices not included
Illustration with attached parts Base unit, item-no.: K-25071 Illustration with attached parts and devices
Item-no. Designation │ Description Image
K-25071 smart-lift on Cart
Base unit
Mechanical height adjustment
Height adjustment range: 380 mm
Total height max.: 1590 mm
Mounted on cart:
with counterweight, double-castors freely
movable, 100 mm, front castors lockable,
width: 570 mm, depth: 490 mm
To attach any components, such as monitors,
input terminals, keyboards, etc.
Components are placeable at any height
Illustration: lift
Weight range of the attachments:
completely at the
optionally 5 - 10 kg or 11 - 16 kg
bottom (380 mm)
Dimensions of sled:
height: 688 mm, width: 177 mm, depth: 110 mm
Color: Pure white matt
Weight: approx. 20 kg
Optional with power supply M-20055_250_45
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 14 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Mounts
for monitor
Item-no. Designation │ Description Image
Mount for monitor (low adaptation)
M-20095_TS_9010
Easy to mount
Tiltable ± 15°
VESA Standard 75 / 100 mm
Throat depth: 86 mm. Weight: 1,2 kg
Load capacity: up to 25 kg
Color: pure white matt
Mount for monitor
M-20094_TS_9010
Easy to mount
Tiltable ± 15°
VESA Standard 75 / 100 mm
Throat depth: 86 mm. Weight: 1,5 kg
Load capacity: up to 25 kg
Color: pure white matt + anodised
Simple mount for monitor
M-25021
Easy to hook-in. Tilt adjustable 0 /+8°
VESA 75x75 │100x100 │ 200x100 mm
Throat depth: 28 mm. Weight: 0,5 kg
Load capacity: up to 25 kg
Color: pure white matt
Mount for large monitor
M-25027
Easy to hook-in
Tilt adjustable 0 / +10°
VESA from 100x100 to 400x400 mm
Throat depth: 115 mm
Weight: 2,8 kg
Load capacity: up to 30 kg
Color: pure white matt
Double-mount for monitor
M-25026
Easy to mount. Holder fix (2-piece)
Tilt adjustable -4 / +8 °
2x VESA-standard 75 / 100 mm
Distance mid-mid: 521 to 621 mm
Throat depth: 13 mm. Weight: 1,5 kg
Load capacity: up to 2x 12 kg
Color: pure white matt
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 15 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Keyboard plates
for keyboard, mouse, etc.
Item-no. Designation │ Description Image
M-25130-A Fold-up keyboard plate
asymmetric
Including mouse catch
Internal dimension: 190 x 630 mm
Folding angle 103° (end position damped)
Throat depth, till end of hand rest:
approx. 360 mm
With locking pin and release
(Bowden cable 1150 mm)
With edge protection and
softly hand rest on the left, in anthracite
Weight: 4,4 kg
Load capacity: up to 5 kg
Color: pure white matt
Illustration: folded up
M-25131-A Small fold-up keyboard plate
asymmetric
Including mouse catcher
Internal dimension: 180 x 560 mm
Folding angle 103° (end position damped)
Throat depth, till end of hand rest:
approx. 350 mm
With locking pin and release
(Bowden cable 1000 mm)
With edge protection and
softly hand rest on the left, in anthracite
Weight: 4 kg
Load capacity: up to 5 kg
Color: pure white matt
Illustration: folded up
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 16 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Keyboard plate │Shelf
for keyboard, mouse, scanner, printer etc.
Item-no. Designation │ Description Image
M-25046-A_SL Shelf plate with
extendable keyboard plate
Total throat depth to end of hand
rest: approx. 525 mm
Extendable (105 mm) keyboard plate:
depth: 208 mm,
inside measure variable:
shifting gradual from 412 - 682 mm,
shelf for mouse optional left or right,
with edge protection and softly hand
rest in anthracite
Shelf: 440 x 308 mm
Weight: 5 kg
Load capacity: up to 5 kg
Color: pure white matt
Illustration:
Fully extended,
mouse plates
mounted outermost
Illustration:
Fully retracted,
mouse plates
mounted innermost
M-20190_TS Shelf
For mounting on profile lift
Storage space for e.g. printer, scanner
Internal dimensions:
Width 436 x depth 302 mm
Weight: 1.2kg
Load capacity: up to 15 kg
Color: pure white matt
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 17 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Consoles
with and without lateral standard rails
Item-no. Designation │ Description Image
M-25045_SL Console
with 2 lateral standard rails
Drawer extendable 300 mm
Dimensions:
width 400 x depth 400 x height 145 mm
Dimensions of the standard rails:
25 x 10 x 400 mm
Weight: 6.2 kg
Load capacity: up to 10 kg
Color: pure white matt
Illustration:
drawer open
M-26021_TS Console with 1 drawer
Drawer extendable 238 mm
Dimensions:
width 488 x depth 270 x height 130 mm
Weight: 4,3 kg
Load capacity: up to 5 kg
Color: Ice blue + pure white matt
Illustration:
drawer open
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 18 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Attachment parts
Accessories Devices not included
Item-no. Designation │ Description Image
M-20146 Sterile goods basket
Dimensions:
width 300 x depth 200 x height 100 mm
Weight: 0,5 kg
Color: chrome
M-25047 Holder for computer, 2 parts
To accommodate PCs, e.g. IGEL
To mount on top of the smart-lift
Dimensions: length: 176 mm,
depth adjustable from 53 to 86 mm
Weight: 0,150 kg
Loading capacity: up to 5 kg
Color: pure white matt
Illustration:
mounted on smart-lift.
with IGEL-PC
M-25044 Scanner holder rake, on left side
To accommodate the scanner control
unit
Fixation with rotary bolt, on the left side
of the Balance-Lift
Weight: 0,4 kg
Load capacity: up to 2 kg
Illustration:
Color: pure white matt with control unit
of the scanner
M-20168_ Counterweight
1-teilig To mount into the roller base
Dimensions:
width 100 x depth 224 x height 50 mm
Weight: 8,75 kg
Material: steel, galvanized
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 19 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Attachment part
Power supply for K-21071
Item-no. Designation │ Description Image
M-20055_250_45 Housing for mobile power supply unit
+
Mobile power supply unit, including battery (1 pc.)
With control panel and connection elements
Dimensions box:
width 405 x depth 305 x height 200 mm
Empty weight: 8,3 kg
Color: Pure white matt
Front view
Control panel
Rear view
C14 - socket (for charging the battery) 2x Socket
In order to charge the battery, the C14 socket (with hinged lid)
must be connected to the power supply, using the 230 V (output)
attached device cable.
The battery can also be charged when it is switched off.
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 20 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Description
Attachment part power supply
Output
2 sockets, frequency: 50 Hz. AC output signal (battery mode):
Pure sine wave, nominal output voltage: 230 V. Continuous power: 250 W. Peak output power (watts): 300 W
Input
Nominal input voltage: 230 V AC. Recommended electrical supply: 15 A 230 V
Entry phase: single phase. Connection cable 0.5 m with IEC socket for safety separation in the event of incorrect operation.
Battery
Rechargeable lithium iron phosphate battery (LiFePo4). Nominal voltage: 12.8 V. Nominal capacity: 45.0 AH
Watt hours: 579 Wh. Life expectancy: 2500 cycles. Protection / communication: BMS / SMBus.
Operating temperature range: 0 ° C to +50 ° C. Charging time to 80%: 3 hours. Flame retardant housing,
ABS plastic UL94: V-0. Weight: 5.8 kg
User interface, alarms and controls
LEDs on the remote user interface (RUI)
AC current, charge level and charge status of the battery
Error message LED.
On / Off switch and alarm mute switch
Low battery alarm
Software
Clinic View - provides a simple and easily accessible view of the remaining battery charge from the medical cart.
Clinic View is aimed at users of PC workstations. The technical view provides an overview of specific alarms, event and data
histories and enables the configuration of the cart identity information and the cart power system.
The information available in Tech View is most useful for medical technicians and cart maintenance providers.
Start page PowerAlert
PowerAlert Local (PAL) Software 12.5.0 (Build 6698) is suitable for
Windows 7, 8, 10 (32 & 64 bit), Server 2008, 2012, 2016 (32 & 64 bit).
Communication
USB-Port
Others
Internal fan switches on when required.
Dimensions of the Power Box: width 405 x depth 305 x height 200 mm. Weight: approx. 24 kg.
Certifications
MPM: tested according to UL-60601 (medical), CE-compliant
Battery: U.L. recognized, CE compliant
Warranty
MPM: 2-year limited warranty (incorrect operation excluded, use of the Clinic View software is required)
Battery: 15 months limited warranty (incorrect operation excluded / see attached warranty conditions)
Mechanical parts: 3-year manufacturer's guarantee (wear parts excluded)
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 21 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
Attachment part
Energie chain for K-25081 І K-25091 І K-25101 Devices not included
Item-no. Designation │ Description Image
Z-10565 Energy chain,
lying external
Suitable for smart-lift
- on wall Illustration:
- on standard rails mounted
- on carrier rail on K-25101
Color: Black (smart-lift
on wall)
Attachment part
Carrier rail for K-21091
Width 150 mm x depth 42 mm, with 2 integrated cable channel and 2x profile cover
With 2x potential equalization plugs. Color: anodised + white
Item-no. Designation │ Description Image
M-15875 Length: 500 mm
Weight: 1,65 kg
M-15876 Length: 1000 mm
Weight: 3,3 kg
M-15877 Length: 1500 mm
Weight: 4,9 kg
M-15878 Length: 2000 mm
Weight: 6,5 kg Sicht auf Stirnseite
(ohne Abdeckung)
Special length on request
Weight: 0,33 kg / 100 mm
08 │ 2021 TS Balance-Lift │ Smart-Lift - Catalog [EN] - 22 -Phone: + 49 (0) 7452 89 787 0 - Fax: + 49 (0) 7452 89 787 19
E-mail: info@sic-design.de - Home: www.sic-design.de
…
Conditions
Combinations can be assembled according to customer´s request and individual needs.
Product variants or custom-made products are possible, on request (extra charge).
Delivery from the factory.
Warranty: 3 years (excepting gas springs)
Return of goods only in proper condition and original packaging,
against calculation of 25% of the net value of goods.
Standard color of the plastic parts: white.
Standard color of the plastic parts and the powder-coated parts: RAL 9010 pure white matt, fine-textured
Aluminum parts: anodized.
Product variants Connection and add-on parts, available on request (surcharge).
Product may differ from the illustration.
All representations with devices: devices not included!
All information without warranty.
