3




                                              Index

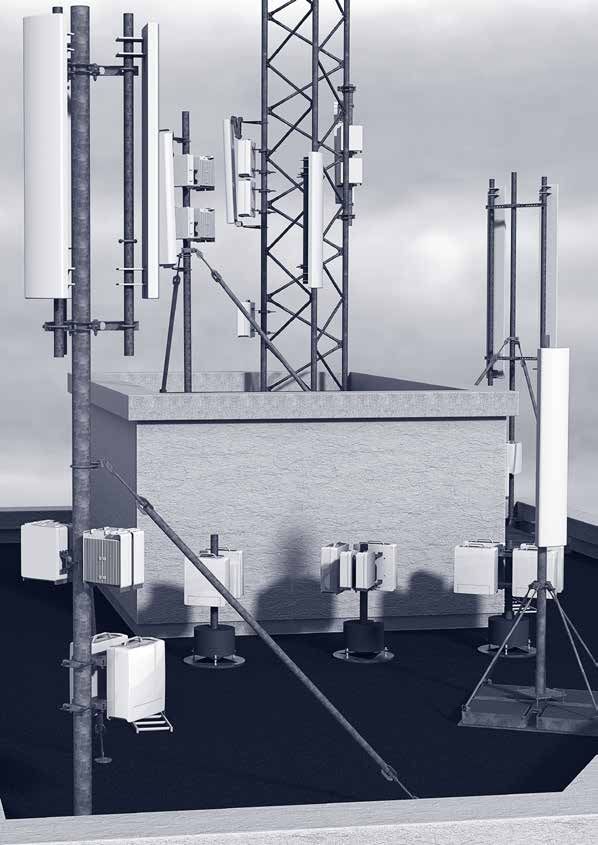

                                              Supports          7. One-Direction            27. Joint Plate Kit      51 – 65. RRU and
                                                                   Offset Family                                              ERS-mount Families
                                              and brackets     11. Symmetric
                                                                                            31. Crossover Kit
                                                                                            35. Combiclamp Family        67. RRU Support
                                                                   Offset Family                                         71. RRU Adaptor Plate
                                                                                            39. 3-sector Antenna
                                                               15. Small Universal              Mounting                 75. Antenna Offset
                                                                   Pole Mount
                                                                                            43. Rafter Bracket Kit
                                                               19. Raking Tower
                                                                                            47. Telescopic
                                                                   Leg Offset Family
                                                                                                Strut Support
                                                               23. Vertical Tower
                                                                   Leg Offset Family




                                              Freestanding     79. Free Stander Light

                                              solutions        83. Free Stander Medium
                                                               87. Freestanding
                                                                   Corner Mount
                                                               91. Extra Pole Kit
                                                               95. Adjustable
                                                                   Cabinet Platform




                                              Wall mount      99. Medium Duty Wall Mount

                                              solutions      103. Heavy Duty Wall Mount
                                                             107. Large Offset Wall Mount
                                                             111. Corner Wall Mount




                                              Accessories    115. Stainless Steel
                                                                  10-hole Earthbar
Layout and production: Sahlsa Kommunikation




                                                             119. Cable Holder Family
                                                             123. Tubes and Components
                                                                  and Various Accessories
MAFi Product Catalogue 2018
4




    Your direction
    is our goal.
    In a world where everyone has to depend on each other,
    Mafi wants to make your life easier.
    For 25 years our customer relations has been just as important
    as the quality of our products. Knowing this, we have
    built the worldwide company we are today.
    On paper, Mafi is an engineering company that designs,
    tests, manufactures and delivers steelwork solutions.
    But we go further than that:
    We are responsive – we see it as part of our mission
    to understand your actual need.
    We are explorers — we are always looking for new
    ways to enhance our solutions.
    We are reliable — we always deliver on our promises.
    Whatever it takes to get you there, we’re always
    prepared to go the extra mile; making us your preferred
    strategical partner.




    CE Marking, Product Development
    and Design Aids
    Mafi is a EN 1090 certified organization, which means     For bracket kits that can be clamped to tubular parent
    that our CE-marked kits comply with EN 1090-1, EN 1090-   members — or support a tubular member — there is also
    2 standards to Execution Class 2.                         a table of torque resistance for different standard tube
    During the product development process, every             diameters. MAFI provides CAD blocks for all kits and we
    component is designed and optimised using Finite          can also provide Excel tools for checking brackets and
    Element Analysis techniques. Prototypes are then          freestanders.
    physically tested and refined in our laboratory.          Disclaimer:

    Every design follows these guidelines:                    Design recommendations given by MAFI concerning the use of
                                                              a particular product are based on site information provided by
    •   Make the kit as easy as possible to assemble and      the customer. MAFI provides a Declaration of Performance for
        provide clear assembly instructions.                  the product itself, and it is the customer’s responsibility to
    •   The kit is packed in as small a box as possible to    ensure that imposed loads are within the capacity of the
        ensure efficient storage and transport.               product.
                                                              It is always the responsibility of the site designer to verify that
    •   Make the product as light as possible for easy
                                                              the parent structure is adequate to support the loads imposed
        handling on site.
                                                              by the product and that the installation of the product will
    Every kit comes with a data sheet with load tables.       comply with the installation instructions and with statutory
    The load tables give the maximum ultimate vertical        and site owner’s rules and regulations.
    and horizontal loads that may be applied to the kit.
MAFi Product Catalogue 2018
5




                When MAFI began in 1992, our business idea was to offer standardised
                products in a young and fast growing industry segment, when almost
                every telecom site had a unique design. Our goal has always been
                to simplify site builds solutions for our customers so that they can focus
                on their core business and manage more efficient and profitable rollouts.
                25 years later, I find that we have achieved these goals – and surpassed
                them by a considerable margin! Today, our solutions are found in leading
                telecom suppliers' product portfolios and used worldwide.
                Over the years we have accumulated experience and built up
                depth of expertise that – according to our customers – makes us
                one vof the leading suppliers in our segment.
                We develop, test and manufacture standardised products, in full
                accordance with the national requirements and standards of our global
                markets. Every detail is characterised by accuracy and Swedish quality.
                We provide detailed guidance on where and how our solutions can be
                used, whether it concerns wind loads or weights on a mast. Regardless
                of where our products are manufactured – Asia, The Far East, Mexico
                or Sweden – we always guarantee MAFI's high quality.
                And now we are marching into the future!
                Recently, we moved to new, modern premises. This has enabled
                us to locate our entire business, including an efficient and partially
                robotised logistics centre, under one roof, thereby creating

25 years        the potential to grow and develop even more.
                We are market leaders in delivery times, a fact appreciated

– and we have   by our customers who need our products just-in-time.
                Over 99 percent of our shipments meet our promised delivery times.


just started.
                It is no secret that this is one of the keys to our success!
                We are currently working to dramatically shorten lead times
                for developing new products, through investment in new software,
                machinery and highly skilled people.
                This is already enabling us to provide a comprehensive product range,
                from volume products through to specialised niche solutions.
                We are laying the foundation for developing further patented products
                which, like their predecessors, can become global top sellers.
                It has been our customers' needs that have guided our business
                throughout the years. We will continue to listen to you, to inform
                our experience and expertise. In this way, I hope that during at least
                another 25 years, we will be able to provide you with solutions
                that contribute to your success, swiftly and affordably.




                Pierre Bengtsson, CEO
MAFi Product Catalogue 2018
MAFi Product Catalogue 2018
7




MAFI 3263
One-Direction
Offset Family
—
Designed to allow an equipment pole to be offset
from a parent pole or tower leg.
Additional features:
•   Lightweight but rigid.
•   Few parts and easy to assemble.
MAFi Product Catalogue 2018
8                                                         Rev 4                         *Article MAFI 3263/3272/3273




MAFI 3263*
One-Direction
Offset Family




Designed to allow an equipment pole to be offset from
a parent pole or tower leg.

Flexibility
The 3263, 3265 and 3273 brackets can be mounted on any
vertical round member from Ø 25 – 169 mm and also on
                                                                                                          MAFI 3263
vertical angel sections. The offset pole can be Ø 60.3 mm
or Ø 76.1 mm with the standard Ø 76 mm U bolts supplied,
or optionally up to Ø 114.3 mm.
The 3273 provide a maximum c/c offset of 230 mm and the
3263 and 3265 provide a maximum c/c offset of 420 mm
respectively 400 mm. The 3272 fits round members from
Ø 48 – 193 mm and provides a maximum offset of
800 mm. The 3272 incorporates a double clamp to cope with
the high torque loads impose by antennas at a large offset.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.
                                                                      MAFI 3273
How to Order
To order this kit, please contact MAFI quoting article number:
3263 or E-order number (SEG): 6000667
                                                                                                           MAFI 3272
3265 or E-order number (SEG): 6000668
3272 or E-order number (SEG): 6000665
3273 or E-order number (SEG): 6000666
Contact information can be found at www.mafi.se.




                                                                  Content of kit

                                                                                   © 2017 MAFI AB. All rights reserved.
MAFi Product Catalogue 2018
*Article MAFI 3263/3272/3273                                         Rev 4                                              9




                                                                                    Parent pole/leg

                                                                                           40 × 40 mm
                                                                                           up to 120 × 120 mm



                                                                                           Art. no 3263, 3265 & 3273:
                                                                                           Ø 25 – 169 mm
MAFI 3273                                                                                  Art. no 3272:
                                                                                           Ø 48 – 193 mm


                                                                                           40 × 40 mm up to
                                                                                           120 × 120 mm




MAFI 3263/3265                                                                      Equipment pole

                                                                                           Art. no 3263 & 3273:
                                                                                           Ø 60 – 76 mm
                                                                                           Art. no 3265:
                                                                                           Ø 89 – 114 mm




                                                                                    Tightening torque
MAFI 3272
                                                                                           Threaded rods M12: 31 Nm
                                                                                           U-bolts M12: 31 Nm
Part list
 Parts                                 Material                       Quantity

 Clamps                                S355MC FZV                     2.4 (3272)

 Brackets                              S355MC FZV                     2

 U-bolts M12                           A4 or 8.8 FZV                  2

 Threaded rods M12                     8.8 FZV                        4.8 (3272)

 Nuts and washers M12                  8.8 FZV                        -

Package data
 Product           Length (mm)         Width (mm)      Height (mm)    Weight (kg)

 3263/3265         780                 240             60             7.5

 3272              1000                350             60             24

 3273              380                 230             60             6.7

Product options
 MAFI 3265, 400 mm tube offset kit that fits Ø 89 - Ø 114 mm




                                                                                                      EN 1090

© 2017 MAFI AB. All rights reserved.
MAFi Product Catalogue 2018
10                                                          Rev 4          *Article MAFI 3263/3272/3273




                                                                                             Ft


Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
                                                                                            Fmass
to it by the MAFI product.

Vertical load
Max Supported Equipment mass MAFI
3263/3265/3273 = 120 kg
Max Supported Equipment mass MAFI 3272 = 60 kg

Ultimate Transient Man-Load MAFI
3263/3265/3272/3273 = 2.4 kN

Rotational slip resistance
When high side forces can be expected, use the tables below
to check for rotational slip when mounting on a circular pole.
Use ultimate loads and equipment offset to calculate
the applied torque.                                                    Mresisting



Resisting torque per single bracket

                      Torque (Nm)                       Torque (Nm)
Parent Pole ø (mm)
                      MAFI 3263/65, 3273                MAFI 3272

42.3                  152                               -                              Fwind
48.3                  178                               356

60.3                  230                               460

76.1                  298                               596

88.9                  353                               706

101.6                 408                               816
114.3                 462                               924

152.4                 627                               1254

168.9                 698                               1396

Product nr.           Max offset (mm)

3273                  230

3263                  420

3265                  400

3272                  800
                                                                      © 2017 MAFI AB. All rights reserved.
11




MAFI 3268*
Symmetric
Offset Family
—
Designed to provide support for two similar antennas
offset symmetrically from a central parent pole.
Additional features:
•   Two lengts for optimized installation.
•   Double or triple installation of antennas.
12                                                        Rev 5                              *Article MAFI 3268/3270




MAFI 3268*
Symmetric
Offset Family




                                                                                                          MAFI 3268

Designed to provide support for two similar antennas offset
symmetrically from a central parent pole. A third antenna
may be mounted on the parent pole.

Flexibility
Fits any round member from Ø 76 – 169 mm.
The offset poles can be Ø 60.3 or 76.1 mm and may
be specified in any length. The 3268 gives a c/c distance
between the outer antennas of 800 mm, and the 3270
gives a c/c distance between the outer antennas of 1700 mm.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:    Content of kit                          MAFI 3270

3268 or E-order number (SEG): 6000669
3270 or E-order number (SEG): 6000670
Contact information can be found at www.mafi.se.




                                                                                   © 2017 MAFI AB. All rights reserved
*Article MAFI 3268/3270                                             Rev 5                                           13




                                                                                   Parent pole/leg

                                                                                          Ø 76 – 169 mm

MAFI 3268




                                                                                   Equipment pole

                                                                                          Ø 60 – 76 mm




MAFI 3270

                                                                                   Tightening torque

                                                                                          Threaded rod M12: 31 Nm
                                                                                          U-bolts M12: 31 Nm




Part list
 Parts                                Material                       Quantity

 Clamps                               S355MC FZV                     2

 Brackets                             S355MC FZV                     2

 U-bolts M12                          A4 or 8.8 FZV                  4

 Threaded rods M12                    8.8 FZV                        4

Package data
 Product           Length (mm)        Width (mm)      Height (mm)    Weight (kg)

 3268              1000               300             150            12.5

 3270              2000               300             150            32

Product options
 MAFI 44040, U-bolt kit for tube Ø 89 – 114 mm.




                                                                                                     EN 1090

© 2017 MAFI AB. All rights reserved
14                                                        Rev 5                        *Article MAFI 3268/3270




                                                                                                  Ft




                                                                          Fmass                   Fmass
Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Max Supported Equipment mass (Fmass) MAFI 3268 = 90 kg
Max Supported Equipment mass (Fmass) MAFI 3270 = 60 kg

Ultimate Transient Man-Load (Ft )= 2.4 kN

Horizontal load
Ultimate transient horizontal load per bracket (Fwind)
MAFI 3268 = 2000 N
Ultimate transient horizontal load
per bracket (Fwind) MAFI 3270 = 2000 N.

Rotational slip resistance
When asymetyric forces can be expected, for example
if the equipment area differs between offset arms,
use the table below to check for rotational slip
when mounting on a circular pole.
Use ultimate loads to calculate the resulting torque.
                                                                  Fwind                        Fwind

Ultimate Torque Capacity per bracket
Parent Pole ø (mm)                          Torque (Nm)

76.1                                        298

88.9                                        353

101.6                                       408

114.3                                       462

152.4                                       627

168.9                                       698




                                                                             © 2017 MAFI AB. All rights reserved
15




MAFI 3274
Small Universal
Pole Mount
—
Designed for mounting an equipment pole on a parent
pole or tower leg. The kit consists of a pair of brackets
with all necessary fixings.
Additional features:
•   Simplifies close tube to tube mounting.
•   Suitable for a wide range of tube dimensions.
16                                                          Rev 2                     Article MAFI 3274




MAFI 3274
Small Universal
Pole Mount




Designed for mounting an equipment pole on a parent
pole or tower leg. The kit consists of a pair of brackets
with all necessary fixings.

Flexibility
Can be mounted on any round member from
Ø 25 – 114 mm as well as equal-angle or square section
members up to 80 × 80 mm. Equipment poles
can range from Ø 48 – 114 mm.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
3274 or E-order number (SEG): 6000688
Contact information can be found at www.mafi.se.
                                                                                        Content of kit




                                                                    © 2017 MAFI AB. All rights reserved.
Article MAFI 3274                                                 Rev 2                                            17




                                                                                 Parent pole/leg

                                                                                        40 × 40 up to 80 × 80 mm




                                                                                        Ø 25 – 114.3 mm




                                                                                 Equipment pole

                                                                                        Ø 48 – 114.3 mm




                                                                                 Tightening torque

                                                                                        Threaded rods: 18 Nm




Part list
 Parts                                 Material                    Quantity

 Clamps                                S355MC FZV                  6

 Threaded rod M10                      8.8 FZV                     4

 Nuts M10                              8.8 FZV                     20

 Washer M10                            8.8 FZV                     12

Package data
 Product            Length (mm)        Width (mm)   Height (mm)    Weight (kg)

 3274               410                110          50             5.8

Product options
 Tubes of various lengths and diameter can be ordered from MAFI.




                                                                                                   EN 1090

© 2017 MAFI AB. All rights reserved.
18                                                         Rev 2                     Article MAFI 3274




                                                                          Fmass




Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.                                                      FHorizontal
Vertical load
Max Supported Equipment mass (including
weight of offsetpole = 250 kg

Ultimate Transient Man-Load = 2.4 kN

Horizontal load
Ultimate transient horizontal load per bracket = 4000N
                                                                                 Fwind
Rotational slip resistance
When high side forces can be expected, use the tables below
                                                                   Mresisting
to check for rotational slip when mounting on a circular pole.
Use ultimate loads and equipment offset to calculate
the applied torque.



Ultimate Torque Capacity per bracket
Parent Pole ø (mm)                        Torque (Nm)

42.3                                      152

48.3                                      178

60.3                                      230

76.1                                      298

88.9                                      353

101.6                                     408

114.3                                     462




                                                                   © 2017 MAFI AB. All rights reserved.
19




MAFI 3610*
Raking Tower
Leg Offset
Family
—
Designed for mounting an equipment pole on a raking
parent pole or tower leg. The kits consists of a pair
of brackets with all necessary fixings.
Additional features:
•   Simplifies installation on raking towers.
•   Suitable for L profiles and round members.
20                                                        Rev 3                           *Article MAFI 3610/3613




MAFI 3610*
Raking Tower
Leg Offset
Family




Designed for mounting an equipment pole
on a raking parent pole or tower leg. The kits consists
of a pair of brackets with all necessary fixings.

Flexibility
The 3610 can be mounted on any round member from
Ø76 – 139 mm as well as equal-angle or square section                                                 MAFI 3610
members from 60 × 60 – 120 × 120 mm, while the 3613 can
be mounted on any round member from Ø 139 – 245 mm
as well as equal-angle or square section members from
120 × 120 – 200 × 200 mm.
Offset poles for either kit can range from Ø 60 – 114 mm
with a maximum upper offset of 350 mm c/c and
a lower fixed offset of 250 mm c/c.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

                                                                  MAFI 3610                        MAFI 3613
How to Order
                                                                  Content of kit                   Content of kit
To order this kit, please contact MAFI quoting article number:
3610 or E-order number (SEG): 6000676
3613 or E-order number (SEG): 6000677
Contact information can be found at www.mafi.se.




                                                                               © 2017 MAFI AB. All rights reserved.
*Article MAFI 3610/3613                                              Rev 3                                            21




                                                                                    Parent pole/leg

                                                                                           Art. no. 3610:
                                                                                           60 × 60 – 120 × 120 mm
                                                                                           Art. no. 3613:
                                                                                           120 × 120 – 200 × 200 mm


                                                                                           Art. no. 3610:
                                                                                           Ø 76.1 – 139.7 mm
Small clamps (MAFI 3610)
                                                                                           Art. no. 3613:
                                                                                           Ø 139.7 – 244.5 mm


                                                                                           Art. no. 3610:
                                                                                           60 × 60 – 120 × 120 mm
                                                                                           Art. no. 3613:
                                                                                           120 × 120 – 200 × 200 mm

Shared offset brackets

                                                                                    Equipment pole

                                                                                           Ø 60 – 76 mm
                                                                                           (Ø 114 mm as option)




Large clamps (MAFI 3613)                                                            Tightening torque

                                                                                           Bolt M16: 210 Nm

Part list                                                                                  Threaded rods M12: 31 Nm
                                                                                           U-bolts M12: 31 Nm
 Parts                                 Material                       Quantity

 Clamps                                S355MC FZV                     4

 Brackets                              S355MC FZV                     2

 U-bolts M12                           A4 or 8.8 FZV                  2

 Threaded rods M12                     8.8 FZV                        4

 Nuts and washers M12                  8.8 FZV                        -

Package data
 Product           Length (mm)         Width (mm)      Height (mm)    Weight (kg)

 3610              440                 280             80             11.8

 3613              500                 400             100            16.5

Product options
 MAFI 2867-1; U-bolt kit for attaching Ø 114 equipment tube.




                                                                                                      EN 1090

© 2017 MAFI AB. All rights reserved.
22                                                         Rev 3                      *Article MAFI 3610/3613




                                                                              Ft




                                                                   Fmass
Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Max Supported Equipment mass (including weight
of offset pole) MAFI 3610/3613 = 250 kg

Ultimate Transient Man-Load (Ft ) MAFI 3610/3613 = 2.4 kN

Horizontal load
Ultimate transient horizontal load per
offset arm (Fwind) = 4000 N
                                                                                            Mresisting
Rotational slip resistance
When high side forces can be expected, use the table below
to check for rotational slip when mounting on a circular pole.
Use ultimate loads and equipment offset to calculate the
applied torque.




Resisting torque per single bracket                                                                   Fwind
Parent Pole ø (mm)                         Torque (Nm)

42.3                                       152

48.3                                       178

60.3                                       230

76.1                                       298

88.9                                       353

101.6                                      408

114.3                                      462

152.4                                      627

168.9                                      698
                                                                           © 2017 MAFI AB. All rights reserved.
23




MAFI 3611*
Vertical
Tower Leg
Offset Family
—
Designed for mounting an equipment pole on a vertical
parent pole or tower leg. The kits consists of a pair of
brackets with all necessary fixings.
Additional features:
•   Simplifies installation on vertical towers.
•   Suitable for L profiles and round members.
24                                                         Rev 3           *Article MAFI 3611/3612/3614/3615




MAFI 3611*
Vertical
Tower Leg
Offset Family




Designed for mounting an equipment pole on a vertical
parent pole or tower leg. The kits consists of a pair of
brackets with all necessary fixings.

Flexibility
The 3611/3612 can be mounted on any round member from
Ø 76 – 139 mm as well as equal-angle or square section
members from 60 × 60 – 120 × 120 mm, while the 3614/3615
can be mounted on any round member from
                                                                   MAFI 3611                       MAFI 3612
Ø 139 – 245 mm as well as equal angle or square section
members from 120 × 120 – 200 × 200 mm.
Offset poles for any of the kits can range from
Ø 60– 114 mm. The small and large offset arms provide
maximum c/c offsets of 250 mm and 350 mm respectively.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order                                                       MAFI 3614                       MAFI 3615
To order this kit, please contact MAFI quoting article number:
3611 or E-order number (SEG): 6000678
3612 or E-order number (SEG): 6000679
3614 or E-order number (SEG): 6000680
3615 or E-order number (SEG): 6000681
Contact information can be found at www.mafi.se
                                                                           © 2017 MAFI AB. All rights reserved.
*Article MAFI 3611/3612/3614/3615                                    Rev 3                                            25




                                                                                    Parent pole/leg

                                                                                           Art. no. 3611 & 3612:
                                                                                           60 × 60 – 120 × 120 mm
                                                                                           Art. no. 3614 & 3615:
                                                                                           120 × 120 – 200 × 200 mm


                                                                                           Art. no. 3611 & 3612:
Small clamps (MAFI 3611 & 3612)
                                                                                           Ø 76.1 – 139.7 mm
                                                                                           Art. no. 3614 & 3615:
                                                                                           Ø 139.7 – 244.5 mm


                                                                                           Art. no. 3611 & 3612:
                                                                                           60 × 60 – 120 × 120 mm
                                                                                           Art. no. 3614 & 3615:
                                                                                           120 × 120 – 200 × 200 mm
Shared offset brackets


                                                                                    Equipment pole

                                                                                           Ø 60 – 76 mm
                                                                                           (114 mm as option)




                                                                                    Tightening torque
Large clamps (MAFI 3614 & 3615)                                                            Bolt M16: 210 Nm
                                                                                           Threaded rods M12: 31 Nm
Part list                                                                                  U-bolts M12: 31 Nm
 Parts                                 Material                       Quantity

 Clamps                                S355MC FZV                     4

 Brackets                              S355MC FZV                     2

 U-bolts M12                           A4 or 8.8 FZV                  2

 Threaded rods M12                     8.8 FZV                        4

 Nuts and washers M12                  8.8 FZV                        -

Package data
 Product           Length (mm)         Width (mm)      Height (mm)    Weight (kg)

 3611              500                 280             80             12.3

 3612              500                 280             80             11.1

 3614              440                 400             100            17.0

 3615              440                 400             100            16.1

Product options
 MAFI 2867-1; U-bolt kit for attaching Ø 114 equipment tube.
                                                                                                      EN 1090

© 2017 MAFI AB. All rights reserved.
26                                                          Rev 3     *Article MAFI 3611/3612/3614/3615




                                                                              Ft




                                                                    Fmass

Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Max Supported Equipment mass (including weight
of offset pole) MAFI 3611/12/14/15 = 250 kg
Ultimate Transient Man-Load MAFI 3611/3612 = 2.4 kN

Ultimate Transient Man-Load MAFI 3614/3615 = 2.4 kN                                   Mresisting
Horizontal load
Ultimate transient horizontal load per offset arm (Fwind)
= 4000 N

Rotational slip resistance
When high side forces can be expected, use the tables below
to check for rotational slip when mounting on a circular pole.
Use ultimate loads and equipment offset to calculate
the applied torque.
                                                                                                 Fwind
Resisting torque per single bracket
Parent Pole ø (mm)                          Torque (Nm)

42.3                                        152

48.3                                        178

60.3                                        230

76.1                                        298

88.9                                        353

101.6                                       408

114.3                                       462

152.4                                       627

168.9                                       698
                                                                       © 2017 MAFI AB. All rights reserved.
27




MAFI 5310*
Joint
Plate Kit
—
Designed to provide perpendicular joints between
solid or thick-walled circular member and square tubes.
Additional features:
•   Smooth and easy installation.
•   Tight mounted against towers and masts.
28                                                        Rev 2                *Article MAFI 5310/5311/5312




MAFI 5310*
Joint
Plate Kit




                                                                                                  MAFI 5310




Designed to provide perpendicular joints between solid
or thick-walled circular member and square tubes.

Flexibility
Fits parent poles ranging from Ø 25 – 60 mm
and square beams ranging from 50 × 50 – 60 × 60 mm.
                                                                  MAFI 5311                       MAFI 5312
Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
5310 or E-order number (SEG): 6000671
5311 or E-order number (SEG): 6000672
                                                                                               ×2
5312 or E-order number (SEG): 6000673
                                                                                               Content of kit
Contact information can be found at www.mafi.se.




                                                                          © 2017 MAFI AB. All rights reserved.
*Article MAFI 5310/5311/5312                                            Rev 2                                        29




                                                  U-bolt in MAFI 5310
                                                                                       Parent pole/leg

                                                                                              Art. 5310:
                                                                                              Ø 25 – 35 mm
                                                                                              Art. 5311:
                                                                                              Ø35 – 60 mm


                                                                                              Art. 5312:
                                                                                              50 × 50 – 60 × 60 mm




                                                                                       Equipment pole

                                                                                              50 × 50 – 60 × 60 mm




                                                                                       Tightening torque

                                                                                              U-bolt M12: 15 Nm




U-bolt in MAFI 5311                               U-bolt in MAFI 5312




Part list
 Parts                                 Material                          Quantity

 Plates                                S355MC FZV                        2

 U-bolts                               8.8 FZV                           4

 Nuts and washers                      8.8 FZV                           24

Package data
 Product           Length (mm)         Width (mm)       Height (mm)      Weight (kg)

 5310              150                 110              40               2.8

 5311              180                 110              40               3.0

 5312              180                 110              40               3.1

Product options
 MAFI 5320, 5321: Crossover kit for members Ø 76.1, Ø 114.3, 50 × 50 – 60 × 60 mm.

 Tubes of various lengths and diameter can be ordered from MAFI.




                                                                                                           EN 1090

© 2017 MAFI AB. All rights reserved.
30                                                        Rev 2             *Article MAFI 5310/5311/5312




                                                                  Mt


                                                                        Fmass




Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Max Supported Equipment mass per joint Fmass = 100 kg

Tightening torque
Recommended tightening torque, with oiled nuts and bolts in
delivery state Mt= 15 Nm.




                                                                       © 2017 MAFI AB. All rights reserved.
31




MAFI 5320*
Crossover Kit
—
Designed to provide perpendicular joints between
circular members and square tubes.
Additional features:
•   Simplifies installation of round tubes mounted
    to square beams.
32                                                        Rev 2              *Article MAFI 5320/5321




MAFI 5320*
Crossover
Kit




                                                                              MAFI 5320



Designed to provide perpendicular joints between circular
members and square tubes.

Flexibility
MAFI 5320 fits circular tubes of Ø 76.1 mm and square beams
ranging from 50 × 50 – 60 × 60 mm. MAFI 5321 fits
circular tubes of Ø 114.3 mm and square beams ranging
from 50 × 50 – 60 × 60 mm.

Detailed design data
For use when designing sites, detailed design data for this
product can be found at www.mafi.se.                                                      MAFI 5321

How to Order
To order this kit, please contact MAFI quoting article number:
5320 or E-order number (SEG): 6000674
5321 or E-order number (SEG): 6000675
Contact information can be found at www.mafi.se.




                                                                                       Content of kit

                                                                  © 2017 MAFI AB. All rights reserved.
*Article MAFI 5320/5321                                                Rev 2                                          33




                                                                                        Circular tube

                                                                                               Art. 5320:
                                                                                               Ø 76.1 mm
                                                                                               Art. 5321:
                                                                                               Ø 114.3 mm




                                                                                        Square tube

                                                                                               50 × 50 – 60 × 60 mm

            MAFI 5320                                         MAFI 5321



                                                                                        Tightening torque

                                                                                               U-bolt M12: 15 Nm




Part list
 Parts                                 Material                           Quantity

 Bracket                               S355MC FZV                         1

 Plates                                S355MC FZV                         2

 U-bolts                               8.8 FZV or A480                    2

 Nuts and washers                      8.8 FZV                            -

Package data
 Product           Length (mm)         Width (mm)        Height (mm)      Weight (kg)

 5320              220                 140               50               2.4 kg

 5321              250                 150               50               2.7 kg

Product options
 MAFI 5310, 5311, 5312: Joint plate kits for members Ø 25 – 60 mm,
 50 × 50 – 60 × 60 mm.

 Tubes of various lengths and diameter can be ordered from MAFI.




                                                                                                            EN 1090

© 2017 MAFI AB. All rights reserved.
34                                                          Rev 2                     *Article MAFI 5320/5321




                                                                    Fr



                                                                                 Fmass




                                                                         Fwind


Design resistance data                                                    Mr
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Max Supported Equipment mass Fmass = 100 kg

Lateral reaction force
Ultimate lateral reaction force Fr = 3875 N

Rotational slip resistance
When high side forces can be expected, use the table
below to check for rotational slip. Use ultimate loads
to calculate the applied torque.




Ultimate torque capacity
Parent Pole ø (mm)                            Torque (Nm)

76.1                                          298

114.3                                         462




                                                                           © 2017 MAFI AB. All rights reserved.
35




MAFI 43249*
Combiclamp
Family
—
Designed to provide perpendicular joints
between two circular members.
Additional features:
•   Smooth and easy installation.
•   Tight mounted against towers and masts.
36                                                        Rev 3        *Article MAFI 43246/43247/43248/43249




MAFI 43249*
Combiclamp
Family




                                                                                                 MAFI 43249




Designed to provide perpendicular joints between
two circular members.

Flexibility
MAFI 43249 joints two circular tubes of Ø 114.3 mm.
MAFI 43248 joints one circular tube of Ø 114.3 mm
to a circular tube of Ø 76.1 mm.
MAFI 43247 joints two circular tubes fo Ø 76.1 mm.
MAFI 43246 joints one circular tube of Ø 60.3 mm                  MAFI 43248                     MAFI 43247
to a circular tube of Ø 48.3 mm. The products are delivered
with all necessary bolts and nuts.

Detailed design data
For use when designing sites, detailed design data for this
product can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
43249
43248                                                                                            MAFI 43246
43247
43246
Contact information can be found at www.mafi.se.




                                                                           © 2017 MAFI AB. All rights reserved.
*Article MAFI 43246/43247/43248/43249                                  Rev 3                                              37




                                                                                      Parent pole/leg

                                                                                             Art. no. 43249: Ø 114.3 mm
                                                                                             Art. no. 43248: Ø 114.3 mm
                                                                                                             Ø 76.3 mm
                                                                                             Art. no. 43247: Ø 76.1 mm
                                                                                             Art. no. 43246: Ø 60.3 mm
                                                                                                             Ø 48.3 mm


                                                                  MAFI 43246
                                                                                      Tightening torque
             MAFI 43249
                                                                                             U-bolt M12: 15 Nm
                                                                                             U-bolt M16: 20 Nm




           MAFI 43247                                             MAFI 43248



Part list
 Parts                                 Material                         Quantity

 Bracket                               S355MC FZV                       1

 U-bolts                               8.8 FZV or A480                  4

 Nuts and washers                      8.8 FZV                          -

Package data
 Product           Length (mm)         Width (mm)        Height (mm)    Weight (kg)

 43249             280                 280               100            7.8

 43248             280                 280               100            6.9

 43247             230                 230               75             4.4

 43246             210                 210               75             3.2

Product options
 Tubes of various lengths and diameter can be ordered from MAFI.




                                                                                                        EN 1090

© 2017 MAFI AB. All rights reserved.
38                                                        Rev 3           *Article MAFI 43246/43247/43248/43249




                                                                  Frot.

                                                                                 Mr
                                                                          Fr


Design resistance data                                                              Fmass
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Max Supported Equipment mass Fmass = 200 kg

Lateral reaction force
Ultimate lateral reaction force Fr = 2000 N

Axial moment
Ultimate axial moment Mr: 43249 = 1000 Nm
                            43248 = 350 Nm
                            43247 = 350 Nm                                                             Frot.
                            43246 = 150 Nm

Rotational slip resistance
When forces that attempt to rotate the bracket around the tube
are to be expected, use the table below to check for rotational
slip. Use ultimate loads to calculate the applied torque.




Ultimate Torque Capacity

                                          Torque (Nm)
Parent Pole ø (mm)
                                          MAFI 3263/65, 3273

48.3                                      178

60.3                                      230

76.1                                      298

114.3                                     462




                                                                               © 2017 MAFI AB. All rights reserved.
39




MAFI 4418*
3-Sector
Antenna
Mount
—
Designed to accommodate three large
panel antennas attached to a single spine pole.
Additional features:
•   Handles three large antennas.
•   Flexible and easy to assemble.
40                                                        Rev 5              *Article MAFI 4415/4418




MAFI 4418*
3-Sector
Antenna
Mount




Designed to accommodate three large panel antennas
attached to a single spine pole.

Flexibility
The mounts will fit spine poles ranging from Ø 76 – 114.3 mm.
MAFI 4415 provides an offset of 126 mm from the equipment                             MAFI 4415
pole center to the face of the spine pole.                                            Content of kit
MAFI 4418 provides an offset of 226 mm from the equipment
pole center to the face of the spine pole. The equipment poles
can be Ø 60.3 or 76.1 mm.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to order
To order this kit, please contact MAFI quoting article number:
4418 or E-order number (SEG): 6000682
4415 or E-order number (SEG): 6000881
Contact information can be found at www.mafi.se.


                                                                                      MAFI 4418
                                                                                      Content of kit


                                                                  © 2017 MAFI AB. All rights reserved.
*Article MAFI 4415/4418                                              Rev 5                                         41




                                                                                    Parent pole/leg

                                                                                           Ø 76 – 114.3 mm




                                                                                    Equipment pole
MAFI 4415
                                                                                           Ø 60.3 – 76.1 mm




                                                                                    Tightening torque

                                                                                           Bolts M12: 31 – 80 Nm
                                                                                           U-bolts M12: 31 Nm




MAFI 4418




Part list
 Parts                                 Material                       Quantity

 Clamps                                S355MC FZV                     4

 Brackets                              S355MC FZV                     6

 U-bolts M12                           A4 or 8.8 FZV                  6

 Spacer bushings                       S355MC FZV                     6

 Bolts, nuts and washers M12           8.8 FZV                        -

Package data
 Product           Length (mm)         Width (mm)      Height (mm)    Weight (kg)

 4415              390                 230             120            13.5

 4418              390                 275             120            15.5

Product options
 Tubes of various lengths and diameter can be ordered from MAFI.
                                                                                                      EN 1090

© 2017 MAFI AB. All rights reserved.
42                                                         Rev 5              *Article MAFI 4415/4418




                                                                             Ft




                                                                                   Fmass




Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied                                  Fwind
to it by the MAFI product.

Vertical load
Max Supported Equipment mass per offset tube (Fmass) = 60 kg
Ultimate Transient Person-Load (Ft )= 2.4 kN

Horizontal load
Ultimate transient horizontal load per tube (Fwind) = 4000 N




                                                                   © 2017 MAFI AB. All rights reserved.
43




MAFI 3510
Rafter
Bracket Kit
—
Designed to provide a pole mount on to rafters or roof
trusses for tubes of Ø 60.3 – 114.3 mm.
44                                                           Rev 2                             Article MAFI 3510




MAFI 3510
Rafter
Bracket Kit




Designed to provide a pole mount on to rafters or roof
trusses for tubes of Ø 60.3 – 114.3 mm.

Flexibility
The product can be mounted directly on to the wooden
structure using through-mounts with large square washers on
the back. The kit consist of high quality steel parts with hot dip
galvanization treatment or from acid proof stainless steel.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
3510 or E-order number (SEG): 6000882
Contact information can be found at www.mafi.se.

                                                                     MAFI 4328                   Content of kit
                                                                     Option



                                                                             © 2017 MAFI AB. All rights reserved.
Article MAFI 3510                                                 Rev 2                                            45




                                                                                 Mounting structure

                                                                                        Wooden beams minimum:
                                                                                        120 × 45 mm




                                                                                 Equipment pole

                                                                                        Ø 60.3 – 114.3 mm




                                                                                 Tightening torque

                                                                                        Threaded rods M12: 31 Nm
                                                                                        Threaded rods M8: 21 Nm




Part list
 Parts                                 Material                    Quantity

 Brackets                              S355MC FZV                  4

 Threaded rod M12                      8.8 FZV                     4

 Threaded rod M8                       A4                          14

 Nuts M12,M8                           8.8 FZV                     76

 Washer M12,M8                         FZV                         36

Package data
 Product            Length (mm)        Width (mm)   Height (mm)    Weight (kg)

 3510               210                160          120            6.0

Product options
 MAFI 4328, Foot for equipment pole.

 MAFI 53001G, Rubber roof flange Ø 82 – 162 mm.

 MAFI 53003G, Rubber roof flange Ø 60 – 102 mm.

 Tubes of various lengths and diameter can be ordered from MAFI.




                                                                                                   EN 1090

© 2017 MAFI AB. All rights reserved.
46                                                             Rev 2                             Article MAFI 3510




                                                                                                      Fwind




                                                                        FRd1

Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that                                            Fmass
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Ultimate Fmass resistance = 3000 N

Ultimate Transient Man-Load = 2400 N                                                                 FRd2
Ultimate FRd (reaction force to Fwind)= 10000 N

Rotational slip resistance
In some cases the equipment pole can suffer torque loading;
in these cases it is important to verify that the pole will not slip.
To check this, the data from the torque resistance table can be
used. The table below gives the ultimate torque capacity per
cantilever for different pole diameters.
                                                                                                   Mresisting
Ultimate Torque Capacity per Bracket
Parent Pole ø (mm)                           Torque (Nm)

60.3                                         230

76.1                                         298

88.9                                         353

101.6                                        408

114.3                                        462




                                                                               © 2017 MAFI AB. All rights reserved.
47




MAFI 2230*
Telescopic
Strut Support
—
Designed to provide flexible bracing to a pole.
The support can be fitted as part of a new installation
or it can be retrofitted to an existing pole. All that is
required is two structural attachment points within reach
of the pole. The attachment points can be horizontal,
vertical or anything inbetween. The kit consists of a pair of
telescopic struts with feet and a pole attachment bracket.
48                                                         Rev 1   *Article MAFI 2230/2231/2232/2233/2234/2235




MAFI 2230*
Telescopic
Strut Support




Designed to provide flexible bracing to a pole.
The support can be fitted as part of a new installation or it
can be retrofitted to an existing pole. All that is required is
two structural attachment points within reach of the pole.
The attachment points can be horizontal, vertical or anything
inbetween. The kit consists of a pair of telescopic struts with
feet and a pole attachment bracket.

Flexibility
The 2230-family comprises three lengths of strut and two
standard sizes of pole attachment-clamp available,
to fit poles Ø 76 or 114 mm.
Please see the table on the next page.
An optional pole attachment-clamp the 3396.
Can fit poles < Ø 76 mm.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
2230 or E-order number (SEG): 6000865
2231 or E-order number (SEG): 6000866
2232 or E-order number (SEG): 6000867
                                                                     Option: MAFI 4328           Content of kit
2233 or E-order number (SEG): 6000868
2234 or E-order number (SEG): 6000869
2235 or E-order number (SEG): 6000870
Contact information can be found at www.mafi.se.
                                                                             © 2017 MAFI AB. All rights reserved.
*Article MAFI 2230/2231/2232/2233/2234/2235                          Rev 1                                              49




                                                                                    Equipment pole

                                                                                              Art. no. 2230 - 2232:
                                                                                              Ø 76.1 mm
                                                                                              Art. no. 2233 - 2235:
                                                                                              Ø 114.3 mm
                                                                                              Optional < Ø 76 mm

                                                        Clamp set Ø 76 mm

                                                                                    Tightening torque

                                                                                              U-bolt: 31 Nm (Ø 76 mm)
                                                                                                     46 Nm (Ø 114 mm)
                                                                                              M12 screws: 80 Nm
                                                                                              M16 screws: 100 Nm



                                                        Clamp set Ø 114 mm
                                                                                    Strut length
                                                                                    and clamp width

                                                                                                              Clamp width
                                                                                    Product   X Length (m)
                                                                                                              Ø (mm)

                                                                                    2230      1.0 – 1.4       76
Part list                                                                           2231      2.0 – 2.4       76
 Parts                                 Material                       Quantity      2232      3.0 – 3.4       76
 Struts                                S355 FZV                       2             2233      1.0 – 1.4       114
 Strut foot                            S355MC FZV                     2             2234      2.0 – 2.4       114
 Clamps                                S355MC FZV                     2             2235      3.0 – 3.4       114
 U-bolts M12                           A4 or 8.8 FZV                  2

 Bolts M12                             8.8 FZV                        4

 Nuts M12 and washers                  8.8 FZV                        16

Package data
 Product           Length (mm)         Width (mm)      Height (mm)    Weight (kg)
 2230/2233         1100                160             100            13.8
 2231/2234         2100                160             100            20.3
 2232/2235         3100                160             100            26.8

Product options
 MAFI 4328, Equipment pole foot.

 2 × MAFI 3396, Clamp for tubes < Ø 76 mm.

 Tubes of various lengths and diameter can be ordered from MAFI.


                                                                                                          EN 1090

© 2017 MAFI AB. All rights reserved.
50                                                     Rev 1      *Article MAFI 2230/2231/2232/2233/2234/2235




                                                                  Fstrut                             Fstrut




Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Load capacity
Each strut is designed to take a maximum tension/
compression force according to below:
Ø 76 mm tube clamp: Fstrut= 10 kN
Ø 114 mm tube clamp: Fstrut = 15 kN




                                                                               © 2017 MAFI AB. All rights reserved.
51




MAFI 4020
Single
RRU-Mount
—
Designed to provide a secure mounting solution for a
single Ericsson RRU with or withiout PSU. The Single
RRU-mount can also be used in A2 configurations.
Additional features:
•   Tube and wall mounting in the same product
•   Can be used in conjunction with the PSU or the A2 unit.
52                                                        Rev 3                                Article MAFI 4020




MAFI 4020
Single
RRU-Mount




Designed to provide a secure mounting solution for a single
Ericsson RRU with or withiout PSU. The Single RRU-mount
can also be used in A2 configurations.

Flexibility
The mount will fit any round member from
Ø 25 – 114 mm, or any equal-angle or square-section
member from 35 × 35 – 80 × 80 mm. It can also
be used for wall mounting.

Detailed design data                                              RRU with PSU                     RRU with A2
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
4020 or E-order number (SEG): 6000683
Contact information can be found at www.mafi.se.                                                 Content of kit




                                                                             © 2017 MAFI AB. All rights reserved.
Article MAFI 4020                                                    Rev 3                                            53




                                                                                 Parent pole/leg

                                                                                            35 × 35 mm
                                                                                            up to 80 × 80 mm




                                                                                            Ø 25 – 114 mm




                                                                                            35 × 35 mm
                                                                                            up to 80 × 80 mm




                                                                                 Compatible RRU-Models

                                                                                 Ericsson RRU family and other
                                                                                 units with horizontal c/c distance
                                                                                 of 146 mm (5 ¾”).




                                                                                 Tightening torque

                                                                                 Threaded rods M10: 18 Nm
                                                                                 Bolts M10: 41 Nm




Part list
 Parts                                 Material                       Quantity

 Clamps                                S355MC FZV                     2

 Brackets                              S355MC FZV                     2

 Threaded Rods M10                     A4 or 8.8 FZV                  4

 Flange bolts M10                      A4                             4

 Nuts M10                              8.8 FZV                        24

 Washers                               FZV                            16

Package data
 Length (mm)        Width (mm)         Height (mm)     Weight (kg)

 230                210                85              4.3




                                                                                                        EN 1090

© 2017 MAFI AB. All rights reserved.
54                                                           Rev 3                       Article MAFI 4020




                                                                                         Ftransient




                                                                     Fmass




Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Load Resistance
Max equipment weight: 40 kg per equipment fitting
instance (Fmass ≈ 390 N).
An ultimate transient man-load of 2400 N (Ftransient)
is also accepted.




                                                                       © 2017 MAFI AB. All rights reserved.
55




MAFI 4019-*
RRU-Mount
Family
—
Designed to provide a secure mounting solution for
two, three or four Ericsson RRUs, with or without PSU.
The double RRU mount, 4019-2, can also accomodate
a configuration with two A2 units.
Additional features:
•   Easy to assemble RRU in the same level.
•   Three models - Double, triple and quattro.
56                                                        Rev 3              *Article MAFI 4019-2/3/4




MAFI 4019-*
RRU-Mount
Family



                                                                                        MAFI 4019-4




Designed to provide a secure mounting solution for two,
three or four Ericsson RRUs, with or without PSU.
The double RRU mount, 4019-2, can also accomodate
a configuration with two A2 units.

Flexibility                                                                             MAFI 4019-3

The 4019-3 and 4019-4 will fit any round member from
Ø 25 – 114 mm, or any equal-angle or square-section
member from 40 × 40 – 80 × 80 mm.
The 4019-2 will fit any round member from Ø 40 – 114 mm,
or any square-section member from 40 × 40 – 80 × 80 mm.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order                                                                            MAFI 4019-2
To order this kit, please contact MAFI quoting article number:
4019-2 or E-order number (SEG): 6000684
4019-3 or E-order number (SEG): 6000685
4019-4 or E-order number (SEG): 6000686
Contact information can be found at www.mafi.se.




                                                                                     ×2
                                                                                     Content of kit

                                                                  © 2017 MAFI AB. All rights reserved.
*Article MAFI 4019-2/3/4                                               Rev 3                                                57




MAFI 4019-4                                  MAFI 4019-3
                                                                                          Parent pole/leg

                                                                                                 4019-3:
                                                                                                 40 × 40 mm up to 80 × 80 mm
                                                                                                 4019-4:
                                                                                                 40 × 40 mm up to 80 × 80 mm


                                                                                                 4019-2: Ø 40 – 114 mm
                                                                                                 4019-3: Ø 25 – 114 mm
                                                                                                 4019-4: Ø 25 – 114 mm

                                                MAFI 4019-2
                                                                                                 40 × 40 mm
                                                                                                 up to 80 × 80mm




                                                                                          Compatible RRU-models

                                                                                                 Ericsson RRU family and
                                                                                                 other units with horizontal
                                                                                                 c/c distance of 146 mm (5 ¾”)




                                                                                          Tightening torque

                                                                                                 Threaded rods M10:
                                                                                                 18 Nm or 26Nm
Part list                                                                                        Bolts M10: 41 Nm
                                                       Quantity   Quantity     Quantity
 Parts                            Material             4019-2     4019-3       4019-4

 Clamps                           S355MC FZV           4          4            4

 Sheet profile                    S355MC FZV           -          2            2

 Threaded Rods M12                8.8 FZV              4          4            4

 Bolts M10                        8.8 FZV              8          8            8

 Flange bolts M10                 A4                   8          12           16

 Bushings                         S355J2H FZV          4          8            8

 Nuts M10                         8.8 FZV              28         36           36
                                                                                                  4019-2
 Washers                          FZV                  20         24           24

Package data
 Product           Length (mm)         Width (mm)      Height (mm)      Weight (kg)
                                                                                                  4019-3
 4019-2            360                 230             90               5.8

 4019-3            430                 360             60               10.6

 4019-4            810                 260             60               11.5

                                                                                                  4019-4    EN 1090

© 2017 MAFI AB. All rights reserved.
58                                                        Rev 3                          *Article MAFI 4019-2/3/4




                                                                          Fmass                       Fmass

                                                                  Fmass
                                                                                       Fmass




Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Load resistance
Max equipment weight: 35 kg per equipment fitting
instance (Fmass ≈ 345 N).

An ultimate transient man-load of 2400 N is also accepted.




                                                                              © 2017 MAFI AB. All rights reserved.
59




MAFI 4036
Single RRUs
Support
—
Designed to provide a secure mounting solution for one
Ericsson RRU, or two RRUs with the optional Dual RRUs
support expansion, with or without PSU or A2/A3.
60                                                        Rev 1              *Article MAFI 4036/4037




MAFI 4036*
Single RRUs
Support




Designed to provide a secure mounting solution for one
Ericsson RRU, or two RRUs with the optional Dual RRUs
support expansion, with or without PSU or A2/A3.

Flexibility
The support can be used on a range of pole diameters with
or without a PSU or A2/A3 attached to the backside of the
RRU. It can also be mounted on angle irons as well as box
sectional beams. The support is manufactured of high quality
steel with hot dip galvanization treatment.

Detailed design data
Detailed design data for this product                                                  MAFI 4036
can be found at www.mafi.se.                                                           Content of kit

How to Order
To order this kit, please contact MAFI quoting article number:
4036 or E-order number (SEG): 6000826
4037 or E-order number (SEG): 6000827
Contact information can be found at www.mafi.se.




                                                                                  MAFI 4037 Option

                                                                  © 2017 MAFI AB. All rights reserved.
*Article MAFI 4036/4037                                           Rev 1                                             61




                                                                                 Parent pole/leg

                                                                                        35 × 35 mm
                                                                                        up to 80 × 80 mm




                                                                                        Ø 35 – 114 mm




                                                                                        35 × 35 mm
                                                                                        up to 80 × 80 mm




                                                                                 Compatible RRU-models

                                                                                        Ericsson RRUs and other
                                                                                        units with horizontal c/c
                                                                                        distance of 146 mm (5 ¾”)




                                                                                 Tightening torque

                                                                                        Threaded rods M10: 18 Nm
                                                                                        Bolts with bushings M10: 48 Nm
Part list                                                                               Flange bolts M10: 41 Nm
                                                    Quantity       Quantity
 Parts                            Material          4036           4037

 Clamps                           S355MC FZV        4              -
                                                                                 Equipment weight
 Arms                             S355MC FZV        2              2                    Maximum: 40 kg
 Bushings                         S355 FZV          6              6

 Threaded rods M10                8.8 FZV           4              -

 Bolts M10                        8.8 FZV, A4       10             10

 Nuts M10                         8.8 FZV           28             8

Package data
 Product           Length (mm)         Width (mm)   Height (mm)    Weight (kg)

 4036              405                 105          100            5.7

 4037              395                 105          60             1.9

Product options
 MAFI 4037, Dual RRUs Support expansion kit.




© 2017 MAFI AB. All rights reserved.
63




MAFI 6023
Multi ERS
Bracket
—
Brackets for attaching up to four Ericsson ERS equipment
i.e. RRU, PSU and/or filters to a pole in "bookshelf"
or "portrait" position.
Additional features:
•   Allows up to four mountable units.
•   Low weight.
•   Easy installation.
64                                                           Rev 1                     Article MAFI 6023




MAFI 6023
Multi ERS
Bracket




Depending on the size of the Ericsson ERS equipment,
it is possible to attach up to four ERS units (i.e RRU, PSU
or filters) to a pole, either in bookshelf or back to back
position. The individual brackets can also be used when
it is required to mount equipment to a wall. The kit is
delivered with all necessary bolts and nuts for two fitting
instances.

Flexibility
The product can be mounted either as a pair
to a pole from Ø 55 – 114 mm or as singles directly
bolted to a suitable wall.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
6023 or E-order number (SEG): 6000893
Contact information can be found at www.mafi.se.                                         Content of kit

Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that the
supporting structure can safely carry the loads applied to
it by the MAFI product.

Vertical load
Max supported equipment mass (Fmass) = 80 kg total
(40 kg per bracket).
                                                                     © 2017 MAFI AB. All rights reserved.
Article MAFI 6023                                                  Rev 1                                           65




                                                                           ×
                                                                                  Equipment pole

                                                                                         Ø 55 – 114.3 mm




                                                                                  Tightening torque

                                                                                         Flange Bolts M8: 22 Nm
                                                                                         Flange Bolts M10: 20 Nm




Part list
 Parts                                 Material                     Quantity

 Brackets                              HC420LA FZV                  2

 Bushing Nuts M10                      8.8 FZV                      2

 Flange Bolts M10                      8.8 FZV                      2

 Flange Bolts M8                       8.8 FZV                      8

Package data
 Product            Length (mm)        Width (mm)    Height (mm)    Weight (kg)

 6023               215                155           70             1.7

Product options
 MAFI 9748; M8 flange bolts for mounting extra radios.

 Tubes of various lengths and diameter can be ordered from MAFI.




© 2017 MAFI AB. All rights reserved.
67




MAFI 5110
RRU
Support
—
Designed for attaching RRU's to existing cable trays.
Additional features:
•   Flat and lightweight package.
•   Suitable for most cable trays.
68                                                        Rev 3                             Article MAFI 5110




MAFI 5110
RRU
Support




Designed for attaching RRU's to existing cable trays.

Flexibility
The support is delivered as a flat pack and can easily            ×2
be mounted on cable trays of width 200 – 500 mm.                  Content of kit
Self-tapping screws are included.

Quality
The support is manufactured from high quality steel
with hot dipped galvanization.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
5110 or E-order number (SEG): 6000687
Contact information can be found at www.mafi.se.




                                                                          © 2017 MAFI AB. All rights reserved.
Article MAFI 5110                                                     Rev 3                                        69




                                                                                     Parent structure

                                                                                            Width of cable tray:
                                                                                            200 – 500 mm




Part list
 Parts                                 Material                        Quantity

 Support brackets                      DX51D Z350                      2

 Self-tapping screws                   8.8 Fe/ZnNi8P4                  8

 Bolts M10                             A4                              4

 Washers                               FZV                             4

Package data
 Product            Length (mm)        Width (mm)       Height (mm)    Weight (kg)

 5110               540                345              20             3.3

Product options
 MAFI 91103 ; Adaptor plate for Nokia RRH.




© 2017 MAFI AB. All rights reserved.
71




MAFI 1234
RRU Adaptor
Plate
—
To be used when modernizing or expanding
capacity on existing footprint. The plate allows
you to mount one face mounted or two bookshelf
mounted Ericsson RRU's. The plate also allow for
PSU mounting behind the RRU’s.
Additional features:
•   Saves installation time.
•   Support to modernizing old equipment.
72                                                        Rev 1                                  Article MAFI 1234




MAFI 1234
RRU Adaptor
Plate




To be used when modernizing or expanding capacity on
existing footprint. The plate allows you to mount one face
mounted or two bookshelf mounted Ericsson RRU’s.
The plate also allow for PSU mounting behind the RRU’s.

Flexibility
The adaptor plate can be mounted on MAFI products:
4010, 4015, 4020 and the 4019-family. Or on similar brackets
with same footprint.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
1234 or E-order number (SEG): 6000825
Contact information can be found at www.mafi.se.

Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Max supported equipment mass (Fmass) = 35 kg
                                                                  Content of kit




                                                                               © 2017 MAFI AB. All rights reserved.
Article MAFI 1234                                                 Rev 1                                         73




                                                                                 Mountable products

                                                                                        MAFI 4010, 4015, 4020
                                                                                        and 4019 family or on
                                                                                        similar brackets with
                                                                                        the same footprint.




                                                                                 Tightening torque

                                                                                        Bolt M8: 22 Nm
                                                                                        Bolt M10: 40 Nm




Part list
 Parts                                 Material                    Quantity

 Adaptor Plate                         S355MC FZV                  1

 Bolts M8                              8.8 FZV                     8

 Washers M8                            8.8 FZV                     8

 Bolts M10                             8.8 FZV                     4

 Washers M10                           8.8 FZV                     8

 Nuts M10                              8.8 FZV                     8

 Locking Nuts M4                       8.8 FZV                     4

 Washers M4                            8.8 FZV                     4

Package data
 Product            Length (mm)        Width (mm)   Height (mm)    Weight (kg)

 1234               300                300          30             2.4




© 2017 MAFI AB. All rights reserved.
75




MAFI 3115
Antenna
Offset
—
Designed to allow for an RRU to be mounted behind
a panel antenna without any extra equipment pole.
Additional features:
•   Antenna offset without poles.
•   Saves weight and wind load.
76                                                           Rev 4             *Article MAFI 3115/31154




MAFI 3115*
Antenna
Offset




Designed to allow for an RRU to be mounted behind a panel
antenna without any extra equipment pole.

Flexibility
The offset bracket can handle a wide range of tower
and mast leg sections. The bracket fits either directly
against the antenna or tilt brackets if used.
The optional 31154 antenna adapter kit allows mounting
of antennas with 150 mm c/c fixings in the vertical plane.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order                                                                              MAFI 3115
To order this kit, please contact MAFI quoting article number:                            Content of kit
3115 or E-order number (SEG): 6062514
31154 or E-order number (SEG): 6000883
Contact information can be found at www.mafi.se.


                                                                           MAFI 3115 with option
                                                                           31154, antenna adapter kit


                                                                     © 2017 MAFI AB. All rights reserved.
*Article MAFI 3115/31154                                               Rev 4                                      77




                                                                                      Parent pole/leg

                                                                                             Ø 25 – 76.1 mm




                                                                                      Tightening torque

                                                                                             U-bolt M12: 31 Nm




                                                       MAFI 3115




                                                  Option: MAFI 31154




Part list
 Parts                                 Material                         Quantity

 Offset plates                         S355MC FZV                       2

 Clamps                                S355MC FZV                       2

 U-bolts                               A4 or 8.8 FZV                    2

 Nuts and washers                      8.8 FZV and A4                   12

Package data
 Product           Length (mm)         Width (mm)       Height (mm)     Weight (kg)

 3115              250                 150              100             4

Product options
 MAFI 31154; Antenna adapter kit.




                                                                                                        EN 1090

© 2017 MAFI AB. All rights reserved.
78                                                         Rev 4                     *Article MAFI 3115/31154




                                                                                         Mresisting




                                                                   Fwind


Design resistance data
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Vertical load
Max Supported Equipment mass = 50 kg
Ultimate Transient Man-Load = 2.4 kN

Rotational slip resistance
When high side forces can be expected, use the tables below
to check for rotational slip when mounting on a circular pole.
Use ultimate loads and equipment offset to calculate
the applied torque.



Ultimate Torque Capacity per Bracket
Parent Pole ø (mm)                        Torque (Nm)

42.3                                      152

48.3                                      178

60.3                                      230

76.1                                      298




                                                                           © 2017 MAFI AB. All rights reserved.
79




MAFI 4112
Free Stander
Light
—
Designed as a free standing equipment pole
for low wind-load generating equipment such as RRUs
placed in areas of low risk. The 4112 is assembled
on site allowing it to be carried by one man alone in
components weighing less than 25 kg.
Additional features:
•   Small footprint.
•   Everything in the box, including concrete blocks.
80                                                         Rev 2                     Article MAFI 4112




MAFI 4112
Free Stander
Light




Designed as a free standing equipment pole for low
wind-load generating equipment such as RRUs placed
in areas of low risk. The 4112 is assembled on site
allowing it to be carried by one man alone in components
weighing less than 25 kg.

Flexibility
The pole on the free stander light is tiltable up to 6°,
so that the pole will always be vertical.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
4112 or E-order number (SEG): 6062548
Contact information can be found at www.mafi.se.


                                                                        Content of kit



                                                                   © 2017 MAFI AB. All rights reserved.
Article MAFI 4112                                                  Rev 2                                        81




                                                                                  Equipment pole

                                                                                         Ø 60.3 mm




                                                                                  Tightening torque

                                                                                         Threaded rods: 35 Nm
                                                                                         Grub screws: 10 Nm




Part list
 Parts                                 Material                     Quantity

 Steel plates                          S355MC FZV                   -

 Nuts                                  8.8 FZV                      19

 Threaded rods                         8.8 FZV                      3

 Ballast weight                        Concrete                     3 × 20 kg

 Screws M12                            8.8 FZV                      2

 Protective mat                                                     1

 Tube                                  P235TR1 FZV                  1

Package data
 Product            Length (mm)        Width (mm)    Height (mm)    Weight (kg)

 4112               1200               800           340            122




© 2017 MAFI AB. All rights reserved.
82                                                        Rev 2                                  Article MAFI 4112




                                                                  Fwind




Design resistance data                                                    MO
The load limits given in this data sheet apply to the MAFI
product only. The designer should always check that
the supporting structure can safely carry the loads applied
to it by the MAFI product.

Overturning moment
For this free standing structure the critical dimensioning
parameter is the ability to resist overturning moment.
The figures in the table need to be higher than the moment
applied by the ultimate wind loads acting on the pole and
the supported equipment. A stability calculation should be
done in every case - if you need help, please contact MAFI.



Overturning moment table

                                          Overturning
Configuration
                                          moment MO (Nm)

3 concrete blocks of each 20 kg           265




                                                                               © 2017 MAFI AB. All rights reserved.
83




MAFI 4309
Free Stander
Medium
—
Designed to carry antennas and other equipment on
places where a free standing structure is suitable.
Additional features:
•   Optimized for small antennas of 3000 mm.
•   All in one box.
84                                                            Rev 5                     Article MAFI 4309




MAFI 4309
Free Stander
Medium




Designed to carry antennas and other equipment on places
where a free standing structure is suitable.

Flexibility
The ballast in the structure can be varied to suit the wind
load and there’s a lot of space for mounting equipment.
The equipment pole is tiltable up to 6° to so that the pole
can be kept vertical.

Detailed design data
Detailed design data for this product
can be found at www.mafi.se.

How to Order
To order this kit, please contact MAFI quoting article number:
4309 or E-order number (SEG): 6062564                                    Option: 43090,
Contact information can be found at www.mafi.se.                         extra ballast pockets for 4309




                                                                      © 2017 MAFI AB. All rights reserved.
Article MAFI 4309                                                    Rev 5                                                        85




                                                                                           Equipment pole

                                                                                                     76.1 × 2.9 mm


                                                                     ×


                                                                                           Tightening torque

                                                                                                     View mounting instructions.




                                                                                           Ballast blocks

                                                                                                     2 × 4 pcs of
                                                                                                     500 × 500 × 50 mm concrete
                                                                                                     blocks, each 25 kg (only
                                                                                                     included for UK market).




                                                                                           Tilting

                                                                                                     The structure can be
                                                                                                     placed on surfaces that
                                                                                                     have a slope of up to 6°
                                                                                                     from the horizontal plane.
                                                                                                     The equipment pole can
                                                                                                     be tilted to always
Part list                                                                                            stand vertical.
 Parts                                 Material                          Quantity

 Sheet steel parts                     S355MC FZV                        -

 Tube                                  P235TR1 FZV                       1

 Nuts and bolts                        8.8 FZV                           -

 Threaded rods                         8.8 FZV                           -

 Protective mat                                                          1

Package data
 Product             Length (mm)       Width (mm)      Height (mm)       Weight (kg)

 4309                1200              800             400               111

Product options
 Art. no.                              Description

 43090                                 Extra ballast pockets
                                       Corner pockets to increase base width and weight.

 42071                                 Ballast: Concrete blocks
                                       500 × 500 × 50 mm Weight 25 kg/pcs.

                                                                                                                 EN 1090

© 2017 MAFI AB. All rights reserved.
You can also read
Next part ... Cancel
