BigBaler Series Large Square Baler AE50 Awards Kevin Richman CNH Product Portfolio Crop Production and Hay & Forage
Marketing/Business Strategy
Customer's Business Trends Baler Product Trends Environment & Economic
Baling more acres Increased Demand for density More transported hay
Maximum Up Time Greater Productivity BioMass impact on crops
Less available skilled labor Easy to use control systems Increased Cooperatives
Improved efficiencies Crop Flexibility More equipment transport
Equipment
Productivity Capacity Versatility
Customer Demand
SOLUTIONS
Bale Density +5% New Pickup and Feeders Gearbox and Frame Updates
Options and DIA Kits
Smarter. Faster. Stronger.
North America
• BigBaler 330 3x3 bale
• BigBaler 340
3
Smarter. Faster. Stronger. Europe and International • BigBaler 870 • BigBaler890 80 x 90 bale • BigBaler 1270 • BigBaler 1290 4
BigBaler highlights
Modern Styling with One piece
TwinCutter front plastic side shields &
BioMass Ready opening hood to
chopper easier to Reduced Dust gain access to all
install Accumulation moving parts
Large wheel Gearbox strength and
steerable speed increased to 48
tandem axle strokes/min
Monitor offering will
Best in class bale include IntelliView III and
shape and quality IV
Homologation at 2.55m Optional Comfort
to allow up to 60 kph pack:
road speed • Right hand side rails
• Storage box
Increased frame • Water tank
strength
Pickup feeding
Density increase up improvements result in
to 5% increased feed rate due
to higher speed,
Leading Precision Land Management features: stronger tines and
Improved productivity through 1. GPS data logging optional RC cut-out
Higher capacity and denser baling 2. Crop ID tagger clutch
3. Moisture sensing
5
Productivity & Capacity 6
MaxiSweep® Pick up: High Capacity and
Durability
• Both rotor cutter and standard (packer) units have a more durable
structure able to cope with an extended variety of crops.
• Strengthened parts on Standard & Rotor Cutter units: backbone
(torsion improvement), thicker pickup frame sidesheets
7
Pick up: roller windguard
• Suspended roller windguard standard all models.
• Rollerwindguard: multiple position roller for different variety of crops.
Spring loaded suspension
8
Pick up: Special “S” shaped side shields • Improves feeding in difficult conditions, such as silage and corners. 9
Pick up: Transition Plate RC & Flairs
• Rotor Cutter: curved transition plate for improved crop flow at feeder
entrance
• Rotor Cutter & Standard: different shaped flares
Transition plates (Rotor) Flares (STD & Rotor)
10Pick up: Extra Asist for High Capacity feeding
• The use of an active chain driven extra roller between pick up and
rotor/packer has a big impact on increased & constant crop flow to
the feeder channel.
11Main Gearbox
• Increased gearbox speed which brings plunger speed from 42 to 48
strokes per minute
• One part of the High Capacity target
12Drive lines & Flywheel
• Increased gearbox rpm to 48 strokes/min results in increased pick up,
rotor/packer, stuffer and plunger rpm.
+14%
• Flywheel diameter increased to produce more Energy Power.
More energy without dramatic increases in weight and costs
+48%
Flywheel narrow units wide units
Diameter 720 mm 800 mm
BB9000
Weight 234 kg 270 kg
Diameter 776mm (30.55in ) 950mm (37.40in )
BigBaler
Weight 244 (537.93lb ) 265 (584.22lb )
13PTO driveline: higher spec
• Add more durability in pto driveline
• Bondioli: switch from S8 to H8 quality primary & secondary, all
models.
14Shuttle feeder stuffer • Strengthened shuttle feeder to cope with higher feeder speed. 15
Crop holding fingers
• New cropholding finger with new design stop system.
BB9000 BigBaler
16Bale Quality 17
Left/Right indicators - SmartFill 18
Left/Right indicators - SmartFill
• Indicators telling the operator which direction to steer the tractor
based on windrow position.
• IR Sensors located in the pre-compression chamber detect crop flow
Sensors are “counting” crop pieces and providing a delta calculation
• Standard all models
Action indicator
Status indicator
19Density Control – No Matter What 20
Bale chute
• Choose between 2 types of balechute: single piece roller and 2-piece
roller balechute. (configurable)
• Both are able to work in all condition with 2-piece having a ‘gentle
drop’ advantage.
21Ease of Serviceability 22
Knotter cleaning
• A new knotter frame styling allows improved knotter fan cleaning in
the knotter area. Dust and crop debris have a better escape possibilty
which results in improved cleaning.
23Worklights and service lights
• Worklights and service lights reconfigured
• The pick up lights are now 2 LED lights giving an optimum brightness of the pick up
crop flow during work at night.
• Worklights are standard all models/all regions.
• Work and service lights are switched ON/OFF using monitor softkey.
FF option DIA work light button service light button Content
FF "standard worklights pack" X
by constraint in basic unit 1 Service light LHS stuffer X Light + bracket
1 portable light X Light + bracket+cable harness (spiral)
2 working lights at rear machine X 2 lights + cable harness
FF "Service light pack" X
1 service light RHS stuffer X Light + bracket
optional X 2 knotter lights + 1 needle light X 3 lights (knotter & needle) + in-line-relay + brackets+cable harness
X 2 pick up light LED X Light + cable harness
Remark: when using revolving flashlight, the working and service lights are automatically switched off and vice versa.

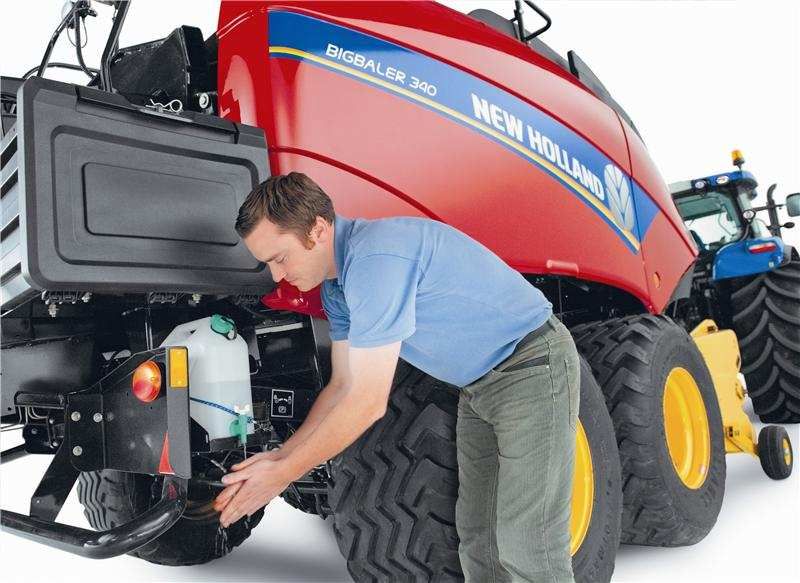

24Optional comfort package
• Contents:
Right hand side service deck railing
Large Toolbox
Watertank for handcleaning purposes
25Service platform deck
• BigBaler offers a flat service deck which eliminates multiple levels
and creates hazardless access and keeps the deck cleaner.
26Service ladder
• Service platform access using a foldable easy magnet lock system for
transport/working mode.
27Shields: accessibility
• Flywheel hood and front side fenders in one piece. Easy opening,
sublime accessibilty. Multiple position opening.
• Side shieldings: dustproof twine storage boxes. One panel only at
each side. No dust/debris falling down when opening.
• Knotter covers: easy opening/closing
28Flexibility – Right Fit For Your Operation 29
Pick up: pick up wheel height adjustment
• Height adjustment of pick-up wheel has been redesigned for easier
operation and storage (accommodaties narrow transport).
Store Pick up wheel only Pick up wheel &
support storage, be
within 2.55m
Pick up wheel storage
30Feeder Channel: Removable liners,
raised feeder floor, Rotor cutter only
• Allows flexibility in different crops :
Silage: use raised floor (liners with erthalon plate)
Cornstalks: remove raised floor

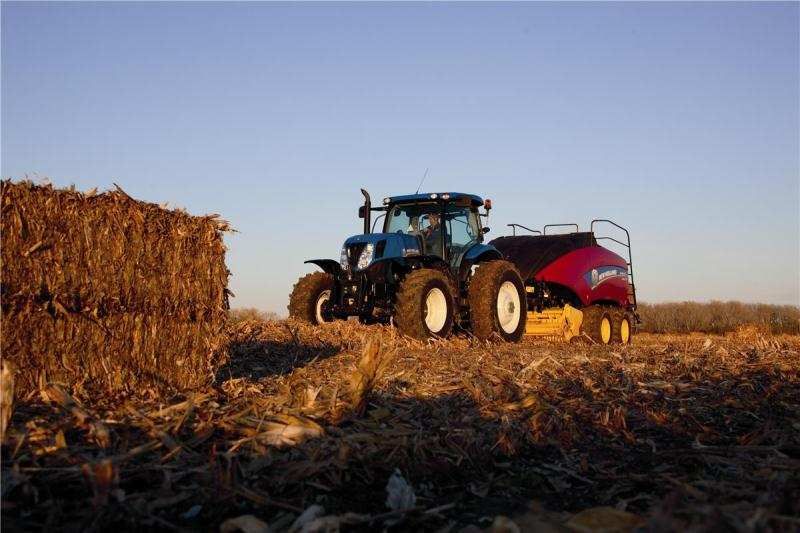

31Stover Baling Made Easier 32
New monitor offering • Introducing Intelliview III and IV • All machines VT ready 33
Camera form & function
• New camera optional kit mounted on on the rear hand rail.
• High quality camera
• Enables 1 camera view
• Intelliview III offers full screen camera
• Intelliview IV offers full screen and small camera view at left hand side.
Advantage: operator can constantly monitor while work using 1 screen!
34GPS logging capability
• In addition to the existing logging (no GPS) capability of current BB9000, it is
now possible to log GPS data onto USB stick.
• With the use of a small converter program, the XML Data can be coverted to
CSV files which can be imported through excell and make readable tables.
• These CSV files can be generic imported with PLM dedicated desktop
software.
• A GPS logging kit (GPS receiver) will be available as DIA kit.
• To enable logging you will need bale length kit or new logging encoder kit.
Serial Number 984889002
Baler type BigBaler 1290
Date Time GPS latitude GPS longitude Job name Crop type Bale CountTotal Cnt Cut
Total Cnt Non
Moisture
Cut Baled meters
Slices per bale
Number knives
Cut? used Cut LengthBale LengthMoisture Bale
Bale weight
Bale Weight
Capacity
Dry Density
dd/mm/yyyy hh:mm:ss (24HR) % m mm m % kg kg Ton/hour kg/m3
18/02/2012 4:10:59 -43.857193 171.878015 zedelgem straw 10173 0 131 262 19 33 No 0 1.96 14 303 286 38.96 151.96
18/02/2012 4:11:30 -43.857727 171.877973 zedelgem straw 10174 0 132 265 20 33 No 0 2.04 15 346 323 41.52 166.43
18/02/2012 4:12:37 -43.85826 171.877913 zedelgem straw 10175 0 133 267 21 33 No 0 1.99 12 325 314 36.56 160.41
18/02/2012 4:13:11 -43.858727 171.877905 zedelgem straw 10176 0 134 269 22 33 No 0 2 13 333 318 42.81 163.48
18/02/2012 4:13:43 -43.859187 171.877878 zedelgem straw 10177 0 135 270 21 33 No 0 1.96 12 289 279 15.53 144.93
18/02/2012 4:14:13 -43.859535 171.877717 zedelgem straw 10178 0 136 273 22 33 No 0 2.02 12 337 325 35.68 163.75
18/02/2012 4:15:11 -43.858773 171.877573 zedelgem straw 10179 0 137 274 21 33 No 0 1.98 13 308 294 34.65 152.78
35Other accessories • Moisture sensor: 2 starwheels principle for accuracy • On-the-go bale weigh system: Provides +- 2% accuracy • Electronic bale length: improved reliability & consistency • CropID tagger: Providing crop identification and data logging • CropSaver: New tank design in line with NH chassis design 36
Twincutter ™
A new way to process crop:
• Offering the frontchopper Twincutter ™ with Müthing as prefered
supplier.
• Provides short cut crop (Flexibility – European Homologation 38
Baler width: 2.55 m width design
• One of the primary and most challenging goals of this project:
develop a baler frame including shieldings that does not exceed 2.55
m width .
• Specific marketing request for France road regulation and expension
to Europe in the future to comply with future road legislation.
• Favorable for Europe shipping/transport purposes.All tire/axle configurations, all models are within 3 m width
Meet safety legislation requirement:
flywheel hood opening
• Flywheel hood interlocking system for opening and closing
flywheelhood
• Prevents opening flywheel hood without using flywheel brakes.
• Fully compliant with ISO/TS 28923, EN15811 and ISO/TS 28924
safety directives
41Meet safety legislation requirement: new
needle & knotter cover lock system.
• Needle lock system engaged from ground level instead of service
platform.
• Locking system locks needle engage mechanism and prevents
opening knotter cover.
• All single axle side shielding plates are locked simultaneously.
(tandem axles have rubber flaps, no locking needed)
• Fully compliant with ISO/TS 28923, EN15811 and ISO/TS 28924
safety directives!
42BigBaler Series Large Square Baler A Design for Capacity New BigBaler - NO SPEED LIMIT Thank You 43
