CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE



CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
CATALOGO PARTI DI RICAMBIO

   SPARE PARTS CATALOGUE




                    Pag. 2                                                         Pag. 4




                    Pag. 6                                                         Pag. 8




                  Pag. 11




                              Aria Wheels Srls
         Registered Office_Via della Divisione Torino, 92 00143 Rome - Italy
       Production Department_Via A.Volta 7/G 36030 Costabissara (VI) - Italy
TEL. / FAX +39 04441322533 | VAT id IT 12848301003 | email : info@ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
CODE / CODICE

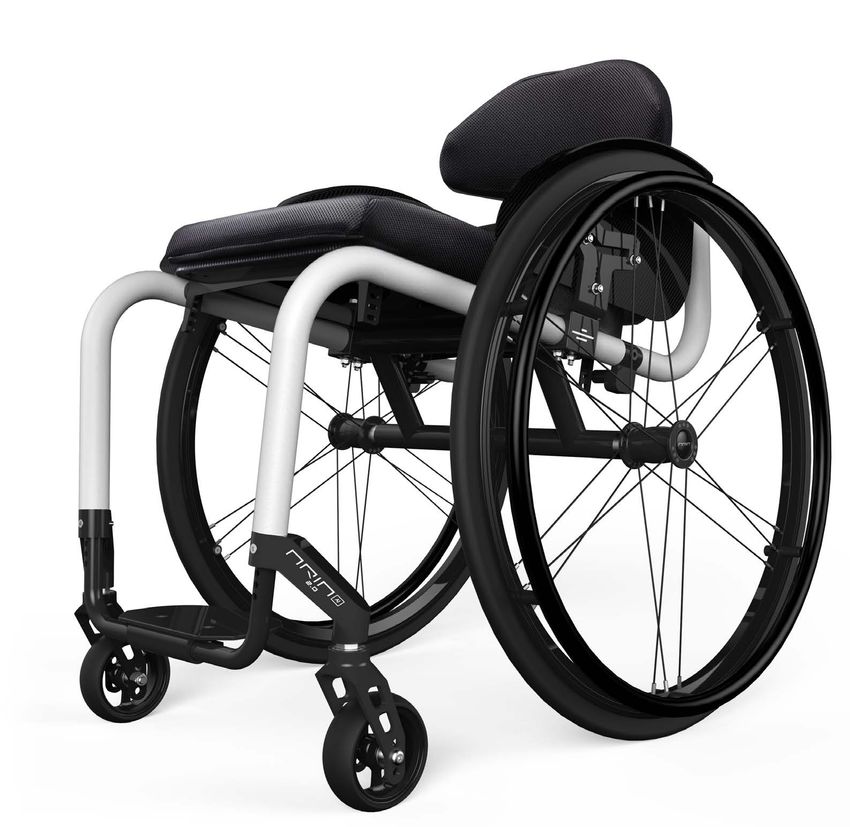

ARIA2_0


                                                                                              4
                                                                                                    REAR SIDE
TYPE / TIPO                                 CLICK ON THE NUMBER TO BE REDIRECTED
PRODUCT / PRODOTTO                          ON THE PAGE OF INTEREST                                 PARTE POSTERIORE

SPARE PARTS / PARTI DI RICAMBIO             CLICCA SUL NUMERO PER ESSERE REINDIRIZZATO
                                            SULLA PAGINA DI INTERESSE




                                                             2
                                                                                         1
                              RIGHT SIDE

                              LATO DESTRO




                                                      3
                                                                                             LEFT SIDE

                                                                                             LATO SINISTRO




ARIA2_0
2 Ver. Feb 2019                                                                               www.ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
BULL40                                              CARB2.3                                 ALCMT9.2                                              ALCMT8
                                                                                        INDICATE THE SIZE




CODE / CODICE
ARIA2_0

TYPE / TIPO
                                    1                                                   2                                       1                                                     1
PRODUCT / PRODOTTO

SPARE PARTS / PARTI DI RICAMBIO
                                    ALCMT18 RIGHT
                                    ALCMT19 LEFT                                        VAR2.1                                  ALCMT9.1                                              ALCMT9


ALCMT44.1                           ALCMT1.1                                            FTRCT1 SW340/360                        FRAME32                                               ALCMT7
                                                                                        FTRCT2 SW380/400


                                          2
                                                                                        FTRCT3 SW420/440/460




 1                                  ALCMT13P SW340
                                    ALCMT13.1P SW360
                                                                                        3                                       3                                                     1
                                    ALCMT13.2P SW380
                                    ALCMT13.3P SW400
                                    ALCMT13.4P SW420
                                    ALCMT13.5P SW440
ALCMT1                              ALCMT13.6P SW460                                    ALCMT46                                 ALCMT30                                               VAR3


ALCMT15                             CRDM5                                               RWHAS.1




 4                                   1                                                  1

VAR1                                CRDM6


                        BOM AND KIT MANAGEMENT

                        ALCMT1      Pom-C Black tube adapter for CG adjustment Mod. 1.0Mg and ULTRA            BULL13       Lock Nut Inox M5
                        ALCMT1.1    Pom-C Black tube adapter for seat pan support                              BULL14       Lock Nut Inox M6 DIN 982
                        ALCMT7      Axle / Frame connection part Sliding bushing                               BULL22       Stainless steel washer outer diameter 12 mm, hole diameter 6 mm
                        ALCMT8      Folding backrest Part 1 thread 15x1                                        BULL38       Hexagon flat head stainless steel screws M6 x 25mm
                        ALCMT9      Backrest folding part 2 stainless steel                                    BULL39       Lock Nut Inox M6 - lowered
                        ALCMT9.1    Spring for backrest folding system                                         BULL40       Rectified bolt TC M6 x 20mm for 2.0 Al and 1.0 Mg - V 19
                        ALCMT9.2    Steel ring for backrest folding system                                     BULL47       Stainless steel screws with hexagonal hollow cylindrical head M4 x 14mm
                        ALCMT15     Clamp for angle adjustment backrests                                       BULL51       Elastic washer for M5
                        ALCMT18     Fixed Junction DX                                                          CRDM5        Lock Nut Black Plastic Cover M5
                        ALCMT19     Fixed Junction SX                                                          CRDM6        Lock Nut Black Plastic Cover M6
                        ALCMT30     Aria 2.0 footrest clamp Al black anodized                                  FRAME32      Black painted footrest Ø18x2 for Aria 2.0
                        ALCMT44.1   Black matte painted sideguards support                                     CARB2.3      Custom carbon fibre seat pan for the products Aria 1.0 and Aria 2.0
                        ALCMT46     Footrest adaptation tubes for Aria 2.0                                     VAR2.1       Seal for carbon fiber elements - seat plate
                        BULL4       Stainless steel screws with hexagonal hollow cylindrical test M5 x 20mm    VAR1         Velcro adhesive 5 cm
                        BULL5       Stainless steel Hexagonal socket head screws M6 x 60mm                     VAR3         Backrest rope 1m
                        BULL8       Stainless steel washer outer diameter 18 mm, hole diameter 6 mm DIN 9021   FTRCT1-3     Footrest cover SW... for Aria 2.0
                        BULL9       Stainless steel washer outer diameter 10 mm, hole diameter 5 mm            ALCMT13P-6   Seating support black painted SW...
ARIA2_0                 BULL12      BOSSARD Hexalobular stainless steel socket head cap screw M5x16            RWHAS.1      Quick release axle 1/2'' L 104mm cap with logo Aria®
3 Ver. Feb 2019                                                                                                                                                                                  www.ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
CODE / CODICE

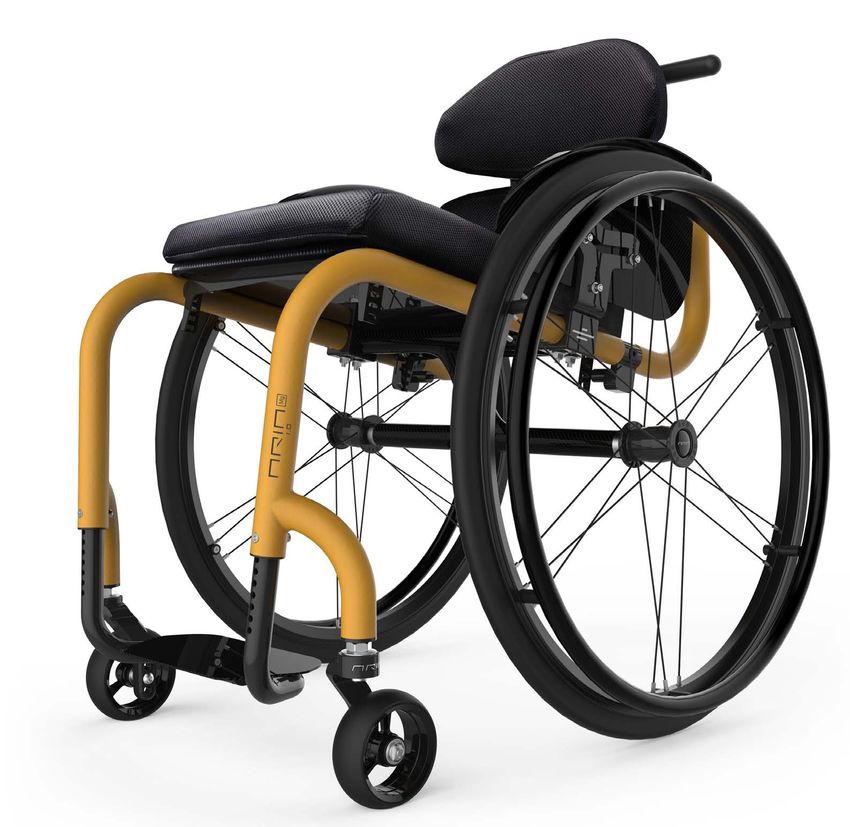

ARIA1_0


                                                                                              8
                                                                                                    REAR SIDE
TYPE / TIPO                                 CLICK ON THE NUMBER TO BE REDIRECTED
PRODUCT / PRODOTTO                          ON THE PAGE OF INTEREST                                 PARTE POSTERIORE

SPARE PARTS / PARTI DI RICAMBIO             CLICCA SUL NUMERO PER ESSERE REINDIRIZZATO
                                            SULLA PAGINA DI INTERESSE




                                                             6
                                                                                         5
                              RIGHT SIDE

                              LATO DESTRO




                                                      7
                                                                                             LEFT SIDE

                                                                                             LATO SINISTRO




ARIA1_0
4 Ver. Feb 2019                                                                               www.ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
BULL40                                              CARB2.3                                       ALCMT9.2                                              ALCMT8
                                                                                        INDICATE THE SIZERE TAGLIA




CODE / CODICE
ARIA1_0

TYPE / TIPO
                                    5                                                   6                                              5                                                    5
PRODUCT / PRODOTTO

SPARE PARTS / PARTI DI RICAMBIO
                                    ALCMT18 RIGHT
                                    ALCMT19 LEFT                                        VAR2.1                                        ALCMT9.1                                              ALCMT9


ALCMT44.1                           ALCMT1.1                                                                                          FRAME59V                                              ALCMT7



                                          6                                                      7
 5                                  ALCMT13P SW340
                                    ALCMT13.1P SW360
                                                                                        FTRCT5 SW340
                                                                                        FTRCT6 SW360
                                                                                                                                       7                                                    5
                                    ALCMT13.2P SW380                                    FTRCT7 SW380
                                    ALCMT13.3P SW400                                    FTRCT8 SW400
                                    ALCMT13.4P SW420                                    FTRCT9 SW420
                                    ALCMT13.5P SW440                                    FTRCT10 SW440
ALCMT1                              ALCMT13.6P SW460                                    FTRCT11 SW460                                 ALCMT43                                               VAR3


ALCMT15                             ALCMT5                                              CRDM5                                         RWHAS.1




 8                                                                                      5                                             5
                                        7
VAR1                                                                                    CRDM6


                        BOM AND KIT MANAGEMENT

                        ALCMT1      Pom-C Black tube adapter for CG adjustment Mod. 1.0Mg and ULTRA                  BULL13       Lock Nut Inox M5
                        ALCMT1.1    Pom-C Black tube adapter for seat pan support                                    BULL14       Lock Nut Inox M6 DIN 982
                        ALCMT5      Footrest Pom-C black bushing for Aria 1.0                                        BULL39       Lock Nut Inox M6 - lowered
                        ALCMT7      Axle / Frame connection part Sliding bushing                                     BULL40       Rectified bolt TC M6 x 20mm for 2.0 Al and 1.0 Mg - V 19
                        ALCMT8      Folding backrest Part 1 thread 15x1                                              BULL47       Stainless steel screws with hexagonal hollow cylindrical head M4 x 14mm
                        ALCMT9      Backrest folding part 2 stainless steel                                          BULL51       Elastic washer for M5
                        ALCMT9.1    Spring for backrest folding system                                               CRDM5        Lock Nut Black Plastic Cover M5
                        ALCMT9.2    Steel ring for backrest folding system                                           CRDM6        Lock Nut Black Plastic Cover M6
                        ALCMT15     Clamp for angle adjustment backrests                                             CARB2.3      Custom carbon fibre seat pan for the products Aria 1.0 and Aria 2.0
                        ALCMT18     Fixed Junction DX                                                                VAR2.1       Seal for carbon fiber elements - seat plate
                        ALCMT19     Fixed Junction SX                                                                FRAME59V     Black painted footrest Ø22x2,5 for 1.0Mg V19 - pair
                        ALCMT44.1   Black matte painted sideguards support                                           VAR1         Velcro adhesive 5 cm
                        BULL2       Stainless steel screw with a cylindrical hexagonal socket head M5 x 30mm         VAR3         Backrest rope 1m
                        BULL4       Stainless steel screws with hexagonal hollow cylindrical test M5 x 20mm          FTRCT5-11    Footrest cover in carbon fibre SW... for ULTRA and Aria 1.0 Mg
                        BULL5       Stainless steel Hexagonal socket head screws M6 x 60mm                           ALCMT13P-6   Seating support black painted SW...
                        BULL8       Stainless steel washer outer diameter 18 mm, hole diameter 6 mm DIN 9021         RWHAS.1      Quick release axle 1/2'' L 104mm cap with logo Aria®
                        BULL9       Stainless steel washer outer diameter 10 mm, hole diameter 5 mm                  ALCMT43      Footrest Clamp for 1.0 Mg and ULTRA
ARIA1_0                 BULL12      BOSSARD Hexalobular stainless steel socket head cap screw M5x16
5 Ver. Feb 2019                                                                                                                                                                                        www.ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
CODE / CODICE

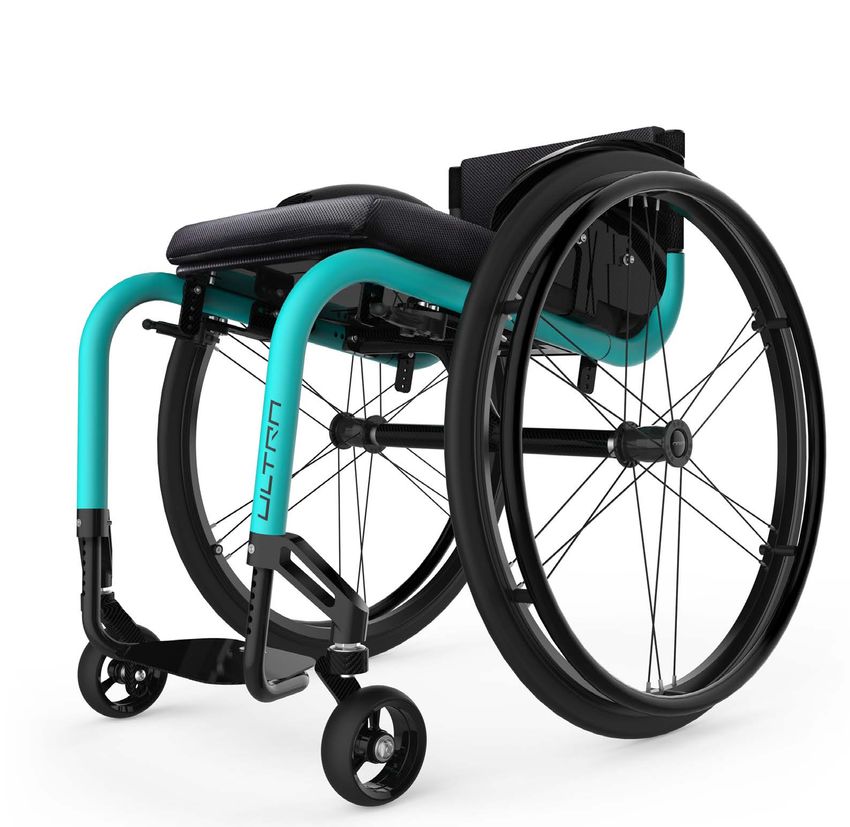

ULTRA


                                                                                               9
                                                                                                     REAR SIDE
TYPE / TIPO                                 CLICK ON THE NUMBER TO BE REDIRECTED
PRODUCT / PRODOTTO                          ON THE PAGE OF INTEREST                                  PARTE POSTERIORE

SPARE PARTS / PARTI DI RICAMBIO             CLICCA SUL NUMERO PER ESSERE REINDIRIZZATO
                                            SULLA PAGINA DI INTERESSE




                                                              11
                                                                                         10
                              RIGHT SIDE

                              LATO DESTRO




                                                     12
                                                                                              LEFT SIDE

                                                                                              LATO SINISTRO




 ULTRA
6 Ver. Feb 2019                                                                                www.ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
IMBOTT15                               CARB.U3                                                   CARB2.4



CODE / CODICE
ULTRA

TYPE / TIPO
                                     9
                                    IMBOTT8 SW340/360 BRH =315mm
                                    IMBOTT10 SW380/400 BRH =315mm
SPARE PARTS / PARTI DI RICAMBIO
                                    IMBOTT12 SW420/440 BRH =315mm                       IMBOTT14


CARB.U2                             ALCMT1                                               VAR2                                   ALCMT41                                                   ALCMT45



                                          11                                                    12
 10                                                                                      FTRCT5 SW340
                                                                                         FTRCT6 SW360
                                                                                                                                12                                                        12
                                                                                         FTRCT7 SW380
                                                                                         FTRCT8 SW400
                                                                                         FTRCT9 SW420
                                                                                         FTRCT10 SW440
CRDM5                               CARB.U1                                              FTRCT11 SW460                          ALCMT43                                                   FRAME46


IMBOTT16                            VAR1.1




 9                                   9

VAR1                                VAR2.1


                        BOM AND KIT MANAGEMENT

                        ALCMT1      Pom-C Black tube adapter for CG adjustment Mod. 1.0Mg and ULTRA           CARB.U1      Carbon fibre Seat support for mod. Ultra
                        ALCMT41    Footrest reducer in Pom C for ULTRA                                        CARB.U2      Carbon fibre Sideguards support for mod. Ultra - Pair
                        ALCMT43    Footrest Clamp for 1.0 Mg and ULTRA                                        CARB.U3      Carbon fibre Brakes support for mod. Ultra - Pair
                        ALCMT45    Footrest connection tube mod. Ultra                                        CRDM5        Lock Nut Black Plastic Cover M5
                        BULL4      Stainless steel screws with hexagonal hollow cylindrical test M5 x 20mm    FRAME46      Black painted footrest Ø18x2 for ULTRA - pair
                        BULL9      Stainless steel washer outer diameter 10 mm, hole diameter 5 mm            CARB2.4      Custom carbon fibre seat pan for the Mod. ULTRA
                        BULL11     Hexalobular socket head cap screw M5x12                                    VAR2.1       Seal for carbon fiber elements - seat plate
                        BULL12     BOSSARD Hexalobular stainless steel socket head cap screw M5x16            VAR1         Velcro adhesive 5 cm
                        BULL13     Lock Nut Inox M5                                                           VAR1.1       Velcro adhesive 2.5 cm
                        BULL31     Stainless steel screw with a cylindrical hexagonal socket head M6 x 16mm   FTRCT5-10    Footrest cover in carbon fibre SW... for ULTRA and Aria 1.0 Mg
                        BULL33     Stainless steel screw with a cylindrical hexagonal socket head M5 x 25mm   VAR2         Seal for carbon fiber elements - backrest and sideguards
                        BULL35     Stainless steel screw head convex hexagon socket M6 x 14mm                 IMBOTT15     Support for the tension belt with eyelet for screw
                        BULL48     Hexagonal socket head screws M5 x 12mm                                     IMBOTT14     Support for the tension belt
                        BULL49     Elastic washer for M6                                                      IMBOTT16     Tension belt with velcro L=55mm
                        BULL51     Elastic washer for M5                                                      IMBOTT8-13   Slightly padded backrest N.....(see the specs in the relating picture)
                        BULL53     Stainless steel Hexagonal socket head screws M5 x 35mm

 ULTRA
7 Ver. Feb 2019                                                                                                                                                                                     www.ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
BULL18                                                       BULL22



   CODE / CODICE
   BKRTA

   TYPE / TIPO
   PRODUCT / PRODOTTO

   SPARE PARTS / PARTI DI RICAMBIO



   VAR2




                                                                                          BKATL1                                                       IMBOTT1
                                                                                          BKATL2                                                       IMBOTT2
                                                                                          BKATL3                                                       IMBOTT3
                                                                                          BKATL4                                                       IMBOTT4
                                                                                          BKATL5                                                       IMBOTT5
                                                                                          BKATL6                                                       IMBOTT6


   BOM AND KIT MANAGEMENT
   VAR2                                            Seal for carbon fiber elements - backrest and sideguards
   BULL18                                          BOSSARD Hexalobular stainless steel socket head cap screw M6x16
   BULL22                                          Stainless steel washer outer diameter 12 mm
   BKTAL1/2/3/4/5/6                                Aria® backrest AT... - Only aluminium shell black painted

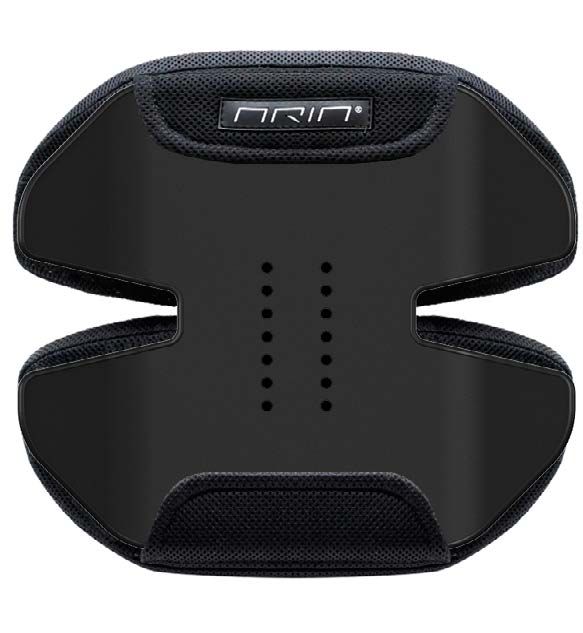

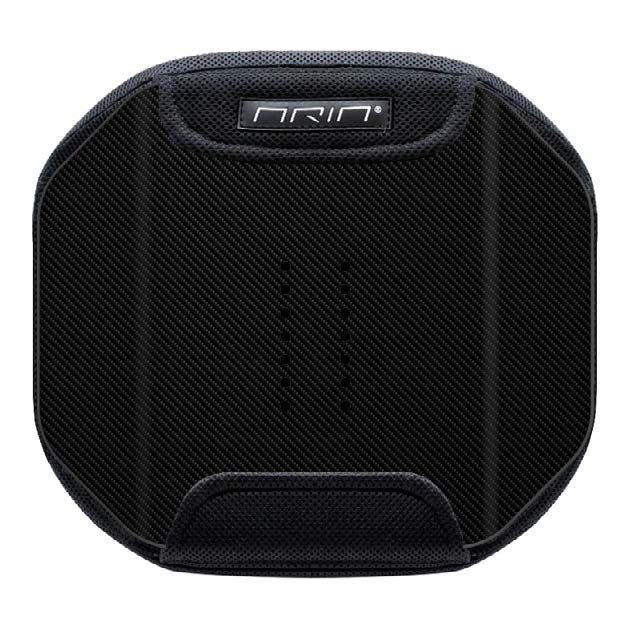

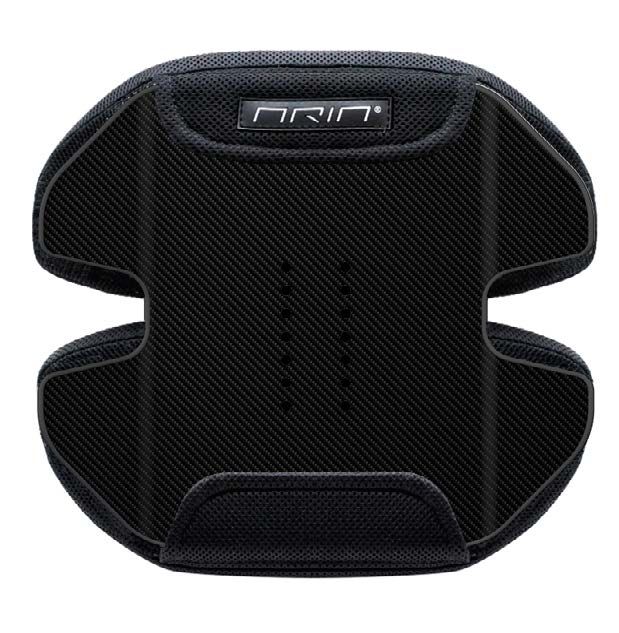

   IMBOTT1/2/3/4/5/6                               Aria® Backrests padding and upholstery for ST... and AT...


                                                                                           AT6= BKATL6                                                                                                      AT3= BKATL3
                                                                                                                                                                                                                                                                   Backrest
                                                                                           AT5= BKATL5                                                                                                      AT2= BKATL2                                     clamp for rigid frame
                                                                                                                                                                                                                                                                  wheelchair
ALTEZZA 340 mm




                                                                                                                                      ALTEZZA 340 mm




                                                                                                                                                                                                                                                           Compatible with all the
                                                                                                                                                                                                           AT1= BKATL1
                 ALTEZZA 280 mm




                                                                                                                                                       ALTEZZA 280 mm




                                                                                           AT4= BKATL4                                                                                                                                                      rigid wheelchairs on
                                                                                                                     14 mm




                                                                                                                                                                                                                                 14 mm
                                  ALTEZZA 220 mm




                                                                                                                                                                        ALTEZZA 220 mm


                                                                                                                                                                                                                                                                 the market.
                                                                                                                                                                                                                                                 ALCMT36




                                                                                                                                                                                         6.2 mm
                                                                       6.2 mm




                                                                                                                             85 mm




                                                                                                                                                                                                                                         85 mm
                                                                                46 mm            36 mm                                                                                            46 mm          36 mm




                                                                                                                                                                                                                                         55 mm
                                                                                                                             80 mm




                                                                                        ACTIVE            140°                                                                                            ACTIVE          140°                                Clamp for angle
                                                                                                                                                                                                                                                           adjustment backrests.
                                                                                                                                                                                                                                                            Compatible with the
                                                                                                                                                                                                               335 mm                                        Aria wheelchairs.
                                                                                                 395 mm
                                                                                                                                                                                                                                                 ALCMT15




                                                                                                                                                                                                                                         70 mm
                                                                                                                                                                                                                         125°
                                                                                                                                                                                                          DEEP
                                                                                                          125°
                                                                                                                             100 mm




                                                                                        DEEP
                                                                                                                                                                                                               295 mm                                         COMPATIBILITY LEGEND / LEGENDA COMPATIBILITA’

       BACK-                                                                                                                                                                                                                                                    ARIA2_0 ARIA1_0 ULTRA    BACK- OTHER
       RESTS                                                                                     360 mm
                                                                                                                                                                                                                                                                                         RESTS BRANDS



 8 Ver. Feb 2019                                                                                                                                                                                                                                    www.ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
BULL18                                                         BULL22



   CODE / CODICE
   BKRTR

   TYPE / TIPO
   PRODUCT / PRODOTTO

   SPARE PARTS / PARTI DI RICAMBIO



   VAR2




                                                           CARB1T1                                                        IMBOTT1.1
                                                           CARB1T2                                                        IMBOTT2.1
                                                           CARB1T3                                                        IMBOTT3.1
                                                           CARB1T4                                                        IMBOTT4.1
                                                           CARB1T5                                                        IMBOTT5.1
                                                           CARB1T6                                                        IMBOTT6.1


   BOM AND KIT MANAGEMENT
   VAR2                Seal for carbon fiber elements - backrest and sideguards
   BULL18              BOSSARD Hexalobular stainless steel socket head cap screw M6x16
   BULL22              Stainless steel washer outer diameter 12 mm, hole diameter 6 mm
   CARB1T1/2/3/4/5/6 Aria® backrest RT... - Only carbon fiber shell
   IMBOTT1/2/3/4/5/6.1 Aria® Backrests padding and upholstery RT...


                                                          RT6=CARB1T6                                                                                          RT3=CARB1T3
                                                                                                                                                                                                                  Backrest
                                                          RT5=CARB1T5                                                                                          RT2=CARB1T2                                 clamp for rigid frame
                                                                                                                                                                                                                 wheelchair
ALTEZZA 340 mm




                                                                                                         ALTEZZA 340 mm




                                                                                                                                                                                                          Compatible with all the
                 ALTEZZA 280 mm




                                                                                                                           ALTEZZA 280 mm



                                                          RT4=CARB1T4                                                                                          RT1=CARB1T1                                 rigid wheelchairs on




                                                                                                                                                                                14 mm
                                                                                         14 mm
                                  ALTEZZA 220 mm




                                                                                                                                            ALTEZZA 220 mm

                                                                                                                                                                                                                the market.
                                                                                                                                                                                                ALCMT36




                                                                                                                                                                                        85 mm
                                                                                                 85 mm




                                                                36 mm                                                                                               36 mm




                                                                                                                                                                                        55 mm
                                                                                                                                                                                                             Clamp for angle
                                                                                                 80 mm




                                                                                                                                                                                                          adjustment backrests.
                                                       140°                                                                                                  140°                                          Compatible with the
                                                                                                                                                                                                            Aria wheelchairs.

                                                                                                                                                                                                ALCMT15
                                                                                                                                                             LARGHEZZA 335 mm
                                                        LARGHEZZA 395 mm
                                                                                                                                                                                                             COMPATIBILITY LEGEND / LEGENDA COMPATIBILITA’

       BACK-                                                                                                                                                                                                   ARIA2_0 ARIA1_0 ULTRA    BACK- OTHER
       RESTS                                                                                                                                                                                                                            RESTS BRANDS



 9 Ver. Feb 2019                                                                                                                                                                                   www.ariawheels.com
CATALOGO PARTI DI RICAMBIO SPARE PARTS CATALOGUE
BULL18                                                BULL22



     CODE / CODICE
     BKRTS

     TYPE / TIPO
     PRODUCT / PRODOTTO

     SPARE PARTS / PARTI DI RICAMBIO



     VAR2




                                                                                          CARBST1                                                  IMBOTT1
                                                                                          CARBST2                                                  IMBOTT2
                                                                                          CARBST3                                                  IMBOTT3
                                                                                          CARBST4                                                  IMBOTT4
                                                                                          CARBST5                                                  IMBOTT5
                                                                                          CARBST6                                                  IMBOTT6


     BOM AND KIT MANAGEMENT
     VAR2                                            Seal for carbon fiber elements - backrest and sideguards
     BULL18                                          BOSSARD Hexalobular stainless steel socket head cap screw M6x16
     BULL22                                          Stainless steel washer outer diameter 12 mm, hole diameter 6 mm
     CARBST1/2/3/4/5/6                               Aria® backrest ST... - Only carbon fiber shell
     IMBOTT1/2/3/4/5/6                               Aria® Backrests padding and upholstery for ST... and AT...


                                                                                         ST6=CARBST1                                                                                        ST3=CARBST1
                                                                                                                                                                                                                                               Backrest
                                                                                         ST5=CARBST1                                                                                        ST2=CARBST1                                 clamp for rigid frame
                                                                                                                                                                                                                                              wheelchair
  ALTEZZA 340 mm




                                                                                                                                       ALTEZZA 340 mm



                                                                                                                                                                                                                                       Compatible with all the
                   ALTEZZA 280 mm




                                                                                                                                                        ALTEZZA 280 mm



                                                                                         ST4=CARBST1                                                                                        ST1=CARBST1                                 rigid wheelchairs on
                                                                                                                       14 mm




                                                                                                                                                                                                             14 mm
                                    ALTEZZA 220 mm




                                                                                                                                                                         ALTEZZA 220 mm

                                                                                                                                                                                                                                             the market.
                                                                                                                                                                                                                             ALCMT36
                                                                                                                               85 mm




                                                                                                                                                                                                                     85 mm
                                                                                               36 mm                                                                                             36 mm




                                                                                                                                                                                                                     55 mm
                                                                                                                                                                                                                                          Clamp for angle
                                                                                                                               80 mm




                                                                                                                                                                                                                                       adjustment backrests.
                                                                                       140°                                                                                               140°                                          Compatible with the
                                                                                                                                                                                                                                         Aria wheelchairs.

                                                                                                                                                                                                                             ALCMT15
                                                                                                                                                                                          LARGHEZZA 335 mm
                                                                                        LARGHEZZA 395 mm
                                                                                                                                                                                                                                          COMPATIBILITY LEGEND / LEGENDA COMPATIBILITA’

         BACK-                                                                                                                                                                                                                              ARIA2_0 ARIA1_0 ULTRA    BACK- OTHER
         RESTS                                                                                                                                                                                                                                                       RESTS BRANDS



10 Ver. Feb 2019                                                                                                                                                                                                                www.ariawheels.com
TYPE / TIPO
  SPARE PARTS / PARTI DI RICAMBIO

  COMPATIBILITY WITH THE PROD-                                                                           Universal                               Universal
                                                                   Backrest
  UCTS / COMPATIBILITA’ CON I PRO-                           support for rigid frame
                                                                                                   backrest clamp Pom-C                    backrest clamp Pom-C                              Brakes Aria® Scissor
                                                                                                   adapter for tube Diam.                  adapter for tube Diam.                                    lock
  DOTTI                                                           wheelchair
                                                                                                          19 mm                                   22 mm
                                                                                                                                                                    BRKASL left
                                             ALCMT36                                   ALCMT36.1                            ALCMT36.2                               BRKASR right




                                                                                                                                                                                                  Wheel Golz
                                                                                                                                                Wheel Black                                   Six-Star with black
                    Brakes Out-Front Push                      Brakes Out-Front                    Brake mounting clamp
                                                                                                                                             with black hub and                                     spokes
                           to lock                               Scissor lock                             ø30mm
                                                                                                                                                black spokes                                  and black anodized
                                                                                                                                                                                                      hub
   BRKOPL left                               BRKOSL left                                                                    RWHAG 24’’                              RWHSG 24’’
   BRKOPL1 right                             BRKOSL1 right                             BRKASL2                              RWHAG.1 25’’                            RWHSG.1 25’’




                                                                 Spinergy® L.
                                                                                                      Wheel Fat Crazy
                          WheelGolz                             Extreme LX 12
                                                                                                       Black Rim and
                     Twin-Star Exchange                        spokes with black                                                              Handrim Black                                     Handrim Silver
                                                                                                    tyre Bob Schwalbe
                      with black spokes,                     hub and spokes color                                                           anodized aluminium                                anodized aluminium
                                                                                                    24x2.35’’ Hub diam.
                     black anodized hub                       custom. - Bearing
                                                                                                          12,7mm
                                                                   12,7mm
   RWHTS 24’’                                RWHAL 24’’
   RWHTS.1 25’’                              RWHAL.1 25’’                              RWHFT                                HDRMB                                   HDRMS




                    Handrim with cover for                                                          Handrim Carbo Life                      Handrim Carbo Life                                Handrim Carbo Life
                                                               Handrim Titanium
                       tetraplegic user                                                                  Curve L                                  Gekko                                            Quadro



   HDRMT                                     HDRMTI                                    HDRCFC                               HDRCFG                                  HDRCFQ

                                                                                                                                                                                   COMPATIBILITY LEGEND / LEGENDA COMPATIBILITA’


                                                                                                                                                                                     ARIA2_0 ARIA1_0 ULTRA    BACK- OTHER
                                                                                                                                                                                                              RESTS BRANDS



11 Ver. Feb 2019                                                                                                                                                             www.ariawheels.com
TYPE / TIPO
  SPARE PARTS / PARTI DI RICAMBIO

  COMPATIBILITY WITH THE PROD-                                 Fork Aria® Double-                        Forks Aria® Single-
                                                                                                                                                        Forks Aria® Single-
                                                                  Sided - black                           Sided fork - black
  UCTS / COMPATIBILITA’ CON I PRO-                             anodized aluminum                         anodized aluminum
                                                                                                                                                        Sided fork - carbon                                Caster 3’’ - Black
                                                                                                                                                            fibre - Pair                                        plastic
  DOTTI                                                              - Single                                   - Pair
                                                                                                                                                              Pin M12
                                                                    Pin M12                                   Pin M12

                                               FRKDS2                                 FRKMNA                                     FRKFC                                          FRWHP3




                       Caster 4’’ - Black                       Caster 5’’ - Black                        Caster 3’’ - Black                             Caster 4’’ - Black                               Caster 5’’ - Black
                            plastic                                  plastic                             anodized aluminium                             anodized aluminium                               anodized aluminium



   FRWHP4                                      FRWHP5                                 FRWH3                                      FRWH4                                          FRWH5

                                                                                                                      +                                                  +                   = ARMRT




                                                                                                         Side guards Carbon                            Black painted standard
                     Caster 4’’ - Ultralight                   Side guards Carbon
                                                                                                           Fiber Fendered                                 / custom armrest                              PU armrest upholstery
                        carbon fiber                             Fiber Rigid - pair
                                                                                                        supplied as spare part                              structure - pair

                                               CARB3 std                              CARB3.11 std                               ARMRT2 std
   FRWC4                                       CAR3.3 custom                          CARB3.12 custom                            ARMRT2.1 custom                                ARMRT4

                                                                              +                                       +                            = PHY                                                                    +            CONTINUE




                        Accessory: Aria®
                                                                                                        Ergonomic handles for
                     custom cushion made                       Black painted push                                                                      Push handle stopping                            Ergonomic handles for
                                                                                                         push bars - 1.0 Mg e
                    of foam with breathable                       hanlded bar                                                                                AL piece                                    push bar - ULTRA
                                                                                                                2.0 Al
                             textile


   IMBOTT7                                     PHY3.1                                 PHY2                                       ALCMT12                                        PHY2.1

                                                                                                                                                                                              COMPATIBILITY LEGEND / LEGENDA COMPATIBILITA’


                                                                                                                                                                                                ARIA2_0 ARIA1_0 ULTRA    BACK- OTHER
                                                                                                                                                                                                                         RESTS BRANDS



12 Ver. Feb 2019                                                                                                                                                                         www.ariawheels.com
+FRAME32   = PHY1                                                                                                                                   +            CONTINUE




  TYPE / TIPO
  SPARE PARTS / PARTI DI RICAMBIO

  COMPATIBILITY WITH THE PROD-                                                              Accesoriy: Aria®               Accessory: Aria®
                                                       Bushing for adjustable
  UCTS / COMPATIBILITA’ CON I PRO-                      push handle mod.
                                                                                             Black cordura                Black cordura under
                                                                                                                                                                             Anti-tipper clamp
                                                                                             Backpack with                seat bag with velcro
  DOTTI                                                       ULTRA
                                                                                            breathable textile                   fabric


                                          ALCMT42                                 BKPY                            USBG                            ALCMT14

  +                                 +                                   +                 = ATPR




                                                                                           Double position lock                                                           Accessory: Calf band,
                     Black cap for tube                Black painted antitipper                                           Accessory: Black calf
                                                                                            for antitipper and                                                             height 6 cm - black
                         diam. 22                               tube                                                          band 9cm
                                                                                           reinforced frame kit                                                                  leather


   TA22D                                  ATPR1                                   ATPR2                           CLFB8                           CLFB6L




                                                                                                                                                                COMPATIBILITY LEGEND / LEGENDA COMPATIBILITA’


                                                                                                                                                                  ARIA2_0 ARIA1_0 ULTRA    BACK- OTHER
                                                                                                                                                                                           RESTS BRANDS



13 Ver. Feb 2019                                                                                                                                           www.ariawheels.com
Next part ... Cancel
