GETINGE AER RANGE A SAFER WAY TO REPROCESS ENDOSCOPES
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
Getinge AER Range | 1 GETINGE AER RANGE A SAFER WAY TO REPROCESS ENDOSCOPES
2 | Getinge AER Range
ENDOSCOPE REPROCESSING
– FAST AND ERROR-PROOF
As the use of endoscopes increases, so does the risk
of infections linked to endoscope reprocessing.
This is indeed an area where “zero tolerance” towards
cross-contamination must be maintained. And at Getinge,
we are convinced that there’s only one way to do this.
Every time we design and develop a new AER, Automated
Endoscope Reprocessor, we need to minimize the risk of
contamination. This range of AERs is no exception.
We built it into the product, and into the workflow around
the products. We applied a system approach, in the way that
we always do at Getinge – the way of thinking that has made
us the world leader in disinfection and sterilization.
The Getinge range of AERs consists of three “error-proofing”
machines – ED-FLOW, ED-FLOW SD and ED900. Each of
them represent a breakthrough for a more all-embracing
approach to infection control in endoscope reprocessing.
Getinge AER Range | 3
4 | Getinge AER Range
TAKE CARE OF YOUR PATIENT WHILE
WE HANDLE YOUR ENDOSCOPES
Here are some of the main features and benefits:
The fastest and most efficient Hands-free operation when loading Optimum traceability, thanks to the
cycles. No other AER can run such and unloading endoscopes. You do RFID, operators and endoscopes are
an extensive program complying with not have to touch any panel or button automatically stored and printed along
national and international regulations, with dirty hands. Open the AER using with the cycle data. And the Getinge
in such a short time – only 23* minutes! the foot pedal, let the RFID choose the software helps to manage all data.
right cycle and the AER starts
automatically.
Two separate chambers in the The pass-through design of the The compact design of the ED900
Getinge AER range, the ED-FLOW is the Getinge ED-FLOW AER allows for a makes the AER easy to integrate in
world’s first true pass-through AER with true physical barrier between soiled existing standard endoscopy suite
two asynchronous chambers – so you and clean sides. Each chamber has department. Only 900 mm wide, you
can have a faster, smarter, more versatile two doors, one for loading and the can fit it in between two normal lab
and more efficient flow of flexible other for unloading the endoscopes. benches.
endoscopes through your reprocessing
department.
* 29 minutes if a second wash phase is required by local regulations.
Getinge AER Range | 5

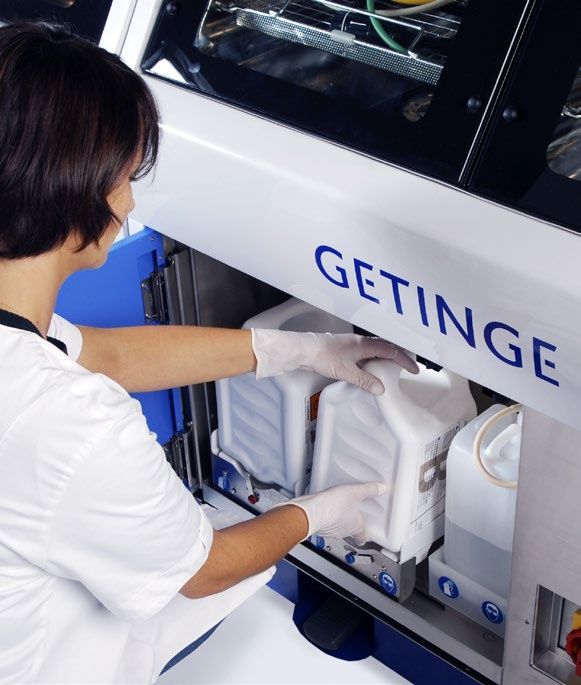

Unique handling of chemicals. The ED-FLOW SD brings first class Installation and service access are
Aperlan Poka-Yoke Agent A & Agent B efficiency when it comes to endos- made easier on the ED-FLOW SD
disinfectant containers can only be cope flow while offering high flexibility thanks to the wheels and the handle.
placed in one way – the right one. Our regarding space constraints in
perforating system leaves no exposure endoscopy suite.
risk to operator whatsoever.
ED900 is also fitted with four wheels to Endoscopes can be prepared on a tray Online access to the Getinge
facilitate handling during installation on a work surface before being loaded connector database. This database is a
and maintenance. into the ED-FLOW / ED-FLOW SD. The direct access to all the connection kits
same tray can be used for transporta- and endoscope families that you can
tion to the point of use and stored in the reprocess in you AER.
Getinge FD8 drying cabinet.
6 | Getinge AER Range
CUSTOMIZED TO YOUR NEEDS
– USING THE SPACE YOU HAVE
PASS-THOUGH CONCEPT
Modern infection control is based on the barrier principle, a clear separation of
dirty and clean areas.
Getinge ED-FLOW AER – a true pass-through solution
The Getinge ED-FLOW AER is a true barrier system, meant to separate the
dirty and the clean areas as a physical barrier. Interlocked doors ensure that
only scopes that have run through a complete and approved cycle can be
unloaded from the clean side. If an error during the process, the AER will only
open up on the dirty side.
DIRT DE
Y S I
SI
D
AN
E
E
CL
Getinge ED-FLOW AER
Getinge AER Range | 7
SINGLE-DOOR CONCEPT
Getinge ED-FLOW SD Getinge ED900
Productivity in endoscopy reprocessing area is key. The A small footprint associated to a large chamber and a
Getinge ED-FLOW SD AER is the solution to combine high high level of performance is what any endoscopy center
productivity and installation compatibility in an existing room. is looking for.
And those features are precisely what Getinge
ED900 AER offers.
Getinge ED-FLOW SD AER Getinge ED900 AER
8 | Getinge AER Range

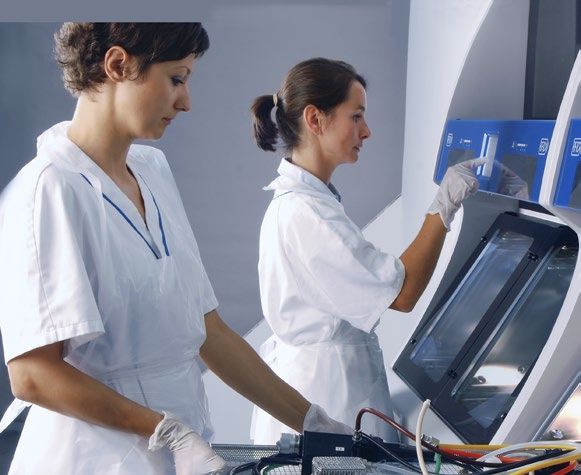

LOAD, START AND UNLOAD
WITHOUT TOUCHING
Just open it with the pedal and let the
radio-frequency sensor register the user
and endoscope ID, and automatically
launch the right cycle. Hands-free
operation – it’s smart, smooth and
failsafe.
Getinge ED900 AER
Getinge ED-FLOW SD AER
Getinge ED-FLOW AER
Getinge AER Range | 9 Infection control is about seeing the whole picture and, as far as possible, ensuring the risk of human errors is eliminated. For example: how can one avoid the situation where a nurse touches a handle, a panel, a start-button or a barcode reader after holding a dirty endoscope and thus leaving micro-organisms waiting to be picked up when unloading the clean endoscope? The answer is: hands-free operation. The first part is basic: a foot pedal After the manual pre-cleaning, the operator presses the pedal to open the AER. No need to touch any handle nor button. After successful decontamination the door can only be opened using the pedal on the clean side. And the best part: RFID identification and automatic start When the operator has loaded the endoscope into the AER, its RFID tag is automatically identified by the machine’s RFID antenna (RFID = Radio-Frequency Identification). The operator also has a RFID tag for automatic user identification. When the foot pedal is pressed, the AER will close the lid/door and automatically choose the right cycle for that endoscope, based on the RFID tag information, and start. Smooth, simple and failsafe This procedure has several benefits. First, it is easy and time saving for the operator. No data to be entered, just load the endoscope and press the pedal. Secondly, it reduces the risk of human errors. Only the correct cycle for that particular endoscope can be used. The AER cannot be started or unloaded without recording the correct user information. It also reduces the risk of cross-contamination. No button to push to open or close the lid, select a cycle, enter user information, start the AER or unload the clean endoscope. It could not be simpler – or safer.
10 | Getinge AER Range
DATA CAPTURING AND TOTAL TRACEABILITY
– TAKE COMMAND OF YOUR ENDOSCOPES
As a clinic or department using endoscopes, the responsibility is normally yours to ensure that important procedure
data is captured and documented. Therefore, you will need an AER with a fail-safe traceability system.
Ideally, an AER captures and stores data automatically and therefore eliminates risks of human error. With a
Getinge AER you can select from two endoscope reprocessing solutions or a combination of the two depending on
your requirements. T-DOC EndoCycle offers data capturing from Getinge AER machines while T-DOC EndoTrace
gives you total traceability throughout the production cycle. With a combination of T-DOC EndoCycle and T-DOC
EndoTrace you thus have the optimal solution to take command of your endoscopes.
An AER that helps you ensure traceability of your endoscopes and you can focus on providing quality care while
spending less time on paperwork. Exactly what you get with an AER from Getinge.
Data Capturing in the endoscope reprocessing unit
With T-DOC EndoCycle you can document and capture
essential process parameters such as endoscope ID, User
ID, selected AER machine number, program type and
detergent/disinfectant exposure.
T-DOC EndoCycle also provides first-level traceability by
linking Patient ID and/or doctor to the disinfection process. In
this way, the history of your endoscopes is documented.
Complete control of your endoscopes with total
traceability
T-DOC EndoTrace offers you enhanced endoscope repro-
cessing enabling you to handle all aspects of endoscope
reprocessing management.
You are ensured total traceability as T-DOC registers
endoscopes and button valves throughout their life-span and
links them to all processes, actions and people they encoun-
ter. Thereby, you always have a documented record that the
correct processes and procedures were followed. In addition,
you always know where your endoscopes are when you
need them.Getinge AER Range | 11 Automatic data collection with RFID tags By using RFID tags, both endoscope and operator are automatically identified, so the correct ID information is collected. The AER control system records cycle number, date, endoscope ID, type of cycle, user ID, cycle start and stop time.
12 | Getinge AER Range
AN EXTENSIVE PROGRAM COMPLETED
IN ONLY 23 MINUTES*
The standard program for the Getinge AERs features continuous ”leak tests”**, four flow tests and three final rinses. It’s
been designed to meet all regulations, including the ones in countries where demands have increased following the
emergence of prion diseases.
No other machine can complete so many phases within such a short time. As a result, the Getinge AERs will complete
a cycle, fully validated, in accordance with the EN ISO 15883-1 and EN ISO 15883-4 standards in only 23 minutes*.
ED-FLOW , ED-FLOW SD & ED900 assure a quick and fail-safe reprocessing of flexible endoscope complying with output
demand.
On top of this, you can save time thanks to the smart ergonomic design of the AERs. Loading scopes is very easy, and
connecting them is really fast. All the time you have a good overview of the chamber, which contributes further to a smooth
and simple workflow.
STANDARD CYCLE DESCRIPTION
PERMANENT ”LEAK TESTS”**
INITIAL
LEAK TEST
FLUSHING
WASHING
AND RINSING
RINSING
DISINFECTION
FINAL RINSING
PURGE
WITH AIR
CHANNEL PATENCY/CHANNEL IRRIGATION TESTS
Initial flush phase Wash phase Extensive rinses Disinfection phase Triple rinses
Removes any Ensures that all Every wash phase is The standard The final rinse uses
pretreatment chemical proteins are removed. followed by a rinse, program features 0.1 µm filtered water
and removes gross Optional 2nd washing plus an extra one – a 5 minutes minimum to guarantee the
contamination. and rinsing phase can for complete removal contact time, perfor- disinfected status
be programmed. of detergent before med at 37°C. of the endoscope.
disinfection.
Special program for clean endoscopes – saves time Programmable thermal self-disinfection program
A shorter 15*** minutes disinfection cycle is available for The self-disinfection program uses thermal disinfection to
processed endoscopes that have been stored too long to reduce risk of contamination. By pre-setting the program
use without renewed reprocessing. To be used according for automatic start, you know that the AER is ready for use,
to local regulations. for example in the morning when you arrive.
* 29 minutes if a second wash phase is required by local regulations.
** Should the endoscope passes the automatic initial leak test, a continuous air overpressure is maintained to protect the endoscope’s internal components.
***15 minutes when only one chamber running. 17 minutes when 2 chambers running.Getinge AER Range | 13
UNIQUE EXTRA SAFETY THANKS TO
THE CHANNEL IRRIGATION SYSTEM
Endoscopes are not like other medical instruments. Disinfecting
them is more complicated due to the complexity of the different
internal channels.
How do you assure that these channels – the inside of which no
one will ever see – have been completely high-level disinfected and
are 100% safe to use on the next patient after each reprocessing
cycle?
How can you be completely sure that each channel is 100%
functional and that there is no obstruction due to bio-film Normal pressure
build-up threatening the scope’s performance? Everything works correctly and the flow is normal.
There is only one way. The unique CVL system (Channel irrigation
Verification Library), which measures each channel separately, and
warns if there is the slightest deviation compared to predefined
values.
High pressure – CVL warns
This is something that other AERs do not offer. And it is priceless
The pressure is high but the flow through the channel is very low.
for those who appreciate peace of mind when it comes to patient Possible cause: obstruction (due to bio-film build-up or damage).
safety.
Here is how it works:
1. The AER compares* the measured pressure to pre-defined
values that have been determined through our partnership Low pressure – CVL warns
The pressure is very low, still the water and chemicals seems to
with the main manufacturers of endoscopes – in order to
flow totally unhindered. Possible cause: the endoscope is not
assure that the cleaning and disinfection of each channel is connected.
correctly performed.
2. During operation, the AER automatically compares the flow
of each channel of each endoscope with the known reference
values. If there is a deviation in the flow rate during the cycle, As decontamination in an AER is
the AER notices it and warns the user by means of an alarm a terminal/final process prior to use
message. on a patient, you have to be absolutely
sure that the disinfection has been
This way, you know that continuous safety is always assured. 100% successful. Thanks to the CVL
The CVL functions as a quality assurance, letting you feel confident system, you can rest assured.
that everything works as it should on a day-to-day basis.
* CVL availability is dependent on the endoscope design14 | Getinge AER Range
EASY TO USE WITH MOST ENDOSCOPES
– CONNECTOR DATABASE ON THE WEB
The Getinge Infection Control Group knows a thing or Easy to connect any type of endoscopes previously
two about safe reprocessing. Being the world leader in identified
disinfection and sterilisation, it is even tempting to claim The Getinge AERs identify the endoscope and display
that we know more about it than anyone. help for the operator on the screen. Also each tube for
So both you and the manufacturer of your endo- the connection of internal channels has a different colour
scopes can rest assured – whatever the type or brand, a to ease the connection. Customised and skillfully
Getinge AER is tested to provide full compatibility and engineered endoscope connection kits are available for
efficacy. usual endoscope models.
Extensive testing of different endoscopes
Each Getinge AER is developed for and extensively
tested with different types and brands of flexible
endoscopes. They handle scopes for, amongst others,
upper and lower GI endoscopy, cystoscopy**, hysteros-
copy**, bronchoscopy and rhinolaringoscopy.
* May vary from country to country.
** Tested according to local regulations.
Page 1 of 1
Endoscope Database
Page 1 of 1 Endoscope manu
facture: Pentax
WIYUYRE
-YOKE AER
Endoscope Database GETINGE POKA Endoscope name
:
l: bronchoscope
FB-15P
Endoscope mode GPY-PEN-A
:
Endoscope family no: 04
e
Poka-Yoke Recip
Karl Storz
Endoscope manufacture:
GETINGE POKA-YOKE AER Customer B
Endoscope name:
ENT 11101-RP
Endoscope model:
Endoscope family:
GPY-STO-A Endoscope Database
01
Poka-Yoke Recipe no:
Page 1 of 1 Getinge Endoscope Database Page 1 of 1
GETINGE POKA
-YOKE AER
Endoscope manu
facture: Fujinon
Endoscope name
: GETINGE POKA-YOKE AER Endoscope manufacture: Olympus
Endoscope mode 67789
l: Endoscope model: duodenoscope TJF-240
Endoscope family coloscope EC-25
: 0DL5 Endoscope family: GPY-OLY-I
Poka-Yoke Recip GPY-FUJ-G
e no: Poka-Yoke Recipe no: 18
11
GPY-SU-01
2 Suction
GPY-B-06
LeakTest GPY-L-01 Biopsy
L 3
GPY-L-04
L LeakTest
1 Biopsy
GPY-B-04 2 Suction GPY-SU-01
2 Suction
GPY-SU-01
3 Biopsy GPY-B-03
3 Biopsy 4 Water See air channel No image found
GPY-B-03
5 Air GPY-WA-02
4 Water
GPY-W-01
6 Auxilliary Channel GPY-AX-03
5
Air
GPY-A-01
L LeakTest GPY-L-03
6 Auxilliary Chann
el
GPY-AX-01
O HandlePlug LFC-S-01
L HandlePlug
GPY-L-02
O HandlePlug
LFC-S-05 ... 2008-10-23
wToConnect.asp?
owToConnect/printHo
.webhotel.tripnet.se/H
http://getingepokayoke
2008-10-23
/HowToConnect/printHowToConnect.asp?...
http://getingepokayoke.webhotel.tripnet.se
http://getingepokayoke
.webhotel.tripnet.se/H
owToConnect/printHo
wToConnect.asp? http://getingepokayoke.webhotel.tripnet.se/QuickSearch/printQuickSearch.asp?ID_E... 2008-10-30
... 2008-10-23Getinge AER Range | 15
The rotating nozzles deliver the washing, disinfection and The endoscope is loaded into the Getinge ED-FLOW AER
rinse fluids at a high pressure in the chamber and on the or the Getinge ED-FLOW SD on a loading tray. You can
exterior of the endoscope. prepare the endoscope on the tray on a work surface and
then easily carry it over to the AER.
Every endoscope channel is individually connected to one The ED-FLOW AER features communication windows over
of the six available snap-on connections, in order to clean each door, to allow visual contact between people on both
and disinfect the internal channels of the endoscope. sides.
A LED panel gives you information about the cycle status at The interlocking doors of ED-FLOW ensure that the
a glance.* endoscope cannot be unloaded unless a complete process
has been successfully carried out.
Getinge ED900 AER features a unique design holder, that It is very easy to connect the channels to the swinging-arm
makes it easier to load the endoscope. By putting some connections module of ED-FLOW and ED-FLOW SD: you
space between the bottom of the chamber and the just swing the module towards you for easy access to the
endoscope, the holder also ensures that the disinfectant connectors.
comes in contact with all external surfaces of the scope.
* Only available on Getinge ED-FLOW AER and Getinge ED-FLOW SD AER16 | Getinge AER Range
A SAFER WAY TO HANDLE DETERGENTS
– NO EXPOSURE AT ALL
We made our AERs extra easy to use in everyday work. And we’ve also
simplified changing detergent and disinfectant containers.
We have made it easier – and much safer. We made it impossible to
make errors – and minimised any exposure to chemicals.
High-efficiency detergent
Each AER from the Getinge range uses the detergent Getinge Poka-Yoke
DLC, which is an alkaline type detergent with well-documented efficiency
for protein and biofilm removal.
The 3-liters containers last for 60 cycles.
APERLAN for best disinfection efficacy
The disinfectant used by ED-FLOW, ED-FLOW SD and ED900, is the
peracetic acid-based APERLAN Poka-Yoke, delivered in two separate
5 kg containers – Agent A and Agent B. The two agents are mixed
directly inside the machine and last for about 85 cycles. APERLAN
Poka-Yoke Agent A & Agent B is used as single shot, i.e. it is not recy-
cled/reused
Disinfectant containers can only be placed in one way
– the right way
Since the bottles of Agent A and B have different shapes, they can only
be positioned in the place allocated for them. No room for human errors.
The containers do not have to be opened
The bottles of Agent A and B are pierced inside the AER. This means
that the operator will not be exposed to any possible health-hazardous
chemicals. Safer for the operator and no chemical fumes in the repro-
cessing room.
Warning when container levels are low
The AERs feature a built-in storage space
The level of detergent and disinfectant is constantly monitored by the control
for the detergent and the disinfectant containers.
system and can be displayed on the operator screen. The system warns The large double door makes it easy
to access the containers and replace them.
if levels are low – no risk of running out of chemicals during a cycle.Getinge AER Range | 17
18 | Getinge AER Range
THE WORLD’S FIRST AERS WITH
TWO ASYNCHRONOUS CHAMBERS
Getinge ED-FLOW AER and ED-FLOW SD are the Getinge ED-FLOW AER: built into the wall
perfect solution for larger endoscopy departments where Getinge ED-FLOW AER is a true pass-through solution – the
you may have to perform high numbers of procedures. They AER is placed into a wall to create a true physical barrier
offer excellent throughput with their two separate chambers between soiled and clean sides. Loading and unloading in
combined with short cycles. For larger reprocessing different rooms is definitely the preferred solution (whenever
departments, it is of course also possible to install several possible) in order to minimize the risk of cross-contamination.
AERs in a row. It has a very small footprint – a depth of only 400 mm on
each side when fitted into a wall – and can be positioned in
many ways in the reprocessing department.Getinge AER Range | 19 Unique asynchronous chambers don’t have to wait until you have two scopes to reprocess With double chambers operating independently, you get a before launching the cycle. better workflow and greater flexibility. Just load the soiled With two separate asynchronous chambers you get a endoscope into one of the chambers as soon as it is ready faster, more versatile and more efficient flow of flexible for decontamination. When the next one arrives, you can endoscopes through your reprocessing department. Into load it directly into the second chamber without having to the bargain you get outstanding infection control and wait for the first endoscope’s cycle to finish, and start the compliance with all the latest standards to give you peace reprocessing. Unlike some other one-chamber AERs, you of mind.
20 | Getinge AER Range
GETINGE ED900 AER – OFFERING UNIQUE
BENEFITS FOR SMALL CLINICS
Widest chamber on the
market and easy connec-
tion system
Integrated and automatic
dosing consumable
system
Wheels for easy handling
and service
Thanks to its compact design ED900 is very easy to
install against a wall in your existing endoscopy room.
Technical maintenance is quicker and effortless thanks to
its four wheels.Getinge AER Range | 21
Glass door for visual
cycle verification
Complete traceability
RFID system.
Built-in thermal
printer
User-friendly interface
- touchscreen panel
This AER offer the widest chamber from the market ”older brothers” Getinge ED-FLOW and Getinge ED-FLOW SD.
Even big endoscope like echoendoscope can be easily and Complete embedded traceability systems with integrated
securely reprocessed without having to suffer any physical printer allows to track and trace all the cycles information. CVL
constraints whatsoever. system proves that every endoscope channel has been
In terms of patient’s safety and quality level for endoscope properly irrigated whatever its complexity. Getinge endoscope
reprocessing, Getinge ED900 AER offers the same features as its database makes connection to the ED900 very handy.22 | Getinge AER Range
ACCESSORIES FOR THE BEST
POSSIBLE WORKFLOW
Getinge offers everything you need to ensure the best possible hygienic workflow in your reprocessing
department. From endoscope connector kits to furniture for a smooth workflow. Here are examples of
accessories available. For more information, please visit www.getinge.com.
5 6
4
1
7
2 3Getinge AER Range | 23
1. Pre-treatment unit 2. Chemical storage trolley 3. Waste trolley
For manual pre-treatment of endo- For storage of 2+2 disinfectant contain- For general waste such as gloves,
scopes before the process. Made of ers and 3 DLC-detergent containers. brushes etc, this trolley is positioned
composite material. The trolley is also lockable to the under the pre-treatment unit for easy
pre-treatment unit for safe storage. access. Foot-pedal opening.
4. Wall rail 5. Chart holder 6. Connector holder system
Made of sturdy extruded aluminium, Mounted on the wall-rail, the swivel Also mounted on the wall-rail, the
the wall-rail serves as a multi-purpose chart holder keeps instruction leaflets connector holder transfers clean connec-
holder. Can be used to contain/ close at hand (connection charts, user tors back to the dirty side for storage
conceal wiring, cables etc. instructions, etc.). and re-use. The connectors are safely
and hygienically transferred in a practical
disposable plastic bag.
7. Clean table
The clean table serves as a worktop for
assembly of processed flexible endo-
scopes. Made of composite material.24 | Getinge AER Range
EASY INSTALLATION AND
COST-SAVING SERVICE SOLUTIONS
Getinge AERs have been design in such a way that they are very easy to
install and service.We also provide you with all the technical and opera-
tional training you might need to use your equipment on a daily basis.
Training can be performed either at your premises or at the Lancer/
Getinge Academy.
Validation of your AER according to the EN ISO 15883-4 standards is
also available to order: Installation and Operational Testing (IOT); Perfor-
mance Qualification (PQ) and routine test (routine test is also performed
according to EN ISO 15883-1).
Equipment you can rely on
Getinge AERs are manufactured in our Center of Excellence in Toulouse.
This site has been manufacturing automatic endoscopes reprocessors for
20 years. It has therefore a broad experience and a well-established
expertise.
We provide you with certified equipment
ED900 , ED-FLOW and ED-FLOW SD are certified to the following norms
amongst others:
• European Machine directive 2006/42/EC and Medical device directives
93/42/EEC
• EN ISO 15883-1 & EN ISO 15883-4 standards
Our connection kits are certified MEDICAL DEVICE CLASS I. They have
been developed so you can connect the main endoscopes of the majors
manufacturer.
Other test performed by an independent laboratory
• Biocidal activity of the APERLAN Poka-Yoke
• Bactericidal, fungicidal, mycobactericidal, virucidal,
sporicidal according to EN or ISO standards on disinfectants
• Bactericidal and sporicidal activity of the disinfectant according to
EN ISO 15883-4 standards
• Cleaning efficacy tests according to ISO 15883-4
• Endoscope disinfection cycle efficacy tests according to
EN ISO 15883-4 standards
• Self disinfection cycle efficacy tests according to
EN ISO 15883-4 standards (including water treatment unit)
* availability of services to be checked locally.Getinge AER Range | 25 TECHNICAL DATA GETINGE ED900 AER GETINGE ED900 AER: GENERAL FEATURES: CONNECTION OF UTILITIES Number of endoscopes: 1 Electrical connections/consumption 230 V -1PH + N 50 Hz Blue-tinted glass lid ✓ Water supply Minimum softened water
26 | Getinge AER Range
TECHNICAL DATA
GETINGE ED-FLOW AER
1969 mm
1909 mm
1100 mm 1200 mm
942 mm
GETINGE ED-FLOW AER:
GENERAL FEATURES: CONNECTION OF UTILITIES
Number of endoscopes: 2 endoscopes in 2 separate chambers. Electrical connections/consumption 400 V 3PH + T + N 50 Hz/60 Hz
Glass doors, true pass-through for building into a wall ✓ Water supply Minimum softened waterGetinge AER Range | 27
TECHNICAL DATA
GETINGE ED-FLOW SD AER
1909 mm 1909 mm
1100 mm
905 mm
GETINGE ED-FLOW SD AER:
GENERAL FEATURES: CONNECTION OF UTILITIES
Number of endoscopes: 2 endoscopes in 2 separate chambers. Electrical connections/consumption 400 V 3PH + T + N 50 Hz/60 Hz
Glass door ✓ Water supply Minimum softened water1922 ENG Rev. 2014.09 · Göteborgstryckeriet · We reserve the right to make technical and construction changes.
Getinge Infection Control is the world leading
provider of solutions for sterile processing in the
healthcare sector. We aim to ensure the highest
quality and safety at the lowest total cost. We offer
complete solutions for a seamless work-flow,
reducing the risk of contamination while helping
healthcare to increase efficiency.
Getinge Infection Control AB
P O Box 69
SE-305 05 Getinge
SWEDEN
Phone: +46 (0) 10 335 00 00
E-mail: info@getinge.com
GETINGE GROUP is a leading global provider of products and systems that
contribute to quality enhancement and cost efficiency within healthcare and life
sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and
MAQUET. ArjoHuntleigh focuses on patient mobility and wound management
solutions. GETINGE provides solutions for infection control within healthcare and
contamination prevention within life sciences. MAQUET specializes in solutions,
getinge.com therapies and products for surgical interventions, interventional cardiology and
intensive care.You can also read
