COMPANY CONFIDENTIAL
1
INVISIO V-Series Gen II
Sales Presentation
Product Marketing
Unparalleled performance
in high-noise environments
COMPANY CONFIDENTIAL
2
INVISIO V-Series Gen II
Unparalleled performance in high-noise environments
The new generation of control units builds on
a strong legacy of products and technology with a
key focus on providing:
• Unparalleled hearing protection in extremely
noisy environments

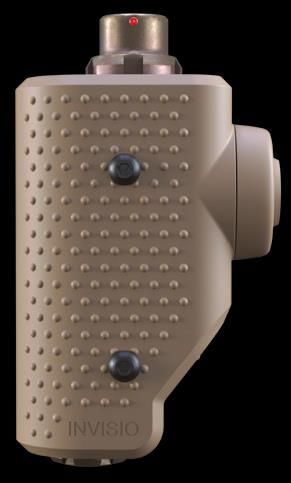

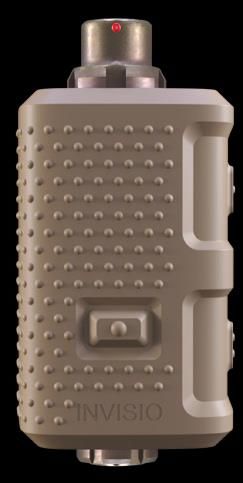

V10 II V20 II
• Improved audio with new digital processing
platform
• More flexible system for limitless configurations
• Enhanced user experience by utilizing voice
COMPANY CONFIDENTIAL
prompts for guidance and VOX functionality
V50 II V60 II 3
INVISIO V-Series Gen II Introduction
A strong legacy for the next generation
The new generation of control units builds on the strong legacy and capabilities of the existing V-Series:
Automatic Start-Up Centralized Power Hear-Thru Control Reduced Multi-Com
Starts with radio No internal battery is Simplified Size and Weight Interface
– no calibration required volume control Reducing the burden From single to tri com
of the user
COMPANY CONFIDENTIAL
Submersible Multi-Headset INVISIO Independent MIL-Standard
to 20 Meters Interface IntelliCable® Audio Streams Compliance
Resistant to water, Adapts to legacy and existing Automatic detection of Up to 6 separate audio Meet MIL-STD 810G & 461F
dirt and sand INVISIO headsets connected comms devices streams
4
INVISIO V-Series Gen II Legacy
Meet the Future of mission critical comms performance
V10 II V20 II V50 II V60 II R30
COM Ports 1 1 2 3 N/A
PTT Buttons 1 2 4 4 2
Wireless PTT Yes Yes Yes Yes Yes
Weight 127 grams 100 grams 167 grams 152 grams 39 grams
COMPANY CONFIDENTIAL
Color Tan or black Tan or black Tan or black Tan or black Tan or black
Immersion 20 meters 20 meters 20 meters 20 meters 20 meters
Internal battery Internal battery
Power From comms From comms From comms
or comms (replaceable)
5
INVISIO V-Series Gen II Product Overview
Unparalleled Hearing Protection and Communication
in Extreme Environments
Mission Adaptive
Fully adaptive to surrounding audio and noise
through intelligent processing.
Market Leading Hearing Protection
Increased protection levels and option of
double hearing protection for high-noise
environments.
Flexible and Intuitive
Intuitive operations with limitless
configurations, making it suitable for all
COMPANY CONFIDENTIAL
scenarios.
INVISIO Audio™
Unparalleled audio performance filtering out
all unwanted noise.
6
INVISIO V-Series Gen II Value Propositions
Mission Adaptive
Volume Control Adapted to the
Surroundings
Volume from received audio is automatically
adjusted to surrounding sound level to
secure uninterrupted and clear
communication.
COMPANY CONFIDENTIAL

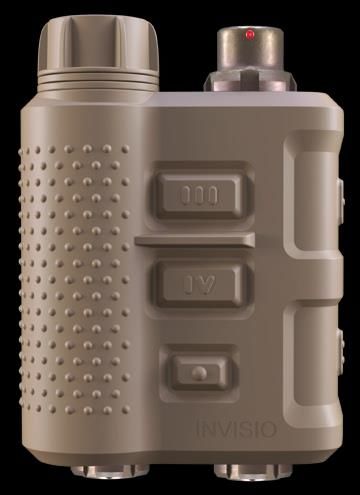

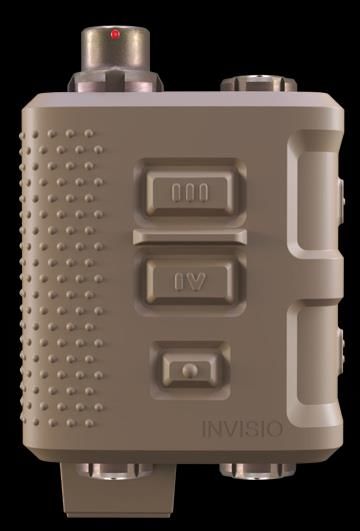

INVISIO V60 II
Tri Com Control Unit
7
INVISIO V-Series Gen II Features
INVISIO Audio™
Improved Auditory Situational Awareness
Advanced algorithms to enhance transition
from noisy to quiet environments and vice
versa.
Removal of Constant Radio Noise (Squelch)
Auto mute of all received audio when not
receiving incoming radio communication.
Improved Noise Reduction
Digital Signal Processing techniques to filter
out unwanted noise and increase voice
quality and intelligibility.
COMPANY CONFIDENTIAL

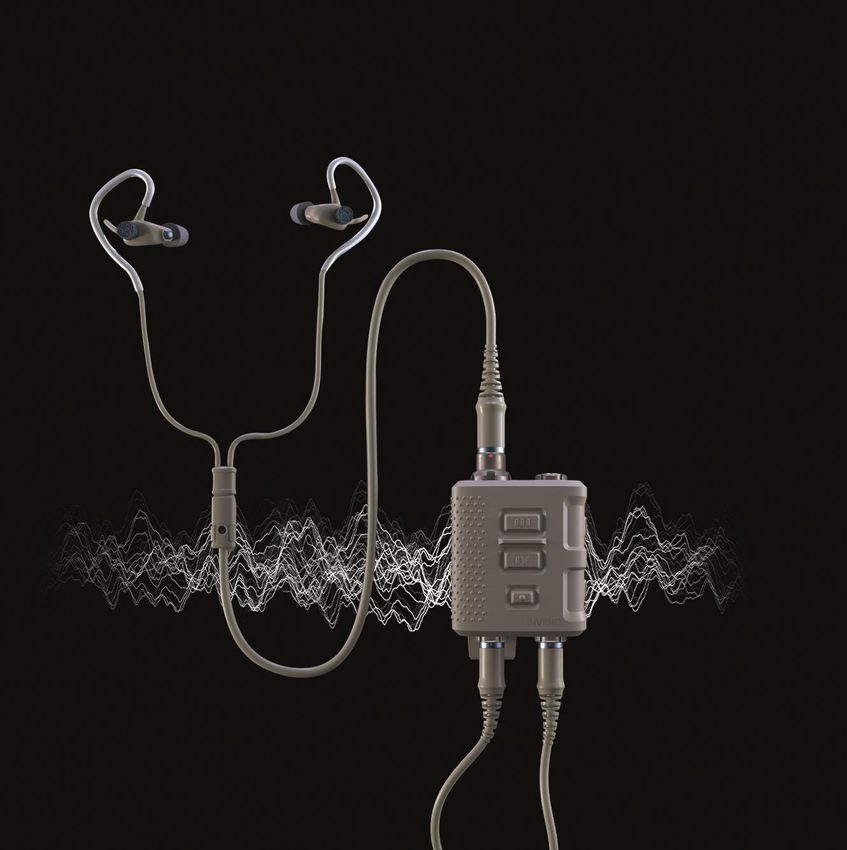

Enhanced Noise Cancellation INVISIO V60 II
Additional noise cancellation is provided by Tri Com Control Unit
utilizing the Bone Conduction Microphone to
further filter out unwanted noise.
8
INVISIO V-Series Gen II Features
Market Leading Hearing
Protection
Audio not Exceeding Predefined Level
Received level of audio from external
sources or own equipment never exceeds
a pre-defined level (Rx output limiter).
Comfort Mode even more Protective
Hear through audio significantly improved
to filter out unwanted noise by 10dB and
increase voice quality and intelligibility.
Double Hearing Protection with
Hear Through
Double hearing protection solution of 42 dB
COMPANY CONFIDENTIAL
SNR / 34 dB NNR with hear through
INVISIO V60 II
capability. Tri Com Control Unit
9
INVISIO V-Series Gen II Features
Flexible and Intuitive
Voice Prompts
Voice prompts to guide the user on enabling
or disabling advanced features or when
pairing with remote PTTs.
Voice Operated Transmit – VOX
Optional built-in VOX functionality allows
speech to transmit without having to key a
PTT.
Enhanced Stereo/Dual Net Support
Control units support dual net on all
COM ports.
COMPANY CONFIDENTIAL
Advanced Wireless Capabilities INVISIO V60 II
Built in Bluetooth to connect the new Tri Com Control Unit
INVISIO R30 Remote Wireless PTT.
10
INVISIO V-Series Gen II FeaturesThe INVISIO system is based on interchangeable
control units, headsets and programmable cables

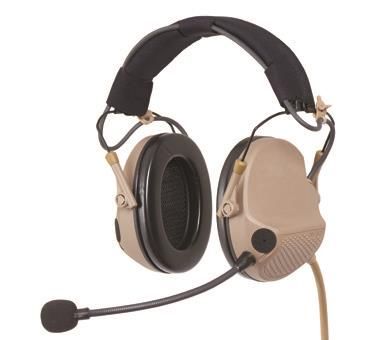

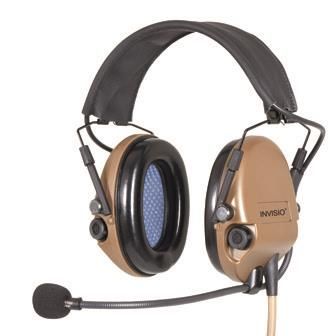

Headsets M3s X5 T5 T7
Style In-The-Ear (ITE) In-The-Ear (ITE) Over-The-Ear (OTE) Over-The-Ear (OTE)
Hearing Protection None 32 dB SNR/29 dB NRR 24 dB SNR 28 dB SNR
(Tx) Microphone Bone conduction Bone conduction Boom Boom
COMPANY CONFIDENTIAL
Size (Earpiece only) 13 x 11 x 24 mm 13 x 11 x 24 mm 84 x 110 x 45 mm 83 x 110 x 49 mm
Weight (Incl. connector) 18 grams 54 grams 360 grams 347 grams
Colour Tan or black Tan or black Tan or black Tan or black
Immersion 20 meters 2 meters 1 meter 10 meters
11
INVISIO Customized SolutionsINVISIO Personal System
Modular and Scalable Adaptable
It is not necessary to change a
INVISIO solutions are versatile, scalable and cost- whole system in order to tailor
effective. Equipment and systems are not restricted a solution to a specific need or
unit.
to serving one team but can be used across
Soldier Diver Parachuter Sniper Special Forces
different scenarios and individual needs.
INVISIO IntelliCable®
Compatible
Plug & Play Hundreds of cables and
adapters are available for
INVISIO IntelliCable® enables all INVISIO equipment comms with cell phones,
to be interchangeable and to integrate to other tablets, intercoms, computers,
sensor/robotic systems, etc. Mine Sweeper Computers Tablets Smart Phones
comms devices. It automatically detects the / Detection
devices and sets all audio and system parameters.
COMPANY CONFIDENTIAL
INVISIO Intercom System
Flexible and Mobile Versatile
The Intercom System bridges
The INVISIO Intercom System enables inter-group the gap between the mounted
communication by plugging their existing and dismounted soldier. Any Ground mobility Helicopters Boats Light mobility
vehicle communications vehicle platform
dismounted system into any vehicle platform is easily integrated.
communication platform.
12
INVISIO Customized SolutionsINVISIO
Tactical Communication and Hearing Protection Systems
COMPANY CONFIDENTIAL
13You can also read
