LINER
COMPLETE EXCLUSIVITY. We have invested all of our passion in developing this vehicle in the upper premium segment. The result is stunning: A technical masterpiece which gives you the space you need for your kind of travel, with furnishings which offer almost unbeatable comfort at the very highest level. All of this and much more make the Liner the best-selling motorhome in its class. Climb aboard and live your dream.
CONTENTS 4 LINER 6 INTERIOR DESIGN 20 TECHNICAL FEATURES 16 FURNITURE LINES 24 FLOOR PLANS 18 LEATHER AND FABRICS 30 PASSION
ROOM FOR LUXURY. ROOM FOR EXPANSION.

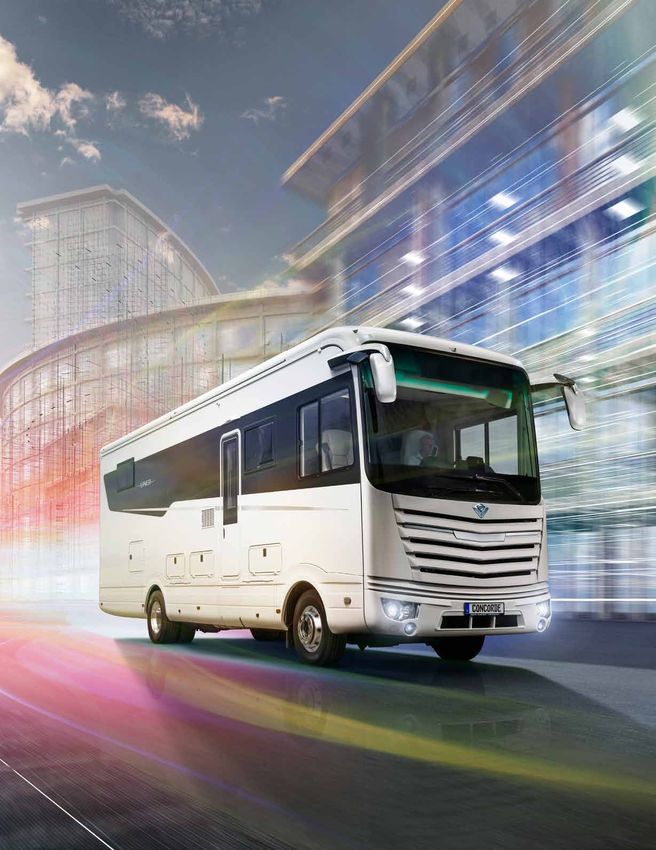

Weighing more than 7.5 metric tons and measuring up to 11.50 meters in length and 2.50 meters in width – the
majestic appearance of the Liner is an impressive sight for all to see. There are two powerful chassis to choose
from: we have based the Liner upon the Iveco Eurocargo and Mercedes Atego, which comes with a reliable
299 HP in-line six cylinder engine. The interior of the Liner is just as stunning, with a perfect combination of
high-end furnishings and maximum use of space. Choose one of the eleven floor plans or let us know what
room layout you prefer – we will make your dream of having your own customised premium vehicle a reality.
LINER | 5
6 | LINER
JUST NO
FALSE MODESTY.

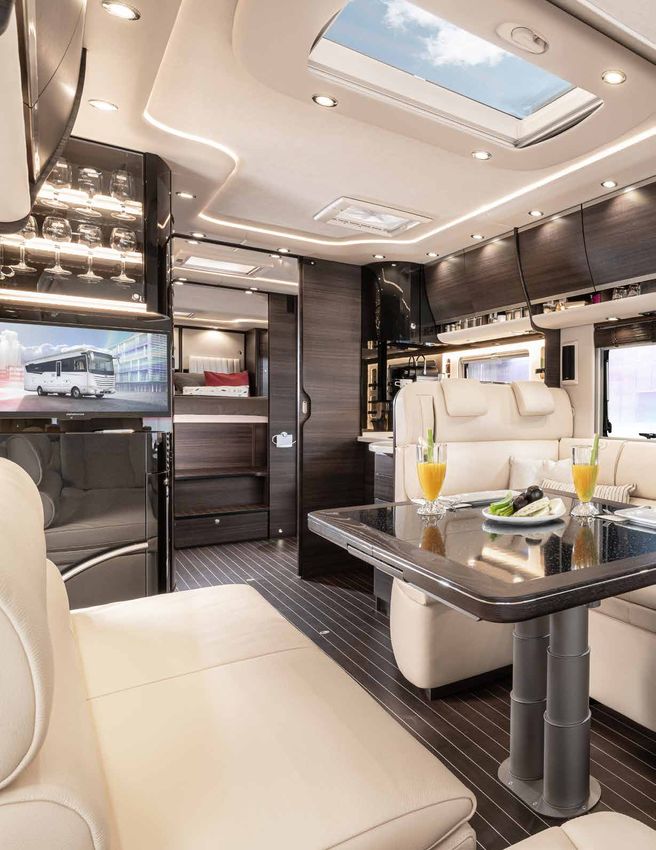

THE LIVING ROOM.
The exquisite interior design ensures travelling in a
Liner will be an unforgettable experience. Surrounded
by beautifully crafted superior quality materials you
will enjoy an almost unbelievable level of comfort
and luxury. The Liner offers three different furni-
ture concepts. As standard, in the high-quality Noce
look with high-gloss overhead locker furniture front
panels with a cream white colour in the living area.
Optionally, the furniture is also available in Atlas Cedar
with overhead locker furniture front panels in Atlas
Cedar with handle bars in stainless steel look or in
Morettini Pear with overhead cabinet furniture front
panels in high-gloss Morettini Pear. There is also an
alternative to these three design concepts, namely
overhead locker furniture front panels in high-gloss
Senosan cream white. For a maximum in walking
comfort, the floor coverings are available as standard
in a ship’s deck look or optionally in a slate look or
in yacht-style.
LINER | 7
FOR CONNOISSEURS.
THE KITCHEN.
The L-shaped kitchen of the Liner is thought through down to the last detail. High-quality kitchen appliances,
spacious cupboards and generous worktops fulfil the demands of even the most ambitious chef. And for
those who prefer to let others do the cooking, simply delight in the sight of the fine décor.
LINER | 9
EVERYTHING YOU COULD POSSIBLY WANT. THE BATHROOM. The bathroom landscape of the Liner resembles that of a five-star hotel. High-quality fittings, a heated towel rail and the large shower all create a uniquely pleasant atmosphere. For a refreshing morning spa programme, for your home away from home.
LINER | 11
OVERSIZED DREAMSCAPE.
THE SLEEPING SPACE.
The berths in the Liner are very generously sized. This also applies to the rear bed variant as well as the pull-
down bed. The bed systems in the spacious rear come with high-quality cold foam mattresses and spring
bases. For a wonderfully relaxing good night’s sleep.
LINER | 13ENJOY THE VIEW. THE DRIVER’S CAB. The modern and functionally designed dashboard with a centrally positioned radio navigation system can be operated both by the driver and the front passenger. The perfectly positioned operating elements, elevated seating position and the large bus mirrors ensure a better overview and safety in traffic. The optional two-tone leather-covered dashboard is integrated into the driver’s cab in an automotive manner and forms a harmonious unit with the newly designed transition into the living area.
LINER | 15
THE FURNITURE
LINES: SHOW STYLE.
THE DESIGN CONCEPTS.
Three different design concepts create gorgeous spatial experiences. The Liner is available in the exquisite
Noce look with glossy cream white overhead locker furniture front panels in the living area. The modern
Atlas Cedar or the classic Morettini Pear looks are also available as options. For Atlas Cedar furniture, the
Atlas Cedar overhead locker furniture front panels are equipped with handle bars in stainless steel look.
Furniture versions in Morettini Pear follow classically elegant lines, the furniture front panels are delivered
in a high-gloss Morettini Pear. The overhead locker furniture front panels are also available in high-gloss
Senosan cream white for all three furniture lines. For a maximum in walking comfort, the floor coverings in
a ship’s deck look, slate look or yacht style are perfectly matched to the respective furniture.
STANDARD DESIGN VARIATION:
ROOF CABINET FRONT: G L O S S Y C R E A M W H I T E
( O N LY L I V I N G R O O M )
BODY OF THE FURNITURE: N O C E
RECOMMENDED FLOOR COVERING: YA C H T O P T I C
OPTIONAL FURNITURE FRONT PANELS:
“HIGH GLOSS” SENOSAN CREAM WHITE
(LIVING AND SLEEPING AREA)
16 | LINERCREATE YOUR OWN PERSONAL CONCORDE.
OUR OPTIONAL FURNITURE COMBINATIONS OFFER YOU THE POSSIBILITY
TO DESIGN THE AMBIENCE ACCORDING TO YOUR OWN LIKING. AFTER ALL,
INDIVIDUALITY IS IMPORTANT TO US.
ROOF CABINET FRONT: A T L A S C E D A R W I T H H A N D L E B A R S ROOF CABINET FRONT: “HIGH GLOSS” SENOSAN CREAM WHITE
I N S TA I N L E S S S T E E L L O O K BODY OF THE FURNITURE: AT L A S C E D A R
BODY OF THE FURNITURE: AT L A S C E D A R RECOMMENDED FLOOR COVERING: YA C H T- S T Y L E
RECOMMENDED FLOOR COVERING: YA C H T- S T Y L E
ROOF CABINET FRONT: M O R E T T I N I P E A R “ H I G H G L O S S ” ROOF CABINET FRONT: “HIGH GLOSS” SENOSAN CREAM WHITE
BODY OF THE FURNITURE: M O R E T T I N I P E A R BODY OF THE FURNITURE: M O R E T T I N I P E A R
RECOMMENDED FLOOR COVERING: S L AT E L O O K RECOMMENDED FLOOR COVERING: S L AT E L O O K
ANTICIPATE MORE INDIVIDUALITY: CHOOSE A FLOOR COVERING TO
MATCH THE FURNITURE AS YOU DESIRE.
LINER | 17EXPRESSIVE AND PERFECTLY HARMONISED. LEATHER AND FABRICS. We offer a large selection of different full leather and microfibre covers; you can see some examples on the right side. All materials are finished with care in selected workshops in accordance with the strictest Concorde quality requirements. They are subjected to an innovative impregnating process so that they maintain their typical properties for as long as possible: Our microfibre fabrics are treated with ConLotus, our leather with Antisoiling Aquaderm X-Shield. Dirt does not stick, liquids roll right off, the look and smooth- ness stay the same. In addition, you can get the seating group with the Redonda seat and back upholstery developed by Concorde on request: It ensures optimum hold, relaxes the spine and protects the lumbar region. C L A S S I C U P H O L S T E R Y: UPHOLSTERY WITH THE REDONDA FOAM LOOK: C A R A M E L FA B R I C / M I C R O F I B R E U P H O L S T E R Y T O F F E E T E X T I L E L E AT H E R 18 | LINER
M A X W E L L FA B R I C / M I C R O F I B R E U P H O L S T E R Y C A R A M E L FA B R I C / M I C R O F I B R E U P H O L S T E R Y
I S L A N D FA B R I C / M I C R O F I B R E U P H O L S T E R Y T O F F E E T E X T I L E - L E AT H E R U P H O L S T E R Y
C O C O L E AT H E R U P H O L S T E R Y S AVA N N E O R B I C O L O U R S AVA N N E / T E R R A
L E AT H E R U P H O L S T E R Y
CREME BEIGE OR BICOLOUR CREME BEIGE/TERRA "MOTHER OF PEARL" OR BICOLOUR
L E AT H E R U P H O L S T E R Y " M O T H E R O F P E A R L " / T E R R A L E AT H E R U P H O L S T E R Y
LINER | 19INTRINSIC VALUES: TECHNOLOGY AND OTHER FEATURES. TOWEL RADIATOR IN BATHROOM The towel radiator provides cosy warmth in the bathroom and the luxury of a warmed towel. Combine this with the floor heating and the bathroom becomes an oasis of spa-like proportions. ROOM ZONE HEATING The multifunctional adjustable hot water heating system creates three different warm areas which can be heated separately from each other: living room, wellness area and bedroom are heated by a thermostatic valve. Heat by every trick in the book in the entire motorhome. JEHNERT SOUND SYSTEM. The Jehnert sound systems are perfectly integrated into the motorhome environment. The system comprises a 3-way speaker in the driver’s cab, a 2-way speaker in the living room, double-bass reflex subwoofer, a sound processor and vehicle-specific frequency crossover. The Hi-Fi systems are made in Germany and are optionally available for the Liner. REAR BED WITH SPRING BASE. In this modern sleeping concept, a sophisticated spring base replaces the slat frame used up to now. A high- quality cold foam mattress and the adjustable headpiece ensure a particularly high level of sleeping comfort. The rear bed with spring base is also part of the standard equipment in the Liner. CONCORDE AIR-CONDITIONING SYSTEMS. For perfect air conditioning, Concorde motorhomes can also be equipped with different air-conditioning systems on request. Depending on the floor plan, roof air-conditioning systems can be combined with underfloor air-conditioning systems. What‘s more, Concorde is the first company in the motorhome industry that has the Premium Comfort Climate Label from Truma. We therefore offer our customers the highest level of cooling comfort. MASTERVOLT. The Mastervolt battery management system monitors the battery charging cycles, ensures perfect utilisation of the storage capacity and prevents deep discharge. The Mastervolt system supports the shore power if the mains connection is weak. It can be controlled using a clear control panel with a battery monitor and is available for all Concorde motorhomes. 20 | LINER
R O O M Z O N E H E AT I N G R O O M Z O N E H E AT I N G
JEHNERT SOUND SYSTEM REAR BED WITH SPRING BASE
CONCORDE AIR-CONDITIONING SYSTEMS M A S T E R V O LT
LINER | 21F R O N T A C C E S S H AT C H DOUBLE FLOOR STORAGE AREA F U L LY I N S U L A T E D F R O N T W A L L A L D E H O T W AT E R G A S C E N T R A L H E AT E R AUXILIARY FRAME FORWARD-LOOKING SAFETY 22 | LINER
FRONT ACCESS HATCH.
Nice and tidy: The service and maintenance area is located behind the front access hatch.
It provides easy access to all essential elements, such as water, oil and light bulbs so they can be easily
checked, refilled or replaced.
DOUBLE FLOOR STORAGE AREA.
The new service flaps on Concorde motorhomes give optimum access to the intermediate floors. This makes
loading and unloading this cross-cut storage space, even with bulky objects such as camping furniture,
significantly easier.
FULLY-INSULATED FRONT WALL.
Exclusivity sometimes begins where nobody can see it: Concorde replaces the partition originally installed
between the engine compartment and the driver’s cab with a separating wall. As such, the vehicle is com-
pletely sealed at the front and optimally insulated (high level of winter suitability).
ALDE HOT WATER GAS CENTRAL HEATER.
Hot water and gas heating from Alde heats the vehicle evenly and thus maintains the natural air humidity.
The temperature can be individually adjusted using the thermostat as well as a timer. Dust swirls – common
with conventional fan heaters – do not occur. The boiler is equipped with electronic cartridges which can
be inserted separately or together with the liquid gas. The Alde system features a non-return valve and
an integrated hot water boiler which supplies all tapping points. It is included as standard in all Concorde
motorhomes.
AUXILIARY FRAME
The auxiliary frame is used to connect the body with the chassis and is the foundation of your motor-
home. Such as the foundation walls which anchor a house on the land. A possibly warp resistant body is
generated in combination with the double floor construction.
FORWARD-LOOKING SAFETY
The emergency brake assistant and the lane departure warning system provided as standard ensure your safety.
The radar system of the emergency brake assistant detects obstacles and intervenes if there is no driver activity,
preventing serious accidents. The camera of the lane departure warning system helps the driver stay in the lane
and warns him/her in a timely manner in the event that the lane is overrun.
LINER | 23UNLIMITED POSSIBILITIES.
THE FLOOR PLANS.
Choose from eight different floor plans with two rear bed and three suite variations. What‘s more, our three
Liner models come with a garage – for even more independence on the go. If you have any other individual
requests, please get in touch.
L INE R 9 4 0 L S
LI NE R 9 9 0 M S
LI NE R 9 4 0 M
LI NE R 8 9 0 L
24 | LINERL INE R 9 9 0 L
L INE R 9 9 6 L
LI NE R 1 0 9 0 M S
LINER | 25
LI NE R 1 0 9 6 M S26 | LINER
Smart 3
LIN E R 9 9 0 G
Fiat 500
LIN E R 1 0 6 0 G M A X
Fiat 500
LIN E R 1 1 3 0 G M A X“ Our customers have dreams and we create the right spaces to make them come true.”
Robi n Sch w a rz e , e m p lo y e e f lo o r p la n p la n n ing
TV
LIN E R 1 1 3 6 G M A X
LIN E R 1 1 4 0 G
LIN E R 1 1 4 6 G
Fiat 500 Fiat 500 Mini Cooper SD Fiat 500 Mini Cooper SD
Fiat Abarth 500 Fiat Abarth 500
(optional) (optional)
LINER | 27SECTIONAL DRAWING
Roof profile made out of aluminium for
channelling rainwater prevents
Heat-bonded special sealing dirt from collecting on the side walls
band
Aluminium alloy
Highly-compressed
PU foam
Adhesion free of
Aluminium alloy
thermal bridges
Ceiling covering
Highly-compressed
PU foam RTM foam
LIVING ROOM
Aluminium alloy
Wall covering
Adhesion free of Flooring,
thermal bridges Baseplate
Floor heating
RTM foam
Highly-com-
RTM foam
pressed PU foam
DOUBLE FLOOR
Highly-compressed
Flooring
PU foam
Aluminium alloy
RTM foam
Adhesion free of Aluminium alloy
thermal bridges
Highly-compressed
PU foam
GRP skirting
28 | CONCORDECABIN CONSTRUCTION
OF THE CONCORDE LINER
When it comes to motorhome construction, Concorde stands for perfect insulation and
excellent stability. The reasons for this are primarily the Solidtherm cabin construction,
completely bonded and free of thermal bridges, with PU rigid foam strips as well as the
side wall insulation with 38 millimetre-strong RTM foam.
But that's not all: The underbody and in-between floors are manufactured in a sandwich
design and equipped with a total of 70 millimetres of insulation. Side coverings, bumpers
and front and rear sections are also made of highly-stable yet elastic fibreglass compos-
ite material.
The high-gloss and level wall surfaces made of aluminium composite make for a
high-quality automobile appearance. And to make sure it stays that way, the aluminium
roof profile strips with the rainwater channels effectively reduce the collection of dirt on
the side walls. A 10-year impermeability warranty against moisture ingress from outside
for the body of the vehicle with annual check in accordance with the Concorde guarantee
conditions.
CONCORDE | 29WE ARE PASSIONATE
ABOUT MOTORHOMES.
THE ESSENCE OF MOBILE TRAVEL.
Concorde is committed to thinking like a manufacturer. We manufacture motorhomes of the highest quality
for the highest demands. Every vehicle is unique, every vehicle is a masterpiece, classically hand-crafted in
a traditional Franconian company, with unwavering passion, enthusiasm and inspiration. Because a passion
for motorhomes is what unites the people at Concorde. And it is that which unites us with you.
