TECHNICAL
SERVICE Technical Study
ASSISTANCE
t e c h n i c a l

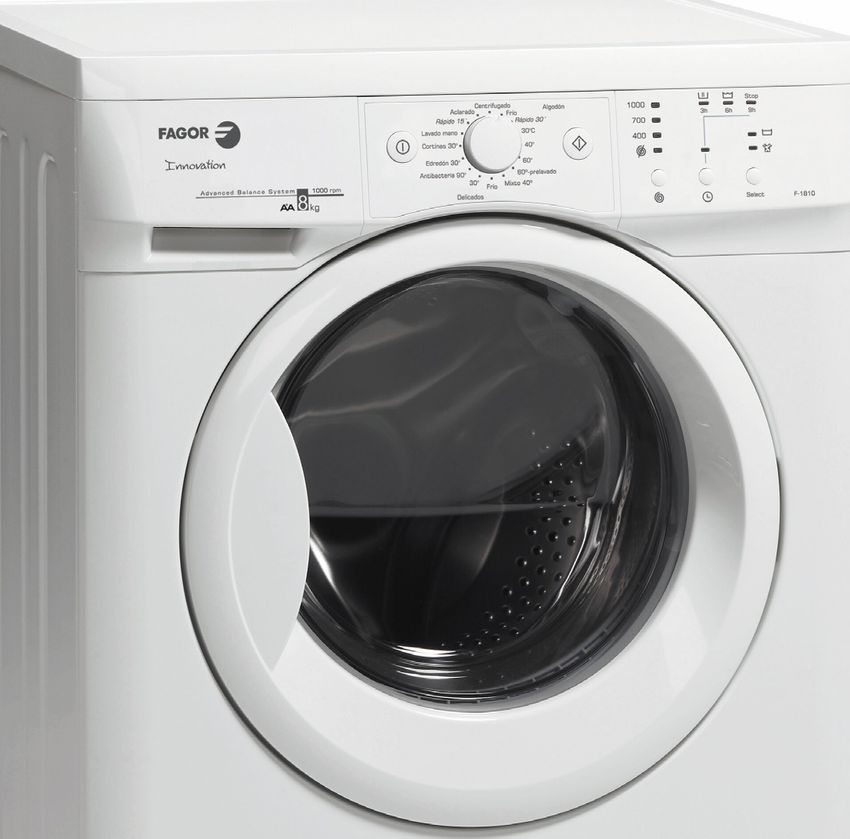

PRODUCT: Washing machines 2007
RANGE: Fagor Innovation 8 kg. (V1)
Date: 25/02/2008
Document No.: 14538t e c h n i c a l
How to use this manual
This document is intended for all persons rendering technical support services (T.S.S.).
It is designed to facilitate the repair of the product described. It provides documentary
support for technical consultations.
This manual contains notes warning about safety issues:
Electrical hazard: This identifies potential risks for the
appliance. Such risks may cause permanent damage to
the appliance.
!
Warning: This identifies information or circumstances
that may cause personal injuries or death.
I
I Important: This identifies information that is critical for
a correct understanding of the product.
© Copyright by Fagor Electrodomésticos S.Coop. 2008. All rights reserved. The total
or partial reproduction of this document, by any procedure and on any type of media,
is prohibited without written authorisation from the holder of the usage rights. Breach
of this copyright will be pursued in conformity with applicable legislation and may lead
to criminal charges.
FAGOR ELECTRODOMESTICOS reserves the right to introduce, without prior
notification, any modifications to the characteristics of its manufactured products.t e c h n i c a l
Table of contents
1.- Warnings and precautions....................................1
2.- Features..................................................................3
3.- Description of operation........................................7
3.1.- General description.............................................................. 7
3.1.1.- Component characteristics......................................................... 7
3.1.2.- Configuration of the V1 circuits................................................ 10
3.1.3.- T.S.S. Programme ....................................................................11
3.1.4.- Washing machine vibrations..................................................... 13
3.1.5.- Spin attempts........................................................................... 16
3.2.- Drawings and diagrams..................................................... 17t e c h n i c a l
Warnings and precautions
1.- Warnings and precautions
The washing machine must be connected to an earth.
! If this basic safety rule is not respected, the manufacturer shall under no circumstances
accept liability for injuries suffered by persons, or for damage to objects.
In order to avoid fire risk, electric shock, personal injury or other injuries when
using the washing machine, take the following precautions:
This washing machine is supplied with a manual that contains instructions on
operation, maintenance and installation. Read all the instructions before using the
washing machine.
Do not wash articles which have been previously cleaned, washed, soaked or treated
with gasoline, dry-cleaning solvents or other inflammable or explosive substances as
they produce vapours that may ignite or explode.
Do not add gasoline, dry-cleaning solvents or other inflammable or explosive substances
to the wash water since they produce vapours which may ignite or explode.
Do not repair or replace any part of the washer, nor attempt any type of service unless
it has been recommended in the manual’s maintenance instructions..
Do not stand or sit on the machine, or lean on the open loading door.
To reduce the risk of fire or electric shock, do NOT use an extension lead or adapter
to connect the washing machine to the mains electricity.
The machine must only be used for what it was designed.
Follow the washing instructions recommended by the manufacturer of the item to
be washed.
Do not start the washing machine until you have made sure that:
• It has been installed according to the installation instructions.
• All of the water connections, drainage, electricity and earthing comply with
local regulations and/or other applicable regulations.
t e c h n i c a l
Warnings and precautions
Specifications plate (Registration plate)
This is situated on the hatch on the front of the washing machine. This plate indicates
the following:
Mains voltage and frequency
FAGOR F-1810 TYPWM-900E3B
Total power COD.905014763 N.080200001
2200W 220-230V-50Hz
10A. 4.9-98N/cm2
NIF ESF20020517
0905014763080200001
Washing machine Month of manufacture
code (9 digits)
Year of manufacture
REGISTRATION PLATE
MAKE AND MODEL TYPE OF APPLIANCE
WASHING MACHINE CODE SERIAL NUMBER
POWER, VOLTAGE AND FREQUENCY CAPACITY
MAINS WATER PRESSURE
OFFICIAL APPROVAL SYMBOLS AND OTHERS
BARCODE
t e c h n i c a l
Features
2.- Features
This range comprises of the following models:
Additional
Drawer for Button Programme Start/pause Spin + flot Time delay
functions
detergent ON/OFF selector button button button
button
Stop
1000
3h 6h 9h
700
400
A dvanced B alance S ystem 1 0 0 0 rpm
AA
+
8 kg Select
Wash programmes
For washing machines manufactured after 1st of May 2007
PROGRAMMES V1 circuits
NORMAL DELICATE FABRICS SPECIAL
1 Normal cold 7 Delicate Mixed 40ºC 10 Antibacterial 90ºC
2 Fast 30ºC 8 Delicate cold 11 Eiderdown 30ºC
3 Normal 30ºC 9 Delicate 30ºC 12 Curtains 30ºC
4 Normal 40ºC 13 Hand wash
5 Normal 60ºC 14 Quick (15 minutes)
6 Pre-wash 60ºC 15 Rinses
16 Spin
LB6W302A1 Circuit
t e c h n i c a l
Description of operation
Spin
The wash options must always be selected after selecting the wash programme.
Any change to the programme carried out during
the selection cancels the options which were 1000
Stop
previously selected.
3h 6h 9h
700
400
a) Spin selection button. The selected programme
has an associated spin speed in revolutions per
minute, and the corresponding spin speed pilot light Select
turns on.
b) To change the speed, press the spin button 1000
Stop
3h 6h 9h
repeatedly, and the appropriate pilot light will 700
light up. 400
c) Skip spin option. Press the spin button once
more to reach the skip spin option. This programme Select
is used to prevent creases from forming in special Stop
fabrics, as it has no final spin.
1000
3h 6h 9h
700 Stop
1000
3h 6h 9h
400
700
400
Select
Select
Time delay option
Time delay selection button
Stop
A delay of up to 9 hours may be selected. The 1000
3h 6h 9h
delay must be selected after choosing the wash 700
400
programme. To select the time delay in hours,
choose 3, 6 or 9 hours.
Cancel time delay Select
To cancel the delay, press the time delay button until the pilots indicating the delay
go off. Changing to another programme also cancels the delay.
Start
a
Start/Pause button
a) To start the washing machine you must press the
start/stop key.
t e c h n i c a l
Description of operation
Additional functions
Button for selecting additional functions according to programmes.
There are 2 options: anti-crease and intensive wash.
Stop
1000
Press the button to display the required option. 700
3h 6h 9h
400
By pressing several times, you can choose
between various combinations of one or two
additional functions at the same time, depending
on the chosen programme.
Select
Key: Anti-crease
This stops at the final rinse, leaving the clothing floating in water. When the function is
deactivated, the washer continues the programme, draining and spinning.
This is used when you are not at home, for example, to delay the spin until you have
arrived so that creases are not caused by the clothes being spun and then left in
the drum.
Key: Intensive Wash
This option, specially recommended for very dirty or stained garments, gives better
results by lengthening the wash cycle.
Programme progress
When the programme is running, the pilot lights indicate the
a current programme phase.
Any option button may be selected, as long as the
wash phase in which it takes effect has not passed,
Stop
1000
3h 6h 9h
and when the programme permits that option. 700
400
Pressing the delay button during the wash has no
effect on the washer.
Pressing the Start/Pause button during the wash
Select
puts the washer in the PAUSE state.
Important: If, during the wash cycle, the programme is changed using the selector,
the washer is left in the PAUSE state, and the programme is canceled. To add or
remove an article, press the start/pause button and make sure that the water is not
above the door overflow level, and that the interior temperature is not high. Press the
start/pause button again to re-start the washer from the same phase of the cycle in
which it was stopped.
t e c h n i c a l
Description of operation
Power failure
When the supply returns after a power failure, the washer continues to work as normal,
from the point at which it stopped (its memory lasts a few hours).
The same thing happens if the ON/OFF button is pressed.
Warnings
To reduce the noise level of the spin cycle: use the adjustable feet to level the washer.
Aim to wash clothes of different sizes in the same wash programme, for a better
weight distribution in the drum when spinning.
All the models have a spin cycle safety system, which prevents them spinning if the
distribution of the clothes in the drum is very uneven. This prevents excessive vibration.
If at any time the clothes have not been correctly spun, spread them out more evenly
in the drum, and spin again.
t e c h n i c a l
Description of operation
3.- Description of operation
3.1.- General description
3.1.1.- Component characteristics
Component Function Features
Motor Used in machines Voltage: 220 v / 50 Hz
1250 RPM with variable spin, Stator resistance: 1.3 Ω
and makes rotating Rotor resistance: 1.7 Ω
movements when Tachogenerator resistance:
washing and spinning. 184 Ω
Motor power supply: Tachogenerator voltage:
- Clockwise, power 1.2 v / 1,000 rpm
220 V., contacts 2
4(%2-)#
and 3. Bridge between
02/4%#4/2
contacts 5 and 6.
2
- Anti-clockwise, power
4' 34!4/2
220 V. , contacts 3
and 5. Bridge between
contacts 2 and 6.
4(%2-)#
Double field motor Used in machines Voltage: 220 v / 50 Hz
02/4%#4/2
4'
1400 RPM 2 with variable spin, Stator resistance: 3.3 Ω
34!4/2
and makes rotating Rotor resistance: 2.46 Ω
movements when Tachogenerator resistance:
washing and spinning. 90 Ω
Motor power supply:
- Clockwise, power
220 V, contacts 4
and 5. Bridge between
contacts 3 and 6.
4(%2-!,
02/4%#4/2
- Anti-clockwise, power
2 4(%2-!,
34!4/2 4' 220 V, contacts 4
and 6. Bridge between
02/4%#4/2
contacts 5 and 3.
2 34!4/2 4'
Door lock Opens hatch lock. Voltage: 220 v / 50 Hz
16 Amp.
Delay of between 40 and
75 seconds.
t e c h n i c a l
Description of operation
Component Function Features
Door lock with Hatch closing
instant opening Manual opening for use
in case of electricity
supply failure
Recirculation pump Recirculates the water Voltage: 220-240 v / 50 Hz
in the drum for greaterDrainage pump resistance
wash effectiveness 170 Ω
and reduced Recirculation pump
programme times resistance 180 Ω
Both have a thermal
protector
Power 30 W
Double connectorised Allows water intake in Voltage: 220-240 V /50 Hz
electrovalve the pre-wash, wash and Power: 5 W
rinse phases Flow: 6.7 litres / minute
EV1 pre-wash orange Pressure: 0.5-10 kg / cm²
connector Resistance: R1=R2=R3=
EV2 wash black 3.7K Ω
connector 3/4 Thread Gas
EV1 + EV2 additive 12mm conduit diameter
intake
Pressure switch The pressure gauge Level 1
is activated in the 102 / 72 ± 3
following conditions:
- When the wash level Overflow safety device
reaches 12 litres. (11-12) 310 ± 10
- When the level 12
exceeds 33 litres
(overflow), the drainage 11
pump is activated 14
(safety). (11-16)
- The rinse level is 16
performed according
to the time of the 11 Common
12 Water inlet
microprocessor of the 14 Heating
electronic card. 16 Overflow
t e c h n i c a l
Description of operation
Component Function Features
Heating resistance Heating element Resistance: 26.4 Ω
+ thermofuse Material: Austenitic
incorporated into the stainless steel
element itself Power: 2022 W
Voltage: 230 v
Thermofuse cut-out
temperature165ºC NTC ≤ 30ºC variable
resistance value 9786 Ω
V1 electronic circuit Power and display Voltage: 220 v / 50 Hz
circuit Important: It is necessary
to configure the circuit
before starting the machine.
(follow configuration
instructions)
t e c h n i c a l
Description of operation
3.1.2.- Configuration of the V1circuits
Stop
1000
3h 6h 9h
700
400
A dvanced B alance S ystem 1 0 0 0 rpm
AA
+
8 kg Select
1. ON/OFF switch turned off.
2. Press the Start/Pause button and keep it pressed.
3. Press ON/OFF button until the STOP LED lights up.
4. While still holding down the Start/Pause button, press the spin button until the
Wash, Rinse, and STOP LEDS light up. Then immediately release the Start/Pause
button and spin buttons at the same time.
5. Press the spin button once, and the circuit configuration LEDS will light up (must
match the sticker attached to the body of the tray).
6. To change the configuration of:
* Speed: press the speed button until the LED or LEDs match the sticker.
* Cold water: Press the time delay button. The LED must be off.
* RH: press the Select button until the Flot and Intensive LEDS light up.
7. To confirm the configuration, press the Start/Pause button until the Skip Spin Option,
Time Delay and Select LEDs start to flash.
CONTROL PANEL BARCODE REFERENCE
10t e c h n i c a l
Description of operation
3.1.3- T.S.S. Programme
Stop
1000
3h 6h 9h
700
400
A dvanced B alance S ystem 1 0 0 0 rpm
AA
+
8 kg Select
1. ON/OFF switch turned off.
2. Press the Start/Pause key and keep it pressed.
3. Press ON/OFF switch until the STOP LED lights up.
4. While still holding down the Start/Pause button, press the spin button until the
Wash, Rinse, and STOP LEDs are lit up. Then immediately release the Start/Pause
button and spin buttons at the same time.
5. Press the spin button once, and the circuit configuration LEDs will light up (must
match the sticker attached to the body of the tray).
6. To confirm the configuration, press the Start/Pause button until the Skip Spin Option,
Time Delay and Select LEDs start to flash.
The circuit then carries out the T.S.S. programme and the wash LED lights up.
LED SELECTION MODE TIME (APPROX.)
WASH Water intake via Pre-wash Electrically-operated valve + 10 sec.
Movement of wash motor at 55 rpm
RINSES Emptying + Spin 5 min.
STOP Water inlet via the electrically operated valve for Washing Pressure switch
until wash level is reached level
EXTRA The element starts to heat up until it reaches 40ºC + 40ºC
RINSE Intermittent recirculation - 90 sec. not activated and 30 sec.
activated
INTENSIVE Water input via pre-wash, wash and softener electrically- 5 sec.
operated valves + Recirculation
Drainage Pump 30 sec.
11T.S.S. programme fast forward function: Press the start / pause button to move to another step in the programme without first having to finish the step.
t e c h n i c a l
SAFETY FAULTS ACTIONS RESET (Security end)
MECHANISMS
FILLING EV activated for 8 min The machine stops with the door lock activated All options are reset if:
and without water 1.- Power is lost (unplugged or ON/OFF)
Wash and rinse LEDs flashing 2.- Selector position is changed
3.- If, when the programme finishes, the start button is
pressed
DOOR OPEN - Washing machines with instant-opening door lock: IN USER PROGRAMME All options are reset if:
At the beginning of the programme, the circuit detects that the door is not closed STOP (Programme end) 1.- Power is lost (unplugged or ON/OFF)
2.- Selector position is changed
- Washing machines with PTC door lock: 3.- Door is closed
If the door lock is without power for
8 seconds the fault is displayed (IF THE CIRCUIT IS IN A SPECIAL PROGRAMME
Wash and STOP LEDs flashing, alternating (AP_01, AP_01, REP_01 OR SAT) IN RESET IT
RETURNS TO STATUS A)
EMPTYING EB ON 6min. STOP (Programme end) All options are reset if:
and PN ON (full). Rinse and STOP LEDs flashing 1.- Power is lost (unplugged or ON/OFF)
Fault modes description table
2.- Change of position of the selector
OVERFLOW The fault is displayed:
If the pressure switch detects that the washing machine is too full
If the pump connector is broken or is not connected
12
Wash, rinse, STOP and intensive wash LEDs flashing
NTC NTC in short circuit or open circuit The programme ends without heating the water
Wash, rinse, STOP and spin LEDs flashing
DOES NOT ß < 5°C/15min.
HEAT UP (Except in reliability program)
Wash, rinse, STOP and SKIP spin (0) LEDs flashing
MOTOR Tachogenerator failure, motor blocked STOP (Programme end) The same as the previous ones but with the door lock
- The wash programme is stopped for 120 seconds activated
- The error counter starts counting Door lock always activated
- If the error counter counts 3 faults, the error code F08 is displayed
- When the stop time is exceeded, the programme begins again
If the error does not occur in the next 20 seconds the error counter is reset. The
programme stops (in any instance) and starts again in the same position. If the error
occurs in the spin phase the programme will start the whole spin sequence again from
the start.
This error returns to the initial conditions if the error is reset.
Wash, rinse, STOP and Flot LEDs flashing.
MOTOR The drum rotation direction does not change until the motor stops
INVERSION (max. time 2 min.)
FAULT Wash, rinse, STOP and extra intensive rinse LEDs flashing
WARNING CHECK ACTION RESET
UNBALANCED If an imbalance is detected when it makes 18 attempts to spin or during 15 minutes The washing machine spins at the lowest The fault is reset in the following way:
of attempts revolution 1.- Cutting off the power (unplugged or ON/OFF)
Wash and rinse LEDs flashing and STOP alternating 2.- Change selector position
Description of operationVERY DELICATE SPIN SEMI-DELICATE SPIN DELICATE SPIN SUPER SPIN SPIN PLUS
t e c h n i c a l
SEC. ANTI-CLOCKWISE
SEC. SEC. CLOCKWISE SEC. SEC.
• Wash vibrations
NON-DETECTION
OF OVERFLOW AREA
T.S.S. SPIN FLOT SPIN (maximum time 2 hours)
NORMAL SPIN
13
SEC. SEC.
3.1.4.- Washing machine vibrations
SEC.
EXTRA SPIN
SEC.
Description of operationt e c h n i c a l
Easy iron
• Spin vibrations
NORMAL SPIN AND EASY IRON/WASHING MACHINES E2002 MACHINE MODEL
RPM
selector
EASY IRON PHASE 0 EASY IRON PHASE 1 EASY IRON PHASE 2 EASY IRON PHASE 3
14
IMBALANCE TEST 1 and 2 IMBALANCE TEST 1 and 2 IMBALANCE TEST IMBALANCE TEST
Description of operationMACHINE MODEL
t e c h n i c a l
NORMAL SPIN PHASE 0
Step 7
Normal spin:
Step 6
Step 5
15
Step 4
IMBALANCE TEST 1, 2, 3
Step 3
Step 2
Step 1
Step 0
RPM Selector Settings
SEC.
According to programme
Description of operationt e c h n i c a l
Description of operation
3.1.5.- Spin attempts
If the washing machine detects the unequal balance of clothes in the spin cycle it will
follow this process:
The total number of attempts to start spinning is 20, divided according to these criteria.
In the first 6 attempts, the maximum unbalanced limit allowed is 550 g.
Between the 7th and 18th attempts the maximum unbalanced limit allowed is 800 g
and the final speed is less than the nominal speed, for example a washing machine
of 1,200 rpm will spin at 1,000 rpm.
For the 19th and 20th attempts, the maximum unbalanced limit allowed is 1,500 g,
and the final spin speed will be 650 rpm, except in washing machines with a nominal
speed of 700 rpm, which will spin at 400 rpm.
These attempts to reposition the clothes in the drum will increase the total programme
time by 20 minutes.
The LCD screen will display CO3. This is not considered a fault, it merely warns the
user about the security measure the circuit has detected.
If an imbalance is detected in the rinse phase the number of attempts will not exceed 3.
In 8 kg washers dating from after 01/11/2007, the number of imbalance correction
attempts is reduced by half (9 attempts).
16t e c h n i c a l
Description of operation
3.2.- Drawings and diagrams
17t e c h n i c a l
Description of operation
E.V.3 HOT WATER
E.V.1 PRE-WASH
E.V.2 WASH
PRESSURE SWITCH
FILTER
RESISTANCE
FUSE
AMA–GREEN
DOOR LOCK AMA–GREEN
RECIRCULATION
PUMP
DRAIN
PUMP
MOTOR
18© FAGOR ELECTRODOMESTICOS, S.COOP. 2008 Bº San Andrés, s/n 20500 Mondragón (Gipuzkoa) España (Spain)
You can also read
