TOWN OF JUPITER PRESENTATION: JUPITER PARK DRIVE RIGHT TURN LANE

TOWN OF JUPITER
             PRESENTATION: JUPITER PARK DRIVE RIGHT TURN LANE
                                IMPROVEMENTS
                   DATE:    03/02/2021
                   TO:      Honorable Mayor and Members of Town Council
                   THRU:    Matt Benoit, Town Manager         MB
                   FROM:    Thomas V. Driscoll, P.E., Director of Engineering, Parks & Public
                            Works
                   SUBJECT: PRESENTATION: JUPITER PARK DRIVE RIGHT TURN LANE
                            IMPROVEMENTS

EXECUTIVE SUMMARY:
Town Staff will be providing an update and presentation on the Town’s design project for eastbound
right turn lane improvements at Central Boulevard.

The Town commenced design on this project in late January of 2019. In retrospect, the original scope
which envisioned a relatively simple turn lane improvement to provide additional eastbound right turn
storage, along with an improved maintenance condition at the intersection of Jupiter Park Drive has
become more complex due to the presence of underground utilities and an existing canal.

A status update on the design plans and project are as follows:

90% Roadway and Landscape Plans:
We have provided copies of the most recent roadway and landscape plans, which are at the 90%
phase. We have received approval for the improvements from the South Florida Water Management
District. As the project did not enter into the County Right of Way, a permit from the County was not
required. To discuss the 90% plans for what started out as a relatively simple scope of work, we now
have to step back into the earlier design and plan development stage of this project.

When 30% plans were completed and reviewed, it became evident that an existing ditch on the south
edge of the Town’s right of way was in fact a canal as defined by the Florida Greenbook. Based on the
roadway design speed and the distance from the outside edge of the through travel lane to the top of
the canal, our design would need to provide shielding of the canal by the use of a guardrail or
longitudinal barrier. This would prevent an errant vehicle from becoming submerged if it were to enter
or flip over into the canal.

To address this hazard, during the development of 60% plans, we considered both W-beam guardrail
and a cable barrier system. Unfortunately due to location in the right of way to an existing Loxahatchee
River Environmental District (LRECD) 30 inch force main (FM) and TECO gas main, both guardrail
posts and cable support posts would be either over or in close proximity to these lines, with the FM
being more difficult to relocate. While the cable system offered a bit more flexibility in relation to the
existing FM, the existing cross slopes, proximity to the canal and required reshaping for vehicle
recovery, it resulted in a system that was marginal at best for heavy vehicles.

With that, we then shifted the design scheme to include filling the canal, while providing water storage
via reinforce concrete pipe and an exfiltration system. As part of this scope, we will be required to
remove a significant amount of existing trees, as well as mitigate trees using a plan developed by our
landscape consultant architect. The 90% plans due to the tree mitigation has a more extensive
landscape plan than what was originally anticipated when the project was initially scoped.

Ultimately, filling the canal and creating a flush shoulder will result in a safer roadside and with the
landscaping, a more aesthetically pleasing right of way. Unfortunately for these benefits, the cost is
greater than a section with W-beam guardrail.

Project Cost Estimate:
A detailed Engineer’s Estimate based on the 90% plans has been prepared and checked. The current
estimate indicates construction costs (without a cost contingency) at $641,567. With a contingency
range from (-10% to +15%), the Town could anticipate construction costs between $577,410 and
$737,802. The Town currently has a CIP construction budget of $600,000.

For what was to have been a simple turn lane improvement, the costs to clear and fill the canal along
with the installation of storm water piping and structures is a substantial amount of the cost estimate;
approximately 40%. Based on coordination and preliminary dialogue with LRECD staff, we anticipate
a portion of this cost will be borne by LRECD. At this point, we estimate their costs to be approximately
$48,600.

With the development of the FY 2022 CIP, we will recommend increasing the construction budget to
$740,000; I believe the upper end of the contingency may be realized at the time of bid due to the
clearing and dewatering necessary. In addition, due to the existing FPL power line, existing front slope
and limited space, the canal clearing, fill and storm water construction may be estimated at the lower
end of productivity, resulting in higher than average unit prices.

The Town’s increase in budget would be anticipated by $91,400 with the remainder being the LRECD
cost share.

LRECD JPA and Agreement:
Based on the revised scope of work, the permanent construction will require easements from LRECD,
and these easements are proposed to be incorporated into a Joint Participation Agreement between
the Town and LRECD. The easements required include a perpetual drainage easement for the Town’s
roadway/right of way storm water, a temporary construction for work and temporary dewatering onto
LRECD’s project during construction, and a harmonization easement to gradually restore the property.
In addition, the agreement will provide for turnover of the installed fill, piping and structures to LRECD,
and for their perpetual use and maintenance; this will be done through a bill of sale. We would note
that the sketches and legal descriptions for these easements are pending.

In addition and as noted above, we anticipate a cost share to be approved by LRECD.

Project Schedule:
The timeline of the major activities for completion of design and through anticipated construction
completion are as follows:

      Task Name                                                       Duration     Start          Finish
      Prepare Easement Sketches and Legal Descriptions                20 days      Mon 3/8/21     Fri 4/2/21
      Final Plans                                                     30 days      Mon 4/5/21     Fri 5/14/21
      Draft JPA Documents                                             30 days      Mon 4/19/21    Fri 5/28/21
      Contract Documents                                              30 days      Mon 5/31/21    Fri 7/9/21
      LRECD and Town Legal Review                                     10 days      Mon 5/31/21    Fri 6/11/21
      LRECD Board Approval                                            25 days      Mon 6/14/21    Fri 7/16/21
      Town Council Approval                                           25 days      Mon 7/19/21    Fri 8/20/21
      Advertisement, Bidding and Contract Executive                   50 days      Mon 8/23/21    Fri 10/29/21
      Construction Phase                                              153 days     Tue 11/30/21   Thu 6/30/22

We will be developing a more detailed construction duration estimate based on the 90% plans; it was
not completed at the time for publishing this agenda item. Given the scope of work, we would
anticipate the construction duration being between 210 to 300 calendar days.

In terms of the schedule, during the seasonally wet months, the canal holds a significant volume of
water. Temporary dewatering to allow for the placement of pipe and structures is complicated by the
fact that the canal has no outfall; it is a landlocked storage ditch. We will need to temporarily dewater
onto LRECD’s property and completing this work during the dry season in order to reduce the effort
and volume required. Accordingly, we recommend a project schedule that begins construction in the
early winter when conditions are more amendable for this scope of work, and the proposed schedule
above, reflects the same.

For Council information and discussion.

RECOMMENDATION:
No recommendation is provided for this presentation. For Council comments and feedback to staff.

Strategic Priority:
      Mobility

Attachments:
   · PowerPoint Presentation
   · 90% Plans
   · Engineer’s Estimate

Funding Source:
     Approved in Budget                   $600,000.00     Sources: Jupiter Park Drive at Central Blvd.
                                                                        Improvements
                                                                   31031041-56300-E1901
     Additional Funding Required     $                Sources:
*For more information or to request attachments, please contact Kali Beams at
kalib@jupiter.fl.us or 561-741-2467.

Jupiter Park Drive
          Right Turn Lane Improvements
Town Council Presentation March 02, 2021

90% Roadway and Landscape
          Plans
• A full set of 90% Plans were distributed to the
  Town Council
• Widening Jupiter Park Drive Eastbound
  Approximately 880 FT to extend the existing
  right turn lane at Central Blvd
• Install 2 FT paved shoulder outside the limits
  of the lane widening in the eastbound and
  westbound directions to approximately Jupiter
  Park of Commerce

90% Roadway and Landscape
          Plans
• Clear and fill the existing canal on the south
  side of the right of way
• Install reinforced concrete pipe, exfiltration
  trench, and drainage structures
• Regrade and sod the existing shoulders
  adjacent to the canal
• Install landscaping and trees to mitigate for
  the loss of trees necessary to clear and fill the
  canal

Roadway Typical Sections

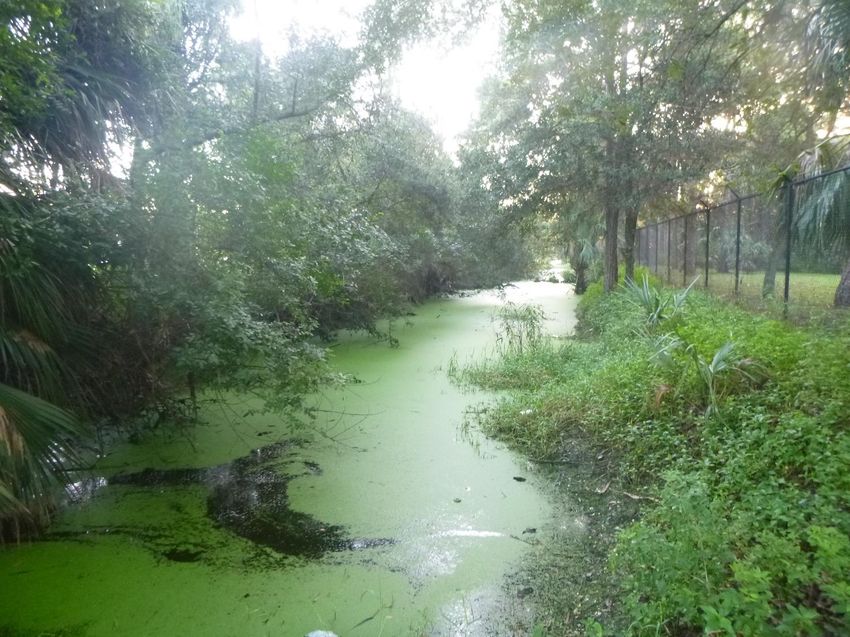

Existing Canal – Rainy Season

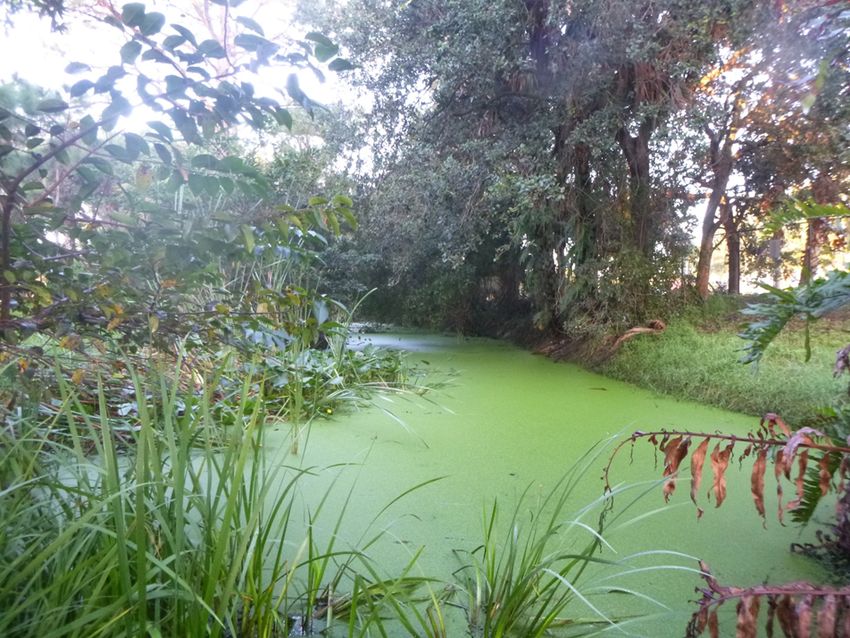

Existing Canal - Rainy Season

Existing Canal – Dry Season

Existing Canal – Dry Season

Canal Clearing and Filling
• The canal clearing and filling is a major
  construction and cost element
• The canal will require dewatering throughout the
  construction
• As an outfall does not exist, temporary
  dewatering onto LRECD’s property will be
  required
• Limited space and FPL distribution line will have
  some impact on construction
• Town Staff will consider Value Engineering certain
  elements of the work, in an effort to reduce the
  cost to fill the canal

Project Cost Estimate

• The current FY 2021 CIP Construction Budget is
  $600,000
• Based on the 90% Plans the Engineer’s Estimate is
  $641,567
• With a Contingency Range from -10% to +15%,
  the Estimate is between $577,410 and $737,802
• Staff is recommending the FY 2022 CIP Budget be
  increased to $740,000
• The Town’s increase would be $91,400 with
  LRECD’s Cost Share being $48,600

LRECD JPA and Agreement
• The project will require a Joint Participation
  Agreement between the Town and LRECD
• This agreement will incorporate a Bill of Sale
  granting possession of the storm water
  infrastructure to LRECD
• LRECD will perpetually maintain the storm water
  infrastructure
• Perpetual and Temporary Easements will be
  required for the project
• As previously noted, it is anticipated that LRECD’s
  cost share will be $48,600
• Both Town Council and LRECD Board will need to
  approve the Agreement and Easements

Project Schedule
                          Task Name             Duration       Start          Finish
Prepare Easement Documents                      20 days    Mon 3/8/21     Fri 4/2/21

Final Plans                                     30 days    Mon 4/5/21     Fri 5/14/21

Draft JPA Documents                             30 days    Mon 4/19/21    Fri 5/28/21

Contract Documents                              30 days    Mon 5/31/21    Fri 7/9/21

LRECD and Town Legal Review                     10 days    Mon 5/31/21    Fri 6/11/21

LRECD Board Approval                            25 days    Mon 6/14/21    Fri 7/16/21

Town Council Approval                           25 days    Mon 7/19/21    Fri 8/20/21

Advertisement, Bidding and Contract Executive   50 days    Mon 8/23/21    Fri 10/29/21

Construction Phase                              153 days   Tue 11/30/21   Thu 6/30/22

Jupiter Park Drive and Central
              Blvd
• Council Comments and Questions?
