Update on Newborn
 Hearing Screening

        R. Alan Grimes, MD, FAAP

        Priority Care Pediatrics, LLC
        Kansas City, Missouri
        Missouri EHDI Chapter Champion
        AAP EHDI Task Force Member
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
Acknowledgements
 The speaker acknowledges the major
 contributions of staff at the Boys Town
 National Research Hospital in the
 development of this presentation.

 The development of the presentation is
 supported by the National Institute on
 Deafness and Other Communication
 Disorders [(NIDCD/NIH) R25 DC04559; R25
 DC006460]
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
Financial Disclosure Information

„   I have no relevant financial relationship with
    the manufacturers of any commercial
    products and/or provider of commercial
    services discussed in this CME activity.

„   I do not intend to discuss an
    unapproved/investigative use of a
    commercial product/device in my
    presentation.
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
Learning Objectives

„   Discuss the importance / impact of early
    identification of hearing loss
„   Describe the status of newborn hearing
    screening in states and nationally
„   Review universal newborn hearing screening
    (UNHS) techniques
„   State the Primary Care Physician’s role in
    Early Hearing Detection and Intervention
    (EHDI)
„   Describe resources to support patient
    management and follow up
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
National Goals for Hearing
      Screening (1-3-6) 1, 2

„   All infants will access hearing screening using a
    physiologic measure
     – no later than 1 month of age
„   All infants not passing initial screening and
    subsequent rescreening should have confirmatory
    audiological and medical evaluations
     – no later than 3 months of age
„   All infants with confirmed permanent hearing loss
    should receive early intervention as soon as
    possible
     – no later than 6 months of age
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
Prerequisites for a Population
               Screening Program
YES   „   Condition sufficiently frequent in
          screened population
YES   „   Condition serious or fatal without
          intervention
YES   „   Condition must be treatable or
          preventable
YES   „   Effective follow-up program possible
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
Why is early identification of
        hearing loss important?
„   Hearing loss is the most common birth condition
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
Incidence of Congenital Conditions
           (Per 10,000)
                    35

                    30
Number per 10,000

                    25

                    20

                    15

                    10

                     5

                     0
                         Hearing loss   Cleft lip or     Down     Limb defects Spina bifida   Sickle cell   PKU
                                          palate       syndrome                                anemia
                                                          Congenital Condition Type
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
Prevalence of Hearing Loss

„   Prevalence estimates vary across studies
„   Estimated that 1 to 3 per 1000 infants will
    have permanent sensorineural hearing
    loss3, 4
    – 1/1000 from the well baby nursery
    – 10/1000 from the NICU
„   Rate increases to 6/1000 by school age4
    – Need for surveillance
Update on Newborn Hearing Screening - R. Alan Grimes, MD, FAAP Priority Care Pediatrics, LLC Kansas City, Missouri Missouri EHDI Chapter Champion ...
Why is early identification of
     hearing loss important?

„   Previous methods for detecting
    hearing loss have been ineffective
    – High risk screening failed to identify ~
      50% of the infants with hearing loss
    – Large retrospective cohort study5, 6: mean
      age of diagnosis 21.6 months
    – Similar findings reported in US7,8,9
Vocabulary Development
                                  in Infants 12, 13

                             400
                                    NH Boys
                             350    NH Girls
Number of Expressive Words

                                    Toddlers with Hearing Loss
                             300

                             250

                             200

                             150

                             100

                              50

                               0
                                   12 mos           14 mos           16 mos   18 mos   24 mos
                                                                      Age

Delays in babble also observed                                   14, 15
Reading Comprehension in
             Children with Mild-Mod Loss 16

            10.0
             9.0
             8.0
             7.0
             6.0                                                                       Deaf
             5.0                                                                       Hearing
             4.0
             3.0
             2.0
             1.0
                      8    9    10    11   12    13   14    15   16    17    18

Schildroth, A. N., & Karchmer, M. A. (1986). Deaf children in America, San Diego: College Hill Press.
Why is early identification of
     hearing loss important?
„   Early identification and intervention
    can make a difference
Effects of Age of Identification
on Language Development17
„   Prospective, longitudinal study of early-
    identified infants
„   30 children with mild-profound hearing loss
    (HL) compared to 96 normal hearing (NH)
    controls
„   Children identified < 3 months had stronger
    language development at 12-16 months
    than those identified > 3 months
„   Children with HL were delayed compared to
    NH infants
Vocabulary at Age Five by
        Age of Intervention19

Significant
                        Average range
Predictors:

Id Age: 8%

Family
Involvement:
37%
American Academy of Pediatrics (AAP)

                 „   Endorsed implementation of
                     universal newborn hearing
                     screening in 1999

                 „   Defined standards for:
                      – Screening
                      – Tracking & Follow-up
                      – Identification & Intervention
                      – Program Evaluation

                 „   Encouraged AAP chapters to
                     provide leadership in physician
                     education and newborn screening
                     in their states
Early Hearing Detection and
    Intervention (EHDI)
„   Endorsed by:
    – AAP, National Institutes of Health, Maternal
      and Child Health, Centers for Disease Control,
      Joint Committee on Infant Hearing & in 2008,
      the USPSTF
„   As of 2005, all 50 states implemented
    statewide EHDI programs
„   As of 2006, an average of 95.7% of
    newborns were screened nationally
Status of Hearing Screening
         in Missouri
Hearing Screening Techniques

„   Otoacoustic emissions (OAE)

„   Auditory brainstem response (ABR)

„   Two stage screening (OAE + ABR)

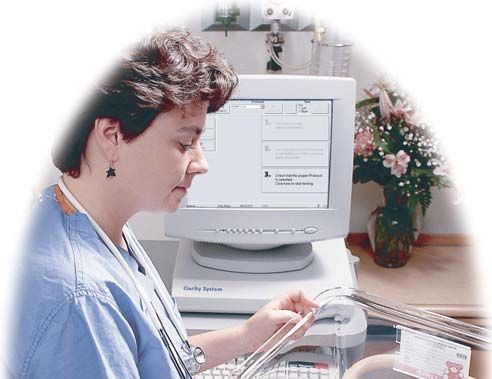

Otoacoustic Emissions

              ƒ Sounds are presented
                to the ear canal and a
                small microphone
                measures the response
                in the ear canal
              ƒ Average test time is
                5-15 minutes/baby

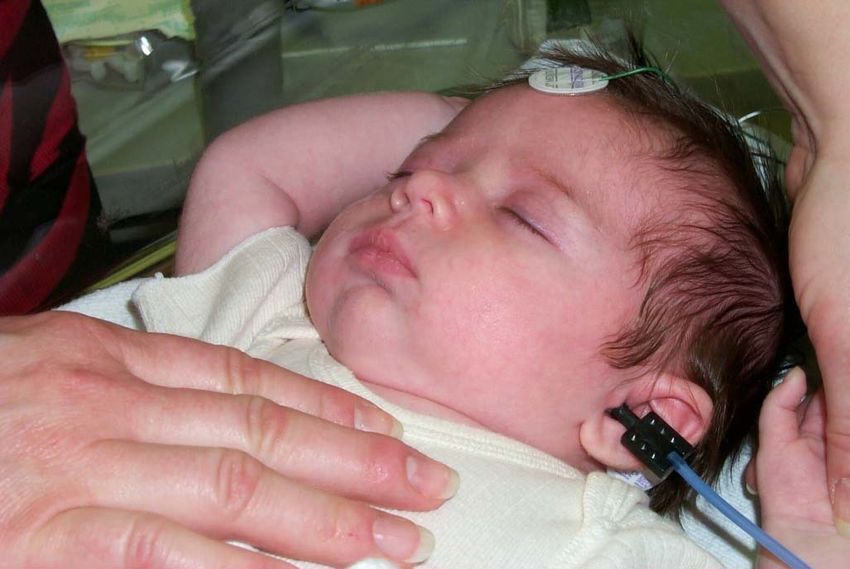

Auditory Brainstem Response

               ƒ Sounds are presented
                 and surface electrodes
                 measure brainstem
                 activity
               ƒ Average test time 20
                 min/baby
OAE + ABR
ƒ All babies are screened using OAEs
ƒ Those babies who fail the OAE screening
  receive an ABR screening prior to leaving the
  hospital
ƒ Average test time/baby (25-35 min)
ƒ Reduces refer rate; useful when follow up is
  likely to be difficult or costly
ƒ Initial cost of equipment is higher than OAE or
  ABR screening alone, but follow-up costs are
  less
2007 JCIH Position on
          Screening 2

„   NICU                           „   Well baby nursery
    – >5 days in NICU                  – Screen with OAE or ABR
    – ABR should be included           – Repeat screen when
      to screen for neural loss          necessary before
    – Rescreen BOTH ears,                discharge
      even if only one ear fails       – When using 2 step
    – Non pass – refer to                protocol test order
      Audiologist                        should be OAE then ABR
    – Readmission – rescreen           – Rescreen BOTH ears,
      before discharge                   even if only one ear fails
Characteristics of a good
       screening program
„   Refer rate of 1.5-5.0% in well baby nursery
    and slightly lower in the NICU (resulting
    from 2-stage screening in the hospital)
    – 5.0% = 400 babies per 8000 births
„   Ongoing training and monitoring program
    for personnel
„   Structured plan for follow up
„   Ability to track program performance
    (important for quality assurance and for
    JCAHO requirements)
What if a baby fails UNHS?

„   Failure rates range from 1.5-5.0% in
    good screening programs

„   Most babies who fail the initial screening
    will actually have normal hearing
    – For 10 babies that refer, 1 is expected to
      have permanent hearing loss
System challenges:
           Loss to Follow Up23

„   8 New York hospitals,
    – 28% infants who did not pass in-hospital
      screening failed to return
    – Loss to follow up is as high as 50% in some
      states
„   Return rates better for in-hospital fails than
    in-hospital misses
Medical Home: Strategies to
    Promote Follow Up
„   At prenatal visit, encourage families to
    identify you as follow-up care location
„   Inform hospital to facilitate communication
    of results
„   Provide checkbox on newborn well child
    form/patient chart for hearing screening
    results & risk factors
„   Set up tracking system for infants who do
    not pass hearing screening or for those
    infants with risk factors
Counseling Parents

„   Effective communication of results to
    families has an influence on follow up
    behaviors
„   Balance between reassurance and
    importance of follow up testing
„   “Your child may or may not have a hearing
    loss…but let’s be sure about it. If further
    testing shows hearing loss, the earlier we
    get started helping the child, the better.”
Follow Up Testing

„   Referral for follow-up testing
    – Repeat OAE and/or ABR screening
„   If a hearing loss is still suspected…
    – Referral to a pediatric audiologist
       „ Experienced in testing infants & children
       „ Has appropriate equipment to test infants

    – Frequency specific ABR to estimate
      degree and configuration of hearing loss
       „   Early testing can avoid need for sedation
Importance of Intervention in
Outcomes
„   Early Identification needs to be paired
    with early, appropriate and consistent
    interventions.
JCIH 2007 Follow Up
            Guidelines 2

„   EHDI systems should be family-
    centered
„   Families should have:
    – Access to information on all treatment
      options
    – Counseling regarding hearing loss
„   Child and family should have:
    – Immediate access to hearing technologies
Amplification

  „   Hearing aids can be fitted
      as young as 1 month of
      age
Roles of the Medical Home

       „   Understand testing results at
           screening and diagnostic phases &
           implications for follow up
       „   Assure follow-up screening; refer for
           diagnostic and medical specialty
           evaluations (genetics, ophthalmology,
           etc.)
       „   Support family in understanding
           severity & type of hearing loss
       „   Refer to early intervention
       „   Offer partnership with parents to
           identify and develop a plan of health
           and habilitative care
Medical Workup
„   Complete prenatal & perinatal history
„   Family Hx of onset of HL < age 30
„   Physical for stigmata, ear tabs, cleft
    palate, cardiac, sketetal, microcephaly
„   Refer to ENT – consider CT of temporal
    bones
„   Refer to Genetics and Ophthalmology
„   Other: CMV, EKG, Developmental
    evaluation
Goals of Early Intervention
„   Home based services
„   Optimally, providers have experience & training with the
    population and work to:
     – Establish partnerships with families
     – Promote family competence & confidence in parenting
       child
     – Support family in providing a language-rich environment in
       everyday routines
     – Support family to become informed decision makers for
       the child
     – Conduct ongoing assessments of outcomes
        „   Adjust interventions as necessary to optimize outcomes
    – Promote family access to formal and informal supports
    – Provide culturally competent services
Resources

„   Early Intervention   „   Contact State EHDI
                             Coordinator – see
                             www.infanthearing.org
                         „   www.nectac.org

„   Parent-to-Parent     „   www.handsandvoices.org
                         „   www.beginningssvsc.com
                         „   www.babyhearing.org

„   Physician support    „   www.aap.org
                         „   www.medicalhomeinfo.org
Physician Resources

 http://www.medicalhomeinfo.org/screening/hearing.html
 ALSO: hearing loss module on
 http://www.pedialink.org

  http://www.cdc.gov/ncbddd/ehdi/
Chapter Champion Contact

For more information…
„ Chapter Champion (Alan Grimes, MD)
    – agrimes@pol.net
„   State EHDI coordinator (Catherine
    Harbison)
    – catherine.harbison@dhss.mo.gov
Contributors
„   Mary Pat Moeller, Ph.D., BTNRH         „   Roger Harpster, BTNRH
„   Pat Stelmachowicz, Ph.D., BTNRH        „   Diane Schmidt, BTNRH
„   Don Uzendoski, M.D., AAP Chapter       „   Skip Kennedy, BTNRH
    Champion, BTNRH                        „   Karl White, Ph.D., NCHAM
„   Leisha Eiten, AUD, BTNRH               „   Michelle Esquivel, MPH, AAP
„   Staci Gray, PA, BTNRH
„   Susan Wiley, M.D., AAP EHDI Task Force
    Member; Cincinnati Children’s Hospital

       Project Supported by the National Institute on Deafness
       and Other Communication Disorders (NIDCD/NIH) R25
                              DC04559; R25 DC006460
For additional information about this presentation or
          Universal Newborn
          Hearing Screening
                      contact:

Boys Town National Research Hospital
                  555 No. 30th St.
                 Omaha, NE 68131

              Dr. Mary Pat Moeller
                  402/452-5068
          E-mail: moeller@boystown.org
You can also read
