2021 windvision
Loftsails Technology 2021 All Loftsails 2021 designs are new. Across all sail lines, in all sizes, critical design parameters have been updated for 2021. Luff curves have been redistributed, vertical shapes have been modified, and leech configurations have been redesigned. The result: significantly improved performance across all models in the Loftsails range. Fresh design concepts for Loftsails 2021 have created sails that have a more generous upper/forward profile shape, to deliver greater forward-oriented drive. New leech outlines and higher aspect ratios have improved rig reactivity. An expanded palette of trim possibilities is the result of intensive Loftsails 2021 research and development.
2021 Sail Range
Wind Vision is performance greater than the sum of the parts.
Purelip Wavescape Airscape Oxygen Switchblade Skyscape Skyblade Racingblade Raceboardblade Raceboardblade LW
5-BATTEN WAVE 4-BATTEN WAVE FREESTYLE NO-CAM FREERACE 3-CAM FREERACE FOIL SAIL RACE FOIL SAIL RACE SLALOM RACEBOARD COMPETITION RACEBOARD COMPETITION
BREATHING, TRIM-REACTIVE DESIGNS - Wind vision - performance greater than the sum of the parts – is about the board, the rider and the rig EQUALIZED - Loftsails batten tensioners - dual side-loops - to center and equalize batten tensioner load to the sail batten, pocket and body.
functioning in harmony to experience windsurfing at its best! Loftsails designs adapt, breath and respond to deliver performance in all conditions.
Forward sail-profile orientation, high skin-tension, and a soft-twisting leech work together. The results are rigs that feel alive, and offer optimal ADJUSTABLE OUTHAUL - Expand your wind range on the fly, with the Loftsails Adjustable Outhaul.
performance over an expanded wind range. Living, breathing designs possess trim reactivity. Soft trim raises the power center - powering-up the rig in Allows for immediate and significant adjustments to the character of your rig. Easy to configure, and compatible with all boom types. Suitable for
light winds. Hard trim lowers the power center - streamlining the rig for strong winds. freeride, freerace, and slalom competitions. Included as standard on all Loftsails Blade designs.
INTEGRATED PANEL CONCEPT + HARDCORE DURABILITY IPC – Loftsails’ simple, effective and exclusive construction technique. On all Loftsails LOFTSAILS TEKCAM2 SYSTEM MAST INTERCHANGEABILITY - Simple, functional, light, adjustable, durable. The Loftsails Reduced and Large
designs, the head and tack panels overlap to create radial multi-ply extensions into the sail body. Additionally, the Pure Lip and Wavescape include IPC Tekcam2s allows for both SDM and RDM mast compatibility with our Racing Blade sails.
at the clew: creating an integrated two-ply that radiates into the sail body from the “boom zone” Unique to Loftsails. The Tekcam2 system expands performance possibilities by allowing riders to use the mast of their choice. SDMs are well suited
to larger sail sizes, larger riders, and flat water; while RDMs are well suited to smaller riders, smaller sizes, and rough conditions. Tekcam2s are new,
METALLIC CAM INTERFACES (MCIS) – MCIs reduce contact point degradation at the interface between cam and batten pocket. designed with a larger footprint on the mast, longer rollers, and larger contact areas above and below the rollers.
Loftsails exclusive MCIs and Tekcam system practically eliminates such deterioration: helping to maintain firm rotation, and a clean and efficient leading
edge to your Blade. If softer rotation is desired, MCIs can easily be removed. EXCLUSIVE BATTEN SYSTEMS - Loftsails builds each sail with specific batten sections and batten tapers to create an optimized internal structure for
all our sails. Loftsails batten systems are engineered with rods - for microbattens, the leading sections of tubed battens, and for standing battens; tubes
LOFTSAILS QUALITY – Our sails utilize best quality materials. Designs are engineered with specialized mast pocket styles, state-of-the-art triaxial of three types - glass, 30% carbon, and 100% carbon; and standing battens.Loftsails rectangular batten section (10mm x 7mm rod) is profiled on the
and bi-axial laminates, and woven polyesters of varying weights and finishes. wider dimension. This preserves resistance against unwanted flex in its stiffer (standing) orientation. The effect is stiffness like tubes, but without the
Loftsails are produced with progressive construction techniques: multiple scrim-adhesive reinforcements, 5-layer glued seams, extruded PVC edge, fragility in the surf. Batten rods are profiled using a tapering machine that includes automatic control of taper character for consistent batten quality.
batten wear guards, molded batten-end wear studs. Attention to detail creates state-of-the-art sails.
Loftsails hardware is also exclusive: multi-sectioned batten systems (rods and tubes) with location-specific carbon content, precision-ground profile MOLDED PVC PROTECTORS - Thermo-foam mast/board pad with uphaul port, batten-tensioner key keeper, line pouch, and roll-up strap.
tapers, stainless 3 and 4 roller pulleys, multiple clew eyelets, and top quality tensioning components. Soft PVC foot edge, lower batten pocket and foot 2-ply seam protectors. Soft PVC batten pocket/boom protector applied to batten pocket crossing

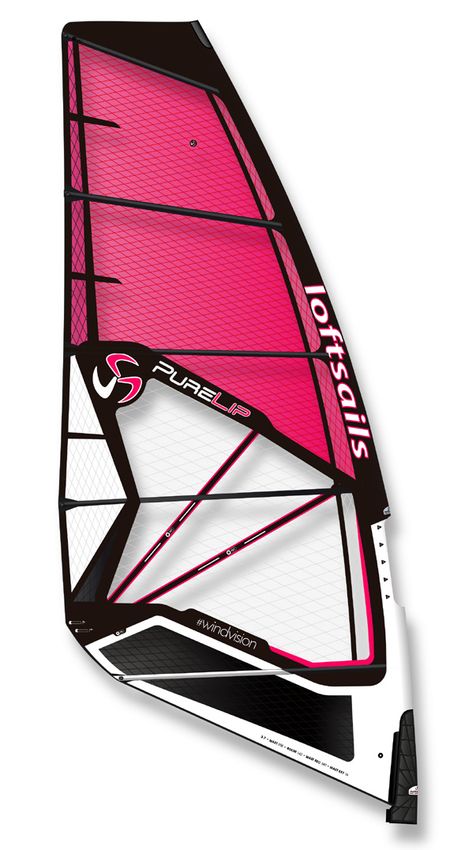

Purelip 2021 Purelip
HARDCORE WAVE
The Purelip design provides pure wave performance and enormous wind range.
Born in 1999 as the Lipwave - and now with over 20 years of refinement - the present-day Purelip delivers balance, stability, and ease of use.
Built for challenging conditions the Purelip is most suited to big hardcore surf, bump and jump blasting, onshore and sideshore waves.
Magazine test reports confirm we hit our design targets: upper-end stability, on-the-wave neutrality, speed, extreme trim reactivity, durability.
New 2021 luff curves, new 2021 vertical shapes and new 2021 leech outline all combine to improve Purelip performance.
FEATURES & BENEFITS
• Light and tough: Integrated Panel Concept, 3-layer head/tack/clew radials extend into the all X-Ply body –
ultimate resistance in demanding conditions
• Super durable full IYU250 4-part mast pocket – the perfect material between your mast and the elements
• Double dacron head panels – easy roll-up, durability, longevity
• Triple reinforced foot, leech and luff construction for maximised longevity of your rig
• Sizes 3.7 and up feature 5 battens, 3.4 and smaller feature 4 battens
• Loftsails full-opening mast pad design - easy access to your mast extension,
downhaul system and batten trim key
• High visibility window: see the lip from your bottom turn
• Forward-profile batten systems with Loftsails exclusive Standing Battens at specific locations – responsive,
low-end drive with easy upper end handling
• Dual clew eyelets with webbings – adjust leech release character to suit your sailing style and conditions
• Trim: leech-release reference logo to dial in trim
• RDM recommended, SDM compatible – both mast types fully compatible to maximise your windsurfing
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Purelip 3.0 3.0 m2 338 cm 136 cm Vario Top -2 cm 0 4 Team Edition 340 2.65 kg
Purelip 3.4 3.4 m2 358 cm 140 cm Vario Top 18 cm 0 4 Team Edition 340 2.80 kg
Purelip 3.7 3.7 m2 368 cm 144 cm Vario Top 28 cm 0 5 Team Edition 340 3.03 kg
Purelip 4.0 4.0 m2 382 cm 148 cm Vario Top 12 cm 0 5 Team Edition 370 3.06 kg
Purelip 4.2 4.2 m2 386 cm 154 cm Fixed 16 cm 0 5 Team Edition 370 3.30 kg
Purelip 4.5 4.5 m2 398 cm 158 cm Fixed 28 cm 0 5 Team Edition 370 3.34 kg
Purelip 4.7 4.7 m2 402 cm 162 cm Fixed 32 cm 0 5 Team Edition 370 3.42 kg
Purelip 5.0 5.0 m2 416 cm 168 cm Fixed 16 cm 0 5 Team Edition 400 3.57 kg
Purelip 5.2 5.2 m2 422 cm 174 cm Fixed 22 cm 0 5 Team Edition 400 3.65 kg
Purelip 5.4 5.4 m2 430 cm 174 cm Fixed 30 cm 0 5 Team Edition 400 3.73 kg
Purelip 5.7 5.7 m2 446 cm 176 cm Fixed 16 cm 0 5 Team Edition 430 3.88 kg
Purelip 6.2 6.2 m2 462 cm 186 cm Fixed 32 cm 0 5 Team Edition 430 4.03 kg
Wavescape 2021 Wavescape
MANOEUVRE WAVE 4-BATTEN
The 2021 4-batten Wavescape is light in the hands, goes soft and neutral on the wave and powers through oncoming waves.
Planchemag Wavescape 2020 verdict:
PLUS- Stability/handling ratio, performance, comfort, control, reactivity.
MINUS: Nothing to report
New design concepts for 2021 include higher aspect ratios, redesigned leech outline, Stabilizing Tendons across the large X-ply window and full
X-ply panel construction. The Wavescape Dacron mast panel induces soft, powerful, compact handling. The Wavescape 2021 is the ultimate
Loftsails design for wave mobility and expression. For the wave rider, this specialized design is freedom.
FEATURES & BENEFITS
• Light and tough: Integrated Panel Concept (IPC); 3-layer head/tack/clew radials extend into the all
X-Ply body – ultimate resistance in heavy surf
• Total X-Ply construction
• Super durable full IYU250 4-part mast pocket – the perfect material between your mast and the elements
• Double Dacron head panels – easy roll-up, durability, longevity
• Triple-reinforced foot, leech and luff construction for maximised longevity of your rig
• High visibility window - see the lip from your bottom turn
• Loftsails full-opening mast pad design - easy access to your mastextension, downhaul system
and batten trim key
• Forward-profile batten systems with Standing Battens at specific locations– responsive, low-end drive
and easy upper end handling
• Dual clew eyelets with webbings – adjust leech-release character to suit your sailing conditions
• Trim: leech-release reference logo to dial in trim
• RDM recommended, SDM compatible – both mast types compatible to maximise your windsurfing experience
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Wavescape 3.7 3.7 m2 358 cm 150 cm Vario Top 18 cm 0 4 Team Edition 340 2.86 kg
Wavescape 4.0 4.0 m2 372 cm 154 cm Vario Top 32 cm 0 4 Team Edition 340 2.94 kg
Wavescape 4.2 4.2 m2 378 cm 154 cm Fixed 38 cm 0 4 Team Edition 340 3.00 kg
Wavescape 4.5 4.5 m2 392 cm 158 cm Fixed 22 cm 0 4 Team Edition 370 3.09 kg
Wavescape 4.7 4.7 m2 398 cm 164 cm Fixed 28 cm 0 4 Team Edition 370 3.18 kg
Wavescape 5.0 5.0 m2 408 cm 166 cm Fixed 8 cm 0 4 Team Edition 400 3.30 kg
Wavescape 5.4 5.4 m2 432 cm 174 cm Fixed 32 cm 0 4 Team Edition 400 3.43 kg
Wavescape 5.7 5.7 m2 448 cm 176 cm Fixed 18 cm 0 4 Team Edition 430 3.55 kg
Wavescape 6.2 6.2 m2 464 cm 186 cm Fixed 34 cm 0 4 Team Edition 430 3.71 kg
Airscape 2021 Airscape
DEDICATED FREESTYLE SAIL
The ultra-light Airscape is free expression in a package that is stable, easy to duck, and explosive to pop.
Feather-light handling, explosive acceleration, and total neutrality for the most acrobatic freestyle moves.
Refined for 2021 with new luff curves and modified vertical shapes. A new 3.6 size added to the 2021 Airscape line.
FEATURES & BENEFITS
• Dedicated freestyle design- neutral for radical maneuvers, powerful for immediate accleration
• Forward-profile batten systems with Standing Battens at specific locations – for responsive,
low-end drive and easy top-end handling
• Unique, super durable full IYU250 4-part mast pocket – the perfect material between your mast
and the elements
• 2 mil triax upper body panels – UV stable and weight reduction
• 4 mil biax window panels – durable visibility
• Triple foot and triple reinforced luff construction for maximized longevity
• RDM recommended, SDM compatible – both mast types fully compatible to maximise your
windsurfing experience
• Dual clew eyelets with webbing reinforcement – adjust leech release character to suit your sailing conditions
• Loftsails full-opening mast pad design... easy access to your mast extension, downhaul system
and batten trim key
• Trim: leech-release reference logo to dial in trim
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Airscape 4.0 4.0 m2 378 cm 148 cm Fixed 8 cm 0 4 Team Edition 370 2.80 kg
Airscape 4.4 4.4 m2 398 cm 150 cm Fixed 28 cm 0 4 Team Edition 370 2.90 kg
Airscape 4.8 4.8 m2 416 cm 158 cm Fixed 16 cm 0 4 Team Edition 400 3.00 kg
Airscape 5.2 5.2 m2 428 cm 168 cm Fixed 28 cm 0 4 Team Edition 400 3.22 kg

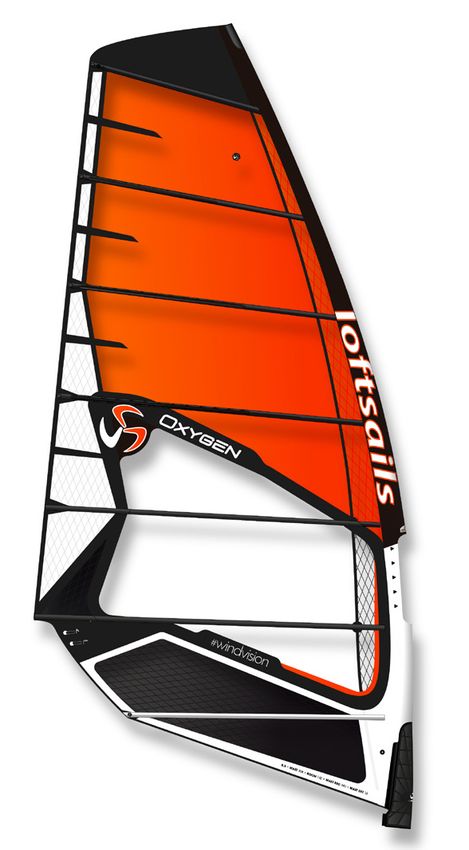

Oxygen 2021 Oxygen
NO-CAM FREERACE
Since its inception as the O2 back in 1999 - when the Loftsails brand began - the Oxygen has received consistent magazine praise.
Since 2005 a massive eighteen (18!) magazine test wins! Beyond doubt, the Oxygen delivers proven slalom performance in an easy, cam-free
package.
Wind magazine 2020 Oxygen verdict: “Monster wind range”, testers choice.
The 2021 Oxygen is all new. Higher aspect ratios (shorter booms), new luff curves, modified vertical and horizontal shapes combine to redefine
Oxygen performance.
FEATURES & BENEFITS
• Green: Full X-Ply – 5 mil biaxial luff and foot panels, 4 mil biax window panels, 3.5 mil biax leech panels, 2 mil upper body panels
• Orange: 5 mil biaxial luff and foot panels, 5 mil mono window and 4 mil mono body panels
• Tubed batten systems – control in the upper end
• Dual clew eyelets with webbings – adjust leech release character to suit your sailing conditions
• Cross batten with leech extension batten and inset clew – connects the boom to the batten structure
and promotes lower leech twist for upper-end ease
• Super durable full IYU250 4-part mast pocket – the perfect material between your mast and the elements
• Double dacron head panels – easy roll-up, durability, longevity
• X-ply batten pockets that alternate sail sides – same material for the batten pocket as the body material
minimizes the asymmetric character of applied batten pockets. Pockets made with laminates allow
the batten to be centered. These features combine to maintain rotation symmetry
• Sizes 7.8 and up 7 battens, 7.3 and down 6 battens
• Loftsails full-opening mast pad design – easy access to your mast extension, downhaul system and batten trim key
• Trim: leech-release reference logo to dial in trim
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Oxygen 4.6 4.6 m2 388 cm 162 cm Vario Top 18 cm 0 6 Vision 370 3.65 kg
Oxygen 5.3 5.3 m2 412 cm 176 cm Vario Top 12 cm 0 6 Vision 400 3.90 kg
Oxygen 5.8 5.8 m2 426 cm 188 cm Vario Top 26 cm 0 6 Vision 400 4.08 kg
Oxygen 6.3 6.3 m2 440 cm 194 cm Fixed 10 cm 0 6 Vision 430 4.22 kg
Oxygen 6.8 6.8 m2 460 cm 200 cm Fixed 30 cm 0 6 Vision 430 4.32 kg
Oxygen 7.0 7.0 m2 466 cm 206 cm Fixed 36 cm 0 6 Vision 430 4.48 kg
Oxygen 7.3 7.3 m2 474 cm 206 cm Fixed 14 cm 0 6 Vision 460 4.56 kg
Oxygen 7.8 7.8 m2 488 cm 218 cm Fixed 28 cm 0 7 Vision 460 5.01 kg
Oxygen 8.5 8.5 m2 TBA cm TBA cm Fixed TBA cm 0 7 Vision 490 TBA kg
Oxygen 9.5 9.5 m2 532 cm 242 cm Fixed 12 cm 0 7 Vision 520 5.48 kg

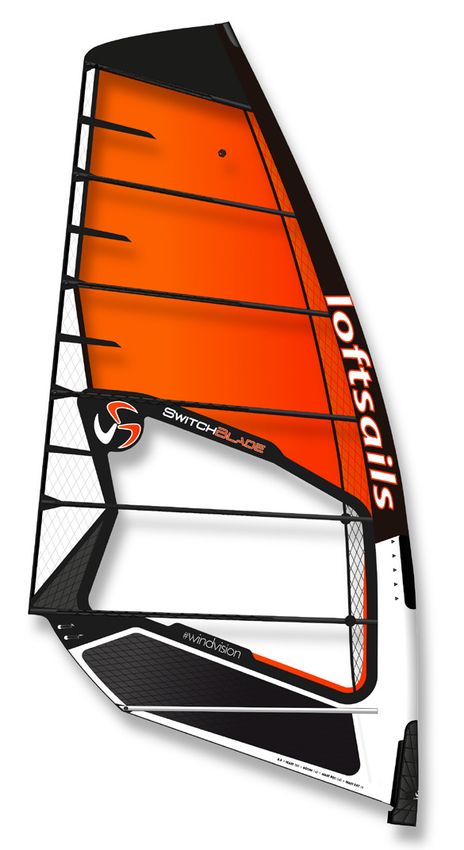

Switchblade 2021 Switchblade
3-CAM PERFORMANCE FREERACE
Wind magazine 2020 Switchblade verdict:
PLUS- Large wind range, comfort, stability, polyvalence.
MINUS- Nothing to report
Proven performance with 3 cams and 6 or 7 battens (size depending). Moderate width mast pocket. Years of research and development make the
Switchblade fast and easy for all.
The 2021 Switchblade is all new. Higher aspect ratios (shorter booms), new luff curves, modified vertical and horizontal shapes combine to redefine
Switchblade performance.
FEATURES & BENEFITS
• Green: full X-Ply... 5 mil biaxial luff and foot panels, 4 mil biax window panels, 3.5 mil biax leech panels, 2 mil upper body panels
• Orange: 5 mil biaxial luff and foot panels, 5 mil mono window and 4 mil mono body panels
• Tekcam2 camber inducer design – easy rotation and gentle to your mast
• SDM and RDM mast compatibility. Tekcam2 Large (installed) and Reduced (in sailbag) included with sizes 8.6 and smaller
• Metallic cam interfaces – MCIs eliminate contact point degradation characteristic of cam designs without MCIs
• Tubed batten structure – solid stability for the upper end
• X-ply batten pockets that alternate sail sides – using similar material for the batten pocket as the body
material minimizes the asymmetric character of applied batten pockets. Pockets made with laminates
allow the batten to be centered. These features combine to maintain rotation symmetry. In contrast,
same-side dacron pockets promote asymmetrical rotation
• Streamlined neoprene boom cutout with dual zippers – limits water entry into the mast sleeve for fast recovery
• Blade mast pocket construction – pocket sides under the tack pulley webbings for rotation ease,
clean mast pocket and longevity
• Kevlar strip applications – profile definition, mast pocket stability and longevity
• Super durable full IYU250 4-part mast pocket – the perfect material between your mast and the elements
• Trim: leech-release reference logo to dial in trim
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Switchblade 5.3 5.3 m2 TBA cm TBA cm Vario Top TBA cm 3 6 Team Edition 370 TBA kg
Switchblade 5.8 5.8 m2 428 cm 186 cm Vario Top 28 cm 3 6 Team Edition 400 4.89 kg
Switchblade 6.3 6.3 m2 438 cm 196 cm Fixed 8 cm 3 6 Team Edition 430 5.09 kg
Switchblade 6.8 6.8 m2 458 cm 200 cm Fixed 28 cm 3 6 Team Edition 430 5.26 kg
Switchblade 7.0 7.0 m2 468 cm 204 cm Fixed 8 cm 3 6 Team Edition 460 5.35 kg
Switchblade 7.3 7.3 m2 476 cm 208 cm Fixed 16 cm 3 6 Team Edition 460 5.42 kg
Switchblade 7.8 7.8 m2 490 cm 218 cm Fixed 30 cm 3 7 Team Edition 460 5.81 kg
Switchblade 8.5 8.5 m2 510 cm 224 cm Fixed 20 cm 3 7 Team Edition 490 6.10 kg
Switchblade 9.5 9.5 m2 538 cm 236 cm Fixed 18 cm 3 7 Team Edition 520 6.37 kg

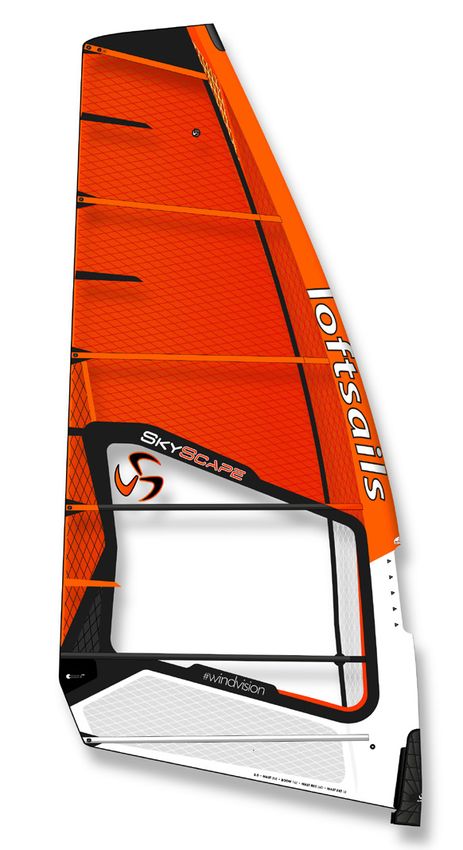

Skyscape 2021 Skyscape
DEDICATED FOIL SAIL
Windfoil dedication: the Skyscape 2021 range includes two styles of sail:
Skyscape 5.8, 6.4 and 7.0 sizes are reactive in light winds and ideal for foil initiation/foil freeride.
Skyscape 8.0 and 9.0 are exceptionally powerful and ideal for light wind foil competition.
Newly evolved Skyscape 5.8 6.4 and 7.0 profiles improve early flying ability. These 5-batten 3-cam designs have a moderately-narrow mast pocket.
They are particularly well suited to light winds and across-the-wind foiling.
The new high-aspect Skyscape 8.0 and 9.0 are 6-batten 3-cam designs with moderately wide mast pockets. They are especially powerful in light
winds, and very well suited to upwind / downwind foiling courses.
The 2021 Skyscape is all-new. Higher aspect ratios (shorter booms), new luff curves, modified vertical and horizontal shapes combine to redefine
Skyscape performance.
FEATURES & BENEFITS
• Tekcam2 camber inducer design – easy rotation and gentle to your mast
• SDM and RDM mast compatibility. Tekcam2 Large (installed) and Reduced (in sailbag) included with sizes 7.0 and smaller
• Metallic cam interfaces MCIs eliminate contact point degradation characteristic of cam designs without MCIs
• Tubed batten structure – solid stability for the upper end of the wind range
• X-ply batten pockets that alternate sail sides... using similar material for the batten pocket as the body
material minimizes the asymmetric character of applied batten pockets. Pockets made with laminates
allow the batten to be centered. These features combine to maintain rotation symmetry. In contrast,
same-side dacron pockets promote asymmetrical rotation
• Blade mast pocket construction – pocket sides under the tack pulley webbings for rotation ease,
clean mast pocket and longevity
• Kevlar strip applications – profile definition, mast pocket stability and longevity
• Durable IYU250 4-part mast pocket – the perfect material between your mast and the elements
• Trim: leech-release reference logo to dial in trim
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Skyscape 5.8 5.8 m2 434 cm 180 cm Fixed 38 cm 3 5 Team Edition 400 4.27 kg
Skyscape 6.4 6.4 m2 460 cm 194 cm Fixed 30 cm 3 5 Team Edition 430 4.50 kg
Skyscape 7.0 7.0 m2 480 cm 204 cm Fixed 20 cm 3 5 Team Edition 460 4.64 kg
Skyscape 8.0 8.0 m2 522 cm 212 cm Fixed 32 cm 3 6 Team Edition 490 5.34 kg
Skyscape 9.0 9.0 m2 542 cm 224 cm Fixed 22 cm 3 6 Team Edition 520 5.62 kg
Skyblade 2021 Skyblade
DEDICATED COURSE RACE FOIL SAIL
The totally new Skyblades are 7-batten 4-cam high aspect designs that are a development step from the Loftsails Skyscapes.
Skyblades combine enhanced stability with the powerful, pump-able Skyscape design package. The additional batten and cam shift these new sails
to the upper-end performance level of competitive wind foiling.
The firm Skyscape exhaust (leech twist) generates phenomenal upwind and downwind angles.
These are cutting-edge designs for cutting-edge wind foil racing.
Totally new designs for 2021, a full year of research and development resulted in higher aspect ratios, redesigned vertical and horizontal shaping,
and new exhaust tuning.
FEATURES & BENEFITS
• Large transparent foot panel for full competition visibility
• Tekcam2 camber inducer design – easy rotation and gentle on your mast
• Metallic cam interfaces MCIs eliminate contact point degradation characteristic of cam designs
without MCIs
• Tubed battens with varying carbon content. Top 3 specialized 100% carbon tubes – carbon tubes are
lightweight and deliver superior stability for the upper end
• X-ply batten pockets that alternate sail sides... using similar material for the batten pocket as the body
material minimizes the asymmetric character of applied batten pockets. Pockets made
with laminates allow the batten to be centered. These features combine to maintain rotation symmetry.
In contrast, same-side dacron pockets promote asymmetrical rotation
• Streamlined neoprene boom cutout with dual zippers limits water entry into the mast sleeve for
fast recovery
• Blade mast pocket construction – pocket sides under the tack pulley webbings for rotation ease,
clean mast pocket and longevity
• Kevlar strip applications – profile definition, mast pocket stability and longevity
• Durable IYU250 4-part mast pocket – the perfect material between your mast and the elements
• Trim: leech-release reference logo to dial in trim
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Skyblade 7.0 7.0 m2 496 cm 202 cm Fixed 36 cm 4 7 Team Edition 460 5.53 kg
Skyblade 8.0 8.0 m2 522 cm 218 cm Fixed 32 cm 4 7 Team Edition 490 5.94 kg
Skyblade 9.0 9.0 m2 560 cm 232 cm Fixed 40 cm 4 7 Team Edition 520 6.18 kg
Skyblade 10.0 10.0 m2 590 cm 240 cm Fixed 42 cm 4 7 Team Edition 550 6.55 kgRacingblade 2021 Racingblade
SLALOM UNLIMITED
The Racingblade is Loftsails’ dedicated slalom racing design. On the competition circuit since 2007, the design is developed with attention to
blistering acceleration and top speed.
Planchemag Racingblade 2020 verdict: “Very complete”
Efficient and stable profiles, a relatively free leech, and wide ultra-low drag mast pockets are designed into the Racingblade.
Wide mast pockets require firm tension for smooth airflow efficiency. The Racingblade mast pocket construction is unique: all 3 layers - the mast
panel and the two mast pocket sides - are tensioned by the tack pulley webbings.
This construction - first developed by Loftsails - equalizes mast panel and mast pocket loading. which is key to achieving the Racingblades’ firm,
clean, easy-rotating leading edge.
Totally redesigned for 2021 with high aspect ratios, new luff curves and horizontal shaping and redesigned leech exhaust tuning
FEATURES & BENEFITS
• Blade mast pocket construction features mast panel and 2 mil triax X-Ply mast pocket sides (3 layers)
tensioned directly (all 3 layers under tack pulley webbings) – downhaul tension is equalized between the
mast panel and the mast pocket resulting in the Racingblade’s firm, clean, easy-rotating leading edge
• Internal vertical and horizontal Kevlar strip applications at cams – defines profile and augments stability
• Tubed battens with varying carbon content. Top 3 specialized 100% carbon tubes – carbon tubes are
lightweight and deliver superior stability at the upper end
• Unique SDM and RDM mast compatibility. Tekcam2 Large (installed) and Reduced (in sail bag) included with size 8.6 and smaller
• Metallic cam interfaces – MCIs eliminate contact point degradation characteristic of cam designs without MCIs
• X-ply batten pockets that alternate sail sides - using similar material for the batten pocket as the body
material minimizes the asymmetric character of applied batten pockets. Pockets made with laminates allow
the batten to be centered. These features combine to maintain rotation symmetry. In contrast, same-side
dacron pockets promote asymmetrical rotation
• Streamlined neoprene boom cutout with dual zippers – limits water entry into the mast sleeve, keeping the rig light for fast recoveries
• Tekcam2 camber inducer design – easy rotation and gentle to your mast
• Durable IYU250 4-part mast pocket – the perfect material between your mast and the elements
• 4 mil Dimension Polyant laminated monofilm upper body panels – proven superior performance
• Trim: leech-release reference logo to dial in trim
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Racingblade 5.0 5.0 m2 404 172 Fixed 34 4 7 Team Edition 370 TBA
Racingblade 5.6 5.6 m2 422 184 Fixed 22 4 7 Team Edition 400 TBA
Racingblade 6.3 6.3 m2 444 196 Fixed 14 4 7 Team Edition 430 TBA
Racingblade 6.9 6.9 m2 470 204 Fixed 40 4 7 Team Edition 430 TBA
Racingblade 7.7 7.7 m2 484 218 Fixed 34 4 7 Team Edition 460 TBA
Racingblade 8.4 8.4 m2 518 222 Fixed 34 4 7 Team Edition 490 TBA
Racingblade 9.1 9.1 m2 TBA TBA Fixed TBA 4 7 TBA TBARaceboardblade 2021 Raceboardblade
PURE RACEBOARD COMPETITION
The Raceboard class is a classic in windsurfing competition. Raceboard regattas typically have tight starts, exciting mark roundings, tactics based
on continuous wind changes, and - as always - speed is rewarded. Raceboards are also ideal to learn windsurfing and to develop long-distance
techniques and recreational windsurfing skills. Launching can be from the beach, or from a marina. Elevated board buoyancy and light rigs make
raceboarding extremely versatile... lakes, open sea, rivers - all locations are valid for the Raceboard class.
The team that created Loftsails Raceboardblades is compact and diverse!
- Joao Rodrigues, the only sailor who has gone to all the Olympic games celebrated in the History of Windsurfing and current
World and European Masters Champion.
- Curro Manchón, Spanish coach of the Olympic medalist in London 2012, and on raceboard podiums in more than 10
World and European championships.
- Current Lightweight World runner-up Patrick Pollak with his technical eminence in the world of windsurfing, with many Olympic games and
international podiums backing him up.
- Finally, Monty Spindler, Master and Commander of the project, designer, and competitor in Raceboard.

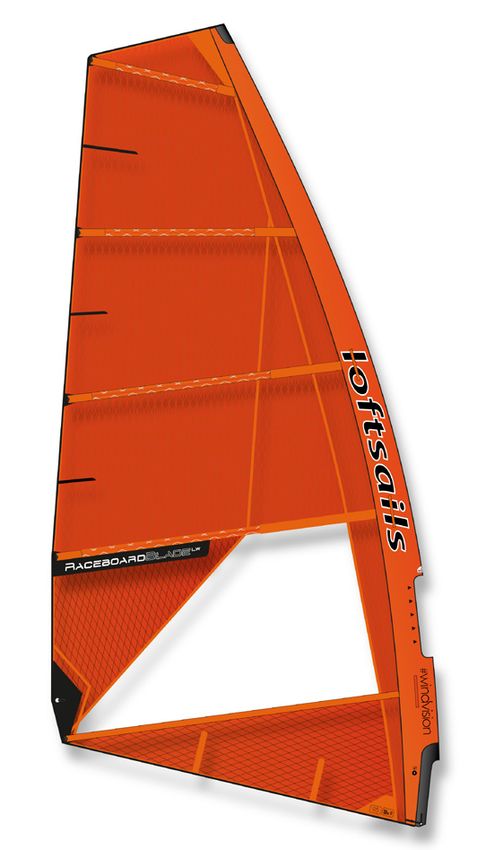

The new Raceboard Blade LW (Light Wind) II is a winning tool, specialized for light winds, but also remaining effective when winds exceed 12 knots.
The Raceboardblade is light: 4.65kg. Its power and ease of maneuverability make it delicious in the hands. An ideal tool for raceboard fun
and competition.
FEATURES & BENEFITS
• Blade mast pocket construction features mast panel and mast pocket sides (3 layers) tensioned directly
(all 3 layers under tack pulley webbings) – therefore downhaul tension is equalized between the mast panel
and the mast pocket resulting in the Raceboard Blade’s firm, clean, easy-rotating leading edge
• 4 mil Dimension Polyant monofilm body panels – proven superior performance
• Tubed battens with varying carbon content
• Metallic cam interfaces – MCIs eliminate contact point degradation
• Exposed tack (no mast pad) and boomhole, facilitating adjustable downhaul assemblies
• Xply batten pockets that alternate sail sides... using similar material for the batten pocket as the body material
minimizes the asymmetric character of applied batten pockets. Pockets made with laminates allow the batten
to be centered. These features combine to maintain rotation symmetry. In contrast, same-side dacron pockets
promote asymmetrical rotation
• Trim diamond - leech-release reference: dial into your sailing conditions
• Durable IYU250 4-part mast pocket – the perfect material between your mast and the elements
• New tack strap with eyelet - strap tension independent from downhaul tension
Description Size Luff Boom Vario Top Ext. Cambers Battens Rec. Mast Weight
Raceboardblade 7.5 LW II 7.5 m2 475 cm 220 cm Fixed 15 cm 3 5 Team Edition SDM 460 TBA kg
Raceboardblade 8.5 LW II 8.5 m2 510 cm 232 cm Fixed 15 cm 3 5 Team Edition SDM 490 TBA kg
Raceboardblade 9.5 LW II 9.5 m2 548 cm 244 cm Fixed 28 cm 3 5 Team Edition SDM 520 4.67 kg

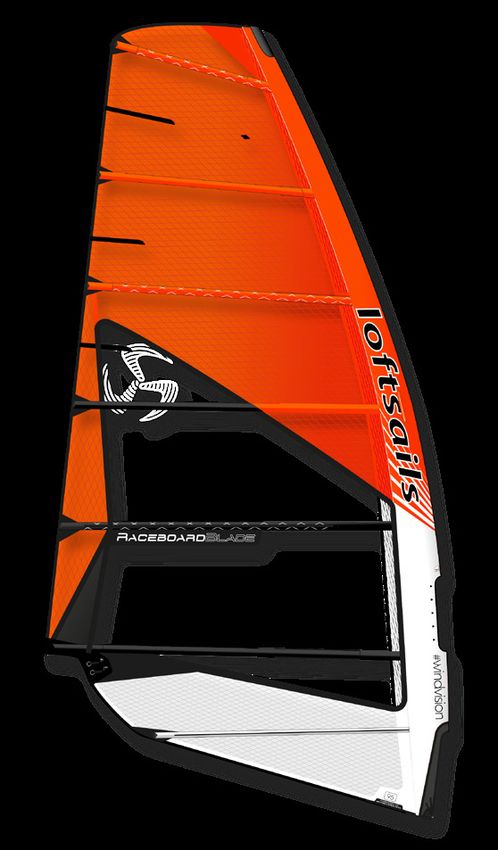

Raceboardblade 9.5 9.5 m2 538 cm 240 cm Fixed 18 cm 3 7 Team Edition SDM 520 5.84 kgLOFTSAILS CARBON BOOM
Loftsails is stoked to present our all new, full carbon and no compromise Loft Booms for 2021.
The new Loftsails Booms are engineered with new curves that allow both of a sailor’s arms to work effectively. The new
booms offer comfort and control across a huge wind range.
Description Size Tube Weight
Boom arm curve design, weight distribution, and stiffness are developed individually and specifically for each boom model
Carbon Wave Pro 140 - 200 140-200 cm 25x25 mm 2.15 kg
and length.
Carbon Freemove Pro 150 - 210 150-210 cm 27x29 mm 2.49 kg
Carbon Slalom Pro 170 - 220 170-220 cm 28x30 mm 2.70 kg
Loft Boom tails optimise the relationship between power (wider) and control (narrower). Boom tail widths are matched to Carbon Slalom Pro 190 - 240 Outside Tail 190-240 cm 28x30 mm 3.09 kg
boom length and sail size, for optimal performance.” Carbon Slalom Pro 220 - 270 Outside Tail 220-270 cm 28x30 mm 3.40 kg
36VISION C75 SDM 75% CARBON TEAM EDITION C100 SDM 100% CARBON
Loftsails Team Edition masts are focused on achieving the
best possible response for the least possible weight, without
compromising durability.
For high-performance sails, mast reaction and reflex are
Loftsails Vision 75% carbon range deliver high-end critical. Having the intended behavior consistently replicated in
response and reaction for performance freeride, freerace all diameters and sizes of mast is the number one requirement
and wavesailing use in a durable pre-preg construction to complement our test-winning sails. Using the best available
package. Tough and strong to resist camber wear or T700 and T800 carbon fibers and prepreg methods, Loftsails’
punishment in the surf. autoclave-cured process delivers the highest available
standards of tensile strength, impact/friction protection, and
Loftsails reliable, precision manufacturing methods ensure responsive flex. Loftsails run a bespoke, dedicated mast
consistent quality. Production variance is minimized, so program – unlike many brands that rely on off-the-shelf OEM
that the intended behavior of the mast is assured. products alone.
Constant Curve Carbon Fiber Quality Finishing Base % Top % Stiffness IMCS Weight Constant Curve Carbon Fiber Quality Finishing Base % Top % Stiffness IMCS Weight
Vision C75 SDM 400 with Mastbag T700 & T800 Standard Matte 64 % 76 % 19 1.44 kg Team Edition C100 SDM 370 with Mastbag T700 & T800 Standard Matte 64 % 76 % 17 1.51 kg
Vision C75 SDM 430 with Mastbag T700 & T800 Standard Matte 64 % 76 % 21 1.69 kg Team Edition C100 SDM 400 with Mastbag T700 & T800 Standard Matte 64 % 76 % 19 1.68 kg
Vision C75 SDM 460 with Mastbag T700 & T800 Standard Matte 64 % 76 % 25 1.99 kg Team Edition C100 SDM 430 with Mastbag T700 & T800 Standard Matte 64 % 76 % 21 1.76 kg
Vision C75 SDM 490 with Mastbag T700 & T800 Standard Matte 64 % 76 % 29 2.07 kg Team Edition C100 SDM 460 with Mastbag T700 & T800 Standard Matte 64 % 76 % 25 1.79 kg
Vision C75 SDM 520 with Mastbag T700 & T800 Standard Matte 64 % 76 % 33 2.60 kg Team Edition C100 SDM 490 with Mastbag T700 & T800 Standard Matte 64 % 76 % 29 2.00 kg
Team Edition C100 SDM 520 with Mastbag T700 & T800 Standard Matte 64 % 76 % 33 2.45 kg
Team Edition C100 SDM 530 with Mastbag T700 & T800 Standard Matte 64 % 76 % 34 2.53 kg
Team Edition C100 SDM 550 with Mastbag T700 & T800 Standard Matte 64 % 76 % 35 2.67 kgSPARK C50 RDM 50% CARBON VISION C75 RDM 75% CARBON
Loftsails Vision 75% carbon range deliver highend
response and reaction for performance freeriders,
Loftsails quality pre-preg construction methods make the freerace and wavesailing use in a durable pre-preg
50% Carbon Spark more than an entry-level mast, construction package that’s tough and strong for either
with reaction and performance comparable to many higher camber wear or punishment in the surf.
carbon-content mast models, and solid construction for
peace of mind. Loftsails reliable, precision manufacturing methods ensure
consistent quality that reduces production variance
An excellent choice - with super longevity - for general tolerance considerably so that the intended behavior of the
freeride blasting and progression, and offering great value. masts is assured.
Constant Curve Carbon Fiber Quality Finishing Base % Top % Stiffness IMCS Weight Constant Curve Carbon Fiber Quality Finishing Base % Top % Stiffness IMCS Weight
Spark C50 RDM 340 T700 Standard Matte 64 % 76 % 14 1.52 kg Vision C75 RDM 340 with Mastbag T700 & T800 Standard Matte 64 % 76 % 14 1.31 kg
Spark C50 RDM 370 T700 Standard Matte 64 % 76 % 17 1.61 kg Vision C75 RDM 370 with Mastbag T700 & T800 Standard Matte 64 % 76 % 17 1.61 kg
Spark C50 RDM 400 T700 Standard Matte 64 % 76 % 19 1.74 kg Vision C75 RDM 400 with Mastbag T700 & T800 Standard Matte 64 % 76 % 19 1.69 kg
Spark C50 RDM 430 T700 Standard Matte 64 % 76 % 21 2.16 kg Vision C75 RDM 430 with Mastbag T700 & T800 Standard Matte 64 % 76 % 21 1.99 kg
Spark C50 RDM 460 T700 Standard Matte 64 % 76 % 25 2.51 kg Vision C75 RDM 460 with Mastbag T700 & T800 Standard Matte 64 % 76 % 25 2.37 kg
Vision C75 RDM 490 with Mastbag T700 & T800 Standard Matte 64 % 76 % 29 2.69 kgTEAM EDITION C100 RDM 100% CARBON Loftsails Mastbag
All Loftsails C75 and Team Edition C100 masts are supplied
with protective mast bags.
The Spark C50 line is targeted to offer value for money at
competitive price points. Mast bags are priced separately and
available on demand.
Description Length Width Construction Weight
Loftsails Mastbag 340 197 cm 12 cm Tarpaulin With Water Repelling Polyester 600D 0.37 kg
Loftsails Mastbag 370 217 cm 12 cm Tarpaulin With Water Repelling Polyester 600D 0.42 kg
Loftsails Mastbag 400 231 cm 12 cm Tarpaulin With Water Repelling Polyester 600D 0.44 kg
Loftsails Mastbag 430 248 cm 12 cm Tarpaulin With Water Repelling Polyester 600D 0.47 kg
Loftsails Team Edition masts are focused on achieving Loftsails Mastbag 460 260 cm 12 cm Tarpaulin With Water Repelling Polyester 600D 0.50 kg
the best possible response for the least possible weight, Loftsails Mastbag 490 278 cm 12 cm Tarpaulin With Water Repelling Polyester 600D 0.52 kg
without compromising durability. Loftsails Mastbag 520/530 288 cm 12 cm Tarpaulin With Water Repelling Polyester 600D 0.55 kg
In high-performance sails, reaction and reflex are critical Loftsails Mastbag 550 298 cm 12 cm Tarpaulin With Water Repelling Polyester 600D 0.58 kg
and having that pre-set,
intended behavior pre-set and consistently replicated in all
diameters and sizes of the mast program is the number one
requirement in complementing their test-winning sails.
Team Edition Mast Extension
All components must be optimized for performance
windsurfing. Loftsails has added new and exclusive mast
Using the best possible T700 and T800 carbon fibers and
extensions to our range of top-quality products. Loftsails
pre-preg (pre-impregnated with resin for the best possible
mast extensions bring reliability and ease of use to a new
quality vs. traditional wet layup processes) methods.
level.
Loftsails autoclave-cured process delivers the highest
The pulley block is 100% molded metal construction. Both SDM
standard of tensile strength, impact/friction protection and
and RDM models include three wheels and are compatible with
responsive flex available – all from a bespoke, dedicated
4-roller tack pulleys. Spectra line is standard. Our exclusive
program – unlike many brands that rely on off-the-shelf
base design is ultra-easy to thread, and line replacement is a
OEM products alone.
breeze.
The Loftsails U-Joint (mast base) uses a molded-metal
construction for the upper part. The lower part is an easy to use
MAST EXTENSION RDM MAST EXTENSION SDM star-shape.
Constant Curve Carbon Fiber Quality Finishing Base % Top % Stiffness IMCS Weight
Team Edition C100 RDM 340 with Mastbag T700 & T800 Standard Matte 64 % 76 % 14 1.20 kg
Team Edition C100 RDM 370 with Mastbag T700 & T800 Standard Matte 64 % 76 % 17 1.35 kg Description Construction Wall Thickness (mm) Downhaul Ratio Minimum (cm) Maximum (cm) Weight (kg)
Team Edition C100 RDM 400 with Mastbag T700 & T800 Standard Matte 64 % 76 % 19 1.48 kg
Team Edition Mast Extension RDM 32 Aluminium T8 2 mm 8:1 - 3 pulleys 4 cm 32 0.65 kg
Team Edition C100 RDM 430 with Mastbag T700 & T800 Standard Matte 64 % 76 % 21 1.64 kg
Team Edition Mast Extension RDM 46 Aluminium T8 2 mm 8:1 - 3 pulleys 4 cm 46 0.78 kg
Team Edition C100 RDM 460 with Mastbag T700 & T800 Standard Matte 64 % 76 % 25 1.90 kg
Team Edition Mast Extension SDM 32 Aluminium T8 2 mm 8:1 - 3 pulleys 4 cm 32 0.70 kg
Team Edition C100 RDM 490 with Mastbag T700 & T800 Standard Matte 64 % 76 % 29 2.21 kg
Team Edition Mast Extension SDM 46 Aluminium T8 2 mm 8:1 - 3 pulleys 4 cm 46 0.84 kg
Team Edition C100 RDM 520 with Mastbag T700 & T800 Standard Matte 64 % 76 % 33 2.56 kgSlalom Lite Harness
For those windsurfers who prefer slalom-seat harness
designs, Loftsails has a new solution. The Loftsails Slalom
Lite harness is the effective transfer of rig power to your
body. The Slalom Lite harness is designed with four vertical
seams that allow the curves worked into the vertical seams a
unique snug fit to the body.
Neoprene interior center and side panels make for a soft grip, 2021 Loftsails Promotion
while the dual side stiffeners take transfer rig power softly to
the hips. The bottom panel is triple layer, while the neoprene
panels also include internal strengthening panels. Spreader bar
adjustment tails are velcro-equipped to keep your windsurfing
silent. The Loftsails Slalom Lite harness is compfortable, light,
strong, and transfers rig power directly to the sailors hips...
fantastically functional.
Description Harness Style Construction Level Back Support Hook Height Key Pocket Weight (kg)
Slalom Lite Harness XS Seat Classic Low Low Yes 0.727 kg
Slalom Lite Harness S Seat Classic Low Low Yes 0.77 kg
Slalom Lite Harness M Seat Classic Low Low Yes 0.81 kg
Slalom Lite Harness L Seat Classic Low Low Yes 0.874 kg Loftsails T-shirt Loftsails T-shirt Loftsails Sweater Loftsails Beachflag
Men Royal Blue M - L - XL Men Black M - L - XL Men Charcoal M - L - XL Orange 484 x 76 cm2021
windvision
Equipe Trading B.V.
Hercules 4 loftsails.com
5126 RK GILZE
The Netherlands
support@loftsails.com
Phone: 0031 161 223436You can also read
