2021 INTERIOR DOOR w w w. t r i m l i t e . c o m COLLECTION
OUR STORY For over 35 years, Trimlite™ has been committed to producing high quality interior and exterior door and glass products. Founded in Vancouver, British Columbia, we operate manufacturing facilities in four countries with distribution locations across North America. Managing the largest interior wood door manufacturing facility in Western Canada, our team creates beautiful doors to meet your specific requirements. Our Interior Door Collection is focused on the simple premise of crafting doors for the design needs of our diverse customers. It has something for every architectural space and style. Let Trimlite™ help you create an interior look that reflects your taste and complements the design of your home. 2 | TRIMLITE INTERIOR COLLECTION
Glass Name | SERIES
TABLE
DESIGNER
OF CONTENTS
NAME
Interior Door Introduction................................................................ 4
Quick Ship Shaker Panel Doors................................................... 5-6
Quick Ship Shaker Specifications.................................................. 7
Quick Ship Shaker Panel Doors w/Applied Beading..................... 7
Quick Ship Shaker Panel 2-Step..................................................... 8
Quick Ship Plantation Louver Doors ............................................. 9
Quick Ship Rustic Barn Doors, Track Hardware & Accs....... 10-13
Special Order Raised Panel Doors.......................................... 14-15
Special Order Shaker Panel Doors.......................................... 16-17
Special Order Flat Panel Doors w/Ovolo Bead............................ 18
Special Order High Definition Shaker Doors............................... 19
Special Order Contemporary Doors........................................ 20-21
Special Order Barn Doors......................................................... 22-23
Special Order Router Carved Doors........................................ 24-27
French Door Collection............................................................. 28-37
French Doors | Size Specification................................................. 38
French Doors | Technical Information.......................................... 39
PRIVACY GUIDE

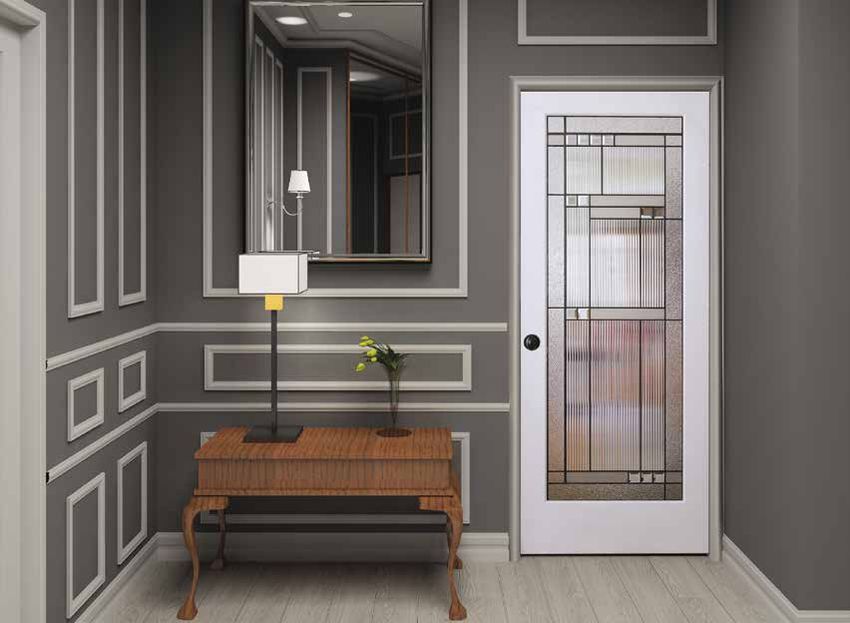

Trimlite™ offers an extensive line of glass options to choose from and the degree of opacity varies considerably. With each
design, we have included a number which represents the “Privacy Level” for that product. Please refer to the guide below.
Note: This guide is subjective. It should only be used when comparing Trimlite designs.
PRIVACY 1 2 3 4 5 6 7 8 9 10
Completely Clear Diffused/Distorted Completely Opaque
Objects can be clearly Objects are distorted, but Only light will travel through
seen through the glass can still be detected from from the opposite side.
from the opposite side. the opposite side.
TRIMLITE INTERIOR COLLECTION |3
INTERIOR DOOR INTRODUCTION
Unrivaled selection of Stile and
Rail Panel, Barn and French
doors that will complement
any home style.
Starting with our Quick Ship
program, we have a large
selection of doors, like Shaker,
Louver or Barn doors, ready
for when you need them.
In addition to our Quick Ship
offerings we also have a huge
selection of “Special Order”
products that will provide you
with limitless design options to
choose from.
Let Trimlite™ help you create
an interior look that reflects
your taste. Now it’s your time
to choose.
8401
Primed Shaker
4 | TRIMLITE INTERIOR COLLECTION
Primed | QUICK SHIP SHAKER
These doors are factory primed and ready for paint. Let Trimlite help
you create an interior look that will be a true reflection of your taste.
Shaker Panel Doors Quick Ship* Sizes : 1/4, 1/6, 1/8, 1/10, 2/0, 2/2, 2/4, 2/6, 2/8, 2/10, & 3/0
6/8
1-3/8”
8401 8402 8433 8444 8405
Shaker Panel Doors Quick Ship* Sizes: 1/4, 1/6, 2/0, 2/2, 2/4, 2/6, 2/8, 2/10, & 3/0
8/0
1-3/8"
8401 8402 8433 8444 8405
Shaker French Doors: Diffused White Laminate (DWL) & Clear Quick Ship* Sizes: 2/0, 2/2, 2/4, 2/6, 2/8, 2/10, & 3/0
6/8
1-3/8"
DWL Safety Glass Clear Safety Glass
PRIVACY 10 PRIVACY 1
8401 8433 8444 8405
Shaker Bifolds (includes track & hardware) Quick Ship* Sizes: 2/0, 2/6, & 3/0
6/7
1-3/8"
8401 8402 8433 8444 8405
*Quick Ship: We make every effort to ensure all Quick Ship Items are in stock. However, we do not guarantee stock. Please call your representative for availability.
TRIMLITE INTERIOR COLLECTION |5
QUICK SHIP SHAKER | Primed
Need something bigger? Consider our 1-3/4” program. Now you can get 6/8, 7/0, 7/6 and 8/0 doors when you want them.
Shaker Panel Doors Quick Ship* Sizes: 1/6, 1/8, 1/10, 2/0, 2/2, 2/4, 2/6, 2/8, 2/10, & 3/0
6/8
1-3/4”
8401 8402 8433 8444 8405
7/0
1-3/4”
8401 8402 8433 8444 8405
7/6
1-3/4”
8401 8402 8433 8444 8405
8/0
1-3/4”
8401 8402 8433 8444 8405
*Quick Ship: We make every effort to ensure all Quick Ship Items are in stock. However, we do not guarantee stock. Please call your representative for availability.
6 | TRIMLITE INTERIOR COLLECTION
SHAKER SPECIFICATIONS
DIMENSIONS:
Thickness: 1-3/8" & 1-3/4"
Doors: 1
/4, 1/6, 1/8, 1/10, 2/0, Flat Panel
2/2, 2/4, 2/6, 2/8, 2/10 & 3/0 Shaker
Profile
Bifolds: 2/0, 2/6 & 3/0
Height: 6/8, 7/0, 7/6 & 8/0
Panels: 1
/2" Flat Panel (1-3/8" door)
3/4" Flat Panel (1-3/4" door)
Door stiles: 4-7/16"
Bifold stiles: 2"
Top rail: 4-5/16"
Cross rails: 4-3/8" Engineered
Lock rail: 7-3/8" Stile/Rail
Door bottom rail: 9-3/16"
Bi-fold bottom rail: 7-15/16"
F
ire-Rated doors also available. Contact your
dealer for more information.
Complete dimensional specifications are available
from your dealer.
QUICK SHIP APPLIED BEADS PRIMED
Now you can create a different architectural look with any of our “Quick Ship” door styles in either 1-3/8” or 1-3/4”.
Customize your look by adding one of the following beading profiles:
Option Option Option Option
Bevel Bead Square Bead Quirk Bead Ovolo Bead
Note: Custom applied bead will add additional time for processing. Drawings are not exactly to scale.
Contact your dealer for more information.
TRIMLITE INTERIOR COLLECTION |7
QUICK SHIP APPLIED 2-STEP | Primed
Our 2-Step Flat Bead profile offers a unique take on a traditional 8401 shaker door.
Specifications Our 1-9/16" flat bead
steps down from the
shaker style door, giving
the profile depth and dramatic
shadow lines while still
maintaining its charm.
Note: Custom applied bead
will add additional time for
processing. Contact your
dealer for more information.
Optional
2 Step bead (#8491)
8 | TRIMLITE INTERIOR COLLECTION
Primed | QUICK SHIP* PLANTATION LOUVER
Trimlite’s Primed Louver doors and bifolds increase ventilation and promote air flow between rooms. Our 3-1/4"
solid wood louver slats allow for increased privacy while maintaining all of the conventional benefits of a venting louver.
Dimensions
Thickness: 1-3/8" only
Doors: 2/0, 2/2, 2/4, 2/6, 2/8, 2/10 & 3/0
Bifolds: 2/0, 2/6 & 3/0
Height: 6/8" only
Door stiles: 4-1/2""
Bifold stiles: 2"
Top rail: 4-7/16"
Lock rail: 7-3/8"
Door bottom rail: 9-3/16"
Bifold bottom rail: 7-15/16"
*Quick Ship: We make every effort to ensure all Quick Ship
Items are in stock. However, we do not guarantee stock.
Please call your representative for availability.
8730 Louver
Louver Door Louver Bifolds (includes track & hardware)
6/8 6/7
1-3/8" 1-3/8"
8730 8730BF
Note: Not available in custom sizes.
TRIMLITE INTERIOR COLLECTION |9

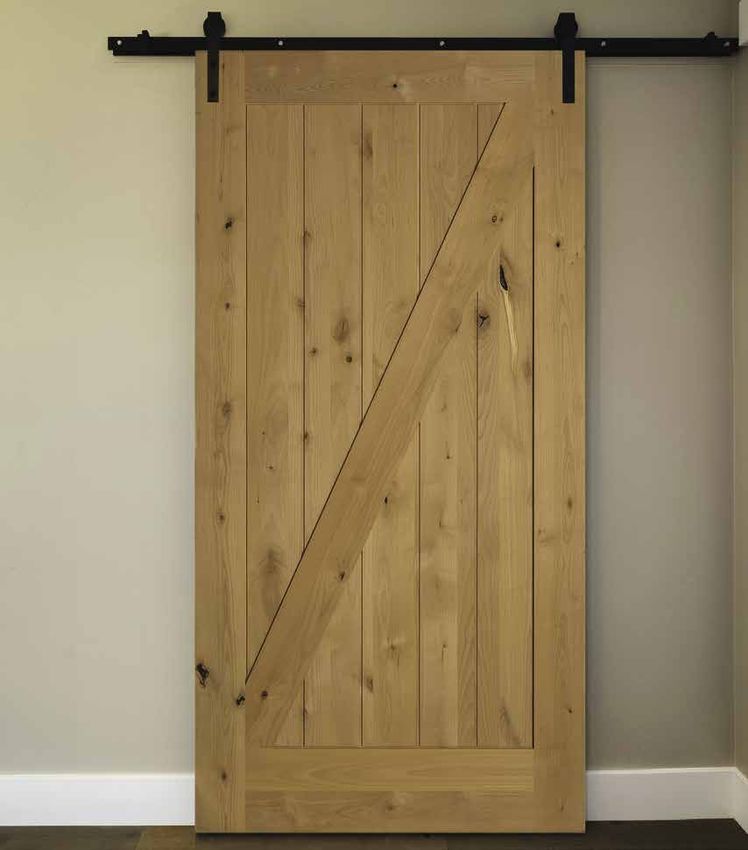

QUICK SHIP | Rustic Barn Doors 8401BZ Knotty Alder with 24" Matte Black Bar Pull and Rustic Bent Strap Track 10 | TRIMLITE INTERIOR COLLECTION
Rustic and Shaker Barn Doors | QUICK SHIP*
Rustic Barn Doors
“Z-Style”
8401BZ Knotty Alder 8401BZ Primed
“K-Style”
Primed 8402BK with 24" Brushed
Stainless Steel Bar Pull and
Contemporary Track
Trimlite™ offers a wide selection of Rustic style
barn doors that fit a variety of openings.
8402 BK Knotty Alder 8402BK Primed
• Diagonal brace on both sides
• Pre-routed groove in bottom rail for T-floor guide Size/Description Knotty Alder Primed
3/0 x 7/0 x 1-3/8 8401BZ
3/6 x 7/0 x 1-3/8 8401BZ
*Quick Ship: We make every effort to ensure
4/0 x 7/0 x 1-3/8 8401BZ
stock. However, we do not guarantee stock. 3/6 x 8/0 x 1-3/8 8401BZ
Please call your dealer for availability. 3/0 x 7/0 x 1-3/8 8402BK
3/6 x 7/0 x 1-3/8 8402BK
4/0 x 7/0 x 1-3/8 8402BK
3/6 x 8/0 x 1-3/8 8402BK
TRIMLITE INTERIOR COLLECTION | 11QUICK SHIP* | Barn Door Hardware
We offer two barn door track options. The rustic track has a bent strap roller for a traditional design.
Use our contemporary track with top mount rollers to re-imagine any room.
Rustic Track + Hardware
• Track sizes: 84"or 96"
Bent Strap
• Matte Black or Brushed Stainless Steel Options
• Track rated up to 220 pounds
• Ability to connect tracks for double doors
Matte Black Brushed Stainless Steel • 3-year warranty
• Rustic track has bent strap rollers
Contemporary Track + Hardware
Top Mount • Contemporary track comes with top mount rollers
• Nylon ball-bearing rollers for quiet operation
Matte Black Brushed Stainless Steel Soft Close Hardware
Bypass Bracket
Matte Black
Matte Black Brushed
Stainless Steel
*Quick Ship: We make every effort to ensure all Quick Ship
Matte Grey
Items are in stock. However, we do not guarantee stock.
(Matches Stainless Steel Track)
Please call your representative for availability.
12 | TRIMLITE INTERIOR COLLECTIONHandles and Pulls | QUICK SHIP*
Bar Pulls (Round)
Available in
Stainless Steel
& Matte Black
16" 16" 24" 24" 36" 36" 60" 60"
Rectangular Flush Pulls Handles Round Pulls
6-1/2" 6-1/2" 2-1/8"
Brushed Stainless Steel Brushed Stainless Steel Brushed Stainless Steel
6-1/2" 6-1/2" 2-1/8"
Matte Black Matte Black Matte Black
*Quick Ship: We make every effort to ensure all Quick Ship Items are in stock. However, we do not guarantee stock. Please call your representative for availability.
TRIMLITE INTERIOR COLLECTION | 13SPECIAL ORDER | Raised Panel Doors & Bifolds
Our Double Hip Raised Panel doors
are a timeless look, available in a
variety of panel layouts and wood
species. Available options include
1-3/8" and 1-3/4" door
thickness, 6/8, 7/0, 7/6 and 8/0
heights.
Custom sizes and other species avail-
able. Contact your dealer for more
information.
OV22 Two Panel
Raised Panel Doors
OV11 OV22 OV24 OV33 OV44 OV55 OV66
Raised Panel Bifolds (includes track & hardware)
OV11BF OV22BF OV24BF OV33BF OV55BF OV66BF
OV44BF
14 | TRIMLITE INTERIOR COLLECTIONRaised Panel Doors & Bifolds | SPECIAL ORDER
Specifications Dimensions
DO NOT INCLUDE 3/8" OVOLO STICKING
Double Hip Thickness: 1-3/8" & 1-3/4"
Raised Panel
Doors: 1/4†, 1/6†, 1/8†, 1/10†, 2/0,
2/2, 2/4, 2/6, 2/8, 2/10 & 3/0
Bifolds: 2/0†, 2/6† & 3/0†
Height: 6/8, 7/0, 7/6 & 8/0
Panels: 1-3/8" Door - 3/4" Double Hip Raised
3/8"
Ovolo 1-3/4" Door - 1-1/4" Double Hip Raised
Sticking/Bead
Door stiles: 4-1/16"
Bifold stiles: 1-5/8"
Top rail: 3-15/16"
Cross rails: 3-5/8"
Lock rail: 6-5/8"
Door bottom rail: 8-13/16"
Bi-fold bottom rail: 7-9/16"
Select veneers with matching
solid wood edge strips.
†: #OV44 door in sizes 1/4 to 1/10 will have two panels, not four
Species
#OV66 door in sizes 1/4 to 1/10 will have three panels, not six
Primed Clear Pine Red Oak Maple
Yellow Poplar Knotty Pine Vertical Grain Fir Knotty Alder
Note: Complete dimensional specifications are available from your dealer.
TRIMLITE INTERIOR COLLECTION | 15SPECIAL ORDER | Shaker Doors & Bifolds
Our Shaker program also includes a
wide selection of stain grade options
and panel layouts.
Available options in 1-3/8” and
1-3/4” thicknesses, 6/8, 7/0, 7/6
and 8/0 heights.
Custom sizes and other species are
also available. Contact your dealer
for more information.
8402 VG Fir
Shaker Panel Doors
8401 8402 8403† 8433 8444 8405
Shaker Bifolds (includes track & hardware)
8401BF 8402BF 8403BF† 8433BF 8444BF 8405BF
†: 8403 door in sizes 1/4 to 1/10 will have two panels, not three.
The materials contained in this page are for presentation purpose; actual prefinished colour may vary.
16 | TRIMLITE INTERIOR COLLECTIONShaker Doors & Bifolds | SPECIAL ORDER
Specifications Dimensions
Thickness: 1-3/8" & 1-3/4"
Doors: 1/4†, 1/6†, 1/8†, 1/10†, 2/0,
2/2, 2/4, 2/6, 2/8, 2/10 & 3/0
Bifolds: 2/0†, 2/6† & 3/0†
Flat Panel Height: 6/8, 7/0, 7/6 & 8/0
Shaker
Profile Panels: Flat (Thickness may vary)
Door stiles: 4-7/16"
Bifold stiles: 2"
Top rail: 4-5/16"
Cross rails: 4-3/8"
Lock rail: 7-3/8"
Door bottom rail: 9-3/16"
Bi-fold bottom rail: 7-15/16"
Select veneers with matching
solid wood edge strips.
†: 8403 door in sizes 1/4 to 1/10
will have two panels, not three.
Species
Primed Clear Pine Red Oak Maple
Yellow Poplar Knotty Pine Vertical Grain Fir Knotty Alder
Note: Complete dimensional specifications are available from your dealer.
TRIMLITE INTERIOR COLLECTION | 17SPECIAL ORDER | Flat Panel Ovolo Bead Doors & Bifolds
We added a decorative Ovolo Bead to our Flat Panel doors to create the 1400 Series. This bead is manufactured with precision,
no nail holes and consistent reveals at every edge. Available in a variety of panel layouts and wood species. For other species
refer to page 17 for options. Contact your dealer for more information.
Flat Panel Ovolo Bead Doors
1401 1402 1403†
1433 Ovolo Door
Specifications
1433 1444 1405
Dimensions
DO NOT INCLUDE 3/8" OVOLO STICKING
Flat Panel
Thickness: 1-3/8" & 1-3/4"
Doors: 1/4†, 1/6†, 1/8†, 1/10†, 2/0,
2/2, 2/4, 2/6, 2/8, 2/10 & 3/0
Bifolds: 2/0†, 2/6† & 3/0† (Not Shown)
Height: 6/8, 7/0, 7/6 & 8/0
3/8" Ovolo
Sticking/Bead
Panels: Flat (Thickness may vary)
Door stiles: 4-1/16"
Bifold stiles: 1-5/8"
Top rail: 3-15/16"
Cross rails: 3-5/8"
Lock rail: 6-5/8" Rail
Door bottom rail: 8-13/16"
Bi-fold bottom rail: 7-9/16"
Select veneers with matching solid wood edge strips.
†: #1403 door in sizes 1/4 to 1/10 will have two panels,
not three. Custom sizes available. Contact your dealer
for more information.
18 | TRIMLITE INTERIOR COLLECTIONHigh Definition Shaker Doors & Bifolds | SPECIAL ORDER
Trimlite's High Definition shaker door combines the sharp edge and clean lines of the traditional stile and rail door with a
contemporary twist. True 90 degree angles where the solid MDF panel meets the solid wood stiles and rails give this
substantial door an unmatched feeling of quality and durability. Only available in Primed.
8401HD 8402HD 8403HD
8403 HD Shaker
8433HD 8444HD 8405HD
Specifications
Dimensions
Thickness: 1-3/8" & 1-3/4"
1-1/4"
Doors: 1/4†, 1/6†, 1/8†, 1/10†, 2/0,
Solid Panel
2/2, 2/4, 2/6, 2/8, 2/10 & 3/0
Bifolds: 2/0†, 2/6† & 3/0† (Not Shown)
3/4"
Shaker Height: 6/8, 7/0, 7/6 & 8/0
Hip
Panels: 1-1/4"
Door stiles: 4-7/16"
Top rail: 4-5/16"
Cross rails: 4-3/8"
Lock rail: 7-3/8"
Door bottom rail: 9-3/16"
†: #8403HD door in sizes 1/4 to 1/10
will have two panels, not three.
Custom sizes available. Contact your dealer for
more information.
Note: Only available in Primed.
TRIMLITE INTERIOR COLLECTION | 19SPECIAL ORDER | Contemporary Doors
Our Contemporary collection offers ultra modern styling with sleek lines. Comes standard in Primed or Vertical
Grain Douglas Fir. Flat recessed panels or 8 different glass options. Choose the look that suits your style!
8488 with DWL
8400 Shaker Series 6/8 1-3/8"
4-1/2"
4-1/2"
4-1/2"
9"
8466 8477 8488 8499 8410 8411
Available options include 1-3/8" 8900 Shaker Series 6/8 1-3/8"
and 1-3/4" door thickness in 6/8, 4-1/2"
7/0, 7/6 and 8/0, Primed and 7-3/8"
Fir only.
Flat recessed panels are standard 9"
or with 8 different glass options.
Glass options shown on Page 21.
Custom sizes also available. Contact
your dealer for more information.
9"
Note: Not available in Bifolds.
8933 8944 8955 8966
20 | TRIMLITE INTERIOR COLLECTIONContemporary Doors | SPECIAL ORDER
8488 VG Fir
Glass Options
Clear Seedy Baroque Roof Top Pinhead
PRIVACY 1 PRIVACY 3 PRIVACY 8 PRIVACY 9
Sable Screen Dot Rain Diffused White Laminate
PRIVACY 9 PRIVACY 8 PRIVACY 9 (DWL) PRIVACY 10
TRIMLITE INTERIOR COLLECTION | 21SPECIAL ORDER | Barn Doors
Can’t find what you want? Let us help. We can make a variety of Barn door products to suit your design needs. Available in
1-3/8” and 1-3/4” and sizes ranging up to 60” in width and 108” in height. Contact your dealer for more information.
Rustic - Featuring grooved recess panel(s) and
a variety of panel layouts.
8401 BFWR 8401 B
8401 BZ 8401 BK
8402BK Knotty Alder with
6-1/2" Matte Black Handle
and Rustic Track
Trimlite™ offers a wide selection of Rustic and
Shaker style barn doors in both standard and
oversized doors. Our barn doors arrive with a
T-Groove routed to complement our barn door
track. Select yours today. In addition to Primed
and Knotty Alder, other species available. Contact
your dealer for more details.
8402 BK 8402 BZ
22 | TRIMLITE INTERIOR COLLECTIONBarn Doors | SPECIAL ORDER
Shaker - Feature flat panels and glass options.
8401 8402 8403 8433 8444 8405
Primed Fir Knotty Alder
Clear Diffused White Note: Other species available.
PRIVACY 1 Laminate (DWL) Refer to page 17 for options.
PRIVACY 10
8433 with 6-1/2" Matte Black
Pull and Contemporary Track
Contemporary - Feature ultra modern styling with sleek lines.
8466 8477 8488 8499 8955
Primed Fir
Clear Diffused White Note: Other design layouts available.
PRIVACY 1 Laminate (DWL) Refer to page 20 for options.
8955 Fir DWL with 24" PRIVACY 10
Stainless Steel Bar Pull
and Contemporary Track TRIMLITE INTERIOR COLLECTION | 23SPECIAL ORDER | Router Carved Doors
We are pleased to introduce the newest addition to our Interior Collection. Crafted, using medium density fiberboard
components, our Router Carved Doors give you seamless solid surface construction. We have included 1” soild wood
edge strips in the stiles as well, providing screw holding strength for your hinges. Choose from our many standard
designs or come up with your own. Our precision CNC machining provides you with absolute design flexibility.
RP3C Router Carve Door
24 | TRIMLITE INTERIOR COLLECTIONRaised Panel Router Carved Doors | SPECIAL ORDER
RP2A RP2B RP2C RP2D
RP3A RP3B RP3C RP3D
TRIMLITE INTERIOR COLLECTION | 25SPECIAL ORDER | Grooved Router Carved Doors
RG30 RG31 RG32 RG41
RG50 RG51A RG51B RG52
26 | TRIMLITE INTERIOR COLLECTIONRouter Carved Doors | SPECIAL ORDER
Specifications
RAISED PANEL PROFILE
Dimensions
MDF FACE
WOOD Thickness: 1-3/8" & 1-3/4"
EDGE
CARDBOARD FILL
Doors: 1/4*, 1/6, 1/8, 1/10, 2/0,
MDF FACE 2/2, 2/4, 2/6, 2/8, 2/10 & 3/0
Bifolds: 2/0, 2/6 & 3/0 (Not Shown)
1 Height: 6/8, 7/0, 7/6 & 8/0
8"
GROOVED PANEL PROFILE 1/16" Groove Depth
Panels: Vary
MDF FACE Custom sizes available. Contact your
WOOD
EDGE
dealer for more information.
CARDBOARD FILL
Note: Only Available in Primed
MDF FACE
*Not Available in RP3C design
RG31 Grooved Router Carve Door
TRIMLITE INTERIOR COLLECTION | 27FRENCH DOOR COLLECTION
Trimlite™ offers a broad
selection of styles and glass
options to complement any
architectural look. From
intricate to simple, clear to
obscure. Everyone is different
and so are our designs.
Let Trimlite™ create a focal
point in your home that is a
true reflection of your taste
and style.
Now it’s your time to choose!
Note: Delivery will vary for
our French door products.
Please contact your dealer
for availability in your area.
Rooftop French door
28 | TRIMLITE INTERIOR COLLECTION| SERIES | DESIGNER
Glass Name Adelaide FRENCH DOORS
NAME
Shown in Fir
Sable Bevels
Clear Bevels
3/8 ̎ Caming
Sable Bevel
Available in Patina only
PRIVACY 8
* Not shown 6/8 7/0 7/6* or 8/0
TRIMLITE INTERIOR COLLECTION | 29FRENCH
SERIES DESIGNER NAME | Glass Name
DOORS | Artisan
Granite
Clear Bevels
3/16 ̎ Caming
Luminating
Reed
Available in Patina only
PRIVACY 7
* Not shown
6/8 7/0 7/6* or 8/0
30 | TRIMLITE INTERIOR COLLECTIONGlass Name | SERIES
Harlow |DESIGNER
FRENCH DOORS
NAME
Narrow Reed
Granite
3/16 ̎ Caming
3/8 ̎ Caming
Sandblast
Clear Bevels
Available in Patina only
PRIVACY 8
* Not shown 6/8 7/0 7/6* or 8/0
TRIMLITE INTERIOR COLLECTION | 31FRENCH
SERIES DESIGNER
FRENCH DOORS NAME | Glass Name
DOORS || Lexington
Lexington
Clear Ripple
Clear Bevels
Grey Ripple
Drawn
3/16 ̎ Caming
Available in Patina only
PRIVACY 5
* Not shown 6/8 7/0 7/6* or 8/0
32 | TRIMLITE INTERIOR COLLECTIONGlass Name |Modena
SERIES
Modena ||DESIGNER
FRENCH DOORS
FRENCH DOORS
NAME
Shown in Fir
Granite
Luminating
Reed
Clear Bevels
3/8 ̎Caming
Available in Patina and Zinc
(Shown in Zinc)
PRIVACY 7
* Not shown 6/8 7/0 7/6* or 8/0
TRIMLITE INTERIOR COLLECTION | 33FRENCH DOORS | Bevel
Available in Patina and Zinc
(shown in Patina)
Clear Bevels
PRIVACY 1
3/16 ̎ Caming
6/8 7/0 7/6* or 8/0
* Not shown
FRENCH DOORS | Wood Bar
Available in Flat and Bevel
Clear (shown in bevel) Clear Bevels
PRIVACY 1
Wood Bar
6/8 7/0 8/0
Note: 2/0 and 2/2 6/8 & 7/0 doors are 10-lite.
2/0 and 2/2 8/0 door is 12-lite.
34 | TRIMLITE INTERIOR COLLECTIONWood Bar French Doors | SPECIAL ORDER
Available in 1-3/8" and 1-3/4"
thicknesses and 6/8, 7/0, 7/6,
or 8/0 heights.
Custom sizes available. Some
limitations apply. Contact your
dealer for more information.
Mullion Details
Options: (Available in Prime only)
3 /8"
1¼"
TDL Ovolo Bead
1306 with Sable
1¼"
TDL Shaker Bead
Lite Options
1310 1315 1304 1305 1306 1309
Glass Options
Flat or Bevel Clear Satin Etch Pinhead Roof Top Sable Seedy Baroque
PRIVACY 1 PRIVACY 8 PRIVACY 8 PRIVACY 8 PRIVACY 9 PRIVACY 3
TRIMLITE INTERIOR COLLECTION | 35FRENCH DOORS | Retro Collection
TOP TOP TOP TOP TOP
SELLING SELLING SELLING SELLING SELLING
Mirror
Mirror
(Not tempered
with Safety Backing)
Clear †* Diffused White Narrow Reed †* Mirror 2-sided* Rain †*
PRIVACY 1 Laminate Ŧ* PRIVACY 8 Option: Mirror PRIVACY 9
PRIVACY 10 1-side
PRIVACY 10
TOP TOP
SELLING SELLING TRENDING TRENDING
Pantry † Laundry † Pinhead †* Rooftop †*
PRIVACY 8 PRIVACY 8 PRIVACY 9 PRIVACY 8
† Tempered Safety Glass Note: Also available in 7/0 & 8/0*
Ŧ Laminated Safety Glass *Available in full lite (no bottom panel)
36 | TRIMLITE INTERIOR COLLECTIONRetro Collection | FRENCH DOORS
TRENDING TRENDING
Screen Dot †* Sable †* Seedy Baroque † Wheat †
PRIVACY 8 PRIVACY 9 PRIVACY 3 PRIVACY 7
Madison Castlite † Delta Frost †* Riverton Obscure † Kasumi †
PRIVACY 8 PRIVACY 9 PRIVACY 8 PRIVACY 8
† Tempered Safety Glass N
ote: Also available in 7/0 & 8/0*
*Available in full lite (no bottom panel)
TRIMLITE INTERIOR COLLECTION | 37FRENCH DOORS | Size Specifications
Please refer to the following guide to confirm what sizes are available in our different product choices.
Contact your dealer for product availability in your area.
DESCRIPTIONS DOOR WIDTHS DOOR HEIGHTS
7/6 & 8/0 7/6 & 8/0
1/6 2/0 2/2 2/4 2/6 2/8 2/10 3/0 6/8 7/0 Bottom Panel Full Lite
Adelaide (P)* N/A • • • • • • • • • • N/A
Artisan (P)* N/A • • • • • • • • • • N/A
Harlow (P)* N/A • • • • • • • • • • N/A
Modena (P,Z)* N/A • • • • • • • • • • N/A
Lexington (P)* N/A • • • • • • • • • • N/A
Bevel (P, Z )* N/A • • • • • • • • • • N/A
Wood Bar Bevel • • • • • • • • • • N/A N/A
Wood Bar Flat Glass • • • • • • • • • • N/A N/A
Clear • • • • • • • • • • • •
Diffused White Laminate • • • • • • • • • • • •
Madison N/A • • • • • • • • • • N/A
Mirror • • • • • • • • • • • •
Pantry N/A • • • • • • N/A • • • N/A
Narrow Reed • • • • • • • • • • • •
Rain • • • • • • • • • • • •
Riverton Obscure N/A • • • • • • • • • • N/A
Sable • • • • • • • • • • • •
Wheat N/A • • • • • • • • • • N/A
Delta Frost • • • • • • • • • • • •
Kasumi • • • • • • • • • • • N/A
Heavy Water • • • • • • • • • • • •
Laundry N/A N/A N/A N/A • • • • • • • N/A
Pinhead • • • • • • • • • • • •
Roof Top • • • • • • • • • • • •
Screen Dot • • • • • • • • • • • •
Seedy Baroque • • • • • • • • • • • N/A
N/A - Not Available
* Available caming options: P-Patina, Z-Zinc.
38 | TRIMLITE INTERIOR COLLECTIONTechnical Information | FRENCH DOORS
Traditional OVOLO #1501 Species
Primed
Douglas Fir
Red Oak
Maple
Pine 3
/8" Panel or
1
/8", 3/16" or 1/4"
Thick Glass
Ovolo
3
/8" Bead
Rail
6/8 7/0* 7/6 & 8/0† 7/6† & 8/0
w/ panel Full Lite
Modern QUIRK #8601 Species
Primed
Douglas Fir
3
/8" Panel or
1
/8", 3/16" or 1/4"
Thick Glass
Square Quirk
Bead
Rail
6/8 7/0* 7/6 & 8/0† 7/6† & 8/0
w/ panel Full Lite
Specification
Thickness: 1-3/8" and 1-3/4"
Heights: 6/8, 7/0*, 7/6 and 8/0
Panel (7/6 and 8/0 Only): 1/4" Flat panel † Size not shown
*7/0 doors may have larger top and bottom rail.
Door Dimensions (includes ovolo/ quirk bead): Note: 7/6 and 8/0 Wood bars will have an extra row of lites instead
Stiles: 4-1/2" of a bottom panel
Mid Rail: 4-5/8"
Due to ongoing product development we reserve the right to make
Top Rail: 4-1/2" changes in design, materials and specifications without notice.
Bottom Rail: 9-1/8" Please contact your dealer for more information.
TRIMLITE INTERIOR COLLECTION | 39Canada USA
WEST WEST
SURREY, BC
RENTON, WA
T 604.533.4111
T 425.251.8685
TF 877.533.4111
TF 800.929.3371
F 604.533.2026
F 425.251.8999
EAST EAST
BURLINGTON, ON DEALER STAMP ASHTABULA, OH
T 905.335.1559 TF 800.929.3371
TF 888.335.1559
F 905.248.3757
www.trimlite.com
info@trimlite.com
0721You can also read
