London Overground

London Overground
Train graphics standard
Issue 2

MAYOR OF LONDON           Transport for London
London Overground Train graphics standard - London Overground Issue 2
Contents

       Foreword

1      Basic elements

2      Saloon interior decals

3      Cab interior decals

4      Train exterior decals
       For further information

Note
At the time of going to print, not all the
required information was available.
Incomplete information is highlighted in red
throughout this document.
London Overground Train graphics standard - London Overground Issue 2
Foreword                                          Contents

This document details all interior and exterior
graphics that are to be applied to London
Overground (LO) trains. Where necessary,
technical descriptions and intended locations
are provided.

Approved artwork for each graphic shown is
available from TfL Corporate Design.
Telephone 020 7126 4462. No other artwork
should be used.
London Overground Train graphics standard - London Overground Issue 2
1         Basic elements                       Contents

This section of the document gives guidance
on the basic elements that are used to
produce the graphic elements on an LO train.
The information covered includes the use of
the corporate typeface and colours.

Further information can be found in design
standards available on the TfL website:
tfl.gov.uk/corporatedesign
London Overground Train graphics standard - London Overground Issue 2
1.1        Typography                                                          Contents

                                                                               Ab
The typeface used by LO is New Johnston. It
is exclusive to TfL and should be applied for     ABCDEFGHIJKLMNOPQRSTUVWXYZ
via the TfL website:                              abcdefghijklmnopqrstuvwxyz
tfl.gov.uk/corporatedesign                        1234567890£/.,‘’():;
                                                  New Johnston Medium
Headings
These are set in New Johnston Medium.
                                                  ABCDEFGHIJKLMNOPQRSTUVWXYZ
Body text                                         abcdefghijklmnopqrstuvwxyz
This should be set in New Johnston Book or        1234567890£/.,‘’():;
New Johnston Light.
                                                  New Johnston Light

Book has been designed specifically for clarity
and legibility at 12pt (or below).                ABCDEFGHIJKLMNOPQRSTUVWXYZ
                                                  abcdefghijklmnopqrstuvwxyz
At sizes above 12pt, New Johnston Light
should be used for body text.
                                                  1234567890£/.,‘’():;
                                                  New Johnston Book
London Overground Train graphics standard - London Overground Issue 2
1.2        Colours                                                                                                     Contents

The colours shown here are those used       Overground Orange        Corporate Blue           Corporate black              Safety Red
on LO trains to produce graphic elements.

The Pantone Matching System is to be
used for print purposes and the Natural     PANTONE®   NCS           PANTONE®   NCS           PANTONE®   NCS               PANTONE®   NCS

Colour System (NCS) is to be used for       158        S 0585-Y50R   72         S 3560-R80B   Black      S 9000-N          485        S 1085-Y80R

paint applications.

                                            Safety Yellow            Safety Green             Safety Blue

                                            PANTONE®   NCS           PANTONE®   NCS           PANTONE®   NCS
                                            116        S 0580-Y10R   356        S 3065-G10Y   300        S 3065-R90B
London Overground Train graphics standard - London Overground Issue 2
2          Saloon interior decals            Contents

The following pages illustrate the graphic
elements that are to be applied to the
saloon interiors.
London Overground Train graphics standard - London Overground Issue 2
2.1        Alarm emergency use only/Fire alarm call point decal   Contents

Artwork reference number
SID/001

Position on train reference
A

Size
95 x 193

Colour
Safety Red (Pantone 485)
                                       Emergency
                                       alarm
                                       Press button to
                                       alert driver
                                       Wait for response
                                       from driver
2.2         Buzzer code                                                   Contents

Artwork reference number
SID/002                       Buzzer code
                              1       Stop
Position on train reference
                              1-2     Close doors
B                             2       Ready to start
                              2-2     Do not open doors
                                      (driver/guard to confer)
Size
                              3       Set back
120 x 160                     3-1     Lock central door locking
                              3-2-1   Testing doors
Colour                        3-3     Guard required/Driver or guard to
                                      attend telephone
Safety Blue (Pantone 300)     3-3-1   Release central door locking
                              4       Slow down
                              5       Driver or guard leaving train in
                                      accordance with the rules
                              6       Draw forward
                              9       Police assistance required
2.3        Fire extinguisher/First aid kit                            Contents

Artwork reference number
SID/003
                                             Fire extinguisher
Position on train reference                  located in drivers cab
C

Size
210 x 98.5mm
                                             First aid kit
                                             located in drivers cab
Colours
Safety Red (Pantone 485)
Safety Green (Pantone 356)
2.4        Emergency access/No entry                      Contents

Artwork reference number
SID/004
                                       Emergency access
Position on train reference            Keep clear
D

Size
210 x 98.5mm                           No entry
Colours
Safety Red (Pantone 485)
Safety Blue (Pantone 300)
Corporate Black (Black 100%)
2.5        No smoking                       Contents

Artwork reference number
SID/005

Position on train reference
                               No smoking
E

Size
187.5 x 50mm

Colours
Safety Red (Pantone 485)
Corporate Black (Black 100%)
2.6        Emergency alarm (right pointing)        Contents

Artwork reference number
SID/006
                                       Emergency
Position on train reference            alarm
F

Size
187.5 x 50mm

Colours
Safety Red (Pantone 485)
2.7        Emergency alarm (left pointing)               Contents

Artwork reference number
SID/007
                                             Emergency
Position on train reference                  alarm
G

Size
187.5 x 50mm

Colours
Safety Red (Pantone 485)
Corporate Black (Black 100%)
2.8        Emergency door release                              Contents

Artwork reference number
SID/008

Position on train reference
H

Size
74 x 158mm

Colours                             To open door in
Safety Green (Pantone 356)          emergency
Safety Red (Pantone 485)
                                    1. Remove cover
                                    2. Pull handle
                                    3. Wait for train
                                       to stop
                                    4. Pull doors open

                                    Penalty for improper use
2.9        Emergency first aid kit (right pointing)                 Contents

Artwork reference number               Colours
SID/009                                Safety Green (Pantone 356)
                                       Safety Red (Pantone 485)
Position on train reference
J

Size
187.5 x 50mm

  Emergency                                 Emergency
  alarm                                     First aid kit
2.10       Emergency first aid kit (left pointing)                                 Contents

Artwork reference number                  Colours
SID/010                                   Safety Green (Pantone 356)
                                          Safety Red (Pantone 485)
Position on train reference
K

Size
187.5 x 50mm

                              Emergency                                Emergency
                              First aid kit                            alarm
2.11 Priority seat                                          Contents

Artwork reference number
SID/011                       Priority seat
Position on train reference   for the disabled, pregnant
                              or those less able to stand
L

Size
151.5 x 50mm

Colours
Safety Blue (Pantone 300)
2.12 CCTV cameras in operation                                              Contents

Artwork reference number
SID/012                          CCTV cameras in operation
Position on train reference      This scheme is controlled by London Overground
M                                For further information contact 0845 330 9880

Size
244 x 50mm

Colours
Corporate Blue (Pantone 072)
2.13 Emergency alarm opposite                         Contents

Artwork reference number
SID/013
                                Emergency alarm
Position on train reference     is located opposite
N

Size
187.5 x 50mm

Colours
Safety Red (Pantone 485)
2.14 Priority area                                             Contents

Artwork reference number
SID/014

Position on train reference
O

Size
120 x 190mm

Colours
Safety Blue (Pantone 300)

                              Priority area
                              Please give up this space if
                              required by wheelchair users
                              Users should position the rear
                              of their wheelchair against
                              the glass screen to the right
2.15 Priority area (directional)                   Contents

Artwork reference number
SID/015

Position on train reference
P

Size
120 x 190mm

Colours
Safety Blue (Pantone 300)

                                   Priority area
2.16 Stand clear of closing doors/Penalty fare                                                 Contents

Artwork reference number          Colours
SID/016                           Safety Yellow (Pantone 116)
                                  Corporate Blue (Pantone 072)
Position on train reference       Black 100%
Q

Size
448 x 50mm

                  Stand clear of the               Penalty fare
                  closing doors                    if you fail to show on demand a valid ticket
                                                   or validated Oyster card for your entire journey
2.17 Emergency alarm (disability)                                   Contents

Artwork reference number
SID/017                             Emergency alarm
                                    Press button to alert driver
Position on train reference
R                                   Wait for response from driver

Size
120 x 50mm

Colours
Safety Red (Pantone 485)
2.18     Not for public use                        Contents

Artwork reference number
SID/018

Position on train reference
S

Size
70 x 85mm

Colours                       Not for public use
Safety Red (Pantone 485)
2.19 Vehicle numbers                   Contents

                               00000
Artwork reference number
SID/019

Position on train reference
T

Size
Cap height is 25mm

Colours
Corporate Blue (Pantone 072)
2.20 Door identity B1              Contents

                               B
Artwork reference number
SID/020

Position on train reference
U

Size
60mm diameter

Colours
                               1
Corporate Blue (Pantone 072)
2.21 Door identity B2              Contents

                               B
Artwork reference number
SID/021

Position on train reference
V

Size
60mm diameter

Colours
                               2
Corporate Blue (Pantone 072)
2.22 Door identity C1              Contents

                               C
Artwork reference number
SID/022

Position on train reference
W

Size
60mm diameter

Colours
                               1
Corporate Blue (Pantone 072)
2.23 Door identity C2              Contents

                               C
Artwork reference number
SID/023

Position on train reference
X

Size
60mm diameter

Colours
                               2
Corporate Blue (Pantone 072)
2.24 Door identity F1              Contents

                               F
Artwork reference number
SID/024

Position on train reference
Y

Size
60mm diameter

Colours
                               1
Corporate Blue (Pantone 072)
2.25 Door identity F2              Contents

                               F
Artwork reference number
SID/025

Position on train reference
Z

Size
60mm diameter

Colours
                               2
Corporate Blue (Pantone 072)
2.26 Door identity G1              Contents

                               G
Artwork reference number
SID/026

Position on train reference
A1

Size
60mm diameter

Colours
                               1
Corporate Blue (Pantone 072)
2.27 Door identity G2              Contents

                               G
Artwork reference number
SID/027

Position on train reference
B1

Size
60mm diameter

Colours
                               2
Corporate Blue (Pantone 072)
2.28 London Overground network line diagram                                                                                                                                                                                                                                                                                                                                                                                                                                           Contents

Artwork reference number                                                                                                                                                   Colours
SID/028                                                                                                                                                                    CMYK process

Position on train reference                                                                                                                                                This vinyl has not been finalised - final details
C1                                                                                                                                                                         to be obtained from TfL prior to production

Size
1780 x 300mm

 London Overground
                                                                                                                                                                                                                                                                                                                             Crouch     Harringay                  South               Blackhorse           Walthamstow              Leyton            Leytonstone           Wanstead         Woodgrange           Barking
                                  Watford                  Carpenders           Headstone                                             North                Stonebridge                                                                                                                                 Upper                   Hill    Green Lanes               Tottenham                Road              Queen’s Road          Midland Road          High Road              Park              Park               District

                                 High Street                  Park                Lane                      Kenton                   Wembley                   Park                                                                                                                                   Holloway                                                                           Victoria                                                                                                                 Hammersmith
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                     & City

                                                                                                                                                                             Harlesden                                                             Jubilee                                                                                     Victoria
                 Watford                       Bushey                   Hatch           Harrow &                      South                    Wembley                                       Bakerloo                                              National Rail                            Gospel                                             National Rail
                 Junction                      National Rail             End           Wealdstone                    Kenton                    Central                                                             Brondesbury                West                           Hampstead       Oak
                                                                                            Bakerloo                                             National Rail
                                                                                                                                                                                           Willesden                                                                                                                     Camden          Highbury &
                     National Rail
                                                                                            National Rail                                                                                  Junction                    Park                 Hampstead                          Heath                                      Road            Islington

                                                                                                                                                                 Acton Central                           Kensal Rise               Brondesbury                   Finchley Road                                Kentish Town   Caledonian Road               Canonbury                               Dalston               Hackney         Homerton                Hackney              Stratford
                                                                                                                                                                                                                                                                   & Frognal                                     West          & Barnsbury                                                        Kingsland              Central                                  Wick                   Central
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        Docklands

                                                                                                                                                                                                                                                                                                                                                                                        un
                                                                                                                                                                                                                                                                                                                                                               Dalston Junction                                                                                                       Light Railway

                                                                                                                                                                                                                                                                                                                                                                                         de
                                                                                                                                                    South Acton

                                                                                                                                                                                                                                                                                                                                                                                          rc
                                                                                                                                                                                                        Kensal Green                                                                                                                                                                                                                                                                     Jubilee

                                                                                                                                                                                                                                                                                                                                                                                            on
                                                                                                                                                                                                                                                                                                                                                                                              st
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        National Rail

                                                                                                                                                                                                                                                                                                                                                                                                 ru
                                                                                                                                                                                                                                                                                                                                                                          Haggerston

                                                                                                                                                                                                                                                                                                                                                                                                 ct
                                                                                                                                                                                                                                                                                                                                                                                                   io
                                                                                                                                                                                                                                                                                                                                                                                                      n
                                                                                                                                         Gunnersbury                                                                                                                                                                                                                                    Hoxton
                                                                                                                                                                                                                                                                                                                                                                                                                                                             under construction
                                                                                                                                               District
                                                                                                                                                                                                            Queen’s Park                 Kilburn                      South                 Euston                                                                                                      Shoreditch     Whitechapel      Shadwell        Wapping                         Canada           Surrey
                                                                                                                                                                                                                                                                                                                                                                                                                                                                       Rotherhithe                                New Cross
                                                                                                                                                                                                                Bakerloo                High Road                   Hampstead                Northern
                                                                                                                                                                                                                                                                                                                                                                                                        High Street        District      Docklands                                      Water            Quays       National Rail
                                                                                                                                                                                                                                                                                             Victoria                                                                                                                    Hammersmith   Light Railway
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        Jubilee
                                                                                                                                                                                                                                                                                             National Rail
                                                                                                                               Kew Gardens                                                                                                                                                                                                                                                                                  & City

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  New Cross
                                                                                                                                                                                                                                                                                                                                                                                                                National Rail                                                                                       Gate
                                                                                                                 Richmond                                                   Shepherd’s Bush                            District                  District
                                                                                                                                                                                                                                                                                              National Rail                                                                                                  Crystal Palace                                                                                          National Rail
                                                                                                                                                                                                                       National Rail             National Rail         under construction                                                       Tramlink               National Rail
                                                                                                                     National Rail                                               Central
                                                                                                                                                                                                                  Kensington                  West                        Imperial          Clapham                                            National Rail         Norwood
                                                                                                                                                                                                                   (Olympia)                Brompton                       Wharf            Junction                                     West Croydon                Junction            Anerley           Penge West                  Sydenham          Forest Hill        Honor Oak Park            Brockley
                                                                                                                                                                                                                                                                                                                                                                            under construction                                                                   under construction
2.29 Tube and Rail map                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Contents

Artwork reference number                            Tube map
                                                                                                                                    Chesham

                                                                                                                                 Amersham
                                                                                                                                                       Chalfont &
                                                                                                                                                        Latimer
                                                                                                                                                                                       Watford

                                                                                                                                                                                    Croxley
                                                                                                                                                                                                             Watford Junction
                                                                                                                                                                                                         Watford High Street
                                                                                                                                                                                                                          Bushey
                                                                                                                                                                                                              Carpenders Park
                                                                                                                                                                                                                                                                                                                                                             High Barnet

                                                                                                                                                                                                                                                                                                                                                             Totteridge & Whetstone

                                                                                                                                                                                                                                                                                                                                                             Woodside Park
                                                                                                                                                                                                                                                                                                                                                                                           Cockfosters

                                                                                                                                                                                                                                                                                                                                                                                             Oakwood

                                                                                                                                                                                                                                                                                                                                                                                             Southgate
                                                                                                                                                                                                                                                                                                                                                                                                                                                                     Loughton
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 Epping

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Theydon Bois
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       Debden

SID/029
                                                                                                                                                    Chorleywood
                                                                                                                                                                                                                                                                                                                                  Mill Hill East             West Finchley
                                                                                                                                                      Rickmansworth                                                 Hatch End
                                                                                                                                                                                Moor Park                                                                          Edgware                                                                                                                 Arnos Grove                                                      Buckhurst Hill
                                                                                                                                                                                      Northwood                     Headstone                      Stanmore                                                                                                                                                                                                                           Roding
                                                                                                                                            West Ruislip                                                                                                                    Burnt                                                                            Finchley Central
                                                                                                                                                                                                                         Lane                                                Oak                                                                                                                                                                                                      Valley     Chigwell
                                                                                                                                                                                          Northwood                                                                                                                                                                                      Bounds Green
                                                                                                                                                                                          Hills                                                   Canons Park
                                                                                                                                                                                                                  Harrow &                                                    Colindale
                                                    Key to lines and symbols                                                        Hillingdon                 Ruislip
                                                                                                                                                                            Ruislip Manor
                                                                                                                                                                                                                Wealdstone
                                                                                                                                                                                                                                                  Queensbury
                                                                                                                                                                                                                                                                                                                                                             East Finchley                Wood Green
                                                                                                                                                                                                                                                                                                                                                                                         Turnpike Lane
                                                                                                                                                                                                                                                                                                                                                                                                                  Harringay
                                                                                                                                                                                                                                                                                                                                                                                                                 Green Lanes        South                                                   Grange Hill
                                                                                                                                                                                                  Pinner                                                                    Hendon Central                                                                                                                                                                      Woodford
                                                                                                                                 Uxbridge        Ickenham                                                                                                                                                                                                                                                                           Tottenham                                                  Hainault
                                                                                                                                                                                Eastcote             North Harrow                                                                                                                                            Highgate       Crouch
                                                                                                                                                                                                                                    Kenton                                                                                                                                                                                               Blackhorse
                                                                                                                                                                                                                                                  Kingsbury                             Brent Cross                                                                            Hill                              Seven Sisters           Road                                                     Fairlop
                                                                                                                                                                                                             Harrow-                 Preston                                                                                                                 Archway                                                                                                South
                                                                                                                                                                                                            on-the-Hill               Road                                                                                                                                                Manor House                                                            Woodford
                                                               Bakerloo                         Interchange stations                               Ruislip
                                                                                                                                                  Gardens
                                                                                                                                                                 Rayners Lane
                                                                                                                                                                                           West Harrow            Northwick                            Neasden
                                                                                                                                                                                                                                                                                          Golders Green
                                                                                                                                                                                                                                                                                                   Hampstead
                                                                                                                                                                                                                                                                                                                     Hampstead
                                                                                                                                                                                                                                                                                                                       Heath
                                                                                                                                                                                                                                                                                                                                      Gospel
                                                                                                                                                                                                                                                                                                                                       Oak                   Tufnell Park      Upper
                                                                                                                                                                                                                                                                                                                                                                                                                Finsbury
                                                                                                                                                                                                                                                                                                                                                                                                                           Tottenham
                                                                                                                                                                                                                                                                                                                                                                                                                              Hale
                                                                                                                                                                                                                                                                                                                                                                                                                                             Walthamstow
                                                                                                                                                                                                                                                                                                                                                                                                                                               Central
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Barkingside
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                         Newbury Park
                                                                                                                                                    South                                                            Park            Wembley                                                                                                                                   Holloway
                                                                                                                                                                                                                                                             Dollis Hill                                                                                                                                        Park                         Walthamstow Snaresbrook                   Redbridge                                 Upminster
                                                                                                                                                   Ruislip                                                     South Kenton             Park                                                                                                                                        Arsenal                                                  Queen’s Road
                                                               Central                                                                                         Northolt                South Harrow          North Wembley                                        Willesden Green
                                                                                                                                                                                                                                                                                         Finchley Road
                                                                                                                                                                                                                                                                                                                                       Kentish           Kentish              Holloway                                                                                                                                       Upminster

                                                                                                Step-free access from the                                          Sudbury Hill
                                                                                                                                                                                                            Wembley Central                                           Kilburn
                                                                                                                                                                                                                                                                                             & Frognal
                                                                                                                                                                                                                                                                                                                Belsize Park        Town West            Town
                                                                                                                                                                                                                                                                                                                                                                Caledonian Road
                                                                                                                                                                                                                                                                                                                                                                                  Road
                                                                                                                                                                                                                                                                                                                                                                                                                                                             Leytonstone
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                   Wanstead      Gants
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Hill
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Bridge

Position on train reference
                                                                                                                                                                                                                                               Brondesbury
                                                                                                platform to the street
                                                                                                                                                                                                            Stonebridge Park                                                 West                                    Chalk Farm                                                                        Canonbury                                           Leyton                  Leytonstone
                                                               Circle                                                                           Greenford
                                                                                                                                                                  Sudbury Town
                                                                                                                                                                                                                  Harlesden
                                                                                                                                                                                                         Willesden Junction
                                                                                                                                                                                                                                                   Park                      Hampstead
                                                                                                                                                                                                                                                                                                                       Camden Town
                                                                                                                                                                                                                                                                                                                                                   Camden
                                                                                                                                                                                                                                                                                                                                                     Road
                                                                                                                                                                                                                                                                                                                                                                                                 Highbury
                                                                                                                                                                                                                                                                                                                                                                                                                                 Dalston
                                                                                                                                                                                                                                                                                                                                                                                                                                 Kingsland
                                                                                                                                                                                                                                                                                                                                                                                                                                                        Midland Road                High Road                  Dagenham
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    East
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                     Hornchurch
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Elm Park
                                                                                                                                                                                                                                       Kensal Rise Brondesbury                      Finchley Road                                                                               Caledonian                                            Hackney                                           Wanstead
                                                                                                                                                                                                                                                                                                                                                                                  Road &         & Islington                                                  Leyton
                                                                                                                                                                                                                                    Kensal Green                                       Swiss Cottage                                                                                                                                  Central                                             Park
                                                                                                                                                                                                                                                                                                                                                                                Barnsbury                                                             Stratford
                                                               District                                                                                                                                                                           Kilburn    South                                                      Mornington                                                                                Dalston
                                                                                                                                                                         Alperton                                                   Queen’s Park High Road Hampstead                      St. John’s Wood                                                                                                        Junction                Homerton International                     Woodgrange Park                     Dagenham
                                                                                                                                                                                                                                                                                                                          Crescent             King’s Cross                                                                                                                                                             Heathway
                                                                                                Connections with National Rail                                                                                                      Maida Vale                                                               Great
                                                                                                                                                                                                                                                                                                                                               St. Pancras
                                                                                                                                                                                                                                                                                                                                                                                                               Haggerston                    Hackney          Stratford                Stratford
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Becontree
                                                                                                                                                       Perivale                                                     Kilburn Park                                                                            Portland                                                                                                                                                                                            Upney
                                                               East London                                                                                                                                                                                  Edgware                               Baker                  Euston                                   Angel                                                                       Wick                                     High Street
                                                                                                                                                                                                                   Warwick Avenue            Paddington                                                      Street

D1
                                                                                                                                                                                                                                                             Road                                 Street                                                                                                                                                                                                    Barking
                                                                                                                                                                                                                           Royal Oak
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                        Abbey
                                                                                                Connections with
                                                                                                                                                                                                                    Westbourne                                                                                                                                                    Old Street                       Hoxton                                                               Road         East Ham
                                                                                                                                                                   Hanger                                                   Park                                                                                                      Euston                     Farringdon
                                                                                                                                                                                                                                                                                                               Warren Street                                                                                                               Mile End
                                                               Hammersmith & City                                                                                    Lane                                                             Paddington      Edgware Marylebone                                                              Square                         Barbican                                                                                          Pudding                  Upton
                                                                                                                                                                                                                                                                                                           Regent’s Park
                                                                                                riverboat services                                                                                                                                      Road                                                                                       Russell                                     Liverpool                                                               Mill Lane                Park
                                                                                                                                                                                                                                Ladbroke                                                                                                           Square                                        Street        Shoreditch        Bethnal                                                   Plaistow
                                                                                                                                                                     Park Royal                                                 Grove                                                                                                                                                                          High Street        Green
                                                                                                                                                                                                              Latimer Road                            Bayswater                                                                                                                                                                                    Bow             Bromley-             West Ham
                                                               Jubilee                                                                                                                                                                                                                                                 Goodge                                       Moorgate                                                                      Road      Bow     by-Bow
                                                                                                                                                                   North Ealing                    North             White                Holland            Notting Lancaster Bond               Oxford                                            Chancery                                                                                                Church
                                                                                                                                                                                                   Acton             City                  Park                        Gate Street                                      Street                        Lane
                                                                                                                                                                                                                                                             Hill Gate                             Circus                           Holborn                                                                                                   Devons
                                                                                                Connection with Tramlink                                        Ealing
                                                                                                                                                             Broadway
                                                                                                                                                                                    West              East      Shepherd’s                                        Queensway Marble                                 Tottenham                                      St. Paul’s                                    Aldgate
                                                                                                                                                                                                                                                                                                                                                                                                                   East
                                                                                                                                                                                                                                                                                                                                                                                                                                   Stepney
                                                                                                                                                                                                                                                                                                                                                                                                                                   Green
                                                                                                                                                                                                                                                                                                                                                                                                                               Whitechapel
                                                                                                                                                                                                                                                                                                                                                                                                                                                Road
                                                                                                                                                                                                                                                                                                                                                                                                                                                           Langdon                      Star Lane

                                                               Metropolitan                                                                                                        Acton             Acton
                                                                                                                                                                                                   Acton          Wood
                                                                                                                                                                                                                       Bush                                                  Arch                                  Court Road
                                                                                                                                                                                                                                                                                                                                        Covent Garden
                                                                                                                                                                                                                                                                                                                                                                         Bank
                                                                                                                                                                                                                                                                                                                                                                                                 Aldgate                                     All Saints
                                                                                                                                                                                                                                                                                                                                                                                                                                                           Park

                                                                                                                                                                                                                                                                                                                                                                                                                                                                        East            Canning
                                                                                                                                                                                                   Central        Lane                                       High Street                                                                                  Cannon
                                                                                                Interchange with National Rail
                                                                                                                                                                                                                                                                             Hyde Park            Green Park                                               Street                                                              Shadwell Westferry         Poplar       India            Town
                                                                                                                                                                                                                                                             Kensington        Corner                                              Leicester
                                                                                                                                                            Ealing Common                            Shepherd’s                                                                                                                                                                                                                                                                                           Royal Victoria
                                                               Northern                                                                                                                South        Bush Market                                                                                         Piccadilly                 Square Mansion
                                                                                                                                                                                                                                                                                                                                             House                                                                                  Limehouse                 Blackwall
                                                                                                services to airport                                                                    Acton                     Kensington                                                                                Circus                                                                     Monument     Tower                                                                                                     Custom House
                                                                                                                                                                                                                                                                   Knightsbridge                                                   Charing
                                                                                                                                                                                                Goldhawk Road      (Olympia)                                                                                                                                                                         Hill                                                                                                      for ExCeL London
                                                                                                                                                                                Acton                                                                                                                                              Cross                                                                     Tower                                                                          West                    Prince Regent

Size
                                                                                                                                                                                                                      Barons                               Gloucester                                                                              Blackfriars                                               Gateway           Wapping
                                                               Piccadilly
                                                                                                                                                                                Town                                  Court                                                         Sloane        St. James’s                                                                                                                                West India                               Silvertown
                                                                                                                                                               South Ealing                       Hammersmith                                                 Road                                                                                                                                River Thames
                                                                                                                                                                                                                                                                                    Square            Park                                                                                                                                       Quay                                                                   Royal Albert
                                                                                                                                                          Northfields                                                                                                                                                                              Temple                                                      Rotherhithe                                                                                                   Beckton Park
                                                                                                Location of airport                                  Boston Manor
                                                                                                                                                    Hounslow             Chiswick     Turnham Stamford Ravenscourt      West                      Earl’s           South             Victoria         Westminster                     Embankment
                                                                                                                                                                                                                                                                                                                                                                                  London Bridge                                            Canary Wharf
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Pontoon
                                                               Victoria                                                                                                      Park      Green    Brook      Park   Kensington                                                                                                                                                                                                                                                                                                      Cyprus
                                                                                                                                                         East                                                                                     Court          Kensington                                                                                                                        Bermondsey Canada                                                                                     Dock
                                                                                                                                                                  Osterley                                                                                                                                                                                                                                     Water                                                      North                                                        Gallions
                                                                                                                                                                                                                                                                                                                                                                                                                                           Heron Quays                    Greenwich
                                                                                                                                                Hounslow                                                                    West Brompton                                                                                                                                                                                                                                                                                              Reach
                                                                                                                                  Heathrow          West        Hounslow
                                                                                                                                  Terminals                                                                                                        Fulham                                                                                                                                                    Surrey Quays                    South Quay
                                                                                                                                                                Central                                                                                                                                         Waterloo
                                                               Waterloo & City                  Replacement bus service               1, 2, 3                                                 Gunnersbury                                          Broadway                                                                                                                                                                                                                                                      London City

840 x 300mm
                                                                                                                                                                                                                                                                                                                                                                                                                                           Crossharbour                                                              Airport           Beckton
                                                                                                                                                       Hatton                                                                                          Imperial
                                                                                                                                                       Cross                                                                   Parsons Green           Wharf                                                                                                                                                                                  Mudchute
                                                                                                                                                                                                                                                                                     Pimlico                                             Southwark              Borough
                                                               London Overground                                                 Heathrow
                                                                                                                                                  Heathrow
                                                                                                                                                  Terminal 4                                  Kew Gardens
                                                                                                                                                                                                                               Putney Bridge
                                                                                                                                                                                                                                                                  River Thames                                                                                                            Surrey Canal
                                                                                                                                                                                                                                                                                                                                                                                                                                       Island Gardens                                                                      King
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       George V
                                                                                                For further details see          Terminal 5                                                                                                                                                                                           Lambeth
                                                                                                                                                                                                                                                                                                                                      North
                                                                                                                                                                                                                                                                                                                                                                                                 Road

                                                                                                                                                                                                                                                                                                                                                                                                                                                          Cutty Sark
                                                                                                poster Tube map
                                                                                                                                                                                                                                   East Putney
                                                               Docklands Light Railway                                                                                                        Richmond
                                                                                                                                                                                                                                                                                       Vauxhall                                             Elephant & Castle                   Queens Road
                                                                                                                                                                                                                                                                                                                                                                                                                                 New Cross                for Maritime Greenwich
                                                                                                                                                                                                                                                                                                                                                                                                                                                    Greenwich
                                                                                                                                                                                                                                                                                                                  Kennington                                                    Peckham
                                                                                                                                                                                                                                   Southfields
                                                                                                                                                                                                                                                                                      Clapham                                                                                                New Cross Gate                                     Deptford Bridge                                                        Woolwich
                                                                                                                                                                                                                                                                                      Junction                                                                                                                                                                                                                          Arsenal
                                                                                                                                                                                                                                                                                                                                                                     Peckham Rye                                    Brockley                Elverson Road
                                                                                                                                                                                                                             Wimbledon Park                                            Wandsworth
                                                                                                                                                                                                                                                                                       Road                                    Oval                                                                                                    Lewisham
                                                                                                                                                                                                                                                                                                      Clapham                             Denmark
                                                                                                                                                                                                                                   Wimbledon                                                         High Street         Stockwell          Hill                                                                    Honor Oak Park
                                                                                                                                                                                                                                                                                                                                                                                                                    Forest Hill
                                                                                                                                                                                                                                                                                          Clapham North

                                                    MAYOR
                                                                                                                                                                                                                                                                                                                    Brixton                                                                                         Sydenham

Colours
                                                                                                                                                                                                                                                                                      Clapham South     Clapham Common

                                                                                         Transport for London
                                                                                                                                                                                                                                                                                                                                                                                Crystal Palace

                                                    OF LONDON                                                                                                                                                                                                                       Tooting Bec

                                                                                                                                                                                                                                                                           Colliers Wood
                                                                                                                                                                                                                                                                                                       Balham

                                                                                                                                                                                                                                                                                                  Tooting Broadway
                                                                                                                                                                                                                                                                                                                                                                                                              Penge West
                                                                                                                                                                                                                                                                                                                                                                                                            Anerley
                                                                                                                                                                                                                                                                                                                                                                                                      Norwood Junction
                                                                                                                                                                                                                                                                           Morden         South Wimbledon                                                                                        West Croydon

CMYK process

This vinyl has not been finalised - final details
to be obtained from TfL prior to production
2.30 Oyster ad panel                                                                     Contents

Artwork reference number                            JhWdifehj\ehBedZed
SID/030

Position on train reference
E1

Size
840 x 300mm

Colours
                                                    .":030'-0/%0/        JhWdifehj\ehBedZed

CMYK process

This vinyl has not been finalised - final details
to be obtained from TfL prior to production
2.31       DMOS car saloon interior seat plan                                                                        Contents
                                                             DMOS Car - Seat plan

                                               A
                           R2        R4             R7            R9   R11 R13 R15 R17 R19         R21 R23 R25
                      R1        R3    R5           R6        R8 R10      R12 R14 R16      R18     R20 R22 R24    R26

L                                                                                                                               L

R                                                                                                                               R

                      L1        L3        L5       L6        L8    L10   L12 L14    L16   L18     L20 L22 L24    L26
                           L2        L4                 L7        L9   L11 L13   L15 L17    L19    L21   L23   L25
                                               A

The above image illustrates the seat numbers
used to identify sign positions on a DMOS car,
whilst the following pages state where each
saloon sign is to be positioned above a seat
on a DMOS car.

There are three elevations shown (A-A, L-L
and R-R).
2.32                                                                                                                    Contents
No 2 End DMOS car sign positions - elevation
                              DMOS               L-L
                                    Car - Left side                                                              No 1 End
                                                                                     A

          E F L M D1 Q C1 Q L G E                              E J L M D1 Q C1 Q E1 L G E

                              S
                                                                                     A

E,F No smoking and Emergency alarm (right)       E,J No smoking and Emergency alarm/              S		 Not for public use
    Both vertically centred on 80mm deep             First aid kit (right)                            Vertically, base of sign 10mm above all
    decal panel. Sign E placed to the left of        Both vertically centred on 80mm deep             power points. Horizontally centred over all
    sign F. Both signs horizontally centred          decal panel. Sign E placed to the left of        power points.
    over seat L24 with a 10mm gap between            sign J. Both signs horizontally centred
    both signs.                                      over seat L9 with a 10mm gap between         M		 CCTV
                                                     both signs.                                      Vertically centred in line with decals on
E,G No smoking and Emergency alarm (left)                                                             80mm deep decal panel. Horizontally
    Both vertically centred on 80mm deep         L		 Priority seat                                    centred over seats L6 and L7 and seats
    decal panel. Sign E placed to the right of       Vertically centred on 80mm deep decal            L20 and L21.
    sign G.Both signs horizontally centred           panel. Horizontally centred over seats L3,
    over seats L2 and L16 with a 10mm gap            L8, L17 and L22.                             Q		 Stand clear of closing doors/penalty fare
    between both signs.                                                                               Vertically 20mm above door windows.
                                                                                                  		 Horizontally centred above door windows.

                                                                                                                       continued on next page...
2.32.1 DMOS car sign positions - elevation L-L (continued)   Contents

C1		 LO network line diagram
     Vertically 15mm from top of train.
     Horizontally centred over all sets
     of doors.

D1		 Tube map
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats L6 and L7 and seats L20 and L21.
     Note that there is no gap between this
     vinyl and vinyl C1.

E1		 Oyster ad panel
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats L4 and L5 and seats L18 and L19.
     Note that there is no gap between this
     vinyl and vinyl C1.
2.33       DMOS car sign positions - elevation R-R                                                                      Contents
No 1 End                                    DMOS Car - Right side                                                No 2 End
                                       A

           E F L M D1 Q C1 Q E1 L K E E F L M D1 Q C1 Q E1 L                                                 G E

                         S
                                       A

E,F No smoking and Emergency alarm (right)       E,K No smoking and Emergency alarm/              S		 Not for public use
    Both vertically centred on 80mm deep             First aid kit (left)                             Vertically, base of sign 10mm above all
    decal panel. Sign E placed to the left of        Both vertically centred on 80mm deep             power points. Horizontally centred over all
    sign F. Both signs horizontally centred          decal panel. Sign E placed to the right of       power points.
    over seat R2 and R16 with a 10mm gap             sign K. Both signs horizontally centred
    between both signs.                              over seat R9 with a 10mm gap between         M		 CCTV
                                                     both signs.                                      Vertically centred in line with decals on
E,G No smoking and Emergency alarm (left)                                                             80mm deep decal panel. Horizontally
    Both vertically centred on 80mm deep         L		 Priority seat                                    centred over seats R4 and R5 and seats
    decal panel. Sign E placed to the right of       Vertically centred on 80mm deep decal            R18 and R19.
    sign G. Both signs horizontally centred          panel. Horizontally centred over seats
    over seats R24 with a 10mm gap                   R3, R8, R17 and R22.                         Q		 Stand clear of closing doors/penalty fare
    between both signs.                                                                               Vertically 20mm above door windows.
                                                                                                  		 Horizontally centred above door windows.

                                                                                                                        continued on next page...
2.33.1 DMOS car sign positions - elevation R-R (continued)   Contents

C1		 LO network line diagram
     Vertically 15mm from top of train.
     Horizontally centred over all sets
     of doors.

D1		 Tube map
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats R4 and R5 and seats R18 and R19.
     Note that there is no gap between this
     vinyl and vinyl C1.

E1		 Oyster ad panel
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats R6 and R7 and seats R20 and R21.
     Note that there is no gap between this
     vinyl and vinyl C1.
2.34                                                                                                                     Contents
 DMOSDMOS     caronsign
      Car - View    A-A positions - elevation A-A

       A1 C D U

                New Cross

 A
 H

            View on A-A

A		 Alarm emergency use only/Fire alarm           H		 Emergency door release                       A1		 Door identity
    call point                                        Vertically centred on panel.                      (Signs U - B1 are door identity signs. The
    Vertically centred 15mm beneath                   Horizontally centred on panel.                    appropriate sign is to be placed beside
    alarm point. Horizontally centred beneath                                                           the appropriate door in each carriage).
    alarm point.                                  U		 Door identity                                		 Vertically 140mm from top of train.
                                                      (Signs U - B1 are door identity signs. The   		 Horizontally centred on panel.
C		 Fire extinguisher /First aid kit                  appropriate sign is to be placed beside
    Vertically, top of sign is in line with top       the appropriate door in each carriage).
    of signs on 80mm deep decal panel.            		 Vertically 110mm from top of door
    Horizontally centred on door                      header panel. Horizontally centred on
    release panel.                                    door portal pillar cover panel.

D		 Emergency access /No entry
    Vertically 10mm beneath sign C.
    Horizontally centred on door
    release panel.
2.35 MOS car saloon interior seat plan                                                                                  Contents
                                                             MOS Car - Seat plan

                                                                                                 A
                    R2        R4        R6         R9         R11   R13 R15 R17 R19 R21               R23 R25 R27
               R1        R3        R5    R7       R8        R10 R12   R14 R16 R18        R20         R22 R24 R26    R28

L                                                                                                                                  L

R                                                                                                                                  R

               L1        L3        L5        L7   L8        L10 L12   L14 L16      L18   L20         L22 L24 L26    L28
                    L2        L4        L6             L9     L11   L13 L15   L17 L19      L21        L23   L25   L27
                                                                                                 A

The above image illustrates the seat numbers
used to identify sign positions on a MOS car,
whilst the following pages state where each
saloon sign is to be positioned above a seat
on a MOS car.

There are three elevations shown (A-A, L-L
and R-R).
2.36   MOS      car sign positions - elevation   L-L                                                                     Contents
No 2 End                             MOS Car - Left side                                                          No 1 End
                                      A

      E F L M D1 Q C1 Q                          L G
                                                   E G
                                                     E         E J L M A1 Q C1 Q                   L     E G
                                                                                                         G E

                              S       A

E,F No smoking and Emergency alarm (right)         E,J No smoking and Emergency alarm/             S		 Not for public use
    Both vertically centred on 80mm deep               First aid kit (right)                           Vertically, base of sign 10mm above all
    decal panel. Sign E placed to the left of          Both vertically centred on 80mm deep            power points. Horizontally centred over all
    sign F. Both signs horizontally centred            decal panel. Sign E placed to the left of       power points.
    over seat L26 with a 10mm gap between              sign J. Both signs horizontally centred
    both signs.                                        over seat L11 with a 10mm gap between       M		 CCTV
                                                       both signs.                                     Vertically centred in line with decals on
E,G No smoking and Emergency alarm (left)                                                              80mm deep decal panel. Horizontally
    Both vertically centred on 80mm deep           L		 Priority seat                                   centred over seats L8 and L9 and seats
    decal panel. Sign E placed to the right of         Vertically centred on 80mm deep                 L22 and L23.
    sign G. Both signs horizontally centred            decal panel. Horizontally centred over
    over seats L3 and L18 with a 10mm gap              seats L5, L10, L19 and L24.                 Q		 Stand clear of closing doors/penalty fare
    between both signs.                                                                                Vertically 20mm above door windows.
                                                                                                   		 Horizontally centred above door windows.

                                                                                                                        continued on next page...
2.36.1 MOS car sign positions - elevation L-L (continued)   Contents

C1		 LO network line diagram
     Vertically 15mm from top of train.
     Horizontally centred over all sets
     of doors.

D1		 Tube and Rail map
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats L8 and L9 and seats L22 and L23.
     Note that there is no gap between this
     vinyl and vinyl C1.

E1		 Oyster ad panel
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats L6 and L7 and seats L20 and L21.
     Note that there is no gap between this
     vinyl and vinyl C1.
2.37                                                                                                                   Contents
No 1 EndMOS     car sign positions - elevation MOS
                                               R-R Car - Right side                                            No 2 End
                                                                                    A

       E F         L M D1 Q C1 Q                 L K E        E F L D1 M Q C1 Q                     L      G E

                                                                                    A
                                                                                              S

E,F No smoking and Emergency alarm (right)       E,K No smoking and Emergency alarm/              S		 Not for public use
    Both vertically centred on 80mm deep             First aid kit (left)                             Vertically, base of sign 10mm above all
    decal panel. Sign E placed to the left of        Both vertically centred on 80mm deep             power points. Horizontally centred over
    sign F. Both signs horizontally centred          decal panel. Sign E placed to the right of       all power points.
    over seats R3 and R18 with a 10mm gap            sign K. Both signs horizontally centred
    between both signs.                              over seat R11 with a 10mm gap between        M		 CCTV
                                                     both signs.                                      Vertically centred in line with decals on
E,G No smoking and Emergency alarm (left)                                                             80mm deep decal panel. Horizontally
    Both vertically centred on 80mm deep         L		 Priority seats                                   centred over seats R6 and R7 and seats
    decal panel. Sign E placed to the right of       Vertically centred on 80mm deep                  R20 and R21.
    sign G. Both signs horizontally centred          decal panel. Horizontally centred over
    over seats R26 with a 10mm gap                   seats R5, R10, R19 and R24.                  Q		 Stand clear of closing doors/penalty fare
    between both signs.                                                                               Vertically 20mm above door windows.
                                                                                                  		 Horizontally centred above door windows.

                                                                                                                       continued on next page...
2.37.1 MOS car sign positions - elevation R-R (continued)   Contents

C1		 LO network line diagram
     Vertically 15mm from top of train.
     Horizontally centred over all sets
     of doors.

D1		 Tube and Rail map
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats R6 and R7 and seats R20 and R21.
     Note that there is no gap between this
     vinyl and vinyl C1.

E1		 Oyster ad panel
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats R8 and R9 and seats R22 and R23.
     Note that there is no gap between this
     vinyl and vinyl C1.
2.38  MOS                                                                                       Contents
MOS and PTOScar
             Car sign
                 - Viewpositions
                        on A-A   - elevation A-A

         A1                   U
                  New Cross

    A                             T
    H

              View on A-A

A		 Alarm emergency use only/Fire alarm         U		 Door identity
		 call point                                       (Signs R -Y are door identity signs. The
    Vertically centred 15mm beneath                 appropriate sign is to be placed beside
    alarm point. Horizontally centred beneath       the appropriate door in each carriage).
    alarm point.                                		 Vertically 110mm from top of door
                                                    header panel. Horizontally centred on
H		 Emergency door release                          door portal pillar cover panel.
    Vertically centred on panel.
		 Horizontally centred on panel.               A1		 Door identity
                                                     (Signs R -Y are door identity signs. The
T		 Vehicle number                                   appropriate sign is to be placed beside
    Vertically, cap height 80mm from top of          the appropriate door in each carriage).
    train. Horizontally, centred between        		 Vertically 140mm from top of train.
    customer information display and side       		 Horizontally centred on panel.
    of train.
2.39 PTOS car saloon interior seat plan                                                                                 Contents
                                                             PTOS Car - Seat plan

                                                                                                 A
                    R2        R4        R6         R9         R11   R13 R15 R17 R19 R21               R23 R25 R27
               R1        R3        R5    R7       R8        R10 R12   R14 R16 R18         R20        R22 R24 R26 R28

L                                                                                                                                  L

R                                                                                                                                  R

               L1        L3        L5        L7   L8        L10 L12   L14 L16       L18   L20        L22 L24 L26    L28
                    L2        L4        L6             L9     L11   L13 L15   L17 L19      L21        L23   L25   L27
                                                                                                 A

The above image illustrates the seat numbers
used to identify sign positions on a PTOS car,
whilst the following pages state where each
saloon sign is to be positioned above a seat
on a PTOS car.

There are three elevations shown (A-A, L-L
and R-R).
2.40                                                                                                                   Contents
No 1 EndPTOS     car sign positions PTOS
                                    - elevation
                                         Car - LeftL-L
                                                    side                                                        No 2 End
                                     A

         E F L M Q C1 Q L G E P E J R O N M
                                      P M N D1 Q C1 Q L G
                                                        E G
                                                          E

                                     A
                                                                                           S

E,F No smoking and Emergency alarm (right)       E,J No smoking and Emergency alarm/              R		 Emergency alarm (disability)
    Both vertically centred on 80mm                  First aid kit (right)                            Vertically centred on panel above alarm
    deep decal panel. Sign E placed to the           Both vertically centred on 80mm deep             situated between seats L10 and L11.
    left of sign F. Both signs horizontally          decal panel. Sign E placed to the left of        Horizontally centred on panel above alarm
    centred over seat L26 with a 10mm gap            sign J. Both signs horizontally centred          situated between seats L10 and L11.
    between both signs.                              over seat L11 with a 10mm gap between
                                                     both signs.                                  S		 Not for public use
E,G No smoking and Emergency alarm (left)                                                             Vertically, base of sign 10mm above all
    Both vertically centred on 80mm deep         L		 Priority seats                                   power points. Horizontally centred over all
    decal panel. Sign E placed to the right of       Vertically centred on 80mm deep decal            power points.
    sign G. Both signs horizontally centred          panel. Horizontally centred over seats L5,
    over seats L3 and L18 with a 10mm gap            19 and L24.                                  M		 CCTV
    between both signs.                                                                               Vertically centred in line with decals on
                                                                                                      80mm deep decal panel. Horizontally
                                                                                                      centred over seats L22 and L23.

                                                                                                                       continued on next page...
2.40.1 PTOS car sign positions - elevation L-L (continued)                                         Contents

M,N CCTV and Emergency alarm opposite             C1		 LO network line diagram
    Both vertically centred in line with decals        Vertically 15mm from top of train.
    on 80mm deep decal panel. Sign M placed            Horizontally centred over all sets
    to the left of sign N. Both signs                  of doors.
    horizontally centred over seats L8 and L9
    with a 10mm gap between both signs.           D1		 Tube and Rail map
                                                       Vertically 15mm from top of train.
O		 Priority area                                      Horizontally centred over window above
    Vertically, top of panel 150mm from                seats L8 and L9 and seats L22 and L23.
    top of decal panel. Horizontally centred
    on panel.                                     E1		 Oyster ad panel
    Note that this sign is on perpendicular            Vertically 15mm from top of train.
    panel containing draft screen.                     Horizontally centred over window above
                                                       seats L6 and L7 (if ramp unit allows) and
P		 Priority area (directional)                        seats L20 and L21.
    Vertically, top of panel 150mm from top            Note that there is no gap between this
    of decal panel. Horizontally centred on            vinyl and vinyl C1.
    dead light panel.

Q		 Stand clear of closing doors/penalty fare
    Vertically 20mm above door windows.
		 Horizontally centred above door windows.
2.41                                                                                                                   Contents
No 2 EndPTOS      car sign positions - elevationPTOS
                                                 R-RCar - Right side                                            No 1 End
                                                                                     A

      E F O R M D1 Q C1 Q L K E                               E F L M D1 Q C1 Q                    L G E

                              S                                                      A

 E,F No smoking and Emergency alarm (right)       E,K No smoking and Emergency alarm/              R		 Emergency alarm (disability)
     Both vertically centred on 80mm deep             First aid kit (left)                             Vertically centred on panel above alarm
     decal panel. Sign E placed to the left of        Both vertically centred on 80mm deep             situated between seats R3 and R4.
     sign F. Both signs horizontally centred          decal panel. Sign E placed to the right of       Horizontally centred on panel above alarm
     over seat R3 and R18 with a 10mm gap             sign K. Both signs horizontally centred          situated between seats R3 and R4.
     between both signs.                              over seat R11 with a 10mm gap between
                                                      both signs.                                  S		 Not for public use
 E,G No smoking and Emergency alarm (left)                                                             Vertically, base of sign 10mm above all
     Both vertically centred on 80mm deep         L		 Priority seats                                   power points. Horizontally centred over
     decal panel. Sign E placed to the right of       Vertically centred on 80mm deep decal            all power points.
     sign G. Both signs horizontally centred          panel. Horizontally centred over seats
     over seats R26 with a 10mm gap                   R10, R19 and R24.                            M		 CCTV
     between both signs.                                                                               Vertically centred in line with decals on
                                                                                                       80mm deep decal panel. Horizontally
                                                                                                       centred over seats R6 and R7 and seats
                                                                                                       R20 and R21.
                                                                                                                         continued on next page...
2.41.1 PTOS car sign positions - elevation R-R (continued)   Contents

O		 Priority area
    Vertically, top of panel 150mm from top of
    decal panel. Horizontally centred on dead
    light panel.

Q		 Stand clear of closing doors/penalty fare
    Vertically 20mm above door windows.
		 Horizontally centred above door windows.

C1		 LO network line diagram
     Vertically 15mm from top of train.
     Horizontally centred over all sets of doors.

D1		 Tube and Rail map
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats R6 and R7 and seats R20 and R21.
     Note that there is no gap between this
     vinyl and vinyl C1.

E1		 Oyster ad panel
     Vertically 15mm from top of train.
     Horizontally centred over window above
     seats R8 and R9 and seats R22 and R23.
     Note that there is no gap between this
     vinyl and vinyl C1.
2.42and
      PTOS                                                                                      Contents
MOS     PTOS car
             Car -sign
                   Viewpositions
                       on A-A              - elevation A-A

          A1                   U
                   New Cross

    A                              T
    H

               View on A-A

A		 Alarm emergency use only/Fire alarm         U		 Door identity
    call point                                      (Signs R -Y are door identity signs. The
    Vertically centred 15mm beneath                 appropriate sign is to be placed beside
    alarm point. Horizontally centred beneath       the appropriate door in each carriage)
    alarm point.                                		 Vertically 110mm from top of door
                                                    header panel. Horizontally centred on
H		 Emergency door release                          door portal pillar cover panel.
    Vertically centred on panel. Horizontally
    centred on panel.                           A1		 Door identity
                                                     (Signs R -Y are door identity signs. The
T		 Vehicle number                                   appropriate sign is to be placed beside
    Vertically, cap height 80mm from top             the appropriate door in each carriage)
    of train. Horizontally, centred between     		 Vertically 140mm from top of train.
    customer information display and side       		 Horizontally centred on panel.
    of train.
3       Cab interior decals                       Contents

The following pages illustrate the graphic
elements that are to be applied to the driver’s
cab interior.
3.1     Danger live rail/Cab emergency equipment                               Contents

Artwork reference number
CAB/01
                                               Danger
Position on train reference
BA
                                               Live rail
Size                                           Cab emergency
165 x 156mm                                    equipment
Colours                                        Track circuit operating clips
                                               – adjacent to this notice
Safety Yellow (Pantone 116)
Corporate Black (Black 100%)                   Flags and detonators
                                               – below tip-up seat
Safety Green (Pantone 356)
                                               Emergency exit hammer
                                               – adjacent to this notice
3.2     Fire extinguisher                    Contents

Artwork reference number
CAB/02

Position on train reference
BB

Size
80 x 120mm

Colours
Safety Red (Pantone 485)
                              Fire
                              extinguisher
3.3     High visibility clothing/ Protection of line use track clips                Contents

Artwork reference number
CAB/03                                             High-visibility clothing   Protection of line
                                                   must be worn when          Use track circuit
Position on train reference                        on or about the line       operating clips first
BC

Size
328.5 x 50mm

Colours
Safety Blue (Pantone 300)
3.4     Buzzer code                                                       Contents

Artwork reference number
CAB/04                        Buzzer code
                              1       Stop
Position on train reference
                              1-2     Close doors
BD                            2       Ready to start
                              2-2     Do not open doors
                                      (driver/guard to confer)
Size
                              3       Set back
120 x 160mm                   3-1     Lock central door locking
                              3-2-1   Testing doors
Colours                       3-3     Guard required/Driver or guard to
                                      attend telephone
Safety Blue (Pantone 300)     3-3-1   Release central door locking
                              4       Slow down
                              5       Driver or guard leaving train in
                                      accordance with the rules
                              6       Draw forward
                              9       Police assistance required
3.5     Cleanliness                                                  Contents

Artwork reference number
CAB/05

Position on train reference
BE

Size                          Cleanliness
130 x 170                     Absolute cleanliness is essential in
                              all compartments of this vehicle.
Colours                       Waste, sponge cloths, paper or any
Safety Blue (Pantone 300)     other article of a combustible
                              nature must not be stowed in this
                              compartment.
                              The greatest of care must be taken
                              to prevent the spilling of oil onto
                              the floor. Should any be spilt it
                              must be removed at once.
3.6     Keep clear heater grilles                         Contents

Artwork reference number
CAB/06
                                    Keep clear
Position on train reference         Heater grilles must
BF
                                    not be obstructed
Size
165 x 50

Colour
Safety Blue (Pantone 300)
3.7     Emergency parking brake                              Contents

Artwork reference number
CAB/07                            Emergency parking brake
Position on train reference       application cock located
BG                                behind this cover
Size
165 x 50

Colour
Safety Blue (Pantone 300)
3.8     Cab vehicle numbers            Contents

                               00000
Artwork reference number
CAB/08

Position on train reference
BH

Size
Cap height is 25mm

Colour
Corporate Blue (Pantone 072)
3.9     Cab unit numbers                 Contents

                               000 000
Artwork reference number
CAB/09

Position on train reference
BJ

Size
Cap height is 25mm

Colour
Corporate Blue (Pantone 072)
3.10 Max speed                           Contents

                               Max speed 75mph
Artwork reference number
CAB/10

Position on train reference
BK

Size
Cap height is 25mm

Colour
Corporate Blue (Pantone 072)
3.11 Danger live rail                      Contents

Artwork reference number
CAB/11
                               Danger
Position on train reference
BL
                               Live rail
Size
187.5 x 50mm

Colour
Safety Yellow (Pantone 116)
Corporate Black (Black 100%)
3.12       Emergency exit                 Contents

Artwork reference number
CAB/12
                              Emergency
Position on train reference   exit
BM

Size
187.5 x 98.5mm

Colour
Safety Green (Pantone 356)
3.13 Electric shock and resuscitation label                         Contents

Artwork reference number          Artwork sample not yet supplied
CAB/13                            by Bombardier

Position on train reference
BN

Size
318 x 424mm

Colours
CMYK process
3.14 Exit cab with care                             Contents

Artwork reference number
CAB/14

Position on train reference
BO

Size
74 x 107mm

Colour
Safety Yellow (Pantone 116)
Corporate Black (Black 100%)
                               Caution
                               Exit cab with care
                               Watch your footing
3.15 SWISC for brake module (Screen Wash System Isolating Cock)   Contents

Artwork reference number
CAB/15
                                 SWSIC

Position on train reference
BP

Size
21 x 6.5mm

Colour
Corporate Blue (Pantone 072)
3.16 DSIC for brake module (Door System Isolating Cock)   Contents

Artwork reference number
CAB/16
                                  DSIC

Position on train reference
BQ

Size
21 x 6.5mm

Colour
Corporate Blue (Pantone 072)
3.17 HSIC for brake module (Horn System Isolating Cock)   Contents

Artwork reference number
CAB/17
                                  HSIC

Position on train reference
BR

Size
21 x 6.5mm

Colour
Corporate Blue (Pantone 072)
3.18 Cab interior sign positions                                                                            Contents

           BC                                                                                          BL
                                                                        BK
                                                                                                       BM
                          BA                           BD

                     BO
                                                                                                       BO
                            BN

BA Danger live rail/Cab emergency                  BL		 Emergency exit
   equipment                                            Positioned on back wall - close to left hand
   Positioned on back wall - on cab                     side door 10mm above sign BM
   emergency equipment door
                                                   BM Danger live rail
BC		 High visibility clothing/Protection of line      Positioned on back wall - close to left hand
     use track clips                                  side door 10mm below sign BL
     Positioned above both track side doors
                                                   BN Electric shock and resuscitation label
BD Buzzer code                                        Positioned on back wall - on cab emergency
   Positioned above driver’s left hand side           equipment door
   small window
                                                   BO Exit cab with care
BK		 Max speed                                        Positioned on lever on both sides ofthe train
     Positioned above driver’s left hand side
     control panel

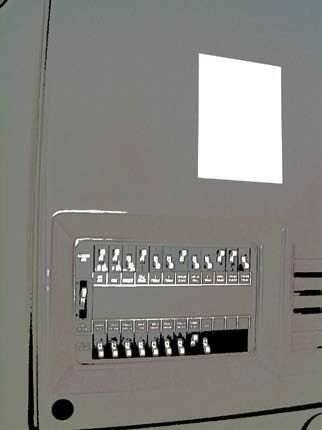

3.19 Cab interior sign positions continued                                                      Contents

                        BC

                                                                                                      BB
  BA
                                        BO
                                                                                 BE

BA Danger live rail/Cab emergency                  BO Exit cab with care
   equipment                                          Positioned on both side doors - towards
   Positioned on back wall - on cab                   front of cab
   emergency equipment door

BB		 Fire extinguisher
     Positioned on door covering
     fire extinguisher

BC		 High visibility clothing/Protection of line
     use track clips
     Positioned above both track side doors

BE		 Cleanliness
     Positioned below switches
3.20 Cab interior sign positions continued                                                  Contents

                               BF

BF		 Keep clear heater grilles             The following signs have not yet been given
     Positioned beside heater grilles at   positions - awaiting details from Bombardier;
     floor level
                                           BG     Emergency parking brake
                                           BH     Cab vehicle number
                                           BJ		   Cab unit number
                                           BP		   SWISC for brake module
                                           BQ     DSIC for brake module
                                           BR		   HSIC for brake module

                                           Still awaiting details from Bombardier for the
                                           following sign:

                                           BN Electric shock and resuscitation
4       Train exterior decals                Contents

The following pages illustrate the graphic
elements that are to be applied to the
train exterior.
4.1     Danger overhead live wires                Contents

Artwork reference number
EXT/01

Position on train reference
CA

Size
60 x 100mm

Colour
Safety Yellow (Pantone 116)
Corporate Black (Black 100%)         Danger
                                     Overhead
                                     live wires
4.2     London Overground roundel   Contents

Artwork reference number
EXT/02

Position on train reference
CB

Size
Width is still to be determined -
possibly 360mm

Colour
LO Orange (Pantone 158)
Corporate Blue (Pantone 072)
4.3     Stand clear of the closing door             Contents

Artwork reference number
EXT/03

Position on train reference
CC

Size
70 x 151mm

Colour                                    Stand
Safety Yellow (Pantone 116)
Corporate Black (Black 100%)              clear
                                          of the
                                          closing
                                          doors
4.4     Vehicle number                 Contents

                               00000
Artwork reference number
EXT/04

Position on train reference
CD

Size
Cap height is 100mm

Colour
Corporate Blue (Pantone 072)
4.5     Jacking symbol        Contents

Artwork reference number
EXT/05

Position on train reference
CE

Size
Height is 50mm

Colour
Safety Yellow (Pantone 116)
4.6     Number 1 wheel        Contents

Artwork reference number
EXT/06

Position on train reference
CF

Size
Height is 30mm

Colour
Safety Yellow (Pantone 116)
4.7     Unit number                      Contents

                               000 000
Artwork reference number
EXT/07

Position on train reference
CG

Size
Cap height is 100mm

Colour
Corporate Blue (Pantone 072)
4.8     Unit data panel/Vehicle data panel DMOS            Contents

Artwork reference number
EXT/08                              Class 000
Position on train reference         Unit data:
CH                                  Weight 172.19 tonnes
                                    Length 83.17 m
Size                                Width      2.80 m
190 x 413.5mm
                                    Seats     321 s
Colour
Corporate Blue (Pantone 072)
                                    xxx/x DMOS

                                    Vehicle data:
                                    Weight 45.02 tonnes
                                    Length 21.60 m
                                    Width     2.80 m

                                    Seats      77 s
4.9     Unit data panel/Vehicle data panel MOS             Contents

Artwork reference number
EXT/09                               Class 000
Position on train reference         Unit data:
CJ                                  Weight 172.19 tonnes
                                    Length 83.17 m
Size                                Width      2.80 m
190 x 413.5mm
                                    Seats     321 s
Colour
Corporate Blue (Pantone 072)
                                     xxx/x MOS

                                    Vehicle data:
                                    Weight 45.02 tonnes
                                    Length 21.60 m
                                    Width     2.80 m

                                    Seats      77 s
4.10 Unit data panel/Vehicle data panel PTOS(W)          Contents

Artwork reference number
EXT/10                            Class 000
Position on train reference       Unit data:
CK                                Weight 172.19 tonnes
                                  Length 83.17 m
Size                              Width      2.80 m
190 x 413.5mm
                                  Seats     321 s
Colour
Corporate Blue (Pantone 072)
                                  xxx/x PTOS

                                  Vehicle data:
                                  Weight 45.02 tonnes
                                  Length 21.60 m
                                  Width     2.80 m

                                  Seats      77 s
4.11 Wheelchair symbol        Contents

Artwork reference number
EXT/11

Position on train reference
CL

Size
120 x 150mm

Colour
Safety Blue (Pantone 300)
4.12 DMOS car sign positions - exterior side elevation                                                  Contents

           CA     CD         CC        CC                                    CC       CC    CD

                                                       New Cross

                    00000                                                                   00000

No 1 End    CF CE                                      CB                                  CE       No 2 End

CA Danger overhead live wires               CD Vehicle number
   Vertically centred between top of door      Vertically, baseline of text 100mm above
   and top of door window. Horizontally        orange strip.Horizontally centred over
   aligned with front edge of window.          first and last windows.

CB		 LO roundel                             CE		 Jacking symbol
     Vertically centred on white panel           Vertically centred on blue panel.
     beneath window. Horizontally centred   		 Horizontally centred over jacking points.
     between two sets of doors.
                                            CF		 Number 1 wheel
CC Stand clear of the closing doors              Vertically centred on blue panel.
   Vertically aligned with top of           		 Horizontally centred over number
   door window. Horizontally centred             1 wheel.
   between window and door edge.
4.13 DMOS car sign positions - exterior No 1 End and No 2 End elevations                     Contents

                                                   CA      CA

  New Cross

                    CG
                                            CH

CG Unit number                                   CA Danger overhead live wires
   Vertically, cap height of digits to be           Vertically, 30mm above entry point top
   50mm beneath window.                             edge. Horizontally, 70mm in from entry
		 Horizontally centred on panel.                   point left and right edges.

                                                 CH Unit data panel/Vehicle data
                                                    panel DMOS
                                                    Vertically, 50mm above orange strip.
                                                 		 Horizontally centred on panel.
4.14 MOS car sign positions - exterior side elevation                                                 Contents

            CD             CC       CC                                        CC      CC      CD

                                                        New Cross

            00000                                                                             00000

               CE                                      CB                                    CE

CB		 LO roundel                               CE		 Jacking symbol
     Vertically centred on white panel             Vertically centred on blue panel.
     beneath window. Horizontally centred     		 Horizontally centred over jacking points.
     between two sets of doors.

CC Stand clear of the closing doors
   Vertically aligned with top of
   door window. Horizontally centred
   between window and door edge.

CD Vehicle number
   Vertically, baseline of text 100mm above
   orange strip. Horizontally centred over
   first and last windows.
4.15 MOS car sign positions - exterior End elevations   Contents

         CA      CA

CJ

CA Danger overhead live wires
   Vertically, 30mm above entry point top
   edge. Horizontally, 70mm in from entry
   point left and right edges.

CJ		 Unit data panel/Vehicle data panel MOS
     Vertically, 50mm above orange strip.
		 Horizontally centred on panel.
4.16 PTOS car sign positions - exterior side elevation                                                Contents

            CD             CC       CC                                       CC       CC      CD

                                                        New Cross

            00000                                                                             00000

               CE         CL                           CB                                    CE

CB		 LO roundel                               CE		 Jacking symbol
     Vertically centred on white panel             Vertically centred on blue panel.
     beneath window. Horizontally centred     		 Horizontally centred over jacking points.
     between two sets of doors.
                                              CL		 Wheelchair access
CC Stand clear of the closing doors                (Note that this sign appears to the
   Vertically aligned with top of                  left of the wheelchair access doors in
   door window. Horizontally centred               all instances)
   between window and door edge.                   Vertically 50mm from bottom of black
                                                   window strip. Horizontally 50mm from
CD Vehicle number                                  edge of wheelchair access door.
   Vertically, baseline of text 100mm above
   orange strip. Horizontally centred over
   first and last windows.
4.17 PTOS car sign positions - exterior End elevations   Contents

         CA      CA

CJ

CA Danger overhead live wires
   Vertically, 30mm above entry point top
   edge. Horizontally, 70mm in from entry
   point left and right edges.

CJ		 Unit data panel/Vehicle data panel PTOS
     Vertically, 50mm above orange strip.
		 Horizontally centred on panel.
4.18 Saloon exterior livery colours                                                                    Contents

                          B                                                                                          B
                              C
                                  D
                                                New Cross

    A
                  00000                  E                             G        H           00000

                                                                                     J
                                                             F

A		 Drivers cab front                 E		 Body                                      J		 Lower body
    Colour: Livery Yellow                 Colour:           Livery Light Grey           Colour: Corporate Blue
    		        (NCS S 1080-Y10R)           		                (NCS S 1502-Y)              		       (NCS S 3560-R80B)
                                                                                        Depth: 335mm
B		 Roof and ends                     F		 Train underside
    Colour: Livery Mid Grey               Colour: Livery Dark Grey
    		       (NCS S 4502-G)               		        (NCS S 7010-R90B)

C		 Warning stripe                    G		 LO Orange stripe
    Colour: Cant Rail Orange              Colour: LO Orange
    		       (BS381C Ref 557)             		      (NCS S 0585-Y50R)
    Depth: ???mm                          Depth: 80mm

D		 Window glazing                    H		 Doors
    Colour: Livery Black                  Colour:           LO Orange
    		      (NCS S 0585-Y50R)             		                (NCS S 0585-Y50R)
    Depth: ???mm
For further information                            Contents

These standards intend to outline basic
principles and therefore cannot cover every
application or eventuality.

In case of difficulty or doubt as to the
correctness in the application of these
standards, please contact TfL Corporate Design.
Telephone: 020 7126 4462
Internal extension: 64462
Email: corporatedesign@tfl.gov.uk

All TfL corporate design standards are available
from the TfL internet site.
tfl.gov.uk/corporatedesign

Issue 2, January 2009

© Transport for London
You can also read
NEXT SLIDES ... Cancel
