UPGRADE CATALOG Edition 9 - July 2020 - TBM
←
→
Page content transcription
If your browser does not render page correctly, please read the page content below
UPGRADE
CATALOG
Edition 9 - July 2020
Please select the model of your interest.
p.3
p.76 p.10
A
940 B
p.69 p.20
930 C
910 850
Legacy
900 850
G1000
p.63 p.27
p.53 p.35
Click here to access to the retrofit prices
To order, please contact your local representative :
www.tbm.aero/support
A
List of special offers:
Landing gear actuator replacement p.4
List of available retrofits:
Low LDG Door p.5
LED taxi LDG lights p.6
Aerox Chemical Mask p.7
Barometric Valve installation 31,000 ft p.8
Engine draining in exhaust stub p.9
Modification of the oil drain breather hose p.10
MODEL SELECTION
SPECIAL
A OFFER

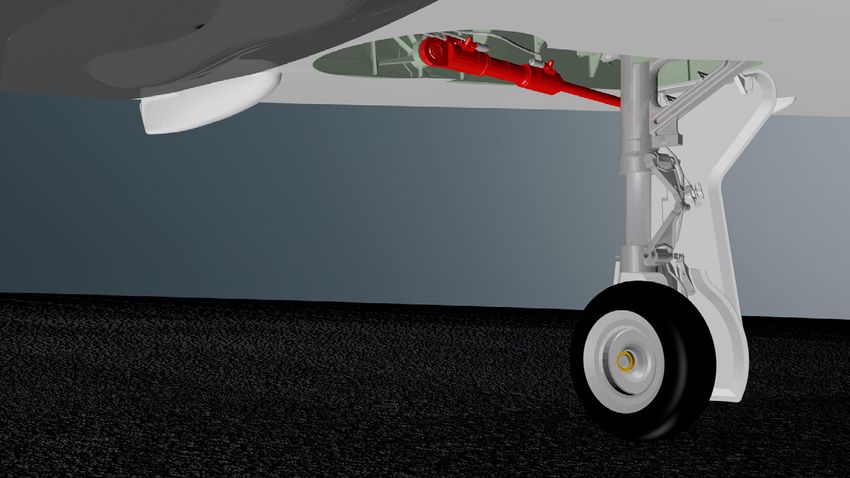

LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020
PERFORMANCE & STYLE
A SAFETY & STYLE

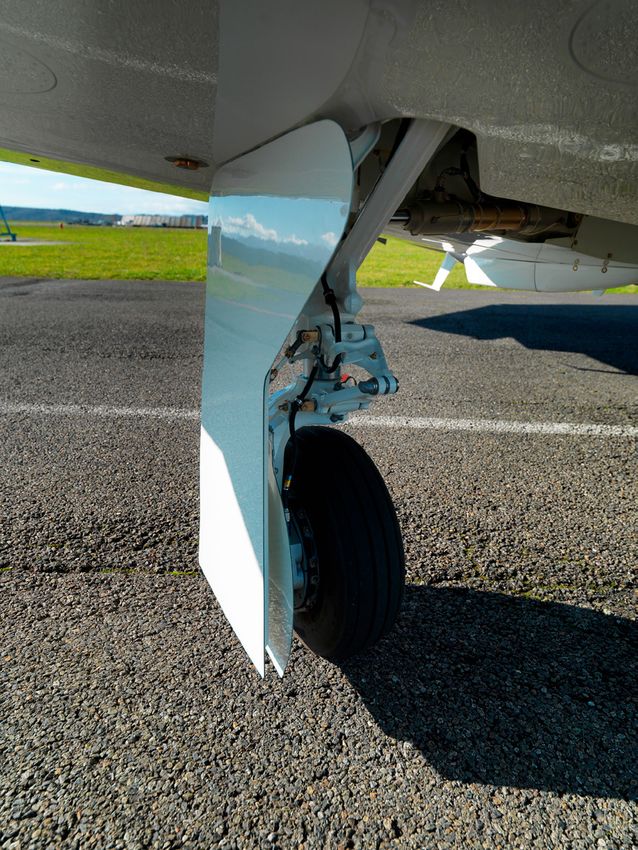

Low landing gear door retrofit
Enjoy the latest enhancement for your TBM
Low LDG Door
Improves aerodynamics of the aircraft
Reduce drag
Better performances and Fuel saving
The Main Gear Low Door is made of
honeycomb composite panel with
glass/carbon-cloth
930 A
Validity 900 B Reference to order
SN 1 to 684 OPT70K15300
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-228-52 R1 15 hours labor
Applicable Not applicable Already applied
PERFORMANCE & STYLE
A SAFETY & STYLE
Taxi & Landing lights retrofit
Enjoy the latest enhancement for your TBM
Whelen LED
Taxi/Landing lights retrofit
Long life
High efficiency
Better resistance
Higher color temperature white
Better visibility during taxi
We provided you the only solution with
a switch indicator light inside your
cabin
930 A
Reference to order
Validity 900 B
OPT70K23000
SN 1 to 684 OPT70K23001
(Check SB for validity)
850 C
G1000
850
Legacy
SB Reference Labor hours estimated
Applicable Not applicable Already applied
SB70-230-33 4 hours labor
SAFETY ENHANCEMENTS
A SAFETY ENHANCED
Pilot chemical oxygen mask replacement
Enjoy the latest enhancement for your TBM
Aerox Chemical Mask
Previous masks are replaced by Aerox
masks
Technological improvements
(Better microphone, better comfort)
These new pilot masks, installed in the
same location as the previous ones,
require a new storage box due to their
different size.
Stock available for exchange during
overhaul
930 A
Validity
900 B Reference to order
SN 1 to 243 without
OPT70-35-001 OPT70K146-35
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-212-35 6 hours labor
Applicable Not applicable Already applied
SAFETY ENHANCEMENTS
A SAFETY ENHANCED
Barometric valve 31,000 feet retrofit
Enjoy the latest enhancement for your TBM
Barometric valve 31,000 feet
Increases the flight ceiling from 30,000
feet to 31,000 feet
Allows the automatic supply and use of
oxygen masks for the passengers.
This modification is valid for TBM700A
and TBM700B already equipped with
the gaseous oxygen system and P&WC
SB14261 and 14308 applied.
930 A
Validity 900 B Reference to order
SN 24, 36, 40 to 239 OPT70K08235
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-028-35 R01 30 hours labor
Applicable Not applicable Already applied
SAFETY ENHANCEMENTS
A SAFETY & STYLE

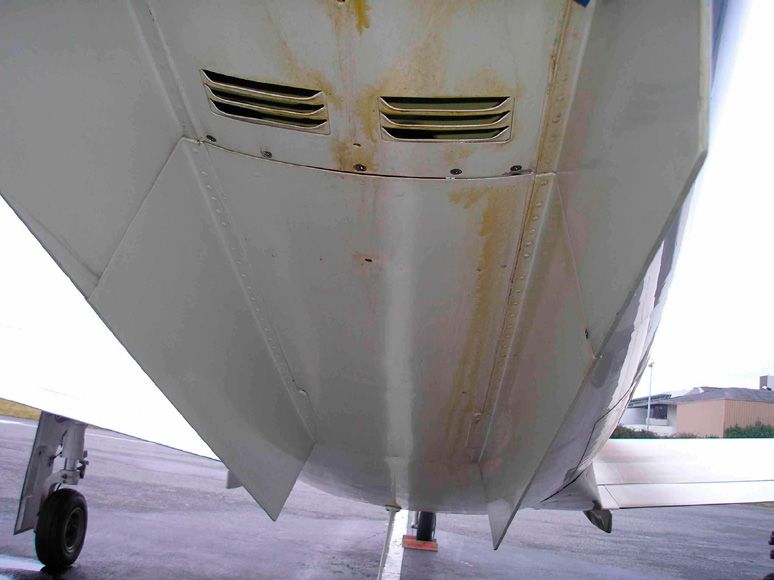

Engine draining in exhaust stub retrofit
Enjoy the latest enhancement for your TBM
Engine draining in exhaust stub
Collection of the engine drains towards
the R.H exhaust stub to avoid Oxygen
bottle area contamination hazard,
burning oil in the exhaust.
930 A
Validity 900 B Reference to order
SN 1 to 204, 206 to 215 OPT70K08071
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-097-71 10 hours labor
Applicable Not applicable Already applied
PERFORMANCE & STYLE
A SAFETY & STYLE

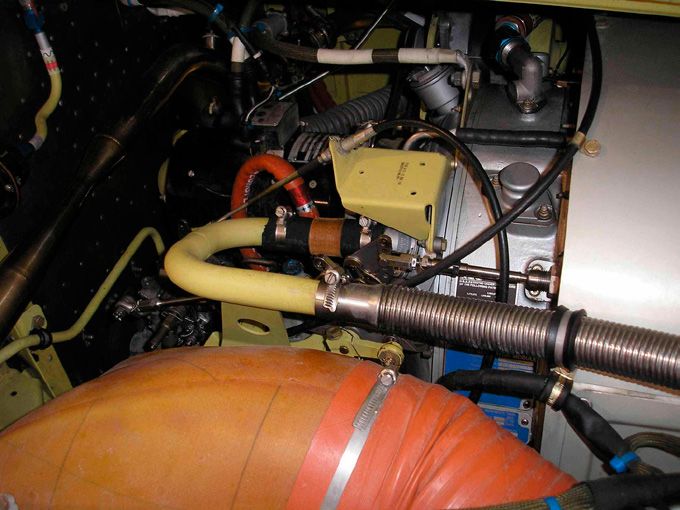

Oil drain breather hose Replacement
Enjoy the latest enhancement for your TBM
Oil drain breather hose
Avoid traces of grease inside engine
cowling by hose replacement on which
design has been improved
930 A
Validity
900 B Reference to order
SN 1 to 345 with
OPT70K080-71 applied T700A717003100100
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-141-71 1,5 hours labor
Applicable Not applicable Already appliedB
List of special offers:
Landing gear actuator replacement p.12
List of available retrofits:
Low LDG Door p.13
LED taxi LDG lights p.14
Aerox Chemical Mask p.15
Barometric Valve installation 31,000 ft p.16
Cabin heat deflector p.17
Engine draining in exhaust stub p.18
Modification of the oil drain breather hose p.19
Chemical toilet cabinet p.20

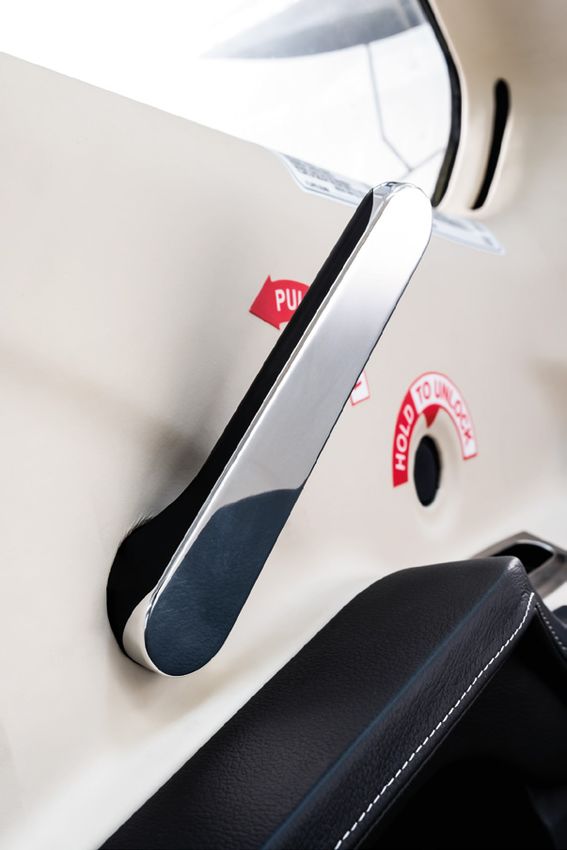

Pilot door handle p.21
MODEL SELECTIONSPECIAL
B OFFER
LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020PERFORMANCE & STYLE
B SAFETY & STYLE
Low landing gear door retrofit
Enjoy the latest enhancement for your TBM
Low LDG Door
Improves aerodynamics of the aircraft
Reduce drag
Better performances and Fuel saving
The Main Gear Low Door is made of
honeycomb composite panel with
glass/carbon-cloth
930 A
Validity 900 B Reference to order
SN 1 to 684 OPT70K15300
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-228-52 R1 15 hours labor
Applicable Not applicable Already appliedPERFORMANCE & STYLE
B SAFETY & STYLE
Taxi & Landing lights retrofit
Enjoy the latest enhancement for your TBM
Whelen LED
Taxi/Landing lights retrofit
Long life
High efficiency
Better resistance
Higher color temperature white
Better visibility during taxi
We provided you the only solution with
a switch indicator light inside your
cabin
930 A
Reference to order
Validity 900 B
OPT70K23000
SN 1 to 684 OPT70K23001
(Check SB for validity)
850 C
G1000
850
Legacy
SB Reference Labor hours estimated
Applicable Not applicable Already applied
SB70-230-33 4 hours laborSAFETY ENHANCEMENTS
B SAFETY ENHANCED
Pilot chemical oxygen mask replacement
Enjoy the latest enhancement for your TBM
Aerox Chemical Mask
Previous masks are replaced by Aerox
masks
Technological improvements
(Better microphone, better comfort)
These new pilot masks, installed in the
same location as the previous ones,
require a new storage box due to their
different size.
Stock available for exchange during
overhaul
930 A
Validity
900 B Reference to order
SN 1 to 243 without
OPT70-35-001 OPT70K146-35
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-212-35 6 hours labor
Applicable Not applicable Already appliedSAFETY ENHANCEMENTS
B SAFETY ENHANCED
Barometric valve 31,000 feet retrofit
Enjoy the latest enhancement for your TBM
Barometric valve 31,000 feet
Increases the flight ceiling from 30,000
feet to 31,000 feet
Allows the automatic supply and use of
oxygen masks for the passengers.
This modification is valid for TBM700A
and TBM700B already equipped with
the gaseous oxygen system and P&WC
SB14261 and 14308 applied.
930 A
Validity 900 B Reference to order
SN 24, 36, 40 to 239 OPT70K08235
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-028-35 R01 30 hours labor
Applicable Not applicable Already appliedELEGANCE & CONVENIENCE
B SAFETY & STYLE
Cabin heat deflector retrofit
Enjoy the latest enhancement for your TBM
Cabin heat deflector
The installation of a new deflector will
optimize the hot airflow coming to the
LH passenger's feet and will improve
the cabin thermal comfort.
930 A
Validity Reference to order
900 B
SN 126, 129, 137, OPT70K13525
143-145, 148-433
850 C
G1000
850
Legacy Labor hours estimated
SB Reference 2 hours labor
Applicable Not applicable Already appliedSAFETY ENHANCEMENTS
B SAFETY & STYLE
Engine draining in exhaust stub retrofit
Enjoy the latest enhancement for your TBM
Engine draining in exhaust stub
Collection of the engine drains towards
the R.H exhaust stub to avoid Oxygen
bottle area contamination hazard,
burning oil in the exhaust.
930 A
Validity 900 B Reference to order
SN 1 to 204, 206 to 215 OPT70K08071
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-097-71 10 hours labor
Applicable Not applicable Already appliedPERFORMANCE & STYLE
B SAFETY & STYLE
Oil drain breather hose Replacement
Enjoy the latest enhancement for your TBM
Oil drain breather hose
Avoid traces of grease inside engine
cowling by hose replacement on which
design has been improved
930 A
Validity
900 B Reference to order
SN 1 to 345 with
OPT70K080-71 applied T700A717003100100
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-141-71 1,5 hours labor
Applicable Not applicable Already appliedELEGANCE & CONVENIENCE
B SAFETY & STYLE
Chemical toilet cabinet option
Enjoy the latest enhancement for your TBM
Chemical toilet cabinet
This option consists of swapping-out
the TBM’s intermediate left seat with
the toilet cabinet.
This system is used in the marine
industry and is optimized for easy
installation and servicing.
On ground, the toilet cabinet can be
installed to replace the left middle seat.
In flight, the passengers will have a
curtain to ensure privacy.
The kit includes the toilet, curtain and
the POH option supplement.
930 A
Validity
TBM 700B equipped with Reference to order
900 B
MOD70-035-001 (Gazeous T700B252005100000
Oxygen), TBM700C, TBM 850. T700G252002700000
N/S 346 to 433 850
G1000 C
850
SB Reference Legacy Labor hours estimated
SB70-184-25 1 hours labor
Applicable Not applicable Already applied
SB70-175-25ELEGANCE & CONVENIENCE
B CONVENIENCE & STYLE
Pilot door handle retrofit
Enjoy the latest enhancement for your TBM
Pilot door pushbutton and
handle replacement
Is your TBM aircraft giving you
“the cold shoulder?”
A new pilot door handle and pushbutton
built with carbon composite materials
are now available for retrofit on TBM
aircraft.
It does not radiate the same sensation
of cold as a metallic door handle.
The result: increased comfort during
flight, and reduced heat loss.
940
Validity 930 A
Reference to order
Up to SN 1269
equipped with pilot door 910 B Parts as per SB
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB70-270-52 Applicable Not applicable Already applied 2 hoursC
List of special offers:
Landing gear actuator replacement p.23
List of available retrofits:
Low LDG Door p.24
LED taxi LDG lights p.25
Cabin heat deflector p.26
Modification of the oil drain breather hose p.27
Chemical toilet cabinet p.28
Pilot door handle p.29
MODEL SELECTIONSPECIAL
C OFFER
LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020PERFORMANCE & STYLE
C SAFETY & STYLE
Low landing gear door retrofit
Enjoy the latest enhancement for your TBM
Low LDG Door
Improves aerodynamics of the aircraft
Reduce drag
Better performances and Fuel saving
The Main Gear Low Door is made of
honeycomb composite panel with
glass/carbon-cloth
930 A
Validity 900 B Reference to order
SN 1 to 684 OPT70K15300
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-228-52 R1 15 hours labor
Applicable Not applicable Already appliedPERFORMANCE & STYLE
C SAFETY & STYLE
Taxi & Landing lights retrofit
Enjoy the latest enhancement for your TBM
Whelen LED
Taxi/Landing lights retrofit
Long life
High efficiency
Better resistance
Higher color temperature white
Better visibility during taxi
We provided you the only solution with
a switch indicator light inside your
cabin
930 A
Reference to order
Validity 900 B
OPT70K23000
SN 1 to 684 OPT70K23001
(Check SB for validity)
850 C
G1000
850
Legacy
SB Reference Labor hours estimated
Applicable Not applicable Already applied
SB70-230-33 4 hours laborELEGANCE & CONVENIENCE
C SAFETY & STYLE
Cabin heat deflector retrofit
Enjoy the latest enhancement for your TBM
Cabin heat deflector
The installation of a new deflector will
optimize the hot airflow coming to the
LH passenger's feet and will improve
the cabin thermal comfort.
930 A
Validity Reference to order
900 B
SN 126, 129, 137, OPT70K13525
143-145, 148-433
850 C
G1000
850
Legacy Labor hours estimated
SB Reference 2 hours labor
Applicable Not applicable Already appliedPERFORMANCE & STYLE
C SAFETY & STYLE
Oil drain breather hose Replacement
Enjoy the latest enhancement for your TBM
Oil drain breather hose
Avoid traces of grease inside engine
cowling by hose replacement on which
design has been improved
930 A
Validity
900 B Reference to order
SN 1 to 345 with
OPT70K080-71 applied T700A717003100100
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-141-71 1,5 hours labor
Applicable Not applicable Already appliedELEGANCE & CONVENIENCE
C SAFETY & STYLE
Chemical toilet cabinet option
Enjoy the latest enhancement for your TBM
Chemical toilet cabinet
This option consists of swapping-out
the TBM’s intermediate left seat with
the toilet cabinet.
This system is used in the marine
industry and is optimized for easy
installation and servicing.
On ground, the toilet cabinet can be
installed to replace the left middle seat.
In flight, the passengers will have a
curtain to ensure privacy.
The kit includes the toilet, curtain and
the POH option supplement.
930 A
Validity
TBM 700B equipped with Reference to order
900 B
MOD70-035-001 (Gazeous T700B252005100000
Oxygen), TBM700C, TBM 850. T700G252002700000
N/S 346 to 433 850
G1000 C
850
SB Reference Legacy Labor hours estimated
SB70-184-25 1 hours labor
Applicable Not applicable Already applied
SB70-175-25ELEGANCE & CONVENIENCE
C CONVENIENCE & STYLE
Pilot door handle retrofit
Enjoy the latest enhancement for your TBM
Pilot door pushbutton and
handle replacement
Is your TBM aircraft giving you
“the cold shoulder?”
A new pilot door handle and pushbutton
built with carbon composite materials
are now available for retrofit on TBM
aircraft.
It does not radiate the same sensation
of cold as a metallic door handle.
The result: increased comfort during
flight, and reduced heat loss.
940
Validity 930 A
Reference to order
Up to SN 1269
equipped with pilot door 910 B Parts as per SB
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB70-270-52 Applicable Not applicable Already applied 2 hoursList of available retrofits:
Landing gear actuator replacement p.31
List of available retrofits:
Low LDG Door p.32
LED taxi LDG lights p.33
Cabin heat deflector p.34
Chemical toilet cabinet p.35
Exhaust stacks retrofit p.36
Pilot door handle p.37
MODEL SELECTIONSPECIAL
OFFER
LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020PERFORMANCE & STYLE
SAFETY & STYLE
Low landing gear door retrofit
Enjoy the latest enhancement for your TBM
Low LDG Door
Improves aerodynamics of the aircraft
Reduce drag
Better performances and Fuel saving
The Main Gear Low Door is made of
honeycomb composite panel with
glass/carbon-cloth
930 A
Validity 900 B Reference to order
SN 1 to 684 OPT70K15300
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-228-52 R1 15 hours labor
Applicable Not applicable Already appliedPERFORMANCE & STYLE
SAFETY & STYLE
Taxi & Landing lights retrofit
Enjoy the latest enhancement for your TBM
Whelen LED
Taxi/Landing lights retrofit
Long life
High efficiency
Better resistance
Higher color temperature white
Better visibility during taxi
We provided you the only solution with
a switch indicator light inside your
cabin
930 A
Reference to order
Validity 900 B
OPT70K23000
SN 1 to 684 OPT70K23001
(Check SB for validity)
850 C
G1000
850
Legacy
SB Reference Labor hours estimated
Applicable Not applicable Already applied
SB70-230-33 4 hours laborELEGANCE & CONVENIENCE
SAFETY & STYLE
Cabin heat deflector retrofit
Enjoy the latest enhancement for your TBM
Cabin heat deflector
The installation of a new deflector will
optimize the hot airflow coming to the
LH passenger's feet and will improve
the cabin thermal comfort.
930 A
Validity Reference to order
900 B
SN 126, 129, 137, OPT70K13525
143-145, 148-433
850 C
G1000
850
Legacy Labor hours estimated
SB Reference 2 hours labor
Applicable Not applicable Already appliedELEGANCE & CONVENIENCE
SAFETY & STYLE
Chemical toilet cabinet option
Enjoy the latest enhancement for your TBM
Chemical toilet cabinet
This option consists of swapping-out
the TBM’s intermediate left seat with
the toilet cabinet.
This system is used in the marine
industry and is optimized for easy
installation and servicing.
On ground, the toilet cabinet can be
installed to replace the left middle seat.
In flight, the passengers will have a
curtain to ensure privacy.
The kit includes the toilet, curtain and
the POH option supplement.
930 A
Validity
TBM 700B equipped with Reference to order
900 B
MOD70-035-001 (Gazeous T700B252005100000
Oxygen), TBM700C, TBM 850. T700G252002700000
N/S 346 to 433 850
G1000 C
850
SB Reference Legacy Labor hours estimated
SB70-184-25 1 hours labor
Applicable Not applicable Already applied
SB70-175-25PERFORMANCE & STYLE
SAFETY & STYLE
Exhaust stacks retrofit
Enjoy the latest enhancement for your TBM
Exhaust stacks
Replacement of the RH and LH exhaust
stacks by “Generation 2” exhausts
which will significantly reduce the soot
built-up without any performance
alteration.
It is strongly recommended to include
the Oil drainage kit in addition to this
modification.
That will avoid the presence of oily dirt
on the lower fuselage skin
940
930 A
Reference to order
Validity
910 B T700F781000500700 (R.H)
SN 346 to 570 equipped T700F781000500600 (L.H)
with MOD70-0202-78
or with OPT70K111-78 900 C
850 850
G1000 Legacy Labor hours estimated
6 hours labor
Applicable Not applicable Already appliedELEGANCE & CONVENIENCE
CONVENIENCE & STYLE
Pilot door handle retrofit
Enjoy the latest enhancement for your TBM
Pilot door pushbutton and
handle replacement
Is your TBM aircraft giving you
“the cold shoulder?”
A new pilot door handle and pushbutton
built with carbon composite materials
are now available for retrofit on TBM
aircraft.
It does not radiate the same sensation
of cold as a metallic door handle.
The result: increased comfort during
flight, and reduced heat loss.
940
Validity 930 A
Reference to order
Up to SN 1269
equipped with pilot door 910 B Parts as per SB
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB70-270-52 Applicable Not applicable Already applied 2 hours+G1000
List of special offers:
Landing gear actuator replacement p.40
List of available retrofits:
Low LDG Door p.41
LED taxi LDG lights p.42
Exhaust stacks retrofit p.43
AOA/USP p.44
AOA/ESP/USP p.45
ESI 2000 p.46
FS210 p.47
Chemical toilet cabinet p.48
Privacy compartment chemical toilet p.49+G1000
Garming G1000 NXi p.50
Stick shaker p.51
MD302 p.52
Clothes hanger p.53
Pilot door handle p.54
MC10 SmartMike® p.55
Weather radar wiring improvement p.56
MODEL SELECTIONSPECIAL
+G1000 OFFER
LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020PERFORMANCE & STYLE
+G1000 SAFETY & STYLE
Low landing gear door retrofit
Enjoy the latest enhancement for your TBM
Low LDG Door
Improves aerodynamics of the aircraft
Reduce drag
Better performances and Fuel saving
The Main Gear Low Door is made of
honeycomb composite panel with
glass/carbon-cloth
930 A
Validity 900 B Reference to order
SN 1 to 684 OPT70K15300
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-228-52 R1 15 hours labor
Applicable Not applicable Already appliedPERFORMANCE & STYLE
+G1000 SAFETY & STYLE
Taxi & Landing lights retrofit
Enjoy the latest enhancement for your TBM
Whelen LED
Taxi/Landing lights retrofit
Long life
High efficiency
Better resistance
Higher color temperature white
Better visibility during taxi
We provided you the only solution with
a switch indicator light inside your
cabin
930 A
Reference to order
Validity 900 B
OPT70K23000
SN 1 to 684 OPT70K23001
(Check SB for validity)
850 C
G1000
850
Legacy
SB Reference Labor hours estimated
Applicable Not applicable Already applied
SB70-230-33 4 hours laborPERFORMANCE & STYLE
+G1000 SAFETY & STYLE
Exhaust stacks retrofit
Enjoy the latest enhancement for your TBM
Exhaust stacks
Replacement of the RH and LH exhaust
stacks by “Generation 2” exhausts
which will significantly reduce the soot
built-up without any performance
alteration.
It is strongly recommended to include
the Oil drainage kit in addition to this
modification.
That will avoid the presence of oily dirt
on the lower fuselage skin
940
930 A
Reference to order
Validity
910 B T700F781000500700 (R.H)
SN 346 to 570 equipped T700F781000500600 (L.H)
with MOD70-0202-78
or with OPT70K111-78 900 C
850 850
G1000 Legacy Labor hours estimated
6 hours labor
Applicable Not applicable Already appliedSAFETY ENHANCEMENTS
+G1000 SAFETY ENHANCED
AOA/USP Kit Retrofit
Enjoy flying your TBM with the New E-COPILOT reducing pilot workload
AOA/USP Kit
What the AOA/USP kit bring ?
Enhanced safety with Under-Speed
Protection
Modernized avionics with Angle of
Attack (AOA) indication via a fully
integrated system (PA ON)
Optimize and flight management and
the landing approach
Go-around mode with autopilot
engaged
930 A
Validity 900 B Reference to order
SN 434 to 1105 Please refer to SB
850 * C
G1000
850
SB Reference Legacy Labor hours estimated
SB-70-235-34 35 hours labor
Applicable Not applicable Already applied
* if GSM 86 P/N 011-01904-03 and GSA P/N 011-00878-20 installedSAFETY ENHANCEMENTS
+G1000 SAFETY ENHANCED
AOA/USP/ESP Kit Retrofit
Enjoy flying your TBM with the New E-COPILOT reducing pilot workload
AOA/USP/ESP Kit
Enhanced safety with Under-Speed
Protection
Modernized avionics with Angle of Attack
(AOA) indication via a fully integrated system
(PA ON)
Optimize and flight management and the
landing approach
Go-around mode with autopilot
engaged
Prevent loss of control
Improve safety by deterring aircraft
operation outside the desired flight envelope.
Electronic Stability & Protection is active only
when the autopilot is disengaged.
930 A
Validity 900 B Reference to order
SN 434 to 1105 Please refer to SB
850 * C
G1000
850
SB Reference Legacy Labor hours estimated
SB-70-235-34 35 hours labor
Applicable Not applicable Already applied
* if GSM 86 P/N 011-01904-03 and GSA P/N 011-00878-20 installedSAFETY ENHANCEMENTS
+G1000 SAFETY & STYLE
Electronic Standby Indicator Model ESI-2000
Enjoy the latest enhancement for your TBM
ESI 2000
It replaces the three traditional
electro-mechanical standby instruments
and combines the information into a
compact and easy to read 4" x 3" display.
It will continue to provide the pilot
attitude, altitude and airspeed
information from its own internal battery
should aircraft primary electrical power
be lost.
930 A
Validity 900 B Reference to order
SN 434 to 633, 636 to 644 OPT70K14334
850 C
G1000
850
SB Reference Legacy Labor hours estimated
SB70-208-34 25 hours labor
Applicable Not applicable Already appliedCOCKPIT MANAGEMENT
+G1000
COCKPIT MANAGEMENT
Garmin Flight Stream 210
Enjoy the latest enhancement available for your TBM
FS 210 kit
Transfer of your flight plan from your
Ipad to G1000
View of your flight info on your Ipad
during flight
ADS-B traffic and weather data output
to mobile device (US only)
Emergency AHRS included
Compatible with:
930 A
Garmin Pilot ForeFlight Mobile
900 B
Validity Reference to order
SN 434 to 1105 OPT70K15700
850 C
G1000
850
Legacy
v15.11 required 12 to 14 labors hours estimated
Applicable Not applicable Already applied
Available by the end of 2016ELEGANCE & CONVENIENCE
+G1000 SAFETY & STYLE
Chemical toilet cabinet option
Enjoy the latest enhancement for your TBM
Chemical toilet cabinet
This option consists of swapping-out
the TBM’s intermediate left seat with
the toilet cabinet.
This system is used in the marine
industry and is optimized for easy
installation and servicing.
On ground, the toilet cabinet can be
installed to replace the left middle seat.
In flight, the passengers will have a
curtain to ensure privacy.
The kit includes the toilet, curtain and
the POH option supplement.
930 A
Validity
TBM 700B equipped with Reference to order
900 B
MOD70-035-001 (Gazeous T700B252005100000
Oxygen), TBM700C, TBM 850. T700G252002700000
N/S 346 to 433 850
G1000 C
850
SB Reference Legacy Labor hours estimated
SB70-184-25 1 hours labor
Applicable Not applicable Already applied
SB70-175-25ELEGANCE & CONVENIENCE
+G1000 SAFETY & STYLE
Privacy compartment chemical toilet
electric self-deployment door
Enjoy the latest enhancement for your TBM
Privacy compartment kit
Complete chemical lavatory compart-
ment including a unique foldable and
rigid privacy wall.
Installed by using only 4 screws and a
«plug and play» electrical connection
type.
The kit also contains:
- a custom made carpet
- leather covered surface will match
your interiors
- all the technical documentation
930
Validity 910 A
Reference to order
All Elite TBM Models Depends on the leather
From SN 609 * 900 B and the color : See SL
850 * C
G1000
Reference 850 Labor hours estimated
Legacy
SL 70-056-25 1 hour labor
Applicable Not applicable Already appliedCOCKPIT MANAGEMENT
+G1000
COCKPIT MANAGEMENT
Garmin G1000 NXi retrofit
Enjoy the latest enhancement for your TBM
G1000 NXi retrofit kit
Latest generation of the Primary Flight Display:
2 GDU 1050A
Latest generation of the Multi-Function Display:
GDU 1550
GCU 475: controller with analog joystick
Flight Stream 510: enabling Database Concierge
Latest software version: v20.51
Pilot’s Operating Handbook supplement
(printed copy)
Pilot’s guide (printed copy)
Optional equipment: GTX 345
Price quote on request from your dealer for the
ADS-B “Out” and “In” transponder solution
930
910 A
Validity
v15.11 installed 900 B
850 C
G1000
850
Reference Legacy Labor hours estimated
SB 70-247-34 Applicable Not applicable Already applied 20 hours laborSAFETY ENHANCEMENTS
+G1000 SAFETY ENHANCED
Stick shaker retrofit
Enjoy the latest enhancement for your TBM
Stick shaker kit
Component of the aircraft's stall
protection system.
Mechanical actuator compatible with
AOA sensor and stall warning sensor.
Warns the pilot in case of imminent stall
by actuating vibrations in the pilot
control yoke, synchronized with audio
alerts.
930
910 A
Validity Order reference
SN 434 to 1123 900 B OPT70K15900
850 * C
G1000
850
Reference Legacy Labor hours estimated
SB 70-238-27 Applicable Not applicable Already applied 8 hours laborSAFETY ENHANCEMENTS
+G1000
COCKPIT MANAGEMENT
MD302 Retrofit
Benefit from the latest enhancement provided for your TBM
MD302 kit
Modern digital standby attitude module
to replace traditional
electro-mechanical instruments.
Smooth, high-definition graphics
Unique two-screen display with wide
viewing angles and a user-friendly
menu structure
Two-year or 2,000-hour warranty
930
910 A
Validity Reference to order
SN 434 to 633, 636 to 644 900 B OPT70K16100
Without SB70-208-34 applied
*
850 C
G1000
SB Reference 850 Labor hours estimated
Legacy
SB 70-246-34 25 labor hours recommended
Applicable Not applicable Already applied
or more details, please contact your local representativeELEGANCE & CONVENIENCE
+G1000 SAFETY ENHANCED
Clothes hanger installation
Enjoy the latest enhancement for your TBM
Clothes hanger kit
This option involves the installation of
two centerline hooks fitted to the
luggage compartment’s ceiling area,
located behind the rear seats.
The installation is more modern and
enables coats and other items of
apparel to be neatly arranged,
keeping them clean and straight.
940
930 A
Validity Order reference
910 B
SN 434 to 1169 OPT70K26700
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB 70-267-25 Applicable Not applicable Already applied 20 hours laborELEGANCE & CONVENIENCE
+G1000
CONVENIENCE & STYLE
Pilot door handle retrofit
Enjoy the latest enhancement for your TBM
Pilot door pushbutton and
handle replacement
Is your TBM aircraft giving you
“the cold shoulder?”
A new pilot door handle and pushbutton
built with carbon composite materials
are now available for retrofit on TBM
aircraft.
It does not radiate the same sensation
of cold as a metallic door handle.
The result: increased comfort during
flight, and reduced heat loss.
940
Validity 930 A
Reference to order
Up to SN 1269
equipped with pilot door 910 B Parts as per SB
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB70-270-52 Applicable Not applicable Already applied 2 hoursSAFETY ENHANCEMENTS
+G1000 SAFETY ENHANCED
MC10 SmartMike® retrofit
Benefit from the latest enhancement for your TBM
A new mask with SmartMike®
We’re all wearing masks to go outside
these days. For your TBM, it’s time for
the latest oxygen mask upgrade!
Advantages of the MC10 with SmartMike®
Improved communications clarity with
air traffic control (no more “Darth Vader”
breathing sounds)
Enhanced communications efficiency,
including noise reduction function
Better comfort and lower fatigue
Less anxiety during situations of stress
940
Validity 930 A
S/N 434 to S/N1215 equipped
with MC10 P/N: 10-02-121 910 B
900 C
850 850
G1000 Legacy
Reference Order reference number
SL70-060-35 Applicable Not applicable Already applied MC10-02-123 - Qty 2SAFETY ENHANCEMENTS
+G1000 SAFETY ENHANCED
Weather radar wiring improvement
Enjoy the latest enhancement for your TBM
BEFORE GWX 68 rewiring
GWX68 GDL69 MFD This parallel wiring modification
replaces the series connection between
the GWX 68 weather radar, the GDL 69A
data link and the cockpit’s
multi-function display (MFD).
It ensures that GWX 68 weather radar
information is supplied to the MFD
even if there is a technical issue with
AFTER the GDL 69A data link.
GWX68
MFD
The modification involves a limited
GDL69 number of consumable parts in
addition to the labor hours.
940
930 A
Reference
910 B
SB70-276-34
Validity
900 C
SN 434 to 607
850 850
depending modifications G1000 Legacy
Labor hours estimated
as specified per
11 hours during an inspection
SB70-276-34 Applicable Not applicable Already applied
13 hours outside of an inspection
For more details, please contact your local representativeList of special offers:
Landing gear actuator replacement p.59
List of available retrofits:
AOA/USP p.60
AOA/ESP/USP p.61
FS210 p.62
Privacy compartment chemical toilet p.63
Garmin G1000 NXI p.64
Stick shaker p.65
Clothes hanger p.66
Pilot door handle p.67MC10 SmartMike® p.68 MODEL SELECTION
SPECIAL
OFFER
LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020SAFETY ENHANCEMENTS
SAFETY ENHANCED
AOA/USP Kit Retrofit
Enjoy flying your TBM with the New E-COPILOT reducing pilot workload
AOA/USP Kit
What the AOA/USP kit bring ?
Enhanced safety with Under-Speed
Protection
Modernized avionics with Angle of
Attack (AOA) indication via a fully
integrated system (PA ON)
Optimize and flight management and
the landing approach
Go-around mode with autopilot
engaged
930 A
Validity 900 B Reference to order
SN 434 to 1105 Please refer to SB
850 * C
G1000
850
SB Reference Legacy Labor hours estimated
SB-70-235-34 35 hours labor
Applicable Not applicable Already applied
* if GSM 86 P/N 011-01904-03 and GSA P/N 011-00878-20 installedSAFETY ENHANCEMENTS
SAFETY ENHANCED
AOA/USP/ESP Kit Retrofit
Enjoy flying your TBM with the New E-COPILOT reducing pilot workload
AOA/USP/ESP Kit
Enhanced safety with Under-Speed
Protection
Modernized avionics with Angle of Attack
(AOA) indication via a fully integrated system
(PA ON)
Optimize and flight management and the
landing approach
Go-around mode with autopilot
engaged
Prevent loss of control
Improve safety by deterring aircraft
operation outside the desired flight envelope.
Electronic Stability & Protection is active only
when the autopilot is disengaged.
930 A
Validity 900 B Reference to order
SN 434 to 1105 Please refer to SB
850 * C
G1000
850
SB Reference Legacy Labor hours estimated
SB-70-235-34 35 hours labor
Applicable Not applicable Already applied
* if GSM 86 P/N 011-01904-03 and GSA P/N 011-00878-20 installedCOCKPIT MANAGEMENT
COCKPIT MANAGEMENT
Garmin Flight Stream 210
Enjoy the latest enhancement available for your TBM
FS 210 kit
Transfer of your flight plan from your
Ipad to G1000
View of your flight info on your Ipad
during flight
ADS-B traffic and weather data output
to mobile device (US only)
Emergency AHRS included
Compatible with:
930 A
Garmin Pilot ForeFlight Mobile
900 B
Validity Reference to order
SN 434 to 1105 OPT70K15700
850 C
G1000
850
Legacy
v15.11 required 12 to 14 labors hours estimated
Applicable Not applicable Already applied
Available by the end of 2016ELEGANCE & CONVENIENCE
SAFETY & STYLE
Privacy compartment chemical toilet
electric self-deployment door
Enjoy the latest enhancement for your TBM
Privacy compartment kit
Complete chemical lavatory compart-
ment including a unique foldable and
rigid privacy wall.
Installed by using only 4 screws and a
«plug and play» electrical connection
type.
The kit also contains:
- a custom made carpet
- leather covered surface will match
your interiors
- all the technical documentation
930
Validity 910 A
Reference to order
All Elite TBM Models Depends on the leather
From SN 609 * 900 B and the color : See SL
850 * C
G1000
Reference 850 Labor hours estimated
Legacy
SL 70-056-25 1 hour labor
Applicable Not applicable Already appliedCOCKPIT MANAGEMENT
COCKPIT MANAGEMENT
Garmin G1000 NXi retrofit
Enjoy the latest enhancement for your TBM
G1000 NXi retrofit kit
Latest generation of the Primary Flight Display:
2 GDU 1050A
Latest generation of the Multi-Function Display:
GDU 1550
GCU 475: controller with analog joystick
Flight Stream 510: enabling Database Concierge
Latest software version: v20.51
Pilot’s Operating Handbook supplement
(printed copy)
Pilot’s guide (printed copy)
Optional equipment: GTX 345
Price quote on request from your dealer for the
ADS-B “Out” and “In” transponder solution
930
910 A
Validity
v15.11 installed 900 B
850 C
G1000
850
Reference Legacy Labor hours estimated
SB 70-247-34 Applicable Not applicable Already applied 20 hours laborSAFETY ENHANCEMENTS
SAFETY ENHANCED
Stick shaker retrofit
Enjoy the latest enhancement for your TBM
Stick shaker kit
Component of the aircraft's stall
protection system.
Mechanical actuator compatible with
AOA sensor and stall warning sensor.
Warns the pilot in case of imminent stall
by actuating vibrations in the pilot
control yoke, synchronized with audio
alerts.
930
910 A
Validity Order reference
SN 434 to 1123 900 B OPT70K15900
850 * C
G1000
850
Reference Legacy Labor hours estimated
SB 70-238-27 Applicable Not applicable Already applied 8 hours laborELEGANCE & CONVENIENCE
SAFETY ENHANCED
Clothes hanger installation
Enjoy the latest enhancement for your TBM
Clothes hanger kit
This option involves the installation of
two centerline hooks fitted to the
luggage compartment’s ceiling area,
located behind the rear seats.
The installation is more modern and
enables coats and other items of
apparel to be neatly arranged,
keeping them clean and straight.
940
930 A
Validity Order reference
910 B
SN 434 to 1169 OPT70K26700
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB 70-267-25 Applicable Not applicable Already applied 20 hours laborELEGANCE & CONVENIENCE
CONVENIENCE & STYLE
Pilot door handle retrofit
Enjoy the latest enhancement for your TBM
Pilot door pushbutton and
handle replacement
Is your TBM aircraft giving you
“the cold shoulder?”
A new pilot door handle and pushbutton
built with carbon composite materials
are now available for retrofit on TBM
aircraft.
It does not radiate the same sensation
of cold as a metallic door handle.
The result: increased comfort during
flight, and reduced heat loss.
940
Validity 930 A
Reference to order
Up to SN 1269
equipped with pilot door 910 B Parts as per SB
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB70-270-52 Applicable Not applicable Already applied 2 hoursSAFETY ENHANCEMENTS
SAFETY ENHANCED
MC10 SmartMike® retrofit
Benefit from the latest enhancement for your TBM
A new mask with SmartMike®
We’re all wearing masks to go outside
these days. For your TBM, it’s time for
the latest oxygen mask upgrade!
Advantages of the MC10 with SmartMike®
Improved communications clarity with
air traffic control (no more “Darth Vader”
breathing sounds)
Enhanced communications efficiency,
including noise reduction function
Better comfort and lower fatigue
Less anxiety during situations of stress
940
Validity 930 A
S/N 434 to S/N1215 equipped
with MC10 P/N: 10-02-121 910 B
900 C
850 850
G1000 Legacy
Reference Order reference number
SL70-060-35 Applicable Not applicable Already applied MC10-02-123 - Qty 2List of special offers:
Landing gear actuator replacement p.70
List of available retrofits:
Privacy compartment chemical toilet p.71
Clothes hanger p.72
Pilot door handle p.73
MC10 SmartMike® p.74
Seatbelt-integrated airbag p.75
MODEL SELECTIONSPECIAL
OFFER
LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020ELEGANCE & CONVENIENCE
SAFETY & STYLE
Privacy compartment chemical toilet
electric self-deployment door
Enjoy the latest enhancement for your TBM
Privacy compartment kit
Complete chemical lavatory compart-
ment including a unique foldable and
rigid privacy wall.
Installed by using only 4 screws and a
«plug and play» electrical connection
type.
The kit also contains:
- a custom made carpet
- leather covered surface will match
your interiors
- all the technical documentation
930
Validity 910 A
Reference to order
All Elite TBM Models Depends on the leather
From SN 609 * 900 B and the color : See SL
850 * C
G1000
Reference 850 Labor hours estimated
Legacy
SL 70-056-25 1 hour labor
Applicable Not applicable Already appliedELEGANCE & CONVENIENCE
SAFETY ENHANCED
Clothes hanger installation
Enjoy the latest enhancement for your TBM
Clothes hanger kit
This option involves the installation of
two centerline hooks fitted to the
luggage compartment’s ceiling area,
located behind the rear seats.
The installation is more modern and
enables coats and other items of
apparel to be neatly arranged,
keeping them clean and straight.
940
930 A
Validity Order reference
910 B
SN 434 to 1169 OPT70K26700
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB 70-267-25 Applicable Not applicable Already applied 20 hours laborELEGANCE & CONVENIENCE
CONVENIENCE & STYLE
Pilot door handle retrofit
Enjoy the latest enhancement for your TBM
Pilot door pushbutton and
handle replacement
Is your TBM aircraft giving you
“the cold shoulder?”
A new pilot door handle and pushbutton
built with carbon composite materials
are now available for retrofit on TBM
aircraft.
It does not radiate the same sensation
of cold as a metallic door handle.
The result: increased comfort during
flight, and reduced heat loss.
940
Validity 930 A
Reference to order
Up to SN 1269
equipped with pilot door 910 B Parts as per SB
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB70-270-52 Applicable Not applicable Already applied 2 hoursSAFETY ENHANCEMENTS
SAFETY ENHANCED
MC10 SmartMike® retrofit
Benefit from the latest enhancement for your TBM
A new mask with SmartMike®
We’re all wearing masks to go outside
these days. For your TBM, it’s time for
the latest oxygen mask upgrade!
Advantages of the MC10 with SmartMike®
Improved communications clarity with
air traffic control (no more “Darth Vader”
breathing sounds)
Enhanced communications efficiency,
including noise reduction function
Better comfort and lower fatigue
Less anxiety during situations of stress
940
Validity 930 A
S/N 434 to S/N1215 equipped
with MC10 P/N: 10-02-121 910 B
900 C
850 850
G1000 Legacy
Reference Order reference number
SL70-060-35 Applicable Not applicable Already applied MC10-02-123 - Qty 2SAFETY ENHANCEMENTS
COMFORT ENHANCED
Seatbelt-integrated airbag installation
Benefit from the latest enhancement available for your TBM
Seatbelt-integrated airbags
When compared to the standard
harness, the airbag system
offers improved protection for
the pilot and the front right-seat
passenger in case of an impact.
940
930 A
910 B
Validity Reference to order
SN 1185 to 1316 900 C Kit OPT70K27700
not equipped with
850 850
MOD70-0388-25 G1000 Legacy
labor hours
Reference
Applicable Not applicable Already applied 12 hours during an inspection
SB70-277-25 14 hours outside an inspection
For more details, please contact your local representativeList of available retrofits:
Landing gear actuator replacement p.77
List of available retrofits:
Privacy compartment chemical toilet p.78
Stick shaker p.79
Clothes hanger p.80
Pilot door handle p.81
MC10 SmartMike® p.82
Seatbelt-integrated airbag p.83
MODEL SELECTIONSPECIAL
OFFER
LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020ELEGANCE & CONVENIENCE
SAFETY & STYLE
Privacy compartment chemical toilet
electric self-deployment door
Enjoy the latest enhancement for your TBM
Privacy compartment kit
Complete chemical lavatory compart-
ment including a unique foldable and
rigid privacy wall.
Installed by using only 4 screws and a
«plug and play» electrical connection
type.
The kit also contains:
- a custom made carpet
- leather covered surface will match
your interiors
- all the technical documentation
930
Validity 910 A
Reference to order
All Elite TBM Models Depends on the leather
From SN 609 * 900 B and the color : See SL
850 * C
G1000
Reference 850 Labor hours estimated
Legacy
SL 70-056-25 1 hour labor
Applicable Not applicable Already appliedSAFETY ENHANCEMENTS
SAFETY ENHANCED
Stick shaker retrofit
Enjoy the latest enhancement for your TBM
Stick shaker kit
Component of the aircraft's stall
protection system.
Mechanical actuator compatible with
AOA sensor and stall warning sensor.
Warns the pilot in case of imminent stall
by actuating vibrations in the pilot
control yoke, synchronized with audio
alerts.
930
910 A
Validity Order reference
SN 434 to 1123 900 B OPT70K15900
850 * C
G1000
850
Reference Legacy Labor hours estimated
SB 70-238-27 Applicable Not applicable Already applied 8 hours laborELEGANCE & CONVENIENCE
SAFETY ENHANCED
Clothes hanger installation
Enjoy the latest enhancement for your TBM
Clothes hanger kit
This option involves the installation of
two centerline hooks fitted to the
luggage compartment’s ceiling area,
located behind the rear seats.
The installation is more modern and
enables coats and other items of
apparel to be neatly arranged,
keeping them clean and straight.
940
930 A
Validity Order reference
910 B
SN 434 to 1169 OPT70K26700
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB 70-267-25 Applicable Not applicable Already applied 20 hours laborELEGANCE & CONVENIENCE
CONVENIENCE & STYLE
Pilot door handle retrofit
Enjoy the latest enhancement for your TBM
Pilot door pushbutton and
handle replacement
Is your TBM aircraft giving you
“the cold shoulder?”
A new pilot door handle and pushbutton
built with carbon composite materials
are now available for retrofit on TBM
aircraft.
It does not radiate the same sensation
of cold as a metallic door handle.
The result: increased comfort during
flight, and reduced heat loss.
940
Validity 930 A
Reference to order
Up to SN 1269
equipped with pilot door 910 B Parts as per SB
900 C
850 850
G1000 Legacy
Reference Labor hours estimated
SB70-270-52 Applicable Not applicable Already applied 2 hoursSAFETY ENHANCEMENTS
SAFETY ENHANCED
MC10 SmartMike® retrofit
Benefit from the latest enhancement for your TBM
A new mask with SmartMike®
We’re all wearing masks to go outside
these days. For your TBM, it’s time for
the latest oxygen mask upgrade!
Advantages of the MC10 with SmartMike®
Improved communications clarity with
air traffic control (no more “Darth Vader”
breathing sounds)
Enhanced communications efficiency,
including noise reduction function
Better comfort and lower fatigue
Less anxiety during situations of stress
940
Validity 930 A
S/N 434 to S/N1215 equipped
with MC10 P/N: 10-02-121 910 B
900 C
850 850
G1000 Legacy
Reference Order reference number
SL70-060-35 Applicable Not applicable Already applied MC10-02-123 - Qty 2SAFETY ENHANCEMENTS
COMFORT ENHANCED
Seatbelt-integrated airbag installation
Benefit from the latest enhancement available for your TBM
Seatbelt-integrated airbags
When compared to the standard
harness, the airbag system
offers improved protection for
the pilot and the front right-seat
passenger in case of an impact.
940
930 A
910 B
Validity Reference to order
SN 1185 to 1316 900 C Kit OPT70K27700
not equipped with
850 850
MOD70-0388-25 G1000 Legacy
labor hours
Reference
Applicable Not applicable Already applied 12 hours during an inspection
SB70-277-25 14 hours outside an inspection
For more details, please contact your local representativeList of available retrofits:
Landing gear actuator replacement p.85
List of available retrofits:
Seatbelt-integrated airbag p.86
MODEL SELECTIONSPECIAL
OFFER
LANDING GEAR
ACTUATOR
The overhaul of your actuator is due ?
For a comparable price, replace it with a brand new unit with an extended 2 year warranty !
P/N to order 7897340001
New offer Overhaul (7 to 10 y.)
$11,200 each $10,775 each
2 year warranty + over & above
$1,000 to $4,000
Subject to 4 months pre-order 940
930 A
3 months warranty
Core return
910 B
900 C
850 850
Benefit from all latest improvement in G1000 Legacy
the product such as:
• More durable locking cage material
• Pressure activated limit switches
• Improved water tightness
• Re-inforced forged bodies
Avoid burden of additional costs and upgrade
• 30 actuators in stock at launch
• Availability will highly depend on forecast
Purchase includes: Available for all the TBM with
actuator referenced:
• EASA Dual release • VSTS081480 / T700A323005000000
• 2 years warranty • VSTS082315 / T700A323005300000
• 10 years to the first overhaul • VSTS083550 / 7897340002
• VSTS083560 / 7897340001
Offer valid until end of December 2020SAFETY ENHANCEMENTS
COMFORT ENHANCED
Seatbelt-integrated airbag installation
Benefit from the latest enhancement available for your TBM
Seatbelt-integrated airbags
When compared to the standard
harness, the airbag system
offers improved protection for
the pilot and the front right-seat
passenger in case of an impact.
940
930 A
910 B
Validity Reference to order
SN 1185 to 1316 900 C Kit OPT70K27700
not equipped with
850 850
MOD70-0388-25 G1000 Legacy
labor hours
Reference
Applicable Not applicable Already applied 12 hours during an inspection
SB70-277-25 14 hours outside an inspection
For more details, please contact your local representativeRETROFITS
PRICES
MODEL SELECTIONReference TBM MSRP
Retrofit Details Validity
to order Type (USD)
OPT70K15300 $ 8 883
A, B, C, 850,
Low LDG Door SB70-228-52 SN 1 to 684
T700H528004400001 850(G1000)
T700H528004400101
$ 3 466
OPT70K23000 A, B, C, 850,
LED Taxi LDG Lights SB70-230-33 OPT70K23001 SN 1 to 684 $ 2792
850(G1000)
OPT70K14600 Pre-MOD70-089-25 :
$ 4 544
SN 96, 103 to 243
Aerox Chemical Mask SB70-212-35 A, B
Pre-MOD70-089-25 :
OPT70K14601 $ 4 045
SN 1 to 95, 97 to 102
850(G1000),
AOA / USP SafeFlight - SB OPT70K15800 SN 434 to 1105 $ 27 900
900
OPT70K15800 850(G1000),
AOA/ESP/USP SafeFlight - SB 6033997272 SN 434 to 1105 $ 44 837
900
Barometric valve SB70-028-35 R01
TBM must be equipped
installation 31.000 with the gaseous
OPT70K08235 A, B SN 24, 36, 40 to 239 $ 21 040
feet oxygen system
RH Exhaust stacks SN 346 to 570
T700F781000500700
retrofit equipped with
850,
Exhaust stacks MOD70-0202-78 $ 14 358
LH Exhaust stacks 850(G1000)
T700F781000500600 or with
retrofit
OPT70K111-78
all TBM 850
with G1000
ESI 2000 SB70-208-34 OPT70K14334 850(G1000) $ 24 812
from SN 434 to 633,
636 to 644
TBM 700B, TBM
Cabin heater
OPT70K13525 B, C, 850 700C, TBM 850 $ 1 135
deflector
without GAS & G999
Engine draining in SN 1 to 204,
SB70-097-71 OPT70K08071 A, B $ 6 878
exhaust stub 206 to 215
SN 1 to 345 on which
Modification of the oil
SB70-141-71 T700A717003100100 A, B, C OPT70K080-71 $ 379
drain breather hose
has been applied
850(G1000),
FS210 SB70-234-46 OPT70K15700 SN 434 to 1105 $ 2 089
900
TBM 700B equipped
with MOD70-035-
SB70-184-25 T700B252005100000 B, C2, 850 001, TBM700C, TBM $ 13 872
Chemical toilet
850.
cabinet
SN 346 to 433
850(G1000), From TBM 850
SB70-175-25 T700G252002700000 $ 11 228
900 SN 434
Privacy 850(G1000),
Depends on the leather
compartment SL70-056-25 and the color : see SL 900, 910, From TBM SN 609 $ 49 900
chemical toilet 930
850(G1000)
Garmin G1000 NXi SB70-247-34 To be defined from SN 609, v15.11 installed $ 59 995
900
850(G1000),
Stick shaker SB70-238-27 OPTK70K15900 SN 434 to 1123 $ 6 900
900, 930You can also read
