CATALOGUE - Architectural Sliding Door Systems



CATALOGUE - Architectural Sliding Door Systems
Sliding & Folding Door Systems




                                    External Door Systems
                                        (Corrosion Resistant)




                                       Glass Door Systems




                            Wardrobe Sliding Door Systems




P R O D UC T
CATALOGUE
Architectural Sliding Door Systems




                                         Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems
Product Contents
Coburn architectural sliding and folding door hardware systems



    Sliding & Folding Door Systems          External Door Systems
                                            (Corrosion Resistant)




 Sliding & Folding                       External
 Door Systems                            Door Systems


 6-23                                    24-35
 8-9               • Hideaway             26-29                • Dreamfold
 10-11             • Inserdor             30-31                • Eternal 130
 12-13             • Straightaway 130     32-33                • Eternal 180
 14-15             • Straightaway 180     34-35                • Eternal 250
 16-17             • Straightaway 250
 18-19             • Straightaway 500
 20-21             • Foldaside 30
 22-23             • Foldaside 50




2      Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems
Product Contents



  Glass Door Systems                                Wardrobe Sliding Door Systems




 Glass Sliding & Folding                          Wardrobe Sliding
 Door Systems                                     Door Systems


36-55                                             56-63
 38-39           • Straightaway G80               58-59           • Flushslide
 40-41           • Straightaway G130              60-61           • Eclat 45
 42-43           • Flexiglas 50                   62-63           • Eclat 80
 44-45           • Flexiglas 120
 46-47           • Flexiglas Synchro
 48-49           • Crystalline Telescopic
 50-51           • Crystalline Folding
 52-53           • Silencio Flush Double Glazed
                   Moveable Wall
 54-55           • Silencio Single Glazed
                   Moveable Wall



                                                                                    3   Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems
Door System Specifier




  Product                                                                   Max Door              Max Door            Door/Glass              Soft              Track Dims
                                                                           Weight (kgs)            Height             Thickness             Closing               (W x H)

  SLIDING & FOLDING DOOR SYSTEMS
  Hideaway                                                                         90              2724mm              35-44mm              Optional         89mm x 60mm
  Inserdor                                                                        120              2100mm              30-44mm              Optional         53mm x 30mm
  Straightaway 130                                                                130              3000mm              20-50mm              Optional         38mm x 40mm
  Straightaway 180                                                                180              3500mm               35-55mm               N/A            47mm x 48mm
  Straightaway 250                                                                250              4000mm               35-55mm               N/A            51mm x 55mm
  Straightaway 500                                                                500              6000mm              35-100mm               N/A            72mm x 72mm
  Foldaside 30                                                                     30              2500mm              20-40mm                N/A            25mm x 27mm
  Foldaside 50                                                                     50              3000mm              25-50mm                N/A            47mm x 48mm
  EXTERNAL DOOR SYSTEMS
  Dreamfold                                                                        85              3300mm              35-70mm                N/A             51mm x 55mm
  Eternal 130                                                                     130              3000mm              20-50mm              Optional          38mm x 40mm
  Eternal 180                                                                     180              3500mm              35-55mm                N/A             47mm x 48mm
  Eternal 250                                                                     250              4000mm              35-55mm                N/A             51mm x 55mm
  GLASS SLIDING & FOLDING DOOR SYSTEMS
  Straightaway G80                                                                80               2400mm               8/10mm              Optional          38mm x 40mm
  Straightaway G130                                                              130               3000mm               10/12mm             Optional          38mm x 40mm
  Flexiglas 50                                                                    50               2400mm               8/10mm              Optional          52mm x 58mm
  Flexiglas 120                                                                  120               2700mm               8/10mm              Optional          52mm x 58mm
  Flexiglas Synchro                                                               80               2700mm               8/10mm              Optional          52mm x 58mm
  Crystalline Telescopic                                                         100               2600mm               8/10mm                N/A             92mm x 75mm
  Crystalline Folding                                                             70               2600mm               8/10mm                N/A             45mm x 42mm
  Silencio Flush Double Glazed Moveable Wall                                    55/M2              2900mm                100mm                N/A            120mm x 100mm
  Silencio Single Glazed Moveable Wall                                          25/M2              4000mm               10/12mm               N/A            120mm x 100mm
  WARDROBE SLIDING DOOR SYSTEMS
  Flushslide                                                                       85              3000mm              20-45mm             Standard                   N/A
  Eclat 45                                                                         45              2100mm              18-22mm             Standard                   N/A
  Eclat 80                                                                         80              2400mm              20-50mm             Standard                   N/A


This catalogue is only intended for use by authorized distributors and customers of Hillaldam Coburn Ltd. All contents of this catalogue are the property of Hillaldam Coburn Ltd.
All technical data, drawings, illustrations and dimensions are intended for informational purposes only. Hillaldam Coburn Ltd cannot accept any liability for printing errors or
mistakes and reserve the right to make alterations, changes and design amendments without notification. Re-printing of this catalogue or extracts thereof are strictly forbidden
unless authorized in writing by Hillaldam Coburn Ltd.




4          Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems
Connect with Coburn Sliding Door Systems
Specialists in the the design and manufacture of architectural sliding and
folding door hardware systems

                                           With a heritage in manufacturing and development dating back to 1911 Coburn has grown to
  Coburn Capabilities                      become a major supplier of sliding door systems to the construction and building industries
• Expert technical advice
                                           worldwide. Through advanced technology, material and styling the Coburn hallmark still
• High quality products
• Versatile product range                  promises the ultimate in quality, reliability and service.
• In-house design team                     We understand the importance of accuracy and timing in building design and construction.
• First-class service deliveries
                                           The Coburn brand is your assurance of our total dedication in fulfilling your project
• Customer focused company
                                           needs - from beginning to end.




Technical Advice                           Design Solutions                        Precision Manufacturing              Versatile Product Range
Our experienced technical sales support    All our products are designed and       Coburn products are precision        Our versatile product range of
staff are available to answer any          manufactured to comply with ISO 9001:   engineered to the highest possible   architectural sliding and folding gear is
technical or product specification query   Quality Management System & ISO         specification using the latest CAD   suitable for any internal or external door
in a professional and efficient manner.    14001: Environment Management           and modelling software.              applications, from 30kgs to 500kgs.
                                           System. Our aim is to convert
                                           conceptual thoughts into reality.



  Markets we work in:
• Commercial
• Retail
• Leisure                                  Working with architects and interior designers to ensure a
• Condominiums                             successful solution to each and every project
• Hospitality
• Private Residential                      As architectural systems’ specialists we have evolved a
• Education                                passion for manufacturing products that combine form and
• Health Care                              function. We understand both the aesthetic aspirations and
                                           functional requirements of an application and will work closely
  Typical Applications:                    with you to realise the full potential of your building projects.
• Balcony Doors
                                           Our proactive approach to service means we will always
• Conference Room Dividers
                                           provide transparent and innovative technical advice to support
• Acoustic Partitions
• Restaurants & Cafes                      our products and your project.
• External Shutters                        Our ranges of sliding door gear systems are designed to give
• Glass Office Dividers                    more creative possibilities and transform your concept into reality.
• Patio Doors
• Cupboards & Wardrobes
• Room Dividers                                    Coburn is a British Company founded in 1911

• Pocket Door Systems
• Showroom Partitions

                                                                                                                             5         Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems
Sliding & Folding Door Systems


                                         This versatile and durable range of sliding and
                                       folding doors are the ideal choice for residential
                                                          and commercial applications.




6       Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems
Sliding & Folding
Door Systems




                7   Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems
Hideaway Sliding & Folding Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 90kg               • Steel-wrapped studs, nailed to      • Unique hanger locking clip allows
                                                 pre-assembled header provide          easy fitting and removal of the
     • Door Thickness: 35-44mm                   maximum rigidity                      door from hanger if required
     • Maximum Door Height: 2724mm             • Keyhole slots in aluminium track    • Flush pull handles and other
     • Track Dimensions: 89mm (w) x 60mm (h)     allow easy removal in unlikely        accessories also available
                                                 event of this being necessary
                                                                                     • Soft closing available
                                               • Floor plate brackets provided to
                                                 allow studs to easy slide over to   • Simultaneous opening
                                                                                       (synchro) optional
                                                 ensure perfect alignment



     8     Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems
Hideaway Pocket Door Kits (Excluding Jamb Kit)

Hideaway                                                            Article No. Description

                                                                    61730      H30, to suit door size 760 x 2032mm


Sliding & Folding Door Systems                                      61736      H36, to suit door size 915 x 2032mm
                                                                    61742      H42, to suit door size 1067 x 2032mm
                                                                    61842      H42A, to suit door size 1067 x 2743mm
Product Overview
                                                                    61848      H48A, to suit door size 1219 x 2743mm
Hideaway is a sliding door framing kit suitable for plasterboard    61854      H54, to suit door size 1371 x 2743mm
walls, created to hide sliding doors within a wall cavity.          61860      H60A, to suit door size 1524 x 2743mm
Hideaway is able to recover the space normally occupied by
                                                                    Article No. Description                            Image
traditional hinged doors and is a simple but perfect solution for
lightweight sliding pocket doors.
                                                                    61600      Hideaway connector
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                    61601      Hideaway cavity widening kit
                                                                               (up to 50mm thick doors)



                                                                    61602      Hideaway cavity widening plates,
                                                                               pair (up to 50mm thick doors)




                                                                    61604      Hideaway hanger, 56kgs




                                                                    61605      Hideaway hanger plate
                                                                               c/w 2 screws




                                                                    61606      Hideaway door stops (5 pcs)




                                                                    61607      Hideaway hanger, 90kgs




                                                                    61611      Hideaway door stop




                                                                    61700      Hideaway component kit




                                                                    61900      Hideaway adaptor kit




                                                                    61910      Hideaway guide




                                                                    95604      Pocket door hold open piston




           Sliding & Folding Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                                9          Integrating Style & Function
CATALOGUE - Architectural Sliding Door Systems

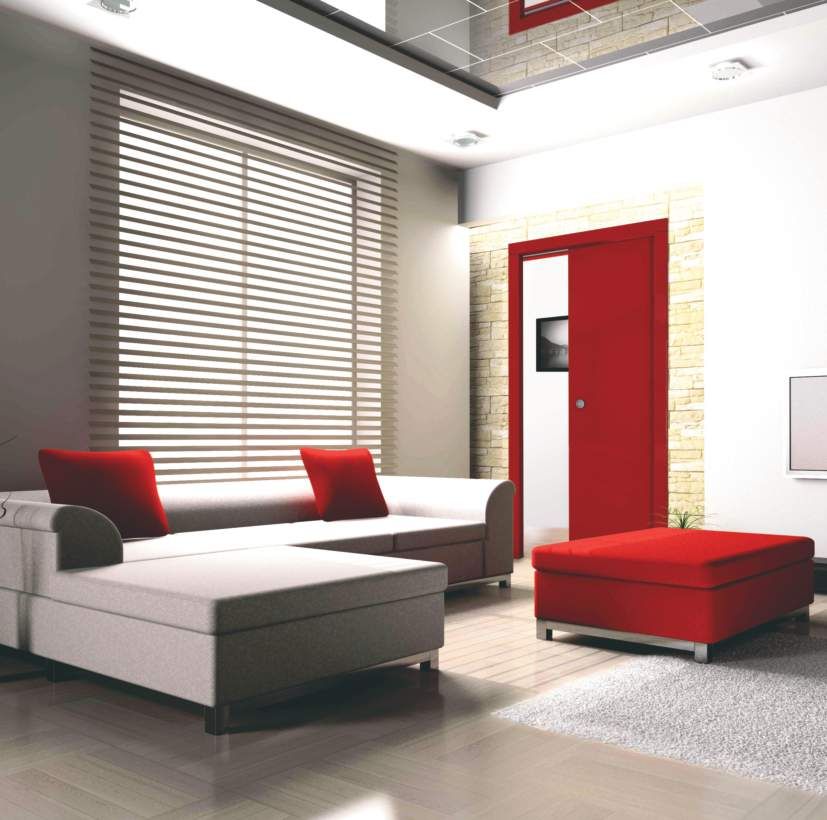

Inserdor Sliding & Folding Door Systems


       Door Specifications                       Hardware Specifications
     • Maximum Door Weight: 120kg              • No floor channels required           • Jamb kits available in MDF, Oak,
                                                                                        Tanganika and White Laminate
     • Door Thickness: 30-44mm                 • Frame’s horizontal and vertical
                                                 profiles manufactured from zinc      • Easy to install, drastically reducing
     • Maximum Door Height: 2100mm               coated galvanized steel                installation time on site
     • Track Dimensions: 53mm (w) x 30mm (h)                                          • Available in many sizes in
                                               • Frame is manufactured from
                                                 galvanized steel panels with           pre-assemble cassette or kit forms
                                                 dovetail corrugation to provide
                                                                                      • Jamb kits available to suit 100mm
                                                 maximum rigidity to ensure perfect     or 125mm finished wall sizes
                                                 bonding with the plaster
                                               • Tested for use on on fire rated
                                                 doors up to FD30 (30 mins)
     10       Integrating Style & Function
Cassettes to suit wall thickness 100mm

Inserdor                                                             Article No. Description/Size

                                                                     62819      Door opening size 610 x 1981mm
                                                                                                                     Cassette Image


Sliding & Folding Door Systems                                       62805      Door opening size 626 x 2040mm
                                                                     62820      Door opening size 686 x 1981mm
                                                                     62806      Door opening size 726 x 2040mm
Product Overview                                                     62821      Door opening size 762 x 1981mm
Inserdor is a high quality and innovative sliding door system        62822      Door opening size 838 x 1981mm
suitable for use on plasterboard walls, where the door is required   62807      Door opening size 826 x 2040mm
                                                                     62823      Door opening size 914 x 1981mm
to silently slide within a cavity wall. The system is available in
                                                                     62808      Door opening size 926 x 2040mm
either cassette or kit forms and is designed to be easily and
                                                                     62809      Door opening size 1026 x 2040mm
quickly fitted to drastically reduce on-site installation time.      62810      Door opening size 1126 x 2040mm
                                                                     62811      Door opening size 1226 x 2040mm
NOTE:
•   All accessories to be ordered separately                         Cassettes to suit wall thickness 125mm
•   For more detailed information please refer to our
                                                                     Article No. Description/Size                    Cassette Image
    Technical Data Sheet available on request

                                                                     62824      Door opening size 610 x 1981mm
                                                                     62812      Door opening size 626 x 2040mm
                                                                     62825      Door opening size 686 x 1981mm
                                                                     62813      Door opening size 726 x 2040mm
                                                                     62826      Door opening size 762 x 1981mm
                                                                     62827      Door opening size 838 x 1981mm
                                                                     62814      Door opening size 826 x 2040mm
                                                                     62828      Door opening size 914 x 1981mm
                                                                     62815      Door opening size 926 x 2040mm
                                                                     62816      Door opening size 1026 x 2040mm
                                                                     62817      Door opening size 1126 x 2040mm
                                                                     62818      Door opening size 1226 x 2040mm


                                                                     Article No. Description                         Image

                                                                     62901      100mm jamb kit, MDF, to suit
                                                                                opening width 600 – 1200mm
                                                                                (Non Fire Rated)



                                                                     62902      100mm jamb kit, Tanganika,
                                                                                to suit opening width
                                                                                600 – 1200mm (Non Fire Rated)


                                                                     62903      125mm jamb kit, Tanganika, to suit
                                                                                opening width 600 – 1200mm
                                                                                (Non Fire Rated)


                                                                     62904      100mm jamb kit, Tanganika, to suit
                                                                                opening width 600 – 1200mm
                                                                                (Fire Rated)

                                                                     Article No. Description                         Image



                                                                     30614      Soft closer, single damper, 130kgs
                                                                                (track mounted)




                                                                     61401      Simultaneous synchro kit




                                                                     95604      Pocket door hold open piston


           Sliding & Folding Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                           11            Integrating Style & Function
Straightaway 130 Sliding & Folding Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 130kg              • Tracks can be ceiling mounted or face fixed
     • Door Thickness: 20-50mm                 • Soft closing mechanism concealed within the
                                                 track is also available
     • Maximum Door Height: 3000mm
     • Track Dimensions: 38mm (w) x 40mm (h)   • Smooth and quiet running
                                               • Synchronized simultaneous opening optional
                                               • No recessed floor tracks required
                                               • Track is self-cleaning due to the angled nylon
                                                 wheels on the door hanger



     12       Integrating Style & Function
Straightaway 130                                                        Article No. Finish/Size

                                                                        13020      Anodized Aluminium, 2000mm
                                                                                                                        Track



Sliding & Folding Door Systems                                          13024
                                                                        13030
                                                                                   Anodized Aluminium, 2400mm
                                                                                   Anodized Aluminium, 3000mm
                                                                        13036      Anodized Aluminium, 3600mm
                                                                        13040      Anodized Aluminium, 4000mm
Product Overview                                                        13060      Anodized Aluminium, 6000mm
The Straightaway 130 is a quiet and dependable system designed          Article No. Description                         Image
for interior and exterior sliding doors up to 130kg per leaf and is
ideally suited for use in residential and commercial applications.      01303      130 hanger with concealed apron
The system is effortless to operate and extremely durable, due to its              plate for timber doors, (pair)
nylon bodied hangers complete with four angled nylon outer wheels
and precision bearings all housed in a compact aluminium track.
                                                                        01304      130 hanger for metal doors, (pair)
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                        03937      Adjustable rattle proof guide
                                                                                   - 6mm roller



                                                                        03938      Adjustable rattle proof guide
                                                                                   - 13mm roller



                                                                        22392      Floor guide, plastic,
                                                                                   (timber doors)




                                                                        44319      Floor guide, pair, (metal doors)




                                                                        02008      Face fixed bracket set (5 pcs)




                                                                        01720      Track stop, (pair)




                                                                        30614      Soft closer, single damper,
                                                                                   130kgs (mounted in track)




                                                                        61401      Simultaneous synchro kit



                                                                        Article No. Finish/Size                         Bottom Channel

                                                                        41224      Mill Finish, 12x15mm, 2400mm
                                                                        41236      Mill Finish, 12x15mm, 3600mm
                                                                        41260      Mill Finish, 12x15mm, 6000mm

                                                                        42212      Mill Finish, 15x15mm, 1200mm
                                                                        42218      Mill Finish, 15x15mm, 1800mm
                                                                        42221      Mill Finish, 15x15mm, 2100mm
                                                                        42224      Mill Finish, 15x15mm, 2400mm

                                                                        44224      Mill Finish, 25x25mm, 2400mm
                                                                        44236      Mill Finish, 25x25mm, 3600mm
           Sliding & Folding Door Systems                               44260      Mill Finish, 25x25mm, 6000mm

For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                               13           Integrating Style & Function
Straightaway 180 Sliding & Folding Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 180kg              • Tracks can be ceiling mounted or face fixed
     • Door Thickness: 35-55mm                 • No recessed floor tracks required
     • Maximum Door Height: 3500mm             • Hangers manufactured with zinc cast solid bodies
                                                 and delrin nylon outer wheels complete with
     • Track Dimensions: 47mm (w) x 48mm (h)     precision ball bearings to ensure smooth and
                                                 silent operation
                                               • Variable height adjustment on doors
                                               • Fittings available for timber, aluminium or
                                                 metal doors


     14       Integrating Style & Function
Straightaway 180                                                        Article No. Finish/Size

                                                                        18024      Anodized Aluminium, 2400mm
                                                                                                                       Track



Sliding & Folding Door Systems                                          18030
                                                                        18036
                                                                                   Anodized Aluminium, 3000mm
                                                                                   Anodized Aluminium, 3600mm
                                                                        18040      Anodized Aluminium, 4000mm
                                                                        18060      Anodized Aluminium, 6000mm
Product Overview
                                                                        Article No. Description                        Image
The Straightaway 180 is a sophisticated and versatile top hung system
designed for medium to heavy duty sliding doors up to 180kg.
The system can easily accommodate sliding doors in a variety of         01811      180 hanger for metal doors (pair)
architectural openings and is supplied with four wheeled hangers
incorporating nylon coated wheels and precision ball bearings.
                                                                        01812      180 hanger for box frame metal
NOTE:                                                                              doors (pair)
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                        01813      180 hanger with concealed apron
                                                                                   plate for timber doors (pair)



                                                                        22392      Floor guide, plastic,
                                                                                   (timber doors)




                                                                        44319      Floor guide, pair, (metal doors)




                                                                        44320      Extended floor guide (metal box
                                                                                   frame doors)



                                                                        44347      Concealed floor guide
                                                                                   (timber doors)




                                                                        02718      Track stop, (pair)




                                                                        02005      Face fixed bracket set (5 pcs)




                                                                        02010      Face fixed double run bracket
                                                                                   set (5 pcs)


                                                                        Article No. Finish/Size                        Bottom Channel

                                                                        41224      Mill Finish, 12x15mm, 2400mm
                                                                        41236      Mill Finish, 12x15mm, 3600mm
                                                                        41260      Mill Finish, 12x15mm, 6000mm


                                                                        44224      Mill Finish, 25x25mm, 2400mm
                                                                        44236      Mill Finish, 25x25mm, 3600mm
                                                                        44260      Mill Finish, 25x25mm, 6000mm




           Sliding & Folding Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                               15          Integrating Style & Function
Straightaway 250 Sliding & Folding Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 250kg              • Tracks can be ceiling mounted or face fixed
     • Door Thickness: 35-55mm                 • No recessed floor tracks required
     • Maximum Door Height: 4000mm             • Hangers manufactured with zinc cast solid bodies
                                                 and delrin nylon outer wheels complete with
     • Track Dimensions: 51mm (w) x 55mm (h)     precision ball bearings to ensure smooth and
                                                 silent operation
                                               • Variable height adjustment on doors
                                               • Fittings available for timber, aluminium or
                                                 metal doors


     16       Integrating Style & Function
Straightaway 250                                                        Article No. Finish/Size

                                                                        25024      Anodized Aluminium, 2400mm
                                                                                                                       Track



Sliding & Folding Door Systems                                          25030
                                                                        25036
                                                                                   Anodized Aluminium, 3000mm
                                                                                   Anodized Aluminium, 3600mm
                                                                        25040      Anodized Aluminium, 4000mm
                                                                        25060      Anodized Aluminium, 6000mm
Product Overview
                                                                        Article No. Description                        Image
The Straightaway 250 is a sophisticated and versatile top hung system
designed for heavy duty sliding doors up to 250kg. The system can
easily accommodate large sliding doors in a variety of architectural    02251      250 hanger for metal doors (pair)
openings and is supplied with four wheeled hangers incorporating
nylon coated wheels and precision ball bearings.
                                                                        02257      250 hanger for box frame metal
NOTE:                                                                              doors (pair)
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                        02252      250 hanger with concealed apron
                                                                                   plate for timber doors (pair)



                                                                        22392      Floor guide, plastic,
                                                                                   (timber doors)




                                                                        44319      Floor guide, pair, (metal doors)




                                                                        44320      Extended floor guide (metal box
                                                                                   frame doors)



                                                                        44347      Concealed floor guide
                                                                                   (timber doors)




                                                                        02718      Track stop, (pair)




                                                                        02005      Face fixed bracket set (5 pcs)




                                                                        02010      Face fixed double run bracket
                                                                                   set (5 pcs)


                                                                        Article No. Finish/Size                        Bottom Channel

                                                        25              44224      Mill Finish, 25x25mm, 2400mm
                                                                        44236      Mill Finish, 25x25mm, 3600mm
                                                                        44260      Mill Finish, 25x25mm, 6000mm




           Sliding & Folding Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                               17          Integrating Style & Function
Straightaway 500 Sliding & Folding Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 500kg              • Tracks can be ceiling mounted or face fixed
     • Door Thickness: 35-100mm                • No recessed floor tracks required
     • Maximum Door Height: 6000mm             • Hangers manufactured with zinc cast solid bodies
                                                 and delrin nylon outer wheels complete with
     • Track Dimensions: 72mm (w) x 72mm (h)     precision ball bearings to ensure smooth and
                                                 silent operation
                                               • Fittings available for timber, aluminium or
                                                 metal doors
                                               • Extremely robust
                                               • Simple installation
     18       Integrating Style & Function
Straightaway 500                                                    Article No. Finish/Size                         Track



Sliding & Folding Door Systems                                      48060      500 Anodized Aluminium track,
                                                                               6000mm


Product Overview                                                    Article No. Description                         Image
The Straightaway 500 is the most robust system within our range
of architectural sliding door systems and is specifically           04801      Hanger fitting pack (timber doors)
engineered for use with the largest doors, where conventional top
hung systems cannot cope with the excess weight of panel.
Solid steel cast bodied door hangers complete with re-enforced
nylon wheels and precision ball bearings housed within a 5mm        04802      Hanger fitting pack (metal doors)
thick aluminium track ensure that even the largest door can still
slide smoothly.                                                     Article No. Description                         Image

NOTE:
•   All accessories to be ordered separately
                                                                               Floor guide, pair, (metal doors)
                                                                    44319
•   For more detailed information please refer to our
    Technical Data Sheet available on request



                                                                    44320      Extended floor guide (metal box
                                                                               frame doors)




                                                                    44347      Concealed floor guide
                                                                               (timber doors)


                                                                    Article No. Finish/Size                         Bottom Channel

                                                                    44224      Mill Finish, 25x25mm, 2400mm
                                                                    44236      Mill Finish, 25x25mm, 3600mm
                                                                    44260      Mill Finish, 25x25mm, 6000mm




           Sliding & Folding Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                           19           Integrating Style & Function

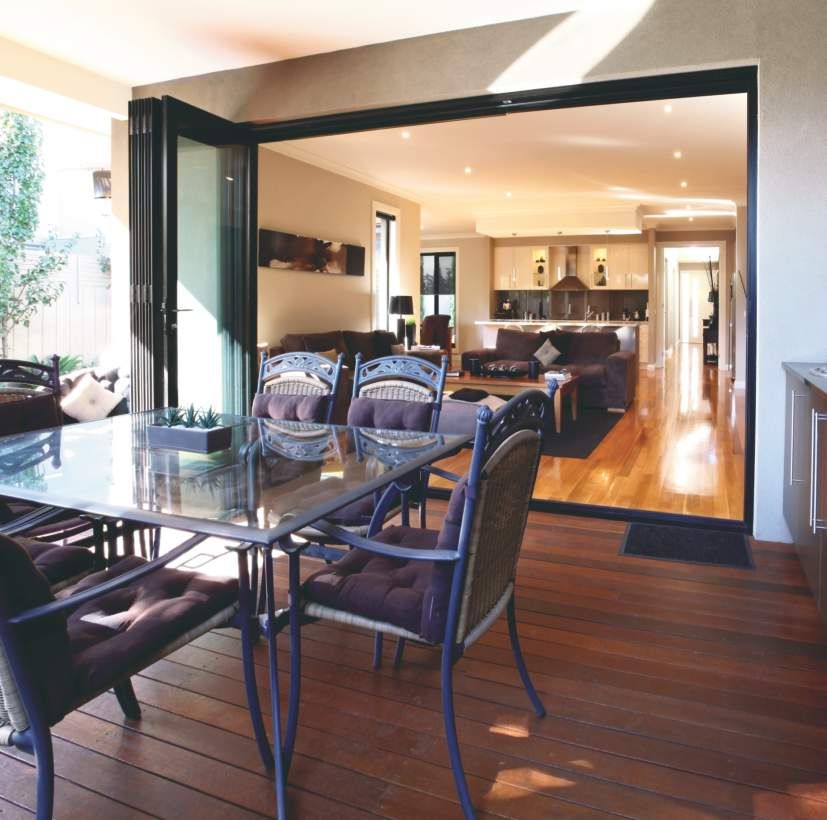

Foldaside 30 Sliding & Folding Door Systems


       Door Specifications                       Hardware Specifications
     • Maximum Door Weight: 30kg               • For timber, timber framed or composite doors
     • Door Thickness: 20-40mm                 • Neatly stacking to either one or both sides
     • Maximum Door Height: 2500mm             • No recessed floor channel necessary with
                                                 2 leaf configurations
     • Track Dimensions: 25mm (w) x 27mm (h)
                                               • A maximum of four doors can be hinged together
                                               • Suitable for odd or even suites of doors
                                               • Stable and smooth operation



     20       Integrating Style & Function
Foldaside 30                                                          Article No. Finish/Size                        Track



Sliding & Folding Door Systems                                        11818
                                                                      11824
                                                                                 Anodized Aluminium, 1800mm
                                                                                 Anodized Aluminium, 2400mm


Product Overview                                                      Article No. Description                        Image
The Foldaside 30 is a reliable hardware system purpose designed
for lightweight internal folding doors up to 30kg per leaf.           01211      Foldaside 30, 2 door fitting pack
The end door within the set is secured using a pivot bearing whilst
the other doors are aligned by means of unobtrusive hinges and
hangers that bring the panels together.
                                                                      01212      Foldaside 30, 3 door fitting pack
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                      01213      Foldaside 30, 4 door fitting pack



                                                                      Article No. Finish/Size                        Bottom Channel


                                                                      42218      Mill Finish, 15x15mm, 1800mm
                                                                      42224      Mill Finish, 15x15mm, 2400mm




           Sliding & Folding Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                             21          Integrating Style & Function
Foldaside 50 Sliding & Folding Door Systems


       Door Specifications                       Hardware Specifications
     • Maximum Door Weight: 50kg               • For timber, timber framed or composite doors
     • Door Thickness: 25-50mm                 • Neatly stacking to either one or both sides
     • Maximum Door Height: 3000mm             • No recessed floor channel necessary with
                                                 2 leaf configurations
     • Track Dimensions: 47mm (w) x 48mm (h)
                                               • A maximum of four doors can be hinged together
                                               • Suitable for odd or even suites of doors
                                               • Stable and smooth operation



     22       Integrating Style & Function
Foldaside 50                                                          Article No. Finish/Size

                                                                      18020      Anodized Aluminium, 2000mm
                                                                                                                      Track



Sliding & Folding Door Systems                                        18025      Anodized Aluminium, 2500mm
                                                                      18030      Anodized Aluminium, 3000mm
                                                                      18035      Anodized Aluminium, 3500mm
Product Overview                                                      18040      Anodized Aluminium, 4000mm
The Foldaside 50 is a reliable hardware system purpose designed       18060      Anodized Aluminium, 6000mm

for internal or external folding doors up to 50kg per leaf.           Article No. Description                         Image
The end door within the set is secured using a pivot bearing whilst
the other doors are aligned by means of unobtrusive hinges and        95519      Top & bottom pivot assembly,
hangers that bring the panels together.                                          zinc plated

NOTE:
•   All accessories to be ordered separately
                                                                      01822      2 wheel end hanger set,
•   For more detailed information please refer to our                            zinc plated
    Technical Data Sheet available on request



                                                                      01821      4 wheel intermediate hanger,
                                                                                 zinc plated




                                                                      95548      3 hinge set, satin stainless steel




                                                                      41346      Bottom folding door guide



                                                                      Article No. Finish/Size                         Bottom Channel

                                                                      41224      Mill Finish, 12x15mm, 2400mm
                                                                      41236      Mill Finish, 12x15mm, 3600mm
                                                                      41260      Mill Finish, 12x15mm, 6000mm




           Sliding & Folding Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                            23            Integrating Style & Function
External Door Systems
    (Corrosion Resistant)

                                             Manufactured with greater corrosion resistant levels for
                                                sliding & folding doors, which are to be installed in
                                               locations, subjected to adverse weather conditions.




24            Integrating Style & Function
External
Door Systems




               25   Integrating Style & Function
Dreamfold External Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 85kgs              • Cast stainless steel hangers c/w     • Suitable for up to 6 door leaves
                                                 delrin nylon outer wheels and          in a single direction
     • Door Thickness: 35-70mm                   precision stainless steel bearings
     • Maximum Door Height: 3300mm               ensure optimum corrosion             • Variable height and sideways
                                                                                        adjustment in doors
                                                 resistance
     • Track Dimensions: 51mm (w) x 55mm (h)
                                               • Precision made components            • Aluminium threshold and other
                                                                                        accessories available
                                                 guarantee smooth and silent
                                                 operation
                                               • Door and frame seals provide
                                                 superior weatherproofing


     26       Integrating Style & Function
Dreamfold
External Door Systems
Product Overview
Dreamfold is a highly durable hardware system meticulously designed for external timber folding doors, where a high level
of corrosion resistance and weather proofing is required. The system operates with effortless ease enabling the folding
doors to fully open either outwards or inwards to allow the user to enjoy the great outdoors.

NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request




           External Door Systems
           (Corrosion Resistant)


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                      27         Integrating Style & Function
Hardware Application (3L 2R)

                        09832 Intermediate Carrier Set
                                                                                           INSIDE
                   Basic Door                                               Basic Door                                   09839 Right End Hanger Set




              09831 Pivot Set                                                                                                         09831 Pivot Set
              Jamb Door                                                            Passage Set                                        Jamb Door
              FB Flushbolt                                                                                                            FB Flushbolt
                     09835 Offset Hinge Set
                                                             Service Door                  OUTSIDE                                    09835 Hinge Set




Common Panel Layouts for Outward Opening Doors                                            Common Panel Layouts for Inward Opening Doors

                           Hardware Legend                                                                            Hardware Legend
 09831 Pivot set                      09835 Outward offset hinge set                        09831 Pivot set                  09837 Inward offset hinge set
 09832 Intermediate carrier set       09833 Outward straight hinge set                      09832 Intermediate carrier set   09840 Inward straight hinge set
 09834 Left carrier set               FB         Flushbolt                                  09834 Left carrier set           FB        Flushbolt
 09839 Right carrier set                                                                    09839 Right carrier set



Outward Application Option                                                                Inward Application Option




            Outward Opening Configurations                                                              Inward Opening Configurations
                                                   =
                                                Flushbolt Locations                                                                   Flushbolt Locations
 2 LEAF                                                                                     2 LEAF



 2+1 LEAF                                                                                   2+1 LEAF



 3 LEAF                                                                                     3 LEAF



 2+2 LEAF                                                                                   2+2 LEAF



 3+1 LEAF                                                                                   3+1 LEAF



 4 LEAF                                                                                     4 LEAF



 3+2 LEAF                                                                                   3+2 LEAF



 4+1 LEAF                                                                                   4+1 LEAF



 5 LEAF                                                                                     5 LEAF



 3+3 LEAF                                                                                   3+3 LEAF



 4+2 LEAF                                                                                   4+2 LEAF



 5+1 LEAF                                                                                   5+1 LEAF



 6 LEAF                                                                                     6 LEAF




28          Integrating Style & Function
Dreamfold
External Door Systems
Article No. Finish/Size                        Track   Article No. Finish/Size                                  Support Channel

25024      Anodized Aluminium, 2400mm                  44520         Mill Finish, 24x23mm, 2000mm
25030      Anodized Aluminium, 3000mm                  44530         Mill Finish, 24x23mm, 3000mm
                                                       44540         Mill Finish, 24x23mm, 4000mm
25036      Anodized Aluminium, 3600mm
                                                       44560         Mill Finish, 24x23mm, 6000mm
25040      Anodized Aluminium, 4000mm
25060      Anodized Aluminium, 6000mm                  Article No. Finish/Size                                  Threshold

Article No. Description                        Image
                                                       49324         Silver Anodized, 180 x 40mm, 2400mm
                                                       49336         Silver Anodized, 180 x 40mm, 3600mm
09831      Top & bottom pivot assembly,                49360         Silver Anodized, 180 x 40mm, 6000mm
           satin stainless steel
                                                       Article No. Finish/Size                                  Polypropylene Channel

                                                       49220         Black, 2000mm
09834      2 wheel end hanger set,
                                                       49230         Black, 3000mm
           left hand, satin stainless steel
                                                       49240         Black, 4000mm
                                                       49260         Black, 6000mm

09839      2 wheel end hanger set, right               Article No. Description                                  Seal
           hand, satin stainless steel

                                                       07211         Door perimeter seal, brown
                                                                     (per door)
09832      4 wheel intermediate hanger &
           guide set, satin stainless steel

                                                       07212         Frame perimeter seal, brown
                                                                     (per lm)
09833      3 hinge set c/w handle, outward
           opening, satin stainless steel



09835      3 hinge set c/w handle (off-set),
           outward opening, satin
           stainless steel



09837      3 hinge set (off-set), inward
           opening, satin stainless steel



09840      3 hinge set, inward opening,
           satin stainless steel



09836      Intermediate pivot hinge, satin
           stainless steel



09843      Flushbolt, non-lockable, satin               NOTE:
           stainless steel, 200mm                       •   All accessories to be ordered separately
                                                        •   For more detailed information please refer to our
                                                            Technical Data Sheet available on request

09838      Flushbolt, lockable, satin
           stainless steel, 200mm                                  External Door Systems
                                                                   (Corrosion Resistant)


                                                        For further information please contact us:
09841      Flushbolt, non-lockable, satin
           stainless steel, 400mm                       Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk



09842      Flushbolt, lockable, satin
           stainless steel, 400mm
                                                                                               29               Integrating Style & Function
Eternal 130 External Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 130kgs             • Tracks can be ceiling mounted or    • Smooth and silent running
                                                 face fitted
     • Door Thickness: 20-50mm                                                       • No recessed floor tracks necessary
                                               • Suitable for timber, aluminium or   • Soft closing available
     • Maximum Door Height: 3000mm               metal doors
     • Track Dimensions: 38mm (w) x 40mm (h)                                         • Simultaneous opening
                                               • Cast SS316 stainless steel            (synchro) optional
                                                 hangers c/w delrin nylon outer
                                                 wheels and precision stainless
                                                 steel bearings ensure optimum
                                                 corrosion resistance



     30       Integrating Style & Function
Eternal 130                                                       Article No. Finish/Size

                                                                  13020      Anodized Aluminium, 2000mm
                                                                                                                 Track


External Door Systems                                             13024      Anodized Aluminium, 2400mm
                                                                  13030      Anodized Aluminium, 3000mm
                                                                  13036      Anodized Aluminium, 3600mm
Product Overview
                                                                  13040      Anodized Aluminium, 4000mm
The Eternal 130 top hung sliding door system is manufactured      13060      Anodized Aluminium, 6000mm
using cutting edge technology, which has been developed to
                                                                  Article No. Description                        Image
maximise longevity of the sliding door system.
The system is also available with soft closing and simultaneous
opening features. The system is ideal for external sliding        01301      130 hanger for metal doors,
                                                                             stainless steel (pair)
doors which are to be installed in locations where the
severest weather conditions are prevalent and where doors
are exposed to high levels of corrosion.                          01302      130 hanger with concealed
                                                                             apron plate for timber doors,
                                                                             stainless steel (pair)
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request                     03937      Adjustable rattle proof guide
                                                                             - 6mm roller



                                                                  03938      Adjustable rattle proof guide
                                                                             - 13mm roller




                                                                  44319      Floor guide, pair, (metal doors)




                                                                  02008      Face fixed bracket set (5 pcs)




                                                                  01721      Track stop, pair, stainless steel




                                                                  30632      Soft closer, single damper,
                                                                             130kgs (mounted in track)




                                                                  61401      Simultaneous synchro kit



                                                                  Article No. Finish/Size                        Bottom Channel

                                                                  41224      Mill Finish, 12x15mm, 2400mm
                                                                  41236      Mill Finish, 12x15mm, 3600mm
                                                                  41260      Mill Finish, 12x15mm, 6000mm

                                                                  42212      Mill Finish, 15x15mm, 1200mm
                                                                  42218      Mill Finish, 15x15mm, 1800mm
                                                                  42221      Mill Finish, 15x15mm, 2100mm
                                                                  42224      Mill Finish, 15x15mm, 2400mm

                                                                  44224      Mill Finish, 25x25mm, 2400mm
                                                                  44236      Mill Finish, 25x25mm, 3600mm
                                                                  44260      Mill Finish, 25x25mm, 6000mm

           External Door Systems
           (Corrosion Resistant)


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                         31          Integrating Style & Function
Eternal 180 External Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 180kgs             • Tracks can be ceiling mounted or face fitted
     • Door Thickness: 35-55mm                 • Suitable for timber, aluminium or metal doors
     • Maximum Door Height: 3500mm             • Cast SS316 stainless steel hangers c/w delrin
                                                 nylon outer wheels and precision stainless steel
     • Track Dimensions: 48mm (w) x 47mm (h)     bearings ensure optimum corrosion resistance
                                               • Smooth and quiet running
                                               • No recessed floor tracks required for
                                                 timber doors



     32       Integrating Style & Function
Eternal 180                                                     Article No. Finish/Size

                                                                18024      Anodized Aluminium, 2400mm
                                                                                                               Track


External Door Systems                                           18030      Anodized Aluminium, 3000mm
                                                                18036      Anodized Aluminium, 3600mm
                                                                18040      Anodized Aluminium, 4000mm
Product Overview
                                                                18060      Anodized Aluminium, 6000mm
The Eternal 180 top hung sliding door system is manufactured
                                                                Article No. Description                        Image
using cutting edge technology, which has been developed to
maximise longevity of the sliding door system. The system is
                                                                01801      180 hanger for metal doors,
ideal for external sliding doors which are to be installed in              stainless steel (pair)
locations where the severest weather conditions are prevalent
and where doors are exposed to high levels of corrosion.
                                                                01802      180 hanger for box frame metal
NOTE:
                                                                           doors, stainless steel (pair)
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                01803      180 hanger with concealed
                                                                           apron plate for timber doors,
                                                                           st/steel (pair)



                                                                44348      Floor guide, stainless steel
                                                                           (metal doors)



                                                                44349      Extended floor guide, stainless
                                                                           steel (metal box frame doors)



                                                                44350      Concealed floor guide, stainless
                                                                           steel (timber doors)




                                                                02005      Face fixed bracket set (5 pcs)




                                                                02010      Face fixed double run bracket
                                                                           set (5 pcs)




                                                                02719      Track stop, pair, stainless steel



                                                                Article No. Finish/Size                        Bottom Channel

                                                                44224      Mill Finish, 25x25mm, 2400mm
                                                                44236      Mill Finish, 25x25mm, 3600mm
                                                                44260      Mill Finish, 25x25mm, 6000mm

                                                                44421      Satin stainless steel,
                                                                           25x25mm, 2100mm
                                                                44430      Satin stainless steel,
                                                                           25x25mm, 3000mm




           External Door Systems
           (Corrosion Resistant)


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                        33         Integrating Style & Function
Eternal 250 External Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum door weight: 250kg              • Tracks can be ceiling mounted or face fixed
     • Door Thickness: 35 – 55mm               • Suitable for timber, aluminium or metal doors
     • Maximum door height: 4000mm             • Cast SS316 stainless steel hangers c/w
                                                 delrin nylon outer wheels and precision
     • Track Dimensions: 51mm (w) x 55mm (h)     stainless steel bearings ensure optimum
                                                 corrosion resistance
                                               • Smooth and silent running
                                               • No recessed floor tracks necessary
                                                 for timber doors


     34       Integrating Style & Function
Eternal 250                                                       Article No. Finish/Size

                                                                  25024      Anodized Aluminium, 2400mm
                                                                                                                 Track


External Door Systems                                             25030      Anodized Aluminium, 3000mm
                                                                  25036      Anodized Aluminium, 3600mm
                                                                  25040      Anodized Aluminium, 4000mm
Product Overview
                                                                  25060      Anodized Aluminium, 6000mm
The Eternal 250 top hung sliding door system is manufactured
                                                                  Article No. Description                        Image
using cutting edge technology, which has been developed to
maximise longevity of the sliding door system.
                                                                  02266      250 hanger for metal doors,
The system is ideal for heavy duty external sliding doors which              stainless steel (pair)
are to be installed in locations where the severest weather
conditions are prevalent and where doors are exposed to high
levels of corrosion.                                              02267      250 hanger for box frame metal
                                                                             doors, stainless steel (pair)
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our             02268      250 hanger with concealed
    Technical Data Sheet available on request                                apron plate for timber doors,
                                                                             st/steel (pair)



                                                                  44348      Floor guide, stainless steel
                                                                             (metal doors)



                                                                  44349      Extended floor guide, stainless
                                                                             steel (metal box frame doors)



                                                                  44350      Concealed floor guide, stainless
                                                                             steel (timber doors)




                                                                  02005      Face fixed bracket set (5 pcs)




                                                                  02010      Face fixed double run bracket
                                                                             set (5 pcs)




                                                                  02719      Track stop, pair, stainless steel



                                                                  Article No. Finish/Size                        Bottom Channel

                                                                  44224      Mill Finish, 25x25mm, 2400mm
                                                                  44236      Mill Finish, 25x25mm, 3600mm
                                                                  44260      Mill Finish, 25x25mm, 6000mm

                                                                  44421      Satin stainless steel,
                                                                             25x25mm, 2100mm
                                                                  44430      Satin stainless steel,
                                                                             25x25mm, 3000mm




           External Door Systems
           (Corrosion Resistant)


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                          35         Integrating Style & Function

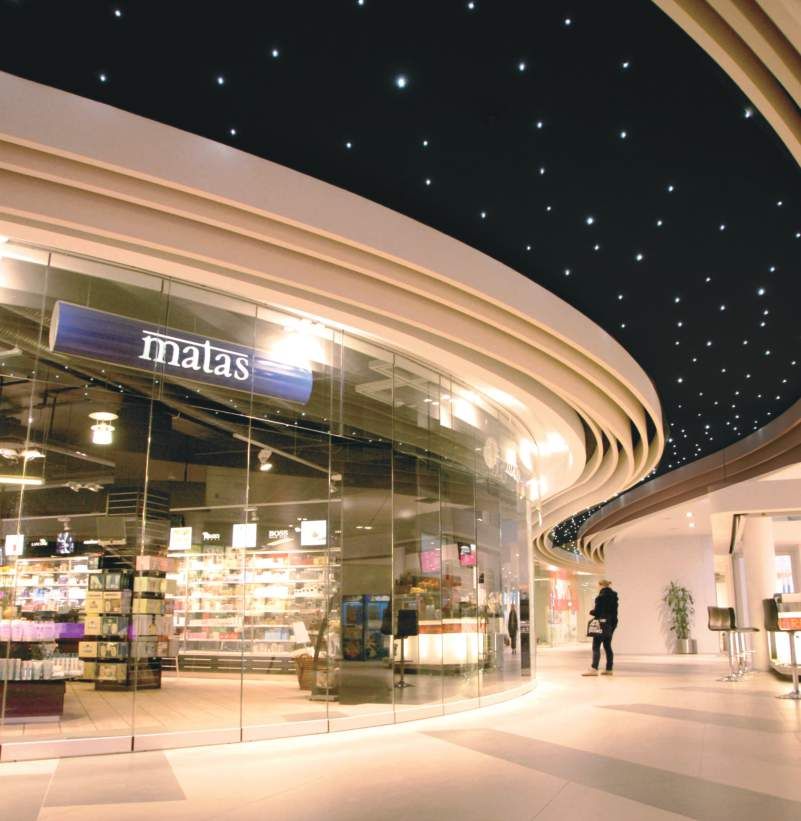

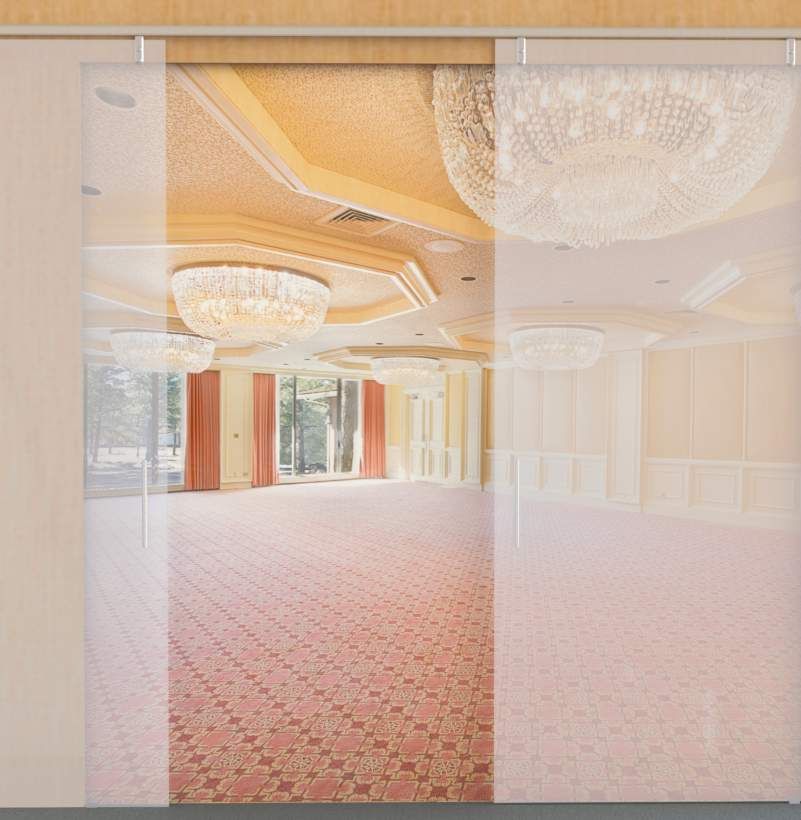

Glass Door Systems

                                           Designed to be stylish and sleek, these contemporary
                                                   glass sliding, folding & stacking door systems
                                           create a minimalistic and sophisticated look, suitable
                                               for both residential and commercial applications.




36          Integrating Style & Function
Glass
Door Systems




               37   Integrating Style & Function
Straightaway G80 Glass Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 80kg               • Tracks can be ceiling mounted or face fixed
     • Glass Thickness: 8mm or 10mm            • No glass preparation required
     • Maximum Door Height: 2400mm             • Smooth and quiet running
     • Track Dimensions: 38mm (w) x 40mm (h)   • Clip on cover caps available in silver anodised
                                                 or brushed stainless steel finishes
                                               • No recessed floor tracks required




     38       Integrating Style & Function
Straightaway G80                                                         Article No. Finish/Size

                                                                         13020      Anodized Aluminium, 2000mm
                                                                                                                      Track


Glass Door Systems                                                       13024      Anodized Aluminium, 2400mm
                                                                         13030      Anodized Aluminium, 3000mm
                                                                         13036      Anodized Aluminium, 3600mm
Product Overview
                                                                         13040      Anodized Aluminium, 4000mm
The Straightaway G80 is a simple but discrete straight sliding           13060      Anodized Aluminium, 6000mm
system ideal for lightweight interior frameless glass doors, where
                                                                         Article No. Description                      Image
no cut-outs are required in the glass.
A compact top track, which can be ceiling mounted, recessed
                                                                         52103      G80 clamp set, anodized
within a ceiling void or fitted directly to a face of a wall, combined              aluminium, 80kgs (8/10mm glass)
with an inconspicuous guide at floor level, help create a
minimalistic and sophisticated look.

NOTE:                                                                    52104      G80 clamp set, satin stainless
                                                                                    steel, 80kgs (8/10mm glass)
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                         Article No. Description                      Image



                                                                         01307      Hanger for glass doors (pair)




                                                                         01720      Track stop, pair




                                                                         52101      G80 clamps, anodized
                                                                                    aluminium, 80kgs (pair)



                                                                         52102      G80 clamps, satin stainless
                                                                                    steel, 80kgs (pair)



                                                                         52201      Glass floor guide, anodized
                                                                                    aluminium



                                                                         52202      Glass floor guide, satin
                                                                                    stainless steel



                                                                         30614      Soft closer, single damper,
                                                                                    130kgs (track mounted)




           Glass Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                                39        Integrating Style & Function
Straightaway G130 Glass Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 130kg              • Tracks can be ceiling mounted or face fixed
     • Glass Thickness: 10mm or 12mm           • Smooth and quiet running
     • Maximum Door Height: 3000mm             • Patch fittings supplied in brushed
                                                 stainless steel finish
     • Track Dimensions: 38mm (w) x 40mm (h)
                                               • No recessed floor tracks required




     40       Integrating Style & Function
Straightaway G130                                                  Article No. Finish/Size

                                                                   13020      Anodized Aluminium, 2000mm
                                                                                                              Track


Glass Door Systems                                                 13024      Anodized Aluminium, 2400mm
                                                                   13030      Anodized Aluminium, 3000mm
                                                                   13036      Anodized Aluminium, 3600mm
Product Overview
                                                                   13040      Anodized Aluminium, 4000mm
The Straightaway G130 is a sleek and efficient straight sliding    13060      Anodized Aluminium, 6000mm
system suitable for heavier duty interior frameless glass doors.
                                                                   Article No. Description                    Image
A compact top track, which can be ceiling mounted, recessed
within a ceiling void or fitted directly to a face of a wall,
                                                                   52112      G130 patch fitting set,
combined with attractive stainless steel patch fittings and an                satin stainless steel, 130kgs
inconspicuous guide at floor level, help create a minimalistic                (10/12mm glass)

and sophisticated look.
                                                                   Article No. Description                    Image
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our              01307      Hanger for glass doors (pair)
    Technical Data Sheet available on request




                                                                   01720      Track stop, pair



                                                                   52111      G130 patch fittings, satin
                                                                              stainless steel, 130kgs
                                                                              (10/12mm glass)



                                                                   52202      Glass floor guide, satin
                                                                              stainless steel



                                                                   30614      Soft closer, single damper,
                                                                              130kgs (track mounted)




           Glass Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                          41      Integrating Style & Function
Flexiglas 50 Glass Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 50kg               • No glass preparation required       • Additional profiles available for
                                                                                       fixed panel mounting
     • Glass Thickness: 8mm - 10mm             • Soft closing available as an option
                                                                                     • Tracks available in anodized
     • Maximum Door Height: 2400mm             • System is compatible with             aluminium or stainless steel
                                                 simultaneous opening kit
     • Track Dimensions: 52mm (w) x 58mm (h)     (Synchro)
                                                                                        finishes
                                                                                      • Suitable for tempered or
                                               • No visible gaps between bottom of      laminated glass
                                                 track and top of door
                                               • Variable height adjustment
                                                 on doors


     42       Integrating Style & Function
Flexiglas 50                                                      Article No. Finish/Size

                                                                  51120      Anodized Aluminium, 2000mm
                                                                                                                      Track


Glass Door Systems                                                51130      Anodized Aluminium, 3000mm
                                                                  51140      Anodized Aluminium, 4000mm
                                                                  51160      Anodized Aluminium, 6000mm
Product Overview
The Flexiglas 50 system brings a sleek and minimalistic design    51230      Satin Stainless Steel, 3000mm
to any space and offers versatility and transparency to suit      51240      Satin Stainless Steel, 4000mm
customers’ aesthetic requirements.                                51260      Satin Stainless Steel, 6000mm
The frameless glass system is suitable for lightweight interior
                                                                  Article No. Description                             Image
glass doors not exceeding 50kg and can also be supplied with
soft close cushioning.
                                                                  51172      Flexiglas fitting set, anodized
NOTE:                                                                        aluminium, 50kgs
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                  51272      Flexiglas fitting set, satin stainless
                                                                             steel, 50kgs


                                                                  Article No. Description                             Image


                                                                  51181      Flexiglas 50 standard kit,
                                                                             anodized aluminium, 2000mm




                                                                  51281      Flexiglas 50 standard kit,
                                                                             satin stainless steel, 2000mm


                                                                  Article No. Description                             Image


                                                                  51171      End caps (set of 2),
                                                                             anodized aluminium



                                                                  51271      End caps (set of 2),
                                                                             satin stainless steel



                                                                  51191      Flexiglas 50 double soft closing
                                                                             kit, 50kgs




           Glass Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                           43             Integrating Style & Function
Flexiglas 120 Glass Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 120kg              • No glass preparation required       • Additional profiles available for
                                                                                       fixed panel mounting
     • Glass Thickness: 8mm - 10mm             • Soft closing available as an option
                                                                                     • Tracks available in anodized
     • Maximum Door Height: 2700mm             • System is compatible with             aluminium or stainless steel
                                                 simultaneous opening kit
     • Track Dimensions: 52mm (w) x 58mm (h)     (Synchro)
                                                                                        finishes
                                                                                      • Suitable for tempered or
                                               • No visible gaps between bottom of      laminated glass
                                                 track and top of door
                                               • Variable height adjustment
                                                 on doors


     44       Integrating Style & Function
Flexiglas 120                                                    Article No. Finish/Size

                                                                 51120      Anodized Aluminium, 2000mm
                                                                                                                     Track


Glass Door Systems                                               51130      Anodized Aluminium, 3000mm
                                                                 51140      Anodized Aluminium, 4000mm
                                                                 51160      Anodized Aluminium, 6000mm
Product Overview
The Flexiglas 120 system brings a sleek and minimalistic         51230      Satin Stainless Steel, 3000mm
design to any space and offers versatility and transparency to   51240      Satin Stainless Steel, 4000mm
suit customers’ aesthetic requirements.                          51260      Satin Stainless Steel, 6000mm
The frameless glass system is suitable for heavier interior
                                                                 Article No. Description                             Image
glass doors up to 120kg and can also be supplied with soft
close cushioning.
                                                                 51176      Flexiglas fitting set, anodized
NOTE:                                                                       aluminium, 120kgs
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                 51276      Flexiglas fitting set, satin stainless
                                                                            steel, 120kgs


                                                                 Article No. Description                             Image

                                                                 51182      Flexiglas 120 standard kit,
                                                                            anodized aluminium 3000mm
                                                                 51183      Flexiglas 120 standard kit,
                                                                            anodized aluminium 4000mm


                                                                 51282      Flexiglas 120 standard kit,
                                                                            satin stainless steel, 3000mm


                                                                 Article No. Description                             Image


                                                                 51171      End caps (set of 2),
                                                                            anodized aluminium



                                                                 51271      End caps (set of 2),
                                                                            satin stainless steel



                                                                 51192      Flexiglas 120 double soft
                                                                            closing kit, 80kgs




           Glass Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                          45             Integrating Style & Function
Flexiglas Synchro Glass Door Systems


      Door Specifications                        Hardware Specifications
     • Maximum Door Weight: 80kg               • No glass preparation required         • Additional profiles available for
                                                                                         fixed panel mounting
     • Glass Thickness: 8mm - 10mm             • Soft closing available as an option
                                                                                       • Tracks available in anodized
     • Maximum Door Height: 2700mm             • System is compatible with               aluminium or stainless steel
                                                 Flexiglas 50 & Flexiglas 120
     • Track Dimensions: 52mm (w) x 58mm (h)     systems
                                                                                         finishes
                                                                                       • Suitable for tempered or
                                               • No visible gaps between bottom          laminated glass
                                                 of track and top of door
                                               • Variable height adjustment
                                                 on doors


     46       Integrating Style & Function
Flexiglas Synchro                                                Article No. Finish/Size

                                                                 51120      Anodized Aluminium, 2000mm
                                                                                                                     Track


Glass Door Systems                                               51130      Anodized Aluminium, 3000mm
                                                                 51140      Anodized Aluminium, 4000mm
                                                                 51160      Anodized Aluminium, 6000mm
Product Overview
The Flexiglas Synchro system brings a sleek and minimalistic     51230      Satin Stainless Steel, 3000mm
design to any space and offers versatility and transparency to   51240      Satin Stainless Steel, 4000mm
suit customers’ aesthetic requirements.                          51260      Satin Stainless Steel, 6000mm
The frameless glass system is suitable for interior bi-parting
                                                                 Article No. Description                             Image
glass doors up to 80kg per leaf and can also be used with
doors where soft close cushioning required.
                                                                 51193      Flexiglas synchro kit, 80kgs
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our
    Technical Data Sheet available on request
                                                                 51172      Flexiglas fitting set, anodized
                                                                            aluminium, 50kgs



                                                                 51272      Flexiglas fitting set, satin stainless
           =                      =                     =   =               steel, 50kgs



                                                                 51176      Flexiglas fitting set, anodized
                                                                            aluminium, 120kgs




                                                                 51276      Flexiglas fitting set, satin stainless
                                                                            steel, 120kgs


                                                                 Article No. Description                             Image


                                                                 51171      End caps (set of 2),
                                                                            anodized aluminium



                                                                 51271      End caps (set of 2),
                                                                            satin stainless steel



                                                                 51191      Flexiglas 50 double soft
                                                                            closing kit, 50kgs



                                                                 51192      Flexiglas 120 double soft
                                                                            closing kit, 120kgs




           Glass Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                          47             Integrating Style & Function
Crystalline Telescopic Glass Door Systems


       Door Specifications                       Hardware Specifications
     • Maximum Door Weight: 100kg              • No glass preparation required
     • Glass Thickness: 8mm - 10mm             • No recessed floor tracks required
     • Maximum Door Height: 2600mm             • Tracks can be ceiling mounted or face fitted
     • Track Dimensions: 92mm (w) x 75mm (h)   • Brush seals are available to reduce gaps
                                                 between glass doors and fixed panels
                                               • Smooth and quiet operation




     48       Integrating Style & Function
Crystalline Telescopic                                         Article No. Finish/Size                          Track


                                                               55130      Anodized Aluminium, 3000mm
Glass Door Systems                                             55140      Anodized Aluminium, 4000mm
                                                               55160      Anodized Aluminium, 6000mm
Product Overview
                                                               Article No. Description                          Image
Cystalline Telescopic is a popular glass sliding door system
which dispenses with framework and operates both quietly
and smoothly. The frameless glass system enables two or        55311      Carrier set (4 x clamp carriers for
                                                                          8/10/12mm glass & 4 x end stops)
more glass doors to telescopically slide with one movement
and is ideal when there is insufficient space for a
wider single door to slide.
                                                               55312      Synchro kit (for 2 leaf telescopic
                                                                          sliding doors c/w floor guides)
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our          Article No. Description                          Image
    Technical Data Sheet available on request

                                                               55313      Adjustable channel floor guide,
                                                                          anodized aluminium



                                                               55314      Adjustable channel floor guide,
                                                                          polished chrome



                                                               55315      Adjustable round brass floor
                                                                          guide, polished chrome



                                                               55316      Double floor guide, anodized
                                                                          aluminium



                                                               55317      Face fixing bracket, anodized
                                                                          aluminium



                                                               55318      Round pul handle, 40mm dia,
                                                                          polished chrome



                                                               55319      Grey brush seal c/w aluminium
                                                                          angle profile, self adhesive
                                                                          fixing, 3000mm



                                                               55320      End caps for wall installation



                                                               Article No. Finish/Size                          Fascia Pelmet


                                                               55230      Anodized Aluminium, 3000mm
                                                               55240      Anodized Aluminium, 4000mm
                                                               55260      Anodized Aluminium, 6000mm




           Glass Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                       49           Integrating Style & Function
Crystalline Folding Glass Door Systems


       Door Specifications                       Hardware Specifications
     • Maximum Door Weight: 70kg               • Vertical height adjustment
     • Glass Thickness: 8mm - 10mm             • Smooth and silent operation
     • Maximum Door Height: 2600mm             • Kits available for 2-6 door leaves
     • Track Dimensions: 45mm (w) x 42mm (h)   • End doors pivoted on even door applications
                                               • Minimal space required in stacking area




     50       Integrating Style & Function
Crystalline Folding                                               Article No. Finish/Size

                                                                  53125      Anodized Aluminium, 2500mm
                                                                                                                 Track



Glass Door Systems                                                53135      Anodized Aluminium, 3500mm
                                                                  53145      Anodized Aluminium, 4500mm
                                                                  53155      Anodized Aluminium, 5500mm
Product Overview
                                                                  Article No. Description                        Image
Crystalline Folding is a stylish system combining function and
performance, ideal for maximising space in structures to create
unique openings for entertainment. The frameless glass door       53512      Set for 2 folding doors c/w track
                                                                             and channel, 2500mm
system is equipped with unobtrusive and durable components,
perfectly suited for end folding glass doors in a variety of
residential and commercial applications.                          53513      Set for 3 folding doors c/w track
                                                                             and channel, 3500mm
NOTE:
•   All accessories to be ordered separately
•   For more detailed information please refer to our
                                                                  53514      Set for 4 folding doors c/w track
    Technical Data Sheet available on request
                                                                             and channel, 4500mm



                                                                  53515      Set for 5 folding doors c/w track
                                                                             and channel, 5500mm



                                                                  53511      Accessories for Crystalline end
                                                                             swing door in folding system


                                                                  Article No. Description                        Image


                                                                  53311      Bottom single pivot hinge for
                                                                             end panel



                                                                  53312      Hanger c/w single hinge for
                                                                             end panel



                                                                  53313      Intermediate bottom guide
                                                                             c/w double hinge



                                                                  53314      Intermediate hanger c/w
                                                                             double hinge




                                                                  53315      Top double hinge




                                                                  53316      Bottom double hinge




                                                                  53317      Bottom pivot guide for
                                                                             end panel


                                                                  Article No. Finish/Size                        Bottom Channel

                                                                  53225      Anodized Aluminium, 2500mm
                                                                  53235      Anodized Aluminium, 3500mm
                                                                  53245      Anodized Aluminium, 4500mm
           Glass Door Systems
                                                                  53255      Anodized Aluminium, 5500mm

For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                         51          Integrating Style & Function
Silencio Double Glazed Moveable Wall System


      Door Specifications                      Hardware Specifications
     • Maximum Door Weight: 55kgs per M2     • Top hung elements move easily         • Manifestations can be applied to
                                               and quietly on twin point               the glass, to almost any chosen
     • Maximum Door Height: 2900mm             suspensions running within an           graphic design
                                               aluminium track
     • Door Thickness: 100mm
                                                                                     • Manual or semi-automatic
     • Maximum door width: 1200mm            • No floor tracks required                operation of seals by quick release
                                             • Full height inset pass doors can be     handle or electronic control
     • Acoustic Rating: 45dB                   easily accommodated                     is possible
                                             • Various options available for         • Electronic tilt & lift or manual tilt
                                               parking elements when the glazed        only venetian blinds can be housed
                                               wall is fully opened                    within the double glazing to
                                                                                       provide privacy, if required
                                             • Double glazed panels with painted
     52       Integrating Style & Function
                                               frit borders to any BS or RAL
                                               colour available
Silencio Double Glazed                                               Article No. Description                        Image




Moveable Wall                                                        56130      Twin point track, White RAL 9016,
                                                                                up to 3000mm


Glass Door Systems
                                                                     56100      Twin point hangers, (pair)
Product Overview
The ultimate in acoustic performance coupled with total ease of
operation. Supplied with fully framed and interlocking double        56111      Expandable bottom door seal,
                                                                                aluminium with plastic cover
glazed panels with an innovative blend of painted aluminium                     up to 1200mm
frame and glass, it is ideal for any commercial application, where
noise reduction is a priority.
                                                                     56112      Top door seal, aluminium with
                                                                                plastic cover up to 1200mm
NOTE:
•   System to be fabricated to agreed structural opening sizes
•   For more detailed information please refer to our
    Technical Data Sheet available on request                        56113      Interlocking vertical door seal,
                                                                                aluminium with plastic cover
                                                                                (male & female)



                                                                     56121      Quick release handle




                                                                     56140      Twin point ‘H’ stack parking
                                                                                area, White RAL 9016



                                                                     56141      Twin point remote stack parking
                                                                                area, White RAL 9016



                                                                     56150      Basic jamb, aluminium (painted)
                                                                                up to 3000mm c/w cheeks,
                                                                                MDF (painted)


                                                                     56151      Telescopic jamb, aluminium
                                                                                (painted) up to 3000mm c/w
                                                                                cheeks, MDF (painted)




           Glass Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                            53          Integrating Style & Function
Silencio Single Glazed Moveable Wall System


      Door Specifications                       Hardware Specifications
     • Maximum Door Weight: 25kgs per M2      • Hangers supplied with 2 point guide wheels
     • Maximum Door Height: 4000mm            • Variable height adjustment possible
     • Glass Thickness: 10-12mm               • Full width carriers at head and cill alleviate need to
                                                drill glass panels
     • Maximum door width: 1200mm
                                              • Two twin point stacking options available for parking
                                                elements when the glazed wall is fully opened
                                              • Single and double action pass doors available as
                                                moveable or fixed elements
                                              • No floor tracks necessary

     54       Integrating Style & Function
Silencio Single Glazed                                              Article No. Description                         Image




Moveable Wall                                                       56130      Twin point track, White RAL 9016,
                                                                               up to 3000mm


Glass Door Systems
                                                                    56100      Twin point hangers, (pair)
Product Overview
An attractive and simple to use fully glazed, glass to glass
moveable wall system, which blends in harmoniously within it’s      56161      Top door rail, SAA, up to
given surroundings. In their parked position the individual glass              1200mm (painted)

panels form a compact stack taking up only a minimal amount
of space in any room.                                               56162      Bottom door rail c/w lock-brush
                                                                               seals, SAA, up to 1200mm
NOTE:                                                                          (painted)
•   System to be fabricated to agreed structural opening sizes
•   For more detailed information please refer to our
    Technical Data Sheet available on request                       56140      Twin point ‘H’ stack parking area,
                                                                               White RAL 9016



                                                                    56141      Twin point remote stack parking
                                                                               area, White RAL 9016




           Glass Door Systems


For further information please contact us:
Tel: +44 (0)20 8545 6680 sales@coburn.co.uk www.coburn.co.uk                                           55           Integrating Style & Function
Next part ... Cancel
