Archival Grade DVD-R for Professional
MADE IN JAPAN
JVC Archival Grade DVD-R Recently, we have seen an increased demand to archive “digitized or analogue data” onto optical discs. Content such as “cultural heritage” in Europe, “official archives” in the U.S, make up a market that requires the archiving of important documents of government or general business which must not be altered or deleted. At the same time, recording, writing and read-back errors are happening because there are so many low cost optical discs that do not satisfy basic requirements, and unfortunately users do not know which optical discs are suitable for long- term archiving for extremely important data. We, Victor Advanced Media, take this demand seriously, and our Archival Grade DVD-R was developed to meet those critical requirements from the market. Archival Grade DVD-R incorporates all of the technology and know- how built from our 20 years of experience in the professional market. These products passed the ISO/IEC10995 test, the only international test standard that estimates the DVD-R archival life time. Our commitment is to deliver “security” to all of the users that demand long-term archiving, while contributing to the further development of the archiving industry. Our Archival Grade DVD-R passed ISO/IEC10995 test Optical disc manufacturers, including us, have been claiming archival lifetime based on the result of testing performed without critical test details or important factors for “long time data retention” clearly stated. The ordinary test method is simple: to test discs in a high temperature and high humidity chamber and take the average of the result in each condition to estimate the archival lifetime. However, ISO/IEC10995, which is only one standard in the world defining the test method for estimating DVD-R archival lifetime, is a highly reliable and strict method. First, the method takes fluctuations in disc quality into consideration, not simply taking an average. Secondly, the stress test breaks DVD-R in many different patterns, some of which unrelated to lifetime estimates. These patterns are eliminated from the test result and the method only focuses on “longevity”.
Our Archival Grade DVD-R was tested by Archival
Disc Test Center (ADTC). The test method complies
to ISO/IEC10995. The analysis states the data can
be retained safely for more than 30 years under
a temperature of 25 degree Celsius and with 50%
relative humidity.
* : The details of ADTC, visit http://n-adtc.org/
Our Archival Grade DVD-R is fully tested by an independent test laboratory
called ADTC-N in Japan. The test is conducted using the international standard
ISO/IEC10995. The certified results for our products depict an archival life of
more than 30 years. The logo is given to the products by ADTC to properly
certify these results. All the users can choose the proper products for long
term archiving by looking at the logo affixed to the products.
Low occurrence of initial writing errors
With long term archiving, the use of properly designed DVD-R and well-
maintained drives to maintain a low initial writing error rate is important
because discs with a high writing error rate could be easily impacted by
external conditions such as temperature and humidity, which could trigger the
risk of read back problems during the long term storage.
Essential disc parameters of our “Archival Grade DVD-R” are controlled at a
higher level when compared to standard DVD-R. Furthermore, frequency of
the inspection is approximately ten times greater in order to minimize the high
error risks caused by DVD-R disc itself.
Technologies that support long term archiving
Archival lifetime could be affected by the storage capability of DVD-R. It goes
without saying that rigorous specifications for the electrical and mechanical
characteristics of the DVD-R are important, but the raw materials used for the
DVD-R, such as reflective layer and organic dye, are also vital.
“Special Silver Alloy” is employed on the reflective layer
As you know, there are existing DVD-R discs that employ “gold” on the
reflective layer. Its purpose is to minimize the degradation of the layer during
long-term storage. However, generally speaking, reflectivity (an importantparameter for writing process) on gold is lower than that of silver. Simply
changing the material in that layer may cause an escalated writing error rate,
which affects the lifetime of recorded discs. Additionally, JVC use silver based
reflective layer because most of the drives in the market is designed with silver
reflective layer discs and the best compatibility between these are secured.
JVC Archival Grade
ERROR RATE LIMIT
DVD-R from shops
Gold Reflector DVD-R DVD-R from shops
Our Archival Grade DVD-R employs a uniquely devel-oped “special alloy” on
the silver based reflective layer to maintain suitable reflectivity so that long–
term storage capability can coexist.
Our standard
products ;
Silver
Roughness of
reflective layer 1.6 15.2
JVC
Archive Grade ;
Alloy of Silver
Roughness of
reflective layer 1 3.4“Uniquely Designed Organic Dye”
The design of the organic dye is also important for long-term archiving. Additives
developed in-house are used for the organic dye for our archival grade DVD-R.
This minimizes decomposition of the organic dye by heat or light during long-
term storage.
400
Organic Dye Only
300
Pl Error
200
100
Organic Dye with special additives
0
0 20 40 60 80 100 120
Time/hr
JVC Hard Coat Technology provides extra protection
A special coating on the recording surface creates a hard coating and protects
your important data from scratches, fingerprints, and dust.
Hard Coat surface Our standard surface
● 200 times more scratch resistant
● 7 times more finger print resistant
● 1000 times more dust freeStability and consistency in each production lot
‐Made Only In Japan-
Victor Advanced Media is the only manufacturer who can control all aspects
of its manufacturing. Our Archival Grade DVD-R is manufactured, even after
the acquisition of ISO certification, by exclusive production lines and quality
standards are set at the highest level. Our commitment is to minimize the
fluctuation of the products and to meet your strict storage needs.

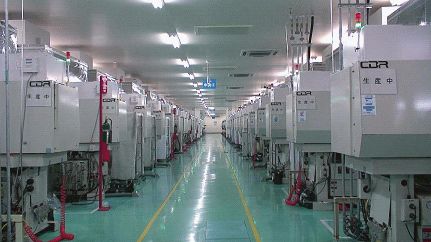

[Fully automated production lines, manufactured only in Japan]
Furthermore, stress/acceleration tests are carried out to each lot to ensure the
durability and reliability is high enough for “Archival Grade”.

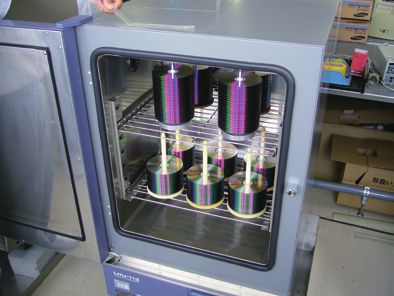

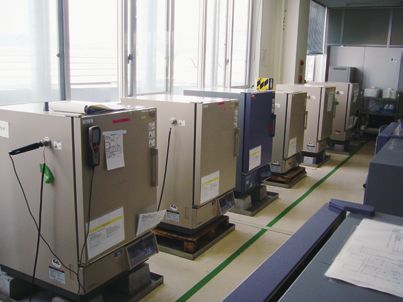

[Acceleration test to each lot]Specially Tuned up Drives and Error Checker
・Specially tuned-up drives provide the most suitable laser power for our
“Archival Grade DVD-R”, which minimize the occurrence of writing error.
・Drives have a “Self Diagnostic Function”. This function prevents drives from
running under unfavorable conditions (Such as laser power deterioration,
laser pick-up getting dirt/dust etc.) which minimizes the risk of high error
rate because of drive issues.
・Our user-friendly error checker analyzes the error rate without any complex
operation. You can measure initial writing error rate immediately after
writing or error rate during long-term storage for future migration purposes.
(Special Drive) (Error Checker)
・Optimized drive for JVC Archival Grade DVD‐R. ・Error measurement completes in 5‐6 minutes.
This drive used with JVC Archival Grade DVD‐R ・Easy‐Check can be done without connecting to PC.
achieves "low occurrence of writing error".
・Self‐diagnostic function
・Self-diagnostic function
DV-W5000S-76 (DV-W5000U) DK-5000S-VC (DK-5000S)
Disc Speed DVD+R 16X (CAV) Appricable Discs DVD-ROM, DVD-R, DVD-R DL
DVD+R DL 8X(ZONE CLV) DVD DVD-RW, DVD+R, DVD+R DL
DVD-R 16X (CAV) DVD+RW
DVD-R DL 8X(ZONE CLV) CD CD-DA, CD-ROM, CD-R, CD-R
DVD+RW 8X (ZONE CLV)
DVD-RW 6X (CLV) Disc Dimension 12 cm, 8 cm
DVD-RAM N/A
CD-R 40X (CAV) Measurement DVD PI Error Rate
CD-RW N/A CD Block Error Rate
DVD-ROM 16X (CAV) Single Layer Measurement time DVD Standard Mode: 10 min. 30 sec
DVD-R 16X (CAV) Quick Mode: 2 min. 30 sec
DVD+R DL 12X (CAV)
DVD-R 16X (CAV) CD Standard Mode: 6 min
Reading Speed DVD-R DL 12X (CAV) Quick Mode: 1 min. 30 sec
CD-ROM 40X (CAV) Interface USB 2.0
CD-R 40X (CAV)
CD-RW 32X (CAV) Loading Mechanism Disc Tray
Interface USB 2.0 Loading Lifetime More than 40,000 times (in clean environment)
Data Buffer 2MB Environmental Conditions Temp. Operating: 5~35℃
Not operating: -10~50℃
Loading Mechanism Disc Tray Tansportation: -20~55℃
Loading Lifetime More than 10,000 times (in clean environment) Humidity 15~85℃ (without condensation)
Environmental Conditions Operating: 5~35℃ Power 100~240V AC 50~60 Hz
Not operating: -10~50℃ Size 172W x 64H x 242D (mm)
Transportation: -20~55℃ Weight 1,350 g
Power 100~240V AC50~60Hz Manufactured by TEAC
Size 172W x 64H x 242D (mm)
Weight 1,350 g
Manufactured by TEAC
Subsidiaries of Victor Advanced Media Co., Ltd. A Joint Venture Company of Taiyo Yuden Co., Ltd&Victor Company of Japan, Limited.You can also read
