ATLAS Upgrade
Jon Taylor on behalf of the Liverpool ATLAS Upgrade group
J.Taylor Liverpool HEP Xmas Meeting 20/12/19
Liverpool build plans and ITk deliverables
• Liverpool share of ATLAS UK upgrade
grant: £1.9M
• ~30FTE CG-funded physicist, engineer &
technician effort (over 6 years)
• 500 pixel Modules
ATLAS Pixel TDR: CERN-LHCC-2017-021 ; ATLAS-TDR-030
• 500 strip Modules
• Procurement of all 15000+ strip barrel
hybrids.
• 3000 strip hybrids
• 110 strip stave cores
Timeline of Production Phase • 1 pixel endcap (assembled and delivered)
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 2
What’s new this year?
Reviews (PDR, FDR, PRR)
• ITk Strip detector modules - FDR passed, transitioning into pre-production phase
• ITk Pixel detector modules - PDR passed, transitioning out of R&D phase
Money
• New consolidated grant has all posts for ATLAS upgrade maintained
Old / new faces / roles
• WP20 Pixel Endcap integration (Helen and Tim)
• WP13 Pixel Endcap modules (Jon T)
• Strip software offline co-ordinator (Helen)
• Pixel EndCap project engineer (Peter S)
• 4 members of UK Tracker Upgrade Management team
• Liam Boynton moves from apprentice role to ATLAS Upgrade technical post
• Congrats to Carl Gwilliam on ATLAS lectureship - he will be sentenced to 6 months hard labour in the LSDC Gulag
• Thanks to Yanyan Gao who moved to Edinburgh but still continues to work with us on upgrade activities
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 3

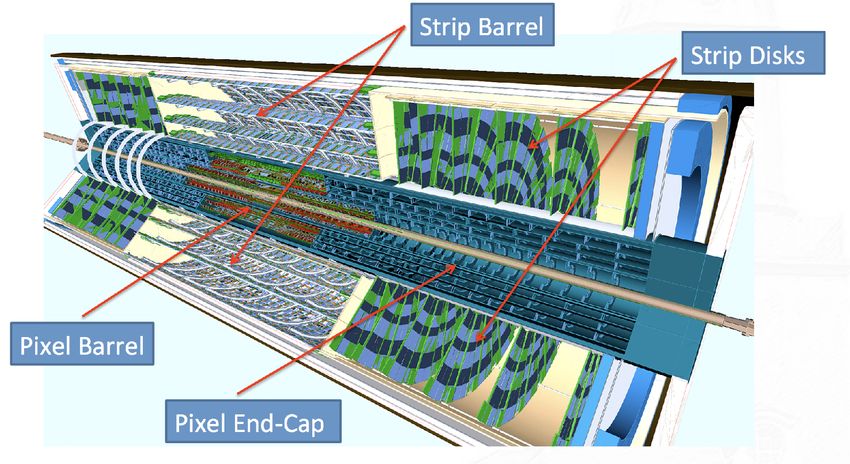

ITk layout - where strips fit in
• Replace the whole inner detector with the all silicon Inner Tracker system
• Pixel region:
• 5 barrel layers
• 4 layers of pixel rings 3 of which are in the end-caps
• Strip region:
• 4 barrel layers
• 6 strip disks in each end-cap
• Full detector hermeticity up to |η| = 4
• 7.5m long within 2T magnetic field
ATLAS Pixel TDR: CERN-LHCC-2017-021 ; ATLAS-TDR-030
• Strip System:
• ≈18k modules
• ≈60 million channels
• 165m2 of silicon
• ≈2 x1015 1MeV neq/cm2 dose
• Pixel System:
• ≈10k modules
• ≈100 million channels
• 10m2 of silicon
• ≈2 x1016 1MeV neq/cm2 dose
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 4

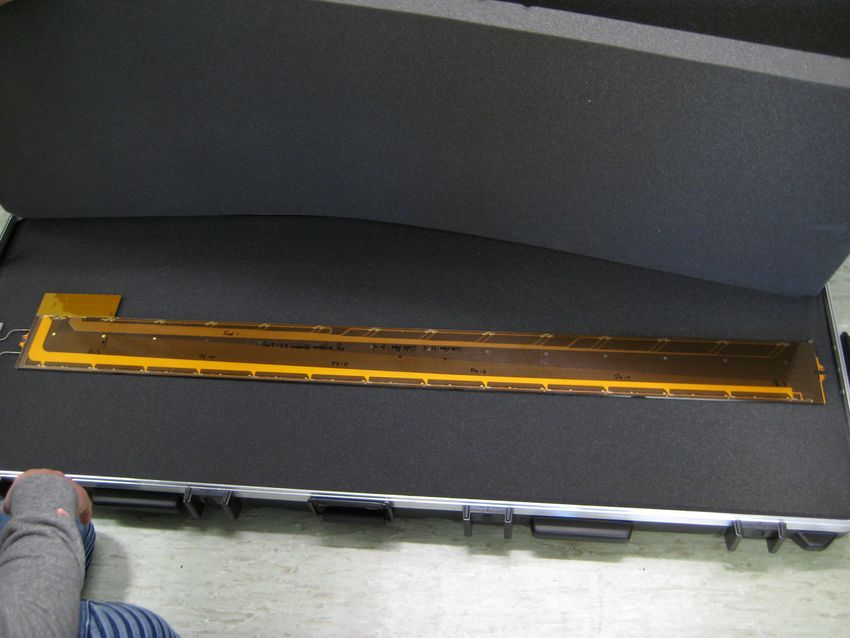

Stave Assembly
Tim Jones, Dave Sim (Stave Dave), Peter Sutcliffe
Hamish Teagle (PhD)
Assembled first 14-module stave at Liverpool this year
• Using basic assembly method from Oxford with
refinements from Liverpool
• All carbon foam parts have been manufactured in the
DFF
• Part of the tools for the whole collaboration have
been produced at Liverpool
• Will produce several more staves throughout 2020
Tiring work!
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 5

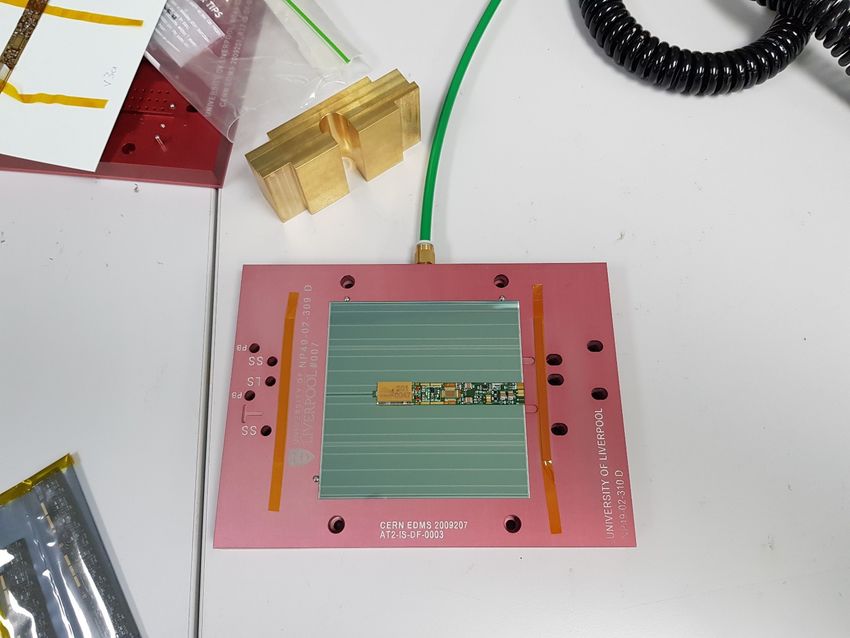

Barrel tools
New Tools for strip module assembly designed at
Liverpool
• First set of tools for each of the 6 UK groups have
been produced by industry with subsequent
metrology at Liverpool
• Successfully used in UK to assemble hybrid
• Final design for production to be produced begin 2020
John Carroll,
Sven Wonsak
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 6

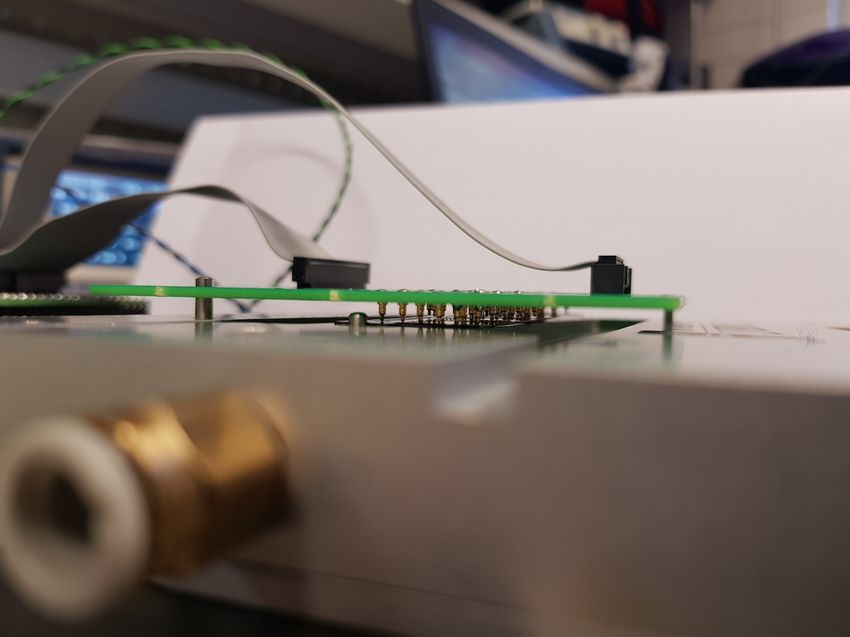

Hybrid QC
• For Quality Control,
produce test coupons
together with hybrids
• Developed test system for
coupons at Liverpool
–Arduino shield
–Pogo-Pin probe card
–LabVIEW software
• System installed at LBL
Liam Boynton, Ashley Greenall, Sven Wonsak
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 7
Hybrid crate
Designed Crate system for barrel hybrid
tests:
• Hybrid burn-in requires testing hybrids
for 100h at 40°C
• For mass-testing a crate system was
designed
• Allows to test 36 hybrids at 640Mbit/s
readout speed
Design: Ashley Greenall
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 8
Automatic visual inspection of hybrids
Original Annotated
• Scan all hybrids after passive attachment
–Look for solder splash and missing/wrong components
–1200dpi sufficient for bond-pad contamination at
reasonable file size
• Easy to use interface
• Future development: use Machine learning to fully
automate the process
Andy Mehta, Sergey Burdin, Sam Powell, Adam Ruby (PhD)
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 9
Hybrid and module assembly
Liverpool and RAL first groups that have built and tested barrel
strip hybrids and modules with the new ABCStar and HCCStar chips
Assembled mechanical hybrids for Glasgow and Sheffield for
module building tests (production work-flow)

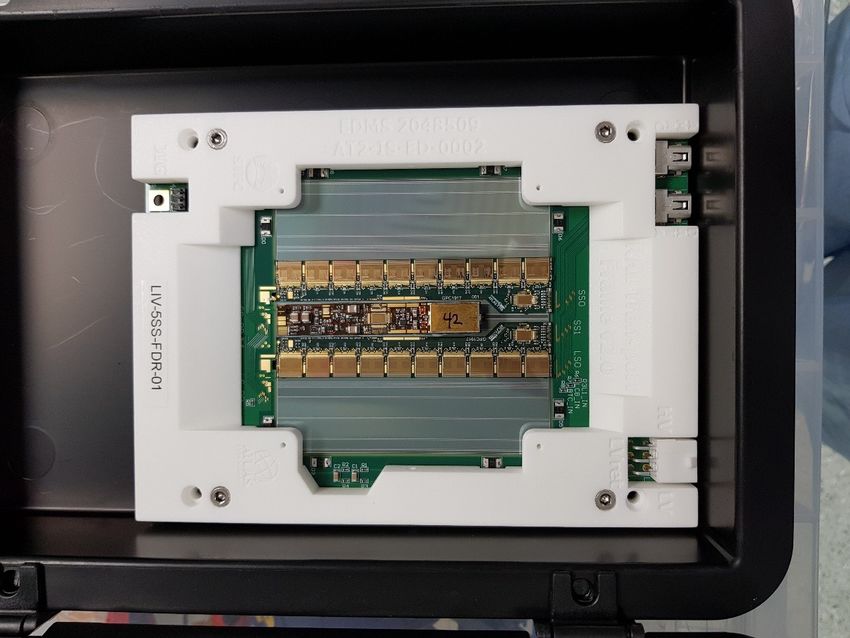

5-Module Short-Strip
segment for electrical tests
of most heavily loaded
multi-drop CCR (clock,
control) segment of stave
• 3 of those modules built
at Liverpool
Liam Boynton, Ashley
Greenall, Sven Wonsak,
Mike Wormald
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 10Next steps
• Strip Module Final Design Review has been passed (September 2019) with significant contributions from Liverpool
• Passing FDRs allow progression to pre-production
• Pre-Production:
– Produce 5% of total number of ITk modules for site qualification and ramp-up to production
– First sensors to be delivered January 2020
– First hybrids to be build at Liverpool in July 2020
– Module site qualification to be completed: November 2020
– Module Production Readiness Review: December 2020
– Module pre-production to be completed: 2021
– First staves due to arrive at CERN c2022, work at CERN beyond current production grant - completion bid to be
submitted during 2020, opportunity for Liverpool?
If something is expensive and hard to build, why not
set it on fire?
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 11ITk layout - where pixels fit in
• Replace the whole inner detector with the all silicon Inner Tracker system
• Pixel region:
• 5 barrel layers
• 4 layers of pixel rings 3 of which are in the end-caps
• Strip region:
• 4 barrel layers
• 6 strip disks in each end-cap
• Full detector hermeticity up to |η| = 4
• 7.5m long within 2T magnetic field
Serial Power: "A physicists
ATLAS Pixel TDR: CERN-LHCC-2017-021 ; ATLAS-TDR-030
• Strip System: dream and engineers nightmare!”
• ≈18k modules
• ≈60 million channels
• 165m2 of silicon
• ≈2 x1015 1MeV neq/cm2 dose
• Pixel System:
• ≈10k modules
• ≈100 million channels
• 10m2 of silicon
• ≈2 x1016 1MeV neq/cm2 dose
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 12Half-cylinder tooling
Epoxy tooling board Master Lay-up with HX42 tooling pre-preg
Peter Cooke, Paul Sinclair,
Warren Jones, Tim Jones,
Peter Sutcliffe, Helen Hayward
Vacuum bag & cure Final secondary mould
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 13Half-cylinder tooling
End-flange tooling
Cut end-flange laminae (M55J/EX1515)
Peter Cooke, Paul Sinclair,
Warren Jones, Tim Jones,
Peter Sutcliffe, Helen Hayward
Lay-up M55J/EX1515 end-flanges Final end-flanges removed from tool
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 14Half-cylinder tooling
Integration of end-flanges Completing the lay-up
Peter Cooke, Paul Sinclair,
Warren Jones, Tim Jones,
Peter Sutcliffe, Helen Hayward
Add pressure plate Cured Half-cylinder & mould tool
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 153D services routing and integration
1.HV TP36 x 44
2.LV TP18 x 6
3.CAN TP32 shielded x 22
4.LV TP18 x 10
5.VCAN TP32 x 22
6.Tilock TP32 x 22
7.LV TP18 x 6
Dark Pink: TwinAx x 13 Rings 1,2,3
Green: TwinAx x 13 Rings 4,5,6
Blue: TwinAx x 5 Rings 7,8,9,10,11 – considerably less
phi-space used, now there is room for cable clips and
guides!
Tim Jones, Peter Cabling mock-up in
Sutcliffe, Helen Hayward 2020 to verify design
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 16Pixel module building and QC
3267-10-Q4 1
150
120
I bias, nA
90
Burn-In
60
After 1h
30
Glued
0
0 50 100
V bias, V
150 200 250
2
Modules with new hybrid flex have been built at Glasgow,
3 Oxford and Liverpool, QA carried out: 4
1. IV’s of bare/assembled module
2. Hybrid flex QA
• 10A current test on power rails
• HV test with 1.5kV to look for pin-holes
• Resistance of power rails over time
3. Metrology of module
• Optical inspection
• Mass measurements
• Measure flatness of chips Ilya Tsurin, Paul Dervan,
4. Tuning / source tests on module transport card Shen Wang, Jon Taylor,
Yanyan Gao
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 17Endcap demonstrator Ring-0
Transport frame
Module loading at RAL Dummy module on ring
Ring-0 in test box
• L3 ring with one quadrant fully populated with 12 electrical quad modules (6/side)
• 4 electrical quad modules built by each of the UK module building sites
• Readout with HSIO-II (RCE) DAQ using all 18 data links
• Patch panels above ring for cable saving board and CPLD interlock for monitoring of T & RH
• Cooling via chiller with water monethylene-glycol flushed through Ti cooling pipe + cool air
• Constant current source used to supply serial power (SP)
• SP on both sides of HR joined to form single SP chain 12 quad modules long
• Sr90 source mounted on moveable arm attached to rotary stage and stand
• Python code developed by A. Taylor allowing scanning movement in steps ofEndcap demonstrator Ring-0
Mean noise value / FE in SP chain
SP
• Combined I-V of modules reflects sensor spec of V_Breakdown > Vdep + 70V - Micron make
very nice silicon!
• Parylene coating of RD53A quads will allow safe operation up to >= 200V
• 37MBq Sr90, source scan HV, Side A
• Automated positioning with motorised stage developed using a rotary stage rather ~250nA @ -100V
than the linear one used in OB demonstrators
• Allows check of disconnected bumps after module loading
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 19Pixel module QA
Paul Dervan, Ilya Tsurin, Disconnected bumps as a function of thermal cycles
Shen Wang, Jon Taylor, Joe
Bryan (MPhys)
HV cycling to 1kV after parylene and irradiation
LN2 cooling system Parylene Coater
• Destructive testing of pixel modules via thermal cycling and HV cycling and thermal shock
• Allows exploration of failure modes that could occur during integration or operation of ITk pixel
detector
• Bump bond disconnection, delamination, HV dbreakdown
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 20RD53A quad module building program
Designed by Ilya Tsurin
Market Survey test beam reconstruction
Designed by Ilya Tsurin Ricardo Gonzalez (PhD), Matt Sullivan (PhD), Yanyan Gao, Shen Wang, Paul Dervan
Monica D’Onofrio, A. Biondini (PhD), QT starting
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 21Next steps for pixels
• Pixel Module and local support Preliminary Design Reviews has been
passed (October 2019) with significant contributions from Liverpool on
hybrid design and module building and half ring manufacture
• Passing PDR allows progression to FDR
• 2020 will focus on finalisation of all parts of design for FDR
• The building of a new pixel demonstrator (Ring-1) will commence after the
the next round of module building with the new pixel chip RD53A
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 22Thanks and end
A lot of work from many
dedicated people, looking
forward for an intense 2020,
also with further contributions
from our academics :)
Merry Christmas!
Thanks to all staff in the DFF (Workshop), the AML, LSDC and HEP Computing
support who made all of the work presented here possible
J.Taylor Liverpool HEP Xmas Meeting 20/12/19 23You can also read
