Compressed Baryonic Matter

 Joachim Stroth, Goethe-Universität / GSI
 Koordinator Verbundprojekt C.B.M.@FAIR

20.05.20

Experimente der FAIR Forschungssäule Compressed Baryonic Matter
Verbundprojekt: ErUM-FSP C.B.M.

 HADES CBM
 120 Mitglieder 500 Mitglieder

Cosmic Matter in the Laboratory
QCD matter at the highest baryon densities

Open questions at finite Simulation of a NS merger event. General relativity “meets”
 o Equation-of-State at high net- QCD matter equation of state (EOS).
 baryon densities?
 o Role of condensates?
 o Role of meson cloud?
 o Origin of mass?
 o Nature of confinement?

Challenges

Theory Simulation of a heavy-ion collision at SIS18 energies.
 o non-perturbative Laboratory for many questions related to the QCD EOS.
 o sign problem (lQCD)

Experiment
 o finite size and lifetime
 o rare diagnostic probes

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 2

FAIR Phase-0
The exploration of the QCD phase diagram has started

Successful run in March 2019 for
Ag-Ag collisions at = 2.6 GeV.
 q 15 Billion Events in 30 days

 q RICH detector has been equipped
 with new photo camera using the
 CBM MAPMT and jointly developed
 read-out electronics.

 q Photon camera boosted the lepton
 pair detection capability by a factor
 ten.

 q First time dilepton pairs beyond 1
 GeV invariant mass

 q Data can be used to study detector
 response in all details and to
 introduce it to the CBM performance
 studies

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 3

FAIR Phase-0
CBM time-of-flight (RPC) enables STAR FXT program

36 CBM RPC modules have been
installed at the end-cap of the STAR
detector.
 q Extends the Beam Energy Scan down
 in energy by run STAR in fix-target
 mode.
 q BESII running from Dec. 2019 – 20th
 of Mar. 2020 (corona break, restart
 planned for June).
 q Fixed target program completed,
 about 100 M events for each energy
 (7.7 GeV, 6.2 GeV, 5.2 GeV, 4.5 GeV,
 3.9 GeV, 3.5 GeV).
 q System time resolution better than 85
 ps, PID capability demonstrated.
 q Perfect test bed to study the detector
 performance

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 4

FAIR Phase-0

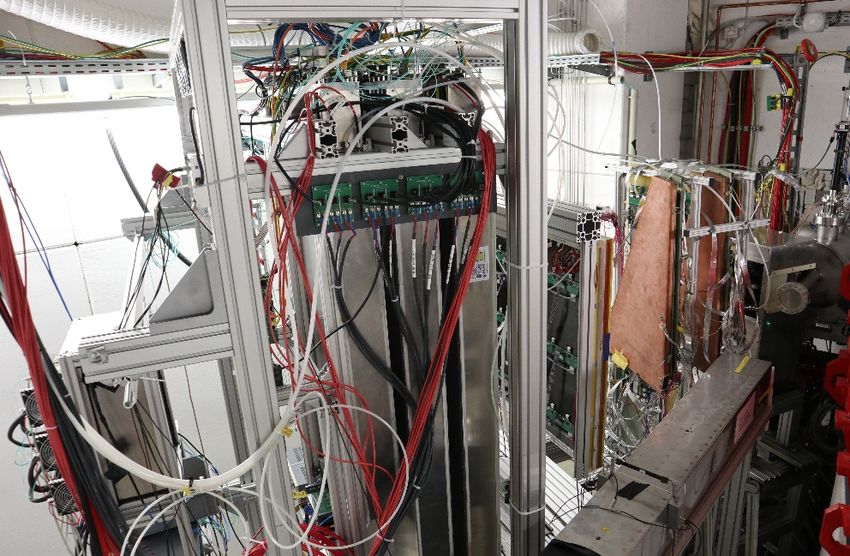

 mCBM: commissioning the free-streaming data taking

Prototypes or FOS CBM detector modules
are combined to a single-arm detector
station at SIS18 with full read-out chain to
the Green Cube. mS
 mTRD TS
 q Enables detailed test of hardware and mMUCH
 firmware under realistic beam conditions. mTOF
 q Many test runs in March to May 2020 mRICH

 SD
 possible (under “Corona conditions”)

 mP
 q Program will continue up to runs aiming at April 2, 2020
 measurements of weak decays with full rate.
 preliminary
 q Achievements this year:
 o Correlations between spatial coordinates of
 reconstructed hits from mMUCH, mTOF and
 mRICH.
 o [200ns] correlations of subsystems in the
 common, synchronized data stream.
 o First steps towards verification of the free-
 streaming read-out concept.
 April 2, 2020

 20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 5

CBM Projects: Status and Coordination

Silicon Tracking System
o Head: Prof. H.R. Schmidt, Univ. Tübingen 0
o STATUS se-
 a N
o Funding: Germany, Russia, Poland Ph M@
 GSI, JINR Dubna, KIT, INR Kiev, AGH und UJ Krakow, B
 Univ. Tübingen, Warsaw UT

Hifg-rate MRPC TOF Detector
 0
o Head Dr. I. Deppner, Univ. Heidelberg
 se-
 German members: Prof. T. Galatyuk, TU Darmstadt
 P ha AR
o STATUS ST
o Funding: Germany, Romania, China
 THU Beijing, NIPNE Bucharest, GSI Darmstadt, TU Darmstadt,
 IfI Frankfurt, USTC Hefei, Univ. Heidelberg, ITEP Moscow,
 HZDR Rossendorf, CCNU Wuhan

Micro-Vertex Detector
o Head: Prof. J. Stroth, Univ. Frankfurt am Main
o STATUS
o Funds: Germany, France:
 Univ. Frankfurt, IPHC Strasbourg

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 6

CBM Projects: Status and Coordination

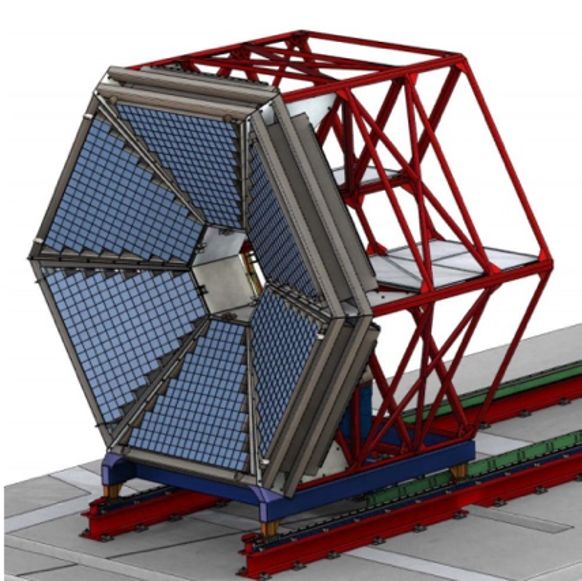

Ring Imaging Cherenkov Detector
o Head: Prof. C. Höhne, Univ. Giessen,
 Prof. K.H. Kampert, Univ. Wuppertal e-0
 as S
o STATUS P h ADE
o Funds: Deutschland, Russland H
 Univ. Gießen, Univ. Wuppertal, PNPI Gatchina (read-
 out is joint development of CBM and HADES)

Transition Radiation Detector
o Head: Prof. C. Blume, Univ. Frankfurt,
o Add. German members: Prof. P. Fischer, Univ. ?
 Heidelberg
o Nfl. Prof J. Wessels, Univ. Münster
o STATUS
o Funds: Deutschland, Rumänien
 NIPNE Bucharest, JINR Dubna, Univ. Frankfurt,
 Univ. Heidelberg, Univ. Münster, WI Budapest

DAQ, First Level Event Selection
o Head: Prof. V. Lindenstruth, Univ. Frankfurt,
o Add. German members: Prof. I. Kisel, Prof. U. Kebschull,
 Prof. A. Toia, Prof. A. Reinefeld, Berlin
o STATUS
o Funds: Deutschland, Polen
 Univ. Frankfurt, FIAS, GSI, KIT Karlsruhe,
 IIT Kharagpur, Warsaw UT, ZIB Berlin

 20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 7

CBM während FAIR Phase-0

mCBM (GSI): HADES (GSI): The endcap Time-Of-Flight
 STAR (BNL/RHIC): BM@N (Dubna):
Supported by VF Supported by VF (MDC Currently no support Supported by Roadmap
 FEE upgrade) from VF Program

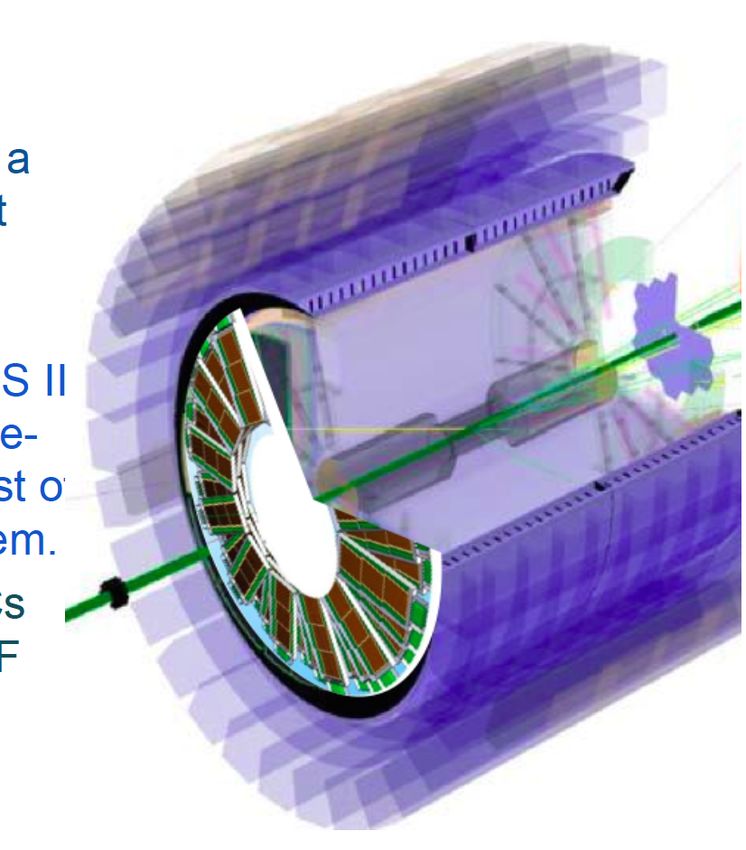

 • Compressed Baryonic Matter
 Experiment (CBM) institutions
 proposed installing CBM TOF
 modules (10%) inside east pole-tip
 • Acceptance: −1.6 < η < −1.1
 • Provides STAR with an endcap TOF
 for BES-II
 • Provides CBM a large-scale integration
 test of the CBM TOF system
 • Adds the lower energy (fixed target)
 community to the RHIC/STAR
 program

 All Giessen, Heidelberg, Tübingen
 Wuppertal TU Darmstadt
 07/01/2016 Alexander Schmah - STAR Upgrades 11

2015 2016 2017 2018 2019 2020 2021 2022 2023

 a te
 HADES@SIS18
 d
 pBESII (STAR)
 s u
 e d
 N e
 BM@N

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 8

Upgrade Projects

Until 2018
(upgrade completed)
 0
 o Installation of CBM/HADES photo-detector and ECAL se-
 a
 o Install new forward detection system including Straw Tracking P h CBM
 System (STS) and forward RPC

2018-202x
(experiment campaign at SIS18 - FAIR phase 0)
 o DAQ und MDC FEE upgrade – 200 kHz interaction rate (needs 300 D ES
 IR
 kEUR for MDC-FEE) HA FA
 o Backward neutron detector (neuLAND modules) @
 o Strong physics program at SIS18, 1 run per year using secondary
 pion, proton and Silver beams

 HADES acceptance:
2022 on 18o

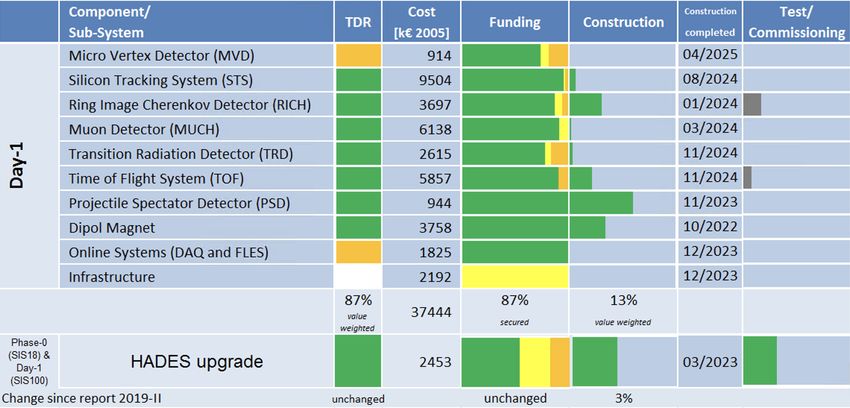

Overall Project Status

CBM prepares (and is on track) for FAIR Day-1 Physics from 2025 on. HADES is continuing the physics
program at SIS18 as long need and will move to the new cave after CBM is installed.

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 10

Status Construction MoU & Common Funds

 ro m e
 t f l b
 p u w il e
 n
 I en e r
 rg d h
 ü
 J lud e
 in c

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 11

Fundssempfehlung CBM/HADES (C.B.M.)

Kurzfristige Nachanträge bis 29. Mai
 q Komplettierung FAIR – Phase-0 (ab 2018)
 q Fortführung R&D, Beteiligung Phase-0
 q 1.600 k€ Investitionsmittel (Core Invest und R&D)
 q Erhalt des Personalbestandes bis 31.12.2018

VF-Förderperiode 2018 – 2021
 t e
 VF-Förderperiode 2021 – 2024

 a
 d
 q Aufstockung Personal fu r Betrieb Phase-0 und • Personal für Betrieb Phase-0 und Aufbau Phase-1

 p
 Serienfertigung Detektoren • Substanzielle ‚Common Funds‘ fu r Infrastruktur und

 u
 q Funds Detektorbau Betrieb

 s
 q Substanzielle ‚Common Funds‘ für Infrastruktur • Vollausbau der Detektoren

 d
 und Betrieb

 e
 q Vollausbau der Detektoren

 Core invest
 (2005 M€)
 N e
 BMBF letter
 Sept 2016
 Allocated to
 date
 Call 2017* Period
 2018-21*
 Period
 2021-24*
 Total
 requested
 APPA 4.1 1.14 0.3 2.7 - 4.1
 CBM 3.8 0.35 0.2 3.4 1.7 5.7
 NUSTAR 4.6 3.48 1.2 - - 4.6
 PANDA 7.9 2.99 2.0 1.8 1.1 7.9
 Total 20.4 7.96 3.7 7.9 2.8 22.3

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 12

CBM Collaboration
Deutsche Head:en
 • FLES: Univ. Frankfurt (Lindenstruth)
 • MVD: Univ. Frankfurt (Stroth)
 • RICH: Univ. Gießen (Höhne)
 Univ. Wuppertal (Kampert) MDC
 •
 •
 STS: Univ. Tübingen (Schmidt)
 TOF: Univ. Heidelberg (Herrmann)
 at e
 • TRD: Univ. Frankfurt (Blume)

 p d
 u
 464 (272 PhD)

 d s
 ee
 N

20.05.20 Joachim Stroth, Goethe Universität Frankfurt / GSI, C.B.M. Strategie 13

HADES Collaboration

Deutsche Head:en und -beteiligungen
 q RICH TU München (Friese):
 q CERBERUS TU München (Fabbietti):
 q MDC Univ. Frankfurt (Stroth)

 TU Darmstadt (Galatyuk)
 Univ. Gießen (Höhne)
 Univ. Bochum (Ritman)
 Univ. Wuppertal (Kampert)
 135 (96 PhD)
