1960’s
vertical living
connecting horizontal +
serina hijjas 18I03I2019 ICTC

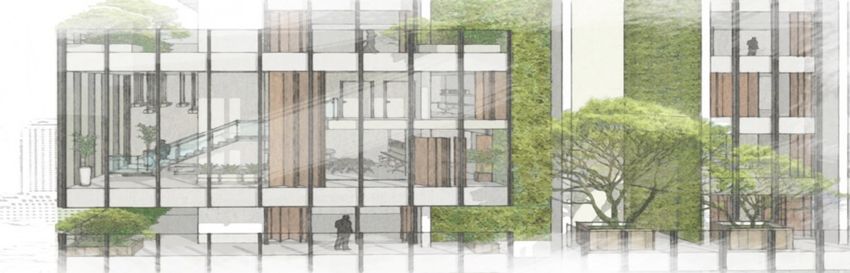

New vertical workspaces
this is celcom territory
conventional hybrid core
Productive, modern, agile & digital, Paperless & hot desking
39 32
21 53.

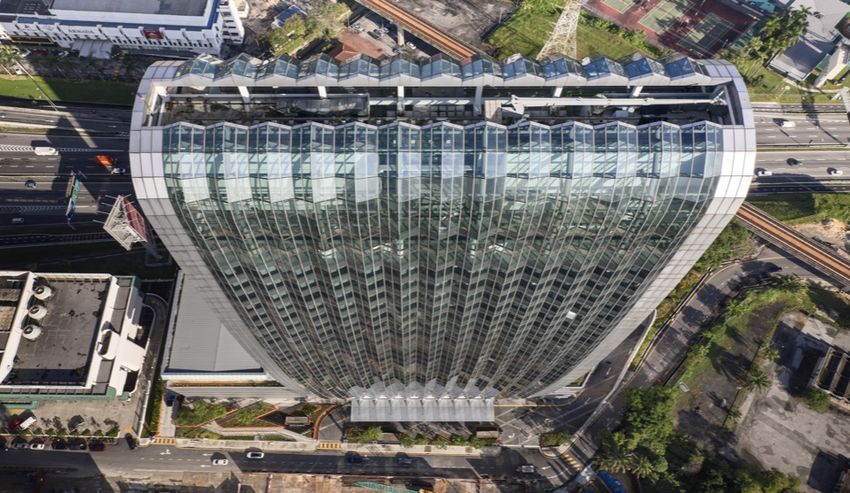

BEI : 121.07 KWh/m2/yr
50% ENERGY REDUCTION FROM
TYPICAL HIGH RISE OFFICE.EE Project
Carbon Credits
Specific, additional
Baseline measures to reduce project
Emissions emissions below the Project
baseline Emissions
GBI certified / LEED gold 115 -120 kWh/ m2-year
250 kWh/m2-year
150 kgCO2/ m2-year Emission Reduction = 130 kgCO2/ m2-year 69- 72 kgCO2/ m2-year
Emission &
Energy ReductionsSingapore
66sqm
rd
urban Green space
3 densest city in the world
The urban green space provision using
the standards approach- abstractPUTRAJAYA
55sqm Urban Green space
By 2025
http://www.ppj.gov.my/cpnavigation/general/
Towards_Putrajaya_Green_City_2025_Inventory_of_Putrajaya_GHG_Emissions_2012.pdfMalaysia
9sqm urban Green space
With a national target of 20sq m
The urban green space provision using
the standards approach- abstract- 2016in the ideal world …..net zero
carbon buildings, green and
resilient cities, 50% or more
renewable energy….more green
space, clean water and clean air,
community spaces, density &

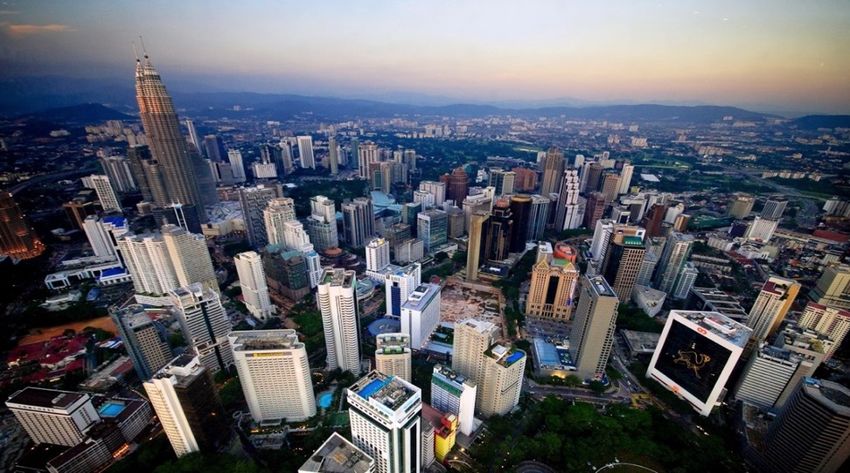

better living spaces...Kuala Lumpur 1.77 million Greater Klang Valley 7.20 million
1.67 million by
night2.9 million
by day

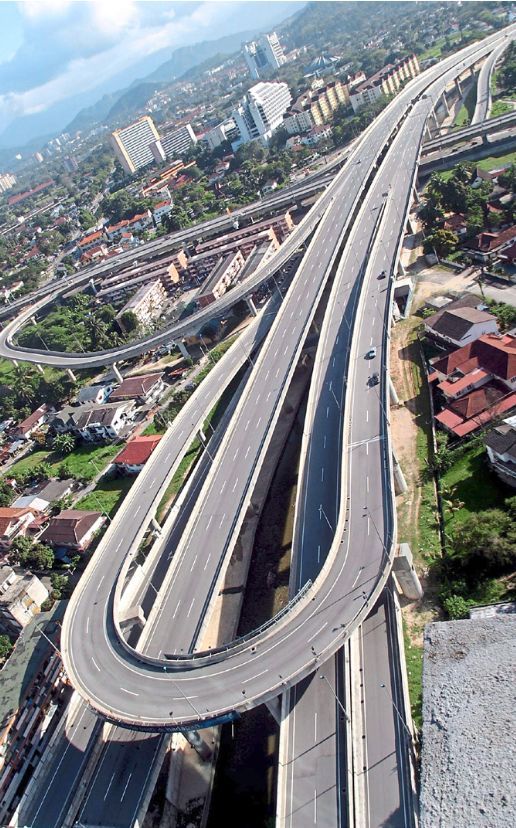

connections at a
human level
is ever shrinkingPeople ,
communities
& the ecological
connection

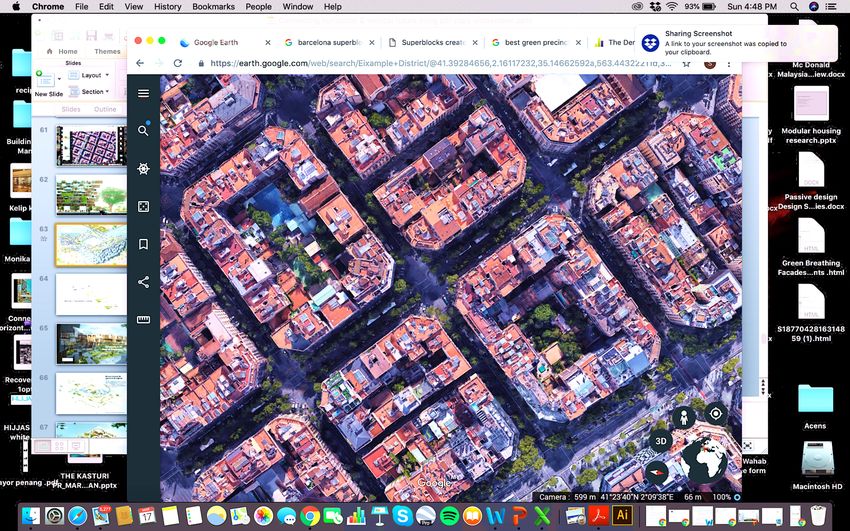

for our future proofing we need
to increase the green connectors
within the public realmSeoul 7017
a symbol of the city's
people-centered
urban renovationThe connection between green space and human well-being is so intuitive as to seem axiomatic….citylab Population 9.9 million
Today we design for 10% landscape Tomorrow’s future will need 80% landscape
• key driving concepts for the
building
“Hidden Treasures”
“Connectivity”
“Plug In Spaces”
• The peeling over of the earth is
a gestural feature reinforcing
the concept of the Green
continuum around the water

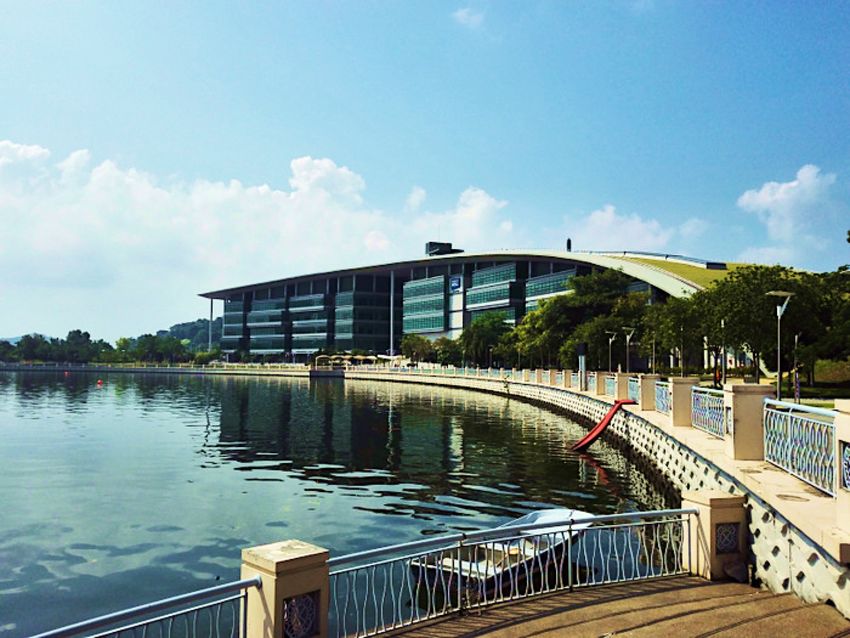

Ecological Urbanism is edge of putrajaya
starting to emerge by
necessity• Water harvesting for • Uses • 12% of the built up planting surrounding 103.5kWh/m2/ is Connected to the site with Special year of Putrajaya’s light weight soil for energy district cooling roof
CITYCAMPUS 67% Green
Horizontal Living
§Horizontal ecological connection
§social layered living
§Sense of community/microcosmUrban and social
mapping of
surrounding
enclaves and how
to connect them
to these mini
metropoles will
be a priorityContextual Connectivity
• consideration the connectivity
of the development to
surrounding essential nodes,
commercial, transportation hub,.
• Creating a central converging
axis from all these nodes
becomes the formwork of the
communal center.
16m 26m
12.2m 20m 16m 16m 10m 12.2m 13m
PROPOSED SECTION
EXSITING SECTIONConnection to
existing
neighbourhood
fabric
e
creating another
stratified
level of livingXian Housing
vertical terrace house
living.Lift Core & Staircases
Zoning Strategy
The formation of the planning of the
Penthouse Unit building clearly identifies the vertical
Duplexes zoning of the services, support spaces and
+ Single Floor Unit
Duplexes
living & private zones. However there is a
+ Single Floor Unit very interesting twist to this planning
Duplexes
+ Single Floor Unit allowing a greater sense of private and
Duplexes
Lobby &
+ Single Floor Unit
public zones in the apartments by
Facilities Level interlocking the spaces horizontally and
Basement vertically. The introduction of vertical
Parking
staircases to bedrooms, and stacking the
Vertical Zones apartments in different interlocking
shifting spaces makes for very simple but
unique planning not seen in Kuala Lumpur
Penthouse Unit
apartment living.
Penthouse Unit Penthouse Unit
Type 7 Type 8
Duplexes Unit +
Single Floor Unit
Duplexes Unit +
Single Floor Unit
Duplexes Unit +
Single Floor Unit Duplex Unit
Type 4
Duplexes
DuplexesUnit
Unit++
Single
SingleFloor
FloorUnit
Unit Duplex Unit Single Floor Unit
Type 3 Type 6
Single Floor Unit
Facilities Level Type 5 Duplex Unit
Type 2
Basement Carpark
Duplex Unit
Type 1
Tower Modulation Module BreakdownThe concept of the
apartment was inspired by
the idea of the building
block game jenga which
means to build in
Swahili . The form of
jenga inspired the idea of
creating a series of
living places that where
made of open and enclosed
spaces, solid and void
garden spaces, terraces
and rooms, gardens and
living spaces creating and
interesting place to live.
abstraction of
buildingHigher Living
§Layered Horizontal ecological
connection
§social layered living
§Vertical & horizontal Breezeways
§Sense of tropical community/microcosm
for our future proofing we need
to increase the social & green
spaces vertically“a man’s heart away from nature becomes
hard”
Chief Luther Standing BearIn the
tropical
environment we
maximise the
ecological
ground plan.Top of Tower
+ 169.60
Sky Garden Sky Garden FFL
Level 39 + 163.60
Infinity Pool & Games Room
Level 35
Gourmet Kitchen,
Wine Cellar
Level 30
In-house Cinema
Level 25
Zephyr Function Room
Level 20
housing. Fitness Centre/Gym
Reading Room
Level 15
Level 10
Business Centre
Level 05
Podium FFL
+ 16.05 Main Amenity Deck
Level 0 Public Park
+13.00
Lobby FFL
+ 0.00
Basement 4 FFL
- 14.40Zoning Strategy
As with the form, the spatial arrangements are also interlocked and modulated.
Combination of this spatial arrangement is a series of juxtaposition of both
positive and negative spaces.
Vertical Zones Interlocking Spaces Typically, the tower is broken up into a series of community ‘modules’ which are
basically stacked on top of each other in a series of simple repetition but diverse
in expression. The residential tower module is the basic building block for the
tower; each with a dedicated Sky Court and Sky Decks to denote. This ultimately
creates a sense of ‘neighbourhoodness’ in an other repetitive and stratified tower
arrangement.
As for vertical circulation; the tower is broken into 2 zones; low and high. However
both zones can access to the roof top and basement levels directly.
Public realms is generally at the ground floor podium area and Roof Garden
whereas limited access is given to the Sky Decks and Podium Amenity.
“The residential tower module is the basic building
block for the tower; each with a dedicated Sky Court
Tower Modulation
and Sky Decks to denote it.”2
6
5 6
2
4 1 3 1 7
6
Green Plot Ratio
Civic spaces 6
Green vertical 2
township type J: sky garden:
apartment units + lap pool level 35
Energy level 43
Food Network of
Water Community &
Social Space.
Cores
& ServicesVertical Living
§Vertical ecological connection
§Sustainable Strata living
§Sense of community/microcosm
§Social spaces versus density
livingIn the 60’s, the emergence of the first 17 storey high rise low cost towers were considered ground breaking, as seen by the Pekeliling Flats. This was later echoed in Penang by the Rifle Range Flats. With the density of 94 units per acre, the average dwelling measured only 340 square feet; deemed sufficient to house a conjugal growing family. Today we call those dwellings as micro units, livable only for one or two. creating livable communities
Is this our only future? Livability vs Density Liveable communities that anchor the ground with clusters based on connecting and promoting social interactions within the community and to the environment, This creates a distinct identity for the Community to relate to whilst providing them a sense of place
Sustainable Design
Can we build
affordable
housing
that is dense but
responds to our
environment
Eco-Friendly Dwelling
The proposal presents an innovative and sustainable
design which enhances the socio economic aspects of
a Public Housing Complex in addition to the Energy
& Water Savings design.Passive shading
15-25 degree tilt
Connected to
the ground
but achieving the
density 180-190
per acre in 8-12
storeysintroducing
Pixels are grains of resolution that clump
together to create the bigger picture. Pick
Pixel is simply a matrix for people to
choose how, where and what kind of
house they want to live in.
With whatever individual preference they
pick, their dwelling will contribute as a
pixel that colours the living community as
a whole.
The idea is that as architect, we allow the
ability to customise and express bespoke
freedom of individuality between each
house to their owners.Vertical + horizontall Living
layered social spacesThe community would build their own houses with each dwelling portraying a distinct individuality from his neighbour. Dwellings are not just a home to come back to, Contextual Study but also a place to express oneself, Community in the therefore events and gatherings would take Heart of Georgetown place on their very own doorstep.
Environmental
perspective
Centralized Chilled Rainwater Efficient Self Shading Energy Efficient
Enhanced
Water System Harvesting Water Fittings Facade Equipments
Thermal ComfortBalance between the Lowrise & the Highrise Through studying the changes in Penang’s urban landscape throughout the years, the project re-evaluates the significance of public spaces in connecting different parts of an urban community. We explore high density medium rise in a
The complexity of end-user freedom of design may seems like a complex way of designing apartment units, not unlike the Kowloon Walled City. Therefore, the research strives to establish the parameters that govern and balance the design as a whole, without compromising on the ability to customise and express bespoke freedom of individuality within each pixel.
the ground plane
Dropoff
Food Stalls
Retail Retail
Area Area
Dropoff
Library
Wet Market
Area
Surau
Central Dry Market
Park Area
Dropoff
Community
Hall Retail
Prefunction Area
Food Stalls
Dropoff DropoffSection - Completion
Much like a grounded community, inhabitants are not
only taking care of the spaces within their area,
but also the community spaces surrounding the. This
encourages social neighbourhood
Elevation – Under Construction
Houses are stacked one atop another, each with a unique
characteristic that overlooks the rest of the
neighbourhood surrounding a central green spaceModular Construction Methodology
