DEALER PROGRAMME
CONTENTS
Contact & Introduction p. 4-5 For bench grinders p. 36-37
⊲ Flap wheels
For the angle grinder p. 6-21 ⊲ Accessories for flap wheels
⊲ Cleaning discs, REX FLEX
⊲ The 3 new quality lines
For the finishing and
⊲ Cutting Discs
polishing machine p. 38-41
⊲ Grinding discs
⊲ Flap rolls
⊲ Flap discs, POWERFLEX
⊲ Interleaved finishing flap rolls
⊲ Flap wheels
⊲ Nonwoven finishing flap rolls
⊲ Double-sided grinding discs, TWINPOWER
⊲ Felt polishing flap rolls
⊲ Interleaf flap discs, HYBRID
⊲ Flap discs, SCM (Surface Conditioning Material)
⊲ Unitized finishing discs Hand sanding p. 42-45
⊲ Felt flap discs
⊲ Shop rolls

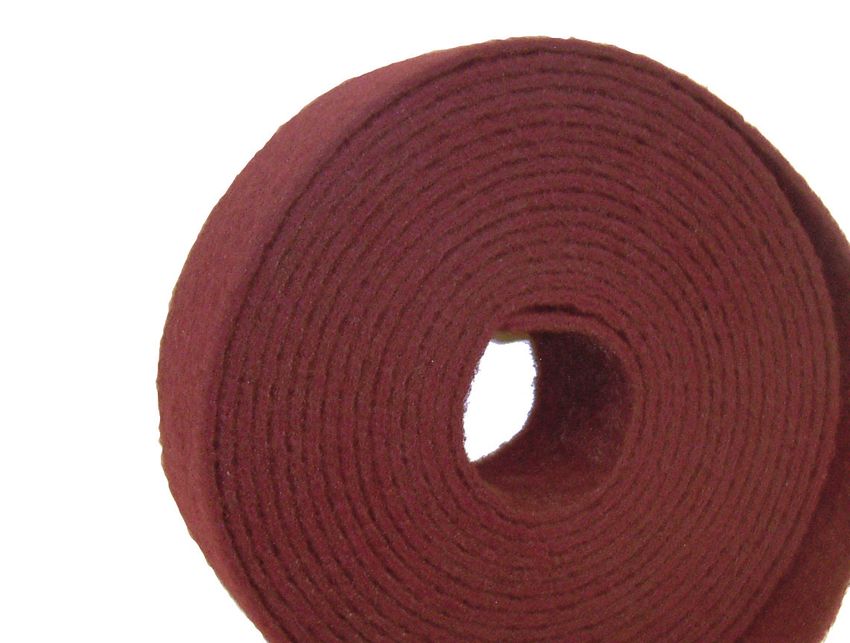

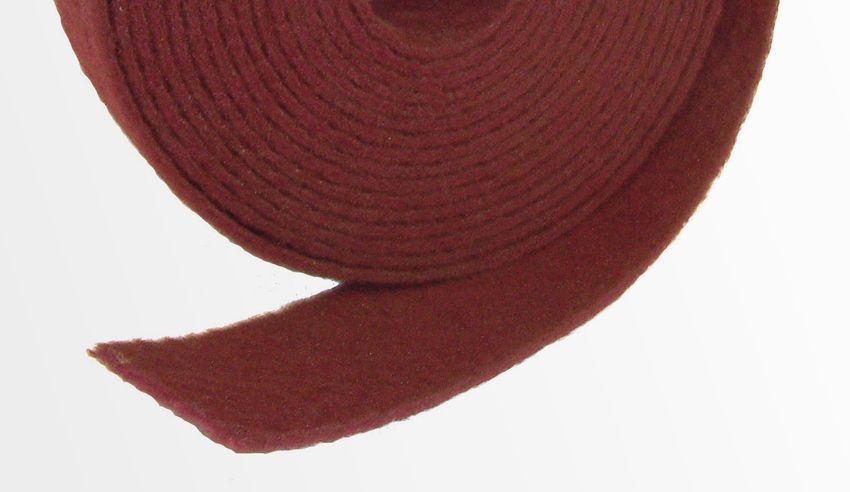

⊲ Nonwoven handi rolls

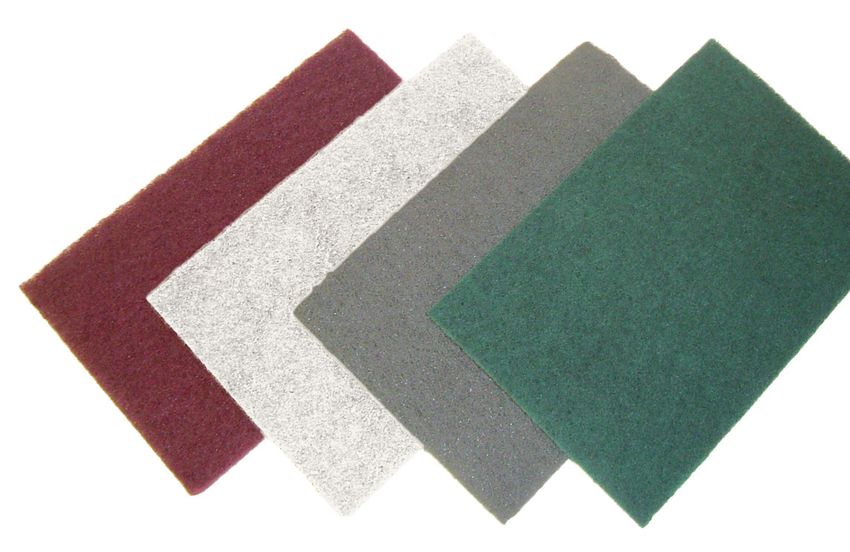

For the mini-angle grinder p. 22-25 ⊲ Nonwoven hand pads
⊲ Mini flap discs, POWERFLEX
⊲ Quick-change discs G-WENDT FPM230 – Finishing and
⊲ Quick-change surface conditioning discs Polishing Machine p. 46-53
⊲ Accessories
⊲ G-WENDT FPM230 – base version

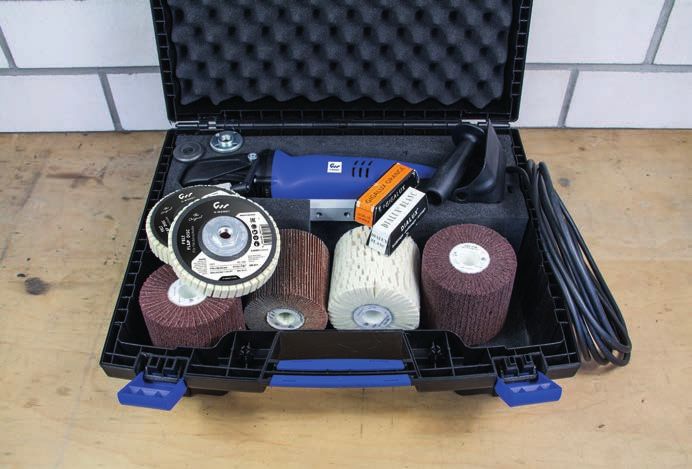

⊲ G-WENDT FPM230 – plus product set
For the straight grinder p.26-35 ⊲ Attachments
⊲ Flap wheels ⊲ Abrasive sets for the FPM230 attachments
⊲ Cartridge rolls & accessories
⊲ Flap bands & accessories Sets and Accessories p. 54-57
⊲ Spiral bands & accessories
⊲ Interleaved finishing flap wheels
⊲ Nonwoven flap wheels
⊲ Felt polishing flap wheels
⊲ Felt polishing points
Contact
Your personal contact
for the dealer programme
Michael Krug
Sales Director
Tel: +49 (0) 2292 / 9140-27
E-mail: michael.krug@g-wendt.com
General contact information
Günter Wendt GmbH
Werner-von-Siemens Str. 5
51570 Windeck
Germany
Tel: +49 (0) 2292 / 9140-0
Fax: +49 (0) 2292 / 9140-40
info@g-wendt.com
www.g-wendt.com
Version: 02/2019
4
Introduction
For almost five decades we have approached sanding and polishing
processes with determination and try to improve them constantly. In our
view optimal sanding not only provides a result - it also completes the
task.
We are committing ourselves to this even further with the launch of the
G-WENDT dealer programme. This contains a cross-section of our
most popular products, which are now available with fast delivery times.
This enables us to support you in times of high competition with tailor-
made solutions for your individual challenges.
In addition, it is important to us to be able provide you with reliable and
high-quality sanding and polishing tools “Made in Germany”.
Thank you for your trust in our products!
5
For the angle grinder ⊲ Cleaning discs, REX FLEX ⊲ Cutting discs ⊲ Grinding discs ⊲ Flap discs, POWERFLEX ⊲ Flap wheels ⊲ Double-sided grinding discs, TWINPOWER ⊲ Interleaf flap discs, HYBRID ⊲ Flap discs, SCM ⊲ Unitized finishing discs ⊲ Felt flap discs
CLEANING DISCS
REX FLEX cleaning discs
These discs are suitable for aggressive cleaning and surface preparation. Suitable for removing rust, paint, epoxy
coatings, weld spatter and mill scale.
Advantages:
⊲ The open structure of the material prevents ⊲ Free of metals, therefore leaves no corrosive
clogging, even with heavy coatings residues on the work surface
⊲ Low heat development / cooler sanding ⊲ Especially user-friendly - no work piece removal
⊲ The flexible structure adapts to the surface and no damage to the base material
and shape of the work piece
Recommended Use:
⊲ Preferably on slow-running angle grinders
⊲ At a speed of 30-35 m/s, REX FLEX cleaning
discs achieve their best performance
Application areas:
⊲ Removal of rust, paint, scale, corrosion
residues, stubborn paint and adhesive
residues, cement and concrete residues,
sealing residues as well as old coatings
⊲ Cleaning of welds and discolouration,
especially in stainless steel (INOX)
⊲ Suitable for roughening as a
preparation for gluing or filling
⊲ Universally applicable on metal, stone or wood
- e.g. house façades, railings, doors, boat hulls,
window frames, furniture, machinery, propellers
and for removing contaminants on concrete
⊲ Not aggressive on thin sheets, therefore
ideal for car body construction
⊲ Perfect for preparing and cleaning surfaces ANGLE GRINDER
TYPE RF G27 (FLAT)
Dimension (mm) RPM
S-Coarse
ØA ØB Opt. Max.
115 22.23 245 401 6,000 11,000
5 A
125 22.23 245 403 5,600 9,800 B
7
QUALITY LINES
New names and designs
for our Quality Lines
The right product at any time - individual and suited to your application.
Based on the pioneering spirit of our founder Günter Wendt, some
of our products are now divided into three new quality lines.
Back in 1971, everything started in Windeck, about 50 kilometres
from Cologne. In the course of globalization, locations in Brazil
and the United States were added. The resulting partnerships and
friendships make us as proud as the quality of our tools.
The new quality lines are intended continue this idea
and to transport it to you, our customer.
Our cutting, grinding and flap discs
are named after major cities:
KÖLN (Cologne), NEW YORK and RIO
The well-known quality lines Premium, Power and Basic will be added to KÖLN,
NEW YORK and RIO. Each of them have an independent price-performance
ratio and a well-balanced combination of aggressiveness and durability.
The KÖLN line is the first choice for the highest standards of quality and
ANGLE GRINDER
performance. NEW YORK stands for industrial quality, while RIO is an
alternative for working with low power angle grinders.
8
9
ANGLE GRINDER

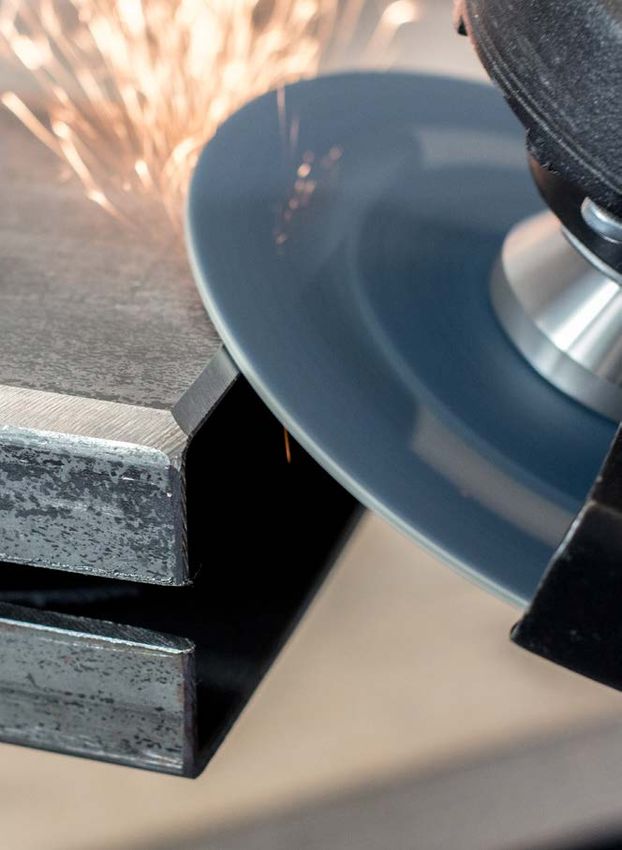

CUTTING DISCS
KÖLN – cutting discs for stainless steel
Cutting discs for cool cutting with high cutting performance
and a very long useful life. Made without the addition of
fillers containing chlorine, sulphur and iron. The disc widths
of 1.0 and 1.5 mm ensure a fast, burr-free and comfortable
cutting.
Suitable for angle grinders of all performance classes.
TYPE 41 KÖLN, 42 KÖLN
Dimension (mm) Max.
Type 41 Type 42 Spec.
RPM
ØA ØB ØC
115 270 306 - 13,300
1.0
125 22.23 270 307 - A46U-BF 12,250 25
178 1.5 - 270 344 8,600
A A
Type 41 Type 42 C
C
B B
RIO – cutting discs for stainless steel
The perfect solution for price-conscious professionals who
want good cutting performance and a long service life.
Iron and sulphate free. Made without the addition of fillers
containing chlorine, sulphur and iron. The disc widths of
1.0 and 1.9 mm ensure a fast, burr-free and comfortable
cutting.
Suitable for angle grinders of all performance classes.
ANGLE GRINDER
TYPE 41 RIO
Dimension (mm) Max.
Type 41 - Spec.
RPM
ØA ØB ØC
115 270 406 - 13,300 Type 41
1.0 A60Q-BF A
125 22.23 270 407 - 12,250 25
C
230 1.9 270 415 - A46S-BF 6,650
B
10GRINDING DISCS
NEW YORK – grinding discs for steel
Providing good stock removal rate and life on steel. Work
processes include seam welds, fillet welds as well as
surface sanding. This product is extremely easy to work
with, even at low pressure.
Suitable for angle grinders of all performance classes.
TYPE 27 NEW YORK
Dimension (mm) Max.
Type 27 Spec.
RPM
ØA ØB ØC
115 270 176 13,300 Type 27
6.5
125 270 178 12,250
22.23 A30P-BF 10
178 270 182 8,600 A
7.0
230 270 186 6,650 C
B
NEW YORK – grinding discs for stainless steel
A versatile product that combines high material removal and grinding
with good life. Work tasks include deburring, surface sanding, weld
removal, bevelling, chamfering or fillet weld grinding. Made without
the addition of fillers containing chlorine, sulphur and iron.
Suitable for angle grinders of all performance classes. ANGLE GRINDER
TYPE 27 NEW YORK
Dimension (mm) Max.
Type 27 Spec.
RPM
ØA ØB ØC
115 270 276 13,300 Type 27
6.5 A
125 22.23 270 278 A30N-BF 12,250 10
C
178 7.0 270 282 8,600
B

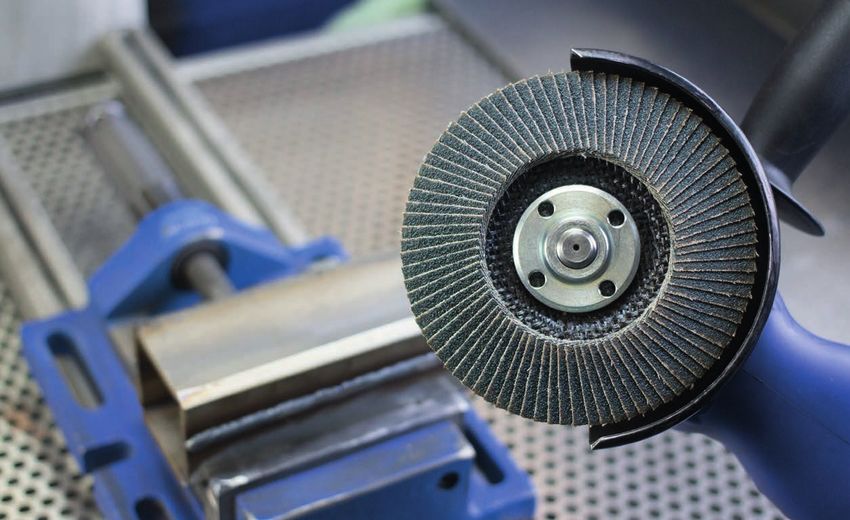

11FLAP DISCS, POWERFLEX

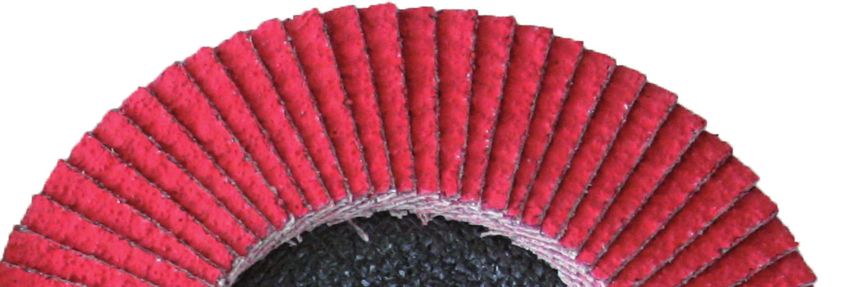

KÖLN – POWERFLEX, ceramic
Aggressive cutting action, enhanced by grinding additives
which reduce heat, for maximum performance.
Surface grinding, bevelling, deburring or weld seam
processing. This product is suitable for the most demanding
tasks on very difficult-to-machine materials. For example,
titanium alloys and high-alloy and stainless steel. The self-
sharpening ceramic grain achieves optimum stock removal
rates.
ANGLE GRINDER
Best results on powerful angle grinders.
TYPE 29 (CONICAL 15 °)
Dimension (mm) Ceramic Max.
RPM
ØA ØB K40 K60 K80
A
115 229 412 229 413 229 414 13,300
22.23 10 B
125 229 432 229 433 229 434 12,250
12NEW YORK – POWERFLEX, zirconia
This flap disc combines aggressive cutting performance
and excellent life with an increased amount of high-quality
zirconia grain. Efficient choice for a variety of grinding and
finishing tasks - steel, stainless steel and plastic.
For best results, use powerful angle grinders.
TYPE G29 (CONICAL 15 °)
Dimensions (mm) Zirconia Max.
RPM
ØA ØB X40 X60 X80 X120
115 229 112 229 113 229 114 229 116 13,300
125 22.23 229 132 229 133 229 134 229 136 12,250 10 A
178 229 142 229 143 229 144 229 146 8,600 B
TYPE G28 (FLAT)
Dimensions (mm) Zirconia Max.
RPM
ØA ØB X40 X60 X80 X120
115 228 112 228 113 228 114 228 116 13,300
125 22.23 228 132 228 133 228 134 228 136 12,250 10 A
B
178 228 142 228 143 228 144 228 146 8,600
TYPE G27 (CONICAL 8°)
Dimensions (mm) Zirconia Max.
ANGLE GRINDER
RPM
ØA ØB X40 X60 X80 X120
115 227 112 227 113 227 114 227 116 13,300
125 22.23 227 132 227 133 227 134 227 136 12,250 10 A
B
178 227 142 227 143 227 144 227 146 8,600
13NEW YORK – POWERFLEX, aluminium oxide
Good grinding performance and service life on a
variety of applications make this product an all-rounder.
On alloyed and unalloyed steel, stainless steel and
aluminium.
Suitable for angle grinders of all performance classes.
TYPE G29 (CONICAL 15 °)
Dimensions (mm) Aluminium Oxide Max.
RPM
ØA ØB N40 N60 N80
115 229 012 229 013 229 014 13,300
125 22.23 229 032 229 033 229 034 12,250 10 A
178 229 042 229 043 229 044 8,600 B
RIO – POWERFLEX, zirconia
This disc remains aggressive even when used with
low power angle grinders. Its good price-performance
ratio makes this the first choice of price-conscious
professionals. Universal application, no matter whether
surface sanding or weld seam blending.
Suitable for steel and stainless steel applications.
Best choice for battery operated angle grinders.
ANGLE GRINDER
TYPE G19 (CONICAL 15 °)
Dimensions (mm) Zirconia Max.
RPM
ØA ØB E40 E60 E80 E120
115 229 712 229 713 229 714 229 716 13,300
A
125 22.23 229 732 229 733 229 734 229 736 12,250 10
B
178 229 742 229 743 229 744 229 746 8,600
14FLAP WHEELS
M14 flap wheels, aluminium oxide
This product can be used universally on all materials. The
M14 thread allows quick and easy installation on a 125 mm
angle grinder. Well suited for sanding on steel as well as
stainless steel.
Application areas:
⊲ Removal of surface imperfections
⊲ Fine sanding on large radii in apparatus and container construction
⊲ Produces uniform grinding patterns on larger surfaces and contours
⊲ General maintenance, sanding and paint removal
⊲ Weld seam cleaning and preparation
TYPE LS M14
Dimensions (mm) Aluminium Oxide Max.
RPM
ØA B ØC A40 A60 A80 A120
125 20 M14 325 322 325 324 325 325 325 327 12,250 2
ANGLE GRINDER
15DOUBLE-SIDED GRINDING DISCS
TWINPOWER
Durable construction ensures a long service life and the use of zirconium abrasive grain enables fast results. This saves
you time, reduces your costs and keeps you safe. A low angle of attack as well as the possibility of sanding from both
sides or within narrow channels increases your efficiency and promotes a sustainable work method. Optional “Visi-cool”
holes allow you to see the surface as you work.
Turn your angle grinder into a problem solver with one of the latest G-WENDT innovations.
TYPE TPL (WITH OPENINGS)
Dimensions (mm) Zirconia Max.
RPM
ØA ØC Z40 Z60 Z80
115 260 121 260 123 260 124 13,300
M14 10 A
125 260 131 260 133 260 134 12,250 C
B
TYPE TP (WITHOUT OPENINGS)
Dimensions (mm) Zirconia Max.
RPM
ØA ØC Z40 Z60 Z80
115 260 091 260 093 260 094 13,300
M14 10 A
125 260 101 260 103 260 104 12,250 C
B
ANGLE GRINDER
TYPE TP ADAPTER (STAINLESS STEEL)
The adapter ensures fast mounting and changing of the
Description Item No. TWINPOWER. No tools necessary. You also get two different
spacers. These ensure their use on the most common angle
TP Adapter M14 261 290 1
grinders.
TYPE PROMOBOX TWINPOWER (WITH OPENINGS)
Dimensions (mm) Max.
Item No.
RPM
ØA Contents of the box
115 1 x Z40, 1 x Z60, 2 x Z80, 999 951 13,300
1 x plastic adapter for M14 thread, 1
125 2 spacer rings 999 952 12,250
16Advantages and applications
of the TWINPOWER:
⊲ Three sight and cooling holes allow a clear view of the work
piece and guarantee controlled sanding in all circumstances Note:
⊲ Three different zirconium grains (Z40, Z60, Z80)
⊲ The Twinpower is not suitable for cutting!
ensure their use in every application
⊲ A particularly thin construction allows use in narrow channels
⊲ Easy, tool-free mounting with our stainless steel adapter
⊲ Double-sided sanding thanks to an extremely
durable disc construction
⊲ Controlled creation of precise bevels with an angle grinder
⊲ Suitable for use on wood
17INTERLEAVED FLAP DISCS
HYBRID
The advanced construction of our hybrid discs combines Application areas:
abrasive flaps and surface conditioning material for ⊲ Removal of welds
efficiently finishing stainless and steel. The number ⊲ Removal of burrs after plasma and laser cutting
of operations is usually reduced from two cycles with ⊲ Decorative surface finish on stainless steel
conventional abrasives to one step. The hybrid disc ⊲ Treatment of small surface irregularities
provides material removal and an attractive surface
finish in just one operation.
That saves time and money!
Use on various materials such as: Stainless steel,
structural steel, aluminium and other alloys.
TYPE HG29 (CONICAL 15 °)
Dimensions (mm) RPM
Medium
ØA ØB Opt. Max.
115 22.23 245 173 7,000 13,300
5 A
125 22.23 245 183 6,500 12,250 B
ANGLE GRINDER
18FLAP DISCS
SCM (Surface Conditioning Material)
Ideal for surface preparation and structuring of large stainless steel surfaces.
These flap discs have up to seven times longer durability than conventional
hook & loop surface conditioning discs.
⊲ Application areas:
⊲ Cleaning of welds
⊲ Removal of discolouration
⊲ Fine sanding of large surfaces
⊲ Finishing work after installation
TYPE SCM G27 (CONICAL 8°)
Dimensions (mm) RPM
Medium / Maroon
ØA ØB Opt. Max.
115 22.23 245 432 5,800 13,300 A
10 B
125 22.23 245 452 5,300 12,250
UNITIZED FINISHING DISCS
UNITIZED
Our unitized compact sanding discs consist of a multilayer
Application areas:
compressed abrasive fleece and a high concentration of evenly
⊲ Matching surfaces
distributed abrasive grain. These tools are characterized by an
⊲ Blending scratches
outstanding service life and offer the user a comfortable working
⊲ Removal of synthetic resins and adhesives
method. They are used for an attractive finish as well as in the
⊲ Preparation for high-gloss polishing
preparation of surfaces for polishing.
⊲ Good service life
The compact 3-dimensional construction is also very durable,
ANGLE GRINDER
resists clogging and offers solutions for a good finish on a variety
of metals. Performs as well on stainless steel, high-alloyed steels
and titanium alloys.
TYPE UG27 (FLAT)
Dimensions (mm) 4 - Medium RPM
ØA ØB S-Very Fine Opt. Max.
115 22.23 245 819 7,850 11,000 A
2 B
125 22.23 245 839 7,000 9,800
19FELT FLAP DISCS

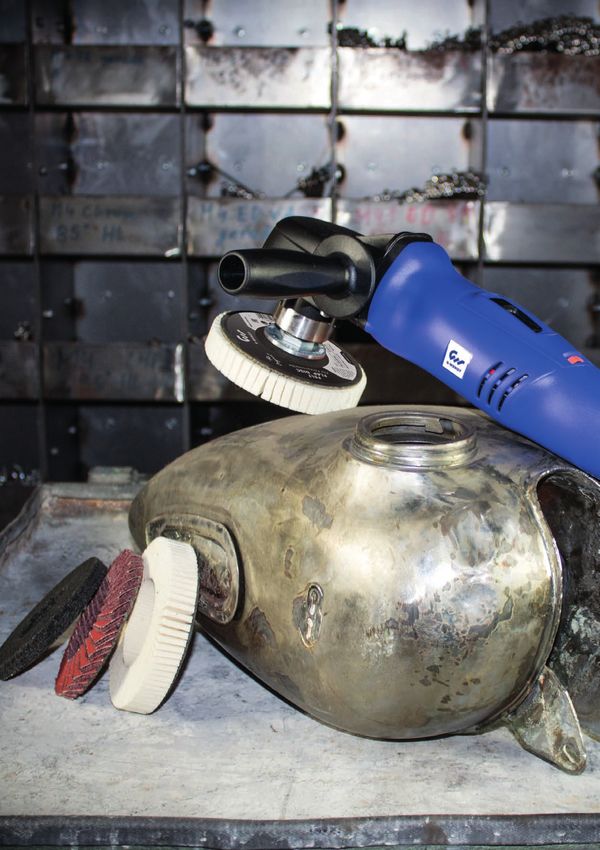

Felt flap discs
Our felt flap discs are made of natural felt and are affixed
to a fibreglass backing. The flexibility of the individual flaps
allows for a cool air flow at all times and also allows perfect
adaptation to the work piece contour. This tool is used with
polishing pastes for pre-polishing and high-gloss polishing on
medium to large components. Thus, these pastes are selected
to determine the desired degree of polishing.
Product features:
⊲ The medium version is suitable for pre-polishing flat surfaces
⊲ The soft version is ideal for polishing and
smoothing contoured work pieces
⊲ When producing very fine surfaces, both
versions can be used consecutively
Recommended Use:
For an optimal result, felt products should always be used at
speeds of approx. 10 m / s.
Additional note:
Always use the same polishing paste with a polishing pad on
the same material. For example, never use polishing discs that
have already been used on aluminium on stainless steel or steel.
Conversely, the same applies.
TYPE FG27 (FLAT)
Dimensions (mm) Flexible Extra flexible RPM
ANGLE GRINDER
Soft Medium Soft
ØA ØB Opt. Max.
D5 / H25 D5 / H40 D3 / H25
115 22.23 245 611 245 612 245 616 1,650 8,500 A
2 B
125 22.23 245 631 245 632 245 636 1,520 7,700
Note: D = flap thickness, H = felt hardness
2021
For the mini angle grinder With the right adapters these products are also suitable for angle and straight grinders. ⊲ Mini flap discs, POWERFLEX ⊲ Quick-change discs ⊲ Quick-change surface conditioning discs ⊲ Accessories
MINI FLAP DISCS, POWERFLEX
Mini POWERFLEX, zirconia
Zirconia abrasive flaps on a small diameter plastic plate. This product provides aggressive material removal and longer
life than conventional abrasive discs. Ideal for working in hard-to-reach places where larger flap discs can not be used.
The popular R-type connecting element also enables a quick change between various grits or other QC products.
Product features:
⊲ High removal rate and service life
⊲ Uniform and clean micro-section, without material discolouration
⊲ Fast tool change and easy handling
⊲ The disc is always centered
⊲ Vibration-free running
Application areas:
⊲ Aerospace industry, repair and overhaul
⊲ Engine construction and repair
⊲ Apparatus and container construction
⊲ Automotive Industry
⊲ Mechanical engineering
⊲ Tool and mould-making
TYPE K1 (flat)
Dimensions (mm) Zirconia Max.
Fastener
RPM
MINI ANGLE GRINDER
ØA V40 V60 V80
50 230 688 230 689 230 690 19,100
R-type 10
75 230 695 230 696 230 697 12,700
R-type - screw connection with external thread made of plastic. Also compatible with other similar
systems used in the market, including RolocTM, Power Lock Type III, Roll-On, Lockit, Speed Lok TR.
23QUICK-CHANGE DISCS
Quick-change discs, aluminium oxide
High-performance aluminium oxide for sanding work and surface finishing. For universal use on
steel and stainless steel, with high sanding performance and good service life.
TYPE QC
Dimensions
(mm) Aluminium Oxide Max.
Fastener
RPM
Ø A36 A60 A80 A120 A180 A240
50 262 041 262 044 262 045 262 047 262 049 262 051 25,000 100
R-type
75 262 061 262 064 262 065 262 067 262 069 262 071 20,000 50
Quick-change discs, zirconia+ - with abrasive additives
The abrasive additives dissipate the heat generated during sanding from the work piece and thus permit cool working
on stainless steel and hard alloys. Also reduces the clogging of the disc when working on softer materials, such as
aluminium or brass.
Tip:
For best results - apply moderate pressure to activate the grinding additives.
TYPE QC
Dimensions
(mm) Zirconia+ Max.
Fastener
RPM
Ø Z+36 Z+60 Z+80 Z+120
50 262 771 262 774 262 775 262 777 25,000 100
R-type
75 262 781 262 784 262 785 262 787 20,000 50
MINI ANGLE GRINDER
Quick-change discs, ceramic - with abrasive additives
Ceramic grain with abrasive additives for aggressive wear on alloyed steels,
stainless steel, titanium, cast iron and other alloys. The abrasive additive dissipates
the heat from the work piece, especially with increased contact pressure, and
enables maximum product life with increased removal rates.
TYPE QC
Dimensions
(mm) Ceramic Max.
Fastener
RPM
Ø K36 K60 K80 K120
50 262 511 262 514 262 515 262 517 25,000 100
R-type
75 262 521 262 524 262 525 262 527 20,000 50
24QUICK-CHANGE SURFACE CONDITIONING DISCS
Quick-change disc, SCM
Small diameter discs made with surface conditioning Tip:
material are suitable for a variety of tasks, due to their The addition of oil or water during sanding leads to a
different degrees of fineness. The coarse version is longer service life, cooler sanding and an even finer
used in the surface treatment of metals; for example, the surface
removal of roughing marks, light deburring or the removal
of oxidation.
The medium version is ideal for structuring and satinizing
on a variety of different materials. The very fine version
creates a fine, decorative micro-section, especially on
stainless steel and aluminium.
TYPE QC
Dimensions
(mm)
Max.
Fastener
Coarse/ Medium/ Very Fine/ RPM
ØA
Tan Maroon Blue
50 262 911 262 912 262 913 23,000 50
R-type
75 262 916 262 917 262 918 20,000 25
ACCESSORIES
MINI ANGLE GRINDER
Quick-change disc holder
All G-WENDT quick-change abrasive disc holders comply with industry standards and have an outstanding
service life. Suitable for mini flap discs, quick-change discs and quick-change surface
conditioning discs
TYPE QCH
Dim. Ø Shank Ø R-type
50 mm 263 170
6 mm 1
75 mm 263 180
25For the straight grinder ⊲ Flap wheels ⊲ Cartridge rolls & accessories ⊲ Flap bands & accessories ⊲ Spiral bands & accessories ⊲ Interleaved finishing flap wheels ⊲ Nonwoven flap wheels ⊲ Felt polishing flap wheels ⊲ Felt polishing points

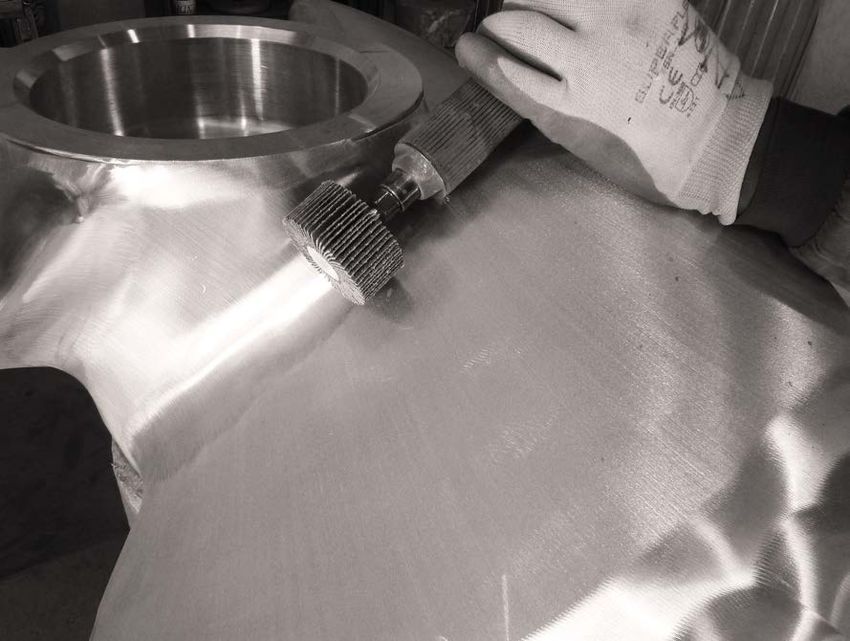

FLAP WHEELS
G-WENDT offers flap wheels in a variety of dimensions,
abrasives and grits. These are made only from high quality
abrasive on a base of heavy cotton fabric. This provides
superior durability and increased flexibility. The latter
ensures that the flap wheel adapts ideally to the contours
of the work piece.
Advantages:
⊲ High-quality abrasive on backing
ensures a long service life
⊲ The flush core allows them to be used
close to edges and in angles
⊲ High flexibility
⊲ Uniform wear of the flaps
⊲ No residue on the work piece surface
STRAIGHT GRINDERS
Application areas:
⊲ Blend and repair of turbine blades
in engine construction
⊲ Fine sanding in tool and mould-making
⊲ Finishing hard-to-reach and small areas in
container and apparatus construction
27FLAP WHEELS
Flap wheels, aluminium oxide
Our flap wheels are produced with premium aluminium oxide
abrasive, and are suitable for nearly all applications.
The X-weight cotton backing provides strength, dissipates
heat, and wears evenly to produce a consistent finish.
TYPE WF
Dimensions (mm) Aluminium Oxide RPM
ØA ØB ØC A60 A80 A120 opt. max.
10 100 504 100 505 100 507
15 100 524 100 525 100 527
26,000
16,000
30 6
20 100 544 100 545 100 547
30 100 584 100 585 100 587
15 100 784 100 785 100 787
20,000
13,000
40 20 6 100 804 100 805 100 807
30 100 844 100 845 100 847
15 101 044 101 045 101 047
10
16,000
11,000
STRAIGHT GRINDERS
50 20 6 101 064 101 065 101 067
30 101 104 101 105 101 107
20 101 304 101 305 101 307
13,500
9,000
60 30 6 101 344 101 345 101 347
40 101 364 101 365 101 367
30 101 664 101 665 101 667 B
10,000
6,000
80 40 6 101 684 101 685 101 687
50 101 704 101 705 101 707 A C
28Mini flap wheel, aluminium oxide
We offer a wide range of flap wheels, right down to
some of the world’s smallest mini-die grinders. We attach
particular importance to the quality of our products. Mini
flap wheels are ideal for finishing particularly difficult to
access areas and very small surfaces, for example in tool
and mould-making.
TYPE WM
Dimensions (mm) Aluminium Oxide RPM
ØA ØB ØC A60 A80 A120 opt. max.
26,000
35,000
10 10 3 103 004 103 005 103 007
10 103 084 103 085 103 087
35,000
24,000
15 3
15 103 104 103 105 103 107
10 100 164 100 165 100 167 10
20,000
30,000
20 15 6 100 184 100 185 100 187
20 100 204 100 205 100 207
15 100 344 100 345 100 347 B
STRAIGHT GRINDERS
26,000
18,000
25 20 6 100 364 100 365 100 367
A C
25 100 384 100 385 100 387
29CARTRIDGE ROLLS
G-WENDT offers cartridge rolls in different shapes, dimensions and grain sizes for
finishing difficult-to-access areas. These products are effective for sanding, deburring,
cleaning and matting. The small diameter allows working in grooves, corners, holes
and pipes.
Method of Use: Advantages:
⊲ Always place cartridge rolls with the glued ⊲ Easy to replace and secure seat of the sanding
side next to the product holder rolls, thanks to the special product holder
⊲ Very good cutting performance
Straight cartridge rolls
Our cartridge rolls are made of high-quality aluminium oxide
abrasive cloth. This guarantees a long service life for universal
sanding tasks on metals and other materials.
TYPE SR
Dimensions (mm) Aluminium Oxide Max. Fitting Mandrel
RPM
ØA ØB ØC A60 A80 A120 3 mm 6 mm
6 25 3.2 158 163 158 164 158 166 161 911 161 921
6 38 3.2 158 183 158 184 158 186 161 913 161 927
10 38 3.2 158 383 158 384 158 386 161 913 161 927
26,000 100 1
10 50 3.2 158 403 158 404 158 406 - 161 933
13 38 3.2 158 503 158 504 158 506 161 913 161 927 B
13 50 3.2 158 543 158 544 158 546 - 161 933 A C
STRAIGHT GRINDERS
Full taper cartridge rolls
The conical shape has the same characteristics as our cylindrical sanding
rolls, but also allows even better access in corners and grooves.
TYPE SRK
Dimensions (mm) Aluminium Oxide Max. Fitting Mandrel
RPM
ØA ØB ØC A60 A80 A120 3 mm 6 mm
10 25 3.2 160 003 160 004 160 006 161 911 161 921 B
26,000 100 1
13 38 3.2 160 083 160 084 160 086 161 913 161 927 A C
30ACCESSORIES
Cartridge rolls, mandrels
Easy product change without loosening the holder from the collet of the tool drive. Our threaded mandrels can be used
with straight, conical and semi-conical sanding rolls.
Recommended mandrel length:
The mandrel should be about 6-12 mm shorter than the cartridge roll and have a mandrel diameter of the bore size of
the roll. Make sure that the glued end of the cartridge rolls is always placed on the spindle first.
TYPE SRD
Mandrel
Shank (mm)
(mm) Item No.
ØA B ØC Length
2.4 13 161 901 Cartridge rolls Length Minimum mandrel length
3.2 19 3 25 161 911 (mm) (mm)
3.2 25 161 913 19 13
1
3.2 19 161 921 25 19
3.2 25 6 31.75 161 927 B 38 25
3.2 38 161 933 A C 50 38
STRAIGHT GRINDERS
31FLAP BANDS & ACCESSORIES
A durable and more productive alternative to spiral bands,
flap bands have become one of our most popular products.
Product features:
⊲ Significantly more aggressive and ⊲ Low vibration ensures your working comfort
more durable than flap wheels ⊲ Expanding drum always provides a secure grip,
⊲ Its increased power enables much thanks to expansion when working speed is
more economical sanding reached and enables quick change of the tool
⊲ Greater durability than spiral bands
Flap bands, zirconia
Zirconia abrasive for aggressive surface grinding, fast
deburring and finishing. Increased durability and product life.
Particularly aggressive on stainless steel and hard alloys.
⊲
TYPE LH
Expanding drum
Dimensions (mm) Zirconia RPM
(mm)
ØA B R40 R60 R80 Max ØD Item No.
22 20 151 022 151 024 151 025 26,000 150 951 B
30 151 162 151 164 151 165 19,100 10 6 150 955 1
30
60 151 342 151 344 151 345 9,500 150 959 A D
STRAIGHT GRINDERS
Flap bands, ceramic
Ceramic grain for maximum aggressiveness
and service life.
Best choice for stainless steel and hard alloys.
TYPE LH
Dimensions (mm) Ceramic RPM Expanding drum (mm)
ØA B K40 K60 K80 Max ØD Item No. B
60 30 152 342 152 344 152 345 9,500 10 6 150 959 1 A D
32SPIRAL BANDS & ACCESSORIES
Spiral bands, aluminium oxide
Abrasive sleeves made of aluminium oxide abrasive cloth. For sanding, cleaning
and graining of metals and other materials.
Product features:
⊲ Spiral-shaped splice joints prevent sanding marks on the work piece surface
⊲ Reusable abrasive holders / expanding drums ensure a secure fit and the ability
to change the tool rapidly
⊲ Outstanding lifetime, even under extreme conditions
⊲ Particularly high level of material removal
Application areas:
⊲ Fine sanding in container and apparatus construction
⊲ Removal of welds
⊲ Post-processing in the field of assembly and repair
⊲ Finishing of turbine blades in engine construction
TYPE SH
Expanding drum
Dimensions (mm) Aluminium Oxide RPM
(mm)
ØA B A50 A80 A150 Max ØD Item No.
10 20 153 163 153 165 153 168 44,000 157 507
13 25 153 303 153 305 153 308 44,000 157 514
15 30 153 455 153 456 153 457 36,000 157 607
50 6 1
22 20 153 603 153 605 153 608 26,000 150 951 B
30 30 153 783 153 785 153 788 19,100 150 955
A D
45 30 154 123 154 125 154 128 12,700 150 957
STRAIGHT GRINDERS
Expanding body with shank
for small flap bands and spiral bands
We guarantee the fit of our flap
bands and spiral bands only if our
reusable expanders are used.
33INTERLEAVED FINISHING FLAP WHEELS
Interleaved finishing flap wheels
Alternating flaps of abrasive and nonwoven fleece.
The combination of abrasive cloth and abrasive fleece
enables easy deburring and graining in just one step.
Prepare surfaces for subsequent finishing.
TYPE WVK
Dimensions (mm) RPM
A80 / A150 /
ØA B ØC Opt. Max.
Medium Fine
B
40 20 190 561 190 564 7,500 9,000
50 30 190 881 190 884 6,000 8,000
6 10 A C
60 40 191 121 191 124 5,000 7,000
80 50 191 561 191 564 4,000 6,000
NONWOVEN FLAP WHEELS
Nonwoven flap wheels
STRAIGHT GRINDERS
Densely packed flaps made of nonwoven fleece ensure
a long service life and a perfect finish, thanks to the high-
quality sanding fleece material.
TYPE WV
Dimensions (mm) RPM
ØA B ØC Medium Fine Opt. Max.
40 20 106 141 106 142 7,500 9,000
B
50 30 106 231 106 232 6,000 8,000
6 10
60 40 106 281 106 282 5,000 7,000
A C
80 50 106 381 106 382 4,000 6,000
34FELT POLISHING FLAP WHEELS
Felt flap wheels
Our patented felt flap wheels are used in combination with a polishing paste for pre-polishing and high-gloss polishing.
Work pieces can be small to medium components. The flap construction adapts to the contour of the work surface, and
dissipates heat build-up. Ideal for hard-to-reach places and precise work.
Product features: Additional note:
⊲ Ideal for polishing irregular or contoured surfaces ⊲ Always use the same polishing paste with
⊲ The medium version is suitable for pre-polishing flat surfaces a polishing pad on the same material.
⊲ The soft version is ideal for polishing and ⊲ For an optimal result, felt products should
smoothing very contoured work pieces always be used at speeds of approx. 10 m / s
⊲ To form very fine surfaces, both versions
can be used one after the other
TYPE FF
Dimensions (mm) Flexibility Extra flexibility RPM
Soft Medium Soft Medium
ØA B ØC Opt. Max.
D3 / H25 D3 / H40 D2 / H25 D2 / H40
40 20 187 731 187 732 187 736 187 737 4,750 9,000 B
50 30 6 187 801 187 802 187 806 187 807 3,800 8,000 10
60 40 187 861 187 862 187 866 187 867 3,150 7,000 A C
Note: D = flap thickness, H = felt hardness
FELT POLISHING POINTS
Felt polishing points
Felt polishing points can be used wherever felt flap wheels are not
STRAIGHT GRINDERS
suitable, due to their size. Their compact dimensions make it possible
to work in hard-to-reach places.
TYPE FPZY
Dimensions (mm) Specification RPM
ØA B ØC Medium Opt. Max.
6 10 189 703 16,000 32,000
3
8 10 189 723 12,000 24,000
10 14 189 743 10,000 20,000 10
B
15 20 6 189 763 6,000 12,000
20 25 189 783 5,000 10,000 A C
35For bench grinders ⊲ Flap wheels ⊲ Accessories
FLAP WHEELS
Unmounted flap wheels
The coated abrasive is fan-shaped in flap form, arranged radially about the axis of
the center arbor hole. Its flexibility ensures that the product adapts ideally to the
contours of the work piece.
Application areas: Advantages:
⊲ Fine sanding in container and apparatus construction ⊲ Aggressive abrasive grain ensures high material removal
⊲ Removal of imperfections, e.g. during welding work ⊲ Uniform wear of the flap material without leaving
⊲ Precursor for high-gloss polishing residue on the work piece surface
⊲ Suitable for stationary use as well as robots ⊲ High flexibility
⊲ Uniform sanding patterns on large areas
Tool Drives:
⊲ Bench grinders
⊲ Straight grinders
⊲ Flexible shaft
TYPE LS
Dimensions (mm) Aluminium Oxide RPM
ØA B ØC A40 A60 Max B
165 50 44 328 822 328 824 5,500
2
200 50 69 329 282 329 284 4,500 A C
ACCESSORIES
Side mounting plates for unmounted flap wheels
BENCH GRINDERS
In order to ensure the safe operation of flap wheels,
it is absolutely necessary to use the reusable side
mounting plates, which are available in various
arbor sizes.
TYPE SP
Ø Flap Wheel Ø Flange Ø Arbor Expansion up to
Item No.
(mm) (mm) (Smallest) (Largest)
165 79 340 200 12 40
2
200 122 340 300 14 60
37For the finishing & polishing machine Flap rolls and the G-WENDT FPM230 finishing and polishing machine - the perfect combination! ⊲ Flap rolls ⊲ Interleaved finishing flap rolls ⊲ Nonwoven finishing flap rolls ⊲ Felt polishing flap rolls
FLAP ROLLS
The ideal product for graining large surfaces, with portable hand
grinders.
Compared to circular patterns of discs, these rolls produce
a uniform, linear surface pattern due to the brush rotation.
A common field of application is, for example, the processing of
high-alloy stainless steels in electrical cabinets or equipment for
food preparation.
G-WENDT flap rolls are manufactured with a 4-slot keyway arbor,
to ensure a secure fit. This also makes them compatible with the
most popular tool spindles on the market.
FINISHING & POLISHING MACHINE
Flap rolls, aluminium oxide
These products are versatile and are applicable to an extremely
wide variety of materials.
Application areas:
⊲ Fine sanding in container and apparatus construction
⊲ Removal of imperfections, e.g. during welding work
⊲ Uniform sanding patterns on large surfaces
as well as contours in manual use
TYPE LW
Dimensions (mm) Aluminium Oxide RPM
ØA B ØC A40 A60 A80 Max
110 100 19 323 122 323 123 323 124 5,000 1
B
A C
39INTERLEAVED FINISHING FLAP ROLLS
Interleaved finishing flap rolls
Produced with alternating flaps of abrasive and ^ fleece.
As a result, the removal of material is increased and
a coarser sanding pattern is achieved, compared to
nonwoven fleece rolls.
This product is suited for processing large surfaces and
easy deburring and graining in just one step.
TYPE KW
B
Dimensions (mm) Aluminium Oxide RPM
A80 / A150 /
ØA B ØC A60 / Coarse Opt. Max.
Medium Fine A C
110 100 19 323 461 323 462 323 465 2,000 5,000 1
FINISHING & POLISHING MACHINE
NONWOVEN FINISHING FLAP ROLLS
Nonwoven finishing flap rolls
Densely packed flaps of nonwoven sanding fleece
ensure a long service life. These rolls are particularly
suitable for surface preparation and fine finishing.
TYPE VW
B
Dimensions (mm) RPM
ØA B ØC A - Coarse A - Medium A - Fine Opt. Max.
A C
110 100 19 323 760 323 761 323 762 2,000 5,000 1
40FELT POLISHING FLAP ROLLS
Felt polishing flap wheels
Our patented felt flap rolls are particularly suited to polishing large surfaces.
Product features:
⊲ Ideal for polishing irregular or contoured surfaces
⊲ The medium version is suitable for pre-polishing flat surfaces
⊲ The soft version is ideal for polishing and
smoothing contoured work pieces
⊲ When producing very fine surfaces, both
versions can be used consecutively
Note:
⊲ Always use the same polishing paste with a
polishing pad on the same material.
FINISHING & POLISHING MACHINE
TYPE FW
Dimensions (mm) Flexibility RPM
B
Soft Medium
ØA B ØC Opt. Max.
D5 / H25 D5 / H40
A C
110 100 19 323 930 323 931 1,900 3,700 1
Note: D = flap thickness, H = felt hardness
41Hand Sanding ⊲ Shop rolls ⊲ Nonwoven handi rolls ⊲ Nonwoven hand pads
SHOP ROLLS
Shop rolls
Suitable for manual sanding on materials of all kinds such
as wood, metal or paint. They are a standard accessory
in numerous production companies, maintenance
companies and metalworking companies.
The abrasive is bonded to a flexible backing which can be
cut to size, and used to sand in hard-to-reach places or
irregular contours.
HAND SANDING
TYPE HR
Dimensions (mm) Aluminium Oxide
Width (mm) Length (m) A40 A60 A80 A120 A180
40 25 957 461 957 463 957 464 957 466 957 468
50 25 957 501 957 503 957 504 957 506 957 508 1
50 50 957 521 957 523 957 524 957 526 957 528
43NONWOVEN HANDI ROLLS
Handi rolls
Our fleece handi rolls are versatile and usable on materials
of all kinds. For example, plastic, metal, paint or filler.
Especially recommended for light cleaning and deburring
work.
Tip:
All grains are non-metallic and do not leave any metal
residue, such as wire brushes or steel wool. In addition,
the fleece can be used both wet and dry.
TYPE HR
Dimension Grade
Colour (material)
Width (mm) Length GP - Green A - Med A - Fine A - Very Fine S - Ultra Fine
100 Green (Aluminium Silicate) 963 051 - - - -
100 - 963 071 963 076 963 081 -
Maroon (Aluminium Oxide)
115 10 m - 963 073 963 078 963 083 - 1
100 - - - - 963 091
Grey (Silicon Carbide)
HAND SANDING
115 - - - - 963 093
44NONWOVEN HAND PADS
Hand pads
Our sanding fleece hand pads are available in many grades and are ideal for light
cleaning, sanding and deburring jobs. Application on plastic, metal, stainless steel,
aluminium, paint or putty. The high degree of flexibility allows easy processing of
hard-to-reach areas and contours.
TYPE VH
Dimensions (mm)
Colour (material) Grade Item No.
Width Length
Green (Aluminium Silicate) GP - Green 963 030
Tan (Aluminium Oxide) A - Coarse 963 032
A - Medium 963 035
Maroon (Aluminium Oxide) A - Fine 963 036
HAND SANDING
150 230 A- Very Fine 963 037 10
S - Medium 963 040
Black (silicon carbide)
S - Very Fine 963 042
Grey (silicon carbide) S - Ultra Fine 963 041
White (non-abrasive) Non-abrasive 963 044
45G-WENDT FPM230 Finishing and Polishing Machine
With all its available attachments, our finishing and polishing machine
offers you a flexible 5-in-1 solution to process various surfaces and
applications.
⊲ G-WENDT FPM230 – base version
⊲ G-WENDT FPM230 – plus product set
⊲ Attachments
⊲ Abrasives – sets for the FPM230 attachments
G-WENDT FPM230
4647
G-WENDT FPM230BASE VERSION
G-WENDT FPM230
The G-WENDT FPM230 is an angle polisher for sanding, satin finishing and mirror polishing on tubes as well as flat or
irregularly shaped work pieces. In addition, this tool is suitable for the use of felt polishing wheels as well as our full
range of flap rolls.
Guaranteed quality thanks to selected components - Made in Germany.
Features:
⊲ Adjustable speed
⊲ Suitable for discs
up to 230 mm
⊲ 1200 watts
⊲ 900-2500 rpm.
⊲ 4 m cable
⊲ 2.5 kg tool weight
⊲ M14 spindle
⊲ 230 V Power System
Performance Stability
The high-performance motor guarantees you Thanks to exceptional torque, the two-stage gear
considerable service life and low machine reduction ensures that the speed remains constant,
temperature - even under the toughest conditions. even under heavy contact pressure.
Ergonomics and longevity Variable application possibilities
Comfortable hold and virtually fatigue-free working The extensive G-WENDT accessories allow you to use this
thanks to the tapered body. Selecting the best angle polisher with rolls, discs or belts, due to its variable
components ensures an impressive lifespan. speed control.
G-WENDT FPM230
TYPE G-WENDT FPM230
Type Item No.
G-WENDT FPM230 - 230 V, 50 Hz, M14, incl. case and accessories * 999 923 1
* Angle Grinder with conversion kit for a finishing and polishing machine.
Including handle, hand guard and adjustable handle extension.
48BASE VERSION PLUS PRODUCT SET
G-WENDT FPM230 - plus product set
In addition to the FPM230, this version also includes a comprehensive sample assortment that enables you to create
surfaces up to a mirror finish.
TYPE G-WENDT FPM230 MACHINE INCLUDING PRODUCT SET CONTENTS OF THE SET
Type Item No. Components Item No.
G-WENDT FPM230 - 230 V, 50 Hz, M14 incl. case G-WENDT FPM230 - 230 V, 50 Hz – 1
999 925 1
and product set Tool case – 1
G-WENDT FPM230
Flap roll
Type LW, 110 x 100 mm, M14, grain 80 323 224 1
TYPE - WORK ARBOR Interleaved flap roll
Type LW, 110 x 100 mm, M14, grain 150 323 515 1
Type Item No.
Nonwoven flap roll, type VW, 110 x 100 mm, M14,
very fine 323 718 1
M14 x 100 mm 999 929 1
Felt flap roll brush, type FWG, 110 x 100 mm, M14,
D5H25 323 870 1
Enables the use of rolls and accessories
Felt flap discs, type FG27, 125 mm, M14, D5H25 & 249 921 1
with 19 mm keyway - M14 x 50 mm arbor D5H40 249 922 1
available on request! Polishing paste BROWN 999 024 1
Polishing paste WHITE 999 025 1
All accessories included in this set can also be ordered separately.
49ATTACHMENTS
Pipe finishing attachment G-WENDT PBS650 & PBS760
Our pipe belt sander attachments PBS650 and PBS760 are suitable for pipe finishing.
They can be used for welds inside, outside and in fillet welds. They support a belt
length of 650 or 760 mm and a maximum pipe diameter of 150 or 230 mm. Like all our
attachments, they can be installed easily on the FPM-230 finishing tool.
Please note that the attachments for the FPM230
are exclusive to the machine.
TYPE PBS650 & PBS760
G-WENDT FPM230
Description Arbor Belt length Max. Pipe Ø Item No.
Pipe belt sander G-WENDT PBS650,
incl. tool case and product set
M14 650 mm 150 mm 999 932
1
Pipe belt sander G-WENDT PBS760,
incl. tool case and product set
M14 760 mm 230 mm 999 934
50Belt file attachment G-WENDT BFS650
The band file sander attachment BFS650 is ideal for Characteristics:
working in hard-to-reach areas. For example, on edges, ⊲ Maximum insertion depth 200 mm
corners, profiles and narrow guides. Suitable for surface ⊲ Belt length 650 mm
preparation, finishing and stock removal. ⊲ Suitable for 6 mm and 12 mm wide belts.
TYPE BFS650
Description Item No.
Please note that the attachments are designed
Belt file sander G-WENDT BFS650, incl. tool case and product set 999 936 1
to fit exclusively on the FPM230.
Fillet weld attachment G-WENDT FWG300
The low profile fillet weld grinder
attachment FWG300 enables the finishing
of interior angles and hard-to-reach
places.
G-WENDT FPM230
TYPE FWG300
Description Arm length Item No.
Fillet weld grinder G-WENDT FWG300, incl.
Please note that the attachments are designed to fit
tool case and product set
300 mm 999 941 1
exclusively on the FPM230.
51ABRASIVES - SETS FOR FPM230 ATTACHMENTS
Sanding belt sets for G-WENDT PBS650, PBS760 & BFS650
A collection of high quality sanding belts, which permit maximum stock removal with ceramic belts,
satin finishing with surface conditioning grades, and extremely fine finishes with the structured
high-tech assortment.
SANDING BELT SETS
Variant Belt width Belt length Item No.
Sanding belt set for G-WENDT PBS650 15 & 40 mm 650 mm 999 962
Sanding belt set for G-WENDT PBS760 15 & 40 mm 760 mm 999 963 1
Sanding belt set for G-WENDT BFS650 6 & 12 mm 650 mm 999 964
EACH SET INCLUDES THE FOLLOWING BELT SPECIFICATIONS:
5 x ceramic 4 x structured 3 x SCM sanding belts
sanding belts high-tech sanding belts
G-WENDT FPM230
52Grinding & polishing set for G-WENDT FWG300
Contains an assortment of narrow face wheels for
blending and polishing fillet welds.
GRINDING & POLISHING SET
Variant Item No.
A
Grinding & polishing set for G-WENDT FWG300 999 942 1 C
B
SET INCLUDES
Dimensions (mm) Max.
Description Specification Item No.
ØA B ØC RPM
Folded flap disc, type FS Aluminium oxide, N80 160 10 25 323 632 5.500 1
Polishing disc Felt H68 160 6 25 346 959 5.500 1
UNITIZED discs 9A coarse 150 3 25 348 703 6.000 1
The following discs are available separately:
ADDITIONAL DISCS
Dimensions (mm) Max.
Description Specification Item No.
ØA B ØC RPM
9A Coarse 348 713 6.000 1
UNITIZED dics 8S Medium 150 6 25 348 714 6.000 1
7S Very Fine 348 715 6.000 1
G-WENDT FPM230
53Sets and accessories
When it comes to surface preparation of metals, non-ferrous metals and
other materials, we offer a whole range of unique products in different
sets. First, this gives you advantage of easily integrating perfectly matched
products into your work process. Second, you can use the opportunity to
compare and experiment with different sanding and polishing tools.
SETS AND ACCESSORIES
54SETS AND ACCESSORIES
G-WENDT 3-step Finishing Set
Create a high gloss polish in just three steps!
This set was designed for angle grinders that work in the
low speed range. Used in succession, these discs can
be used to remove welds and polishing surfaces to a
mirror finish.
3-STEP FINISHING SET
Description Item No.
G-WENDT 3-step finishing set Ø 115 mm 999 959
1
G-WENDT 3-step finishing set Ø 125 mm 999 956
CONTENTS OF THE SET
Set Description Item Details Specification Item No.
HYBRID Medium / maroon 245 173
Set with UNITIZED S-Very Fine 245 819
Ø 115 mm
discs Felt flap disc Soft D5 / H25 245 611
Polishing paste WHITE 999 025
1
HYBRID Medium / maroon 245 183
Set with UNITIZED S-Very Fine 245 839
Ø 125 mm
discs Felt flap disc Soft D5 / H25 245 631
SETS AND ACCESSORIES
Polishing paste WHITE 999 025
Polishing Compounds
Felt polishing products must be used with a polishing paste. We offer two solutions for different
needs. We recommend BROWN polishing paste for removing light scratches, while WHITE
polishing paste is suitable for high-gloss polishing.
POLISHING PASTES
User Notes:
Description Item No.
⊲ Please use only one paste
BROWN 999 024
1 on any given disc.
WHITE 999 025
55SETS AND ACCESSORIES
G-WENDT Sample Case
A broad assortment of sanding and polishing tools from
our current range.
The sample case contains the most common products
for many applications. Designed to fit portable machines
and specialty tools. There is always one or more solution
available for any particular problem set.
G-WENDT SAMPLE CASE
Item No.
999 955 1
G-WENDT Cartridge Roll Set
A compilation of our most popular cartridge rolls.
120 pieces in different dimensions and grits.
Includes two 6 mm cartridge roll mandrels
SETS AND ACCESSORIES
CARTRIDGE ROLL SET
Item No.
999 953 1
CONTENTS OF THE SET
Description Type Item No. Description Type Item No.
SR10383080 158 384 12 SR6253120 158 166 16
Straight Cartridge
SR10383120 158 386 12 SR10253080 158 364 6
Rolls
SR13383080 158 504 8 SR10253120 158 366 6
Straight Cartridge SR13383120 158 506 8 Full Taper Cartridge SRK13383080 160 084 6
Rolls Rolls
SR6383080 158 184 12 SRK10383080 160 086 9
SR6383120 158 186 12 Cartridge Roll SRD3256 161 927 1
SR6253080 16 Mandrels SRD3196 1
158 164 161 921
56G-WENDT Step Finishing Kit, 6 mm shank
This set has you covered from start to finish! It contains a
flap band for heavy stock removal, assorted flap wheels
for sanding and fine finishing, and felt polishing wheels for
a high gloss finish.
STEP FINISHING KIT
Item No.
999 957 1
CONTENTS OF THE SET
Description Type Item No. Description Type Item No.
Flap Band, zirconia LH30206R060 151 124 1 Expanding Drum E30206 150 953 1
Flap Wheel WF40206120 100 807 1 Unitized Finishing Wheel US401264SVF 106 807 1
Interleaved Finishing Flap Wheel WVK40206C080 190 560 1 Felt Polishing Flap Wheel FF40206D2H25 187 736 1
WV40206M 106 141 1 Felt Polishing Brush FFB40206D2H40 188 597 1
Nonwoven Finishing Flap Wheel WV40206VF 106 143 1 BROWN 999 024 1
Polishing Compound
WV40206SF 106 144 1 WHITE 999 025 1
G-WENDT Felt Polishing Kit, 6 mm shank
Experiment with G-WENDT’s patented felt products and
be amazed by the benefits of the flap design as well
as our cartridge roll design. In addition to the polishing
SETS AND ACCESSORIES
compound (“WHITE”), the set contains a selection of
common sizes - all on a 6 mm shaft.
FELT POLISHING SET
Item No.
999 958 1
CONTENTS OF THE SET
Description Type Item No.
FF20206D2H25 187 621 1
Felt Polishing Flap Wheel FF40306D3H25 187 741 1
FF40306D3H40 187 742 1
Felt Polishing Flap Wheel, brush FFB40306D3H25 188 606 1
Felt Straight Cartridge Roll FR122532 159 661 1
Felt Full Taper Cartridge Roll FKR132532 160 801 1
Polishing Compound WHITE 999 025 1
Cartridge Roll Mandrel SRD3196 161 921 1
57g-wendt.com
TRANSFORMING GRINDERS INTO FINISHING SPECIALISTS
You can also read
