E-RACER Camry ECU Resetting Technology.
E-RACER
   Camry
ECU Resetting
 Technology.
E-RACER Camry ECU Resetting Technology.
Advanced Diagnostics cannot accept any legal liabilities for innacuracies
within this publication or for any work carried out using products de-
scribed in this manual.
Advanced Diagnostics reserve the right to alter product specifcations
without notice.
No part of this publication may be reproduced, stored in a retrievel
system, or transmitted in any form, or by means, electronic, mechanical,
photocopying, recording or otherwise, without the prior permission of
Advanced Diagnostics.
E-RACER Camry ECU Resetting Technology.
INDEX
                       PAGE

      SECTION 1        1
PRECAUTIONS/WARRANTY
      SECTION 2
                       4
    INTRODUCTION

      SECTION 3
                       5
    APPLICATIONS

      SECTION 4
                       6
    INSTRUCTIONS
E-RACER Camry ECU Resetting Technology.
PRECAUTIONS

    1. The condition of E-Racer must be checked prior to each use. Any damage or misalign-
    ment or attempts to modify any component of this unit may cause damage to the Vehicle
    Immobilizer ECU.
    E-Racer must not be used if any Damage, Misalignment or modification is detected.
    Please notify your supplier immediately if any of the listed conditions are
    detected and arrange to return unit to your supplier for repair or replacement.

    2. The E-Racer is a precision piece of electronic equipment, and although designed for
    hostile environments it should not be exposed to excessive sunlight, high temperatures or
    immersed in liquids.

    3. Observe all health and safety precautions when using this equipment.

    4. DO NOT disconnect any wiring harnesses or electronic component while ignition is
    ON.

    5. DO NOT disconnect battery while engine is running.

    6. Before any work is carried out, consult the Vehicle Manufacturers recommended
    procedures to ensure any work is carried out in accordance with their instructions.

    7. Before any work is carried out, consult the Vehicle Manufacturers warranty
    specifications to ensure any work is carried out in accordance with their instructions.

    8. E-Racer is covered by warranty for 1 year from date of delivery.

    9. Return unit to protective carrying case when not in use.

    10. Warranty is void if E-Racer Warranty seal is broken, if any attempt is made to tamper
    with or modify the unit in any way, if unit has been dropped or otherwise mistreated or if
    the unit is used in a manner not approved by Advanced Diagnostics.

1
E-RACER Camry ECU Resetting Technology.
ADVANCED DIAGNOSTICS LICENSE STATEMENT AND LIMITED WARRANTY

    IMPORTANT - READ CAREFULLY
    This license statement and limited warranty constitutes a legal agreement ("License
    Agreement") between you (either as an individual or a single entity) and Advanced Diag-
    nostics Australia Pty Ltd( "Advanced Diagnostics") for any Advanced Diagnostics Product,
    including any software, media, and accompanying on-line or printed documentation.

    BY INSTALLING, COPYING, OR OTHERWISE USING THE PRODUCT, YOU AGREE TO BE
    BOUND BY ALL OF THE TERMS AND CONDITIONS OF THE LICENSE AGREEMENT. If you
    are the original purchaser of the Product and you do not agree with the terms and condi-
    tions of the License Agreement, promptly return the unused Product to the place from
    which you obtained it for a full refund.

    Upon your acceptance of the terms and conditions of the License Agreement, Advanced
    Diagnostics grants you the right to use the product in the manner provided below.

    This Product is owned by Advanced Diagnostics or its suppliers and is protected by copy-
    right law and international copyright treaty. Therefore, you must treat this product like
    any other copyrighted material (e.g., a book).

    Except as provided in the License Agreement, you may not transfer, rent, lease, lend,
    copy, modify, translate, sublicense, time-share or electronically transmit or receive the
    product or associated software, media or documentation. You acknowledge that the
    product in source code form remains a confidential trade secret of Advanced Diagnostics
    and/or its suppliers and therefore you agree not to modify the product or attempt to re-
    verse engineer, decompile, or disassemble the product or its associated software, except
    and only to the extent that such activity is expressly permitted by applicable law notwith-
    standing this limitation.

    If you have purchased an upgrade version of the software for your product, it constitutes
    a single product with the Advanced Diagnostics product that you upgraded. You may use
    or transfer the upgrade version of the Software only in accordance with the License
    Agreement.

    ADDITIONAL LICENSE TERMS FOR ADVANCED DIAGNOSTICS
    Advanced Diagnostics grants you the right to install and use any associated software on
    up to 2 computers simultaneously provided that all use of the Software is at a single loca-
    tion (premises) or within vehicles operating solely from that same location and of course
    within the same single company.

    All printouts and charts produced using the Software are subject to the same conditions
    as the Software.

    LIMITED WARRANTY
    Advanced Diagnostics warrants that the product, as updated and when properly used,
    will perform substantially in accordance with the accompanying documentation, and the
    product will be free from defects in materials and workmanship, for a period of One Year
    from the date of receipt. Any implied warranties on the product are limited to One
    Year. Some jurisdictions do not allow limitations on duration of an implied warranty, so
    the above limitation may not apply to you.

2
E-RACER Camry ECU Resetting Technology.
Advanced Diagnostics and its suppliers' entire liability and your exclusive remedy shall be,
    at Advanced Diagnostics option, either (a) return of the price paid, or (b) repair or re-
    placement of the product that does not meet Advanced Diagnostics Limited Warranty and
    which is returned to Advanced Diagnostics or their duly appointed agent with a copy of
    your receipt. DO NOT RETURN ANY PRODUCT UNTIL YOU HAVE CALLED ADVANCED DI-
    AGNOSTICS OR THEIR AGENT AND OBTAINED A RETURN AUTHORIZATION. This Lim-
    ited Warranty is void if failure of the product has resulted from accident, abuse, or misap-
    plication. Any replacement product will be warranted for the remainder of the original
    warranty period or ninety (90) days, whichever is longer. Neither these remedies nor any
    product support services offered by Advanced Diagnostics are available without proof of
    purchase from an authorized source.

    TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ADVANCED DIAGNOSTICS
    AND ITS SUPPLIERS DISCLAIM ALL OTHER WARRANTIES AND CONDITIONS, EITHER
    EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
    MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-
    INFRINGEMENT, WITH REGARD TO THE PRODUCT, AND THE PROVISION OF OR FAIL-
    URE TO PROVIDE SUPPORT SERVICES. THIS LIMITED WARRANTY GIVES YOU SPECIFIC
    LEGAL RIGHTS. YOU MAY HAVE OTHERS, WHICH VARY FROM JURISDICTION TO JURIS-
    DICTION.
    LIMITATION OF LIABILITY TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
    IN NO EVENT SHALL ADVANCED DIAGNOSTICS OR ITS SUPPLIERS BE LIABLE FOR ANY
    SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER
    (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS,
    BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNI-
    ARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THE PRODUCT OR THE
    PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, EVEN IF ADVANCED DI-
    AGNOSTICS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY
    CASE, ADVANCED DIAGNOSTICS ENTIRE LIABILITY UNDER ANY PROVISION OF THIS
    LICENSE AGREEMENT SHALL BE LIMITED TO THE GREATER OF THE AMOUNT ACTUALLY
    PAID BY YOU FOR THE PRODUCT OR U.S. $50. BECAUSE SOME JURISDICTIONS DO
    NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY, THE ABOVE LIMITATION
    MAY NOT APPLY TO YOU.

    HIGH RISK ACTIVITIES
    The product is not fault-tolerant and is not designed, manufactured or intended for use or resale as
    on-line control equipment in hazardous environments requiring fail-safe performance, such as in
    the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control,
    direct life support machines, or weapons systems, in which the failure of the Software could lead
    directly to death, personal injury, or severe physical or environmental damage ("High Risk Activi-
    ties"). Advanced Diagnostics and its suppliers specifically disclaim any express or implied warranty
    of fitness for High Risk Activities.

    GENERAL PROVISIONS
    This statement may only be modified in writing signed by you and an authorized officer of Ad-
    vanced Diagnostics. If any provision of this statement is found void or unenforceable, the remain-
    der will remain valid and enforceable according to its terms. If any remedy provided is determined
    to have failed for its essential purpose, all limitations of liability and exclusions of damages set forth
    in the Limited Warranty shall remain in effect. This statement shall be construed, interpreted and
    governed by the laws of Australia. This statement gives you specific legal rights; you may have
    others which vary from country to country. Advanced Diagnostics reserves all rights not specifically
    granted in this statement.

3
E-RACER Camry ECU Resetting Technology.
INTRODUCTION

    PRODUCT DESCRIPTION

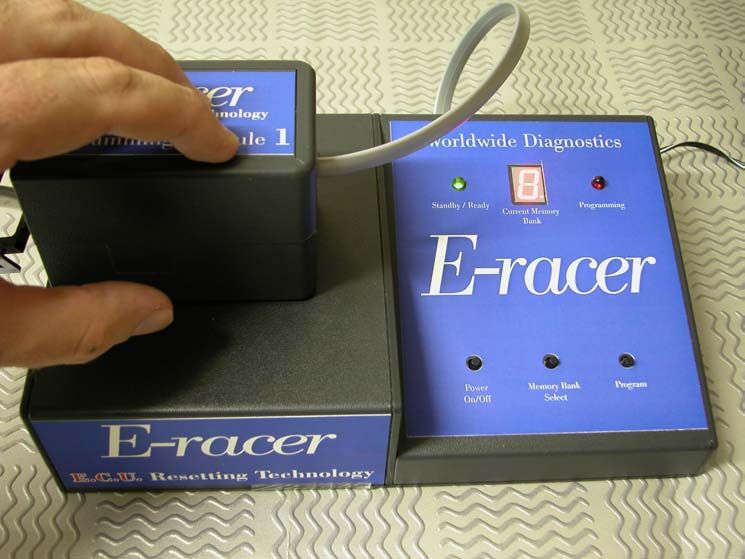

    E-Racer has been engineered to enable resetting of Security Immobiliser ECU data in
    certain Toyota Vehicles.

    E-Racer technology will allow the removal of all existing key transponder code data from
    the ECU, returning it to a state where none of the vehicles keys that were operative prior
    to this point, will start the vehicle.

    E-Racer is the only aftermarket solution for certain Toyota vehicles where keys have
    been stolen, all existing Master Keys have been lost or the vehicle has had its maximum
    number of keys added.

    The E-Racer Base unit has been engineered to allow for addition of future Modules to en-
    hance the capability of the equipment.

    Separate Modules are supplied for each type of Security Immobiliser ECU.

4
E-RACER Camry ECU Resetting Technology.
APPLICATIONS

                              VEHICLE APPLICATIONS
    VEHICLE                                MODEL                      YEAR

    Toyota Camry                           All                        Up to 08/2002

                                      PROCEDURE
    Before commencing work on the vehicle disconnect the positive terminal of the battery.

    Remove components necessary to allow access to Transponder ECU.

    Remove Transponder ECU.

    Reset Transponder ECU using E-Racer.

    Refit Transponder ECU and reconnect wiring.

    Reconnect Positive terminal of Battery.

    Introduce New Master Key.

    Reassemble Vehicle.

    Ensure vehicle has been reassembled according to vehicle manufacturers specifications

                                              KEYS
    Use of either Genuine or Aftermarket Keys is possible when adding new keys to the sys-
    tem.

    Master Keys are generally Black in colour.
    Master Keys will open all locks on the Vehicle.
    Master Keys can be used to program additional keys to the vehicle

    Valet Keys are generally Grey in colour.
    Valet keys will only open the door and operate the ignition of the vehicle.
    Valet keys cannot be used to program additional keys to the vehicle.

                                          CAUTION
    Additional keys added after manufacture may not comply with the above standards for
    keys.

5
E-RACER Camry ECU Resetting Technology.
INSTRUCTIONS

                  TOYOTA CAMRY SECURITY ECU RESETTING
    REMOVAL OF SECURITY ECU.

    Toyota Camry Security ECU is located under the dash to the left hand side.

                                                 DISCONNECT
                                                 BONNET RELEASE
                                                 LEVER

      REMOVE
      SCREW

                                                     REMOVE
                                                     HIDDEN
                                                     SCREW HERE

    Disconnect Bonnet (Hood) release lever cable.
    Remove screws as indicated above.
    Once these 2 screws are removed, lower dash fascia panel can be removed.

    Remove screws securing shroud around steering column.
    Remove lower section of shroud to allow access to ignition assembly.

6
E-RACER Camry ECU Resetting Technology.
INSTRUCTIONS

              REMOVE
              SCREW

     REMOVE
     SCREW

                                Remove 3 screws securing cowl
                                around steering column.
                       REMOVE
                       SCREW

7
INSTRUCTIONS

                     REMOVE
                     SHROUD
                     AROUND
                     IGNITION

                   REMOVE SCREW
                   HOLDING AERIAL
                   ASSEMBLY TO ALLOW
                   IT TO BE
                   DISCONNECTED

8
INSTRUCTIONS

Remove bolts securing Ignition Column Shroud.

     REMOVE
     BOLT

                                                REMOVE
                                                BOLT
    REMOVE
    BOLT

9
INSTRUCTIONS

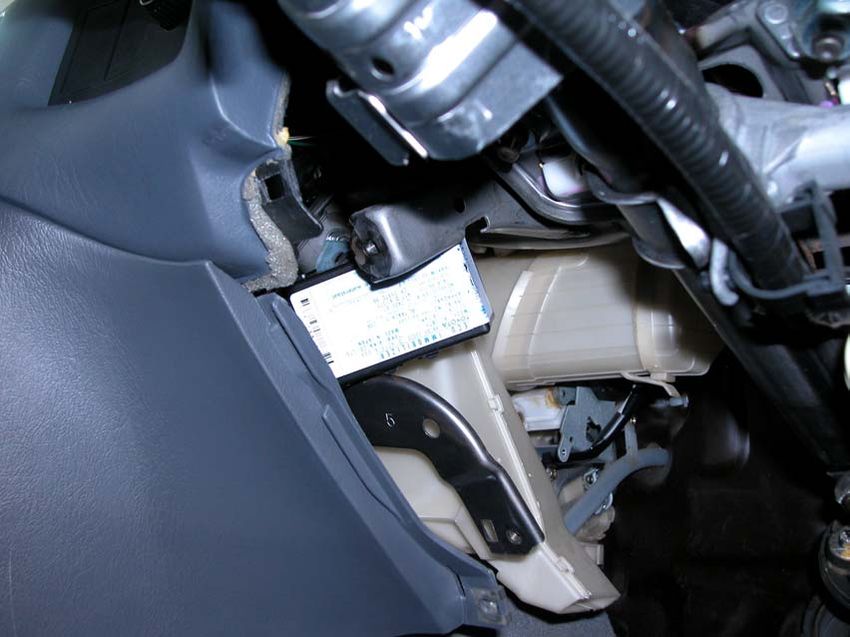

Locate and remove Security Immobiliser ECU from mounting bracket.

     SECURITY ECU LOCATED ON THE LEFT
     HAND SIDE BEHIND CONSOLE. DISCONNECT
     ECU WIRING HARNESS.

                                     DISCONNECT
                                     AERIAL WIRING TO
                                     ECU

10
INSTRUCTIONS

     You should now have the Security Immobiliser ECU
     disconnected from the vehicle

                                                        Open this clip slightly to al-
                                                        low removal of board from
                                                        ECU Immobiliser Box.

        Open this clip slightly to al-
        low removal of board from
        ECU Immobiliser Box.

                                                                You should now have
                                                                an assembly similar to
                                                                this.

11
INSTRUCTIONS

To ensure a positive contact between E-Racer and the board, it will be necessary to remove
the lacquer from the board using an acetone based cleaner.
NOTE: Nail Polish Remover does not contain Acetone.

DO NOT IMMERSE BOARD IN ACETONE.

Apply Acetone with a small brush and clean only the points indicated in the above picture.

Clean Lacquer from all legs on the indicated sides of IC2 and IC3 chips.

12
INSTRUCTIONS

 CONNECT POWER      CONNECT INTERFACE
 SUPPLY TO ERACER   BETWEEN ERACER AND
                    POD

                                         MOUNT ERACER POD TO
                                         BASE UNIT

13
INSTRUCTIONS

                           PRESS POWER BUTTON TO ACTIVATE ERACER.
                           STANDBY/READY GREEN LED WILL FLASH.
                           MEMORY BANK LED WILL ILLUMINATE

     PRESS MEMORY BANK
     BUTTON TO SELECT BANK 2 (CAMRY)

14
INSTRUCTIONS

                 INSERT SECURITY IMMOBILISER
                 BOARD INTO POD

         PUSH BOARD
         FIRMLY AGAINST
         BACK STOP

15
INSTRUCTIONS

                    PLACE TOP COVER OF POD ONTO
                    CRADLE.
                    ENSURE COVER IS PLACED SQUARELY
                    ONTO CRADLE

         LIGHTLY PRESS TOP COVER DOWN TO ENSURE
         CONTACT WITH THE BOARD IS MAINTAINED.
         STANDBY/READY LIGHT WILL STOP FLASHING AND
         GO SOLID GREEN TO INDICATE CORRECT CON-
         TACT WITH BOARD.

16
INSTRUCTIONS

                       PRESS PROGRAM BUTTON TO RESET BOARD.
                       RED LED WILL ILLUMINATE DURING PROGRAM-
                       MING, RED LED WILL GO OUT AND GREEN LED
                       WILL FLASH WHEN FINISHED.
                       READ NOTES BELOW

NOTE: PROGRAMMING SEQUENCE WILL TAKE APPROX. 4 SECONDS.
IF PROGRAMMING LED FLASHES, INCORRECT CONTACT WITH THE
BOARD HAS RESULTED IN PROGRAMMING FAILURE.
CHECK ALIGNMENT OF THE BOARD AND ATTEMPT PROGRAMMING
AGAIN.

ON SUCESSFUL COMPLETION REMOVE TOP COVER OF POD AND RE-
MOVE SECURITY IMMOBILISER BOARD.
REFIT BOARD TO SECURITY IMMOBILISER BOX AND REFIT TO VEHI-
CLE.
KEY PROGRAMMING INSTRUCTIONS ARE ATTACHED ON THE
FOLLOWING PAGES.

17
INSTRUCTIONS

          Initial Introduction of New Master Keys after ECU Reset

Wait at least 50 seconds after completion of above procedure before attempting to start the
vehicle or add further keys.

18
INSTRUCTIONS

Wait at least 50 seconds after completion of above procedure before attempting to start the
vehicle or add further keys.

19
INSTRUCTIONS

Wait at least 50 seconds after completion of above procedure before attempting to start the
vehicle or add further keys.

20
INSTRUCTIONS

                    Erasing Keys using existing Master Key
This procedure will delete all keys except for the Master Key used in the procedure.

Wait at least 50 seconds after completion of above procedure before attempting to start the
vehicle or add further keys.

To ensure that this procedure has been successful, attempt to start the vehicle (once only)
with an old key (if available).

Once complete, add further keys as required using procedure listed on previous pages.

21
INSTRUCTIONS

22
You can also read
