Efficient lighting for the future. i n n ovat ive li g ht i n g tec h n o l o g y
2 Innovative lighting technology 3
Stührenberg GmbH
Quality made by
Stührenberg
Publication data • Energy savings of up to 90% LED technology is revolutionizing the world of
lighting. With a distinctly longer service life,
PUBLISHER
Stührenberg GmbH
• Optimum luminous efficacy considerably lower energy consumption, lower
Westerfeldstrasse 3 CO2 emissions and perfect light control, the
D-32758 Detmold
• Virtually no CO2 emissions technology is ideal for saving money.
PHOTOGRAPHS Due to its high efficiency and optimum luminous
Daniel Graf, Weggis (Switzerland)
Dirk Neumann, Detmold • Service life > 60,000 hours efficacy, savings of up to 90% can be achieved
Harry Zdera, Munich with our VIATEC.
CONCEPT • Low investment costs
flowconcept
Agentur für Kommunikation GmbH
What‘s more, the high-grade materials and
Detmold • Low maintenance effort durability of VIATEC LED technology also
PRINTED BY
reduce the maintenance effort, thus yielding
Strangfeld Druck GmbH • Modern, unobtrusive design further savings. Their functionality and low
Kalletal
electricity consumption make the VIATEC LED
lamps cost-efficient and representative.
With our competence and experience, we can
offer our customers an intelligent, modern and
extremely energy-efficient lighting system.
4 Innovative lighting technology 5
Stührenberg GmbH
high cost-efficiency, low CO2 emissions, low investment costs, easy installation, low main tenance effort, maximum light output, long service life, timeless design, high cost-efficienc

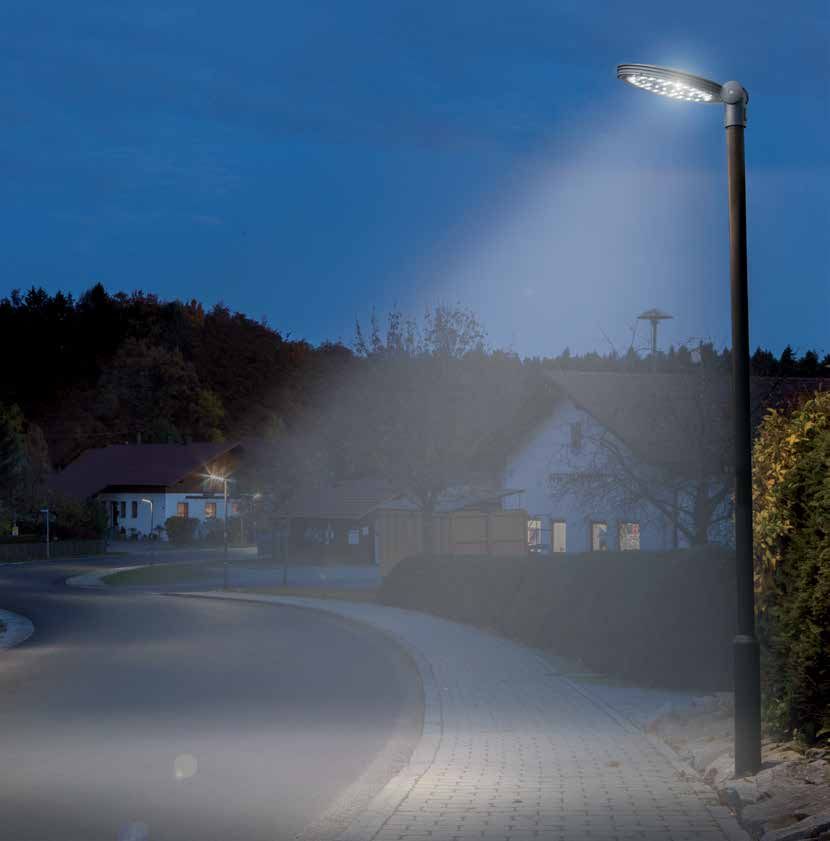

LED street lighting LED industrial lighting

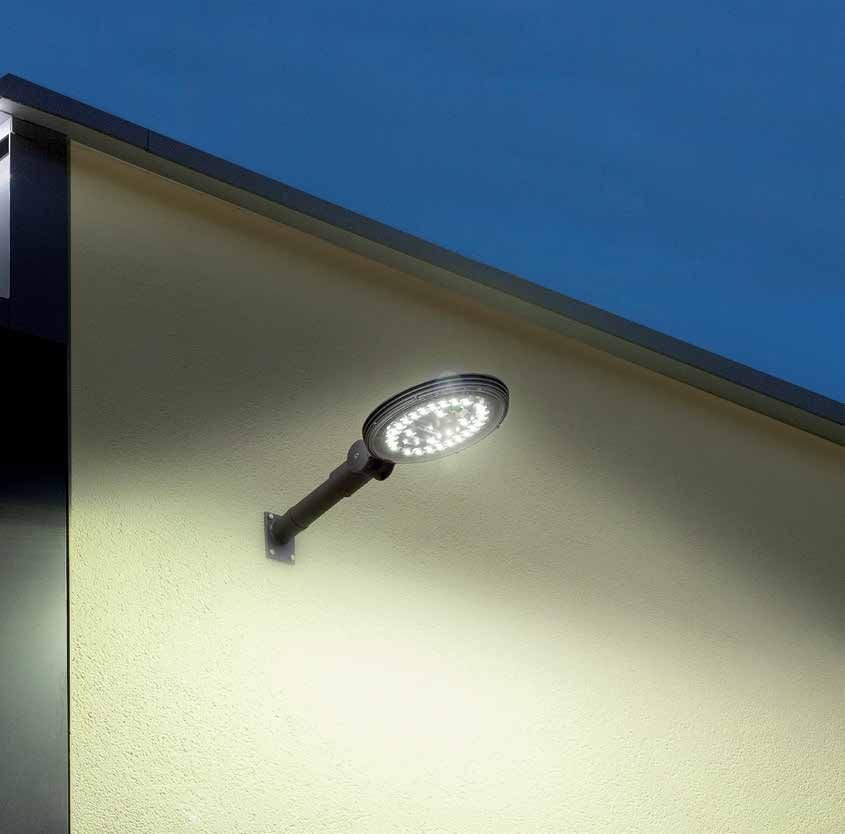

Traffic thoroughfares, residential roads and pedestrian precincts Buildings, company sites, industrial plants and industrial estates
The most important aspects to be considered Low CO2 emissions sustainably help to protect Facades, industrial buildings and outdoor areas The brightness of the LED lamp can be individually
when converting conventional street lighting to the environment. The technically sophisticated can be effectively presented with VIATEC LED adjusted. The light colour may be warm white, neu-
modern LED technology in the communal sector VIATEC LED guarantees a long service life and low light. The high luminous efficacy creates high- tral white or cold white. High-grade materials, such
are cost-effective energy potentials, environmental operating costs, as well as high cost-efficiency. lights in the outdoor arena and simultaneously as cast aluminium and stainless steel with polycar-
compatibility and high product quality. It ensures that public roads of every kind, hazard reduces risks. A variable assembly bracket for the bonate enclosure, ensure durable outdoor use. In
The pioneering technology of VIATEC LED com- areas and pedestrian precincts are illuminated in mast-top or side-mounted lamps with LED tech- addition, the VIATEC LED also stands out through
bines all the advantages of a highly efficient light- conformity with the standards. nology ensures that the lighting can be optimally its exceedingly quick and simple installation.
ing solution: it offers maximum light output while angled so that even the darkest corners are
reducing energy consumption by up to 90%. flooded with light.
6 Innovative lighting technology 7
Stührenberg GmbH
Variable functionality
for perfect lighting

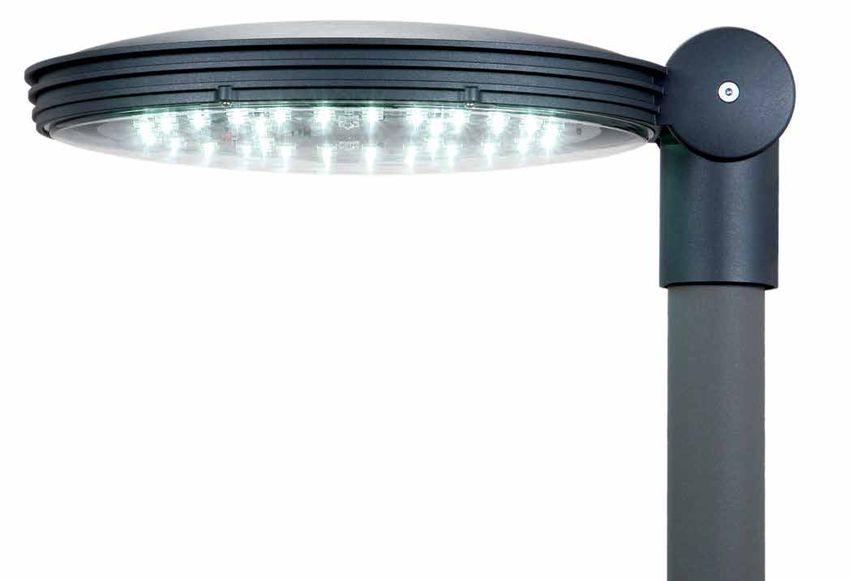

STB STG
Housing Cast aluminium, Cast aluminium,
powder-coated powder-coated
Colour Anthracite DB 703 Anthracite DB 703
Other colours on request Other colours on request
Colour rendering > 75 > 75
properties (RA)
Service temperature -30 °C to +50 °C -30 °C to +50 °C
Operating voltage 230 V AC 50 Hz +10 %/-15 % 230 V AC 50 Hz +10 %/-15 %
Effective luminous flux 700 up to 5.400 Im 2.900 up to 6.500 Im
Power factor typ. 0.95 at rated output typ. 0.95 at rated output
System output variable 15 – 75 W variable 40 – 90 W
Overnight set-back via control input (live phase) via control input (live phase)
Type of protection IP 66 IP 65
Protection class SK I as per EN 60958 SK I as per EN 60958
SK II as per EN 60958 (VDE/ENEC) SK II as per EN 60958
Installation • Mast-top/side mounting • Mast-top/side mounting
• Inserted length 120 mm • Inserted length 120 mm
• Angle adjustable from 0 to 90° • Angle adjustable from 0 to 90°
(in 7.5° increments) (in 7.5° increments)
Weight approx. 10 kg approx. 13 kg
Options Motion detection Monitoring and dimming functions
Monitoring and dimming functions
Dimensions approx. 610 x 385 x 110 mm approx. 705 x 460 x 120 mm
(L x W x H) (L x W x H)
Accessories Mast adapter ø 60 mm/ø 42 mm Mast adapter ø 60 mm/ø 42 mm
timeless design, low CO2 emissions, low investment costs, easy installation, low maitenance optionally available optionally available
Intensity distribution curve of VIATEC LED
LED in public spaces Photometric measurements have
confirmed the top values achie-
Pathways, car parks and public gardens for perfect lighting ved by VIATEC LED. Models STB
and STG are characterized by
The right light makes for security, protection and a service life and low maintenance effort. precise light control and uniform
pleasant atmosphere in outdoor areas used by the At the same time, VIATEC LED is distinguished by distribution of the light.
public. VIATEC LED is superior to all conventional its elegant, timeless design. And its functionality is
systems here, particularly in terms of efficiency, also tops: intelligent control and optimized motion
service life and cost-effectiveness. detection allow individual or neighbouring lamps
Changing over to LED technology from Stührenberg to be activated for a variable period of time. Ad-
not only saves energy and protects the environment, ditional wiring is not required for communication (Light measurement undertaken by
but is also significantly more cost-efficient in the between the light fixtures. Dial GmbH, Lüdenscheid, 09.03.2012) VIATEC with lens type 2 VIATEC with lens type 3
long term on account of the system‘s enormous
