Game Development Using the Open-Source Godot Game Engine Tero Salmela BACHELOR’S THESIS May 2022 Degree Programme in Media and Arts Interactive Media
ABSTRACT Tampereen ammattikorkeakoulu Tampere University of Applied Sciences Degree Programme in Media and Arts Interactive Media SALMELA, TERO: Game Development Using the Open-Source Godot Game Engine Bachelor's thesis 67 pages, of which appendices 2 pages May 2022 This bachelor’s thesis examined the open-source video game development tool, Godot Engine. The popularity and viability of independent game development is growing along with the many software tools available for developers today. This thesis focused on the potential of Godot Engine for game development, its design, features and workflows. Evaluating Godot Engine in this thesis was done in multiple ways. Godot Engine was compared to the popular alternatives, Unity and Unreal Engine. Godot En- gine’s history, design, features and community were examined. Godot Engine’s numerous features for graphics, physics, programming, animation, audio and networking were highlighted. This thesis includes a practical project, which was created using Godot Engine. The goal of the practical part was to provide a closer look at the structure of a project in Godot Engine, and to showcase common workflows associated with the program. The project results were examined in detail, with examples of design, programming and features covered. The project was publicly released as open-source software for further reference and study. A concluding discussion on the merits of Godot Engine as an independent game development tool was written to conclude the thesis work. Along with this, a reflection on the practical project, and some details about future develop- ments and trends were included. Key words: godot engine, game development, game design, software, programming
3
CONTENTS
1 INTRODUCTION................................................................................6
1.1 Motivation for the thesis..............................................................6
1.2 Goal of the thesis........................................................................7
2 GAME ENGINES................................................................................8
2.1 Unity Introduction........................................................................10
2.2 Unreal Engine Introduction.........................................................11
2.3 Godot Engine Introduction..........................................................12
3 GODOT ENGINE................................................................................14
3.1 History.........................................................................................14
3.2 Design.........................................................................................15
3.3 Features......................................................................................16
3.3.1 Godot Editor......................................................................16
3.3.2 Nodes and scenes............................................................17
3.3.3 Graphics...........................................................................18
3.3.4 Physics..............................................................................19
3.3.5 Scripting............................................................................19
3.3.6 Animations........................................................................21
3.3.7 Audio.................................................................................21
3.3.8 Networking........................................................................22
3.3.9 Asset workflow..................................................................23
3.3.10 Platform support.............................................................24
3.4 Community..................................................................................25
4 GAME PROJECT...............................................................................27
4.1 Island Assault.............................................................................27
4.2 Structure.....................................................................................28
4.3 Player controller..........................................................................31

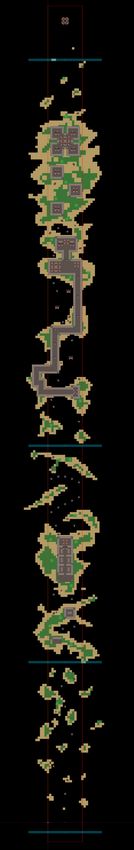

4.4 Level...........................................................................................38
4.5 Enemies......................................................................................42
4.6 User interface.............................................................................45
4.7 Score..........................................................................................47
4.8 Effects and audio........................................................................49
4.9 Persistent data............................................................................51
5 DISCUSSION......................................................................................53
5.1 Godot Engine for independent game development...................53
5.2 Practical project..........................................................................55
5.3 The future of Godot....................................................................57
4
5.4 Conclusion..................................................................................59
REFERENCES......................................................................................61
APPENDICES........................................................................................66
Appendix 1. Project repositories.......................................................66
Appendix 2. Asset sheet...................................................................67
5
ABBREVIATIONS AND TERMS
2D, 3D Two-dimensional, three-dimensional.
GDScript, C#, C++, Programming languages.
Python
OpenGL Open standard, cross-platform API for 3D graphics
developed by the Khronos Group.
GLES2, GLES3 Versions of OpenGL for Embedded Systems.
GLSL OpenGL Shading Language.
HUD Heads-up display. Gives visual information about
status in a game.
UI User interface.
API Application Programming Interface. Interface for
communication with software via code.
Vulkan Open standard, cross-platform API for 3D graphics
developed by the Khronos Group. Supersedes
OpenGL.6 1 INTRODUCTION 1.1 Motivation for the thesis Ever since my youth, I’ve held a fascination for games and the tools used to create them. Even before I knew how to use a computer, I would come up with ideas for games that I would like to make. I started out creating my first games with a program called Klik & Play (Clickteam 1994), which was an easy-to-use game creation software. Ever since then, I have learned about and used many programs to create games. Around the end of 2016, I found out about Godot Engine, a free and open- source game engine. We had been working on some game projects at my com- pany using various game development tools, like Unity. We were looking for a tool that better fit our needs and decided to try out Godot Engine. We have been using Godot ever since and worked on multiple different types of projects with it. I attended the TAMK Games Academy in 2019/2020 and worked on two pro- jects using Unity. I hadn’t used Unity in a while at this point and had never gone too deep, especially with regard to programming and technical implementations. After my experience with Unity during this time, I started to reflect more on how all of these tools have differing approaches, benefits and trade-offs in their design and features. While following online game development-related forums, I commonly en- countered questions about what software or methods were recommended for developing games. My experiences with some of these programs in the past, along with my recent work with Godot Engine and Unity, made me interested in examining these tools in closer detail.
7 1.2 Goal of the thesis The main objectives of this thesis work are to examine Godot Engine as a game development tool, to compare its design and capabilities to other similar tools, to provide examples of how it works in practice and to evaluate its position in the game development tools ecosystem. While the main focus of this thesis is Godot Engine itself, I will examine some other tools as well. While considering that I’m very familiar with Godot and prefer many of its approaches, I will try to keep an open mind and have an objective approach to the other tools discussed along the way. This thesis includes a practical section that consists of examining a game pro- ject created using Godot Engine. This game serves as a means of showcasing certain aspects of Godot and providing a more practical approach to under - standing its design. Godot Engine has features for developing both 2D and 3D games, but for this project I decided to focus on 2D. The project is an arcade style 2D game, and I have attempted to design it to showcase a variety of fea- tures and aspects of Godot. My hope is that this thesis will provide a good overview of Godot Engine for those unfamiliar with it, provide some context to compare it to other tools, like Unity, and to inspire others to try it by showing how games are created with it. I personally believe Godot is a great tool for certain projects and I hope that this thesis will show some of the reasons why.
8 2 GAME ENGINES Many different types of game development tools have been created and used by game developers over the last decades. The idea of a modern game engine came about in the 90s, with the release of games like id Software’s Doom in 1993. The idea of separating the core functionality of a game’s engine techno- logy and its content was a new approach at the time. (Gregory 2015, 11.) Since then, many general-purpose game engines have been developed. Cur- rently, the two major players in the proprietary game engine business are Unity and Unreal Engine (CB Insights 2018). Some other popular commercial game engines include GameMaker, RPGMaker, Construct and CryEngine. Some free and open-source game engine projects also exist, such as Godot Engine, Stride (formerly known as Xenko) and Bevy. To get a better understanding of the popularity of these different engines, it can be helpful to look at some usage statistics. According to the website SteamDB (2022b), which offers a tracker attempting to detect what game engines are used by games on the popular digital distribution platform Steam. This first table shows the top technologies in use and the number of detected games (Table 1). TABLE 1. Game technologies used on Steam according to SteamDB (2022b) Technology Total games Proportion (of listed) Unity 28 774 64,40% Unreal 7 370 16,49% GameMaker 3 043 6,81% RPGMaker 2 076 4,65% RenPy 1 347 3,01% XNA 582 1,30% Godot 455 1,02% Adobe AIR 401 0,90% Cocos2d 346 0,77% MonoGame 289 0,65%
9 While it is important to keep in mind that these numbers might not be com- pletely accurate as the source itself warns, it can still be helpful for making some conclusions. The overwhelming popularity of Unity is clear, likely fuelled by the large number of indie games released on Steam. According to SteamDB (2022a), the most popular tag used on the platform is “Indie” with 62 673 tagged products at the time of writing. One thing that these previous statistics do not reveal is trends. For example, Godot Engine was publicly released only in January of 2014 (Linietsky 2014) and did not grow much in popularity until recently. To see some evidence of this recent surge in Godot’s popularity, there are some statistics that can be looked at. Game jams, event’s where indie developers make small games in a limited time for friendly competition, can be used for this data. This table tracks the pro- portion of Godot Engine submissions in the annual Global Game Jam (Table 2). TABLE 2. Proportion of Godot Engine submissions in Global Game Jam (2022) Year Total games Godot games % 2018 8582 95 1,11 2019 9000 191 2,12 2020 9598 358 3,73 2021 6381 312 4,89 2022 5858 294 5,02 While the amount of Godot games participating in 2022 is still just five percent, there is a clear trend of growing proportional popularity among the submissions. This, along with the data from SteamDB discussed earlier, shows that Godot Engine still remains a relatively unpopular choice among some the other tools examined here. The goal of this brief overview into some of the history and statistics of game engines, and of Godot Engine in particular, is to provide some idea of the game development software ecosystem as it stands today. The next sections will provide some more detail about the most popular engines, Unity and Unreal En- gine, along with a brief introduction to Godot Engine.
10 2.1 Unity Introduction Unity is a commercial game engine developed by Unity Technologies. Unity is utilized in a variety of interactive real-time applications and has extensive sup- port for different platforms. Unity has been used to create many massively suc- cessful games, such as Genshin Impact, Fall Guys: Ultimate Knockout, Escape from Tarkov, Valheim and Hollow Knight. (Unity 2022c.) Unity offers a feature-rich editor for creating levels and assets and managing projects. Unity has a package management system that allows you to pick and choose the features and functionality relevant to your project, such as various 2D and 3D features, editor tools and platform plugins (Unity Docs 2022c). Unity also operates the Unity Asset Store for graphics, sounds, tools and plugins us- able in projects through the package manager (Unity 2022a). Scripting in Unity is done using Microsoft’s C# programming language. Unity has a compositional “GameObject” system, where each object can contain mul- tiple different components that combined define the object’s behaviour (Unity Docs 2022a). Unity comes with many basic components for graphics rendering, physics, user interfaces and sound. These built-in components can then be combined with custom script components to create complex behaviours. Unity has two primary rendering pipelines, the Universal Render Pipeline or URP, with a focus on performance along with a wide platform compatibility, and the High Definition Render Pipeline or HDRP, with a focus on high-end graph- ical fidelity for modern PCs and consoles. Both of these rendering pipelines of- fer physically based rendering, lighting, particles and post-processing. Unity also features 2D specific graphics features, like 2D lights. (Unity Docs 2022b.) Unity has a user manual and a scripting reference available for developers. Due to its popularity, Unity has a large community of developers and content creat- ors forming an unofficial support network for Unity developers. Unity being a commercial product used by many professionals, there are also forms of premium support available for companies using Unity. (Unity 2022b.)
11 2.2 Unreal Engine Introduction Unreal Engine is a commercial game engine developed by Epic Games. Unreal Engine has a storied history, having been used by many studios to create nu- merous iconic games (GameForest 2018). Modern examples of successful Un- real Engine games include Final Fantasy VII Remake, PUBG: BATTLE- GROUNDS, the Borderlands series, Tekken 7 and Epic Game’s own Fortnite. (Unreal Engine 2022b.) Unreal Engine offers a feature-rich editor with a set of tools for creating levels, adding functionality and managing assets. The engine also comes with some templates for games, supporting a few common genres like first person shoot- ers, and other interactive projects such as industrial visualization (Unreal En- gine Docs 2022d). Similar to the Asset Store for Unity, Unreal also has the Un- real Engine Marketplace for purchasing and downloading assets, templates and plugins for use in your projects (Unreal Engine 2022c). Unreal Engine uses the C++ programming language for scripting behaviours, but also offers the extensive visual scripting system Blueprints as a more non- programmer friendly alternative (Unreal Engine Docs 2022c). Just like Unity, Unreal Engine also supports a component system, where components can be added to objects called “Actors” in the engine to extend behaviour. Unreal En- gine also provides a range of built-in components, much like those of Unity. (Unreal Engine Docs 2022a.) The graphical features of Unreal Engine provide support for the most high-end features used by modern AAA games, such as ray tracing. Complex particle ef- fects and other visual effects are supported, as is a wide variety of physics sim- ulation features. Just like Unity, Unreal Engine features a physically based ap- proach to rendering materials and lighting. (Unreal Engine Docs 2022b.) Unreal Engine has similar levels of platform support as Unity, both having been used to create very successful mobile games like PUBG Mobile and Genshin
12 Impact respectively. Unreal Engine provides some documentation, along with community-based and premium support for users like those existing for Unity (Unreal Engine 2022a). Due to the popularity metrics discussed previously, Un- real Engine doesn’t have as large of an independent developer community sur- rounding it as that of Unity. 2.3 Godot Engine Introduction Godot Engine is a free and open-source game engine developed and main- tained by a community of independent contributors. Godot Engine is licensed under the MIT license and the project is a member of the Software Freedom Conservancy non-profit. Not many successful games made with Godot exist, but to mention a few examples, there is Cruelty Squad, Beat Invaders, Wrought Flesh and the upcoming Ex-Zodiac, Kingdoms of the Dump and FRANZ FURY. Perhaps the first example of a larger studio using Godot was when it was re- vealed that the recently released Sonic Colors: Ultimate was using Godot En- gine under the hood (Gutiérrez 2021). (Godot Engine 2022c.) The Godot Engine editor features tools for creating content, managing assets and also includes a built-in scripting editor. Unlike Unity and Unreal, Godot does not use a component-based approach, but rather has different classes of ob- jects called nodes. There are many types of nodes for graphics, physics, user interface and audio, much like the components in an engine like Unity. Nodes are arranged in a scene hierarchy to create more complex behaviour. (Godot Docs 2021j.) A script can be attached to any node to extend its behaviour. Godot Engine has a purpose-built scripting language called GDScript, which is similar in its syntax to Python (Godot Docs 2022b). Godot Engine also features first-class support for C#, a basic visual scripting system and the option of scripting in Godot’s nat- ive C++ language (Godot Docs 2020). Godot Engine also features an imple- mentation of the observer pattern, as described in Game Programming Patterns by Robert Nystrom (2014, II.4.) in what are called signals in Godot (Godot Docs 2021j).
13 Godot Engine has separate 2D and 3D rendering pipelines. The 3D rendering follows a physically based approach to shading and lighting, featuring most of the commonly used features available in Unity and Unreal. The 2D rendering also has some specific features, like 2D lighting, masking and shadows. Godot Engine also features both 2D and 3D physics features for simulations, triggers and ray casting. (Godot Docs 2022d.) Project export support in Godot Engine is available for desktop platforms, mo- bile and web (Godot Docs 2022d). Exporting Godot projects to consoles will be discussed more in the next part of this thesis. As an open-source project, Godot relies on a community of enthusiasts to support its development and the de- velopers using it. Godot Engine has a detailed official documentation available as well as a public GitHub page hosting the source code. There are numerous community platforms dedicated to Godot Engine. (Godot Engine 2022b.) This short introduction to Godot Engine will be expanded upon in the next part of this thesis. More comparisons of specific aspects of Godot to other tools will be covered as relevant. As evident by the introductions in this section, much of the functionality of game engines is similar in nature. There are some differ- ences in approach and design that have their trade-offs. These brief introduc- tions are only scratching the surface of these complex pieces of software.
14 3 GODOT ENGINE 3.1 History Godot Engine started as an in-house engine developed by two Argentinians, Juan Linietsky and Ariel Manzur. After years of working as consultants for game technologies and developing their own engine in the early 2000s, the engine was open sourced in early 2014. (Linietsky 2019.) Due to the instability of the industry in Argentina, the two developers split ways and Godot became more of a hobby for lead developer Juan Linietsky, while he continued working in consulting. There were little contributions from anyone at first, with Juan himself fixing issues users were reporting. After a while, in December 2014, the 1.0 version of Godot Engine was released. (Linietsky 2019.) Godot 2.0 was released in early 2016, and when the 2D side of Godot was starting to mature, more focus was put on the 3D aspects of the engine. Rémi Verschelde joined Juan as a project manager in 2015 to manage the growing number of contributors to the project. Since the engine was not used as an in- house tool anymore, a lot of much needed compatibility breaking changes could finally be implemented. Finishing the 3.0 version took much longer than expec - ted and brought along with it physically based rendering for 3D, when it finally released in January 2018. (Linietsky 2019.) With the community growing and more revenue coming in through donations and sponsorships, core members of the development team could finally be hired to work full-time on Godot and contributors could be hired for part-time projects. By the turn of the decade, there was a need for another massive re- write of many core aspects of the engine. A new Vulkan-based renderer is be- ing implemented as are many other changes to the core systems, scripting lan- guage, lighting and usability in the upcoming 4.0 release. (Linietsky 2019.)
15 3.2 Design Godot Engine has a general focus on being an accessible, open, community- driven and powerful game engine. To accommodate these goals for the project, a few unorthodox design decisions are implemented that set Godot apart from some of the competition. Since the project is more tightly linked to its open- source community than a traditional commercial game engine, the direction of the engine is driven by this community. Despite all of the developments, some core aspects are likely to remain a staple of the engine. (Godot Docs 2021h.) In contrast to Unity, Unreal and many other engines, Godot embraces some more traditional object-oriented approaches. Most modern engines use some kind of a component system as a means of decoupling as described by Robert Nystrom in Game Programming Patterns (2014, V.14.). In Godot, each object or node can only be of one type and have one script attached. You can compose nodes together to create reusable scenes, which behave much like nested pre- fabs do in Unity. Godot also has a stronger focus on inheritance, as these scenes and scripts can be extended to create more variations. (Godot Docs 2021h.) Godot Engine is designed to include the most commonly used tools, tightly in- tegrated to form a fully-featured package, while avoiding adding features that are not as frequently used into the core of the engine (Godot Docs 2021h). This somewhat tight control has had its benefits, as for example the engine down- load is less than a hundred megabytes in size and runs as a single executable file with no installation required. Addons from the Godot Asset Library can be used to add additional features as needed. (Godot Engine 2022a.) Since Godot Engine is an open-source project, it is important that there are con- tributors active and willing to work on the project. Contributions to the code have to be reviewed for quality, readability and usefulness by other developers before they can be implemented in the engine. Documentation and testing are also community-driven. Everyone benefits from any updates to the project and this open nature is one of the defining aspects of Godot. (Godot Docs 2021e.)
16 3.3 Features Godot Engine is a fully-featured game engine with tools for creating 2D and 3D games. There are many features for rendering graphics, interactivity, user inter- face, physics simulations, particle effects and shaders, programming beha- viours, networking, audio and asset management. This section will highlight some of the most important features of Godot. (Godot Docs 2022d.) 3.3.1 Godot Editor All of the Godot Engine features can be used through the Godot Editor. This program contains the scene tree view and viewport where you can hierarchic - ally and visually develop your scene files. The editor also contains the inspector used to edit node parameters and the file system explorer to manage project files. There are tabs for the 2D editor, 3D editor, script editor and asset library browser, as well as expandable tabs for the console output, debugger, audio mixer and animation editor. Here is a screenshot of the default layout of the Godot Editor (Picture 1). (Godot Docs 2021g.) PICTURE 1. A screenshot of the Godot Editor viewing the official Third Person Shooter Demo project.
17 3.3.2 Nodes and scenes In the Godot Engine development environment, nodes are the basic building blocks of programs, similar to Unity’s GameObjects. Unlike in Unity, where you attach different components to make GameObjects unique, Godot comes with many different types of nodes, each designed for a different purpose and utiliz - ing different engine features. Most nodes in Godot are arranged under three main categories, Spatial for 3D related nodes, Node2D for 2D related nodes and Control for user-interface related nodes. (Godot Docs 2021j.) Nodes are arranged hierarchically in what are called scenes in Godot, much like the scenes in Unity. Unlike in Unity, there is no separate prefab system, but in - stead all scenes can be freely combined, instanced and inherited from. The par - ent-child relation of nodes is also often important for their functionality. As an example, in Unity to create a dynamic and colliding physics object you would at- tach both a Rigidbody component and a Collider component to a GameObject. In Godot you would create a similar object by creating a Rigidbody node and a Collision Shape node as a child of the Rigidbody to enable collisions. (Godot Docs 2021j.) The node and scene system in Godot allows for much flexibility and the main hierarchy of all nodes while the game is running, known as the scene tree in Godot, can be constantly changing. The Godot Editor serves essentially as an editor to edit scene files and all the properties of the nodes contained within them. The default scene format in Godot, the TSCN format, is also meant to be human-readable and friendly to version-control systems (Godot Docs 2021l). (Godot Docs 2021j.) While using Godot’s scene system is the normal way of creating applications, it can be bypassed, partly or as a whole, by using Godot’s low-level APIs known as Servers. The VisualServer handles graphics, PhysicsServer and Physics2D- Server handle physics and the AudioServer handles audio. Using Servers can be a way of having more control over the game architecture, without having to use nodes. It can also be helpful for optimizing for cases where the additional overhead of nodes and scenes would prove troublesome. (Godot Docs 2022e.)
18 3.3.3 Graphics The current stable version of Godot Engine has two renderers, a GLES3 ren- derer meant for higher-end platforms, like desktop, and a GLES2 one for lower- end platforms, like web and mobile. All features are available on the GLES3 version, but some are missing in GLES2 for compatibility and performance reasons. (Godot Docs 2022d.) For 3D graphics, Godot Engine features a physically based rendering pipeline for 3D models based on the physically based rendering theory work by Disney. Materials support realistic parameters like roughness and metallic, and effects such as normal mapping and subsurface scattering. Godot also supports vari- ous forms of transparency in materials and screen-space effects like refractions and reflections. (Godot Docs 2022d.) The common types of 3D lights, omnidirectional, directional and spot, are avail- able in Godot. All lights can optionally cast shadows, done using shadow map- ping. Godot supports near real-time indirect lighting using what are called GI probes (GI standing for global illumination). For realistic lighting on lower-end devices, high quality baked light-mapping textures can be generated. Godot also features reflection probes to more accurately capture environmental reflec- tions. (Godot Docs 2022d.) For 2D graphics, Godot Engine features rendering of sprites and textured poly - gons. Godot also has simple 2D lighting features with normal maps for sprites and shadow casting. For user-interfaces, there is support for sliced images and font rendering. All of the built-in shading features in Godot can be extended us- ing Godot’s own shading language that is very similar to GLSL, or by using the node-based visual shader editor to create custom shaders. (Godot Docs 2022d.)
19 3.3.4 Physics Godot Engine has separate physics engines for both 2D and 3D uses. Both can be used for typical rigid body physics and offer easy-to-use physics features for controllable characters with the kinematic body nodes. There is support for trig- gers with the 2D and 3D area nodes, that can additionally locally override phys- ics parameters, and ray-casting features for both physics engines. (Godot Docs 2022d.) There is support in the 3D physics engine for soft body simulation, that can be used for cloth animation. There are features for various joints in 2D and 3D to create realistic mechanical animation and ragdoll simulations. Godot also in- cludes a vehicle physics controller for creating simplified car physics. (Godot Docs 2022d.) As for the performance of physics in Godot Engine, the YouTube channel Mean Gene Hacks (2021) posted some videos showing testing related to both 2D and 3D physics performance in Godot versus Unity. For 3D, it seems that Godot lags significantly behind in terms of performance of a large number of physics objects. Perhaps surprisingly, considering the 3D results, the 2D performance in Godot was comparable to that of Unity. (Mean Gene Hacks 2021.) 3.3.5 Scripting In contrast to both Unity and Unreal, the main scripting language of Godot is its domain-specific GDScript language. The decision to go with a custom scripting language was made based on various needs and goals that the project had, such as the focus on reducing complexity for both the user and the maintainers of the codebase. A custom scripting language allowed for a tighter integration in the engine, by for example allowing rich code completion with the built-in script editor. (Godot Docs 2022b.) GDScript is a dynamic language similar in its syntax to Python. GDScript offers optional typing of variables and includes built-in types for game development re-
20 lated data, like multi-dimensional vectors, colors and matrices. GDScript uses reference counting to manage memory, so no garbage collector exists like in C#. Each GDScript file is its own unnamed class by default and can optionally be named. Classes can inherit from built-in classes and other class files, but multiple inheritance is not allowed. (Godot Docs 2022b.) The important built-in callback methods used in Godot are the Node class’ “_ready” and “_process” methods (Godot API 2022a), similar to the “Start” and “Update” methods in Unity’s MonoBehaviours (Unity API 2022a). The first one is called on node initialization, the second one is called every engine frame. Other callbacks also exist for things like handling inputs and physics synchronised processing. Godot’s official documentation includes a class reference that lists all classes, their methods and properties. Nodes can communicate between each other using Godot’s signal system. Many built-in nodes include signals, like user-interface elements and physics objects, that can be connected to the scripts on nodes to call methods. For ex - ample, the base class for all buttons includes a “pressed” signal that can be connected to a script to call a method when that button receives an input from the user. Custom signals can also be created. (Godot Docs 2022b.) GDScript offers a simple way of adding coroutines using the “yield” keyword. Its use is similar to the “await” keyword in C#. Yielding functions in Godot is power- ful, especially when combined with the use of signals. Yield statements can wait for a signal to emit before continuing, for example from a timer timeout or an an- imation finishing. (Godot Docs 2022b.) In addition to GDScript, Godot fully supports scripting using C# 8.0. C# support using Mono was added to Godot 3.0 thanks to a donation from Microsoft (Etcheverry 2017). While not as tightly integrated as GDScript, scripting with C# works mostly the same, besides the obvious language differences, like static typing. C# is generally considered to be faster in terms of performance than GDScript. (Godot Docs 2022a.)
21 Besides the main languages, GDScript and C#, Godot also offers support for scripting using the engine’s native C++ language using a system called GDNat- ive. There is also a visual node-based scripting tool for a more non-programmer friendly alternative. All of the scripting languages can also be combined in pro- jects so that, for example, performance critical scripts can be written in C# or C++ and more designer friendly scripts can use GDScript or even visual scripts. (Godot Docs 2022d.) 3.3.6 Animations Godot has powerful animation features. Almost any parameter can be anim- ated, method calls can be made from animations and audio clips can be played. Animation easing, interpolation, looping and timings can be adjusted, along with all other animation properties, from the dedicated animation editor panel. There is also support for onion skinning. (Godot Docs 2022c.) For more advanced transitioning of animations, a flexible node-based animation tree is available. This is especially useful for animated 3D characters and can contain nodes for state machines, blend spaces and simple animation blending. Godot offers other advanced animation features, like inverse kinematics and root motion. (Godot Docs 2021m.) For quickly animating properties from code, Godot offers the tween node. Much like animations, this node can interpolate almost any parameter. You can create multiple simultaneous tweens with custom timings and easing curves. You can even interpolate method calls. Tweens make it easy to quickly animate things, like user interface transitions, or even game mechanics such as tile-based movement. (Godot API 2022c.) 3.3.7 Audio Godot Engine’s audio features consist of an audio bus system and nodes that stream audio. There are separate nodes for 2D, 3D and non-positioned audio.
22 The nodes can route the audio they output to any available audio bus, which have individual volume controls. Multiple buses can be added, each bus having built-in effects available for processing the audio. Audio can be routed between multiple audio buses before reaching the master output bus. (Godot Docs 2021a.) The audio streaming nodes can play various types of streams, even procedural audio with tone generators. The pitch, volume, distance, attenuation and some other 3D-specific parameters can be adjusted based on the type of node. Phys- ics area nodes can optionally override the audio output of the audio streaming nodes that overlap their shape. This can be combined with a special audio bus layout for reverb simulation. There is also support for an automatic Doppler ef- fect, which will adjust the pitch of a 3D audio source based on tracking its velo- city over time. (Godot Docs 2021b.) 3.3.8 Networking Godot offers ways for doing both low-level and high-level networking. More ex- perienced users, and those who want to have more control over the networking in their game, can use the low level UDP and TCP protocols or the higher-level SSL and HTTP protocols. While these protocols enable greater control over the networking in your project, they can be difficult and time-consuming to imple- ment. (Godot Docs 2021i.) Godot provides a simplified high-level multiplayer API. This system can be used to connect clients to a server and synchronise method calls and variables. The scene tree, the core node hierarchy in Godot, also manages the networking. The default implementation used in Godot is based on the ENet library, which works for most platforms, but there is the option of using the WebSocket and WebRTC standards for networking when exporting to the HTML5/WebAssembly platform. (Godot Docs 2021i.)
23 3.3.9 Asset workflow Godot Engine supports a variety of different image, texture, audio, video, 3D and data file types. Files are automatically imported when added to the project folder, based on some default import parameters. These import parameters can be changed from the dedicated import panel. (Godot Docs 2021c.) For images and textures, Godot supports many common image formats like BMP, JPEG and PNG. There is also support for OpenEXR and Radiance HDR files with high-dynamic-range, useful for panorama sky backgrounds. Textures can manually be marked in the import panel to be used as normal maps, or automatically by using them as a normal map in a material. Godot also has op- tions for different methods of lossy and lossless image compression. (Godot Docs 2021c.) Godot Engine supports the WAV, Ogg Vorbis and MP3 formats for audio files. Support for the MP3 format was added since the patents related to it have ex- pired (GitHub 2019). Each of these formats can be used for any purpose, sound effects and music for example, but come with their inherit costs and benefits in terms of performance and file size. (Godot Docs 2021c.) The 3D scene and model import workflow in Godot is recommended to be done using the open glTF 2.0 file format. The older open COLLADA format is also supported. Since Godot Engine is an open-source project, it heavily embraces open standards and prioritizes open-source workflows with other open tools, namely Blender in this case. For a better workflow with proprietary 3D tools like Autodesk’s 3ds Max and Maya, Autodesk’s FBX format is supported. Godot’s FBX importer saw numerous improvements thanks to the virtual social platform developer IMVU sponsoring work related to it (MacPherson 2020). There is also an experimental native Godot scene file exporter for Blender available. (Godot Docs 2021c.) There are many ways Godot can manage a 3D scene file, to combine materials, meshes and animations, or separate them to different files. Import settings re- lated to mesh formats, animations and lightmap baking can be adjusted. A com -
24 mon workflow is to take the imported scene file and create an inherited Godot scene file, which can then be modified further. Even when updating the original scene file, most of the changes in the inherited version can be kept. Godot can also detect some import hints written in object names of an imported 3D scene file. These hints can be used to automatically generate collision shapes for ex- ample. (Godot Docs 2021c.) 3.3.10 Platform support The Godot Engine editor runs on and can export games to the major desktop platforms, Windows, macOS and Linux. A web version of the editor is available, and projects can be exported to HTML5. Godot supports exporting mobile-tar- geted projects to Android and iOS. Exporting to Universal Windows Platform is also supported. (Godot Docs 2021f.) Godot offers a dedicated export panel to configure your project export settings for each platform. Separate export templates have to be downloaded for each platform and engine version before exporting. Godot configures the exported project for each platform and stores the assets into a single package file. The package file system can also be used to create patches and downloadable con- tent for your exported projects. (Godot Docs 2021f.) Exporting Godot Engine projects to console platforms is a somewhat complic- ated issue. Godot does not provide a direct way of exporting to platforms like Xbox, PlayStation and Nintendo Switch. Since Godot is an open-source project, it can’t legally contain console specific code that would normally be covered by a non-disclosure agreement. There does exist a way of releasing your Godot Engine game on consoles through third-party companies offering porting and publishing services, or by doing the porting yourself. (Godot Docs 2021d.)
25 3.4 Community Godot Engine is a popular open-source project and has a considerable online community surrounding it. In the age of social media, different platforms host forums related to shared areas of interest, including software. The Godot En- gine project has many of these communities surrounding it. These are platforms where people discuss and share their work, experiences and development re- lated to Godot. (Godot Engine 2022b.) The Godot Engine project has its main website (godotengine.org), that hosts an introduction to Godot, a news section, links to community pages and resources and the official downloads for Godot. Godot Engine’s source code is hosted on GitHub and the repository is very active with over 48,000 stars, as of writing, the most of any repository with the tag of “gamedev”. Due to the large amount of activity on the main GitHub page, Godot uses a separate repository for improve- ment proposals. (GitHub 2022.) Godot Engine has an active Discord server with over 44,000 members, and a Reddit page with over 85,000 readers. There are some successful content cre- ators, like GDQuest who have a successful YouTube channel with over 175,000 subscribers, focusing on Godot and game development related content. GDQuest has created a lot of free resources related to open-source game de- velopment and also ran multiple successful Kickstarter campaigns. GDQuest even used funds raised from a successful campaign to hire two developers to work on Godot improvements (Lovato 2021). (Godot Engine 2022b.) There are several Godot related game jams organized periodically. There is the Go Godot Jam (2022), which is a month-long event with a game jam and live events with tutorials, interviews and other content. The latest Go Godot Jam saw over a hundred entries submitted. There is also the monthly Godot Wild Jam (2022), which I have personally taken part in twice, reaching its 44th itera- tion. A Godot related conference, GodotCon has also been arranged a few times, with the last one taking place online in July of 2021 (Cislaghi 2021).
26 The vast majority of community interactions surrounding Godot are very posit- ive. From my own experience, the Godot community is very open, inclusive and welcoming. However, as with any online community, a set of standards are im- portant to adopt and maintain to ensure the long-term health of the community and its direction. To this end, the Godot Engine project adopted a Code of Con- duct applying to all platforms, users and contributors in 2019 (Verschelde 2019).
27 4 GAME PROJECT This section will describe the practical project that was created as a part of this thesis work. The project is a playable game created using Godot Engine. The game is created to highlight various features and aspects of the engine and also serves as an example of how a full game can be structured in Godot. The goal was to create a simple, yet complete, game that would not only show the en- gine’s capabilities, but also help illustrate workflows and common practices for working with Godot. The project took approximately three months to complete, although not worked on full-time for that whole period. The game was created mostly using Godot Engine version 3.4.2. At the time of completion, the maintenance release, Godot 3.4.3 had already been released. The project is freely downloadable on the itch.io indie game hosting service and the full source code and project files are available on GitHub (Appendix 1). All scripts are heavily commented for reference and educational purposes. 4.1 Island Assault Island Assault is a simple top-down shoot ‘em up action game created using Godot Engine (Picture 2). The game is inspired by the classic MS-DOS game Raptor: Call of the Shadows released by Cygnus Studios in 1994. The game has a single level, five enemy types including a boss enemy, upgrades for the player ship and a checkpoint system. The goal is to complete the level by de- feating the boss while aiming for a high score. The code of Island Assault is completely written in Godot Engine’s own scripting language, GDScript. While other supported language, like C#, offer more ad- vanced language features, the tight integration and simplicity of GDScript make it an appealing choice for small projects. I am personally more familiar working with GDScript and I also wanted to showcase its features as a part of this pro- ject, making it the obvious choice. All of the script files are available, along with other project files in the repository linked in appendix 1.
28 Island Assault is minimalistic and stylized in graphical appearance. The visuals take advantage of flat colors, thick outlines and subtle gradients to portray depth and lighting. Almost all graphical assets were created as vector graphics using the illustration application Affinity Designer. Appendix 2 shows the main vector document used for graphics. The game has electronic, retro inspired music and sound effects created using the digital audio workstation Reaper. The game is controllable using the keyboard or a game controller, like an Xbox Wireless Controller. The game supports various display resolutions running in a window or full screen. Sound and music audio levels are independently ad- justable. The game has a locally saved high score list, and user settings are saved to a configuration file. Although it is an important accessibility feature, controls are currently not configurable due to a lack of time to implement the op- tions to do so. PICTURE 2. A screenshot of the Island Assault main menu. 4.2 Structure Games created using Godot run in a single hierarchy of objects or nodes called the scene tree. This hierarchical structure is a core part of Godot and structuring
29 both the nodes in your game and the files in your project following this pattern can be helpful. While Godot does not force you to work in any particular pattern, it embraces object-oriented design, especially inheritance, unlike the highly compositional approach of engines like Unity and Unreal (Godot Docs 2021h). To follow the practices outlined above, the structure of the main scene tree and the project files are somewhat similar. You can see this in a side-by-side com- parison of the main scene tree of the game while running, and the file system view of the project files (Picture 3). While these don’t match exactly, they do of- fer some guidance in what scene and script files should go where. Generally, when developing in Godot, you want to store the script file along with the scene file that utilizes it. It is good to also store assets used by the scenes, such as im- ages and audio, in the same place as the scene. PICTURE 3. Screenshots of Island Assault’s scene tree view on the left and the project files on the right. Note the similar file and node names.
30 This way of structuring your game project is not how projects are often struc- tured in an engine like Unity. Unity provides a default structure for assets where things like materials, scenes and scripts are all in separate folder hierarchies. This can make more sense for a compositional design pattern, where compon- ents in Unity’s GameObjects can be attached to a number of different types of objects. Scripts in Godot are generally only attached to one or one instance type of node. The main game node only consists of one scene file and one script file in Island Assault for example. You might think of a Unity file system as more of a library with sections for different types and a Godot file system as a family tree where the position in the tree is a more identifying point. In the Godot project settings, you have to choose the main scene that the game starts with. In Island Assault, this main scene contains the game scene and main menu scene. At the start, the main scene’s script starts up the main menu and the game is designed not to start until called to do so. This means that the main menu and the game are both loaded in memory on startup. This is fine for a simple game like Island Assault that does not use large asset files or con - sume much memory. In a more complex game, it would be better to do this only after the menu is navigated and a loading screen can display. In Godot, you can change the scene that is running with methods in the SceneTree class, but it is not necessary (Godot API 2022b). In Island Assault, the scene is never changed, only child nodes are instantiated and removed as necessary. This is a similar approach as you could achieve in Unity with a multi- scene workflow (Unity Docs 2022d). In Godot, adding and removing child nodes is very simple and performant, so this workflow is commonly used. This section covered some basic information about how projects in Godot are structured. More specific examples of the design, like looking at the player con- troller in Island Assault, will be shown next. For a more detailed view of the pro - ject files and the structure of the Island Assault Godot project, refer to the links provided in appendix 1.
31 4.3 Player controller The player-controlled ship in Island Assault uses a KinematicBody2D node as its base. This node, along with its 3D counterpart, is meant to be used for user- controlled physics bodies like player characters. It has similar functionality as Unity’s Character Controller component and can be moved with code or by an - imations. KinematicBody2D has a few helpful methods available for moving it, of which Island Assault uses the “move_and_slide” method. This moves the body while letting it slide along other bodies, instead of just stopping. The player scene consists of three main parts. The main player node and script handles player inputs and moving the player ship. There is a separate node that manages the visual part of the player, controlling sprites and shaders. This is because the player ship in Island Assault is composed of multiple sprites and utilizes shader and lighting effects that need a decent amount of code to func- tion. The last main part of the player scene is the gun node and script. The player’s gun is upgradable and can shoot in different styles, making the gun lo - gic complex enough to warrant its own script. Interestingly, this somewhat compositional way of using multiple nodes for the player is reminiscent of a component approach. You can indeed make your own “components” in Godot and work with them in much the same way as you would in Unity. At least occasionally, this pattern can be helpful to split up code and nodes so that one does not become too complex. Godot’s observer pattern- based signal system, as discussed earlier in the introductory section, is helpful for managing communication between nodes. Handling user input is perhaps the most basic and important part of any game’s programming. To give an idea of how input can be handled in Godot, the Island Assault player script shows some basic ways of doing this (Figure 1). There is logic in both the process and physics process methods of the player node. In the process method, input is read using the Input singleton class. In the physics process method, this input information is used to move the player using the “move_and_slide” method provided by KinematicBody2D. Moving kinematic bodies should always be done in the physics-synchronised process method.
32
In Godot, each node can have input specific callback methods that handle input
events. Since the player’s inputs should be checked every frame during game-
play anyway, Island Assault just reads inputs in the process method. With the
input callback events, once user gives the Godot game input, it is propagated
through the scene tree hierarchy until it is either handled by some node or
reaches the end of the tree. For more information on how event-based inputs
work, refer to the Godot documentation page on InputEvents (Godot Docs
2021n).
# The process method handles reading the player input.
func _process(delta):
# Reading the input axex to form the input Vector2.
input_move_vector = Vector2(Input.get_axis("left", "right"), Input.get_axis("up", "down"))
# Clamping the vector length to avoid diagonal movement being faster.
input_move_vector = input_move_vector.clamped(1.0);
# Setting the current move vector by using the move toward method.
# The move toward method is used along with the delta and acceleration to
# give smooth yet responsive movement.
current_move_vector = current_move_vector.move_toward(input_move_vector, delta * acceleration)
# If controllable, also read firing input.
if Input.is_action_pressed("fire") and controllable:
# Fire the gun, even every frame. Gun handles the fire rate.
player_gun.fire()
if controllable:
# If controllable, also give the visual node the movement information
# used for effects.
player_visual.reference_vector = current_move_vector
# Physics process handles actually moving the KinematicBody2D node.
func _physics_process(_delta):
# If controllable, use the move and slide method to move using the move
# vector multiplied by the speed.
if controllable:
move_and_slide(current_move_vector * speed)
FIGURE 1. Input handling section of the player.gd script file.
Continuing with some more details of this section of the player script (Figure 1).
There are some additional checks for whether the player is controllable cur-
rently or not. Having a Boolean variable for tracking player controllability is a
handy way of dealing with moments when the player is on screen, but not inter-
acting, like cutscenes. The player process method also uses the child player
gun and player visual nodes, the references for which are retrieved earlier in the
ready method.33
The player script manages player health, speed and lives (Figure 2). These are
stored as variables that change based on gameplay conditions. The variables
use the “export” keyword to make them editable in the Godot editor’s inspector
window. GDScript supports setter and getter functions for variables, defined
with the “setget” keyword. Setter functions are used for each of these player
status variables.
There are upgrades to replenish health and lives and an upgrade to increase
movement speed. The setter function checks if an upgrade would bring the
value to above the maximum, making the upgrade unnecessary. These extra
upgrades give a score bonus reward via a signal. The setter function also emits
signals each time the values changes. This is used to keep the interface up-
dated when values change. The values are also clamped accordingly.
# Exported variable for the health with a setget method.
export var health := FULL_HEALTH setget set_health
func set_health(value: int):
# If trying to set health to above full health, reward bonus points.
if value > FULL_HEALTH:
emit_signal("bonus_upgrade")
# Limit health amount.
health = int(min(value, FULL_HEALTH))
# Emit signal to update gui.
emit_signal("health_updated", health)
# Exported variable for the speed with a setget method.
export var speed := DEFAULT_SPEED setget set_speed
func set_speed(value: float):
# If trying to set the speed to above maximum, reward bonus points.
if value > MAX_SPEED:
emit_signal("bonus_upgrade")
# Limit speed value.
speed = min(value, MAX_SPEED)
# Exported variable for the lives with a setget method.
export var lives: int = FULL_LIVES setget set_lives
func set_lives(value: int):
# If trying to set lives to above full amount, reward bonus points.
if value > FULL_LIVES:
emit_signal("bonus_upgrade")
# Limit lives amount.
lives = int(min(value, FULL_LIVES))
# Emit signal to update gui.
emit_signal("lives_updated", lives)
FIGURE 2. Status variables section of the player.gd script file.
Along with the player’s health, speed and lives, the player’s gun is also upgrad-
able with collectible powerups. These upgrades are implemented using an in-You can also read
