HiGHTecH
eaSY
TO
uSe
PReFace
Problems cannot be
solved with the same
The technology of fully automatic production of computer-designed work parts in any form from a wide variety of
materials has long been regarded as a great vision and hope for the future in the technological revolution „Industry
mind set that
4.0“. created them.
Digitisation and networking is leading to a fundamental change in automation and production. „Albert Einstein“
Technologies that were pure science fiction 5 years ago and made the headlines exclusively in research labs are
now part of everyday life and have become indispensable on the world market.
At CRETEC, we specialise in driving forward the integration of industrial production with modern information tech-
nology and digital systems. Inhaltsverzeichnis
There is an immense need for solutions worldwide to enable people, machines and things to communicate and
cooperate with each other. 1 ID Phaser Series _______________________________________ 5
This is where we come in: 2 SmartCam Predator Series ______________________________ 9
Our developments are more compact, powerful and economical. 3 VeriTube Series ________________________________________ 13
Innovations Made in Germany. 4 Project Stormtrooper ___________________________________ 17
As complex as our interdisciplinary projects may be, our products are flexible and efficient. Always true to the motto 5 Educational initiative 2020 ______________________________ 19
„Hightech easy to use“.
CRETEC products are multi-compatible and can be used across all industries. They also solve time-tested tasks
faster, smarter and more reliably.
Preface 2 / 20 Table of contents 3 / 20
NOteS 1 ID Phaser Series

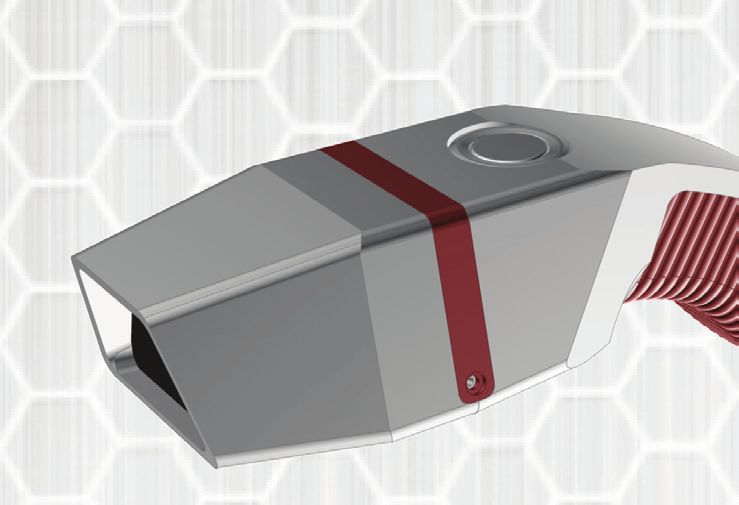

Universally applicable
Full metal barcode and DPM reader
● Highest End DPM Lese Performance
● Solid and lightweight
● Communication in all fieldbuses
● Ergonomically designed
● Despite the harshest
Multicompatible environmental conditions
1D: BC412, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5,
GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey,
Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN
Stacked 1D: Codablock F, Code 49, GS1 Composite (CC-A/CC-B/ CC-C), MicroPDF, PDF417
2D: Aztec Code, Data Matrix, Han Xin, Micro QR Code, QR Code
Postal Codes: Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet,
UK Royal Mail, UPU ID-tags
Propetietary 2D: GoCode®
4 / 20 ID Phaser 5 / 20
NOteS ID Phaser - everything from a single source
The ID Phaser is completely modular
● Suitable for any production
environment
● For every application
● For each communication network
● Suitable for current and future
applications
1N73LL1G3NC3
15 7H3
4B1L17Y
70 4D4P7 70
CH4NG3
„Stephen Hawking“
5 YeaR GuaRantee
6 / 20 ID Phaser 7 / 20
NOteS 2 SmartCam Predator Series

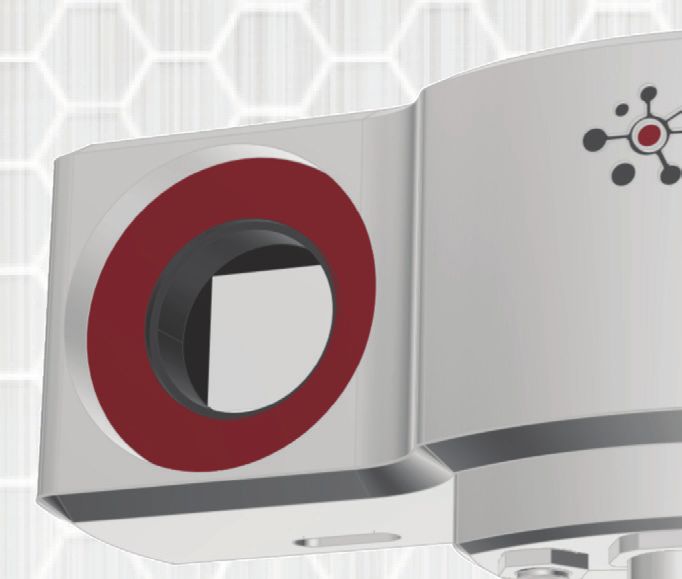

Embedded Vision Hybrid
● Computing power like a high-end PC system (i5)
● Sensor resolution from VGA to 5MP - Global Shutter
● Visualization, control, job selection via web browser
● integrated flash controller
● Micro SD card for image storage, job storage,
software licenses, min. 30GB space
● Standards from yesterday, today and tomorrow - Support
of all industry protocols
● Digital communication:
2 digital inputs, 4 digital outputs - real time
● Compatible with virtually any system:
● Windows, Linux, Mac, Android, iOS
● Solid aluminium housing (115 x 54 x 62mm)
with intelligent heat management
● Freedom through flexible algorithms kernel
MVTec Halcon Stemmer CVB Open CV ... more to come
und HDevelop (Common Vision Blox)
8 / 20 Predator 9 / 20

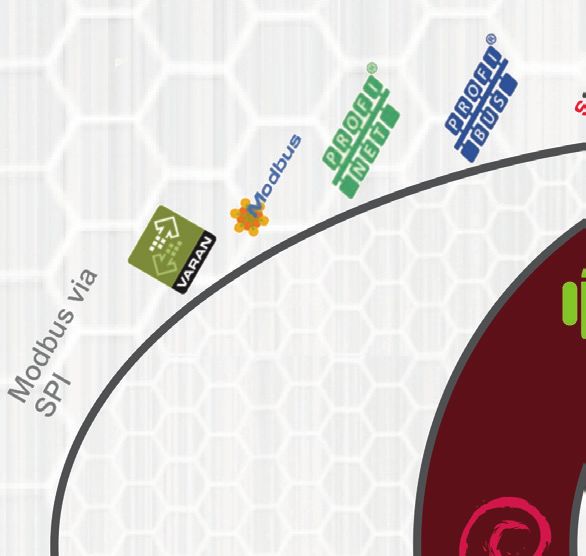

NOteS Multicommunicative
The Predator series includes two network controllers. Thus, the
Camera on the one hand communicate with the bus systems of the systems on the other hand
and on the other hand, pass the results in a second protocol format to higher-level systems.
Both controllers have their own indust-
rial M12 connectors.
For example, it is easy to integrate the
camera into a ProfiNet network and
communicate within this network with
the participants via ProfiNet, while
simultaneously sending the results via
OPC UA to a higher control center or a
cloud.
Even old bus systems such as ProfiBus
can be used for communication.
5 YeaR GuaRantee
10 / 20 Predator 11 / 20
NOteS 3 VeriTube Series
Code verification with autofocus
● Closed verification system
- Ready to use
● One Button Action
● 10 megapixel resolution
● Halcon algorithm
● Verification according to ISO
15415,15416,29158 or AIM/DPM
● Code structure check (GS1, PZN,...)
● Visualization of defects in the code
● Direct signalling of the verification result via
coloured illuminated ring - green (A, B),
yellow (C), red (D, F)
● Output of a detailed and robust
verification log
● Storage of the digital results in a tube
and storage via USB and network interfaces
12 / 20 VeriTube 13 / 20
NOteS
● Homegenes „Offaxis“ Incident light
(dome lighting)
● Axial incident light
(coax lighting)
● 4 segment „Low Angle“
lighting 30°
● 4 segment low angle
lighting 45
● World‘s only verification system
with autofocus
● 100% integrable into the production line
5 YeaR GuaRantee
14 / 20 VeriTube 15 / 20
NOteS 4 Project Stormtrooper
the next step towards full automation
We are also happy to support you in the selection of
suitable robotics, including human robot collaborati-
on.
(selection, installation, commissioning and support.
Franka Emika is the first robot in the world to be
CE-certified at the factory.
Hightech Made in Germany
16 / 20 Stormtrooper 17 / 20
NOteS 4 educational prospects 2020
HIGHScORe 4U
Jobs of the future
The Industrial Revolution 4.0 leads to cool new jobs that
are fun, highly paid and have a real future!
Become an application technician for
- industrial image processing
- neuronal nets
- Robotics
Interested?
Then take advantage of our educational opportunities and visit us at
https://www.vspm.info/deutsch/schulsozialarbeit/highscore-4-u/ or contact us via vspm. info/
english/contact
18 / 20 Education 19 / 20Innovation and Training Central Software Development
Center, Hessen Office, Hessen Center, Bayern
Industriestraße 44, Burgstraße 25,
63654 Büdingen 63546 Hammersbach 92637 Weiden i.d.Opf.
Germany Germany Germany
Tel. +49 6185 647 99-00
mail@cretec.gmbh
www.cretec.gmbh
CReTeC Product Brochure Q4/2017You can also read
