ECONORMA S.a.s - Prodotti e Tecnologie per l’Ambiente
Wireless Monitoring System for testing ATP
Produced by ECONORMA Sas, this portable system is designed taking into account the ability to
install, and easy to move, a network monitoring temperatures without any connection cables for
connecting to the PC. Only maintenance is the periodic replacement of the lithium battery long lasting.
The system consists of two modules of FT-105/RF-ATP radio mod. FT-105/RF-MP to which they are
linked, by n. 4-connector IP-65, n. 12 digital temperature sensors with stainless steel hood. The probes
used for the measurements are of the digital type and have the following advantages compared to
traditional analog probes: 1) exclude the need to provide for periodic calibration, 2) The type of protocol
used and the fact that each probe is uniquely identified simplifies the wiring of the machine, and makes
communication insensitive to noise and allows you to verify the presence or absence of the probes
detecting faults, 3) They can also be placed at a considerable distance from the instrument without this
affecting the measurement accuracy.
SOFTWARE "FT-SW-ATP"
The program allows the connection and operation of the measuring system via a PC which is
connected to a radio receiver. The read data is updated in real time in an excel file (formatted for
printing) and within the database. The software allows the programming of each module FT-105/RF-
MP and its wireless communication. Manages and stores all of the data from these to the PC.
With the program you can see in real time the temperatures of each individual probe, which the two
curves relative to the average values of n. 12 internal probes and n. 12 external probes. Start the
test ATP simply click on the START button. The test will end automatically when the programmed
time is reached, or will continue until you press the End key. The program FT-RF-ATP is cross-
platform which runs on Windows operating systems, Mac-OS, Linux. Mandatory requirement for the
presence of the Java Virtual Machine, a free download from www.java.com and in some cases
already pre-installed on new PCs.
Pagina 1 di 11
LOGIN - Opening of the program. Enter
admin user and password econorma.
The program automatically finds
the serial port
communication.
E 'can still edit it.
SETTINGS FOR FORMS temperature probes for temperature "FT-105/RF-MP"
The modules use the multiprobe digital temperature probes that are identified automatically by the PC
software. Therefore, the probes are supplied with a serial of six characters shown on a label attached.
These codes are displayed automatically in the ID field probe. The measured value of digital probes
can be corrected with a calibration offset directly from the software. Very useful procedure for periodic
inspections SIT of accuracy of the probes.

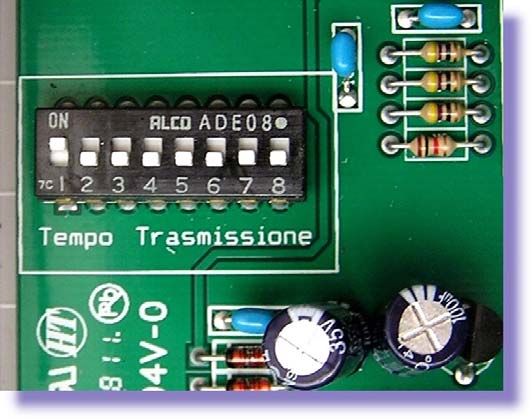

TIME PROGRAMMABLE
You can program the transmission time of the temperature values by a selector number given
in the ad. It will only raise the ON position, the top, the only interesting the selector which, in
function of the time of sending that however is the same for all probes of that module, interval
of two seconds. In the installation should pay attention to the polarity of the battery and
connect the digital probes. These normally have three wires colored red (negative), white
(As), Celeste or black (positive).
N. del selettore Tempo di
trasmissione
1 10 secondi
2 30 secondi
3 1 minuto
4 5 minuti
5 10 minuti
6 20 minuti
7 30 minuti
Pagina 2 di 11
Sensor connections to their terminals
Temperature probes for outdoor / indoor connections with already prepared
for n. 12 probes
Pagina 3 di 11
TECHNICAL SPECIFICATIONS
Each radio module multiprobe FT-105/RF-MP has connected, by means of the containers,
n. 12 digital temperature probes.
For testing A.T.P. are therefore needed no. 2 radio modules, temperature probes (probes internal
and external probes).
The time taken to send data via radio to P.C. are programmable: 10-30 sec. -1-5-10-20-30-60 Min.
Each module has an internal antenna with high-resolution unidirectional transmission.
The operating temperature is between -40 ° C / +70 ° C.
The setting of the probes is done with a simple drag & drop.
Characteristics of temperature probes:
- Resolution: 0.1 ° C
- Accuracy: + / - 0.5 ° C
INITIAL PROGRAMMING OF PROBES
The first thing to do is to click on the menu Allow modification probes to enable editing and
configuration tables. Then you will have to wait until all the sensors appear in the table Sensors
unknown. It 'better to set a communication time short in order to see them quickly solved. The
description and the possible Offset Calibration must be entered by the user by double-clicking on the
column.
Clicking on the small icon indicated by the red
arrow opens a drop down menu with the
option to view or not, the column headings.
Clicking on these will also have the ability to
sort in ascending or descending order, the
values in the column.
Pagina 4 di 11

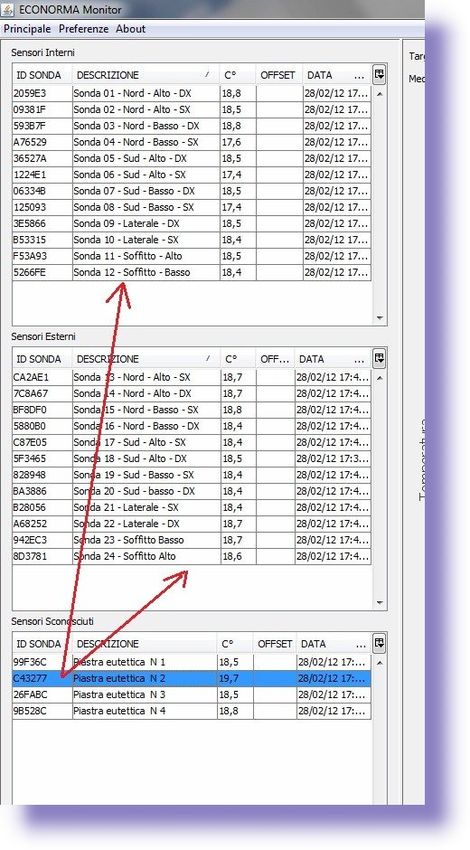

PROBE SET INDOOR / OUTDOOR
To drag the line of the probe of interest, the
section probes unknown to those Internal or
External, simply highlight the line with the mouse
pointer and slowly move it to the desired section.
Once you have done this, you return to the
Preferences menu and you'll have to remove the
check mark from the menu Allow modification
probes.
At this point you can start the acceptance test
ATP
Is can also insert into the specific fields the
Plaque of the vehicle, the head of the ATP test
and date. This data will then appear in the
printing of the graph.
During the test, you still have a chance to see in
real time, the temperature of each individual
sensor.
Setting the data identifying the ATP test
Start the test with the data acquisition of temperature, simply click on the button starts.
Immediately you will see the dialog box to choose the time of testing time ATP.
Pagina 5 di 11
Before starting the test, you can choose whether to set a fixed time for the ATP test, or if you
stop it manually. Very useful to be able to see the Elapsed Time and Remaining Time.
It 'also a field in which to indicate the' Mean interval with which to calculate the points of the
internal and external medium.

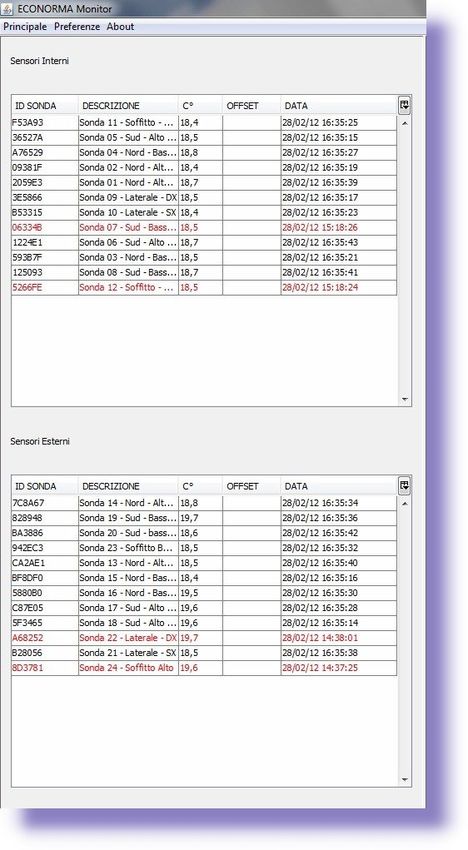

The program shows in the two sections, in real
time, the value of the temperature probes and red
highlights in the non-receipt of the data by the
radio receiver. Therefore you will have to detect
the possible reason why the data is not received
after the time established in the programming
phase.
Any eutectic plates will be marked with a
meaningful description and place as all the other
probes, inside or outside of the test.
Pagina 6 di 11
Example of
positioning of the
probes in a body of
trucks.
Pagina 7 di 11
Approaching with the
mouse cursor to the
point on the graph, it
opens a window with the
average temperature
value.
PRESS PREVIEW OF THE GRAPH OF MEDIUM
Pagina 8 di 11

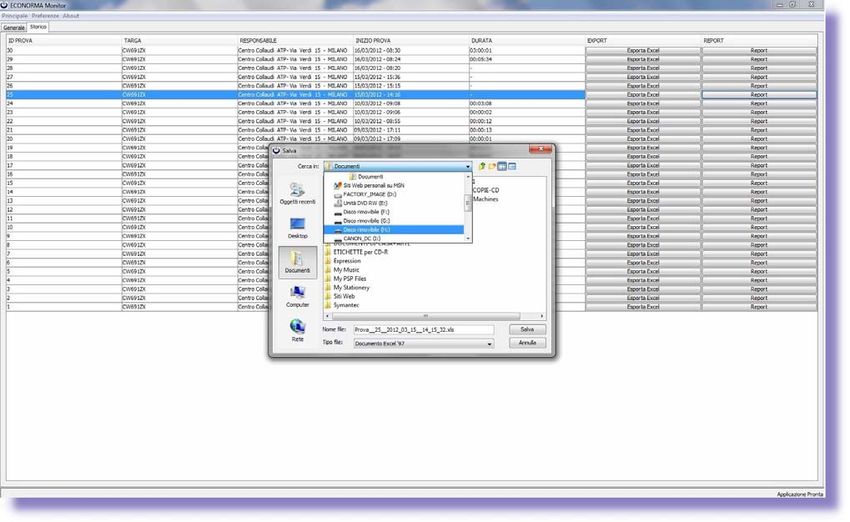

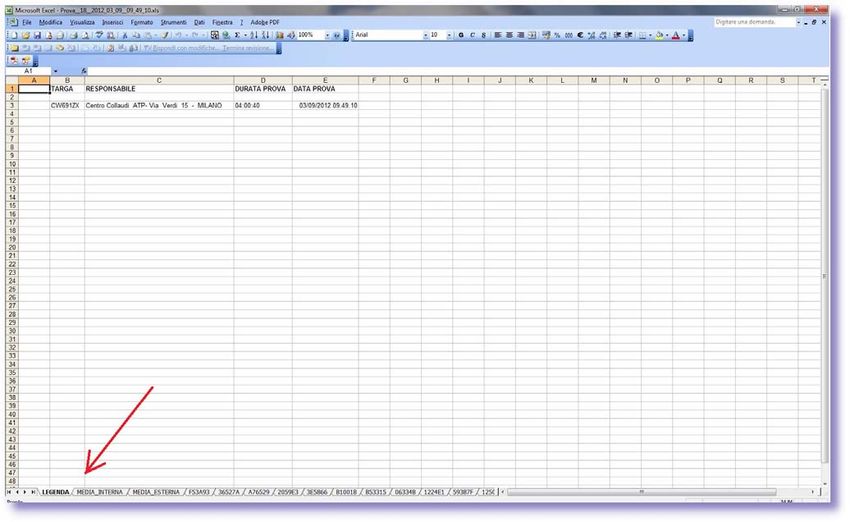

SAVING EXCEL FILE TESTING The software supplied with the burner allows you to print the graph of average temperatures inside and outside with a description of the type of the ATP test done and the data of the vehicle. To enlarge a portion of the graph is enough to bring down the mouse with the left button. Pushing it up to return to the initial situation. All tests are still numbered automatically into an Excel file for further processing. The Excel file generated shows the various sections pages, all the mean values inside and outside and all individual probes with individual readings. Pagina 9 di 11
PRINT PREVIEW
Preview of the values of the average Preview of the recording of the values of
indoor temperatures from Excel each temperature probe
Pagina 10 di 11RADIO RECEIVER "FT-105/RF-PC" RADIO REPEATER "FT-105/RF-RIP"
Ability to display graphics on
mobile devices
ECONORMA Sas
- 31020 S. VENDEMIANO – TV – Via Olivera 52
TEL. 0438.409049 info@econorma.com
www.econorma.com
Pagina 11 di 11You can also read
