NEW 2022
INNOVATIONS
INSIDE
2 AIR & GROSS
DECON
4 RADIUS APPARATUS
MONITORS
5 BLITZTAC
MONITOR
6 SHO-FLOW
METERS
7 SHO-GAUGE
GAUGES
8 PUREPWR
CONDITIONER
9 FLUORINE-FREE
FOAM
10 VORTEX
SMOOTH BORE
11 EXTEND-A-GUN VP

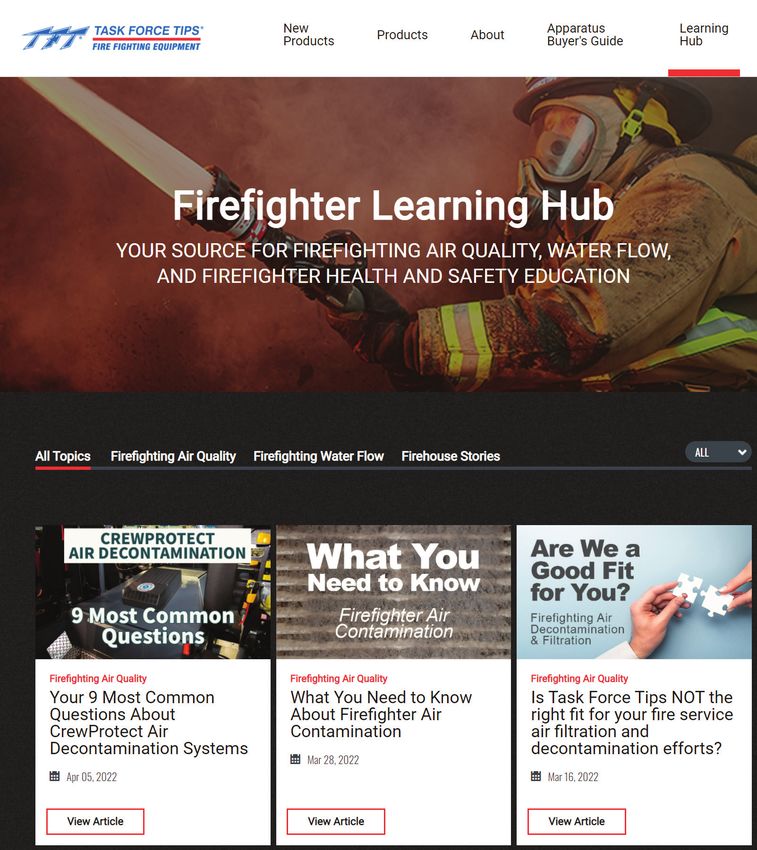

12 LEARNING
HUB
1
©Copyright Task Force Tips LLC 2022
NEW PRODUCTS OVERVIEW
LIA-051 APRIL 7,2022 Rev07
PROTECTION
Air & Gross Decon GREATER THAN
FILTRATION
CrewProtect™ Air Decontamination Systems
A plug and play solution for new and in-service trucks that mounts
virtually anywhere with ease and connects to standard truck power.
LARGE APPARATUS Removes three of the greatest
• There is one cartridge per system
airborne cancer-causing contributors:
Particulates, VOCs, and Aerosols • Each cartridge lasts 6 months, or
1800 hours of operation
Carrying Viruses & Bacteria
Visually alerts you when the cartridge
needs to be replaced
Used cartridges are safe to be
discarded as normal trash
SMALL TRUCKS 3-year limited warranty
White or Black Options
Installs horizontally or vertically in
any interior cab location using
provided mounting brackets
CrewProtect 100
• Ideal for full-size apparatus
• 100 CFM (ft3/min) 2.83 CMM (m3/min)
• 23lbs (10.5kg)
AMBULANCE • 20" × 12" × 4.5"
(115mm × 508mm × 305mm)
CrewProtect 20 patent pending
• Ideal for Chief’s vehicles, wildland
trucks, and tiller cabs
• 20 CFM (ft3/min) .57 CMM (m3/min)
• 6lbs (2.75kg)
• 7.25" × 6" × 4"
(185mm × 153mm × 102mm)
2 tft.com
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07
VOCs • PARTICULATES • VIRUSES
At the fire scene, in your apparatus, and at your station
we’re here to optimize your decontamination procedures
and increase the level of protection for your crew.
STATION AIR DECON
StationProtect™ cleans the air in your • There are four stages
in the system. Three
gear rooms, sleeping quarters, and of the stages are
living spaces to protect your crew changed annually, and
the inlet/particle filter
from cancer causing particulates, is changed every three
volatile organic compounds (VOCs), months. The first set of
and aerosols carrying viruses, stages is provided as
a kit and includes all
bacteria, and mold. the stages required for
your entire first year.
• Includes the same cartridge technology found in
the CrewProtect - removing particulates, VOCs,
and Aerosols that carry viruses and bacteria
• Each unit continually and effectively
decontaminates the air in a 2400 sq ft area
• Includes a speed control adjustment to raise or
lower the rate of air flow through the unit
• Operates on standard 110v or 220v wall outlets
depending on your choice
• Rolls easily on wheels to place the unit where
it’s needed most in your station

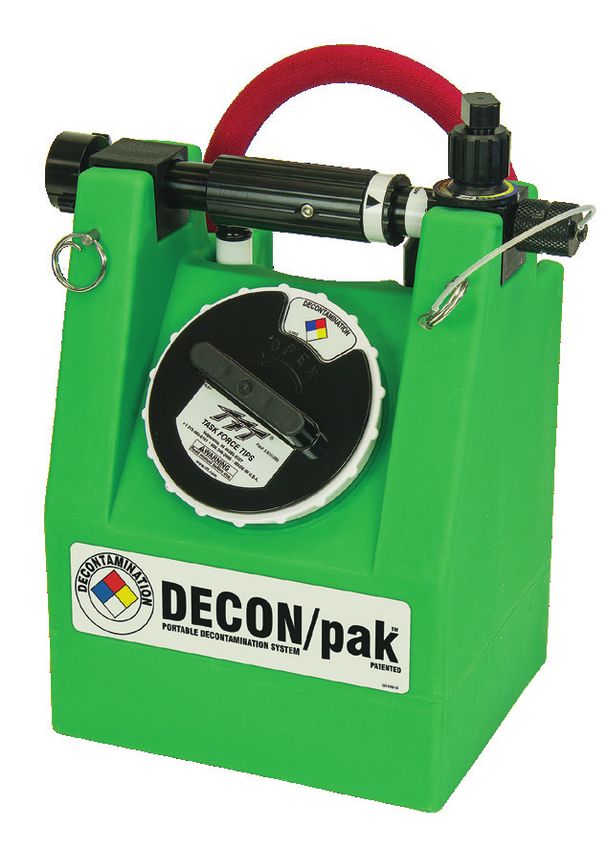

The DECON/pak Portable Decontamination ON-SCENE GROSS DECON
System is a self-contained agent
proportioning and rinse application
system developed specifically for gross
decontamination of firefighting personnel
and equipment.
Removal of particulates can reduce
PAH contamination by 85%.*
• Flow is controlled by a twist grip valve that also
functions as a carrying handle. Cleaning agents
are added through the large, easy-open fill port
that includes a debris screen.
• The DECON/pak stores easily in tight
compartment spaces. * Source: Journal of Occupational and Environmental Hygiene
DOI: 10.1080/15459624.2017.1334904
• Large selector for agent proportioning from 0.1
to .5% for cleaning agent** or set to rinse with ** Contact your turnout gear manufacturer for cleaning agent
recommendation for your specific gear.
water only.
3
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07

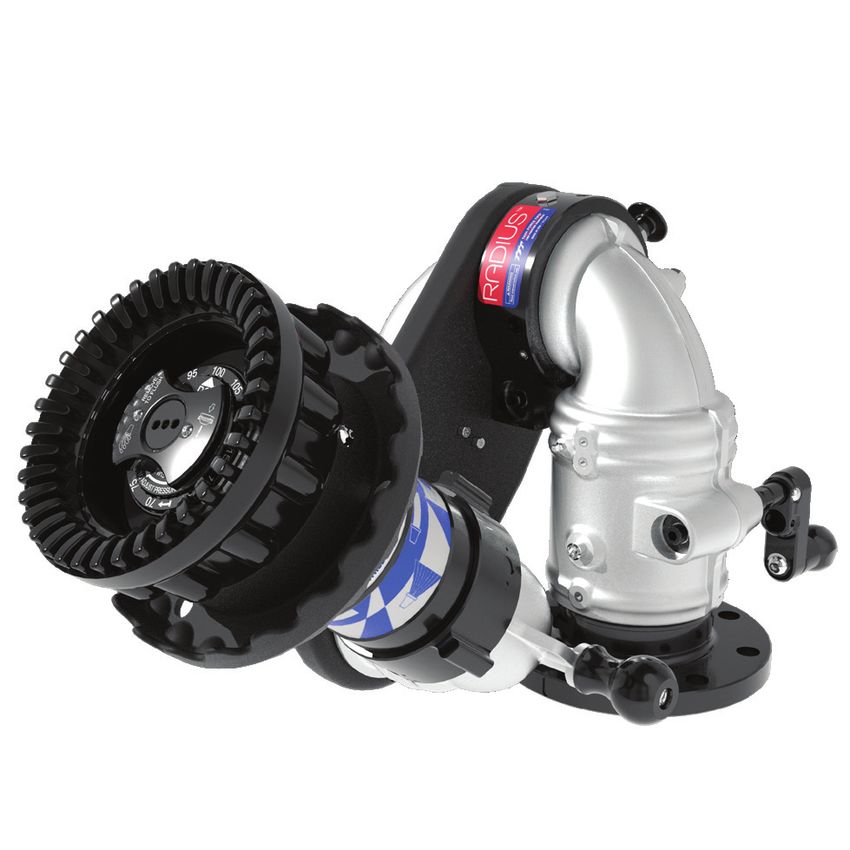

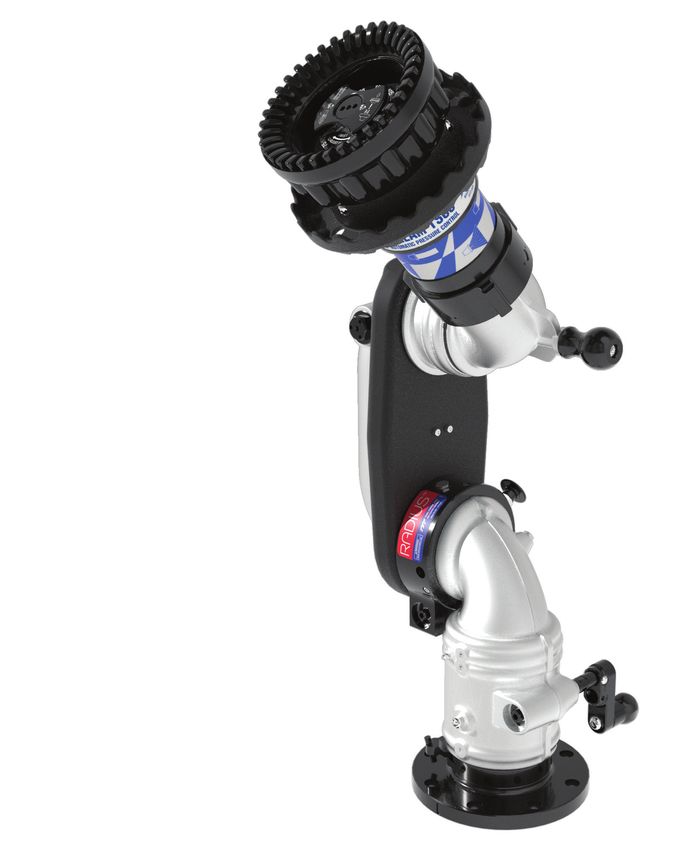

DECK MONITOR
WITH HIGH
REACH & FLOW
Put water exactly where
it needs to be with your
highest reaching deck
DEPLOYED
POSITION mounted monitor.
Easily installs on both new
STOWED apparatus or as an upgrade
POSITION of an existing monitor.
Elevating
Performance
• The highest reaching deck mounted
monitor, exceeding 24" (610 mm)
• Available with a either 2 ½" (65 mm)
outlet for 1,250 GPM or a 3 ½" (89 mm)
outlet and 4" (102 mm) inlet offering an
impressive 1,500 GPM (6000 L/min)
target flow
• The highest flowing deck mounted
monitor in its class at 1,500 GPM
(6000 L/min)
Easy Operation and Install
• Elevates the monitor nozzle outlet nearly
• Easy installation on 3" or 4" (76 mm or 102 mm) apparatus connections on
2 ft. (.67 yd.) above the deck of the truck
new or in-service apparatus
• RADIUS elevates by simply pulling the quick release knob and lifting until it’s
in the locked position
• A standard stowed sensor kit tells the operator if the RADIUS is stowed or High Volume
deployed Tactical Advantage
• The above deck mounting is ideal for
Pairs with a wide range apparatus where below deck extension
of TFT Smoothbores or tubes do not fit
Combination Nozzles
• 360° continuous horizontal rotation
with a smaller swing radius than
competitive models
• Features a vertical range of 90° up to
RADIUS Easily moves
from Stowed to 45° down
Deployed
4 tft.com
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07

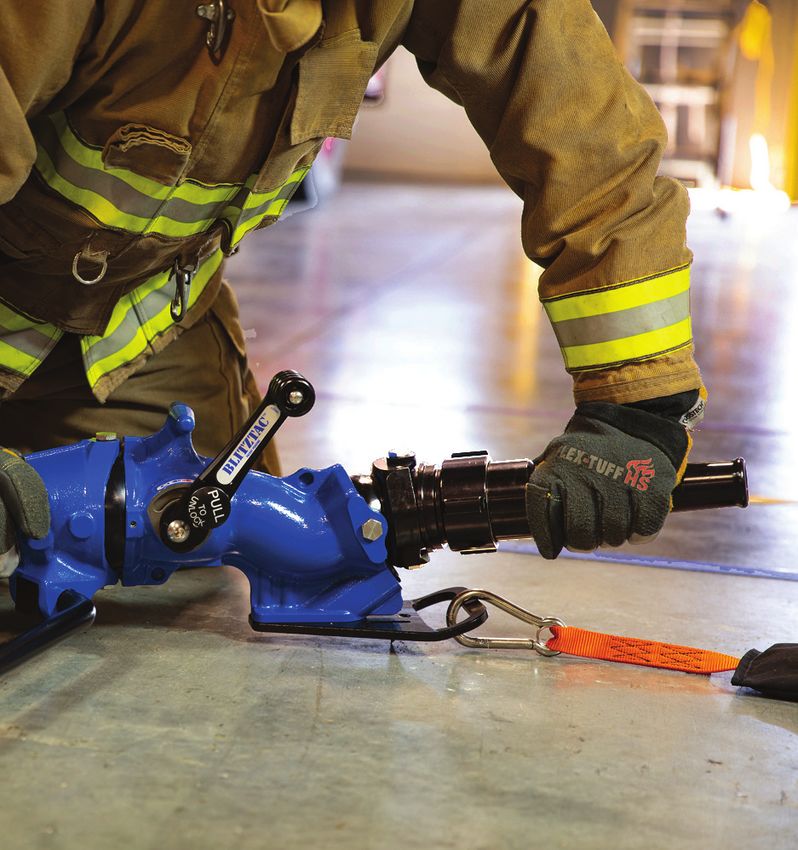

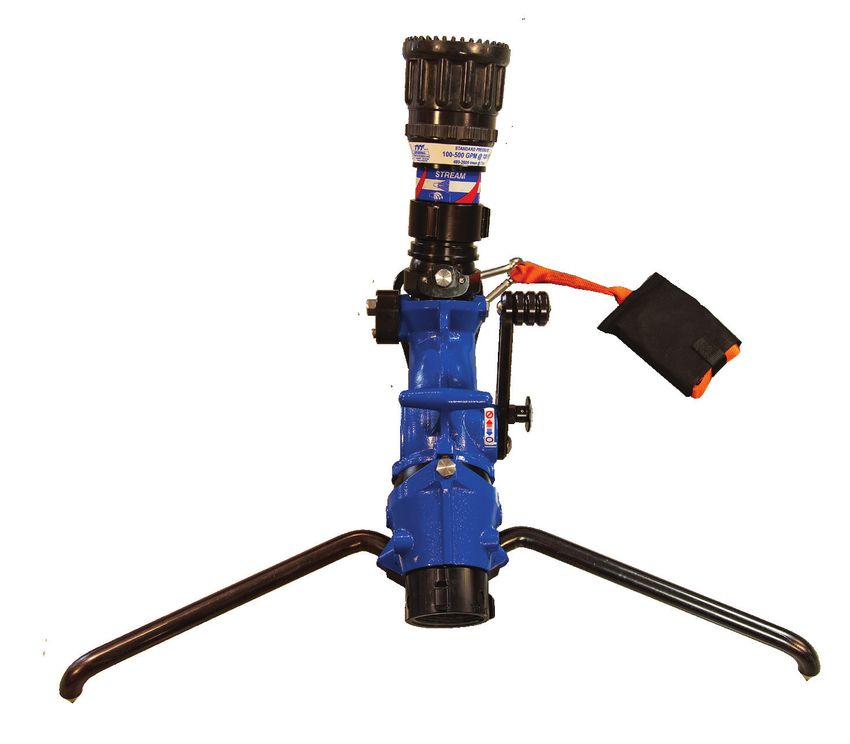

PORTABLE MONITOR WITH
SAFETY GATING INLET
TFT’s BLITZTAC compact
portable monitor turns BLITZTAC
one firefighter with offers safe,
one hose line into an initial attack,
aggressive 500 GPM first even with
responding force limited staff
Safety Blitz
• Once set, monitor can be manually
regulated or used in an unattended Preconnected
manner for exposure protection or BLITZTAC
full 500 GPM (2000 L/min) attack allows quick
XXB111A & MD12A
• A
llows assisted 10° low attack deployment
angle to unassisted 25° to 50° for
aggressive and effective firefighting
Heavy duty carbide tipped folding legs
Assisted 10° low
attack angle
Enhances Capabilities
• Small size and weight allow quick • Quick Deployment allows 500
deployment and maneuvering GPM (2000 L/min) in a compact,
• I ntegrated safety inlet helps protect lightweight package with superior
crews from unintended monitor stability when seconds matter
movement • H
it the seat of the fire through a
• BLITZTAC easily resets if tripped. front door, basement window
Simply realign hose and resume full • Fully certified to NFPA 1964 and One Firefighter
flow rate EN15767-1 One Hose line
Up to 500 GPM
• An anchor strap is included to help
attack (2000 l/min)
ensure safe operation
5
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07
SHO-FLOW ®
BLUETOOTH®
FLOW METER
SERIES
SHO-FLOW 1 SHO-FLOW 2
Options Options
25-125 GPM 100-500 GPM
(100-500 L/min) (400-2000 L/min)
OR OR
50-300 GPM 500-1250 GPM
(200-1200 L/min) (2000-5000 L/min)
The SHO-FLOW Bluetooth flow meter series is designed to quickly and accurately
determine the flow rate in a hose line, portable monitor, or deck gun. Your SHO-FLOW
app can be used as a standalone flow calculator with or without the flow meter.
No Wires Show your Flow
No Batteries Full Flow Range with Bluetooth
Needed Technology
Four different SHO-FLOW
models can accommodate
flows ranging from 25 to
1250 GPM (100 to 5000
L/min) depending on the
model.
Use with a variety of nozzles
and monitors.
TFT’s SHO-FLOW Bluetooth
generates its own power TFT’s SHO - FLOW App is
u s i ng a n unob structed available in 7 languages:
English, Spanish, German,
water driven turbine that Japanese, Chinese (Mandarin),
will pass debris. French, and Portuguese.
Starting at the meter’s The SHO-FLOW can
minimum flow rating, connect to any smart device
the turbine generates via Bluetooth to display flow
power needed to supply a rates and totals. The device
Bluetooth connection to any displays the data via TFT’s
smart device which totalizes Use with any hose line or SHO-FLOW app which is
and displays an accurate appliance with 1.5" (38 mm) available free through the
flow rate in GPM, L/min, (SHO-FLOW 1) or 2.5" (64 mm) App Store and the Google
GPS, or L/sec in real time. (SHO-FLOW 2) couplings. play store.
6 tft.com
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07
BLUETOOTH®
SHO-GAUGE™ PRESSURE GAUGE
SERIES
Essential tools of the trade to bring an understanding of firefighter hydraulics during
testing, training, and evaluation of any nozzle or water flow appliance on the apparatus
SHO-GAUGE provides you a new level of connectivity
and real time pressure display on a connected phone or
tablet during training, testing, or evaluations. Standalone
Not only does the connectivity apply to the basic in-
line pressure gauge, but the SHO-GAUGE with the
industry standard ¼" NPT connection is also available
as a standalone unit giving you the ability to install 1.5"
Bluetooth connectivity on any appliance with unlimited 38 mm
applications to read accurate pressure readings in PSI,
kPa, and Bar.
• Upgrade kits available to convert select TFT analog In-Line
Gauge to be SHO-GAUGE compatible
• Real time, accurate pressure readings up to
2.5"
300 psi (2000 kPa) 65 mm
• Choose PSI, kPa and Bar in the app
• Standalone model installs on any 1/4" NPT port
• App available on Google Play and Apple App Stores
Apple and the Apple Logo are registered trademarks of Apple Inc.
Google Play and the Google Play logo are trademarks of Google LLC.
ANALOG
Analog Gauges PRESSURE GAUGE
SERIES
Our 1.5” waterway analog pressure gauge has been redesigned. You’re now provided with a large, easy-to-read
gauge face with graduations of 25 PSI, 50 PSI, 75 PSI, 100 PSI, etc. for fast and convenient readings. This gauge
also has a pitot-style pressure measurement for added accuracy. Your new gauge has a durable cast, hard-
coated and powder-coated aluminum body to take the abuse you throw at it every day.
• Large, easy-to-read, analog gauge displayed in both psi and bar.
• Durable, cast aluminum body is hardcoated & powdercoated for
maximum corrosion resistance
• Pitot-style pressure measurement for accurate reading of pressures
up to 300 PSI (20 bar)
• Upgradeable to the SHO-GAUGE Bluetooth
7
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07
POWER CONDITIONER
PurePWR™ FOR AERIAL LADDERS
AND PLATFORMS
PurePWR power conditioners help to assure
quality power is available to operate electric
monitors, especially on aerial ladders and
platforms. • Simple installation by connecting in-line with RC Monitors,
Electric VUMs, Electric BIVs, and Extend-A-Gun RCs
The lightweight and compact PurePWR eliminates the • Never needs charging and ready to keep appliance systems
need for a battery on the aerial. Batteries add additional operating as designed
weight, can potentially be plagued with recharging
issues, and requires on-going maintenance. PurePWR • Fully sealed including waterproof connection to provide long
helps correct undersized wiring, dirty voltage or poor service life
wiring due to corrosion over time. • Incorporates mounting tabs for secure installation
Your solution for inconsistent
voltage power, voltage variances,
and insufficient power supply to
help ensure your aerial monitor
operations are uninterrupted.
8 tft.com
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07
Fluorine-Free Foam
APPLICATION
OPTIMIZATION
MADE EASY
Are you ready?
The firefighting foam industry is contending
with changing legislation across the world
regarding aqueous film forming foams
and their impact on the environment and
health. Manufacturers have responded with
new, fluorine-free foams for firefighting.
These “green foams” may not be a drop in
replacement for the foam you previously used.
Our team has been compiling test data for the top foam
manufacturers to determine which product combinations
are ideal for optimizing foam application.
• Optimal expansion ratios
• Ideal product combinations
• Most popular foam choices
• MORE TO COME...
Interested in optimizing your
foam operations?
Our team of firefighting
experts is ready to talk and
determine your most impactful
opportunities to improve.
9
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07
VORTEX ®
A SMOOTH BORE
WITH A TWIST
Full Flow in Solid or Dispersed Stream Patterns
Vortex enhances the use of Smooth Bores • Available in 1.5" (38 mm) as tip only, with valve or with valve and grip
and Stacked Tips by giving the firefighter • Solid stream or a uniformly dispersed pattern without gating the valve
and reducing the fire flow
the capability to add a dispersed pattern • Can be paired with any size or brand smooth bore
when needed. Available as a handheld • Available in manual or electric remote in 2.5" (65 mm), 3.5" (89 mm),
nozzle or master stream. and 6" (152 mm) versions
• VORTEX vanes are less obtrusive than a typical stream straightener,
resulting in virtually no friction loss
• Install behind any size or brand smooth bore nozzle or stacked tips
Master Stream
Handheld
TWO STREAM ANY NO FLOW
PATTERNS SMOOTH O
B RE REDUCTION
With a simple twist of the index The VORTEX can be paired Create a dispersed pattern
ring, the VORTEX moves from with any smooth bore up to 1 ¼" without gating your valve and
a hard hitting straight stream to (32mm) to use on a 1 ½" (38mm) reducing your fire flow. In
a uniformly dispersed pattern up to a 2.5" (65mm) hose line. addition, VORTEX vanes are
for protection, hydraulic Once the tip is installed onto less obtrusive than a typical
ventilation or salvage/overhaul. the VORTEX, you’re ready to stream straightener, resulting in
operate the nozzle. virtually no friction loss.
When operated in the Vortex
mode, the Vortex fins turn at Straight Stream Moving to Disperse Dispersed Pattern
an angle, creating a spin in
the water. As the water spins
and exits out the smoothbore,
it creates a disperse pattern.
Whether it’s a common
solid stream out of a single
smoothbore tip, or a set of
masterstream stack tips, you
can achieve a solid stream and
dispersed pattern depending on
the needs of the fireground.
10 tft.com
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07Extend-A-Gun VP™
EXTENDABLE
WATERWAY WITHIN
A WATERWAY
Inlet Valve Interlock
The interlock prevents flowing
while extending and retracting the
All in 1 –
Monitor, Nozzle,
VP. This prevents user injury or
damaging the unit when deploying
or stowing the system.”
Waterway & Valve
The latest addition to the efficiently controlled by
patent pending TFT Extend-A-Gun series, pneumatics and the inlet
the VP version offers a valve interlock system aids
complete solution from TFT: safe operations. Designed
monitor, nozzle, waterway, to flow up to 1,500 GPM
and valve! Deploy and (6000 L/min), choose from
stow operations are a variety of TFT monitors.
interlock capped capped capped capped
inlet inlet
inlet capped capped
Compatible with a variety of pumps, panels, and
plumbing configurations so it’s easy to install and
Built-in safety with the interlock. TFT service in the field.
also includes a redundant manual
override for deploy/stow operations for Integrated Valve
further security. The deploy and stow positions are air operated and
controlled by an up/down switch on the pump panel.
Pneumatically Installers can utilize standard lines and fittings, just
Controlled like other pneumatic equipment on the apparatus.
The deploy and stow Valve Control Flexibility
positions are air In a single part (SKU) you can
The gear box can be oriented one of four ways to
operated and controlled allow the crankshaft to face 3, 6, 9, or 12 o’clock.
mount the gear box in one of
by an up/down switch Position selection can easily be changed by removing
four positions to ensure it fits
on the pump panel. your unique apparatus.
four screws.
Installers can utilize
standard lines and
fittings just like other Remove
4 screws.
pneumatic equipment on Rotate to
the apparatus. one of 4
positions.
Toggle switch controls on the panel
keep the operator safely on the
ground when deploying and stowing
the monitor.
11
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07HELPING YOU
Learning Hub MAKE THE BEST
DECISION
Your ability to learn about
common problems, product
comparisons, fellow
firefighter experiences, and
what makes working with
TFT unique just became
even easier.
We’re continuing to develop and
provide you with educational
content every week to make sure
you are fully aware of the problems
that are top-of-mind in the fire
service, understand the options
available to you to solve your most
common issues, and ultimately
make the best decision for your
unique circumstance.
Common
Questions
Product
Comparisons
Firefighter
Stories
Cost & Pricing Learn More at
Expectations
www.TFT.com/EDUCATION
Product
& Service
12 tft.com
TFT.com
©Copyright Task Force Tips LLC 2022 LIA-051 APRIL 7,2022 Rev07You can also read
