SPECIFICATION SHEET
MY2019 EURO VI-d
35S14HA8 SV - Semi-window van
16 Dec 2019
35S14HA8 SV
Hi-Matic - Semi windowed
MODEL COMPONENTS
DIMENSIONS & WEIGHTS

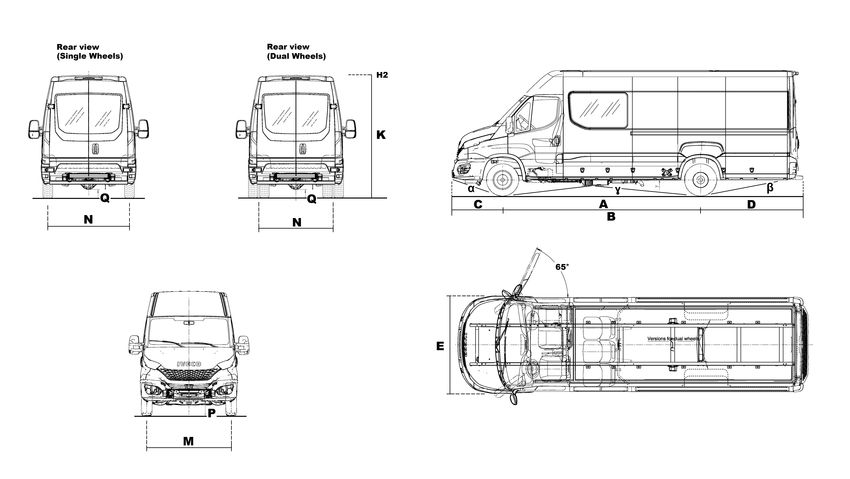

DIMENSIONS (MM)
Wheelbase (A) 3520 H2 3520L H2 4100 H2
Max length (B) 5687 6087 7252
Total length without footstep 5599 6004 7168
Max width (E) 2010 2010 2010
Front overhang (C) 1048 1048 1048
Rear overhang (D) 1119 1519 2104
Rear overhang without footstep 1031 1436 2020
Minimum ground clearance (front) (P) 137 137 137
Minimum ground clearance (rear) (Q) 168 168 168
Overall height to top of cab, unladen (K) 2668 2668 2670
Turning diameter kerb to kerb 12084 12084 13800
Turning diameter wall to wall 12744 12744 14466
Front track (M) 1740 1740 1740
Rear track (N) 1704 1704 1704
Approach angle (°) 11 11 11
Departure angle (°) 16 12 9
Ramp angle (°) 13 12 10
Volume (m³) 10.8 12 16
Internal height van (mm) 1900 1900 1900
Internal width van (mm) 1740 1740 1740
Internal length van (mm) 3130 3540 4680
Floor height (unladen) 690 690 692
Wheelhouses distance (mm) 1317 1317 1317
Rear door(s) height (mm) 1800 1800 1800
Side door(s) width (mm) 1260 1260 1260
2 16 Dec 2019
35S14HA8 SV
Hi-Matic - Semi windowed
MODEL COMPONENTS
Side door(s) height (mm) 1800 1800 1800
Rear door(s) width (mm) 1530 1530 1530
WEIGHTS (KG)
Wheelbase 3520 H2 3520L H2 4100 H2
Total vehicle kerb weight 2247 2287 2452
Kerbweight on Front Axle 1457 1450 1457
Kerbweight on Rear Axle 790 837 995
G.V.W. 3500 3500 3500
Plated weight on front axle (EC) 1900 1900 1900
Plated weight on rear axle(s) (EC) 2240 2240 2240
Max body & payload 1253 1213 1048
Notes:
For "Van internal length" is considered the "Load compartment length".
The "Total vehicle kerbweight" considers the minimum kerbweight with minimum optionals.
The "Side door(s) width" considers the maximum width up to 780mm height.
H2
Wheelbase Type Drawing
3520 Left hand drive 5802404200
3520L Left hand drive 5802404201
4100 Left hand drive 5802404202

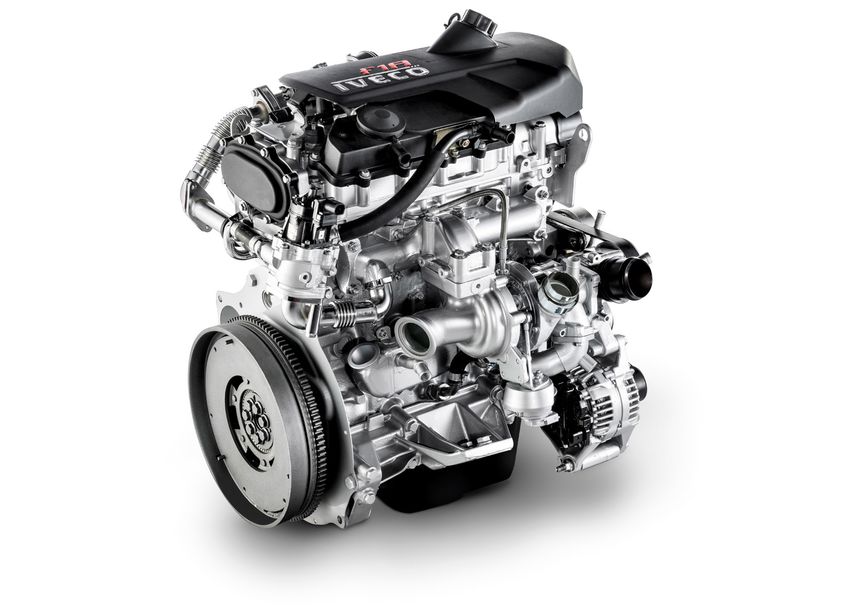

ENGINE
Identification Code F1AGL411D
Cycle DIESEL
No. of cylinders 4
Valves per cylinder 4
Bore mm 88
Stroke mm 94
Total displacement cm³ 2287
Oil capacity (l) 5,4
Cold starting type Demarreur thermique
Fan type electromagnetic
Filter type Sec avec capteur de pression
3 16 Dec 2019
35S14HA8 SV
Hi-Matic - Semi windowed
MODEL COMPONENTS
DRIVELINE
136EVID - Engine F1A 136 Hp Euro VI HD (Heavy duty)
Power kW 100
Power Hp 136
Rpm at Max Power 3600
Rpm at max power (min) 700
Torque Nm 350
Torque Kgm 36
At rpm 1/min 1500
Notes:
e-VGT turbine. New electronic-controlled variable geometry turbine.
Fuel tank:
for models from 30.. up to 50C..: 70 lt. - in plastic.
for models from 65C.. up to 70C..: 100 lt. - in plastic.
GEARBOX
Gearbox model Gearbox Type Installation Box material Dry weight Kg Max input No. of No. of
torque Nm forward reverse
gears gears
8HP70L AUTOMATIC ENGINE FLANGED ALUMINIUM 89 470 8 1
REAR AXLE RATIO
Option code 06010 * 06012 72614
Ratio 3.615 4.20 5.1
*: Standard axle ratio
TYRES & WHEELS
Code Tyres Front Rear Dynamic Rolling resistance Tyre Load index Speed index Rolling
Radius m Coefficient dimensions circumfere
nce m
20187 Standard 225/65R16 225/65R16 0.336 0.007 225/65 R 16 112/110 R = 170 KM/H 2.115
20532 Optional 225/65R16 225/65R16 225/65 R 16 2.115
20531 Optional 235/65R16 235/65R16 .337 .009 235/65 R 16 115/113 R = 170 KM/H 2.115
20420 Optional 235/65R16 235/65R16 235/65 R 16 2.000
20186 Optional 235/65R16 235/65R16 .339 .007 235/65 R 16 115/113 R = 170 KM/H 2.132
20408 Optional 235/65R16 235/65R16 235/65 R 16 2000
20407 Optional 225/65R16 225/65R16 225/65 R 16 2.115
AXLES
Position Description Type
Rear NDA RS - NDA Single Wheels (ex 450210) Star
Notes:
Front axle: independent wheels.
4 16 Dec 2019
35S14HA8 SV
Hi-Matic - Semi windowed
MODEL COMPONENTS
20L UREA TANK UNDER CAB FLOOR
Capacity: 20 litres.
Available as option (72810): urea tank mounted on the frame.
SUSPENSIONS
Front :
Independent suspension - Quad Leaf - on double wishbones (trapezoidal shape).
Two shock absorbers.
Rear :
New wide track, tension shackle parabolic suspension for improved road holding and balance. Two shock absorbers.
BATTERY
Electrics
Batteries capacity V/Ah 12 V / 105 Ah
As standard configuration F1A with SCR with manual gearbox.
5 16 Dec 201935S14HA8 SV
Hi-Matic - Semi windowed
MODEL COMPONENTS
INNOVATIONS
IMPROVEMENTS ON CUSTOMER MISSION:
New e-VGT on F1A engine
New 220A alternator
New Low rolling resistance Tyres
New pedal/throttle map
F1A with Stop & Start switch standard, mandatory to comply CO2 regulation
Adaptive Cruise Control – opt 14522
Adaptive Cruise Control (ACC) is an automatic form of cruise control in which the acceleration and deceleration of a vehicle is adjusted in order to maintain
the distance with the vehicle ahead
Speed and time gap are adjusted, through steering wheel switches.
ACC with Queue Assist – opt 72803
Available in combination with Hi-Matic only.
Speed and time gap are adjusted, through steering wheel switches.
The vehicle can follow the vehicle ahead and automatically operate accelerator and brakes, up to vehicle complete stop.
When the preceding car moves again, before the vehicle is authorized to restart, driver consensus is needed.
Proactive Lane Keeping Assist – opt. 72805
This system helps the driver in keeping the vehicle inside the line by applying a torque on the steering system when needed.
LDWS camera supplies the steering system with information on lane geometry, and calculates the torque to be applied to the steering wheel.
The optional is offered in combination with LDWS.
Crosswind Assist – opt 72811.
The Crosswind Assist allows to stabilize the vehicle against a sudden strong side wind in straight line, compensating lateral deviation.
It iIs especially useful while driving over bridges or passing large trucks, where powerful wind gusts are more prevalent.
It operates through the sensors of the ESP, applying the brakes on the side of the vehicle the wind is facing.
Optional available for VANs and CABs.
¶
Hill Descent & Traction Plus – opt 72813
The Hill Descent Control (HDC) is a Cruise control function for downhill driving at low speed. Enables driver to descent steep hills slowly and safely.
The Traction Plus works when the vehicle starting on slippery surfaces (mud, sand, snow,…) transfer the torque to the wheel with major grip. It is active up
to 30km/h, acting on the dedicated switch on dashboard.
AEBS + City Brake PRO – opt 72806
The AEBS detects a potential collision developing ahead and responds by braking autonomous as needed to help the driver in avoiding or mitigating the severity
of a crash with the vehicle in front at high speed.
The City Brake is an autonomous emergency braking which assists a driver to avoid a low-speed crash, monitoring the area in front of the vehicle and detecting
obstacles which might present a threat of collision.

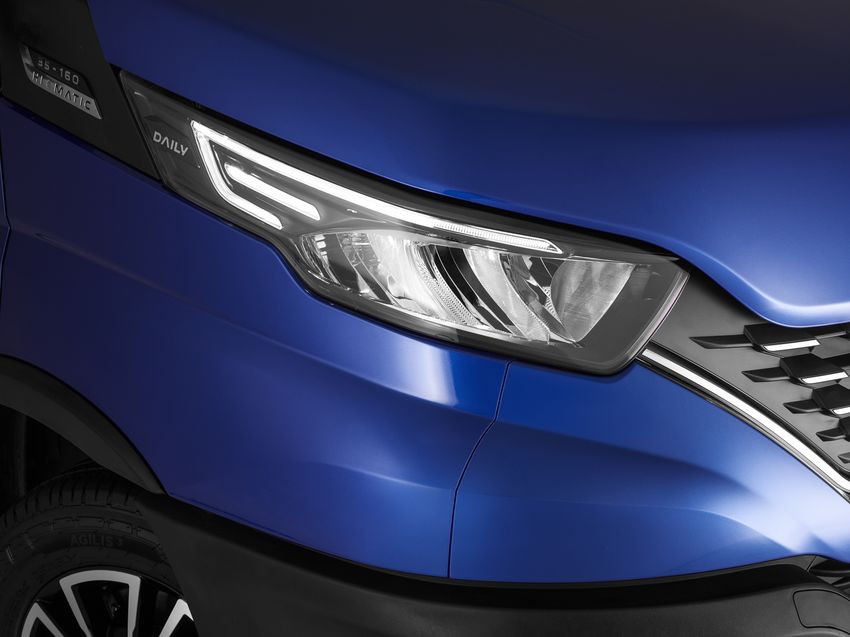

Full LED headlights – opt 72619
“For life” headlights – best TCO
Low beam performance: +10%
High beam performance: +12%
Drivers light perception +15%
Integrated direction lamp
Brand new design
Electric Parking Brake – opt 4383
Automatic engagement (key-off)
Drive away: Driver safety belt locked + key-on + neutral (for manual transmission) or drive (for Hi-Matic)
Integration with ADAS (Queue Assist)
Integration with Hi-Matic (parking)
Ergonomic position, near gearbox knob
HMI – Led on switch and cluster messages.
TPMS (Tyre Pressure Monitoring System) – opt 2471
The Tyre Pressure Monitoring System (TPMS) is an electronic system designed to monitor the air pressure inside the pneumatic tires, reporting a real-time tyre-
pressure information to the driver of the vehicle. It will available for both Single and Twin wheels vehicles.¶
Hi Connect – opt 72800
Hi Connect with Navi EU – opt 72801
Hi Connect with Navi Extra EU – opt 72802
Connectivity Box – opt 75681
New Connectivity on Daily is the enabler for a new suite of services to support customer to improve Uptime, Efficiency and TCO through Connectivity Box
• Remote diagnosis
• Software updating over the air
• Preventive service call (Control Room)
6 16 Dec 201935S14HA8 SV
Hi-Matic - Semi windowed
MODEL COMPONENTS
• Service Booking on MYDAILY
With additional PLUS trough the connectivity Daily Business UP which allows:
DRIVE ASSIST
• Driving Style Evaluation with real time suggestions
• Professional navigation with routing optimized for commercial vehicles
• Interactive user handbook with graphic interface
• Advanced multimedia and mobile management
BUSINESS ASSIST
• Vehicle efficiency management, with main data available also off-line
• Optimize fleet efficiency by scheduling dispatching tracking jobs
• Integration of Iveco Non-Stop for 24/7 roadside assistance
• Dealers and workshop locator
The vehicle configuration must always be confirmed by the Iveco sales network.
MISCELLANEOUS
Electric Power Steering – standard full line-up The City Brake opt is an autonomous Automatic High Beam Control (AHBC) opt
Benefits: emergency braking which assists a driver avoid a 72839 can automatically turns your vehicle's high
CITY function button: settable steering effort by low-speed crash, monitoring the area in front of the beam lights off / on, depending on driving
customer. vehicle and detecting obstacles which might present a conditions. It is available in combination with front
Fuel saving: hydraulic steering pump and circuit threat of collision. camera of AEBS / ACC.
removal (-1.5%)
Variable steering effort according to vehicle speed Automatic wipers and headlights – opt 72841 TFT Cluster opt
(tunable) The Automatic wipers, automatically activates the Main functions: digital tachimeter, ADAS -
Driver low effort on steering wheel and soft end wipers and adjust the frequence, depending on the dashboard, ADAS - quick menu, TPMS, oil, battery,
stop (-30%) quantity of water on the surface of the windscreen. service info. Navigation. Phone - multimedia, Fuel
Active return: no residual steering angle economy, trip computer, vehicle settings, display
Steer feeling improvement: road disturbances The Automatic headlights automatically activates settings, diagnostic.
damping, drift and wheel unbalances compensation. the low-beam, depending on the quantity of light
during the 24 hours; the sensor is able also to manage New three pieces bumper.
Double adjustment steering wheel – opt 72619 situation such as passing under bridges, tunnels,... New tthree pieces bumper, standard on all Daily
New Tilting adjustment models, allows reduction of ownership costs.
Maintained Stroke adjustment
Better ergonomic driving position especially for The vehicle configuration must always be
tall and short drivers confirmed by the Iveco sales network.
7 16 Dec 201935S14HA8 SV
Hi-Matic - Semi windowed
MODEL COMPONENTS
SYSTEM ESP 9
BRAKING SYSTEM FEATURES
Dual circuit configuration; cross split on 35S / independent from 35C up to 70C.
Hydraulically operated with vacuum servo assistance.
Full disc brakes with floating calipers with auto wear adjustment.
Mechanically controlled parking brake:
Brake fluid level indicator-front / rear pad wear indicator.
Asbestos free pads.
EASY interface.
35S.. 35C.. - 50C.. 60C.. - 70C..
Front Rear Front Rear Front Rear
Disc diameter (mm): 300 296 290 290 301 306
Braking surface (cm2): 280 196 280 276 404 276
Notes:
ESP 9 system is standard for all the range. It is the latest evolution among the Electronic vehicle stability controls and is an advanced system for active and preventive
safety in all weather and road conditions. Prevents the loss of vehicle control caused by:
High speed
Wrong evaluation of the road lay-out
Sudden vehicle skid
Trying to avoid an obstacle
Sudden vehicle steering
------------------------------------------
ESP9 includes ABS (Antilock Braking System), EBD (Electronic Brake force Distribution), ASR (Anti Slip Regulator), MSR (Motor Schleppmoment Regelung that acts on
engine speed to reduce the braking torque in release), Hill Holder (Assited uphill departure), HBA (Hydraulic Brake Assist), LAC (Load Adaptive Control), TSM (Trailer
sway mitigation. It detects the presence of a trailer and adapts the electronic stability control strategy in order not to negatively influence the dynamics of the vehicle-
trailer system), RMI (Roll Movement Intervention. It mitigates dangerous roll-over situations during highly dynamic driving like e.g. evasive manoeuvre), ROM (Roll Over
Mitigation. It mitigates dangerous roll-over situations during almost stationary manoeuvres like circular driving with steadily increasing steering wheel angle).
VAN/COMBI BODY
Code Description Cabin type Structure No. of No. of Cabin Slide Side door Rear Rear Door
material places seats door door type Door Type
no. no. No.
FS3119D Semiwindowed H2 - 3520 Semi-forward steel plate 1+2 2 std 2 1 Sliding 2 Side hung
- Dx std 3rd
1+5 opt
opt
FS3519D Semiwindowed H2 -3520L Semi-forward steel plate 1+2 2 std 2 1 Sliding 2 Side hung
- Dx std 3rd
1+5 opt
opt
FS4719D Semiwindowed H2 - Semi-forward steel plate 1+2 2 std 2 1 Sliding 2 Side hung
wheelbase 4100 - Dx std 3rd
1+5 opt
opt
CAB EXTERIOR
Steps on both sides, front bumper in three pieces, mudguard.
Rear mirrors
For all models, standard width = 2200 mm
Handles on both sides, handle on A-pillar, rear underrun protection, spare wheel, rear lights crossbar.Anti-corrosion protection includes full cataphoretic dipping with
galvanized boxed sections and strategic use of zinc plated panels in vulnerable areas. Protective under seal for all under body cabin area, wheel housing and engine area.
CAB INTERIOR
Equipment: Greater glass area for improved visibility. Storage compartments with bottle holder, pool cup for mobile phone, arm rests on the doors, shelves in overhead
console, shelves at floor level below seats, interior lights, 2 spotlights, 4 loud-speakers, gearshift lever on dashboard. No. of places: 3
8 16 Dec 201935S14HA8 SV
Hi-Matic - Semi windowed
MODEL COMPONENTS
Driver's seat: All new lower height high comfort driver seat - 3 way adjustable. With 3 points safe belts.
Passenger's seat:
For models from 33S.. up to 35S.. - standard: fully adjustable seat with 3 points safe belts.
For models from 35C.. up to 70C.. - standard: 2 passengers bench with 3 points safe belts, with drawer under seat.
Central console: Glove box compartments on the top of the dashboard, central panel, adjustable air vents, ash-trays, lighter, heating control, cooled compartment (with
opt. air conditioning). Instrument cluster: New 5" TFT display & silver dial rings. Dashboard: Hi-connected infotainment system.
Indicator lamps, on cluster (standard): Parking brake - Brakes failure - Directions indicators - Generic failure - Seat belts not fastened - Fog lights - High beams - Wing
lights -External lights failure - Rear fog light(s) - Open doors - Fuel gauge - Tachograph failure - Coolant temperature - EOBD - Water in fuel filter - Clogged air filter -
Clogged fuel filter.
Multifunction stalks: (Left) direction - Wing / Highbeam / Lowerbeam - Headlamp flash - Horn - Front fog lights (right). Equipped with DRL (Daytime Running Lights). For
more security "side light / parking light" switch on automatically at every Key ON, so that the vehicle is more visible by daytime, too. The driver cannot byany means
switch them off. Windscreen wiper with intermittent wipe. Steering wheel with secure and comfortable grip (diameter 390 mm / inclination 42 degrees).
New steering wheel
Reduced steering wheel of 14 mm (from MY2016 394 mm to MY2019 380 mm). Increased comfort car-like feeling.
Multifunctions steering wheel (depending on vehicle configuration)
The new steering wheel contains 20 switches: 16 on the front and 4 on the rear. No more necessity to order steering wheel controls, every time an ADAS function or a
radio is added, the steering automatically has a dedicated switch.
(The equipment can vary according to the markets / homologations; for a complete list of Daily options please contact local Iveco distributor. The images shown here are
for illustrative purposes only)
9 16 Dec 2019IVECO UK Ltd - Cranes Farm
Road - Basildon - SS14 3AD
WWW.IVECO.COM 35S14HA8 SVYou can also read
