New greenfield Brewery
for Heineken Spain in Sevilla
Automation meeting
José Mª Moreno C.
08-09-2011
New Brewery
for HESA in Sevilla
1. Introduction: Heineken Spain & Sevilla Brewery
2. Business Case
3. Brewery Design
4. Brewery Layout and Equipment
5. Key issues
6. General Automation
7. PCS-MES
8. LGV´s
08-09-2011
Old Sevilla brewery:
A Centenary Brewery
• Built in 1904 in the field.
• Initial production 30.000 hl per year.
• Today is in the centre of the town
• 2006 production was 3.500.000 hl per year (grew 100 times)
08-09-2011
The Business Case: justification
• Layout, as a consequence, is suboptimal
• Severe space limitations for capacity extension
• Restrictions for trucks circulation
• Low potential productivity (production costs)
• High investments for replacement required
• Major Replacement programm in an operative brewery is
very complex to manage
• New EU legislation on Environment and Safety would
make its continuity not feasible .. / ..
08-09-2011
The Business Case: justification
• High value of current land (rezoned to urbanistic use)
• Avoidance of further investments on capacity extension
in other breweries in Spain
• Capacity extension close to the market, reducing
logistics costs
• Regional government subside to enable attractive Early
Retirement Programme, to fit the required reduction of
personnel
• Warehouse operations could be contracted out to a
Logistics Service Provider.
08-09-2011

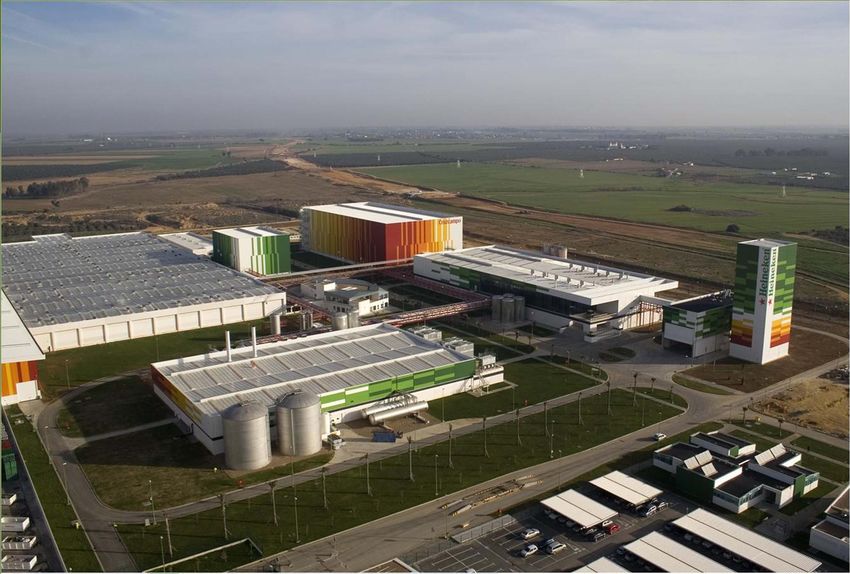

Sevilla New Brewery
Location
The new brewery is being built within Sevilla municipality
in a new industrial area at the outskirts of the city
for an initial sales capacity of 4 mln hl
designed to be extended easily
08-09-2011
Brewery Design
• Sales capacity: 4,0 extendable to 5,0 mill. hl, based on future
domestic market
• Productivity: 15.000 hl/man (Warehousing operations excluded)
• Latest but proven technology, guarantying same product
quality/profile (taste). Existing recipes.
• Environmentaly friendly brewery, efficient in energy/water
usage. Responsible waste management.
• Automation & IT: Latest, but proven technology. Standard
solutions
• Industrial safesty operation. Lowest ammonia .. / ..
08-09-2011
Brewery Design
• Product Integrity and T&T: Full compliance with European
legislation and Heineken standards
• Practical design, easy to clean, accessible. High standard on
Hygiene. Modular layout, easy to extend
• Design the brewery for the desired productivity and production
costs, at the targeted budget
• Warehouse operations to be outsorced. On site, Wall to Wall.
Full logistics on site incl. ret. empties sorting activities,
maintenance kegs and spears
• Automation connection between Packaging area and Logistics.
• Reasonable flexibility in brewing, High flexibility in packaging,
leaving enough space in the layout.
08-09-2011

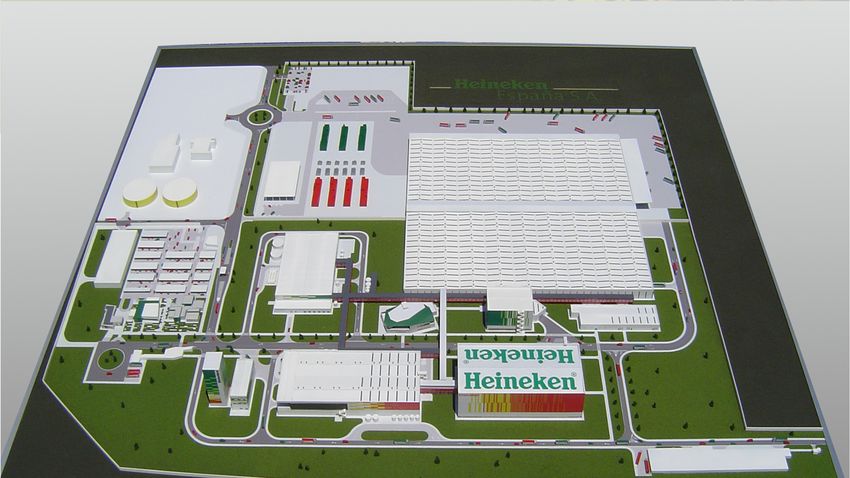

Brewery Design
First layout
08-09-2011
08-09-2011
First brew
08-09-201108-09-2011
Sevilla new brewery
Main instalations and suppliers
• Brewhouse: 2 lines: 20.000 hl/day • HUPPMANN
• GEA TUCHENHAGEN
• Cellar with 90 tanks
LANDALUCE
• Beer Filtration: 2 lines: 1.200 hl/hr
• FILTROX
• Packaging:
• 2 Kegging lines, • COMAC
• 1 Canning line and 5 Bottling lines • KRONES
• Automation • PROLEIT
• BA System
• LGV and automatic warehouse
08-09-2011Sevilla new brewery
Main capacities in utilities
3 Boilers of 16 Mw of SHW (160 ºC & 12 bars).
Cooling: 2 circuits: ethanol (-5ºC) and production water (2ºC): total
capacidad of 12.400 KW.
Electricity input: 2 lines of 132 KV with 2 trafos of 15 MVA.
CO2 recovery: 2 lines of 2.100 Kg/h (3Kg/100 L of beer)
Tratement plant of raw water and WWTP
Energy savings: 20% electricity, 35% water and 20% gas.
08-09-2011Empties & finished products
management
08-09-2011Secondary materials & waste
management
08-09-2011Key issues: Construction design
• Standarization of equipment to facilitate its operation,
maintenance and spare parts.
• Systems management (screens/reports) standardized to
facilitate the training and flexibility of operators.
• Line management, quality cheks by operators, etc., through
MES system .
• Materials management from the machinery screens.
• Lines mirrored to optimized the synergy of operators.
08-09-2011Generalidades de automatización
1. Gestión de la instrumentación para asegurar la máxima
integridad del producto y disponibilidad de la instalación al
menor coste.
2. Mejora continua de la disponibilidad de las instalaciones,
procesos de producción y resultados.
08-09-2011Generalidades de automatización
• Red única de datos ethernet
– 6 anillos redundantes de F.O. CAT 6 Gigabit
– Cableado estructurado con paneles y latiguillos
– Switchtes estandares :CISCO con POE y N+1
– Varias Vlan´s: IT, seguridad (cámaras y control de acceso),
LGV´s (WiFi), Proceso, envasado, telefonía, etc.
– Pequeño CPD para todos los servidores de control de
proceso, etc. compartiendo CORE y unidad de discos
redundantes (EVA de HP)
08-09-2011Generalidades de automatización
• Gestión de Activos
– Total Instrumentación planta : 2240 en PA con DTM
– Redes de comunicación :Ethernet - Profibus DP/PA - AS-I
– PLC’s : 189
– Pc industriales 100
– Paneles Tactiles 25
– Pc control SCADA 15
– Más de 3.000 válvulas automáticas con cabezal AS-I
08-09-2011Generalidades de automatización
Elección del Software (2007) + Training (Fieldcare de Endress+Hauser)
Definición del Proyecto junto con E+ H (2008) 3 Proyectos
independientes
Implementación en Cerveceria (11 pasarelas Fieldgate) 2008
Implementación en Envasado y Energias (31 pasarelas Fieldgate) 2009
La aplicación esta montada en la Estacion de Ingenieria en sala de control
De Cerveceria .
Esta es accecible desde cualquiel lugar del mundo por medio de
08-09-2011Arquitectura de control en cervecería
08-09-2011Ejemplo PLC cervecería
08-09-2011Arquitectura de control en envasado
08-09-2011Generalidades de automatización
• Características de nuestras aplicaciones :
TOTAL : 2.240 dispositivos con DTM
– Zona Producción : 1.393 Dispositivos
– Zona Envasado : 607 Dispositivos
– Zona Utilities : 240 Dispositivos
• Por tipo de dispositivos :
Marcas : Endress+Hauser, Samson ,ABB, Flowserve
Foxboro , Yokogawa,
Caudal 13% - Nivel Continuo 6% - Presion 16%
Valvulas 15% Analisis 4% Nivel 21% Temp. 24%
08-09-2011Integración buses de campo en la red
Ethernet de fabrica
08-09-2011Sala de control con tecnología FDT
Desde la sala de control se puede
acceder a cualquier instrumento
instalado en planta compatible con
esta tecnología.
Permite realizar un primer análisis de
la incidencia sin desplazar al técnico.
BENEFICIOS:
• Acceso remoto a la instrumentación de
campo
• Copias de seguridad de las
configuraciones
• Ajuste de equipos remoto
• Rápida sustitución de equipos
08-09-2011Algunas fotos
08-09-2011Algunas fotos
08-09-2011Sala de control con tecnología FDT
08-09-2011The result of such a
team effort
Questions ?
