P&HDLTPL8 JANUARY 2019
EFFECTIVE: 1st JANUARY 2019
Polypipe Underfloor Heating
NEW
TS Trade Price List 2019
PRODUC
Underfloor Heating
Trade Price List 2019
Welcome to the new Polypipe Underfloor
Heating Trade Price List. This handy pocket
guide combines all of our related products
into one single catalogue of product and
price information.
Alongside all of our best known product ranges, you
will also find several exciting new additions, continuing
our reputation for product innovation and great value.
Together they make Polypipe the most comprehensive
range of plumbing and heating systems available from
a single UK manufacturer.
Be sure to check out these great new products:
Page 38 Smart + Controls
Additions to the Smart + Controls range for controlling
mixed systems
Page 42 Heat Generation
Single Zone Electric Boiler for Underfloor Heating
For the latest product and support information, literature
downloads, product selectors and news, visit us online
at www.polypipeufh.com
2 www.polypipeufh.com
Contents
Underfloor Heating Systems
Underfloor Heating Pipe Page 5
Solid Floor Systems
Red Floor Panel System Page 7
Clip Rail System Page 8
Staple System Page 9
Floating Floor System
Floating Floor System Page 11
Suspended Floor Systems
Double Heat Spreader Plate Page 14
Fit From Below Double Heat Spreader Plate Page 14
Overlay™ Lite 15 Page 15
Modular Heating Panels Page 16
Existing Floors & Low Profile Systems
Overlay™ Heavy floor coverings Page 20
Overlay™ Lite Light floor coverings Page 21
Overlay™ Lite 15 Larger areas or whole house solutions Page 22
Manifolds & Water Temperature Controls
Stainless Steel Underfloor Heating Page 26
Manifolds & Ancilliaries
Polymer Manifolds & Ancillaries Page 28
Brass Underfloor Heating Manifolds & Ancilliaries Page 30

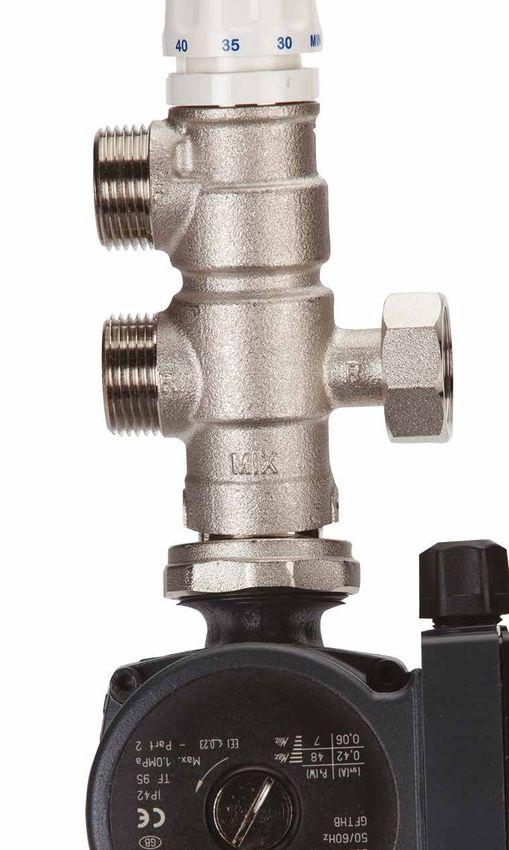

Water Temperature Controls Page 32
Room Temperature Controls
Room Temperature Controls Page 36
Room Packs
Room Packs Page 40
Heat Generation
Single Zone Electric Boiler for Underfloor Heating Page 42
Renewable Pipe Systems
Renewable Pipe Systems Page 44
You can find out more about Polypipe Underfloor
Heating Systems at www.polypipeufh.com
www.polypipeufh.com 3
Underfloor
Heating Systems
Polypipe manufactures the most comprehensive range
of underfloor heating systems available for the UK market.
Our range combines versions of traditional underfloor
systems and a number of innovative product solutions,
designed to extend the suitability of underfloor heating
to almost any installation scenario, from whole house to
single room projects and for new build and renovations.
For more information, consult our Installation
Guide or use the online product selectors at
www.polypipeufh.com
4 www.polypipeufh.com
Polypipe Ultra Flexible Underfloor Heating Pipe
(For Underfloor Heating Use Only) - EN15876
Underfloor Heating Pipe Pack Code Price
Polybutylene Qty. No. Each £
12mm x 25m Coil UFH Pipe 1 UFH2512B 32.31
12mm x 50m Coil UFH Pipe 1 UFH5012B 64.60
12mm x 80m Coil UFH Pipe 1 UFH8012B 103.35
15mm x 50m Coil UFH Pipe 1 UFH5015B 68.02
15mm x 80m Coil UFH Pipe 1 UFH8015B 108.83
15mm x 100m Coil UFH Pipe 1 UFH10015B 136.04
15mm x 120m Coil UFH Pipe 1 UFH12015B 163.25
15mm x 150m Coil UFH Pipe 1 UFH15015B 204.07
15mm x 500m Coil UFH Pipe 1 UFH50015B 680.19
18mm x 120m Coil UFH Pipe 1 UFH12018B 195.29
18mm x 200m Coil UFH Pipe 1 UFH20018B 325.49
18mm x 300m Coil UFH Pipe 1 UFH30018B 488.23
Pack Code Price
Pipe Decoiler
Qty. No. Each £
Adjustable pipe decoiler for
1 UFHDECOIL 285.19
pipes coils up to 500m
Conduit Pipe
Conduit Polypropylene Pack Code Price
Pipe Coil Qty. No. Each £
15mm x 25 metre (Black) 1 UFHCP1525 22.93
Polypipe MCP Underfloor
Heating Pipe
(For Underfloor Heating Use Only)
- EN21003 Class S
Pack Code Price
Metal Composite Pipe
Qty. No. Each £
16mm x 80m Coil MCP UFH Pipe 1 MCP8016B 122.04
16mm x 100m Coil MCP UFH Pipe 1 MCP10016B 152.54
16mm x 120m Coil MCP UFH Pipe 1 MCP12016B 183.05
16mm x 150m Coil MCP UFH Pipe 1 MCP15016B 228.81
www.polypipeufh.com 5
Solid
Floor Systems
Underfloor heating
for solid screeded floors

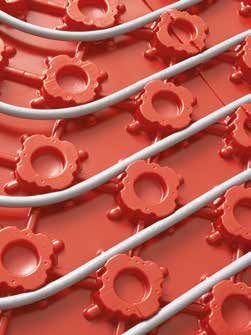

Red Floor Panel System
For optimum performance, Polypipe has the perfect
solution for installing underfloor heating into solid or
screeded floors. Utilising our unique lightweight plastic
floor panels, which are quick and easy to cut to size, it is
possible to fit Polypipe Underfloor Heating into any shaped
room. The lightweight plastic floor panels also nest for easy
storage and carrying.
Clip Rail and Staple Systems
We also provide a range of rail and staple systems that
fit directly onto the insulation, offering a more traditional
alternative to installing underfloor heating in solid or
screeded floors.
Optimum performance system
6 www.polypipeufh.com
Solid Floor Systems
Panel System
Floor Panel Pack Code Price
Allow for overlap and waste when ordering Qty. No. Each £
1.2m x 1m 1 PB08576 8.93
Pack Code Price
Standard UFCH Pipe Clip
Qty. No. Each £
Standard UFCH Pipe Clip 250 PB02911 0.10
Pack Code Price
Edge Expansion
Qty. No. Each £
25m Coil 1 PB05855 27.34
Pack Code Price
Long Radius Bend Former
Qty. No. Each £
For use as pipe guide
at bottom of manifold - 1 PB6325 13.72
accepts 15mm conduit pipe
Pack Code Price
Plastic Pipe Stiffeners
Qty. No. Each £
15mm UFH pipe stiffener 30 UFHPS15 0.29
Panel System
1. Insulation
2. Pipe
3. Red Floor Panel
4. Edge expansion
5. Screed
6. Finished floor* 5
6 4
3
2
1
*See technical guide for floor coverings. www.polypipeufh.com 7
Solid Floor Systems
Clip Rail System
Clip Rails
200mm pipe centres (15mm pipe) & 200mm Pack Code Price
& 300mm pipe centres (18mm pipe).
Use approx 1m/m2 floor area and secure Qty. No. Each £
with standard Pipe Clip PB02911.
15-18mm pipe 16 x 1m pack
16 PB08515 2.83
(16m)
Pack Code Price
Standard UFCH Pipe Clip
Qty. No. Each £
Standard UFCH Pipe Clip 250 PB02911 0.10
Pack Code Price
Edge Expansion
Qty. No. Each £
25m Coil 1 PB05855 27.34
Pack Code Price
Long Radius Bend Former
Qty. No. Each £
For use as pipe guide
at bottom of manifold - 1 PB6325 13.72
accepts 15mm conduit pipe
Pack Code Price
Plastic Pipe Stiffeners
Qty. No. Each £
15mm UFH pipe stiffener 30 UFHPS15 0.29

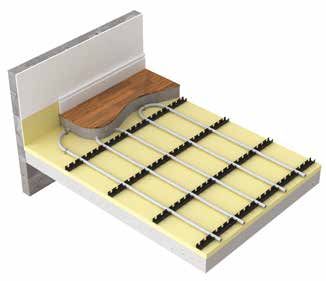

Clip Rail System
1. Insulation
2. Pipe
3. Edge expansion
4. Clip rail
5. Screed
6. Finished floor*
5
6 3
4
2
1
8 www.polypipeufh.com *See technical guide for floor coverings.
Solid Floor Systems
Staple System
Pack Code Price
UFCH Staple System
Qty. No. Each £
UFCH Staple Clip (40mm) 300 PB02940 0.13
UFCH Staple Clip (60mm) 300 PB02930 0.13
UFCH Staple Gun 1 PB02931 234.35
Pack Code Price
Edge Expansion
Qty. No. Each £
25m Coil 1 PB05855 27.34
Pack Code Price
Long Radius Bend Former
Qty. No. Each £
For use as pipe guide
at bottom of manifold - 1 PB6325 13.72
accepts 15mm conduit pipe
Pack Code Price
Plastic Pipe Stiffeners
Qty. No. Each £
15mm UFH pipe stiffener 30 UFHPS15 0.29

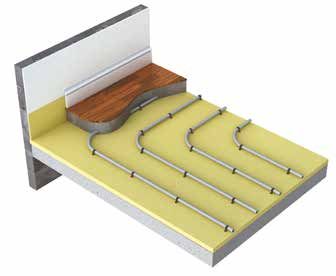

Staple System
1. Insulation
2. Pipe
3. Edge expansion
4. UFCH Staple Clip
5. Screed
6. Finished floor*
5
6 3
4
2
1
*See technical guide for floor coverings. www.polypipeufh.com 9

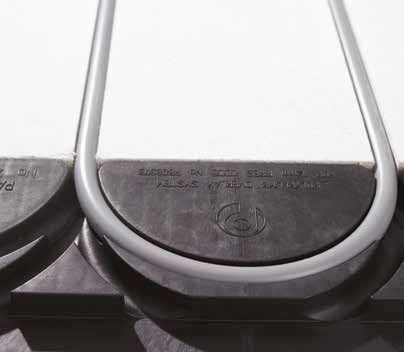

Floating Floor Systems Underfloor heating for floating floors The Polypipe Floating Floor System features high density polystyrene floor panels that enhance insulation, as well as providing the base for the heating pipes. The system is designed for use with “dry build” floors laid directly over solid or timber sub bases in both new build and existing properties. Floating Floor Systems are compatible with our 15mm pipe systems. 10 www.polypipeufh.com
Floating Floor System
Floor Panel Pack Code Price
Coverage approx. 9.6m2 per 10 pack Qty. No. Each £
1200mm (L) x 800mm (W)
10 PB08050 38.35
x 50mm (D)
Connection/Return panel 10 PB08060 10.09
Self Adhesive Pack Code Price
Aluminium Tape Qty. No. Each £
48mm wide x 46 metres long 1 UFHALTP 11.49
Pack Code Price
Plastic Pipe Stiffeners
Qty. No. Each £
15mm UFH pipe stiffener 30 UFHPS15 0.29
1. Fits over concrete or floorboards
2. Floating Floor panel
3. Pipe
4. End return
5. 10mm plywood lining
6. Suitable for laminate and
engineered wood floors direct*
6
5
4
2
3
1
*See technical guide for floor coverings. www.polypipeufh.com 11Suspended Floor Systems Underfloor heating for suspended floors For suspended timber and composite joists, typically found in new build and renovation projects - Polypipe offers a range of unique pre-insulated and pre-configured systems, as well as more traditional suspended floor underfloor heating options. Giving you a solution for every type of suspended floor installation. Double Heat Spreader Plates (DHSP) Offering a simple installation system for traditional joists and spacings, Double Heat Spreader Plates can also be used in ‘sprung’ flooring systems such as sports halls. This system uses aluminium Double Heat Spreader Plates to transmit the heat evenly across the finished floor surface. Optimum performance system 12 www.polypipeufh.com
Suspended Floor System
Fit From Above with Overlay™
Lite 15 - Suspended floor application
For enhanced performance, especially over larger floor areas,
use with our new Overlay™ Lite 15 panels for an integrated
insulated solution.
Fit From Below (FFB)
Double Heat Spreader Plate
Suitable for use with traditional or composite joists,
this system offers the ability to fit from below,
even if the floor above has already been installed.
Perfect for cellars or where upper floor coverings
are already in place.
Modular Heating Panels
For the ultimate quick and easy installation solution,
use our pre-configured, insulated panels that include all
the system components already integrated. The panels
are supplied in sized panels which are simply fitted and
connected together on site.
All systems
For use with our 15mm pipe systems. All suspended
floor systems are fitted within the joists so do not add
any build height to the floor.
www.polypipeufh.com 13Suspended Floor Systems

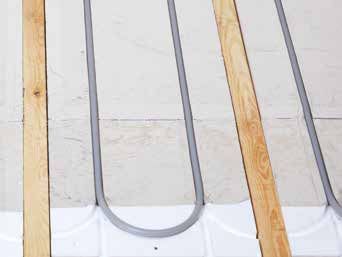

Double Heat Spreader Plate
Double Heat Spreader Plate Pack Code Price
Pipe grooves at 125mm each side of centre line Qty. No. Each £
For 15mm Pipe, 450mm x 1m
5 PB209 11.20
span double indent
For 15mm Pipe, 390mm x 1m
span double indent at 200mm 40 PB240 8.50
centres
Double Heat
Spreader Plate
1. Ceiling
2. Supporting joists
3. Insulation
4. Double Heat Spreader Plate
5. Pipe
6. Timber or chipboard floor deck* 6
5
4
2
3
1
FFB Double Heat Spreader Plate
FFB Double Heat Pack Code Price
Spreader Plate Qty. No. Each £
For 15mm Pipe, 310mm x 1m
5 PB206 15.63
span double indent
Fit From Below (FFB)
Double Heat
Spreader Plate
1. Supporting joists
2. Insulation
3. FFB Double Heat Spreader Plate
4. Pipe
5. Timber or chipboard
floor deck* 5 4
3
1
2
14 www.polypipeufh.com *See technical guide for floor coverings.Suspended Floor Systems
Overlay™ Lite 15
Pack Code Price
Overlay™ Lite 15 Floor Panel
Qty. No. Each £
1200mm (L) x 800mm (W)
x 22mm (D) Coverage approx. 10 PB08030 31.97
9.6m2 per 10 pack
Pack Code Price
Plastic Pipe Stiffeners
Qty. No. Each £
15mm UFH pipe stiffener 30 UFHPS15 0.29
Fit From Above
With Overlay™
Lite 15
1. Ceiling
2. Supporting joists
3. Overlay™ Lite 15
4. Pipe
5. Timber or chipboard
floor deck*
5
3
4
1
2
*See technical guide for floor coverings. www.polypipeufh.com 15Suspended Floor Systems
MHP (Modular Heating Panel)
MHP Pack Code Price
(Modular Heating Panel) Qty. No. Each £
250mm x 1.3m 5 MHP25013 29.68
330mm x 1.3m 5 MHP33013 21.63
380mm x 1.3m 5 MHP38013 21.63
330mm x 2.0m 5 MHP33020 28.85
380mm x 2.0m 5 MHP38020 28.85
490mm x 1.3m 5 MHP49013 28.85
490mm x 2.0m 5 MHP49020 38.46
MHP (Modular
Heating Panel)
1. Ceiling
2. Supporting joists
3. MHP panel including pipe,
insulation and foil diffuser
4. Timber or chipboard floor deck
4
3
1
2
16 www.polypipeufh.comwww.polypipeufh.com 17
Existing Floors & Low Profile Systems Underfloor heating that goes over the floor For existing solid or timber deck floors - Polypipe’s unique Overlay™ underfloor heating range of low profile systems are installed over the existing floor. This makes them ideal for renovation and new build, whole house and single room projects. Optimum performance system 18 www.polypipeufh.com
Existing Floors & Low Profile Systems
Overlay™
Overlay™ accommodates all types of project and floor
coverings, and the only choice is that of which panel will
be most appropriate for the installation. Both Overlay™
and Overlay™ Lite can be used for the majority of projects,
however the choice of Overlay™ is determined by floor
covering selection. Overlay™ and Overlay™ Lite can be
used as appropriate in the same project.
The more structural nature of Overlay™, however, makes
it ideal for direct tiling or application of floor finishes
which need to be fixed or screwed to the panel.
Overlay™ Lite
Overlay™ Lite is the ideal solution for laminate and
engineered wood floors, which should be laid directly
over the system.
Overlay™ Lite products are easy to install making
it ideal for larger floor areas.
Overlay™ Lite 15
Slightly deeper profile, which can be used on top
of a supporting floor or as a low profile alternative
to floating floor. The system delivers the same
responsive heat but is configured to be more
suitable for larger, “whole house” projects.
www.polypipeufh.com 19Overlay™ Floor System
Choose Overlay™ original floor panels for use with
heavier floor coverings such as tiles and ceramics.
Overlay™
Pack Code Price
Overlay™ Floor Panel
Qty. No. Each £
800mm (L) x 600mm (W)
x 18mm (D) Coverage approx. 30 PB08571 16.04
14·4m2 per 30 pack
800mm (L) x 600mm (W)
x 18mm (D) Coverage approx. 10 PB08570 16.85
4.8m2 per 10 pack
1200mm (L) x 600mm (W) x
18mm (D) Manifold Routing 1 UFHOVMFP 86.19
Board
End Returns Pack Code Price
(Overlay™ & Overlay™ Lite) Qty. No. Each £
End Returns 10 PB08573 2.49
Polyurethane Expanding Pack Code Price
Foam Glue Qty. No. Each £
Polyurethane Expanding
1 PB776 14.98
Foam Glue (Overlay™)
Adaptor Set Pack Code Price
(Overlay™ & Overlay™ Lite) Qty. No. Each £
15mm x 12mm including
2 PB181512 3.61
Pipe Stiffeners
Pack Code Price
Temperature Limiting Valve
Qty. No. Each £
Temperature Limiting Valve
1 PB970010 69.35
5m2 Overlay™ only
1. F its over concrete
or floorboards
2. 8 00mm x 600mm x 18mm
OverlayTM panel
3. 12mm polybutylene barrier pipe
4. End return 5
5. Suitable for tiles and hard
wood floors*
4
3
2
1
20 www.polypipeufh.com *See technical guide for floor coverings.Overlay™ Lite Floor System
Choose Overlay™ Lite floor panels for use with lighter
floor coverings such as carpet and laminates.
Overlay™ Lite
Pack Code Price
Overlay™ Lite Floor Panel
Qty. No. Each £
1245mm (L) x 600mm (W) x
18mm (D) Coverage approx. 10 PB08010 24.74
7.5m2 per 10 pack
1245mm (L) x 600mm (W)
x 18mm (D) Coverage approx. 20 PB08020 22.46
15m2 per 20 pack
Self Adhesive Pack Code Price
Aluminium Tape Qty. No. Each £
48mm wide x 46 metres long 1 UFHALTP 11.49
End Returns Pack Code Price
(Overlay™ & Overlay™ Lite) Qty. No. Each £
End Returns 10 PB08573 2.49
Adaptor Set Pack Code Price
(Overlay™ & Overlay™ Lite) Qty. No. Each £
15mm x 12mm including
2 PB181512 3.61
Pipe Stiffeners
Pack Code Price
Nail-In-Clip - Polypropylene
Qty. No. Each £
12mm 50 UFHNAILCLIP 0.13
1. Fits over concrete or floorboards
2. O verlay™ Lite panel
3. Pipe
4. End return
5. 10mm plywood lining (optional)
6. Suitable for laminate and 6
engineered wood floors*
5
4
3
2
1
*See technical guide for floor coverings. www.polypipeufh.com 21Overlay™ Lite 15 Floor System
Choose Overlay™ Lite 15 floor panels,
with 15mm pipe, for larger floor areas.
Overlay™ Lite 15
Pack Code Price
Overlay™ Lite 15 Floor Panel
Qty. No. Each £
1200mm (L) x 800mm (W)
x 22mm (D) Coverage approx. 10 PB08030 31.97
9.6m2 per 10 pack
Connection/Return panel 10 PB08040 8.39
Self Adhesive Pack Code Price
Aluminium Tape Qty. No. Each £
48mm wide x 46 metres long 1 UFHALTP 11.49
Pack Code Price
Plastic Pipe Stiffeners
Qty. No. Each £
15mm UFH pipe stiffener 30 UFHPS15 0.29
Pack Code Price
12mm Cover Board
Qty. No. Each £
Tongue and groove cover
board1200mm (L) x 800mm 50 UFHCOVER50 46.82
(W) x 12mm (D)
Acoustic Edge Roll 150mm x
1 UFHACEDGE 25.08
8mm x 10 metres
1. Fits over concrete or floorboards
2. Overlay™ Lite 15 panel
3. Pipe
4. End return
5. 10mm plywood lining
6. Suitable for laminate and 6
engineered wood floors*
5
2 4
3
1
22 www.polypipeufh.com *See technical guide for floor coverings.NEW Single Zone Electric Boiler
The new Single Zone Electric Boiler means that underfloor
heating can now be installed as a standalone system -
removing the need to plumb into the existing heating
system.
• 3kw Heating Element
• 2 Port Push Fit Manifold
• Internal Pump
• Expansion
• Pressure Relief
• Pressure Guage
• Filling Connections
• Air Vent
UFHEHU
This sleek, white comapct unit can supply hot water to service
underfloor heating in areas up 38m2*.
For more information, visit:
www.polypipeufh.com/singlezoneboiler
*Based on a requirement of 80w/m2. For help
specifying your system contact our Design
Engineers via design@polypipe.com
www.polypipeufh.com 2324 www.polypipeufh.com
Manifolds & Water
Temperature Controls
Polypipe offers a broad range of manifold and
water temperature controls for both traditional
and underfloor heating applications, now
including the new Stainless Steel Manifold with
Secure Fix Bracket.
Manifolds are used in all underfloor heating systems above 30m2,
irrespective of floor type. Manifolds are supplied complete and fixed
with a wall mounting bracket. The manifold comes complete with a
drain and air vent assembly, which can be positioned on either end
of the manifold, and isolation valves are supplied separately for the
supply end of the manifold.
We offer a range of 15mm push-fit manifolds for use with 12mm
and 15mm pipe systems and compression manifolds for use with
our 16mm and 18mm pipe systems.
Each Polypipe manifold includes a flow meter on each flow port to
provide a visual indicator of the flow through rate of each circuit.
Polypipe also offers a range of water temperature control units.
These are used to reduce the water temperature for underfloor
heating systems, when connected to the same boiler used for
radiators or stored hot water, which operate at higher temperatures
than underfloor systems.
www.polypipeufh.com 25Stainless Steel Underfloor Heating
Manifolds and Ancillaries
15mm Stainless Steel
Manifold Push-fit (now with Pack Code Price
Auto Balancing Technology) Qty. No. Each £
For use with 15mm and 12mm Overlay™ Systems
2 Port - Push-fit Manifold 1 PB12752 149.39
3 Port - Push-fit Manifold 1 PB12753 179.85
4 Port - Push-fit Manifold 1 PB12754 221.32
5 Port - Push-fit Manifold 1 PB12755 237.93
6 Port - Push-fit Manifold 1 PB12756 283.59
7 Port - Push-fit Manifold 1 PB12757 311.25
8 Port - Push-fit Manifold 1 PB12758 345.83
9 Port - Push-fit Manifold 1 PB12759 376.26
10 Port - Push-fit Manifold 1 PB12760 408.09
11 Port - Push-fit Manifold 1 PB12761 442.66
12 Port - Push-fit Manifold 1 PB12762 477.25
Stainless Steel Pack Code Price
Isolation Valves Qty. No. Each £
1 inch - Isolation Valves - use
to connect manifolds to 33.99
1 PB12764
both UFCH Control Pack & per pair
Modulating Pump Unit (Pair)
Stainless Steel Pack Code Price
Isolation Valves Qty. No. Each £
1 inch - Isolation Valves - use
33.99
to connect UFCH Control Pack 1 PB12765
per pair
to system pipework
26 www.polypipeufh.comStainless Steel Underfloor Heating
Manifolds and Ancillaries
15mm Stainless Steel Pack Code Price
Manifold Extension Kit Qty. No. Each £
Underfloor Central Heating 85.93
1 UFHABEXT
Manifold Extension Kit per pair
Stainless Steel Manifold Spares
and Accessories
Pack Code Price
Manifold Flow Meter
Qty. No. Each £
Manifold Flow Meter 1 PB129FM 14.29
Pack Code Price
Manifold Balancing Valve
Qty. No. Each £
Manifold Balancing Valve 1 PB129BV 10.90
Pack Code Price
Manifold Blue Cap
Qty. No. Each £
Manifold Blue Cap 1 PB129BC 1.56
Pack Code Price
Manifold End Set
Qty. No. Each £
36.36
Manifold End Set (Pair) 1 PB129ES
per pair
Pack Code Price
Comissioning Hose
Qty. No. Each £
For filling and draining 1 PB12766 19.53
Pack Code Price
UFCH Manifold Bends (90o)
Qty. No. Each £
Allows pump unit and
manifold to be corner
1 PB12768 85.93
mounted, can be used with
UFCH control pack
Pack Code Price
Female Coupler
Qty. No. Each £
Female Coupler 22mm X 1” 1 PB12770 6.00
www.polypipeufh.com 27Plastic Underfloor Heating
Manifolds and Ancillaries
15mm Plastic Manifold
Pack Code Price
Push-fit
Qty. No. Each £
For use with 15mm and 12mm Overlay™ Systems
2 Port - Push-fit Manifold 1 UFHMANP2 117.00
3 Port - Push-fit Manifold 1 UFHMANP3 140.85
4 Port - Push-fit Manifold 1 UFHMANP4 173.34
5 Port - Push-fit Manifold 1 UFHMANP5 186.34
6 Port - Push-fit Manifold 1 UFHMANP6 222.10
7 Port - Push-fit Manifold 1 UFHMANP7 243.77
8 Port - Push-fit Manifold 1 UFHMANP8 270.85
9 Port - Push-fit Manifold 1 UFHMANP9 294.68
10 Port - Push-fit Manifold 1 UFHMANP10 319.61
11 Port - Push-fit Manifold 1 UFHMANP11 346.69
12 Port - Push-fit Manifold 1 UFHMANP12 373.78
Pack Code Price
Isolation Valves
Qty. No. Each £
1 inch - Isolation Valves - use
to connect manifolds to 31.50
1 UFHIVP1
both UFCH Control Pack & per pair
Modulating Pump Unit (Pair)
28 www.polypipeufh.comPlastic Underfloor Heating
Manifolds and Ancillaries
Plastic Manifold Spares and Accessories
Pack Code Price
Manifold Flow Meter
Qty. No. Each £
Manifold Flow Meter 1 UFHMANPFM 14.29
Pack Code Price
Manifold Balancing Valve
Qty. No. Each £
Manifold Balancing Valve 1 UFHMANPBV 10.10
Pack Code Price
Manifold Blue Cap
Qty. No. Each £
Manifold Blue Cap 1 UFHMANPWC 1.56
Pack Code Price
Manifold End Set
Qty. No. Each £
36.36
Manifold End Set (Pair) 1 UFHMANPES
per pair
www.polypipeufh.com 29ONLY
Brass Underfloor Heating Manifolds WHILE
and Ancillaries STOCKS
LAST
16mm and 18mm
Compression Manifold Pack Code Price
For use with 16mm MCP and 18mm systems Qty. No. Each £
Use with Manifold Unions
2 Port - Compression Manifold 1 PB08351 149.39
3 Port - Compression Manifold 1 PB08392 179.85
4 Port - Compression Manifold 1 PB08459 221.32
5 Port - Compression Manifold 1 PB08462 237.93
6 Port - Compression Manifold 1 PB08479 283.59
7 Port - Compression Manifold 1 PB08558 311.25
8 Port - Compression Manifold 1 PB08563 345.83
9 Port - Compression Manifold 1 PB08564 376.26
10 Port - Compression Manifold 1 PB08572 408.09
11 Port - Compression Manifold 1 PB08588 442.66
12 Port - Compression Manifold 1 PB08589 477.25
16mm and 18mm
Pack Code Price
Manifold Unions
Qty. No. Each £
To be used on each Manifold Port
16mm 1 PB07729 3.79
18mm 1 PB07730 3.79
Pack Code Price
UFCH Manifold Bends (90°)
Qty. No. Each £
Allows pump unit and
manifold to be corner
38.33
mounted, can be used with 1 PB12735
per pair
UFCH Control Pack
or Modulating Pump Unit (Pair)
Pack Code Price
Isolation Valves
Qty. No. Each £
1 inch - Isolation Valves - use
to connect manifolds to 33.99
1 PB01732
both UFCH Control Pack & per pair
Modulating Pump Unit (Pair)
30 www.polypipeufh.comONLY Brass Underfloor Heating Manifolds
WHILE
STOCKS and Ancillaries
LAST
Brass Manifold Spares and Accessories
Pack Code Price
Manifold Flow Meter
Qty. No. Each £
Manifold Flow Meter 1 PB127FM 14.29
Pack Code Price
Manifold Balancing Valve
Qty. No. Each £
Manifold Balancing Valve 1 PB127BV 10.90
Pack Code Price
Manifold Blue Cap
Qty. No. Each £
Manifold Blue Cap 1 PB127BC 1.56
Pack Code Price
Manifold End Set
Qty. No. Each £
36.36
Manifold End Set (Pair) 1 PB127ES
per pair
Pack Code Price
Temperature Gauge
Qty. No. Each £
Temperature Gauge 1 PB127TG 13.77
www.polypipeufh.com 31Water Temperature Controls
and Accessories
Multiple Room Systems
Stainless Steel Manifold Pack Code Price
Control Pack Qty. No. Each £
UFCH Control Pack - Includes
EUP Pump, UFCH Mixer Valve,
bend and adaptors. For use 1 PB970055 377.89
with Stainless Steel Manifolds
only (see page 26-27).
Pack Code Price
High Limit Thermostat
Qty. No. Each £
Provides additional protection
from high temperature water. 1 PB12767 54.68
For use with PB970055 only.
Brass Pre-Assembled Pack Code Price
Manifold Control Pack Qty. No. Each £
Factory assembled UFCH
Control Pack - Includes EUP
Pump, UFCH Mixer Valve, bend
1 PB970035 377.89
and adaptors. For use with
Brass Manifolds only
(see page 30-31).
Pack Code Price
High Limit Thermostat
Qty. No. Each £
Provides additional protection
from high temperature water. 1 PB970036 23.44
For use with PB970035.
Brass Pre-Assembled Pack Code Price
Manifold Control Pack Qty. No. Each £
Factory assembled UFCH
Control Pack - Includes EUP
Pump, UFCH Mixer Valve, bend
1 UFHPPP1 328.84
and adaptors. For use with
Polymer Manifolds only
(see page 28-29).
Pack Code Price
2 Port Zone Valve
Qty. No. Each £
New 2 Port Spring Return
1 UFH2PORTZV 62.99
Zone Valve (pictured)
32 www.polypipeufh.comWater Temperature Controls
and Accessories
Pack Code Price
UFCH Mixing Valve
Qty. No. Each £
22mm 1 PB219058 121.50
28mm 1 PB219059 135.62
Single Room Systems
Single Room Control Units Pack Code Price
Zonal Regulation Units (ZRU) Qty. No. Each £
ZRU Single circuit 1 PB970018 428.10
Single Room Control Units Pack Code Price
Zonal Regulation Units (ZRU) Qty. No. Each £
ZRU 2/3 circuit 1 PB970028 444.90
Pack Code Price
Temperature Limiting Valve
Qty. No. Each £
Temperature Limiting Valve
1 PB970010 69.35
5m2 Overlay™ only
Pack Code Price
Magnetic Filter
Qty. No. Each £
MagnaClean TwinTec
1 UFHFILTER 180.00
Magentic Filter
NEW Single Zone Electric Boiler (see page 42)
The new Single Zone Electric Boiler means that underfloor
heating can now be installed as a standalone system -
removing the need to plumb into the existing heating system.
• 3kw Heating Element
• 2 Port Push Fit Manifold
• Internal Pump
• Expansion
• Pressure Relief
• Pressure Guage
• Filling Connections
• Air Vent
UFHEHU
www.polypipeufh.com 33Spares and Ancillaries
Pack Code Price
Replacement Washer
Qty. No. Each £
1” Fibre washer 1 UFHWASHER 0.43
Pack Code Price
Replacement UFH Pump
Qty. No. Each £
Replacement UFH Pump 1 PB970026 217.95
Pack Code Price
Replacement Mixing Valve
Qty. No. Each £
Mixing Valve for PB970055
1 PB970059 217.19
(Steel Pump Pack)
Replacement Zone Pack Code Price
Valve Head Qty. No. Each £
Replacement 2 Port Steel Zone
1 UFHZVACT 55.81
Valve Head
ONLY
Spares and Ancillaries
WHILE
STOCKS
LAST
Replacement Zone Valve Pack Code Price
Head Qty. No. Each £
Replacement 2 Port Zone
1 UFHZVHEAD 55.81
Valve Head
Replacement Modulating Pack Code Price
Pump Valve Qty. No. Each £
Replacement Modulating
1 PB970014RV 160.93
Pump Valve
Pack Code Price
Replacement Mixing Valve
Qty. No. Each £
Mixing Valve for PB970035
1 PB970039 210.52
(Brass Pump Pack)
Pack Code Price
UFCH Valve Actuator
Qty. No. Each £
2 Wire 1 PB00401/1 24.87
Pack Code Price
Replacement Mixing Valve
Qty. No. Each £
Mixing Valve for PB970025
1 PB970029 210.52
(Brass Pump Pack)
34 www.polypipeufh.comRoom Temperature Controls
Polypipe supplies a comprehensive range of
room temperature control products for use on
both Polypipe Underfloor Heating Systems and
for general use to control heating temperatures
in different rooms or control zones. Now with
internet control options.
The range is designed to enable users to configure their heating
system to create their preferred balance of comfort and efficiency.
Unique programming functions also provide the perfect control
solution for Polypipe Underfloor Heating Systems.
Polypipe Room Temperature Controls are available in a wide range
of options, including dial, digital, programmable and internet room
thermostats, in both wired and RF version, time clocks and master
and slave systems.
Use our online controls selector tool for help with selecting the right
controls system at www.polypipeufh.com
www.polypipeufh.com 35Room Temperature Controls
Pack Code Price
UFCH Valve Actuators
Qty. No. Each £
2 Wire 1 PB00401 24.87
4 Wire 1 PB00402 41.42
Pack Code Price
Room Thermostats
Qty. No. Each £
Dial Room Thermostat 1 UFHDIALB 37.80
Dial Room Thermostat RF 1 UFHDIALRFB 54.60
Programmable Room
1 UFHPROGB 70.39
Thermostat
Programmable Room
1 UFHPROGRFB 96.58
Thermostat RF
Pack Code Price
Time Clocks
Qty. No. Each £
2 Channel 1 UFHTIME2B 54.68
4 Channel RF 1 UFHTIME4RFB 83.99
36 www.polypipeufh.comRoom Temperature Controls
Wiring Centres Pack Code Price
For wired room thermostats and clocks Qty. No. Each £
Single Zone Master Control Unit
- Provides wiring connections
for Boiler, Zone Valve, UFH 1 PB1ZM 77.09
Pump and Power Supply and
Single Room Thermostat
4 Zone Slave Unit - Plug-in
connection to Master Unit to 1 PB4ZS 67.20
provide 4 Control Zones
6 Zone Slave Unit - Plug-in
connection to Master Unit to 1 PB6ZS 81.62
provide 6 Control Zones
Wiring Centres Pack Code Price
For RF Room Thermostats and Clocks Qty. No. Each £
2 Zone Master Unit - Provides
hard wired connections for
Boiler, Zone Valve, UFH pump,
power supply and Actuators 1 PB2ZM RF 167.95
(2 zone). Provides RF
Connectivity for RF Clock and
up to 2 RF Thermostats.
4 Zone Slave Unit RF - Plug in
connection to PB2ZM RF and
1 PB4ZS RF 83.99
provides RF connectivity for
up to 4 Zones
RF Receiver - Remote RF
receiver providing connectivity
1 PB REC RF 37.80
to any RF Thermostat or time
clock (switches 230V)
Pack Code Price
Wet Room Sensor
Qty. No. Each £
Includes 3m Sensor Cable -
Connects to all wired and RF
1 PB23020 10.17
Room Thermostats for remote
sensing in wet rooms
www.polypipeufh.com 37Room Temperature Controls
Smart + Controls Pack Code Price
Wiring Centre Qty. No. Each £
8 Zone Master Unit for RF
1 UFH8ZMP 345.94
Pairing.
Smart + Controls Pack Code Price
Thermostats Qty. No. Each £
8 Zone Master TFT UFHTFTMBP
1 345.94
Thermostatic Control Unit (Black)
8 Zone Master TFT UFHTFTMWP
1 345.94
Thermostatic Control Unit (White)
Single Zone TFT Thermostatic UFHTFTBP
1 345.94
Control Unit (Black)
Single Zone TFT Thermostatic UFHTFTWP
1 345.94
Control Unit (White)
Single Zone Temperature
Sensor with Boost Function 1 UFHBOOSTWP 69.43
(White)
Single Zone Temperature
Sensor with Boost Function 1 UFHBBOOSTWP 69.43
(Battery Operated)
Single Zone Temperature
Sensor (Black) 1 UFHSENSEBP 37.20
(Battery Operated)
Single Zone Temperature
Sensor (White) 1 UFHSENSEWP 37.20
(Battery Operated)
Single Zone Mini Sensor
(White) 1 UFHCMINIP 34.48
(Battery Operated)
Single Zone Floor Sensor
(White) 1 UFHFLRWP 34.48
(Battery Operated)
38 www.polypipeufh.comRoom Temperature Controls
Smart + Internet Pack Code Price
Connectivity Modules Qty. No. Each £
Wifi Connectivity Internet
1 UFHINTWIFIP 279.00
Module
Hard Wired Internet Module 1 UFHINTMODP 243.02
Hard Wired Internet Module -
1 UFHC4MODP 225.23
Control 4 connectivity.
Remote Boiler Switch 1 UFHRBSP 89.00
Pack Code Price
Smart + Radiator Controls
Qty. No. Each £
Remote TRV 1 UFHTRVP 77.00
Central Radiator Controller 1 UFHINTRADP 224.09
Pack Code Price
Accessories
Qty. No. Each £
Additional Power Connection
1 UFHPOWERP 34.72
Unit
Replacement Coloured Frame* 1 UFHFRAMEWP 8.69
*Other colours are available by replacing the colour code ie WP for white.
BLP: Blue, BP: Black, CP: Chrome, PP: Purple.
Other colours are available upon request.
www.polypipeufh.com 39Room Packs
This range of underfloor heating packs contains all the flooring
and control equipment required for a single room project.
1. Select the floor type applicable for the room
from the following options:
Solid Floor – Red Floor Panel (Code SO) Solid Floor - Staple (Code SS)
Overlay™ (Code O) Overlay™ Lite (Code OL)
2. Select the total heated floor area for the room
and round up to the following options:
*5m² (Code 5) 12m² (Code 12) 20m² (Code 20) 30m² (Code 30)
3. Add the control unit:
ZRU – For connection to existing heating system (Code Z)
*Temperature Limiting Valve – For connection to existing heating
systems in rooms up to 5m² (Code B)
4. Optional Room Thermostatic control:
ZRU only (No additional code)
Wired Dial Thermostat (Code C)
RF Dial Thermostat (Code RF)
EXAMPLE:
The order code for a 12m2 solid floor with a ZRU would be:
SS 20 Z RF SS20ZRF
Solid Floor 20m2 ZRU RF Order Code
Staple Thermostat
Pack number Floor Type Area List Price (Thermostat option)
None Wired (C) RF (RF)
O5B Overlay™ 5m² £407.47 - -
O12Z Overlay™ 12m² £1,138.74 £1,197.33 £1,249.41
O20Z Overlay™ 20m² £1,517.01 £1,575.61 £1,627.68
O30Z Overlay™ 30m² £1,988.78 £2,047.37 £2,099.44
OL12Z Overlay™ Lite 12m² £1,109.26 £1,167.84 £1,219.93
OL20Z Overlay™ Lite 20m² £1,539.53 £1,598.11 £1,650.19
OL30Z Overlay™ Lite 30m² £1,972.33 £2,030.92 £2,083.00
SO12Z Red Floor Panel 12m² £758.48 £817.06 £869.15
SO20Z Red Floor Panel 20m² £994.02 £1,052.61 £1,104.68
SO30Z Red Floor Panel 30m² £1,277.02 £1,335.92 £1,387.68
SS12Z Staple System 12m² £684.16 £742.75 £794.82
SS20Z Staple System 20m² £882.91 £941.50 £993.58
SS30Z Staple System 30m² £1,072.09 £1,130.61 £1,182.76
*Overlay™ only
40 www.polypipeufh.comRoom Packs
Pack Pack Pack Pack
Room Packs
Code Code Code Code
Overlay™ Single Room Packs O5B O12Z O20Z O30Z
Product Qty Qty Qty Qty
Overlay™ Temperature Limiting Valve 1
Overlay™ Panel (in Packs of 10) 10 10
Overlay™ Panel (in Packs of 30) 30 30 60
Overlay™ End Returns (in Packs of 10) 10 20 40 60
Overlay™ Pipe (12mm x 80m) 1 1 2 3
Overlay™ Glue 1 1 2 2
12 x 15mm Adaptors (in Packs of 2) 2 2 4 6
15mm PolyPlumb Tees 2 4
15mm PolyPlumb Spigot Elbows 2 4
ZRU (Zonal Regulation Unit) 1 1 1
Overlay™ Lite Single Room Packs OL12Z OL20Z OL30Z
Product Qty Qty Qty
Overlay™ Lite Panel (in Packs of 10) 10
Overlay™ Lite Panel (in Packs of 20) 20 20 40
Overlay™ End Returns (in Packs of 10) 20 40 60
Overlay™ Pipe (12mm x 80m) 1 2 3
Self Adhesive Aluminium Tape 1 2 2
12 x 15mm Adaptors (in Packs of 2) 2 4 6
15mm PolyPlumb Tees 2 4
15mm PolyPlumb Spigot Elbows 2 4
ZRU (Zonal Regulation Unit) 1 1 1
Solid Floor 12m² 20m² 30m²
Product So SS So SS So SS
Screeded Solid Floor Panels 12 20 30
60mm Staple Clips (in Packs of 300) 300 600 600
15mm x 100mm Pipe Coil 1 1 2 2 3 3
Edge Expansion 1 1 1 1 2 2
Pipe Stiffeners (in Packs of 30) 30 30 30 30 30 30
15mm PolyPlumb Tees 2 2 4 4
15mm PolyPlumb Spigot Elbows 2 2 4 4
ZRU (Zonal Regulation Unit) 1 1 1 1 1 1
Please Note: Wired control option adds 1 x UFHDIALB
RF Control option adds 1 x UFHDIALRFB and 1 x PBRECRF Receiver.
www.polypipeufh.com 41Heat Generation
Pack Code Price
Heat Generation
Qty. No. Each £
3kw Single Zone Electric Boiler
1 UFHEHU 900.00
for Underfloor Heating
42 www.polypipeufh.com.polypipeufh.comRenewable Pipe Systems
Polypipe offers a range of pre-insulated pipe
systems, which provide flexibility, durability
and availability when required.
These systems meet the growing demand for products that are
suitable for renewable heat sources such as remote boilers and
heat pumps. Installation is fast and easy, requiring just a single
lay of the flow and return pipes, which are both contained in a
single casing. The inner water bearing pipes are PEX barrier pipes,
which are contained in a corrugated HDPE outer casing.
Polypipe pre-insulated pipes are fastened using brass mechanical
clamp fittings, which require no special tools or equipment.
www.polypipeufh.com 43Renewable Pipe Systems
Pre-Insulated Pipes
Pipes (Twin Pipe Coil) Pack Code Price
Outside casing 160mm (OD) Bend radius 0.5m Qty. No. Each £
25mm x 10m, PE-Xa 2mm x 25mm 1 INS1025-2-HTG 398.34
(OD) 20 DN (ID)
25mm x 15m, PE-Xa 2mm x 25mm 1 INS1525-2-HTG 597.53
(OD) 20 DN (ID)
25mm x 20m, PE-Xa 2mm x 25mm 1 INS2025-2-HTG 796.68
(OD) 20 DN (ID)
32mm x 10m, PE-Xa 2mm x 32mm
(OD) 25 DN (ID) 1 INS1032-2-HTG 469.29
32mm x 15m, PE-Xa 2mm x 32mm 1 INS1532-2-HTG 703.95
(OD) 25 DN (ID)
32mm x 20m, PE-Xa 2mm x 32mm 1 INS2032-2-HTG 938.60
(OD) 25 DN (ID)
Max operating pressure: 6 bar. Max fluid temperature: +95°C. PE-Xa
pipes: SDR 11. Carrier pipes are individually identified as flow and return.
Pack Code Price
Dust Cap
Qty. No. Each £
160mm x 25mm Dust Cap 1 INS160-25-2DC 10.20
160mm x 32mm Dust Cap 1 INS160-32-2DC 10.20
Pack Code Price
Heat Shrink Cap
Qty. No. Each £
160mm Heat Shrink Cap 1 INS160-3225-2HSC 102.54
Insulation Kit Pack Code Price
For Coupler Qty. No. Each £
160mm (OD) to fit outside casing,
1 INS160IKC 83.06
1000mm (L) 180mm (OD)
Kit comprises a smooth black HDPE pipe, rock wool insulation, 2 shrink
sleeves, adhesive tape and assembly instructions. Heat shrinkable cap
to be ordered separately.
Male Couplings Pack Code Price
For PEX pipe Qty. No. Each £
25mm (OD)/2.3 (w/t) thread ¾” 1 INS25MC-HTG 24.27
32mm (OD)/2.9 (w/t) thread 1” 1 INS32MC-HTG 31.82
Max operating pressure: 10 bar. Max fluid temperature: +95°C.
PE-Xa pipes: SDR 11.
Pack Code Price
Female Couplings
Qty. No. Each £
25mm, thread ¾” 1 INS25FC-HTG 4.73
32mm, thread 1” 1 INS32FC-HTG 6.95
Pack Code Price
Fix Points
Qty. No. Each £
25mm, thread ¾” FF 1 INS25FP-HTG 8.55
32mm, thread 1” FF 1 INS32FP-HTG 19.43
Fix points must be installed to absorb the possible effects of thermal
expansion/shrinkage of the PE-Xa transport pipe. The non application
of fixed points may result in serious damage to pipes, joints and buildings.Standards & Polypipe
Guarantee Information
Standards & Polypipe Guarantee Information
Polypipe meets, and constantly strives to exceed, the changing laws and
regulations governing our operations and products. We have invested in
extensive testing and development facilities to ensure the products we
supply are of the highest quality. Our plumbing systems conform to a
number of third party accredited standards which are listed below.
British Standard Class S rated to BS7291 Part 1 and
Kitemark Licence Number 38148 to BS7291 Part 1 & 2.
PolyPlumb, PolyMax and PolyFit barrier pipe systems are
covered by BBA Certificate No 00/3699.
APPROVAL
INSPECTION
TESTING
CERTIFICATION
CERTIFICATE 00/3699
Listed in the WRAS Water Fittings and Materials Directory.
Standards Manufacturing Quality Assurance -
in accordance with BS EN ISO 9001
(BSI registered firm Certificate FM00318).
FM 00318
British Gas has accepted the Polypipe ‘PolyPlumb’ & ‘PolyFit’ Class S
polybutylene pipe systems as being acceptable for open vented and sealed
central heating systems and are eligible for acceptance onto Home Care
Central Heating System Cover.
At Polypipe we pride ourselves on offering the highest quality products, and
wherever possible our products and processes are covered by independent
third-party accreditation, so you can rest easy knowing that you are buying
from the UK’s market leading manufacturer. We have invested significantly
in our quality control procedures, have our own fully-equipped modern
laboratory for development and analysis, and also have our own tooling and
extrusion processes.
Installation Standard
Installation must follow the requirements of BS5955 - PART 8 2001
Plastic Pipework (Thermoplastic Materials).
Guarantee
Polypipe guarantees for 25 years against defects in materials or
manufacture of the PolyPlumb, PolyMax and PolyFit hot and cold
water supply and heating systems from date purchased. Underfloor
heating pipe for 50 years and all other UFH component parts
(including Manifolds, controls and accessories) for 2 years.
This guarantee only applies if the products are installed in accordance with the
manufacturer’s recommendations and are used in a normal domestic operation.
A normal domestic operation is defined as a residential property and
excludes commercially run residential properties e.g. care homes and is also
defined as being part of an open vented or sealed central heating system,
direct or indirect single pipe hot water supply or mains or tank fed cold
water supply system.
The system must be designed, installed and operated within the
temperature and pressure ratings as defined in BS 7291 Class S which are
also published in the manufacturer’s literature and must also take account
of all the other exclusions and limitations as defined in the design,
application and installation guidance provided by the manufacturer.
Exclusions apply, please contact the manufacturer for further details.
For Polypipe’s Contract of Sale, please refer to www.polypipe.com
www.polypipeufh.com 45Application Information
Underfloor Heating Pipe (UFH) and MCP
Underfloor Heating Pipe (MCP)
- Application Classes
The Polypipe UFH and MCP Underfloor Heating Pipes have been tested in
accordance with BS EN ISO 15876-1:2003 and BS EN ISO 21003-1:2008
respectively at a maximum design pressure of 10 bar for application class
4 - Underfloor heating and low-temperature radiators only.
The maximum operating temperature of these pipes is 60°C.
These pipes are NOT suitable for potable cold water or domestic
hot water services.
The following information is designed to provide basic guidance for
installers and specifiers when selecting Polypipe products. The information
is not exhaustive and guidance may change dependent on site conditions
and applications. This document should be read in conjunction with the
Polypipe Plumbing & Heating Product Guide. If in doubt please contact
our Technical Services Department on +44 (0) 1709 770000.
Service Conditions
Grey and White Plumbing and Heating Pipe, PolyPlumb, PolyMax,
PolyFit and PolySure fittings are suitable for the following Class S service
conditions in a normal domestic operation (subject to the exceptions
referred to in note 2):
(Continuously operated ring main
installations are excluded from
ote ° C r v i c
e
these applications.)
r
Ma anatorrye Tf flow
ba
Sys lanatorre Tsem se
r y Tm on
te ° C
temximu Note 1°C
pre um
re
i
)
1)
1)
la n r nc t
xp tu tem
ssu
xp tu st
ng xim
No
e e ra lfu
yN
e e ra sy
e
(s e p e l s y
s
( s e p e ma
r k i ma
xp tu
(s e p e m
a to
e e ra
temmina
temtem
wotem
l
Sys
No
Indirect cold water systems 20 20 - 3½
Direct mains-fed cold
20 20 - 12½
water systems
Subsurface heating systems
60 83 100 3½
(including underfloor)
Vented hot water supply systems 65 83 100 3½
Unvented hot water supply
systems including instantaneous 65 95 100 6
heaters and/or incorporating
storage
Vented central heating systems 82 95 100 3½
Sealed central heating systems 82 105 114 3
46 www.polypipeufh.comApplication Information
Note 1:
• nominal system flow temperature Tf is the intended maximum flow temperature of a system for a particular
application as recommended in codes of practice and other guidance documents
• maximum system service temperature Ts is the maximum service temperature that can occur intermittently
during normal operation
• system malfunction temperature Tm is the maximum temperature likely to be applied to pipes and fittings
in the event of control thermostat failure or malfunction
Note 2:
• c ertain fittings in the PolyPlumb, PolyMax and PolyFit ranges are not suitable for all the Class S service
conditions. The limitations are indicated against every applicable fitting in the Trade Price List e.g.
“Cold Water Only”.
Connections to other materials
Connection to Imperial Copper using PolyPlumb
Imperial ¾” copper pipe is of significantly different size to its metric 22mm
counterpart and therefore requires a different ‘O’ ring to that supplied in
the 22mm fitting. The 22mm ‘O’ ring should be replaced with a ¾” ‘O’
ring (PB9034). Standard 15mm fittings can be connected to Imperial ½”
copper pipe, and 28mm fittings can be connected to 1” copper pipe.
Connection to Irish copper pipe
Irish copper pipe to IS238:1980 can be connected to PolyPlumb fittings
which incorporate the ¾” or 1” adaptor set. Using a standard 22mm
or 28mm PolyPlumb fitting, remove the nut and socket components and
discard. Replace these parts with the relevant adaptor set, ¾” - PB7034
or 1” - PB701. The adaptor sets are distinguishable by the black cap nut.
Connections to chrome plated and stainless steel pipework
PolyPlumb, PolyFit and PolyMax fittings should not be connected directly
to chrome plated copper pipes or stainless steel pipes. To connect to these
pipes we recommend the use of a compression coupler. A pipe stiffener
should be used when connecting Polypipe Grey and Polypipe White pipe
to a compression fitting.
Connecting PolySure press-fit fittings to copper
PolySure press-fit fittings have been designed specifically to fit to Polypipe
grey and Polypipe white polybutylene pipes. To connect to copper pipes
we advise the use of a PolySure press-fit x BSP male or female adaptor,
with the corresponding adaptor being used on the copper side from the
PolyPlumb or PolyFit range. PTFE tape should be used to seal the mating
brass components.
Connections close to capillary fittings
Capillary fittings should preferably be completed prior to the use of
Polypipe fittings. Where this is not possible, care should be taken to ensure
that flux or solder does not come into contact with plastic pipes or fittings.
A damp cloth should be wrapped around the copper pipe close to the
nearest plastic pipe or fitting to ensure against damage by conductive
heat. Pipework should be flushed to clear flux before active use.
www.polypipeufh.com 47Application Information Connections to incoming cold water supply There are two options for connecting incoming MDPE mains water service pipe to Polypipe Plumbing and Heating Systems. Firstly the push-fit x compression adaptors provide a one piece transition fitting covering connections from 20mm, 25mm and 32mm MDPE service pipes to 15mm, 22mm and 28mm polybutylene pipes and most sizes are available in both Polypipe Grey and White versions. Secondly, as there is a requirement for a stopcock on the incoming main there is also a combined stopcock and adaptor which reduces the number of fittings required in a position where there is often limited space e.g. under a kitchen sink. These products allow connections from 20mm or 25mm MDPE pipe via a compression end to 15mm or 22mm polybutylene using a push-fit connection. Gas, oil, and compressed air Polypipe systems are suitable for domestic plumbing and heating systems. Pipes and fittings must not be used for gas and oil supply pipework or compressed air pipework. In all the above instances metal pipework should be installed. Continuously operated re-circulating systems (Secondary Hot Water Circulation/Ring main installations) A continuously operated re-circulating system is a water-replenished circulating system which is maintained at a constant high temperature to provide a constant source of hot water. Continuously operated re-circulating systems are used to distribute constant hot water to wards or rooms that may be distant from the heat source or hot water storage vessel. Locations where continuously operated re-circulating systems are used include, but are not limited to, residential care homes, hospitals and hotels. Continuously operated re-circulating systems are very different from conventional hot water supply and central heating systems found in domestic properties, for which our products have been tested to, under either BS 7291 Class S or WRAS approval standards, and for this reason PolyPlumb, PolyMax, PolyFit or PolySure must not be used on any continuously operated re-circulating systems. Some secondary hot water circulation systems are used intermittently, controlled by time and/or temperature thermostats. This application is also unsuitable for products manufactured to BS 7291. Re-cycled rainwater systems Polypipe products can be used in systems conveying re-cycled or harvested rainwater within domestic properties. All pipework used in this type of system should be clearly identifiable and this should be carried out in accordance with WRAS Information and Guidance Note No 9-02-05; Marking and Identification of Pipework for Reclaimed (Greywater) Systems. If self adhesive labels are to be used, these should not be applied directly to the pipe. 48 www.polypipeufh.com
Application Information
Chlorine and other additives
The polybutylene material used in Polypipe Plumbing and Heating Systems
is WRAS approved. It is resistant to the buildup of scale. Normal levels
of chlorine in UK domestic water supplies will not have an adverse effect
on Polypipe Plumbing and Heating Systems.
However, Polypipe Plumbing and Heating Systems are not suitable for
systems in which any further additives are ever added, periodically added,
or regularly dosed into or additional to the normal UK mains water supply,
for example chlorine for swimming pools or those used for bacteria
control or Legionella prevention. Systems must not be flushed through
with anything other than water from the normal UK mains water supply
or a cleaning product at the correct concentration that is specifically
recommended for plastic piping systems.
The use of corrosion inhibitor in central heating systems is acceptable
provided that the inhibitor is specifically designed for plastic piping systems
and guidance on their suitability should be sought from the inhibitor
manufacturer prior to adding to the system.
Electrical Safety / Equipotential Bonding
Where Polypipe pipes break the continuity of existing metal pipe,
which may be used for earthing or bonding, this continuity must be
re-instated by affixing permanent earth clips and a section of earth
cable between the copper ends on either side of the plastic sections.
Both the IEE and the Chartered Institute of Plumbing and Heating
Engineers now give guidance on the Earth Bonding requirements of
Plastic Pipe systems. As plastic pipes do not conduct electricity,
installations generally require less equipotential bonding than metal
systems although if in doubt exact guidance should be sought.
Light
Polypipe Plumbing and Heating Systems should be protected from
UV light. Standard decorating paints form adequate protection.
Pipe insulation forms adequate protection for external use.
Polypipe products are delivered in light protective packaging.
Compatibility with other substances
For details of compatibility with building and cleaning substances,
and treatments (e.g. filler foam and wood worm treatments) please
consult the relevant manufacturers to confirm suitability with polybutylene.
Polypipe Plumbing and Heating Systems pipes and fittings can be painted
using emulsion or undercoat and gloss. Cellulose based paints, strippers
or thinners must not be used.
Vermin
There is no evidence to suggest that Polypipe Plumbing and Heating
Systems attract vermin. Where vermin are present they can cause damage
to other services, building fabric and pipes and fittings, and therefore
a qualified pest controller should be employed to remove vermin from
the affected area.
www.polypipeufh.com 49Application Information Connections to other equipment Boilers and appliances: All boilers and appliances must have safety devices such as thermostatic controls, cut-outs and pump over-run protection to make sure that they cannot operate above the Class S working temperature and pressure limits set out in the table of Class S service conditions above. Exposure to conditions in excess of those specified could result in failure of the pipes or fittings with the potential for serious injury. Gas Boilers: Pipe should only be connected to gas boilers where the pipe connection is outside the boiler casing and where the boiler incorporates a high limit thermostat and pump over-run facility. The pipe connections should be 350mm from the heat source. In all other situations, a section of metal pipe should be at least 1m in length. In addition for back boilers metal pipework should be used within the fire opening extending out of the chimney brickwork. Combination Boilers: Where system connections are made to an incoming water supply pipe from a water meter, or any other device which contains a check valve, a suitable expansion vessel must be fitted to prevent the expansion of heated water back down the supply pipe. This is especially important where a water meter is fitted retrospectively. Solid Fuel Boilers & Cooking Ranges Pipes and fittings must not be used for primary or gravity circuits from solid fuel boilers, cooking ranges or other uncontrolled heat sources. Solar Panels / Systems Pipes and fittings must not be used for connection of solar panels or any part of solar distribution that operates above the Class S working temperature and pressure limits set out in the table of Class S service conditions above. 50 www.polypipeufh.com
Application Information
Oil Fired Boilers
Open Vented Central Heating Systems:
The use of plastic pipe and fittings is acceptable when used in oil fired
installations where the boiler is connected to an open vented system,
however the first metre of primary pipework from the boiler connections
must be installed using metal pipe. The boiler must be suitable for this
type of application and all relevant safety features as supplied and fitted
to the boiler must be checked for correct operation. The system must also
be commissioned in accordance with the boiler manufacturers instructions.
Plastic pipe and fittings can also be used in the hot and cold water and
underfloor central heating systems with the exception of continuously
operated re-circulating systems (see page 50) where plastic pipe and
fittings should not be used.
For further information regarding the suitable applications for our plastic
pipe and fittings please refer to the Class S Service Conditions table
as shown on page 48 of this publication.
Sealed Central Heating Systems:
Where a sealed system oil fired boiler is to be used, all primary boiler
pipework to and from the hot water cylinder (if fitted) and any radiator
or towel rail circuits must be installed using metal pipe and fittings.
Plastic pipes can be used on underfloor central heating systems where
the plastic pipes are fitted after the UFCH control unit and manifold
arrangement which must contain a correctly operating thermostatic
mixing valve.
Plastic pipe and fittings can also be used in the hot and cold water system
with the exception of continuously operated re-circulating systems
(see page 50), where plastic pipe and fittings should not be used.
All relevant safety features as supplied and fitted to the boiler, such
as the boiler temperature control thermostat, high limit thermostat,
pump overrun facility and the pressure and temperature relief valve, must
be checked for correct operation at both installation stage and at any
subsequent boiler service intervals. The system must also be commissioned
in accordance with the boiler manufacturers instructions.
For further information regarding the suitable applications for our plastic
pipe and fittings please refer to the Class S Service Conditions table as
shown on page 48 of this publication.
www.polypipeufh.com 51You can also read
