Straight Talk From Art...
    2020 is the eve of our 50th year
in business, and as we get ready to
hit that historic milestone, we are
releasing a new chassis, improving
our manufacturing through-put, and
proudly reflecting on the amazing
cars our customers are turning out.
                                                                                                                    Josh Stahl’s
                                                                                                           1969 Mercedes-Benz
                                                                                                 (built by Vescio’s Customizing
                                                                                                               and Restoration)

                                                 outside the box and made big              chassis built to their specs and
                                                 statements this past year. The first of   featuring the Multi link IRS rear the
                                                 these builds was a 1969 Mercedes          real work started. Dozens of body
    Art (l) and Craig Morrison (r) have long     Benz owned by Josh Stahl. Built by        mods, a stunning classic interior
 demonstrated the ability to provide customers
            with products they desire.           Bo Vescio of Vescio’s Customizing         and a strong running LS7 with T56
                                                 and Restoration, this Mercedes pays       6-speed rounded out the build.
    Improving lead times were a                  tribute to the famous “Red Pig” AMG       Custom billet Lamborghini Mura
major focus this past year and we                Mercedes race car while promoting         wheels were machined for this
have made incredible strides in                  his company, Reviva, performance          project and the Wilwood brakes
reducing delivery times. Thanks to               engine line. Utilizing a custom AME       were adapted to use original
expanding our facilities, equipment              front subframe and Multi link IRS         Lamborghini knock-off hubs. It’s an
and personnel we have cut the wait               rear clip, it houses massive 335 front    incredible build!
time by over half with all of our                tires and 355 rear tires under the            Debuting at the 2019 SEMA
chassis tables sitting at the 8-10-              handcrafted fender flares. With over      show in Las Vegas, the Griot’s
week range. And by hiring more                   600hp on tap to the rear wheels and       Garage Iso received a lot of
amazing welders, streamlining our                a full cage this tribute car is more      attention. Entered into the SEMA
processes and fine-tuning scheduling             capable than the car its paying           “Battle of the Builders” competition
we are hoping to be able to reduce               homage to. While not the typical          it did extremely well finishing in the
these lead times by even more                    1960s era car you would see at a hot      Top 4 and was part of the SEMA
throughout the course of this year.              rod show, it was great to see the         Ignited show at the end of the
    We are also excited to also be               excitement this car creates. This         event. While this beautiful Italian

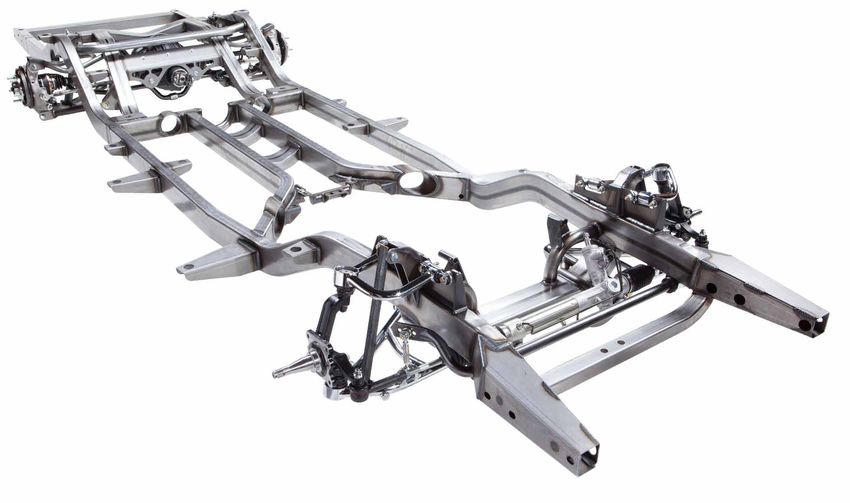

releasing our new C10 chassis this               was a fantastic project that we were      car will be at a handful of shows
year. “Clean sheet “designs to both              proud to be part of and expect to see     throughout the year, Richard plans
the front and rear suspension made               this Mercedes hitting up the              on taking this car on numerous road
this truck chassis a lot more                    Goodguys auto cross events                trips throughout the next few years.
complicated than we had originally               throughout the summer.                        We also had three great builds
estimated, but this is without a doubt               The next vehicle is this year’s
one of the best frames we have ever              cover car and a project that was
created. We have designed it with                built near our facility. Owned by
numerous suspension options                      Richard Griot of Griot’s Garage in
ranging from coil-over to air or our             Tacoma, WA, and built by Louie
multi-link IRS. For more information             Shefchik of J&L Fabricating it was
on this fantastic new chassis and                very special to be part of this project
detailed photos, please turn to page             as we have known both the builder
20 of the catalog.                               and car owner for years. The car is a
    This past year we were able to               1968 Iso Rivolta, and while it had
see the debut of some amazing                    deteriorated too far to justify a
customer vehicles. While some were               restoration, it was the perfect
great American muscle, there were                nucleus for a very unique hot rod.
two notable builds that stepped                  Starting with one of our Max G

  2
TECHNOLOGY IN MOTION - CHASSIS & SUSPENSION COMPONENTS 2020 CATALOG - ART MORRISON
that where selected for the most                                                 Table of Contents
prestigious Goodguys awards. The                                                3-Link Rear Clip. . . . . . . . . . . . . . . . 24,36,37
first one was the stunning 1970 El                                              4-Bar Clips & Suspension. . . . . . . . . . .36,41
Camino owned by Scott and Sherrie                                               4-Link Clips & Suspension. . . . . . . . . . 36,39
                                                                                Air Spring Suspension . . . . . . 31,33,36,40,47
Cooper. Built by Cam Miller of HS
                                                                                Apparel . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Customs, it won the Goodguys “Late                                              Axles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
                                       Sonny Freeman’s 1965 Chevelle
Truck of the Year” award and over 20   (built by Mike Goldman Customs)          Bikini Clip (front) . . . . . . . . . . . . . . . . . 50,51
class awards at ISCA shows. Riding                                              Bumper-To-Bumper Frames. . . . . . . . . . 7-33
on an AME GT Sport chassis and         “Muscle Machine of the Year.”            Brackets. . . . . . . . . . . . . . . . . . . . . . 59,62,68
powered by a stack-injected 572            The Barrett-Jackson auction in       Brakes & Master Cylinder. . . . . . . . . . . 57-59
c.i.d. BBC, the level of detail is     Scottsdale, AZ was another               C1 Chassis. . . . . . . . . . . . . . . . . . . . . . 12-14
                                       incredible success for our               C2 Chassis. . . . . . . . . . . . . . . . . . . . . . . . . 15
second to none. The “Early truck of                                             C10 Chassis. . . . . . . . . . . . . . . . . . . . . . . . 20
the Year” was also riding on an Art    customers as well. Dozens of
                                                                                Center Frame Kit . . . . . . . . . . . . . . . . . 35,50
Morrison chassis. Danny Bouchard’s     customers sold their cars for great      Cleco Kits. . . . . . . . . . . . . . . . . . . . . . . . . . 69
1958 F100 was sitting on a custom      money, but few notable sales were        Crossmembers. . . . . . . . . . . . . . 34,62,65,66
AME frame and was built by Ryan        Jeff Hayes’s 1967 Corvette roadster      Coil-Over Shocks. . . . . . . . . . . . . . . . . 52,53
Korek of Korek Designs. Numerous       that went for $418,000 as well as        Diagonal Links. . . . . . . . . . . . . . . . . . . . . . 43
                                       his 1963 Corvette that sold for          Driveshaft Loops.. . . . . . . . . . . . . . . . . . . . 65
                                                                                Dzus Fittings . . . . . . . . . . . . . . . . . . . . . . . 62
                                       $385,000. Joe Clevenger also had a
                                                                                Frame Connectors. . . . . . . . . . . . . . . . . . . 65
                                       great auction weekend. His 1949          Frame Rails. . . . . . . . . . . . . . . . . . . . . . . . 34
                                       Chevrolet truck sold for $176,000        Front Clips & Suspension. . . . . . . .  23,44-51
                                       while his 1958 Corvette went for         GT Sport Chassis. . . . . . . . . . . . . . . . . . 7-22
                                       $385,000. All four vehicles were         GT Sport Clip, Camaro. . . . . . . . . . . . . 23-24
Danny Bouchard’s 1958 Ford F100        riding on Art Morrison chassis.          Housings. . . . . . . . . . . . . . . . . . . . . . . . . . 54
(built by Korek Designs)                                                        Ladder Bar Clips & Suspension . . . . . . . . . 42
                                           AME is now in our 49th year of
                                                                                MaxG Chassis . . . . . . . . . . . . . . . . . . . 26,27
body modifications helped make this    business we take pride in providing      Morse Cables. . . . . . . . . . . . . . . . . . . . . . . 63
truck a standout and It can be seen    you with chassis components that         Motor Mounts. . . . . . . . . . . . . . . . . . . . . . . 66
on page 31 of this catalog. Finally,   incorporate the most advanced            Outriggers . . . . . . . . . . . . . . . . . . . . . . . . . 35
there’s the incredible 1965 Chevelle   engineering      and      the     best   Panhard Bars. . . . . . . . . . . . . . . . . . . . . . . 43
owned by Sonny Freeman and built       craftsmanship available. Our work is     Quick Release Pins. . . . . . . . . . . . . . . . . . . 68
by Talbert Goldman of Mike Goldman     our “calling card.” Your business is     Rack & Pinion . . . . . . . . . . . . . . . . . . . . . . 64
                                                                                Rear Clips . . . . . . . . . . . . . . . . . . .  24,36-42
Customs. Also riding on an AME GT      valued, and our entire staff welcomes    Rear Multi-link IRS Suspension . . . . .  4-6,24
Sport chassis, this stunning A-body    your comments as to how we can           Rod Ends. . . . . . . . . . . . . . . . . . . . . . . 29,67
won just about everything it could     provide you with better parts and        Roll Bars & Cages . . . . . . . . . . . . . . . . 60,61
win. Some of the awards it picked up   service. Whether it is an idea for a     Shock Absorbers . . . . . . . . . . . . . . . 52,53,55
in 2019 were: Ridler Great 8, Hot      new product or thoughts on               Springs . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
August Nights Cup Best in Show,        improving what we have, please let       Steering Components. . . . . . . . . . . . . . 63,64
                                                                                Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Triple Crown of Rodding “Street        us know. Your support is appreciated     Tri 4-Bar Clips & Suspension. . . . . . 24,36,38
Machine of the Year,” Mothers          and please keep us in mind for your      Tri-5 Chassis & Accessories. . . . . . . . . . 7-10
Shine Award and the Goodguys           next project. Thank you!                 Truck Chassis. . . . . . . . . . . . . . . 18-21,31,48
                                                                                Tubing. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
                                                                                Tubing 90° Bends . . . . . . . . . . . . . . . . . . . 35
                                                                                Weld-In Crossmember Kits. .  35,48-50,65,66
                                                                                Wilwood Pro Spindle . . . . . . . . . . . . . . . . . 52

                                                                                ABOUT THE COVER
                                                                                One of the more unique vehicles to
                                                                                ride on an AME chassis is the
                                                                                stunning LS 7-powered 1968 Iso
                                                                                Rivolta belonging to Richard Griot
                                                                                and built Louie Shefchik of J&L
                                                                                Fabricating in Puyallup, Washington.

                                                                                        All vehicle photos on these two pages
                                                                                                    by Not Stock Photography
                                  Scott & Sherrie Cooper’s 1970 El Camino
                                                    (built by HS Customs)
                                                                                                                                             3
TECHNOLOGY IN MOTION - CHASSIS & SUSPENSION COMPONENTS 2020 CATALOG - ART MORRISON
AME Multi-Link

                                                        Independent
                                                    Rear Suspension

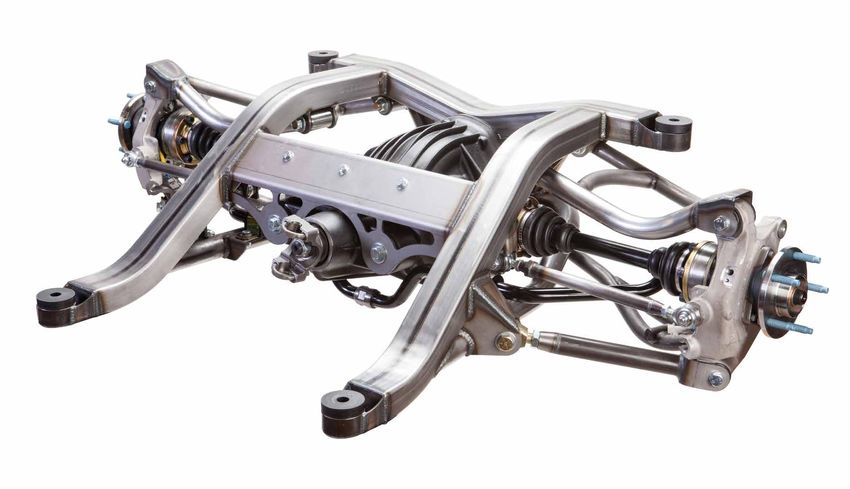

                                                                   Cobra and C2/C3 designs (which have been mimicked by several
                                                                   aftermarket manufacturers) have a number of disadvantages.
    When asked to evaluate the handling of Matt Jones’ Multi-      These include poor toe and camber control, little anti-squat and
link IRS-equipped 1969 Camaro, which was entered in the            spindle support, limited wheel offsets and requiring a relatively
Super Chevy magazine Suspension Challenge, test driver Mary        large “package.” They also have horsepower limitations.
Pozzi—an 11-time SCCA Autocross Champion—summed it all                 The Morrison Multi-link IRS can trace its design lineage to a
up by saying “This is THE BEST suspension I’ve ever felt           number of the world’s most renown “exotics” that include late
underneath a car on a track.” That’s a strong testimonial from a   model Ferrari, BMW, Porsche, and Nissan GT-R automobiles.
highly credentialed professional.                                      There are a number of important advantages to the new
    It’s important to understand that not all Independent Rear     Morrison Multi-link IRS; all of which add up to optimum handling
Suspensions are the same. Early IRS setups, typified by Jaguar,    and long-term dependability.

                                    INSTALLATION INFORMATION
   • Available in four track widths: 55.5", 57.5", 59.5"           • Brake options: 12.4" rotor with floating caliper,
     and 61.5" (wheel mounting surface to surface width)             Wilwood 14.3" with W6A caliper.
   • Wide variety of gear ratios: A half-dozen ratios              • Minimum wheel size: 17"* with 12.4" brake rotors,
     between 3.54 and 4.56                                           18" with Wilwood brakes.

                                                                                * Only certain wheels will work. Please call for details.

                                                                                   800-929-7188 • email: sales@artmorrison.com
   4
TECHNOLOGY IN MOTION - CHASSIS & SUSPENSION COMPONENTS 2020 CATALOG - ART MORRISON
IRS
Technical
Features
& Benefits
Functionally Independent Design
The decoupled links allow changes to one parameter
without affecting others. For example, during the design
phase we were able to make an adjustment to the camber
curve with little or no effect on the roll center. This gives
you the freedom to set the car up for optimal handling
under varying conditions.

Direct Load Paths
Through use of decoupled lower links a direct load path
is created that prevents control arm failure. Moreover,
most bushings are loaded in their radial direction for
maximum stiffness.

Superior Knuckle Support
Typical wishbone designs attach at three points in single
shear. The Morrison Multi-link IRS has four attachment
points to control freedom of movement, three of which are
double-shear attachments.

Improved Wheel Control
With the AME Multi-link IRS you can establish functionally
independent camber, caster and toe curves. Moreover,
critical toe link locations can be tuned to allow dynamic
steering while maintaining stability in high bump situations.
For example, you can have up to 1° toe at max bump
travel. The minimized link deflection and high durometer
bushings help maintain precise wheel alignment.

Ride Quality Improvements
Unsprung vehicle weight is reduced by approximately 100
lbs., requiring less spring rate to control wheel movement.
NVH (noise/vibration/harshness) is reduced because it
must travel through three sets of bushings before
reaching the driver’s compartment.

Unique Cradle Design
Not only does this facilitate installation of the Multi-link
IRS in most Morrison GT Sport chassis, but makes it
easily adaptable to other vehicles. It can be aligned to
the vehicle during installation and provides excellent
serviceability. Loads from the coil-overs transfer to the
vehicle frame, not the suspension cradle.

               www.artmorrison.com
                                                                5
TECHNOLOGY IN MOTION - CHASSIS & SUSPENSION COMPONENTS 2020 CATALOG - ART MORRISON
Compact IRS

      AME’s Multi-Link IRS has taken the industry by storm. It
combines the handling attributes found in exotic sports cars
with the ability to handle extreme power. Its competition mettle
was proven by Mary Pozzi, whose AME-equipped Camaro.
captured the SCCA Solo National Championship in her class.
      Now, the engineering team at Art Morrison Enterprises has
developed a more compact version of the Multi-Link IRS that
utilizes key components from a Gen 5 Camaro and fits in a
much tighter envelope. The cradle is 6-1/4" shorter overall and
2-1/2" lower from the axle centerline up than our original
Multi-Link IRS. This allows an independent rear suspension to
be used in many applications without the need to extensively
modify the trunk’s sheet metal for clearance.

 INSTALLATION INFORMATION
 • Available in four track widths: 55.5", 57.5", 59.5"
   and 61.5" (wheel mounting surface to surface
   width)
 • Wide variety of gear ratios: 3.27, 3.45 and 3.91
 • Brake options: 12.4" rotor with floating caliper,
   Wilwood 14.3" with W6A caliper.
 • Minimum wheel size: 17"* with 12.4" brake rotors,
   18" with Wilwood brakes.

          * Only certain wheels will work. Please call for details.

       Compact Cradle                Short Cradle                 Full-Size Cradle

                                                                                     800-929-7188 • email: sales@artmorrison.com
   6
TECHNOLOGY IN MOTION - CHASSIS & SUSPENSION COMPONENTS 2020 CATALOG - ART MORRISON
Give Any Tri-5 Chevy
Sports Car Handling!
Simply replace the 50-plus year-old chassis with
Art Morrison’s computer-designed “GT Sport” package!

     It’s been over a thousand GT Sport chassis ago that our
“Project GT55” debuted to rave reviews and literally
helped fuel the “resto mod movement.”
The concept of taking a classic design
like the Tri-5 Chevy and giving it
superior handling, an improved ride,
and a contemporary stance has
certainly resonated with a large number
of enthusiasts. Our “Project GT55,” which
was equipped with a healthy 530 horsepower
SBC crate motor and T-56 6-speed tranny, was initially
                                                                    An Art Morrison GT Sport chassis was selected as the foundation for
put through its paces by the editors of Super Chevy magazine and    Street Rodder magazine’s 2011 Tour Car. Street Rodder’s Jerry Dixey put
recorded impressive numbers in acceleration, braking, skid pad      over 20,000 miles on the car during the course of the year-long
and slalom that put many exotic sports cars to shame.               promotion, with glowing reports on the car’s handling and ride. With over
     Now we’ve made a good thing even better. We started up         a thousand Tri-5 Chevys now equipped with GT Sport chassis, it has
                                                                    become the standard of excellence for resto-mod projects.
front, developing the “Sport IFS” front suspension package. It
features more aggressive geometry, heavy-duty control arms and                           Chassis with Suspension: $15,075.00
larger polyurethane bushings. Benefits include improved high                                    COMPLETE CHASSIS: $18,610.00
speed stability, the ability to run larger front tires, minimized
nose-diving in hard braking and better overall handling.
     The latest development is the availability of our remarkable                  Make a good thing even better by
                                                                                equipping your Tri-5 with the new AME
new Multi-link I.R.S. in Tri-5 GT Sport chassis. This attribute
                                                                               Multi-link IRS. It’s an available option that
clearly optimizes the handling characteristics of any “shoebox”                 will set your ride apart from others. It’s
Chevy and leaves nothing on the table.                                         much quieter than conventional setups, too.
     Of course, the fundamental beauty of the AME GT Sport
chassis is that it’s a virtual “bolt-on” installation. You can
literally unbolt the body from the OEM frame and slide a GT
Sport chassis into place. While many of the nation’s top pro
builders use GT Sport chassis, many do-it-yourselfers have
successfully installed them.
     Whatever your performance goals are, AME can configure
at GT Sport chassis to meet those needs. Let our tech
consultants help you achieve those goals.

                                                              The GT55 (shown in its original paint on the next page for the Super
                                                             Chevy test) earned a “Top 5” spot for Street Machine of the Year from
                                                         Goodguys and subsequently went on a year-long tour. It was also featured
                                                             on “The Smoking Tire” show. Use the barcode scanner on your smart
                                                         phone and link up to footage with “The Smoking Tire” review of the GT55.

                                                                     https://www.youtube.com/watch?v=QEZpnBAilCY

              www.artmorrison.com
               WARNING: Cancer Reproductive Harm-
                     www.P65Warnings.ca.gov                                                                                             7
TECHNOLOGY IN MOTION - CHASSIS & SUSPENSION COMPONENTS 2020 CATALOG - ART MORRISON
Technical
Features
& Benefits
The AME Tri-5 chassis is designed for optimum roll
center stability under all conditions. The roll center
is maintained almost perfectly thru the first 3° of
body roll and beyond 3° the roll center movement is
minimized resulting in a suspension that is vastly
improved over a Mustang II type suspension. And
the rate of vertical movement is almost 1:1 with
suspension movement, while the path it follows
during transitions (braking, cornering, acceleration)
is very smooth. This results in very consistent,
stable and predictable vehicle handling.
Caster
Caster has been increased to +5°
(from normal +2°) to provide improved
stability at speed. This also improves
the tire contact patch and weight
distribution under cornering.
Camber Curve
& Anti-Dive
Due to the design of the control arm
angles, camber control is enhanced
throughout the four inches of
suspension travel, while minimizing
side movement of tire contact patch (side scrub).
The side angle of the control arm contributes to
increased anti-dive for better stability under hard
braking, while serving to provide a smooth and
supple ride.
Bumpsteer
The bumpsteer curve has been designed to match
camber and caster curves. The vehicle will track
straight with minimal steering correction—even on
bumpy pavement.
Ride Height
Vehicle will be approximately 3-4 inches lower than
stock. To make the vehicle any lower, the
recommended method is to use dropped spindles.
Specifications:
Wheelbase: 115 inches
Frame: Mandrel-bent 2"x4" rectangular tubing
Assembly: Fixture welded Finish: Bare metal only.

                                                         800-929-7188 • email: sales@artmorrison.com
   8
TECHNOLOGY IN MOTION - CHASSIS & SUSPENSION COMPONENTS 2020 CATALOG - ART MORRISON
Multi-link IRS Tri-5 Chassis

Note: Chassis shown
with “shipping strut”
in place of the normal
coil-over shocks.

                                                      How do you make a good thing even better? In the
                                               case of Art Morrison’s hugely popular GT Sport chassis for
                                               Tri-5 Chevys you equip it with AME’s unique Multi-link I.R.S.
                                                      There are a number of important handling and ride
                                               advantages to an independent rear suspension. Probably
                                               the most noteworthy is the IRS’s ability to compensate for
                                               bumps and irregularities in the road (or track) and maintain
                                               the tire’s vertical axis perpendicular to it. The net result is an
                                               optimum “contact patch” for both right and left tires. And
                                               the semi-active steering components increases cornering
                                               performance for autocross, track day and canyon carving.
                                                      The IRS has also proven to be much quieter than a
                                               conventional “live” axle setup—transferring far less “road
                                               noise” to the chassis. It’s added comfort is ideal for long
                                               drives and is ideal for coast-to-coast cruising. The overall
                                               design of the AME Multi-link IRS is quite compact, and
                                               therefore minimizes the sheet metal modifications needed
                                               to the trunk pan.
                                                      AME’s Multi-link IRS is based on the Strange
                                               Engineering S60 differential, which is capable of handling
                                               more than 1400 HP with ease. Bring on the power adders!
                                                      Combine this with the proven handling of Morrison’s
                                               own Independent Front Suspension and you have the
                                               makings of the most nimble, sure-footed “shoebox” around.
                                                      In addition to improving performance and handling of
                                               any “Shoebox Chevy,” this IFS/IRS suspension package will
                                               significantly enhance the value of the host vehicle. Look at
                                               the “hammer prices” of Tri-5 Chevys at leading auctions
                                               nationwide and those equipped with Morrison GT Sport
                                               chassis bring top dollar.           AS SHOWN: $23,600.00
                                                                                   COMPLETE: $27,980.00
          www.artmorrison.com
          WARNING: Cancer Reproductive Harm-
                www.P65Warnings.ca.gov                                                                      9
TECHNOLOGY IN MOTION - CHASSIS & SUSPENSION COMPONENTS 2020 CATALOG - ART MORRISON
Tri-5 Chassis Accessories

SMALL BLOCK HEADER KIT                                                Ultimate Headers                                            LS HEADER KIT

Header Kits for Morrison GT Sport Tri-5 Chassis
     Engineered specifically for small                                 3/8" flanges to assure trouble-free                         include header bolts and gaskets.
 block and Chevy LS engines installed in                               dependability. Ball-style collectors are                    Ceramic-metallic coating is available for
 a Morrison GT Sport chassis. They all                                 employed to facilitate leak-free hook-                      an additional $410 per pair.
 feature heavy-gauge tubing and thick                                  ups to the exhaust system. Prices
                                                                                                                                      We are now a dealer for Ultimate
32555813 Small Block Chevy Headers with 1-3/4"                        32555812 LS Headers w/1-3/4" Primaries and
        Primaries & a 3" Collector. . . . . . $825.00 (pr)                     a 3” Collector (w/O2 Sensors). . . . 825.00 (pr)   Headers. Please call for specific options,
                                                                                                                                  pricing and availability.

Body Mount Kit                                                        Steering Linkage                                            Housing Breather Kit
   Mounting a Tri-5 body on a Morrison                                    This convenient kit contains the                          Eliminate those pesky leaks that 9" Ford
GT-Sport chassis is facilitated with this                             components you’ll need to connect the housings are known for. This “catch can”
handy kit, which has the necessary body                               DSE power rack to the steering column. mounts above the housing. Excess pressurized
bushings and stamped components to                                    Available in polished stainless or bare.                   gear oil goes to the tank, is vented, and drains
ensure a secure attachment.                                           32555860 Steering Link Kit (Bare Metal). . . . . . $220.00 back after parking the car.
                                                                      32555865 Polished S/S Steering Linkage Kit. . . . 350.00
Tri-5 Body Mount Kit. . . . . . . . . . . . . . . . .  From $125.00                                                               40403020 Housing Breather Vent for Hose . . . . . $15.00
                                                                                                                                  40403030 Housing Vent Tank. . . . . . . . . . . . . . . . .45.00

LS Engine Mounts                                                      Brake Line Kits                                             M/C Adapter & Line Kit
    We’ve developed a highly effective                                    Here’s everything you’ll need to                            Adapter fits you mount a tandem-style
mounting package for LS engines that                                  “plumb” the brake lines on your GT Sport                    dual reservoir Master Cylinder to the
incorporates Energy Suspension poly-                                  Tri-5 chassis. Stainless steel is used                      firewall, and allows use of the stock Chevy
urethane bushings, and adapter plate with                             exclusively for the lines and fittings to assure            pedal assembly (and the OEM ratio). The
a positive stop, and OEM-style Chevy                                  you of total long-term reliability. Use in                  line kit lets you plumb the tandem M/C into
mounts. It’s easy to use and very secure.                             conjunction with our Master Cylinder kit.                   the brake system.
32555740 LS Engine Mnts for GT Sport Chassis . . . $240.00            32555842 Brake Line Kit for GT Sport Chassis. $645.00       32555856 M/C-to-Chassis Brake Line Kit . . . . . . $80.00
32555745 LS Engine Mnts Rubber. . . . . . . . . . . . . . . 175.00

                                                                                                                            800-929-7188 • email: sales@artmorrison.com
                                                                                                                                                 WARNING: Cancer Reproductive Harm-
    10                                                                                                                                                    www.P65Warnings.ca.gov
What Our Customers Say...
                                                           “As for the the 56 chassis we used under the
                                                       Tri5 of the year car, absolutely the best in the
                                                       business, we dont recommend anything but
                                                       ArtMorisson chassis’s, the fit and finish of the
                                                       product, the communication with the sales team,
                                                       tech support, and the owners Art and Craig are
                                                       standup guys who love their product... looking
                                                       forward to many more chassis in the future...
                                                       thank you!!”
                                                           Justin Griffin
                                                           Twin States Rod Shop
                                                           Meridian, MS
                                                           Chassis #1219

    “We have used Art Morrison chassis on many of
our customer’s cars including our own personal
1957 Chevy. The chassis handle extremely well and
have the ride and feel of modern cars. The team at
Art Morrison have been wonderful to work with and
produce amazing products.”

   Ryan and Steve Korek
   Korek Designs
   New Berlin, PA
   Chassis #0766

                                                         “Being involved with over 20 builds using
                                                     Art Morrison chassis and components, I think
                                                     the repeat customer story tells it all. At
                                                     Carnock Creations Art Morrison is our first
                                                     choice to start a build no questions ask.”
                                                         Dave Carnock
                                                         Carnock Creations LLC
                                                         Des Moines, IA
                                                         Chassis #1225

    “These chassis are well design to handle
the road with easy, the front suspension design
with the rack and pinion by far the best !! rear
suspension with the 9" Ford tri-angulated rear
keeps the car stable while driving in corners !!
just an all around well very well design
chassis”

   Ronnie Poche
   Ronnie’s Classic Rods
   Natchitoches, LA
   Chassis #1363

             www.artmorrison.com
                                                                                                     11
Get State-Of-The-Art
Handling For Your
1953-1962 Corvette!
    Following the very successful launch of      willing to step up, this latest addition to Art   series of tests conducted by leading
our GT Sport chassis for 1955-57 Chevys,         Morrison’s GT Sport Chassis line provides         automotive publications. With an average of
AME’s engineering staff focused its              an excellent foundation for anyone wanting        1.05 Gs on the skid pad, a 116-foot braking
attention on the First Generation Corvette.      to build a classic Corvette-bodied “kit car.”     distance from 60 mph and quarter mile
While the classic styling of 1953-62 ‘Vettes     There are a number of 1953-55, 1956-57            times in the low 12s at over 120 mph, the
has legions of admirers, the car’s notoriously   and 1958-62 style bodies on the market            car exceeded a “G” in each of the measured
harsh ride and dubious handling                  that would lend themselves well to this           performance criteria.
characteristics have prevented enthusiasts       particular application.                               Subsequently, many other 1st
from enjoying a driving experience in a               The first chassis off the production line    generation Corvettes have been given a
manner that owners of C5 and C6 Corvettes        became the foundation for Art Morrison’s          new lease on life with a Morrison GT-Sport
have come to expect. In addition to providing    “Project 3G” 1960 Corvette, which won             chassis. It’s a project that is well within the
a phenomenal “bolt on” improvement for           several important construction awards and         scope of any competent do-it-yourself
those First Generation Corvette owners           raised the bar in performance through a           builder.
                                                                                           Use the barcode scanner on
                                                                                          your smart phone to see The
                                                                                         Smoking Tire review of the 3G
                                                                                                             Corvette.

Also available with the award-winning
AME Multi-link IRS.

                                                                                                   Computer Designed Chassis
                                                                                          It’s important to note that the suspension of the
                                                                                   Morrison GT Sport chassis has been engineered using
                                                               special software and the frame is designed using contemporary CAD/CAM
                                                                     technology. Accordingly, the vehicle performance and manufacturing
                                                                accuracy are far superior to what was available over 50 years ago, when
                                                                                       the original “C1” Corvette was designed and built.
    BARE CHASSIS: includes welded bumper-to-bumper profile 2"x4" frame,
body mounts, bumper mounts, center frame, exhaust holes, core support, engine
mount towers, trans x-member brackets.
    CHASSIS WITH SUSPENSION: includes bare chassis, C6 Corvette upper
and lower control arms and spindles, power rack & pinion, front and rear sway
bars, 9" housing triangulated 4-bar links, and Strange adjustable front and rear
shocks with springs. $16,665.00
    COMPLETE CHASSIS: includes chassis with suspension, C6 13" front disc
brake kit, rear disc brake kit, Strange 31-spline axles, center section mounting kit,
Strange nodular-iron center section with posi-traction and trans crossmember.
Everything you need for a rolling chassis, less tires and wheels. $20,600.00

                                                                                             800-929-7188 • email: sales@artmorrison.com
                                                                                                       WARNING: Cancer Reproductive Harm-
  12                                                                                                          www.P65Warnings.ca.gov
How AME’s Engineering
Team Obtained Great
Handling Improvements
For “C1” Corvettes...

Corvette I.F.S. Components
The first step in obtaining vastly improved handling was to
employ the forged aluminum control arms and spindles from
2005-up Corvettes. In order to take advantage of the C6/C7
Corvette’s I.F.S. (which has exceptional geometry in stock
form), several revisions were required to fit under the
narrower 1953-62 Corvette body.
Track Width
While the C6’s hub-to-hub track width was narrowed, AME’s
Engineering Department slightly increased the scrub radius
over the C6’s very small amount. Accordingly, when 9-inch
wide rims (with 6.5" back-spacing) are employed, an
excellent balance is achieved between steering feedback
and driving performance. Through reducing the wheel’s
offset, it is also possible to fit the car with larger, high
performance brake calipers.
Camber Angle & Roll Center
The Front View Swing Arm (FVSA) length has been shortened to
better maintain camber angle while cornering. At the same
time, the static roll center height was reduced to minimize side
scrub and jacking force. As a result, straight line stability and
ride quality have been enhanced.
Caster Angle
Static caster has been reduced to +6° to promote a crisper
steering “feel” and to counteract the rise/fall effect of increased
scrub radius (as compared to the stock C5 geometry). This also
provides an improvement in roll center migration.
Lower CG
By providing through-frame passageways for the exhaust
system, the AME GT Sport chassis for C1 Corvettes allows
for a lower stance, while maintaining the necessary ground
clearance. This enables the vehicle to have a lower Center of
Gravity (CG).
Triangulated 4-Bar Suspension
A major difference between the Morrison GT Sport chassis
for the 1953-62 Corvette and C6 ‘Vette is the use of a
special triangulated 4-bar rear suspension instead of an
I.R.S. There are several reasons for this—not the least of
which is the track width of the C6 unit. The triangulated
4-bar setup performs well in terms of acceleration control
and provides excellent lateral stability.
Breaking the Triple 1-G Barrier
Our Engineering Department has done in-depth calculations
and determined that with the proper combination of power, tires
and brakes, a Morrison GT Sport chassis-equipped C1 Corvette
should be able to exceed 1-G force on the skid pad, in
acceleration, and braking. Our Project 3G ‘Vette has done it!

              www.artmorrison.com
               WARNING: Cancer Reproductive Harm-
                     www.P65Warnings.ca.gov                           13
C1 ’Vette GT Sport Chassis
With AME Sport IFS
                                                                                                       1957 Corvette built by Steve’s
                                                                                                                  Auto Restorations

Also available with the
award- winning AME Multi-link IRS.

      Due to popular demand, we have developed another GT
Sport chassis for the First Generation Corvette; one that uses an
AME Sport IFS front suspension with a Wilwood spindle instead
of C6 Corvette components and facilitates the use of front
wheels with diameters down to 15".
      Like our original GT Sport chassis, you can simply unbolt
the stock 1953-62 Corvette chassis, roll it away, and replace the
ancient technology with 21st Century dynamics. Moreover, you
can easily upgrade to LS power and most any popular standard
shift or automatic transmission.
      The Sport IFS is augmented by Strange adjustable coil-over
shocks and an adjustable anti-sway bar, while it also utilizes a
power rack & pinion steering. This makes for nimble, sure-footed
handling that's a quantum improvement over stock.
      A triangulated 4-bar rear suspension with a 9" rear end
can handle an abundance of power while also providing
excellent lateral support. Suspension comes courtesy of Strange
adjustable coil-over shocks, with further ride fine tuning possible
with an AME adjustable anti-sway bar.
      Special passageways for the exhaust are built into the
frame, which allows for a lower CG and ample clearance. This
also facilitates a lower stance. The crossmembers also serve to
stiffen the chassis, which significantly improves handling.
      Extensive engineering and suspension analysis confirms
that the performance of this new C1 chassis is on an even par
with our original GT Sport chassis with C6 components. Given
the proper amount of horsepower, big brakes and a good set of             Chassis with Suspension: Chassis, Sport IFS control
high performance tires, it's quite possible to achieve 1+Gs in        arms, Wilwood Pro spindles, Strange adjustable coil-overs, springs,
acceleration, braking and the skid pad.                               rack & pinion steering, 9" housing and triangulated 4-bar
     BARE Chassis: Includes welded bumper-to-bumper                   suspension, adjustable front & rear anti-sway bars. $15,215.00
profile 2"x4" frame, body mounts, bumper mounts, center                   COMPLETE CHASSIS: Chassis with suspension, front disc
frame, exhaust holes, core support, engine mount towers, trans        brake kit, rear disc brake kit, Strange Engineering 3rd member,
x-member brackets.                                                    Strange Engineering 31-spline axles. $18,745.00

                                                                                       800-929-7188 • email: sales@artmorrison.com
                                                                                                WARNING: Cancer Reproductive Harm-
  14                                                                                                   www.P65Warnings.ca.gov
C2 ’Vette GT Sport Chassis
With AME Sport IFS

Built by Street Rods
by Denny

                                                          As shown    $23,915
                                                        The iconic 1963-67 Stingray Corvette, which can be attributed
                                                   to noted designers Bill Mitchell, Pete Brock and Larry Shinoda, can
                                                   easily be upgraded to incorporate contemporary handling, ride
                                                   and stance. The engineering team at Art Morrison Enterprises,
                                                   working with leading builders, has developed the latest addition
                                                   to AME’s series of “bolt-on” GT Sport chassis for C2 applications.
                                                        Important features include a track width that is slightly
                                                   narrower than stock to accommodate a lower ride height (and
                                                   capability of using wider tires than stock-framed Corvettes), a
                                                   sophisticated application-specific I.F.S. with steering Ackermann
                                                   similar to high-end European sports cars that improves mid-
                                                   corner front grip and stability, plus the highly-acclaimed AME
                                                   Multi-Link IRS. A solid rear end setup is optional.
                                                        While the original C2 featured variety of engine options that
                                                   culminated with the 435 horsepower L88 big block, the AME GT
                                                   Sport can accommodate small block, big block and LS/LT series
                                                   engines. A repositionable transmission crossmember facilitates the
                                                   use of most any manual or automatic transmission, and is designed
                                                   to simplify maintenance without sacrificing structural integrity.
                                                        The frame boasts a triangulated structure that significantly
                                                   stiffens the front end, features hefty 0.180” wall front and rear
                                                   rails for improved rigidity, and has rear rail gussets to reduce
                                                   torsional twist.
                                                        Moreover, the CAD-engineered frame was designed using 3D
                                                   laser scan technology to ensure a perfect fit. Yes, you can
                                                   essentially unbolt the Stingray’s body from the OEM frame and
                                                   drop it onto this new GT Sport chassis using stock body mounts
                                                   —with only some minor trimming of the storage area behind the
                                                   seats required.
                                                        From a stance standpoint, AME’s GT Sport chassis for the C2
                                                   is available with ride heights that are either 1-3/4” or 3” lower
                                                   than stock. The lower CG is, of course, another handling benefit.
                                                        This chassis represents the epitome of a restomod, combining
                                                   classic styling with all the improved performance characteristics of
                                                   a contemporary high-end vehicle. It’s truly the best of both worlds.
             www.artmorrison.com
              WARNING: Cancer Reproductive Harm-
                    www.P65Warnings.ca.gov                                                                        15
It’s Easy To Update Any 1949-’54
Chevy With An AME GT Sport Chassis

                                                                                                                                     NEW
                                                                                                                                    Multi-Link

                                                                                                                                    IRS
                                                                                                                  Tim Diver Street Rods 1954 Chevy

                                                                                                                                                              Photo By Source Interlink Media
    An increasingly popular “family” of              900 of these chassis in use as of this                regarded triangulated 4-bar setup, which
vehicles to benefit from an Art Morrison             writing, there is a strong foundation to build        gives excellent straight-line and lateral
GT-Sport chassis is the venerable 1949-54            on.                                                   control. Strange Engineering adjustable
Chevy. But it’s important to tell you how we             Up front, Morrison’s engineering team             coil-over shocks and a sway bar complete
got there. Our first GT Sport chassis were           has developed a sophisticated Independent             the package.
CAD engineered, but all the data on the              Front Suspension (IFS) that employs tubular                With a wide variety of body styles that
base frame rails was accumulated via                 steel control arms, adjustable coil-over              this chassis will work with, including the
physical measurements. Not so this latest            shocks, a beefy sway bar and Wilwood                  unique “fastback” sedans and elegant Bel Air
masterpiece. A remarkable device called              front spindles. A power rack & pinion (20:1           hardtops, let your imagination take over!
a “Faro Arm” which literally “traced” every          ratio) handles the steering.                               CHASSIS WITH SUSPENSION:
square inch of the OEM Chevrolet frame                   Since most builders will want to have             Includes frame, with 3" exhaust hole,
was employed to directly transmit X-Y-Z              something more potent than the original               uncoated upper and lower control arms,
data directly into the computer. This                6-cylinder “stovebolt” engine, the chassis            spindles, power rack & pinion, front and rear
eliminates any chance of human error, and            will also have motor mounts for the                   sway bars, 9" housing, triangulated 4-bar
guarantees that the body of your 1949-54             popular small block V8, or the new                    links and Strange adjustable front and rear
Chevrolet will fit superbly.                         LS-series powerplants. Likewise, a wide               coil-over shocks with springs. $15,170.00
    Once the basic parameters were                   variety of manual and automatic                            COMPLETE CHASSIS: Includes
obtained, Morrison’s engineering staff went          transmissions can be employed, including              chassis with suspension, front disc brake
about designing a front and rear suspension          Powerglide, TH350, TH400 and 700R4                    kit, rear disc brake kit, Strange 31-spline
package that would deliver the handling              automatics, plus any 4-speed, Tremec TKO              axles, center section mounting kit, Strange
and ride that has made the original                  and T-56 6-speed, as well as Richmond 5               nodular iron center section with
GT-Sport chassis for Tri-5 Chevys the                or 6-speed manual transmissions.                      Positraction. It’s a rolling chassis, less tires
unquestioned industry leader. With almost                The rear suspension is AME’s highly               and wheels. $18,700.00

When the engineering team at Art Morrison Enterprises set about designing a GT Sport chassis for 1949-54 Chevrolets they employed the characteristics of
AME’s highly successful Tri-5 chassis. It is exceptionally stable, corners hard without appreciable lean, won’t “dive” under braking, and has a great ride.

                                                                                                     800-929-7188 • email: sales@artmorrison.com
                                                                                                                WARNING: Cancer Reproductive Harm-
   16                                                                                                                  www.P65Warnings.ca.gov
GT-Sport Chassis For
                            1964-1972 A-Bodies
    Morrison’s engineering team has                   Extensive development work on the         section mounting kit, Strange S-series.
developed a highly acclaimed GT-Sport             suspension package has resulted in            center section and transmission mount.
chassis for the 1964-72 Chevelle. The             optimizing various parameters (camber         Everything you need. for a rolling chassis,
biggest challenge faced by AME’s                  angle, roll center, caster angle, CG, etc.)   less tires and wheels. $20,675.00
designers was to place the chassis as far         and the creation of suspension components

                                                                                                                                              Photo by Not Stock Photography
under the body as possible to reduce the          that will deliver optimum handling, ride
amount of frame visible from under the            and “0” bump steer.
car. They developed a unique inner-angled             CHASSIS WITH SUSPENSION:
frame rail that tucks right under the floor       Includes Sport IFS control arms, C6
pan. This provides an increase in ground          knuckles, bearings and hubs, Strange
clearance, which allows for a lower stance.       adjustable shocks with springs, front and
And, as you know, lowering the CG of a            rear sway bars, power rack and pinion,              1965 Chevelle owned by Sonny
vehicle improves its handling.                    triangulated 4-bar links and 9" housing.              Freeman and built by Talbert
    Another key to better handling is a stiff     $16,740.00                                      Goldman of Mike Goldman Customs
chassis, and to this extent AME engineers             COMPLETE CHASSIS: Includes
are focusing on increased torsional rigidity.     chassis with suspension, C6
Stiffening the chassis does not by itself         Corvette front disc brake kit,
make for a harsh ride. You should know            11" Wilwood brake kit,
that the suspension provides an optimum           Strange S/S street
balance of handling and comfort. Our goal         axles, center
is to provide Chevelle owners with a great
overall ride, while still providing exceptional
corner-carving ability.

                                                                                                                     NEW
                                                                                                                    Multi-Link

                                                                                                                    IRS
  Fits all 1964-72 GM A-body cars!
  Owners of Pontiac GTO/LeMans,
  Olds 442 and Buick GS can enjoy                                                              NOTE:
 GT-Sport handling. El Caminos, too!                                                   Special inner-
                                                                                   angled frame rails
                                                                              tuck tightly under body

               www.artmorrison.com
                WARNING: Cancer Reproductive Harm-
                       www.P65Warnings.ca.gov                                                                                         17
1947-53 GM Truck Chassis
High Performance Handling Edition

                                           Photo By Fuel Curve
Rick Jones Truck
Built By QuarterMax

   2X6 Main Rails
                                                                                        Use the barcode scanner
                                                                                         on your smart phone to
                                                                                           see Farm Truck Video

     If you're looking to build a
“sleeper,” Art Morrison’s new GT Sport
chassis for 1947-53 Chevrolet pickup
trucks is the key. Imagine having a
60-plus year-old truck that handles
like a new Corvette. Our patina-highlighted “Farm Truck” caused more
than a few jaws to drop following performance pad testing for a
Custom Classic Trucks story.
     The “High Performance” version of this chassis features a “Sport”
independent front suspension with beefy 1 5/16" diameter upper control
arms and upsized poly-bushed rod ends that combines with coil-over
shocks and anti-sway bar (both adjustable) to provide exact handling.
     As you can tell by the photos the ride height is quite low and
requires the bed floor to be raised about two inches. The rugged 2x6
frame is designed to “tuck in” the exhaust system for optimum ground
clearance. A 4-bar rear suspension with “Johnny Joint” rod ends and a
Panhard bar provide perfect anchors for the reinforced 9" rear.
     Like all other Morrison GT Sport chassis, all required body mounts,
core supports and bumper mounts are included to provide a virtual “bolt
on” build. It can accommodate virtually any V-8 engine/transmission
(stick or automatic) combination. An optional pedal mount makes for a
clean installation. Truly, the High Performance AME GT Sport chassis
represents a superb investment in fun driving and overall value.
                                                                                                                                   Photo by Will Rogers @realwillrogers

     CHASSIS WITH SUSPENSION: Chassis, Sport IFS control arms,
2" dropped Wilwood PRO Spindles, Strange adjustable coil overs,              1954 Chevy
springs, rack & pinion steering, 9" housing, parallel 4-bar tubes with     Truck built by
Johnny-Joint ends, rear mounted panhard bar, adjustable front & rear            J-Rod &
                                                                                 Custom
anti-sway bars. $14,840.00
     COMPLETE CHASSIS: Chassis w/suspension, front disc brake
kit, rear disc brake kit, Strange Engineering 3rd member, Strange
Engineering 31-spline axles (without pedals). $18,370.00
                                                                                     800-929-7188 • email: sales@artmorrison.com
                                                                                             WARNING: Cancer Reproductive Harm-
  18                                                                                               www.P65Warnings.ca.gov
GT Sport Chassis For
1955-59 Chevy/GMC
                                               1959 Chevy truck built by
                                               Chris Holstrom Concepts

                                                                                            2x6
                                                                                             Main Rails

                                                                             $14,990 Chassis with suspension
                                                                             $18,520 Complete chassis

     AME now offers all the performance and convenience of its bolt-on
GT Sport chassis for the popular 1955-59 Chevy “Task Force” series
pickup trucks and its GMC counterpart. It’s an evolution of our proven
1947-53 chassis that transforms any classic pickup into a true high
performance vehicle.
     Engineered to provide both corner-carving handling and a great
ride, the chassis employs AME’s “Sport” independent front suspension
with beefy control arms an adjustable sway bar and rack and pinion
steering. Out back, the Johnny Joint four bar and Panhard bar work
with the adjustable sway bar and shocks to round out the suspension
package.
     Like our other truck chassis, you have a choice of two different ride
heights. One is quite low, per contemporary trends, and requires that
the bed floor be raised three inches. The other provides a “standard”
ride height and requires no modifications whatsoever. Mar K
Manufacturing is making a raised floor specific for our low ride height
chassis making this modification a snap.
     The extremely rigid 2" x 6" frame rails allow for plenty of room for
the exhaust for optimum ground clearance. Integrated into the chassis
just behind the 9" housing are fuel tank mounts that allow for a much
safer location and helps with the overall balance of the vehicle.
     All the required body mounts, core supports and bumper mounts
are included—all fixture-welded by Morrison technicians to provide
you with a true “bolt-on” build. The chassis is available with mounts
for small block, big block and LS-series Chevy engines and virtually
any standard or automatic transmission combination. An optional
pedal mount assembly makes for a clean installation.
     Morrison’s GT Sport chassis for 1955-59 Chevy/GMC pickups is
the foundation for a “Resto-mod” truck that combines a contemporary
stance, great handling and a comfortable ride with classic styling. And
it’s an expertly engineered swap that do-it-yourselfers can easily
accomplish. What’s more, investing in a Morrison GT Sport chassis
today pays big dividends in the performance and value of your ride.

               www.artmorrison.com
               WARNING: Cancer Reproductive Harm-
                      www.P65Warnings.ca.gov                                                               19
1967-72 Chevy C-10                                                                                   NEW
                                                                                                    Multi-Link

GT Sport Chassis                                                                                    IRS
                                         Also Available With
                                         Multi-Link IRS &
                                         Air Suspension

                                                                                2x6
                                                                                 Main Rails

    Owners of 1967-72 Chevy C10 pickups can obtain superior
handling, improved ride quality and an attractive, lower stance
through replacing their OEM chassis with a superbly engineered,
precision crafted GT Sport chassis from AME. It’s a bolt-in project
with no welding required.
    Using 3D scanning to assure a perfect fit, combined with
sophisticated design software, AME’s engineering team has
developed a contemporary chassis that provides a 5-6" ride
height with nothing protruding below; the 3" exhaust is routed
through the frame rails and engine placement is optimized so
the oil pan is flush with the bottom of the frame. The husky 2"
x 6" frame features FEA-optimized chassis braces to significantly
stiffen the platform.
    The front suspension features Wilwood forged aluminum
spindles with an integrated modular bearing assembly and
serviceable ball joints. CNC-fixtured, TIG-welded tubular steel
control arms with CNC-machined upper mounts, plus coil-over
shocks and a 3-position adjustable sway bar with adjustable end
links compliment the suspension geometry that’s designed to
optimize both street driving and track duty. A new steering rack
with a billet aluminum steering arm provides near-zero bump steer
with zero steering slop. The 62.5" front tread width facilitates the
proper scrub geometry while allowing for use of dished wheels.
    A robust 9" housing with a triangulated 4-bar rear suspension
and coil-overs eliminate the need for a Panhard bar and provide
excellent forward “bite,” lateral stability and anti-squat geometry.
It will also be available with the Multi-link IRS. With excellent front-
to-rear balance, Morrison’s GT Sport chassis will make your C10 a
pleasure to drive. And it’s a proven investment that will pay
dividends down the road.
                                                                           800-929-7188 • email: sales@artmorrison.com
                                                                                   WARNING: Cancer Reproductive Harm-
  20                                                                                     www.P65Warnings.ca.gov
1953-56 Ford F100
GT Sport Chassis

                                                                                           2x6
                                                                                           Main Rails

                                                                            $15,365 Chassis with suspension
                                                                            $18,895 Complete chassis
     The mid-1950s F100 is the epitome of a classic design. There are
legions of enthusiasts who consider it the most beautiful pickup ever
built. Now, beauty can be more than skin deep with the advent of
AME’s expertly engineered and precision crafted GT Sport chassis for
the F100. With it, the original I-beam axle, leaf spring suspension,
worm-and-sector steering and 60-year-old drivetrain can be replaced
with contemporary technology for maximum driving pleasure.
     Up front you'll find AME’s “Sport” independent front suspension
with beefy upper and lower control arms, adjustable sway bar and
greasable bushings that work in concert with premium coil-over
shocks. Like our other truck chassis, you have a choice of two
different ride heights. One is quite low, per contemporary trends and
requires that the bed floor be raised three inches. The other provides
a “standard” ride height and requires no modifications whatsoever.
Mar K Manufacturing is making a raised floor specific for our low ride
height chassis making this modification a snap.
     The extra rigid frame, which features 2" x 6" main rails, is
designed to accommodate a variety of exhaust systems and provide
optimum ground clearance. A 4-bar rear suspension with “Johnny
Joint” rod ends and a Panhard bar keeps the 9" rear solidly planted
for optimum acceleration and cornering. Premium coil-over shocks
tailor the handling and ride to your requirements. Integrated into the
chassis just behind the 9" housing are fuel tank mounts that allow for
a much safer location and helps with the overall balance of the vehicle.
     Like all Art Morrison GT Sport chassis, all the required body
mounts, core supports, running board and bumper mounts are
included—all fixture-welded by Morrison technicians to provide you
with a true “bolt-on” build. Initially, the chassis comes with mounts for
Small Block Ford, Big Block Ford and Ford Coyote 5.0L engines (with
potentially more options to come) and virtually any standard or
automatic transmission combination. An optional pedal mount
assembly makes for a clean installation.
     AME’s computer-designed frame is the perfect foundation for a
“Resto-mod” truck of the highest order; one with a contemporary
stance, great handling and a comfortable ride. Moreover, an AME GT
Sport chassis represents an excellent investment in the value of any
vehicle. It doesn’t get any better than this!
              www.artmorrison.com
               WARNING: Cancer Reproductive Harm-
                     www.P65Warnings.ca.gov                                                             21
1959-64 Chevrolet Chassis
The Perfect Solution For Obtaining
An Exceptional Ride, Superior
Handling And A Low Stance.

                                            3x4
                                              Main Rails

                                                                                                                           Photo courtesy Street Rodder Magazine
                                                                                 Hot Rods & Custom Stuff 1961 Impala

    The engineering team at
Art Morrison Enterprises has
focused their talents on the
increasingly popular 1959-64 Chevrolets and developed an innovative
chassis that provides a low ride height and great handling. What’s
more, this new AME GT Sport chassis features beefy 3x4 main
framerails and specially designed crossmembers that provide ample
clearance for the exhaust system.
    Up front you'll find AME’s highly acclaimed Sport I.F.S. with its beefy
tubular control arms, Strange adjustable coil-over shocks, Wilwood
spindles, an adjustable anti-sway bar and a power rack & pinion
steering. Motor mounts are available for small block, big block, W
block (348-409) and LS-series engines. Transmission mounts can be
configured for most any popular automatic or manual shift tranny.
    Superior handling—and the ability to handle an abundance of
power—is assured through a triangulated 4-bar rear suspension and
a beefy 9" rear end. Adjustable coil-overs and an adjustable anti-sway
bar provide the desired ride. A new 2-piece driveshaft greatly reduces
vibration and minimizes floorboard modifications. In fact, the GT Sport
requires less floor mods than any aftermarket chassis for these cars.
    Available with a Performance Air Spring suspension, coil-overs, or
our exclusive Multi-link I.R.S. for optimum handling.
              AIR BASE: $16,625.00 AIR COMPLETE: $20,155.00
COILOVER CHASSIS BASE: $15,295.00 COMPLETE: $18,825.00

                                                                              800-929-7188 • email: sales@artmorrison.com
                                                                                      WARNING: Cancer Reproductive Harm-
  22                                                                                        www.P65Warnings.ca.gov
AME GT Sport Front Clip
Bolt-In Installation For 1967-69 Camaro and Firebird,
1970-81 Camaro/Firebird, plus 1968-74 Chevy Nova

This Camaro, which
was built by Z-Rodz
was the first to
receive the new                                                                                    Complete Clip
                                                                                                         $8,430
GT Sport subframe.

                                                                       Bare, Welded Clip........................ $3,965.00
                                                                       Sport C6 Frnt Susp Kit
                                                                       w/Drop’d Arms............................... 3,230.00
                                                                       Sway Bar & Mount Kit.......................395.00
                                                                       Tie Rod Ends.......................................90.00
                                                                       Strange Coil-Overs w/bearings..........560.00
                                                                       DSE Power Rack................................650.00
    The engineering team at Art Morrison Enterprises has               Power Rack Fitting Kit.........................40.00
                                                                       TOTAL............................................ 8,930.00
made a good thing even better through some subtle —yet
                                                                       Package Discount............................ -500.00
important— revisions to AME’s popular GT Sport Front Clip              Package Price w/o Brakes..... $8,430.00
for early Camaro, Firebirds and Novas. For example, the ride
height has been lowered by 1-1/4” over previous designs.
    Handling has been improved through use of special
TIG-welded DOM steel control arms and a revised front end
design that can accommodate high static negative camber
angles for use with aggressive, low treadwear-rated tires. This
new setup also features serviceable ball joints and employs
high strength steel coil-over mounts to withstand high stress
cornering and bump loads.
    Designed through the use of FEA (Finite Element Analysis), the
Morrison GT Sport clip is substantially lighter than the bulky OEM
unit. Moreover, with a reduced unsprung weight, C6 ‘Vette
uprights, shortened front view swing arm, modified caster and
adjustable coil-over shocks, the GT Sport clip will provide
awesome handling. A new 3-position adjustable hollow sway bar
is employed, with adjustable end links eliminating preload. It
comes with a near-stock front tread width to provide optimum
wheel fitment opportunities and can easily be used with wider-                       Many special accessories are
than-stock tires (265/35R18 used in tests).                                          available to provide a finishing
    The power rack & pinion is mounted lower in the frame than                       touch. These include headers,
stock, which also lowers CG and contributes to improved                              body mount & brake line kits.
handling. Mounts are available for small block, big block or LS/LT
Series engines. Trans mount options facilitate using all popular
manual or automatic transmissions, including Tremec T6 and
TKO, Muncie, Powerglide, TH350 & 400, 700-R4 and 4L60E.
    No cutting or welding is required for installation, and most any
competent do-it-yourselfer can transform an ordinary ride into a
corner-hugging G-machine in the comfort of their own garage.
    An optional solid body mount kit is available, as are
conventional mounts, headers and a brake line kit. Build a
Restomod/Pro Touring car of the first order with a comprehensively
engineered, precision built GT Sport front clip package from AME.

               www.artmorrison.com
                WARNING: Cancer Reproductive Harm-
                      www.P65Warnings.ca.gov                                                                                23
AME GT Sport Rear Subframes
Three Highly Effective Rear Suspension
Setups For 1967-69 Camaros          Now you can choose between three highly effective
                                                           AME GT Sport rear subframes for your 1st Generation
                                                           Camaro. All employ rugged 2"x4" mandrel-formed
                                 3-LINK                    frame rails that are far stronger than flimsy OEM
                                                           stampings, which makes them better suited to coping
                                                           with the increased stresses that come with aggressive
                                                           driving. The subframes are also designed to be used
                                                           with the stock gas tank.
                                                                The primary difference, of course, is what lies
                                                           between the frame rails. And here’s where the choices
                                                           come into play.
                                           As shown             Our popular Tri 4-bar setup offers the advantage of

                                          $5,980
                                                           fitting under the stock Camaro floorpan. No modifications
                                                           are necessary. The triangulated links provide both forward/
                                                           rearward and lateral bracing for the 9" housing, providing
                                                           excellent acceleration and handling characteristics.
                                                                A more sophisticated setup is offered with AME’s track
                                   Now Standard With       day-proven 3-link package. The forward/rearward housing
                                  Adjustable Swaybars      motion is controlled with three links, while it remains
                                                           perfectly centered through use of a Watts linkage.
                                                                Strange Engineering adjustable coil-over shocks are
                                            TRI            employed for both the Tri 4-bar and 3-Link subframes,
                                                           as are special sway bars. They also allow locating the
                                           4-BAR           exhaust for optimum ground clearance.
                                                                The third choice comes in the form of AME’s new
                                                           Multi-link I.R.S. Based on a rugged Strange S60 center
                                                           section and half-shafts with CV joints, its primary
                                                           advantage is independently compensating for any bumps
                                                           or road irregularities to always provide an optimum tire
                                                           contact patch. With a Morrison Multi-link subframe, your
                                                           Camaro’s handling will be second to none.
                                                                           2"x4" Welded rear subframe...... $2,640.00
As shown                                                                   9" Housing with all brackets.......... 1,285.00
                                                                           Watts linkage with poly rod ends.......490.00
$4,495                                                                     3-Link bars w/johnny joints...............805.00
                                                                           Strange C/O’s w/springs, w/bearings...560.00
                                                                           Lwr c/o mount kit................................55.00
                                                                           Sway Bar...........................................320.00
                IRS                                  Cut-away view of
                                                     Morrison’s 2"x4"
                                                                           TOTAL............................................ 6,155.00
                                                                           Package Discount............................ -175.00
                                                       frame vs. OEM       Package Price ........................ $5,980.00
                                                                           3-LINK PACKAGE
                                                          stamped rail     2"x4" Welded rear subframe...... $2,150.00
                                                                           9" Housing with all brackets.......... 1,120.00
                                                                           4-Bars w/poly rod ends.....................465.00
                                                                           Strange C/O’s w/springs, w/bearings...560.00
                                                                           Lwr c/o mount kit................................55.00
                                                                           Sway bar...........................................320.00
                                                                           TOTAL............................................ 4,670.00
                                                                           Package Discount............................ -175.00
                                                                           Package Price ........................ $4,495.00

                                                                           67-69 IRS Cradle Rear Clip.......... $2,305.00
                                                                           IRS GM 2x3 Cradle Assy. Kit.......... 11,305.00
                                                                           Strange Ultra non-adjustable
From                                                                       Coil-overs........................................... 630.00
$14,225 GM differential and performance axles                              Coil-Over springs w/spring Bearings.. 160.00
                                                                           TOTAL.......................................... 14,400.00
$14,460 Strange S60 Differential and high HP axles                         Package Discount............................ -175.00
                                                                           Package Price ...................... $14,225.00
