No | 79 Traffic Light
Report
Spring 2017 Volume 28
MAGAZINE FOR TRAFFIC ENGINEERING
LZA
RADAR | LASER
PARKING
ÖPNV
David vs. Goliath INTERNATIONAL
SPECIAL
Sharp Focus
Political attention to projects for noise reduction
Dear Readers! In the context of the exhibition “Congress-Local Authorities” in Bielefeld RTB could enjoy a visit from
the chairperson of the CSU state group in the German Parliament, Gerda Hasselfeldt. This important
Achieving great things together – his will always remain politician showed great interest in projects for reduction of motorcycle noise.
the goal which we as a company set for ourselves. As the
new technical product designer in the RTB team I quickly As we reported in the previous issue of “Traffic locations is required. Following the positive
experienced what this goal means in practice. In an Light Report”, Baden-Württemberg, under the interim results achieved in Todtmoos, we are
exceptionally pleasant working atmosphere, thanks to leadership of the State Ministry for Traffic, confident that the direct approach will also have
flat hierarchies and short paths to decisions, one’s own expanded studies about reduction of motorcycle positive effects on driving behavior at new study
ideas can be implemented quickly. An example of this noise. The RTB system TOPO.box is being used locations.
Editorial is attaining the P4 security class for parking ticket here in combination with the Dialogue-Display.
terminals. In any case, Gerda Hasselfeldt was visibly im-
The goal of all those responsible is clear: a pressed by the opportunities made possible
Is the P4 parking ticket terminal Pecuni a fortress? For me sustainable, effective means, which makes a through the combination of various systems.
the answer is clear – YES! The path to “constructing the peaceful coexistence possible among all Thus, the attention of the CSU representative to
Contents
fortress” was, of course, lined with obstacles but that is participants in traffic at particularly afflicted progressive projects for noise reduction is ensured.
exactly where the challenges for joint action lie. The
overriding rule was to offer you as a customer our time-
2 Contents & Editorial
proven joint handling. We achieved this goal. The hand-
3 Sharp Focus ling has remained, combined with a clearly higher level
Political Attention Paid of security. This means the same removable cash box can
to Projects for Noise continue to be used since the size of the new P4 safe
Reduction remains the same as that of its predecessor.
4 / 5 Certified Security Despite this success, there is no time to relax. We want to
Highest Ranking for the continue to implement many ideas in product develop-
Parking Ticket Terminal ment so that we can reach even greater goals in co-
“Pecuni” operation with you!
6 / 7 Innovative Pioneer
LZA
Sincerely,
Most Modern Technology
in Baden-Württemberg
RADAR | LASER
8 /9 Unique Event
Great Interest in the PARKING
State Horticultural Show Dino Koman
in Bad Lippspringe Technical Product Designer
ÖPNV
10 /11 Special Service
Mainzel Man as an Publisher:
INTERNATIONAL
Enhancement in Street RTB GmbH & Co. KG, Geschäftsführer Rudolf Broer, Schulze-Delitzsch-Weg 10, 33175 Bad Lippspringe,
Tel. + 49 (0) 52 52 - 97 06-0, Fax + 49 (0) 52 52 - 97 06-10, E-Mail: info@rtb-bl.de, www.rtb-bl.de
Traffic Editor:
HACK PR- und Werbeagentur GmbH, 33175 Bad Lippspringe
Production: SPECIAL
2 This & That Machradt, Graphischer Betrieb, 33175 Bad Lippspringe
2|3
Quelle: google earth
Certified Security
Highest ranking in class P4 for the RTB parking ticket terminal “Pecuni”
Parking ticket terminals are located mainly in public areas such as parking lots and parking spaces. Here
experience shows that they represent a potential target for criminals who are after the money stored in
them. Therefore, the security of the terminals is becoming increasingly important.
Parking ticket terminals consist of at least an The test is conducted under rigorous conditions The parking ticket terminal “Pecuni” passed this
entry and acquisition unit for currency, a parking and takes place based on a plan. The goal of the extensive text for several hours and thus earned
ticket printer, operating elements and a control main test is to determine, if the cash box or, in the highest security class P4.
unit. Over and above these, RTB’s “Pecuni” also the event of its presence, the case strong box or
offers possibilities for cashless transactions. To their potential contents can be removed within
protect the currency from unauthorized access the resistance time listed in the table using the
in the best possible fashion, VdS-certified tools listed in the table.
parking ticket terminals are categorized in four
terminal classes according to their resistance to
burglary. The level of the criteria regarding the
time necessary to overcome the security and the
effectiveness of the tools used increases with
each class.
Parking ticket terminal class Resistance time Tool set
P1 3 min Basic tool set, A, B
P2 3 min Basic tool set, A, B, C
P3 5 min Basic tool set, A, B, C
LZA
P4 5 min Basic tool set, A, B, C, D
*see VdS Directive 3546 Attachment A
RADAR | LASER
PARKING
VdS Directive 3546 ÖPNV
INTERNATIONAL
SPECIAL
Traffic Light Report No. 79 4|5
Innovative Pioneer
Baden-Württemberg relies once again on the most modern RTB technology
Studies about reduction of motorcycle noise have shown: The application of the most modern technology
has a sustainable effect! Currently several municipalities in Baden-Württemberg are showing great
interest in future-oriented technologies to support blind and low vision persons.
LOC-ID is the name of a Bluetooth-based system, When the user approaches a facility equipped
that can be applied very well at traffic light with a receiver, he or she is recognized and an
facilities or for dynamic passenger information. orientation signal with enhanced volume is
The user can choose between two different triggered. The closer the user comes to the traffic
possibilities for the application: a “1 button light facility, the quieter the signal becomes until
device” as the transmitter or an app, that is the user reaches the facility and the volume
installed on a smart phone and functions as a returns to its original level. The release phase is,
transmitter. as always, signaled by an acoustical release tone.
Sometimes this phase is quite short. To make the Among other locations, this technology is being
crossing at the crosswalk safe despite this applied in the city of Karlsruhe. To make street
brevity, the orientation signal on the other side traffic safer, particularly for blind and low vision
of the street efficiently guides the user across persons, the city has equipped several traffic
the street. light facilities with various systems. In a second
step, organizations for blind and low vision
persons and the advisory council for persons
with handicaps were requested to give their
expert opinions regarding the final selection of
the system to be used. This exemplary process
used by the municipality led to consistently
convinced statements from those involved: in
the future, RTB devices will be used in Karlsruhe!
LZA
RADAR | LASER
Karlsruhe also offers even more innovations! From
June 21 through June 22, 2017 the trade fair PAR- PARKING
KING will take place. As a recognized specialist in
this field, RTB will demonstrate innovations in the
areas of parking ticket terminals, monitoring in- ÖPNV
dividual parking spaces and traffic searching for
parking spaces. Please save the date. We would
INTERNATIONAL
like to invite you to visit our exhibition booth.
SPECIAL
Traffic Light Report No. 79 6|7
Unique Event
Great Interest in the State Horticultural Show 2017 in Bad Lippspringe
The city of Bad Lippspringe is expecting a unique event from April 12 through October 15, 2017. Under the
motto “Floral Splendor & Forest Idyll” RTB’s home city will host this popular large event with new
accents. Along with the real sea of flowers, the spotlight will be on a forest background and a large
play area.
Idyllically located between the Egge mountain ground created by the spa forest, visitors can
range and the Teutoburger forest and on the edge enjoy an exceptional interpretation of the classic
of the Senne landscape, the climatic health resort ingredients of a horticultural show. In the Forest
Bad Lippspringe has much to offer. During the and Arminius Park, real blossom explosions await
horticultural show, there will be flower shows, the guests. Flower shows and theme gardens will
theme gardens and events in two parks and in the be the central attractions on the site encompas- These two parks are connected by a boulevard Due to its proximity to the State Horticultural
downtown area. Along with the special back- sing 82 acres. The site is divided into two areas. through the pedestrian zone. Families with Show, RTB can offer all its friends and customers
children have also been taken into consideration. a special service in this regard. Since the com-
Thus, the “World of Elves and Trolls” entices pany premises are located only ten minutes by
children with large climbing and sliding land- foot from the main entrance of the show, the
scapes, a six-meter-high troll castle and a sports company will be making its parking lot available.
field with rough tree trunks. During all the An advance reservation by telephone is necessary.
planning, Bad Lippspringe placed great value on
sustainable use of the new facilities.
Further information about the State Horticultural Show 2017 and about tickets can be found at www.lgs2017.de!
LZA
RADAR | LASER
PARKING
ÖPNV
INTERNATIONAL
SPECIAL
Traffic Light Report No. 79 8|9
Special Service

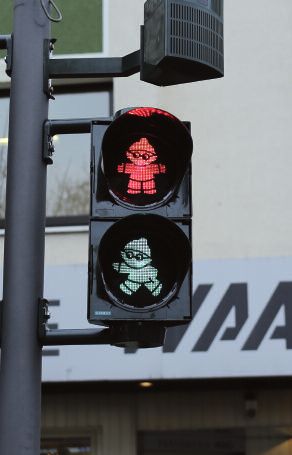

Mainzel man as an enhancement in street traffic in the city of Mainz
The beloved Mainzel men have conquered the traffic lights in Mainz! A Mainzel man traffic
light has evolved from the traffic light man used in other locations. A genuine enhancement for
street traffic!
The joint project of the television channel ZDF Some important aspects of the service of the
Pictures “Det“ (2): © ZDF/Corporate Design
and the city of Mainz is intended to express their well-known characters: the illuminated surface
mutual relationship. According to ZDF director is over 30 percent larger than that of the
Thomas Bellut, this action is intended as a gag to commonly used pictograms. This size is similar
show that in Mainz humor is very, very impor- to the surface of the East German traffic light
tant. Since November 2016 the probably most man. Thus, low vision persons can perceive the
well-know Mainzel man “Det” adorns the traffic display much better.
light facility at Neubrunnen Place. The idea was
born in the year 2013 when honorary citizenship
was awarded to the Mainzel men. Mayor Michael
Ebling stated that this doesn’t necessarily have
to be the only facility of this kind. It is quite easy
to imagine that Mainzel men will also do service
at other selected locations.
A further and equally important effect is the
influence on traffic education of young parti-
cipants in traffic. Stories about the Mainzel men
in television, books and other media can be opti-
mally used for identification and sensitization.
Perhaps the cute fellows will soon be shining
from additional facilities in the city – not only
children would be happy about that . . . LZA
RADAR | LASER
PARKING
ÖPNV
INTERNATIONAL
Only at carnival time in Mainz do the red and
green men meet. In reality, the two live rigorously
separated from one another. It’s just “Mainz, as it SPECIAL
sings and laughs!”
Traffic Light Report No. 79 10 | 11
This & That
Parking spaces in XXL format
Since the beginning of January 2017, a new special construction
regulation has become effective in North Rhine-Westphalia. This
regulation specifies that parking spaces in new car parks and
parking garages must have a minimum width of 2.45 m (instead
of the previous 2.3 m). The reason for this is that in the last few
years, vehicles have continued to become wider. Since existing
car parks are not to be forced to convert their spaces, other ideas
are being sought for them. RTB has the perfect solution here: at
the entrance to the car park, the height and width of the vehicle
are recorded and it is classified accordingly. If it is one of the
so-called XXL vehicles, the driver will be allotted an appropriate-
ly sized parking space. Of course, this system also work with
small vehicles. Thus, RTB’s intelligent car park management
provides for better interaction.
History of the four rings
The Audi museum mobile presents the rapid develop-
ment of the automobile in an impressive manner. In a
thrilling journey through time, the visitor experiences
the company history of the present-day AUDI AG.
Along with the permanent exhibition under the
motto “Four Rings – A Century”, alternating special
exhibitions draw the attention of the visitors. Here
the next generation of engineers is not left out.
Address: AUDI AG Special tours for children are tailor-made for the
Audi museum mobile needs of the youngest museum visitors. There are
Audi Forum Ingolstadt also diversified hands-on activities.
85045 Ingolstadt
www.audi.de/foren
Opening times: daily from 9.00 to 18.00 o’clock
Visit us on the Internet: www.rtb-bl.de
Traffic Light Report No. 79
