2020
CAR WASH
PRODUCT CATALOG
Hamilton Mfg Corp. P: 419.867.4858 hamiltonmfg.com
1026 Hamilton Dr. P: 888.723.4858
Holland, OH 43528 F: 419.867.4850
Document #6048 1/20
888-723-4858 sales@hamiltonmfg.com hamiltonmfg.com 2
Contents
Pay Stations
Hamilton Transaction Kiosk (HTK) ............................................................. 4-5
Cashless Transaction Kiosk (CTK) .............................................................. 6-7
Gold Line® ................................................................................................. 8-10
Hosted Solutions
Overview ................................................................................................... 11-12
Custom Mobile App.................................................................................... 13
ExpressPass RFID System.......................................................................... 14
Custom Ecommerce Website ..................................................................... 15
Data Access Network
D.A.N. System ........................................................................................... 16
D.A.N. Transaction Terminals ..................................................................... 17
Card Receipt Stations ................................................................................ 17
Code Systems
HCS II ....................................................................................................... 18
HCS IV ...................................................................................................... 18
Change Machines - Rear Load
3600RL ..................................................................................................... 19
DRS .......................................................................................................... 19
ER-60 ....................................................................................................... 20
RNS .......................................................................................................... 20
Bill to Bill ................................................................................................... 21
Bill to Bill Mini ........................................................................................... 21
DRS-CCT ................................................................................................... 22
RNS-CCT .................................................................................................. 22
Card & Change Dispenser (CCD) ............................................................... 23
Change Machines - Front Load
3600 FL .................................................................................................... 24
1200 FL-C ................................................................................................. 24
1200 FL-S ................................................................................................. 24
Change Machine Accessories ....................................................... 25
Gates & Gate Accessories ............................................................... 25
Gift Cards ................................................................................................ 26
Tokenotes® ......................................................................................... 26
ACW 4/5 Retrofit Kits ......................................................................... 26
Customer Service ............................................................................... 27
3

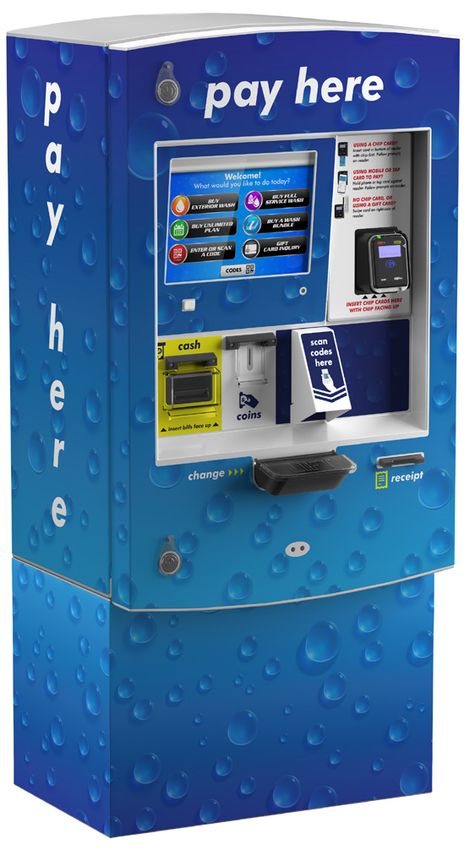

HAMILTON TRANSACTION KIOSK (HTK) Pay Stations
HTK is a powerful unattended pay station designed to engage your customers and grow your business through innovative technologies,
superior marketing capabilities, and outstanding security & durability.
BASE CONFIGURATION INCLUDES:
• 15” touch screen display with new software enhancements • Security camera, alarm, impact sensor, and high strength
to allow segmenting of packages/services main door with MEDECO® locks
• Brick-in cabinet • Self-contained vault/cash chamber with high security door
• Full door wrap with Blue Waterdrop design • Password protection
• Mag stripe credit card acceptance with receipt printer • Automated voice prompts (bi-lingual)
• XE validator (w/Tokenote acceptance, 1,000 bill capacity)
® • Programmable special event times and pricing
• IDX X12 multi-coin acceptor (accepts six different coin types) • Offers status updates via SMS or email
• Two 4,800 quarter capacity hoppers • Constant Voltage Transformer (CVT)
• Supports video playback • Validated payment application (PCI PA-DSS) & ETL listed
SPECIFICATIONS
Brick-in 40” H x 26 1/2” W x 15 3/4” D
cabinet size: (101.6cm H x 67.3cm W x 40cm D)
Free-standing 41 1/8’” H x 28 3/8’” W x 15 7/8” D
cabinet size: (104.5cm H x 72.1cm W x 40.3cm D)
40”
26 1/2” 15 3/4”
Brick-in dimensions shown
Door: 11 gauge stainless steel
Cabinet (brick-in): 11 gauge carbon steel
Cabinet (free-standing): 11 gauge stainless steel
Bases available in 18”, 24”, 35”, and 48” heights
Power: 120 VAC, 60 Hz
Weight: 452lbs/205.0kg
COMPANION PRODUCTS
• Hosted Solutions (page 11)
• Custom Mobile App (page 13)
• ExpressPass RFID System (page 14)
• Custom Ecommerce Website (page 15)
• Data Access Network (page 16)
Image does not represent base configuration
4
Pay Stations HAMILTON TRANSACTION KIOSK (HTK)
CABINET OPTIONS
Free-standing cabinet
WRAP OPTIONS
Cabinet wrap (for free-standing units only)
Base wrap (for free-standing units only):
18” [part #96-5072]
24” [part #96-5073]
35” [part #96-5074]
Custom wrap design service (includes custom design of door, cabinet, and base wrap artwork where applicable)
CUSTOM TOUCH SCREEN THEME
Touch screen display interface is customized to your car wash brand
CREDIT CARD OPTIONS
Ingenico iUC285 all-in-one card reader (supports mag stripe, EMV/chip, and NFC) [USA market]
Verifone UX solution (pinpad, EMV/chip reader for credit, debit, & Interac Flash, NFC reader) [Canadian market]
BARCODE SCANNER
Barcode image reader
BILL ACCEPTOR/VALIDATOR OPTIONS
Mars (500 bill capacity)
Mars Cashflow (900 bill capacity)
BILL DISPENSER OPTION
Dual bill dispenser (single dispenser not available)
VOICE OPTIONS
Female/male voice - included in base configuration
Custom voice [female part #105-0001-Q; male part #105-0000-Q]
ACCESSORIES
Base Kits for free-standing units:
18” curb mount [part #100-0161]
24” surface mount [part #100-0188]
35” walk up [part #100-0190]
48” truck/semi height [part #100-0265]
Handheld Kit (interchangeable between machines) [part #100-0136]
HTK Spare Bill Cassette [part #49-9533]
HTK Bill Cassette Locks [part #63-5061]
Receipt paper 3.15” x 675’ [part #47-3275, per roll]
Wash Interface Auxiliary Kit (for adding additional relay vends) [part #100-0229]
RETROFIT KITS
Door wrap retrofit kit (for bonded or touch screen configurations, Blue Waterdrop design)
Cabinet wrap retrofit kit (for free-standing units only, Blue Waterdrop design)
Mars Cashflow retrofit kit [part #100-0248]
Touch screen retrofit kit (when upgrading from 10.4” bonded display)
Dual bill dispenser kit [part #100-0159]
Barcode reader retrofit kit (machines with barcode scanner cannot have PayPass) [part #100-0187]
Rain shield retrofit kit [part #100-0202]
5
CASHLESS TRANSACTION KIOSK (CTK) Pay Stations
CTK includes the same compelling features of the larger HTK pay station, but takes up a smaller footprint by eliminating cash and
coin acceptance.
BASE CONFIGURATION INCLUDES:
• 15” touch screen display with new software enhancements • Security camera, alarm, and high strength door with
to allow segmenting of packages/services MEDECO® locks
• Free-standing cabinet • Programmable special event times and pricing
• Full door wrap with Blue Waterdrop design • Offers status updates via SMS or email
• Mag stripe credit card acceptance with receipt printer • Constant Voltage Transformer (CVT)
• Supports video playback • Validated payment application (PCI PA-DSS)
• Automated voice prompts (bi-lingual) • ETL listed
SPECIFICATIONS
Free-standing 36 ½” H, 18” W, 14” D
cabinet size: (92.7cm H, 45.7cm W, 35.6cm D)
36 1/2”
18” 14”
Door: 11 gauge stainless steel
Cabinet: 11 gauge stainless steel
Bases available in 16”, 24”, and 48” heights
Power: 120 VAC, 60Hz
Weight: 150lbs/62.8kg
COMPANION PRODUCTS
• Hosted Solutions (page 11)
• Custom Mobile App (page 13)
• ExpressPass RFID System (page 14)
• Custom Ecommerce Website (page 15)
• Data Access Network (page 16)
Image does not represent base configuration
6
Pay Stations CASHLESS TRANSACTION KIOSK (CTK)
WRAP OPTIONS
Cabinet wrap
Base wrap (for free-standing units only):
16” [part #96-5107]
24” [part #96-5106]
48” [part #96-5105]
Custom wrap design service (includes custom design of door, cabinet, and base wrap artwork where applicable)
CUSTOM TOUCH SCREEN THEME
Touch screen display interface is customized to your car wash brand
CREDIT CARD OPTIONS
Ingenico iUC285 all-in-one card reader (supports mag stripe, EMV/chip, and NFC) [USA market]
Verifone UX solution (pinpad, EMV/chip reader for credit, debit, & Interac Flash, NFC reader) [Canadian market]
BARCODE SCANNER
Barcode image reader
VOICE OPTIONS
Female/male voice - included in base configuration
Custom voice [female part #105-0001-Q; male part #105-0000-Q]
ACCESSORIES
Base Kits:
16” [part #100-0231]
24” [part #100-0201]
48” [part #100-0266]
Receipt paper 3.15” x 675’ [part #47-3275, per roll]
Wash Interface Auxiliary Kit (for adding additional relay vends) [part #100-0229]
RETROFIT KITS
Door wrap retrofit kit (for bonded or touch screen configurations, Blue Waterdrop design)
Cabinet wrap retrofit kit (Blue Waterdrop design)
Barcode reader retrofit kit [part #100-0187]
Rain shield retrofit kit [part #100-0202]
7
GOLD LINE Pay Stations
®
Gold Line® is a cost-effective kiosk solution designed for unattended car washes. With proven durability and security, it provides a
quick and easy way for your customers to purchase services.
BASE CONFIGURATION INCLUDES:
• Scrolling red LED display • Maximum capacity: 3,200 quarters
• Painted brick-in / hood mount cabinet • High security MEDECO® locks
• Blue/Silver Lexan panel • Automated voice prompts
• XE validator (w/Tokenote acceptance, 1,000 bill capacity)
® • Keypad
• Accepts $1, $5, $10, and $20 bill denominations • Promotional Coupon Code capability (up to 24 codes)
• Two Slugbuster coin acceptors (accepts quarters, $1 coins, or tokens)
® • Four wash selection buttons
SPECIFICATIONS
Cabinet size 27 1/2” H x 21 3/4” W x 11 7/8” D
(both free-standing & 69.9cm H x 55.2cm W x 30.2cm D
brick-in):
27 1/2”
21 3/4” 11 7/8”
Door: 11 gauge stainless steel
Cabinet: 11 gauge carbon steel cabinet (brick-in)
Cabinet: 11 gauge stainless steel cabinet (free-standing)
Stainless steel console base available in 20” or 26” height
Carbon steel pedestal base available in 20” or 26” height
Power: 110 VAC, 60 Hz
Weight: 205lbs/93.0kg
COMPANION PRODUCTS
• Hosted Solutions (page 11)
• Custom Mobile App (page 13)
• ExpressPass RFID System (page 14)
• Custom Ecommerce Website (page 15)
• Data Access Network (page 16)
Image does not represent base configuration
8
Pay Stations GOLD LINE
®
CABINET OPTIONS
Free-standing cabinet
PANEL OPTIONS
Custom panel design service
DISPLAY/SCREEN OPTIONS
Single line green LCD display
5.7” Graphic Display
Custom ‘Welcome Screen’ for Graphic Display option
CREDIT CARD OPTIONS*
Mag stripe Ethernet high speed (does not support EMV/chip, requires D.A.N. System)
Ingenico iUC285 all-in-one card reader (supports mag stripe, EMV/chip, and NFC)** [USA market]
Verifone UX solution (pinpad, EMV/chip reader, NFC reader, receipt printer)** [Canadian market]
RECEIPT PRINTER OPTION**
Thermal receipt printer
BARCODE SCANNER
Barcode image reader
BILL ACCEPTOR/VALIDATOR OPTIONS
Mars (700 bill capacity for US market, 500 bill capacity for Canadian market)
COIN ACCEPTOR/MECHANISM OPTIONS
IDX X12 coin acceptor (can be programmed to accept up to 5 coin values on coin box side)
WASH FUNCTION OPTIONS
Eight function (sell up to 8 washes)
VOICE OPTIONS
Female/male voice (must specify female or male preference when ordering) - included in base configuration
Custom voice [female part #105-0001-Q; male part #105-0000-Q]
HOODS & EXTERNAL DISPLAYS
Lighted stainless steel hood assembly - ‘PAY HERE’ (must use with brick-in cabinet) [part #61-0590A]
Lighted stainless steel hood assembly with scrolling display (must use with brick-in cabinet) [part #61-0590C]
Brick mount external display [part #61-0594D]
Brick mount external display with optional visor [part #61-0594E]
BONUS TOKEN VENDOR
The Bonus Token Vendor is a compact unit that mounts next to the Gold Line®. It can be programmed to dispense up to 9 tokens
per wash package which can be used by customers for complimentary services such as vacuums or vending.
Bonus Token Vendor (Gold Line® must have e-controller version 3.0 or higher)
Bonus Token Vendor 22” vertical base [part #100-0113]
Bonus Token Vendor 26” angled base [part #61-0600A]
Bonus Token Vendor 32” angled base [part #61-0601A]
* A nominal setup fee [part #D-2] applies to all credit card solutions
** A receipt printer is included with the Ingenico iUC285 (USA) and Verifone UX (Canada) EMV solutions
9
GOLD LINE Pay Stations
®
ACCESSORIES
20” [part #61-0592A] or 26” [part #61-0581A] stainless steel console base for free-standing cabinet
20” [part #61-0582A] or 26” [part #61-0589A] pedestal base for free-standing cabinet
Handheld Kit (interchangeable between machines) [part #100-0136]
Portable thermal printer kit [part #100-0203]
Locking stacker cover (with XE stacker only) [part #36-0052A]
Receipt paper (per 2.25” x 400’ roll, approx. 2000 receipts) [part #49-9396]
RETROFIT KITS
Gold Line® Graphic Display - includes graphic display, new face panel, and software
(cannot be used with Cashcode validator) [part #100-0158]
Gold Line® red LED scrolling display retrofit kit [part #05-0071]
Gold Line® D.A.N. credit card retrofit kit (high-speed) for units purchased before 1/1/07 -
includes reader, controller, harnesses, brackets [4-function part #100-0140; 8-function part #100-0143]
High-speed credit card retrofit kit for units built after 1/1/07 (must have e-controller) [part #100-0073]
Keypad retrofit kit [part #100-0072]
Slugbuster coin acceptor [part #80-9252]
IDX coin acceptor [part #80-9264]
Lexan face panel retrofit kit (extended length, standard design)
Barcode Scanner retrofit kit [part #100-0249]
10Hosted Solutions is a comprehensive, cloud-based platform that allows you to easily manage your loyalty
initiatives and financial data from one convenient resource.
Optimized for both single and multi-site operators, we offer three subscription levels to meet your needs:
BRONZE SILVER GOLD
Business Dashboard Business Dashboard Business Dashboard
Reporting (daily, revenue, usage) Reporting (daily, revenue, usage) Reporting (daily, revenue, usage)
Single Use Codes Single Use Codes Single Use Codes
• 25 individual per day • 100 individual per day • Unlimited individual per day
• No batch generation • Up to 100 batch-generated per day • Up to 500 batch-generated per day
Receipt Codes* Receipt Codes* Receipt Codes*
Wash Bundles* Wash Bundles* Wash Bundles*
Supports Custom Mobile App** Supports Custom Mobile App** Supports Custom Mobile App**
Supports Wash Clubs for Supports Wash Clubs for Supports Wash Clubs for
Mobile App Mobile App Mobile App
ExpressPass RFID ExpressPass RFID ExpressPass RFID
Management Management Management
Supports Custom Ecommerce Supports Custom Ecommerce Supports Custom Ecommerce
Website Website Website
$25.00/mo OR $275.00/yr $50.00/mo OR $550.00/yr $125.00/mo OR $1,375.00/yr
Part #30-0100-01 (for monthly billing) Part #30-0200-01 (for monthly billing) Part #30-0300-01 (for monthly billing)
Part #30-0100-12 (for annual billing) Part #30-0200-12 (for annual billing) Part #30-0300-12 (for annual billing)
*These features are only available for HTK or CTK kiosks ** Mobile App requires additional subscription of $200.00/mo (for unlimited sites).
Subscription prices for Bronze, Silver, or Gold levels are per location. A one-time account setup fee [part #30-0000] of $275.00 applies to all orders.
11FEATURE OVERVIEW
REPORTING
A customizable dashboard lets you configure and arrange widgets to show high-level, real-time statistics for key areas of your
business. A wide range of detailed reports are also available that allow you to drill further down into data by date range, location,
and terminals.
EQUIPMENT MONITORING
Hosted Solutions continually monitors the status of your Hamilton equipment, providing crucial real-time feedback to help you solve
problems quickly. Three main status indicators help you identify the severity of any issue:
• GREEN: equipment is functioning normally
• YELLOW: an issue has been identified, but the equipment is still functioning (for example, a low hopper, unlocked door, or low receipt paper)
• RED: indicates that an equipment component has an issue and needs attention (either the kiosk or the car wash equipment)
WASH BUNDLE MANAGEMENT*
Increase your repeat business by offering wash bundles directly at any HTK or CTK pay station. You determine the quantity of
washes you want to include in each bundle, and then set the price in Hosted Solutions. Bundles are then displayed on the HTK/
CTK screen for purchase.
When a customer buys a bundle, they are given a receipt with a unique barcode that is scanned until the bundle is depleted. You
can customize the text that displays on the receipt in Hosted Solutions.
MOBILE APP, EXPRESSPASS RFID, AND ECOMMERCE MANAGEMENT
Create and manage your loyalty programs through the simple and inituitive interface in Hosted Solutions.
PROMOTIONAL CODES
Promotional Codes available within Hosted Solutions can help you build customer loyalty, encourage repeat business, attract new
clientele, and address on-site issues in a faster manner than traditional methods.
• Single Use Codes
These can be instantly emailed to customers, or generated in a format of your choice for later manipulation. They are either
scanned at the barcode reader, or entered as a 9-digit number on the pay station keypad for redemption.
• Receipt Codes*
Print codes on the bottom of your customer’s receipts, offering discounts and incentives for future visits. The number of uses
and expiration dates are customizable.
DATA STORAGE
Hosted Solutions gives you peace of mind by providing cloud-based storage. In the event of a catastrophic error when a D.A.N.
requires complete replacement, all of your historical data is still accessible through Hosted Solutions.
* Receipt Codes and Wash Bundles are available for HTK & CTK pay stations only
12CUSTOM MOBILE APP
When Hamilton creates a customized mobile app for your business, we’re providing you with a cutting-edge
marketing tool that builds customer loyalty and increases your bottom line.
Styled after your car wash brand and designed for both Android and iOS platforms, the range of available
features allow users to:
BUY WASHES EARN LOYALTY REWARDS JOIN A MONTHLY WASH CLUB
Washes are listed in an expandable format, Offer your customers a loyalty program Your app supports a phone-based
allowing users to view the specific items that rewards them for every purchase they membership program with the same
offered with each package. make in the app. features as our ExpressPass RFID system.
After making a selection and completing Set the threshold value and reward item in It’s a fantastic way to offer your customers
payment in the app, the purchased item Hosted Solutions (for example: $50 worth a monthly plan without the need for
appears as a QR code that can be used of purchases will get a free Ultimate Wash), hardware or attendants to complete the
immediately, or saved for later. and once the user hits that threshold, they sign-up process.
will get a notification and email alerting
The user simply scans the code at the kiosk them to their free wash. Wash Clubs are tied to each users
whenever they want to redeem a wash. unique phone ID to minimize abuse, and
An interactive ‘slider’ displays the users codes have 30-second expiration time to
points progress on the app home screen. minimize sharing.
CLAIM DEALS & DISCOUNTS PAY FOR SITE SERVICES FROM THE APP GIFT WASHES & BUNDLES
Set up deals to reward existing users and Any customers with a card on file will be The gifting feature lets users craft a
entice new customers to download the able to use AirPAY to complete purchases customized email within the app and send
app. Four types of deal are available: at kiosks and other equipment fitted with a wash or bundle to friends and family.
• Bundle (sell a package of washes for a Hamilton timers and a barcode scanner -
discounted price) such as self serve bays, pet washes, and Once the gift purchase is complete, the
• Item (to give away a complete wash) vacuums. email is sent to the recipient alerting them
• Item Dollar Discount (discount a to their gift, which they can redeem by
particular wash, for example ‘$2 Off Not only does AirPAY provide more scanning the attached QR code at the
Our Premium Wash’ convenience to the customer, but it kiosk.
• Transaction Dollar Discount (discount also offers an alternative to costly EMV-
any wash by a particular dollar amount. compliant upgrades in self-serve areas. The email body includes links to your app
for increased brand exposure.
ADDITIONAL FEATURES
Push Notifications: send notifications straight to your users phones. Let them
know about Wash Club, deals, and any other features at your car wash you wish
to promote.
Birthday Wash: your app can automatically send a complimentary wash to a
user on their birthday. Both the push notification and email can be tailored to
each individual for a personalized experience.
Find Us: users can get driving directions to your wash(es) and view hours &
amenities.
Simple Management: all features are controlled through an intuitive interface
in Hosted Solutions, with an online user manual to help guide you through any
operational questions.
Data tracking: a variety of reports and features allow you to gauge the
effectiveness of promotions, Wash Club usage, user behavior, and more.
13EXPRESSPASS RFID SYSTEM
ExpressPass is an access control system that offers a fast and convenient way for customers to gain entry to your car wash.
Using Radio Frequency Identification (RFID), ExpressPass reads a unique chip embedded in a customizable, windshield-mounted,
tamper-proof tag. It then validates the account holder information in a secure database, before vending the appropriate service.
The result is a quick, easy, and personalized experience for the customer. For you - it’s higher throughput, greater customer loyalty,
and improved cash flow through recurring subscriptions.
ExpressPass is a fully-integrated system for the HTK, CTK, Gold Line®. It is also available in a stand-alone Express Lane configuration,
requiring no kiosk.
FEATURES
• Pass types: Prepaid, Postpaid, Unlimited, or • Limits: easily place limits on the number of times a pass is
Pay-As-You-Go used
• Customization: display customer name on welcome screen; • Billing & reporting: automated billing run nightly, with option
name your loyalty programs; print custom messages on for manual billing; generate reports on member activity,
receipts invoices, and transaction records
EXPRESSPASS CONFIGURATIONS & TAG OPTIONS (GOLD Hosted Solutions plan required)
For HTK or CTK pay stations (per lane) [part #100-0251]
For Gold Line® pay stations (per lane) [part #100-0253]
For Express Lane (per lane, requires Handheld Kit for setup) [part #100-0254]
Standard RFID tags [part #45-0147]
Custom RFID tags
14CUSTOM ECOMMERCE WEBSITE
Hamilton’s Custom Ecommerce Website program was designed
to help wash operators capitalize on growing consumer demand
to make purchases online.
Styled to match your car wash brand, all sales and management
run through Hosted Solutions for simple and controlled
administration.
Customers can use your Ecommerce site to purchase:
• MONTHLY EXPRESSPASS RFID PLANS
• WASH BUNDLES
• INDIVIDUAL WASHES
• GIFT CARDS
Customers can also check their Gift Card
balances, send Gift Cards as presents to
friends and family, and update credit card
information for their monthly plans.
DESIGN
Our design team works closely with you to create a site that accurately projects your branding, color scheme, and imagery. The site
is also responsive, meaning it will automatically scale in size to fit the device it is being viewed on. Whether your customer is on a
desktop computer, laptop, tablet, or cell phone, they will always be guaranteed a user-friendly viewing experience.
SELLABLE ITEMS
• MONTHLY EXPRESSPASS RFID PLANS
Reduce your administration costs by providing customers with an easy way to sign up for your monthly plans. Once a plan
is chosen, the customer adds their personal, vehicle, and payment information before the transaction is processed. In their
email confirmation, they receive a Single Use Code good for their first wash, so even if a customer signs up in-lane, they are
able to wash immediately afterwards without having to make a separate purchase.
All Ecommerce plan data is pushed to Hosted Solutions, so the only administration required on the car wash operator side is
to add the tag number to the relevant account.
• WASH BUNDLES
Sell bundles (packages of washes) at a discounted rate to encourage return business.
• INDIVIDUAL WASHES
Sell individual washes to let customers pre-pay for their desired service. You can even set custom pricing to incentivize online
sales.
• GIFT CARDS
Sell Gift Cards of varying values to drive customer loyalty. Customers can purchase for their own use, or request them to be
sent as gifts for friends and family - perfect for birthdays, holidays, and special occasions. They can also check their Gift Card
balance, and easily add value when required.
• MISCELLANEOUS PRODUCTS
You can also add any number of ancillary products to sell, such as air fresheners, tire shine, towels, dash wipes, and t-shirts.
15D.A.N. SYSTEM Data Access Network
D.A.N. is a computer system that networks all Hamilton equipment at a single location to Hosted Solutions. As well as transmitting
financial and operational data, D.A.N. also pushes ExpressPass RFID tag reads, mobile app codes, Receipt Codes, and Single Use
Codes to Hosted Solutions for validation.
For sites using mag stripe Gold Line® pay stations, ACW pay stations, DTT/DTI’s, RNS-CCT change machines, or DRS-CCT change
machines, the D.A.N. provides high-speed credit card clearing.
FEATURES
• Windows 8.1 operating system
• Connects any Hamilton equipment (HTK, CTK, Gold Line®, change machines, DTT’s/DTI’s) to Hosted Solutions
• Provides high-speed credit card clearing for Gold Line®, DTT’s/DTI’s, and change machines
• Email and text notifications: get status and error reports on any equipment connected to the D.A.N.
• Processes Hamilton Gift Cards
• Event pricing for Gold Line®:
- D.A.N. can automatically change prices, coupon values, welcome prompts, and external display messaging based on the
time of day and day of the week
- implement a recurring event for a single day, or an event for a single date
• Validated payment application (PCI PA-DSS)
• Requires customer-supplied keyboard, monitor, and mouse
Example multi-site layout:
LOCATION 1 LOCATION 2
Hosted Solutions
Pay
Station
Pay
Station 1
Change
Machine
D.A.N. D.A.N. Pay
System System Station 2
Self-Serve
Bay 1
Change
Machine
Self-Serve
Bay 2
MODELS
Econo D.A.N.
(computer only, does not include cabinet housing. Not suitable for wet environments) [part #49-9669]
Power: 120 VAC, 60Hz | Weight: 1.95lbs/0.88kg
Basic D.A.N.
(includes computer and heavy-duty cabinet housing, suitable for use in wet environments) [part #49-9671]
Power: 120 VAC, 60Hz | Weight: 40lbs/18.1kg | Cabinet construction: 14 gauge stainless steel
Dimensions: 20” H x 19 7/8” W x 5” D | 50.8cm H x 50.5cm W x 12.7cm D
ACCESSORIES
Card reader to activate, recharge, and check balance of Gift Cards (for Econo or Basic versions) [part #49-9442]
Transaction receipt printer (allows printing of receipts from D.A.N. computer) [part #100-0118]
Cash drawer and transaction receipt printer for D.A.N. [part #100-0205]
* D.A.N. systems include Validated Payment Application (PCI PA-DSS) software for high-speed credit card processing, Gift Card acceptance, and remote
management. If using mag stripe credit card processing, an account with E-xact Transactions Ltd. (secure gateway provider) is required.
16Data Access Network D.A.N. TRANSACTION TERMINALS
A D.A.N. Transaction Terminal (DTT) ties into your existing bay boxes to provide mobile payment, credit card, or cash options to your
self-serve operations. It can also be used for vac stations and pet washes.
DTT WITH BARCODE SCANNER
BASE CONFIGURATION:
• Barcode scanner lets customers use your Custom Mobile App* to activate bay timers,
vacuums, and pet washes
• Bright, back-lit display shows minimum charge, final charge, and custom messaging
• Full cabinet wrap can be customized with your brand, logo, and instructional text
• Optional mag stripe reader can be added to process Gift Cards or credit cards (non-EMV)
• Lets you offer alternate payment method to coins without the need for expensive EMV
hardware upgrades
• Dimensions: 10 11/16” H x 8 3/16” W x 3 5/8” D | 27cm H x 21cm W x 90cm D
• Cabinet: 11 gauge stainless steel | Power: 24 VAC, 60Hz | Weight: 14lbs/6.4kg
DTT WITH CARD READER
BASE CONFIGURATION:
• Mag stripe reader processes Gift Cards and credit cards (non-EMV)
• High security MEDECO® lock
• Bright, back-lit display shows minimum charge, final charge, and custom messaging
• Door wrap can be customized with your brand, logo, and instructional text
• Dimensions: 10 1/4” H x 9 3/8” W x 4” D | 27cm H x 24cm W x 11cm D
• Cabinet: 11 gauge stainless steel | Power: 24 VAC, 60Hz | Weight: 22lbs/10kg
DTT WITH CARD READER & VALIDATOR
BASE CONFIGURATION:
• Mag stripe reader processes Gift Cards and credit cards (non-EMV)
• Mars validator allows you to accept $1, $5, $10, and $20 bills (no change given, 300 bill capacity)
• High security MEDECO® lock
• Bright, back-lit display shows minimum charge, final charge, and custom messaging
• Door wrap can be customized with your brand, logo, and instructional text
• Dimensions: 10 1/4” H x 9 3/8” W x 4” D | 27cm H x 24cm W x 11cm D
• Cabinet: 11 gauge stainless steel | Power: 24 VAC, 60Hz | Weight: 22lbs/10kg
*requires Custom Mobile App, see page 13
CARD RECEIPT STATIONS
Print credit card receipts and receipts for Gift Card transactions at any
device connected to a D.A.N.
CRS RL (REAR LOAD)
• Cabinet dimensions: 16” H x 13” W x 13” D
46 cm H x 30 cm W x 25 cm D
• Faceplate dimensions: 17 3/4” H x 14 3/4” W
45 cm H x 37 cm W
CRS FL (FRONT LOAD)
• Dimensions: 16 1/4” H x 15 3/4” W x 9” D
41 cm H x 40 cm W x 22 cm D
17CODE SYSTEMS
Hamilton Code Systems issue prepaid or postpaid codes that can be redeemed at your car wash. They are typically installed in
c-stores, gas stations, quick lubes, and car dealerships to support cross-business sales initiatives.
CODE SYSTEM II
[PART #106-0012]
Master POS system with remote capabilities
• Keypad assembly
• Point of sale (POS) unit
• Printer
• Car wash interface
• Hardware and wiring
• Pedestal base
• UPS
• 250ft of communication wire (RS485-1 pair twisted)
CODE SYSTEM IV
[PART #106-0014]
• Master POS system with remote capabilities
• Hamilton POS unit
• Printer
• Hardware and wiring
• One (1) RS485 surge suppressor (additional suppressors required if connecting to more than one Gold Line)
• Isolator box
• UPS
• 250ft of communication wire (RS485-1 pair twisted)
ACCESSORIES
Remote POS unit for Code System II & IV with Pay-At-The-Pump [part #106-0014] wireless remote POS and printer
RS485 Surge suppressor [part #49-9426] required with each additional Gold Line connecting to a Code System
IMPORTANT: to ensure proper connection and functionality of the Hamilton Code System with a site controller for Pay-At-The-
Pump, it is critical that you provide the following information when ordering:
• External POS manufacturer (e.g. Gilbarco, Ruby, etc.)
• Gas pump protocol: Unicam or Ryko-Code-A-Wash 3/4
• Site controller baud rate
• Remote satellites being implemented
Please contact your Hamilton sales representative if you require further assistance
18Change Machines REAR LOAD
3600RL DRS
BASE CONFIG: BASE CONFIG:
• Two (2) XE bill acceptors/validators with 1,000 bill capacity • Two (2) XE bill acceptors/validators with 1,000 bill capacity
• Three (3) hoppers • 9,600 quarter capacity
• Two Audit Pro Controllers (Handheld Kit required for • 7 gauge stainless steel faceplate
setup) • 11 gauge carbon steel cabinet
• 7 gauge stainless steel faceplate • High security MEDECO® locks
• 11 gauge carbon steel cabinet • Heater (only available with XE validator)
• High security MEDECO® locks • Weather shield (only with XE or Mars validators)
• Heater (only available with XE validator) • ETL listed
• Weather shield (only with XE or Mars validators)
• ETL listed BILL ACCEPTOR/VALIDATOR OPTIONS
14,400 QUARTER CAPACITY Mars (700 bill capacity for US, 500 bill capacity for Canada)
2 validators / 3 hoppers Coinco
1 validator / 3 hoppers
9,600 QUARTER CAPACITY
OPTIONS
2 validators / 2 hoppers Token face panel
1 validator / 2 hoppers D.A.N.-ready controllers
4,800 QUARTER CAPACITY
1 validator / 1 hopper
BILL ACCEPTOR/VALIDATOR OPTIONS
Mars (700 bill capacity for US, 500 bill capacity for Canada)
Coinco
OPTIONS
Handheld Kit
(interchangeable between machines) [part #100-0136]
IDX X12 coin acceptor
Slugbuster coin acceptor
Token face panel
D.A.N.-ready controller
(not available when two XE validators are being used)
3600RL is a direct replacement to the discontinued RL-2/RL-3 change
machine.
19REAR LOAD Change Machines
ER-60 RNS
BASE CONFIG: BASE CONFIG:
• XE bill acceptor/validator with 1,000 bill capacity • XE bill acceptor/validator with 1,000 bill capacity
• 2,400 quarter capacity • 4,800 quarter capacity
• 7 gauge stainless steel faceplate • 7 gauge stainless steel faceplate
• 11 gauge carbon steel cabinet • 11 gauge carbon steel cabinet
• High security MEDECO® locks • High security MEDECO® locks
• Heater (only available with XE validator) • Heater (only available with XE validator)
• Weather shield (only available with XE or Mars validators) • Weather shield (only available with XE or Mars validators)
• ETL listed • ETL listed
ER-60 XT RNS XT
The ER-60-XT has the same features as the standard ER-60, The RNS-XT has the same features as the standard RNS, but
but includes an extended face plate and replaces the S-540- includes an extended face plate and replaces the CM1-XRS
XRS
BILL ACCEPTOR/VALIDATOR OPTIONS
BILL ACCEPTOR/VALIDATOR OPTIONS Mars (700 bill capacity for US, 500 bill capacity for Canada)
Mars (700 bill capacity for US, 500 bill capacity for Canada) Coinco
Coinco
OPTIONS
OPTIONS Token face panel
Token face panel D.A.N.-ready controller
D.A.N.-ready controller
20Change Machines REAR LOAD
BILL TO BILL BILL TO BILL MINI
BASE CONFIG: BASE CONFIG:
• XE bill acceptor/validator with 1,000 bill capacity • XE bill acceptor/validator with 1,000 bill capacity
• 4,800 quarter capacity • 7 gauge stainless steel faceplate
• Cabinet heater • 11 gauge carbon steel cabinet
• 7 gauge stainless steel faceplate • High security MEDECO® locks
• 11 gauge carbon steel cabinet • Weather shield (only available with XE or Mars validators)
• High security MEDECO® locks • Dispenses up to 1,000 bills
• Weather shield (only available with XE or Mars validators) • Programmable payouts
• Dispenses up to 1,000 bills • No hopper/coin acceptance
• Programmable payouts
BILL ACCEPTOR/VALIDATOR OPTIONS
BILL ACCEPTOR/VALIDATOR OPTIONS Mars High Denomination (accepts $1 - $100 bills)
Mars High Denomination (accepts $1 - $100 bills) Coinco
Coinco
OPTIONS
OPTIONS Spare bill cassettes [part #49-9533]
No hopper Bill cassette lock [part #63-5061]
Token face panel Handheld Kit (for programming payouts)
Spare bill cassettes [part #49-9533] [part #100-0136]
Bill cassette lock [part #63-5061] *Handheld Kit required for setup
Handheld Kit (for programming payouts) **A cabinet heater is not available for Bill to Bill Mini
[part #100-0136]
*Handheld Kit required for setup
21REAR LOAD Change Machines
DRS-CCT RNS-CCT
BASE CONFIG: BASE CONFIG:
• Changes $1, $5, $10 and $20 bills to coins/tokens, and • Charges a credit card to issue tokens
credit cards to tokens • Maximum capacity - 4,800 .984-size tokens
• XE bill acceptor/validator with 1,000 bill capacity • 7 gauge stainless steel faceplate
• Maximum capacity - 4,800 quarters and 4,800 .984-size • 11 gauge carbon steel cabinet
tokens • High security MEDECO® locks
• 7 gauge stainless steel faceplate
• 11 gauge carbon steel cabinet *Handheld Kit required for setup
** No change (currency) is dispensed for credit card transactions
• High security MEDECO® locks *** Must be used in conjunction with the D.A.N.
• Heater (only available with XE validator)
• Weather shield (only available with XE or Mars validators)
BILL ACCEPTOR/VALIDATOR OPTIONS
Mars (700 bill capacity for US, 500 bill capacity for Canada)
Coinco
OPTIONS
Tokens-only face panel
*Handheld Kit required for setup
** No change (currency) is dispensed for credit card transactions
*** Must be used in conjunction with the D.A.N.
22Change Machines REAR LOAD
USA Canada
CCD (CARD & CHANGE DISPENSER) CCD (CARD & CHANGE DISPENSER)
Mag Stripe EMV/Chip Card-Ready
BASE CONFIG: BASE CONFIG:
• Changes $1, $5, $10, and $20 bills to coins/tokens • Changes $1, $5, $10, and $20 bills to coins/tokens
• Includes a mag stripe reader to process credit cards • Includes EMV reader to process credit cards
• Purchase, recharge, and check balances of Gift Cards • Purchase, recharge, and check balances of Gift Cards
• Prints credit card receipts and receipts for Gift Card • Prints credit card receipts and receipts for Gift Card
transactions from any device using the D.A.N. transactions from any device using the D.A.N.
• Automated voice prompts • Automated voice prompts
• XE bill acceptor/validator with 1,000 bill capacity • XE bill acceptor/validator with 1,000 bill capacity
• 4,800 quarter and 200 card capacity • 4,800 quarter and 200 card capacity
• 7 gauge stainless steel faceplate • 7 gauge stainless steel faceplate
• 11 gauge carbon steel cabinet • 11 gauge carbon steel cabinet
• High security MEDECO® locks • High security MEDECO® locks
BILL ACCEPTOR/VALIDATOR OPTIONS CREDIT CARD OPTIONS
Mars (700 bill capacity for US, 500 bill capacity for Canada) Ingenico iUC285 all-in-one card reader
Coinco (supports mag stripe, EMV/chip, and NFC) [USA market]
Verifone UX solution
HEATER (pinpad, EMV/chip reader, NFC reader) [Canadian market]
Cabinet heater [part #47-3177]
BILL ACCEPTOR/VALIDATOR OPTIONS
*Handheld Kit required for setup Mars (700 bill capacity for US, 500 bill capacity for Canada)
** No change (currency) is dispensed for credit card transactions
*** Must be used in conjunction with the D.A.N. Coinco
HEATER
Cabinet heater [part #47-3177]
*Handheld Kit required for setup
** No change (currency) is dispensed for credit card transactions
*** Must be used in conjunction with the D.A.N.
23FRONT LOAD Change Machines
3600FL 1200FL-C
BASE CONFIG: BASE CONFIG:
• XE bill acceptor/validator with 1,000 bill capacity • XE bill acceptor/validator with 1,000 bill capacity
• Three (3) hoppers • 4,800 quarter capacity
• 11 gauge carbon steel cabinet • 11 gauge carbon steel cabinet
• High security MEDECO® locks • High security MEDECO® locks
• Weather shield (only with XE or Mars validators) • Indoor use only
• ETL listed • ETL listed
14,400 QUARTER CAPACITY
1 validator / 3 hoppers
1200FL-S
9,600 QUARTER CAPACITY
1 validator / 2 hoppers The 1200FL-S includes the same features as the FL-C, but
4,800 QUARTER CAPACITY has an 11 gauge stainless steel cabinet and is suitable for
1 validator / 1 hopper both indoor and outdoor use
BILL ACCEPTOR/VALIDATOR OPTIONS BILL ACCEPTOR/VALIDATOR OPTIONS
Mars (700 bill capacity for US, 500 bill capacity for Canada) Mars (700 bill capacity for US, 500 bill capacity for Canada)
Coinco Coinco
OPTIONS OPTIONS
Handheld Kit IDX X12 coin acceptor
(interchangeable between machines) [part #100-0136] Slugbuster coin acceptor
Audit Pro 2000 controller Token face panel
(Handheld Kit required for setup) D.A.N.-ready controller
IDX X12 coin acceptor Medium console base [part #61-0029A]
Slugbuster coin acceptor
Token face panel 1200FL-C is a direct replacement to the discontinued H-1 change machine.
D.A.N.-ready controller 1200FL-S is a direct replacement to the discontinued SS-1 change machine.
(not available when two XE validators are being used)
Large console base [part #61-0578A]
3600FL is a direct replacement to the discontinued HS-2 /HS-3 change
machine.
24Change Machines ACCESSORIES & RETROFIT KITS
ACCESSORIES
Handheld Kit (used with the Audit Pro/DCC/DTV/Bill to Bill/CCD controllers) [part #100-0136]
Locking hopper cover (excluding ER-60) [part #11-0052A]
Locking stacker cover (with XE stacker only) [part #36-0052A]
Out of service relay kit (to send notification if not connected to D.A.N.) [part #47-0155A]
Spare bill cassettes (for Bill to Bill machines only) [part #49-9533]
Bill cassette locks (for Bill to Bill machines only) [part #63-5061]
Portable thermal printer kit (Audit Pro Controller required) [part #100-0203]
RETROFIT KIT
Serial to Ethernet converter for existing change machine retrofits
(required for each changer to be connected to D.A.N.). Includes controller. [part #100-0260]
GATES & GATE ACCESSORIES
HTK/CTK
Gate sequence software [part #102-0236-01] (required when using more than one HTK; controls the
sequence of the paid transaction allowing the appropriate car into the lane at the correct time)
Magnetic Pro Barrier 10ft Varioboom [part #49-9716]
Magnetic Pro Barrier 12ft Varioboom [part #49-9717]
Vehicle detection loop [part #49-9478] (minimum one per gate)
Merge loop detector [part #49-9574] (requires a vehicle detection loop)
GOLD LINE®
Hamilton Gated Entry Controller [part #49-9472] (required when using more than one Gold Line®)
Magnetic Pro Barrier 10ft Varioboom [part #49-9716]
Magnetic Pro Barrier 12ft Varioboom [part #49-9717]
Vehicle detection loop [part #49-9478] (minimum one per gate)
Merge loop detector [part #49-9574] (requires a vehicle detection loop)
ACCESSORIES
10ft replacement Varioboom [part #49-9587]
10ft foam boom protector [part #49-9531]
12ft replacement Varioboom [part #49-9590]
Varioboom grey angle mount replacement [49-9620]
25GIFT CARDS
• Can be used to purchase services at HTK/CTK and any terminal
connected to a D.A.N.
• Same size as a credit card
• Add values from $5 to $500
• Rechargeable at the D.A.N., CCD change machine, or online (see
Ecommerce website, page 15)
• Use as Pre-Pay Gift Card or Post-Pay Fleet Card
• Customizable with your logo and text
• Helps reduce credit card fees
Print-ready artwork is required. Additional fees apply for corrections to files submitted that do not
meet required specifications. Gift Card program (including database maintenance and virtual terminal)
handled through P2P ($34.95 monthly fee per site)
TOKENOTES
®
• Size of a dollar bill
• Accepted like paper currency
• Reusable
• Offer a discounted value off one or more of your services
• Offer full credit for an individual service
• Customizable with your logo and text
• Perfect for mailers for marketing or refunds
• Multiple discount packages
• Use for fund-raisers and charities to draw attention to your business
ACW 4/5 RETROFIT KITS
Serial to Ethernet converter for high-speed credit card processing [part #100-0261]
ACW 4/5 red LED scrolling display retrofit kit [part #100-0200]
ACW 4/5 high-speed credit card retrofit kit [part #49-0563E]
Includes controller, CRC, Handheld Kit, Serial to Ethernet converter, all harnesses (D.A.N. not included)
AutoTec 4/5 high-speed credit card retrofit kit [part #49-0563F]
Includes controller, CRC, Handheld Kit, Serial to Ethernet converter, all harnesses (D.A.N. not included)
26CUSTOMER SERVICE
Not only does Hamilton produce innovative and high-quality equipment, we also offer outstanding customer
service and support through a team of dedicated, experienced technicians.
PHONE SUPPORT EMAIL SUPPORT ONLINE SUPPORT DATABASE
With no annual service charge, our Offering timely responses to all of Our website has hundreds of
complimentary phone support is your technical questions documents to help you maximize
available to you six days a week the value of your Hamilton products
VIRTUAL TRAINING IN-HOUSE TRAINING ON SITE TRAINING
Hamilton can offer tailored virtual Our professional technicians design Covers all the vital elements
training to all customers a custom training program for you at necessary for successful site
our Ohio headquarters launch and operation
ON SITE TRAINING*
Site Assessment
When our technicians arrive at your business, they will perform a comprehensive site assessment. This can involve checking and
verifying the communication connections, checking the existing programming, and analyzing the condition & quality of equipment
(making recommendations if any equipment is problematic or approaching end of life). We will also discuss future upgrade
possibilities so you can make informed decisions when the time is right.
Programming
When applicable, our team will make any necessary programming adjustments with you to ensure the Hamilton equipment is
operating exactly as you desire.
Training
• Maintenance: we demonstrate proper maintenance of all inner and outer components, and help you plan a regular maintenance
schedule
• Reports: we explain how to access them, how to read them, and how to leverage the data to develop effective marketing
strategies
• Remote access: we will show you how to remote into the D.A.N. and/or the HTK to generate reports, adjust prices,
change the customer interface, check/configure network settings, and more
• Staff/Employee user rights: we will help you set up user rights in the D.A.N. and/or HTK
Marketing Assistance
Hamilton technicians will train you on the various marketing capabilities available with our equipment. If you have a Hosted Solutions
subscription, we will provide training on how to set up your dashboard, manage your mobile app (if applicable) create RFID packages
(if applicable), sign up new customers, generate & send single-use codes, and create receipt codes. We will also show you how to
customize the HTK interface, create special events, program buy-ups/add ons, and utilize Gift Cards & Tokenotes.
Testing Equipment
The team will test all functions of the Hamilton equipment to ensure everything is working correctly and that the wash signals are
going directly to the tunnel controller/car wash equipment controller.
*fees apply for On-Site Training. Our team is available for one, two, or three day sessions.
272020
CAR WASH
PRODUCT CATALOG
Hamilton Mfg Corp. P: 419.867.4858 hamiltonmfg.com
1026 Hamilton Dr. P: 888.723.4858
Holland, OH 43528 F: 419.867.4850
Document #6048 1/20You can also read
