2021 PRODUCT CATALOGUE
2021 PRODUCT CATALOGUE
INDEX 4
ABOUT US PAG. 06
SPECIAL FEATURES PAG. 08
CROSS DOOR PAG. 10
CA91831X
CA91831BX
CA91831WG
CA91831BG
CB91832X PAG. 14
CB91832BX
CC83833X PAG. 18
SIDE BY SIDE
SB91773X PAG. 22
S83773X PAG. 26
MIMMO THE BLAST CHILLER PAG. 30
TECHNICAL CHART PAG. 36
TECHNICAL DRAWINGS PAG. 38
5

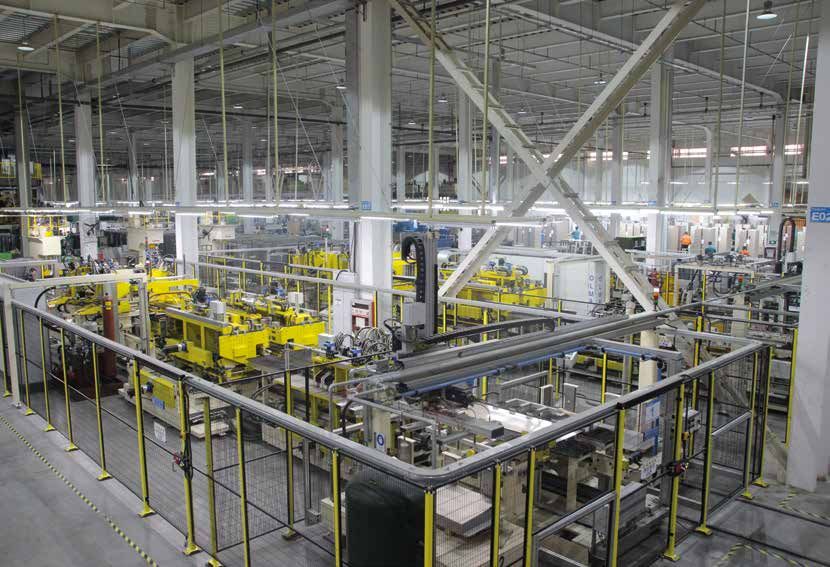

ABOUT US
We are a Company specialized in the production of 200 CATs throughout the country and has a large,
American refrigerators. Our philosophy is to offer fully automated spare parts warehouse.
products in which the functions really satisfy the
needs of our customers: we create sophisticated We are committed to offering an efficient
products that are simple because we believe that distribution service with goods always available
technology should improve the preservation of and short delivery times. For this reason we have a
food without complicating the way they function. single central warehouse in the province of Mantua,
That's why we offer high-end products at affordable able to serve all of Italy with the utmost promptness
prices. even on very small quantities; in fact, we believe
that a young company like ours should not limit itself
The quality of our products is very high, however, to offering a high-level product, but must ensure a
should a problem arise, we can count on the speed service that matches the product itself.
and efficiency of Universal Service Provider,
a company that has been providing technical We believe that our client is a partner who we can
assistance for over 20 years, which manages over establish a long-term collaboration with, therefore,
6
in addition to offering transparency and efficiency,
we strive to ensure a marginality higher than the
market average.
We care about respect and protection of the
environment, we are associated with Cobat RAEE,
the Consortium for the management of electrical
and electronic equipment waste. Our refrigerators,
if the correct recovery procedures are followed, are
recyclable up to 95%.
Finally, the collaboration with the well-known
Italian design studio, Studio Vegni, has allowed
GRF to create a line of products with a modern,
minimalist design, in line with the latest trends in
kitchen furniture.
7

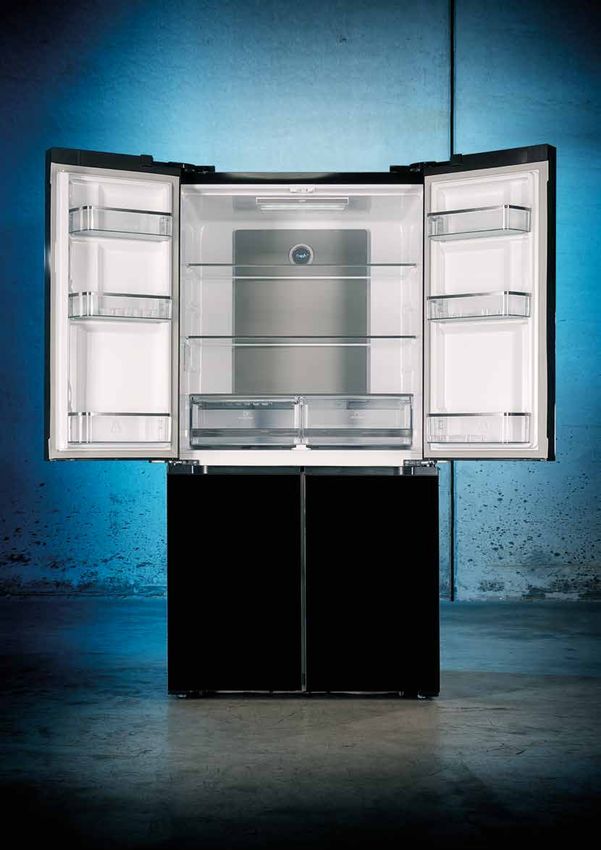

TOTAL NO FROST 90 DEGREE DOOR OPENING
It allows the homogeneous circulation The 90 degree opening allows the com-
of air inside the refrigerator and freezer, plete extraction of the drawers, even
eliminates ice and frost formation and when the refrigerator is close to a wall,
keeps food fresh for longer. and to easily pick up and store food.

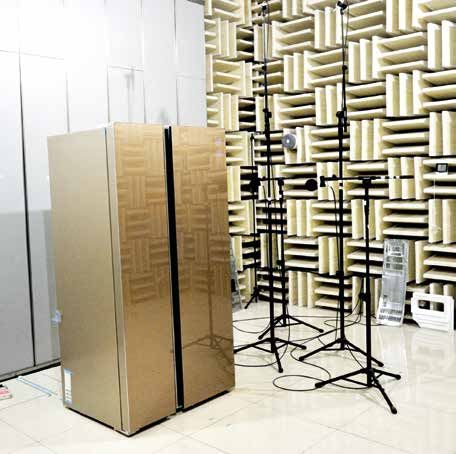

A+/A++ ENERGY CLASS; NEW CLASS F/E NOISE LEVEL
Respectively corresponding to the new The high level of silence makes all mod-
classes F and E, they improve the ener- els suitable to be placed anywhere in the
gy performance of the product, reduce house, even when the kitchen is integrat-
consumption and environmental impact. ed into the living space.
OPEN DOOR ALARM SYSTEM HOLIDAY MODE
The alarm system is activated if the door The temperature inside the refrigerator
is kept open for more than 60 seconds will be set to 6 C°, whie the temperature
warning to close it, so that no energy is inside the freezer to -15 C°, in order to
wasted. avoid energy waste.
8
INVERTER COMPRESSOR HEAT DISSIPATION FROM UNDERNEATH
It guarantees greater energy efficiency, The condenser underneath the refriger-
lower noise levels and better control of ator ensures that a few centimetres of
the internal temperature, useful for pre- space behind and around the refrigerator
serving food for longer. are sufficient to disperse the heat.

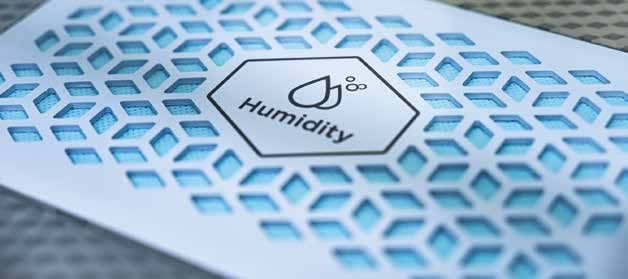

CONTROLLED HUMIDITY DRAWER ANTI-ODOUR FILTER
A special vegetable fibre membrane al- Thanks to the properties of active car-
lows moisture control, absorbing excess bon, the filter removes volatile organic
moisture and then releasing it when nec- compounds (VOCs), smells and other gas-
essary. eous pollutants from the air.

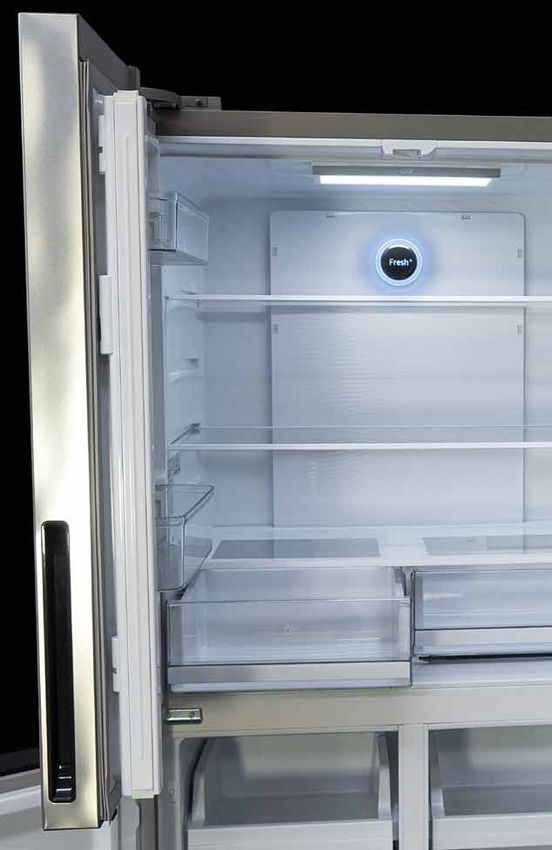

ALUMINIUM BACKREST TWIST ICE MAKER
It allows to keep the cold inside the re- Integrated in the door, it allows to have
frigerator even if you open it frequently. fresh ice available in the storage tray,
Foodstuffs do not undergo temperature which can be removed and comfortably
changes and are perfectly preserved. used at the table.
9

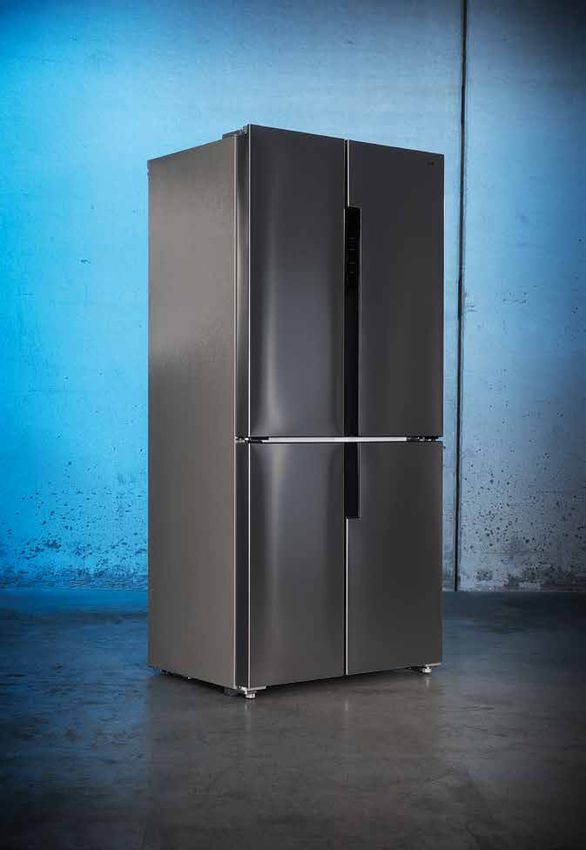

CROSS DOOR
CA91831X CA91831BX CA91831WG CA91831BG
TECHNICAL SPECIFICATIONS FEATURES
Refrigeration……………… Total no frost Inverter Compressor
Energy class…………………………… A++/E Aluminium backrest
Climate class………………… SN/N/ST/T Controlled humidity drawer
Total net capacity…………………… lt 542 Electronic display
CA91831X CA91831BX Net refrigerator capacity………… lt 367 Integrated handles
Inox Black Inox
Net freezer capacity……………… lt 175 Open door alarm system
Noise dB(A)………………………………… 41 LED light
Rapid cooling
Rapid freezing
DIMENSIONS Holiday mode
Width cm………………………………… 91,1 Trays with aluminium trims
CA91831WG CA91831BG Depth cm………………………………… 70,6 Shelves with aluminium trims
White glass Black glass Height cm………………………………… 183 Heat dissipation from underneath
Refrigeration Energy Noise level Inverter Aluminium Controlled 90° door Heat dissipation Anti odour Open doors Holiday
total no frost Class A++/E db(a) 41 compressor backrest humidity drawer opening from underneath filter alarm system mode
1011
12
13
CROSS DOOR
CB91832X CB91832BX
TECHNICAL SPECIFICATIONS FEATURES
Refrigeration……………… Total no frost Inverter Compressor
Energy class ……………………………A+/F Electronic display
Climate class………………… SN/N/ST/T Integrated handles
Total net capacity…………………… lt 451 Open door alarm system
CB91832X CB91832BX LED light
Net refrigerator capacity………… lt 321
Inox Black Inox Rapid cooling
Net freezer capacity……………… lt 130
Rapid freezing
Noise dB(A)………………………………… 41
Holiday mode
Shelves with white trims
Removable freezer tray
DIMENSIONS Heat dissipation from underneath
Width cm………………………………… 91,1 Reduced depth (63.6 cm)
Depth cm………………………………… 63,6
Height cm………………………………… 183
Refrigeration Energy Noise level Inverter Controlled 90° door Heat dissipation Anti odour Open doors Holiday
total no frost Class A++/E db(a) 41 compressor humidity drawer opening from underneath filter alarm system mode
1415
16
17
CROSS DOOR
CC83833X
TECHNICAL SPECIFICATIONS FEATURES
Refrigeration……………… Total no frost Inverter Compressor
Energy class………………………………A+/F Electronic display
Climate class ………………… SN/N/ST/T Integrated handles
Total net capacity lt ……………………417 Open door alarm system
CC83833X Net refrigerator capacity lt………… 288 LED light
Inox
Net freezer capacity lt……………… 129 Rapid cooling
Noise dB(A)………………………………… 41 Rapid freezing
Holiday mode
Shelves with white trim
DIMENSIONS Heat dissipation from underneath
Width cm………………………………… 83,6 Reduced depth (63.6 cm)
Depth cm………………………………… 63,6
Height cm………………………………… 183
Refrigeration Energy Noise level Inverter 90° door Heat dissipation Open doors Holiday
total no frost Class A++/E db(a) 41 compressor opening from underneath alarm system mode
1819
20
21

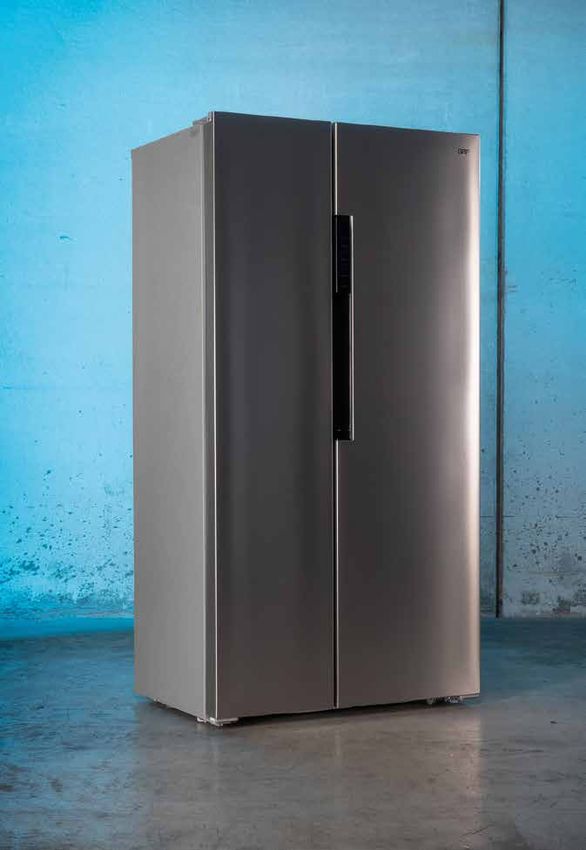

SIDE BY SIDE
SB91773X
TECHNICAL SPECIFICATIONS FEATURES
Refrigeration……………… Total no frost Aluminium backrest
Energy class………………………………A+/F Electronic display
Climate class………………… SN/N/ST/T Integrated handles
Total net capacity lt…………………… 496 Open door alarm system
SB91773X Net refrigerator capacity lt………… 331 LED light
Inox
Net freezer capacity lt……………… 165 Rapid cooling
Noise dB(A)………………………………… 41 Rapid freezing
Holiday mode
Safety lock for shelves
DIMENSIONS Shelves with white trims
Width cm………………………………… 91,1 Heat dissipation from underneath
Depth cm………………………………… 63,6
Height cm……………………………………178
Refrigeration Energy Noise level Aluminium Twist 90° door Heat dissipation Anti odour Open doors Holiday
total no frost Class A++/E db(a) 41 backrest ice maker opening from underneath filter alarm system mode
2223
24
25
SIDE BY SIDE
S83773X
TECHNICAL SPECIFICATIONS FEATURES
Refrigeration……………… Total no frost Electronic display
Energy class………………………………A+/F Integrated handles
Climate class………………… SN/N/ST/T Open door alarm system
Total net capacity lt…………………… 436 LED light
S83773X Net refrigerator capacity lt………… 271 Rapid cooling
Inox
Net freezer capacity lt……………… 165 Rapid freezing
Noise dB(A)………………………………… 41 Holiday mode
Safety lock for shelves
Shelves with white trims
DIMENSIONS Heat dissipation from underneath
Width cm………………………………… 83,6
Depth cm………………………………… 63,6
Height cm……………………………………178
Refrigeration Energy Noise level Twist 90° door Heat dissipation Anti odour Open doors Holiday
total no frost Class A++/E db(a) 41 ice maker opening from underneath filter alarm system mode
2627
28
29
MIMMO THE BLAST CHILLER
Mimmo the blast chiller is born, the magic of rapid cold in your home.
At first glance it will be difficult not to fall FEATURES
in love with it, its unique design will win you
over. Intuitive touch display, 9 innovative
functions.
Once tried, it will be impossible to think of
a kitchen without Mimmo the Blast Chiller. External finishes in satin stainless steel
Mimmo the blast chiller is not only the only Dashboard door in tempered dark gray
Black Glass appliance capable of tripling food storage glass, satin stainless steel handle
but is an invitation to creativity and to
discover flavors that you have never tried Mechanical door stop with maximum
before in your kitchen. opening at 160 °
If you want to preserve and cook like a Temperature range: -35 ° + 75 ° C
chef, serve a salmon fillet cooked at a
low temperature, bring strawberries to Capacity: 20 Lt
the table in December as if they were just
picked, find in the fridge the vegetables Weight: 29 Kg
cooked five days before as tasty as just
made, Mimmo the blast chiller is perfect DIMENSIONS
for you. Width cm ………………………………… 56,5
Depth cm ………………………………… 40,5
Height cm ………………………………… 37,8
Blast chilling Shock freezing Gentle shock Customized Controlled Drinks cooling Low temperature Natural proofing Ready meal
freezing preservation thawing cooking regeneration
30Preserve food’s quality
When FOOD IS FRESH?
TOTAL BACTERIAL PROLIFERATION TOTAL BACTERIAL PROLIFERATION
1° DAY 5° DAY
slow freezing cooled with Mimmo cooled naturally cooled with Mimmo
SLOW Freezing FAST freezing with Mimmo
CREATES MACROCRYSTALS CREATES MICROCRYSTALS
Breakdown of food cells No breakdown of food cells
Loss of liquids during the thawing Tissue integrity during thawing
Freezing or SHOCK FREEZING?
FREEZER MIMMO
SHOCK FREEZING SHOCK FREEZING
Many hours (30/40) Few hours (3/4)
MACROCRYSTALLIZATION MICROCRYSTALLIZATION
31Intuitive touch display, 9 innovative functions. BLAST CHILLING To keep any cooked food in the refrigerator for up to 7 days. Quickly cool your food and stop it from aging. They will keep perfectly for 7 days instead of 2. SHOCK FREEZING For perfect storage in the freezer for up to 6-8 months. Quickly bring all foods, cooked or raw, to the temperature of your freezer. At the time of defrosting you will find the same quality of the fresh product, as if the food had never been in the freezer. GENTLE SHOCK FREEZING An indispensable function for the most delicate foods that are stored in the freezer. Even the most sensitive products to freezing and thawing, such as leavened products and baked goods, will remain perfect while retaining all their fragrance. DRINKS COOLING To be always ready in case of unexpected guests. It only takes a few minutes to cool all kinds of drinks! You will be able to serve cold wine in 15 minutes, without having the refrigerator full of bottles. CONTROLLED THAWING A gentle process that does not ruins foods. You gently defrost your foods and find them as freshly cooked or bought. CUSTOMIZED PRESERVATION The delicate preservation of particular foods. Keep homemade ice cream perfectly at home! Set to the ideal temperature (-12 ° C) and your ice cream will remain as creamy as it was just bought. LOW TEMPERATURE COOKING To cook meat and fish in a delicate way, enhancing their taste. Finally, the cooking of wellness at home. You will be able to cook meat and fish delicately, enhancing their flavors and maintaining their soft consistency. All flavors will remain within the product, without adding too many condiments. READY MEAL – REGENARATION To find the dish on return as it has just come out of the oven. He will be your butler in the house and the dish will be waiting for you steaming at the time you want! Go out by leaving your dish in the blast chiller and programming the time to return home. NATURAL PROOFING For more digestible doughs of bread, pizza, croissants and focaccia. Bread, pizza and focaccia rise at a controlled temperature and humidity. You will have a perfect leavened product in every season. 32
Shock freezing
The faster the freezing process, the better
the product quality is maintained.
With defrosting the dishes will be fresh, tasty,
120°C and consistent as if they had never been
through the freezer.
+3°C
0°C
-18°C
-30°C
-18°C
Rapid cooling
Quickly cooling dishes, blocking bacterial
proliferation, guarantees their freshness and
fragrance for 5/7 days.
120°C We cook when we have time and the desire to
do so, thus eating fresh food every day.
+3°C
+3°C
33Recipes Book Mimmo the blast chiller is accompanied by a practical recipes book with all the suggestions to make the most of your blast chiller and discover its 9 innovative functions. With Mimmo the blast chiller you can manage all the preparations in the kitchen, from appetizers to the most complex desserts. More than 80 delicious recipes that will make him your ally in the kitchen. 34
35
TECHNICAL CHART
CA91831X
CA91831BX
CA91831WG CB91832X
Code CA91831BG CB91832BX
Model Cross door Cross door
Finishings Inox, black inox, white glass, black glass Inox, Black Inox
Energy class A++ A+
New energy class E F
Climate class SN/N/ST/T SN/N/ST/T
Noise level dB(A) 41 41
Total Net Capacity lt 542 451
Refrigerator Net capacity lt 367 321
Freezer Net capacity lt 175 130
90° door opening: yes yes
Controlled humidity drawer: yes no
Anti-odour filter yes yes
Aluminium backrest yes no
Twist Ice Maker/Ice tray Ice Tray Ice Tray
Handles Integrated Integrated
Dimensions with handles (W/D/H) 91,1 x 70,6 x 183 cm 91,1 x 63,6 x 183 cm
Cabinet depth 610 mm 540 mm
Dimensions with packaging (W/D/H) 96,8 x 75 x 189,5 cm 96,8 x 68 x 189,5 cm
Refrigeration system total no frost total no frost
Display (LED/LCD) LED LED
Open door alarm yes yes
Fast freezing yes yes
Fast cooling yes yes
Holiday mode yes yes
Adjustable feet yes yes
Wheels N° 4 4
Energy consumption / 24h (kWh) 0,95 1,05
Annual energy consumption (kWh) 347 384
Freezing capacity (kg/24h) 14 12
Refrigeration speed (h) 10 10
Compressor Inverter Inverter
Heat dissipation from underneath yes yes
No. of glass shelves (fridge/freezer) 3/0 3/0
Shelf trims Alu finishing White
Silver profile for balconies and drawers yes no
Shelves safety lock no no
No. of balconies (fridge/freezer) 6/0 4/0
Balcony trims Alu finishing no
Net weight (kg) 102 Inox - 108 Glass 100
Gross weight (kg) 111 Inox - 117 Glass 110
Container capacity 40’ (No. of pieces) 48 53
36
CC83833X SB91773X S83773X
Cross door Side by Side Side by Side
Inox Inox Inox
A+ A+ A+
F F F
SN/N/ST/T SN/N/ST/T SN/N/ST/T
41 41 41
417 496 436
288 331 271
129 165 165
yes yes yes
no no no
yes yes yes
no yes no
Ice Tray Twist Ice Maker Twist Ice Maker
Integrated Integrated Integrated
83,6 x 63,6 x 183 cm 91,1 x 63,6 x 178 cm 83,6 x 63,6 x 178 cm
540 mm 540 mm 540 mm
89,3 x 68 x 189,5 cm 96,8 x 68 x 184,5 cm 89,3 x 68 x 184,5 cm
total no frost total no frost total no frost
LED LED LED
yes yes yes
yes yes yes
yes yes yes
yes yes yes
only front yes yes
4 4 4
1 1,15 1,08
365 420 395
12 12 12
12 9 9
Inverter Standard Standard
yes yes yes
3/0 4/4 4/4
White White White
no no no
no yes yes
4/0 3/2 3/2
no no no
86 85 82
95 95 91
55 53 55
37TECHNICAL DRAWINGS
CA91831 CB91832 CC83833
CA91831 CB91832 CC83833
A 624 mm 554 mm 554 mm
19.2mm
B 911 mm 911 mm 836 mm Door open at 90° has a protrusion of 19.2 mm 19.2mm
C 1780 mm 1780 mm 1774 mm
D 1830 mm 1830 mm 1830 mm
E 706 mm 636 mm 636 mm B B
A
F 1656 mm 1656 mm 1517 mm A
B B
G 321 mm 321 mm 320,4 mm
E E
H 427 mm 427 mm 363,3 mm
C AA P P
C D D 19,2 19,2
mm mm
L 1040 mm 970 mm 970 mm L M
o L M
150o
o
150 o
150
M 1165 mm 1095 mm 1020 mm 150
G H
G H
P 19,2 mm 19,2 mm 19,2 mm
F
F
Protrusion valid for all Cross Door models
S83773X SB91773X
S83773X SB91773X
A 554 mm 554 mm 19.8 mm
B 836 mm 911 mm 19.8 mm
Door open at 90° has a protrusion of 19,8 mm
C 1726 mm 1726 mm
D 1780 mm 1780 mm
B
E 636 mm 636 mm B
A
A
F 1497 mm 1654 mm B
B
H 343 mm 425,5 mm
E E
M 1020 mm 1094 mm C
C D A P M
D A 19.8mm
19.8mm P M
P 19,8 mm 19,8 mm
o
150
o
150 o
150
o
150
H
H
H
H
Protrusion valid for all Side by Side models
38GRF is associated with Cobat RAEE, he Consortium for the management of electrical and electronic equipment waste. Our refrigerators, if the correct recovery procedures are followed, are recyclable up to 95%
Via Ingegner Emilio Celaschi, 7 20023 Cerro Maggiore (Mi) - ITALY info@grfdomestic.eu www.grfdomestic.eu
You can also read
