Edition 9.2
- and X-Series Label Printers
Made in Germany
CONTENTS
Overview types of industrial printers A+ series . . . . . . . 4 - 5
For special demands . . . . . . . . . . . . . . . . 6 - 7
For textile materials. . . . . . . . . . . . . . . . 8 - 9
The special ones for two-color printing. . . . . . . . . 10 - 11
Technical data . . . . . . . . . . . . . . . . . 12 - 13
Accessories - overview . . . . . . . . . . . . . . . . 14
Accessories - special equipment, interfaces, connecting cables . . 15
Accessories - cutting, perforating, stacking labels . . . . . . 16
Accessories - rewinding, unwinding labels. . . . . . . . . 17
Accessories - dispensing labels . . . . . . . . . . . 18 - 19

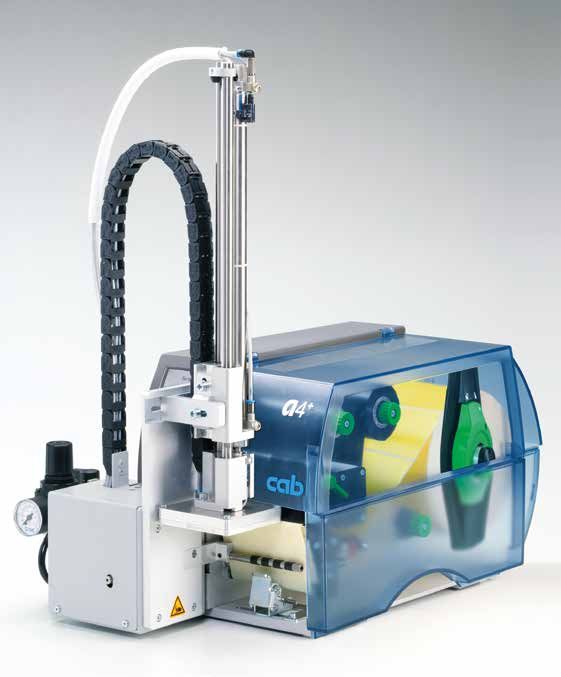

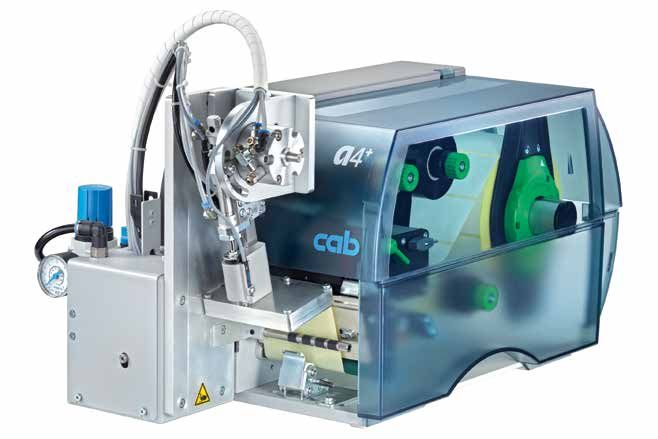

Applicator A1000. . . . . . . . . . . . . . . . . . 20
Accessories - Applicator A1000. . . . . . . . . . . . . 21
Applicator A3200. . . . . . . . . . . . . . . . . . 22
Accessories - mounting equipment . . . . . . . . . . . 23

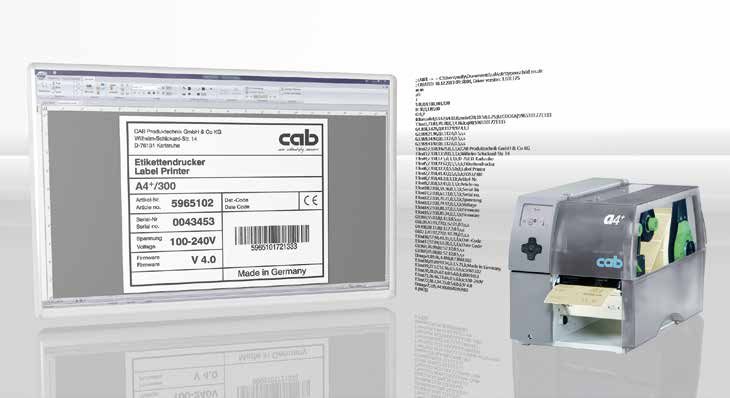

Label software cablabel S3 . . . . . . . . . . . . . . 24
Integration. . . . . . . . . . . . . . . . . . . . 25
Stand-alone operation. . . . . . . . . . . . . . . . 26
Easy maintenance . . . . . . . . . . . . . . . . . 26
For current data
please refer to our website Service, training . . . . . . . . . . . . . . . . . . 27
www.cab.de/labelprinter
Delivery program for label printers . . . . . . . . . . . . 28
Delivery program for accessories . . . . . . . . . . . 29 - 30
cab delivery program . . . . . . . . . . . . . . . . 31
Scan the QR-Code
with your smartphone to get more
information about cab label printers
2

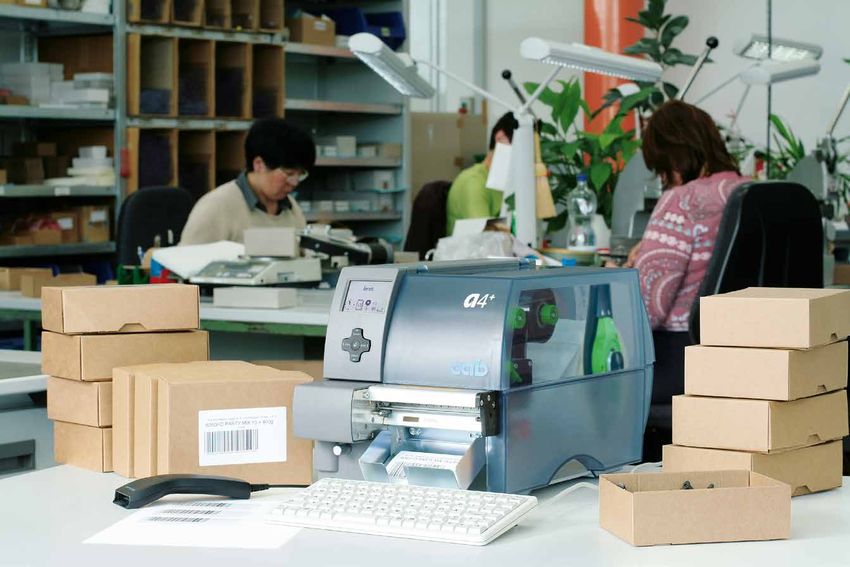

Printers for industrial demands
Our professional printers are used in a wide Accurate and fast output of small
variety of applications. During development, and large labels
we focused first and foremost on simple and
convenient operation coupled with high PCB label
reliability. The printing units and housings are Smallest label size measuring
made of high-quality materials and are 4 x 4 mm, if there is only little space
perfectly matched in terms of their form and available.
function. Extensive peripherals and software
enable customized solutions – any time.
Regardless of whether the A+ printer is Nameplates
operated as a stand-alone solution, a PC Sharp fonts, graphics and barcodes
application or in a network, it is always up to with 600 dpi.
the mark! The high-speed processor
ensures fast job processing and immediate
label output.
Shipping and pallet labels
Labels up to standard A4 format.
3
Overview types of industrial printers A+ series
The Sleek
For small labels with high printing accuracy.
1.1 Label printer A2+
Print resolution dpi 300 600
Print width up to mm 54,2 57
Print speed up to mm/s 150 100
The Universal
Our top-seller with high printing accuracy and an
extensive range of accessories.
A4.3+ preferably for thermal direct printing.
1.2 Label printer A4+ A4.3+
Print resolution dpi 203 300 600 203 300
Print width up to mm 104 105,6 105,6 104 108,4
Print speed up to 250 250 100 200 150
mm/s
The Wide
Ideal for Odette- and UCC labels.
1.3 Label printer A6+
Print resolution dpi 203 300
Print width up to mm 168 162,6
Print speed up to mm/s 200 200
The Extra Wide
For pallet and drum labeling.
1.4 Label printer A8+
Print resolution dpi 300
Print width up to mm 216
Print speed up to mm/s 150
Basic version Dispensing version
For printing on labels and For printing and dispen-
and continuous material. sing labels. The label is
The material is torn off at removed from the liner
the jagged tear-off edge. during the printing pro-
Optionally, it may be cut cess by utilizing the in-
off or rewound externally. ternal rewinder. It can
be removed manually,
by applicator or robot.
4
Common details
1
2
3
6
7
8
4
5
Label printer A4+
with dispensing function
1 White graphic display 5 Solid metal housing
With backlight for optimum readability. Made of die-cast aluminum. All components are mounted
on it.
2 Ribbon holder
Three-part tightening axles enable quick and easy ribbon 6 Roll holder
exchange. Available for core diameters from 38 mm. (We provide
adapters for core diameters wider than 76 mm for improved
3 Straightforward adjustment
label winding). The spring-mounted margin stop ensures
The printhead is pressed down with two sliding toggles.
constant tension during feeding, thus ensuring a highly
One is mounted to the left label margin, the other is pushed
precise imprint.
to the right label margin.
7 Internal rewinder
4 Peripheral connection
The three-part tightening axles ensure the easy rewinding
Add-on modules such as cutters, external rewinders, present
and removing of labels or liners with or without paper core.
sensors and applicators are easy to connect via the USB
peripheral interface. All peripherals are connected to the 8 Peel-off option
printer in seconds using two pins and fixed in place with a The label is removed from its liner via a peel-off plate. A high
screw. printing and dispensing accuracy can be achieved with the
additionally powered rewind assist roller and the pinch roller.
Compact cover 1.11 Metal cover
The 2-part cover made of impact-resistant ABS plastic On request, the A4+ and A6+ transfer printers are also
folds up when opened. available with a metal cover. (as standard for the A8+).
5
For special demands
With centered material guide
Preferred for small and thick endless materials like flattened tubes,
tapes or very small labels.
• No adjustment of the printhead for different widths of material
• Printing on very small or very thick continuous materials
• Print speed for difficult to print materials is reducible
• Operation and control are compatible with the A+ series
1.5 Label printer A4+M
Print resolution dpi 300 600
Print width up to mm 105,6 105,6
Print speed up to mm/s 125 100
For double-sided printing
For simultaneous front and back printing via two stacked printing
units. Preferred for flattened tubes, continuous or prefabricated,
and paper, synthetic or cardboard materials.
• No adjustment of the printhead for different widths of material
• Printing on very small or very thick continuous materials
• Print speed for difficult to print materials is reducible
• Operation and control are compatible with the A+ series

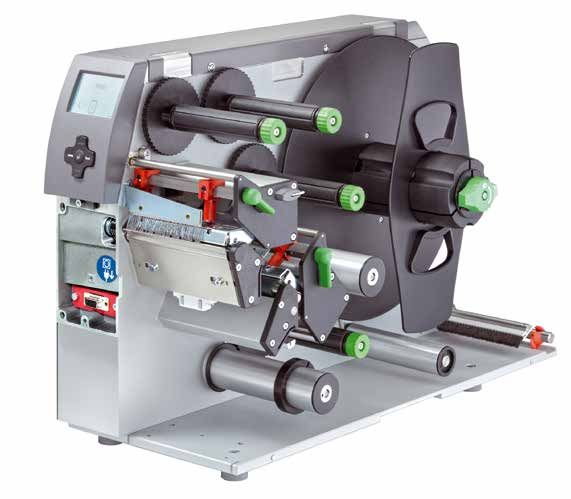

1.6 Label printer XD4
Print resolution dpi 300
Print width up to mm 105,6
Print speed up to mm/s 125
Accessories
Cutter Stacker with cutter Print rollers for small and thin
Used to cut paper, self-adhesive labels, The printed materials are cut and stacked. materials
cardboard, textile or synthetic materials The print job is stopped as soon as the Outside the material width the printhead
and heat shrink tubes. maximum stack height is reached. Even rubs against the print rollers.
stiff or curved materials may be The small print rollers are used to avoid
Perforation and cutter
processed to some extent. feeding errors and wear on printhead and
Used to enable the perforation of the
We recommend to do the material print roller due to rubbing. Three different
material for manual separation.
testings at our facilities. standard widths are available from stock,
non-standard widths are manufactured
to order.
6
Common details
2 7
1
Label printer A4+M
with centered material guide
3
4
5
6
Label printer XD4
for double-sided printing
1 Big graphic display 5 Peripheral connection
White backlight for optimum readability. Add-on modules such as cutter, perforation cutter and stacker
are easy to connect.
2 Ribbon holder
Simple and centered insertion of the ribbon with the 6 Solid metal housing
three-part tightening axles. The imprinted rule on spindle Made of die-cast aluminum. All components are mounted on it.
simplifies ribbon positioning.
7 Roll holder
3 No printhead adjustment Available for core diameters from 38 mm. (We provide adapters
The printhead is pressed down with two sliding toggles. for core diameters wider than 76 mm for improved label winding).
Due to the centre alignment of the materials there is no The material is automatically centered. The spring-mounted
need to do adjustments and settings at the printhead. margin stop ensures constant tension during feeding, thus
ensuring a highly precise imprint.
4 Material guide
Precise printing as the material guide is located directly
behind the print roller. The width is automatically adjusted and
centered with a single knob.
7
For textile materials
Single-sided printing
Particularly suitable for textile materials. The additionally installed
drive roller after the printhead enables the textile material to be
reliably separated from the transfer ribbon.
• No adjustment of the printhead for different widths of material
• Print speed for difficult to print materials is reducible
• Operation and control are compatible with the A+ series
1.7 Label printer A4+T
Print resolution dpi 300
Print width up to mm 105,6
Print speed up to mm/s 125
For double-sided printing
For simultaneous front and rear printing of textile materials. The
additionally installed drive roller after the printhead enables the
textile material to be reliably separated from the transfer ribbon.
• No adjustment of the printhead for different widths of material
• Print speed for difficult to print materials is reducible
• Operation and control are compatible with the A+ series

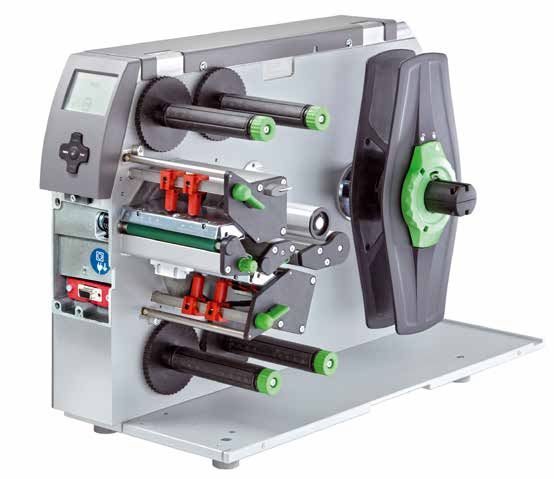

1.8 Label printer XD4T
Print resolution dpi 300
Print width up to mm 105,6
Print speed up to mm/s 125
We are glad to assist you in the optimum selection of transfer
ribbons for the label material.
Accessories
Cutter Stacker with cutter Print rollers for small and thin
Used to cut paper, self-adhesive labels, The printed materials are cut and stacked. materials
cardboard, textile or synthetic materials The print job is stopped as soon as the Outside the material width the printhead
and heat shrink tubes. maximum stack height is reached. Even rubs against the print rollers.
stiff or curved materials may be The small print rollers are used to avoid
Perforation and cutter
processed to some extent. feeding errors and wear on print head and
Used to enable the perforation of the
We are pleased to do the material testings print roller due to rubbing. Three different
material for manual separation.
at our facilities. standard widths are available from stock,
non-standard widths are manufactured
to order.
8
Common details
2 7
1
Label printer A4+T
with centered material guide
3
4
5
6
Label printer XD4T
for double-sided printing
1 Big graphic display 5 Peripheral connection
White backlight for optimum readability. Add-on modules such as cutter, perforation cutter and stacker
are easy to connect.
2 Ribbon holder
Simple and centered insertion of the ribbon with the 6 Solid metal housing
three-part tightening axles. The imprinted rule on spindle Made of die-cast aluminum. All components are mounted on it.
simplifies ribbon positioning.
7 Roll holder
3 No printhead adjustment Available for core diameters from 38 mm. (We provide adapters
The printhead is pressed down with two sliding toggles. for core diameters wider than 76 mm for improved label winding).
Due to the centre alignment of the materials there is no The material is automatically centered. The spring-mounted
need to do adjustments and settings at the printhead. margin stop ensures constant tension during feeding, thus
ensuring a highly precise imprint.
4 Separator roller
The additionally installed separator roller enables the textile
material to be reliably separated from the transfer ribbon.
9

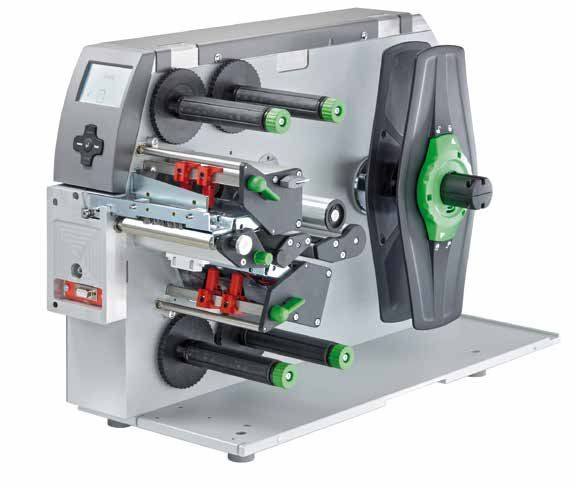

The special ones for two-color printing
For two-color printing
• Two in-line arranged thermal transfer print units for simultaneous
two-color printing in one label
• Ribbon saver at one print unit
• The XC-series meets the conditions for the Classification and
Labeling Inventory according to GHS
• For large label rolls up to a diameter of 300 mm
• The two print units with ribbon holder, operation panel and
electronics are adopted from the proven A+ series
1.9 Label printer XC4
Print resolution dpi 300
Print width up to mm 105,6
Print speed up to mm/s 125
1.10 Label printer XC6
Print resolution dpi 300
Print width up to mm 162,6
Print speed up to mm/s 125
We are glad to assist you in the optimum selection of transfer
ribbons for the label material.
Accessories
Cutter Stacker with cutter
Used to cut paper, self-adhesive labels, (only for XC4). The printed materials are
cardboard, textile or synthetic materials cut and stacked. The print job is stopped
and heat shrink tubes. as soon as the maximum stack height is
reached. Even stiff or curved materials
Perforation and cutter
may be processed to some extent.
(only for XC4). Used to enable the
We recommend to do the material
perforation of the material for manual
testings at our facilities.
separation.
10Common details
1
2
6
3
2
4
1 7
8
5
1 Big graphic display 5 Solid metal housing
White backlight for optimum readability. Made of die-cast aluminum. All components are mounted
on it.
2 Ribbon holder
Simple and centered insertion of the ribbon with the three- 6 Roll holder
part tightening axles. The imprinted rule on spindle For labels up to a diameter of 300 mm.
simplifies ribbon positioning. Swing lever and integrated brake make sure that the labels
are unwound with constant tension.
3 Straightforward adjustment
The printhead is pressed down with sliding toggles. One 7 Ribbon saver for printhead 1
is mounted to the left label margin, the other is pushed to he ribbon saver is used for labels to be partially printed.
T
the right label margin. The printhead is lifted within the unprinted area and the
ribbon stopped during label feeding.
4 Peripheral connection
Add-on modules are easy to connect. All peripherals are 8 Fanfold guide
connected to the printer in seconds using two pins and Fanfolded labels are positioned behind the print unit.
fixed in place with a screw. Guide and additional brake ensure a reliable feeding to the
print unit.
11Technical data
Standard Option 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 1.10
Label printer A2+ A4+ A6+ A8+ A4+M XD4 A4+T XD4T XC4 XC6
Print head
Print
method Thermal transfer
Thermal direct – – – – – – – –
Print resolution dpi 300 600 203 300 600 203 300 300 300 600 300 300 300 300 300
Print speed up to mm / s 150 100 250 250 100 200 200 150 125 100 125 125 125 125 125
Print width mm 54,2 57 104 105,6 105,6 168 162,6 216 105,6 105,6 105,6 105,6 105,6 105,6 162,6
Material
Labels or fanfolded Paper, cardboard, textile, plastics such as PET, PE, PP, PI, PVC, PU, acrylate
Continuous rolls Paper, cardboard, textile, plastics such as PET, PE, PP, PI, PVC, PU, acrylate —
Material thickness mm / weight g / m2 0,05 - 0,8 / 60 - 300 0,05 - 0,2 / 60 - 180
Width labels1) mm 4 - 63 20 - 116 46 - 176 46-220 4 - 106 – 4 -106 – 20-116 46 -176
liner mm 24 - 67 24 - 120 50 - 180 50-235 10 - 110 24-120 50-180
continuous material mm 24 - 67 24 - 120 50 - 180 50-235 10 - 110 –
continuous shrink tube mm 10 - 67 25 - 85 – – 4 - 85 4 - 85 – –
Height1) without back-feed from mm 4 4 4 4 4 6 6 10 5 5 20 5 20 20
when dispensing1) from mm 12 12 12 12 12 25 25 – – – – – –
up to mm 5000 2000 5000 4000 1000 4000 3000 2000 4000 1000 2000 4000 2000 2000 1500
Media roll Outside diameter up to mm 205 205 205 300 205 300 300
Core diameter mm 38 - 100 76
Winding Outside or inside
Ribbon
Ink Outside or inside
Roll diameter up to mm 80 72 80 72 80 72 72
Core diameter mm 25 25 25 25 25 25 25
Ribbon length variable up to m 500 360 500 360 500 360 360
Width2) up to mm 57 114 165 220 114 114 114 114 114 165
Internal rewinder (only for peel-off version)
Outside diameter up to mm 142 –
Core diameter mm 38,1 –
Winding Only outside –
Dimensions Printer
Height mm 274 395 274 395 395
Depth mm 446 554 446 554 554
Width mm 190 242 302 352 242 248 242 248 248 358
Weight kg 8,5 9 13 15 9 21 9 21 22 24
Label sensor
Gap sensor For leading edge or punch marks and end of material
Reflective sensor from the bottom / optional from the top For print marks
Distance to locating edge mm 5 - 26 5 - 53 5 - 53 – – 5 - 53
Distance from center to the left mm – – – 0 - 53 –
Electronics
Processor 32 Bit clock rate MHz 266
RAM MB 64
Memory IFFS MB Flash 8
Slot for CompactFlash Type I memory card
Slot for Wireless LAN card
Battery buffer for real-time clock, printout of time and date, data storage on shut-down
Warning signal: acoustic signal in case of error
Interfaces
Centronics bi-directional acc. to IEEE 1284 –
RS232 C 1.200 up to 230.400 Baud / 8 Bit –
USB 2.0 High Speed Slave for PC connection
Ethernet 10 / 100 Base T, LPD, RawIP-
printing, ftp printing, DHCP, HTTP, FTP,
SMTP, SNMP, TIME, Zeroconf, mDNS,
SOAP
RS422, RS485 1.200 up to 230.400 Baud / 8 Bit –
Peripheral connection
WLAN Card 802.11b/g WEP/WPA PSK (TKIP)
2 x USB master for external operation panel, keyboard, scanner, service key, USB flash drive
Operating data
Power supply 100 - 240 V ~ 50 / 60 Hz, PFC
Power consumption 100 - 300 W depending on type of printer
Temperature / humidity Operation: + 5 - 40°C / 10 - 85% not condensing
Stock: + 0 - 60°C / 20 - 85% not condensing
Transport: – 25 - 60°C / 20 - 85% not condensing
Approvals CE, FCC class A, CB, CCC, UL
1)
Limitations may apply to small labels, thin materials or strong adhesives. These applications need to be tested and approved.
2)
The ribbon should roughly be the same width as the label in order to avoid folding.
12 Standard Option Authorized distribution by resellers
Operation panel Graphics
Buttons/LED Pause, Feed, Cancel, Menu, Enter, 4 x Cursor Graphic elements Line, arrow, box, circle, ellipse, filled and filled with
display fading
LCD graphic Width 60, Height 40 mm, Text 4 lines, Graphic formats PCX, IMG, BMP, TIF, MAC, GIF, PNG
display approx. 20 characters per line Barcodes
Settings Linear barcodes Code 39, Code 93 Interleaved 2 / 5
Digital or analog clock Time Code 39 Full ASCII Ident- and lead code of
System settings Date Code 128 A, B, C Deutsche Post AG
Print parameters Interfaces EAN 8, 13 Codabar
25 language settings Security EAN / UCC 128 JAN 8, 13
On the Display EAN / UPC Appendix 2 MSI
Data reception Clock EAN / UPC Appendix 5 Plessey
WLAN field intensity Date sheet FIM Postnet
Ethernet status abc Debug HIBC RSS 14
Used memory Input buffer UPC A, E, E0
Temperature printhead Remaining ribbon 2D codes Aztec, Codablock F, Data Matrix, PDF 417, Micro
Access to memory card PDF 417, UPS Maxicode, QR-Code, RSS 14
Monitoring truncated, limited, stacked and stacked
Stop printing if End of ribbon omnidirectional, EAN-Datamatrix, GS1 Data Bar
End of labels All codes are variable in height, module width and
Printhead open ratio. Orientation 0°, 90°, 180°, 270°.
Final position not reached Optionally with check digit, printed characters and
start/stop code depending on type of code.
Test routines
Software
System diagnosis When switched on, including printhead testing
Programming J-Script direct programming
Short status, Font list, device list, WLAN Status,
abc-Basic Compiler
status print label profile, test grid, monitor mode,
Database Connector
PPP status
System diagnosis/ Printer monitoring
Status reports Status printout with information about settings, e.g.
administration Network Manager
print length counter, runtime counter, etc.
Request of status via software command. Label software cablabel® S3 Lite
Status messages on the display, e.g. network error cablabel® S3 Viewer
- no link, barcode error, etc. cablabel® S3 Pro
Fonts Windows driver 32 / 64 bit für
Font types 5 Bitmap fonts, incl. OCR-A, OCR-B and 3 Vector certified Windows XP Server 2003
Fonts Swiss 721, Swiss 721 Bold and Monospace Windows Vista Server 2008
821 internally available, loadable TrueType fonts. Windows 7 Server 2008 R2
Thai and Chinese (simplified Chinese) available as Windows 8 Server 2012
option. Mac- driver * OS X printer driver from version 10.6
Character sets Windows 1250 up to 1257, DOS 437, 737, 775, 850, Linux driver * 32/64 Bit from CUPS 1.2
852, 857, 862, 864, 866, 869, EBC DIC 500, ISO Stand-alone-
8859-1 up to -10 and -13 up to -16, WinOEM 720, operation
UTF-8, Macintosh Roman, DEC MCS, K0I8-R. *only A+ series
All West and East European Latin, Cyrillic, Greek,
Hebrew and Arabic characters are supported. Thai
and Chinese available as option.
Bitmap fonts Size of width and height 1 – 3 mm
Zoom 2 – 10
Orientation 0°, 90°, 180°, 270°
Vector- / TrueType Size of width and height 0,9 – 128 mm
fonts Variable zoom,
Orientation 360° in steps of 1°
Font formats Bold, Italic, underlined, outline, inverse,
depending on character fonts
Font width Variable
13Accessories - overview
Typical Possible Standard Option 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 1.10
Basic Dis-
Extras A2+ A4+ A6+ A8+ A4+M XD4 A4+T XD4T XC4 XC6
device pensing
2.1 Metal cover - -
2.2 Print roller DR4M-25, 50, 80 - - - - - - -
2.3 Reflective label sensor from the top - - - - - -
2.4 Adapter 100 mm Ø - -
2.5 Memory card
2.6 Standard keyboard USB
2.7 External operation panel
2.8 Pause adapter PS7 - interrupt print job - - - - -
2.9 Tester CC for linear and 2D barcodes - - - - - - -
Interfaces
3.1 Centronics Interface - - - -
3.2 RS422 / RS485 Interface - - - -
3.3 Label selection – I/O box
3.4 WLAN card 802.11 b/g
Connecting cable
4.1 Cable RS232 C, 9/9-pin, length 3 m
4.2 Patch cable CAT 5e, length 3 m, gray
Cutting, perforating, stacking labels
5.1 Cutter CU
5.2 Cutter tray - - - - - - - -
5.3 Perforation cutter PCU4 - - - -
5.4 Stacker with cutter ST4 / L - - - - - - - -
5.4 Stacker with cutter ST4 / M - - - - - - -
5.5 Base frame A4+ - - - - - - - -
Rewinding, unwinding labels
6.1 Rewind guide plate for internal rewinding - - - - - - - - -
6.2 External rewinder for direct printer connection - - - - - -
6.3 External rewinder with built-in power supply
6.4 External rewinder for rolls up to 300 mm Ø
Dispensing labels
7.1 Peel-off adapter on request - - - - - - - -
7.2 Extended peel-off plate - - - - - - - -
7.3 Present sensor PS6 for manual operation or on request - - - - - - - -
7.4 Present sensor PS8 for manual operation - - - - - - - -
7.5 Present sensor PS9 variable - - - - - - - - -
For dispensing labels
8.1 Manual switch TR1 - - - - - - - -
8.2 Foot switch - - - - - - - -
8.3 Interface connector / 15-pin Sub-D plug - - - - - - - -
8.4 Product sensor - - - - - - - -
8.5 Testbox 2 / automatic operation - - - - - - - -
Applicators and Dispensing module
9.1 Dispensing module A5100 - - - - - - - - -
9.2 All-round labeling - - - - - - - - -
9.3 Applicator A1000 - - - - - - - -
9.4 Tamp pad A1021 W x H - - - - - - - -
9.4 Universal tamp pad A1021 70 x 60 - - - - - - - -
9.4 Universal tamp pad A1021 90 x 90 - - - - - - - - -
9.5 Tamp pad A1321 W x H - - - - - - - - -
9.5 Universal tamp pad A1321 116 x 102 - - - - - - - - -
9.5 Universal tamp pad A1321 116 x 152 - - - - - - - - -
9.6 Blow pad A2021 W x H - - - - - - - -
9.7 Roll-on pad - - - - - - - - -
9.8 Applicator A3200 - - - - - - - - -
9.9 Tamp pad A3221 W x H - - - - - - - - -
9.10 Blow pad A3221 W x H - - - - - - - - -
For dispensing labels and applicators
10.1 Mounting plate - - - - - - - - -
10.2 Profile 40 / 80 / 120 mm - - - - - - - - -
10.3 Base plate 500 x 255 - - - - - - - - -
10.4 Floor stand 1600 - - - - - - - -
10.5 Printer holder A2+ / A4+ / A6+ - - - - - - - -
Software
Label software cablabel® S3 Lite
11.7
Label software cablabel® S3 Pro
11.4 Database Connector
11.6 Administration Network Manager
11.10 Programmer's guide
14Accessories-special equipment, interfaces, connecting cables
Extras Product
2.1
Metal cover
On request, the label printers A4+ and A6+
are available with metal cover. (supplied with A8+ as standard).
2.2 Print roller DR4-M25
For small and thin materials up to a width of 25 mm.
Print roller DR4-M50
For very thin materials from a width of 20 up to 50 mm.
Print roller DR4-M80
For very thin materials up to a width of 80 mm.
2.3 Reflective label sensor
from top
2.4 Adapter 100 mm Ø
To keep the bending to a minimum during stacking it is recommended to use a
large core diameter.
2.5 Memory Card
CompactFlash Type I
2.6
Standard keyboard USB
Connection: USB, number of keys: 115
2.7 External operation panel
If the operation panel is not accessible, e.g. after installation within a facility,
an external panel can be installed. Additional slots are available for a CF memory card
Type 1 and a host interface.
2.8 Pause adapter PS7
For printing in a label loop. The print job is stopped by the pause signal.
The label being printed is finished first.
I/O Interface: Inputs: Outputs: no print job
Pause, external error printer not ready, print job active
2.9
Tester CC for linear and 2D barcodes
The camera tests readability or contents of the horizontally and vertically printed barcodes
directly after printing. If the code is faulty the print job is stopped and the label is removed.
The Tester CC can be used together with the tear-off mode, dispensing mode or with the
external rewinder. Please refer to the Operation Manual for further details.
Interfaces Product
3.1
Centronics Interface
bi-directional acc. to IEEE 1284
3.2
Interface RS422/RS485
1.200 up to 230.400 Baud/8 Bit
3.3 Label selection box – I/O box
From a higher-level control, like a PLC, up to 16 different labels can be selected from the
memory card. The I/O box enables via abc programming to realize easy programming of
the PLC with the 4 in- and outputs.
3.4
WLAN card 802.11 b/g
Connecting cable
4.1
Connecting cable RS232 C 9/9 pin, length 3 m
4.2
Patch cable CAT5e, 3 m, gray
15Accessories - cutting, perforating, stacking labels
5.1 Cutter CU
The cutter is used to cut paper, self-adhesive labels, cardboard, textiles
or plastics and heat shrink tubes.
Cutter tray
Up to about 50 labels may be collected in the cutter tray.
Cutter CU2 CU4 CU6 CU8
A4+M, A4+T A6+
Used for printer model A2+ A4+ A8+
XD4, XD4T, XC4 XC6
Material width up to mm 67 120 110 180 232
Material weight cardboard gr/m2 60 - 500
Material thickness mm 0,05 - 0,8
Cutting length mm >5
Gap height up to mm 2,5
5.2
Cuts / min. 130 120 110 100
Stop print job, if Final position of cutter not reached
Cutter tray 4 for A4+ / A4+ M
Label height up to mm 100
5.3 Perforation cutter and cutter PCU4
The perforation cutter enables additionally perforating the material for
manual separation later on.
Perforation cutter and cutter PCU4
Used for printer model A4+, A4+M, A4+T, XD4, XD4T, XC4
Material width up to mm 85
Material weight cardbaord gr/m2 60 - 300
Material thickness mm 0,05 - 0,8
Cutting length mm >5
Gap height up to mm 4,5
Cuts / min. Cutting 120 / Perforating 150
Stop print job, if Final position of cutter not reached
Perforating: Web width mm 0,5
Web distances mm 2,5 or 10
5.4 Stacker with cutter ST4
The printed materials are cut and stacked. The print job is stopped as
soon as the maximum pile height is reached. Even stiff or curved
materials may be processed to some extent.
We recommend to do the material testings at our facilities.
Stacker with cutter ST4 / L ST4 / M
Used for printer model A4+, XC4 A4+M, A4+T, XD4, XD4T
Material width up to mm 20 - 110 20 - 100
Material weight cardboard gr/m2 60 - 300
Material thickness mm 0,05 - 0,8
Cutting length mm 20 - 150
Gap height up to mm 1,2
Cuts / min. 120
Final position of cutter not reached,
Stop print job, if
cover open, stack height reached
Pile height up to mm 100
Storage table label W x H
Storage table and protective cover are adapted to the label
size and need to be ordered separately.
5.5 Base frame A4+
The base frame is used to place the devices on the table
in any position.
16Accessories - rewinding, unwinding labels
6.1 Rewind guide plate RG for internal rewinding
Internal rewinding is done by using the dispensing printer.
In this case, the peel-off plate is replaced by the rewind guide plate.
Rewind guide plate RG2 RG4
Application A2+ dispensing version A4+ dispensing version
Material width up to mm 67 120
6.2 External rewinder ER1/2/3 for direct printer connection
The rewinder is directly screwed onto the printer. Labels are optionally
wound either inside or outside. Electronic control of the swing arm
ensures a smooth and tight winding.
External rewinder ER1 / 210 ER2 / 210 ER3 / 210
Application A2+ A4+ A6+ A8+
Material width up to mm 67 120 180 235
Roll Ø max. mm 205 205 205 205
Core Ø mm 40 / 76
Label winding outside or inside
6.3 External rewinder ER4/6/8 with built-in power supply
The rewinder may be attached to any other printer.
All other technical data comply with rewinder ER1/2/3.
External rewinder ER4 / 210 ER4 / 300 ER6/300 ER8/300
A4+, A4+M A4+, A4+M
Application A2+ A4+T, XC4 A2+ A4+T, XC4 A6+, XC6 A8+
XD4, XD4T XD4, XD4T
Material width up to mm 67 120 67 120 180 235
Roll Ø max. mm 205 205 300 300 300 300
Core Ø mm 40 / 76
Label winding outside or inside
Operating voltage 100 – 240 V~ 50 / 60 Hz
Connecting set for ER / EU
Adapter
RG4 RG4 RG6 –
for XC4 / XC6
6.4 External unwinder EU4/6/8
The unwinder ensures a smooth label feed for heavy rolls. Both inside and
outside wound rolls may be used.
External unwinder EU4 / 300 EU6 / 300 EU8 / 300
Application A2+ A4+, A4+M, A4+T A6+ A8+
Material width up to mm 67 120 180 235
Roll Ø max. mm 300 300 300 300
Core Ø mm 40 / 76
Label winding outside or inside
17Accessories - dispensing labels
1 Label printers (Type „P“) for dispensing labels additionally
need to have a present adapter or a present sensor.
Different types for either manual operation, or on demand
with hand switch, foot switch or an external signal are
1
available.
Product
7.1
Present adapter PS5 on demand
Printing and dispensing the label is triggered via external signal.
The label is removed by an applicator or robot.
I/O Interface: Inputs: Outputs:
Start No print job
Label removed Printer not ready
External error Print started
Label in dispensing position
7.2
Extended peel-off plate
only in connection with present adapter PS5 or an applicator. For labels particularly
difficult to remove from liner the peel-off plate with rewind guide plate, extended by
10 mm, is used.
7.3 Present sensor PS6 for manual operation or on demand
1. For manual operation
The present sensor detects the label being in dispensing position and interrupts the print
job. As soon as the label has been manually removed the next one is printed immediately.
2. On demand
Dispensing on demand either via hand switch or foot switch, or via external signal
according to PS5.
I/O Interface: Inputs: Outputs:
Start No print job
External error Printer not ready
Print started
Label in dispensing position
7.4
Present sensor PS8 for manual operation
The present sensor detects the label being in dispensing position and interrupts the print
job. As soon as the label has been manually removed the next one is printed immediately.
7.5
Present sensor PS9 variable
For dispensing odd shaped labels where the leading edge of the label is not on the left
edge where the PS8 can detect it, ex. round labels. The extension is customized.
18Accessories - dispensing labels
for Present adapter PS5 Dispensing module 5100A
Present sensor PS6 Applicator A1000
Pause adapter PS7 Applicator A3200
Product
8.1
Hand switch TR1
Printing and dispensing on demand.
8.2
Foot switch
Printing and dispensing on demand.
8.3
Sub D plug
Sub D plug 15 pin with screw clamps for PS5, PS6, PS7 and Applicators.
To connect external control signals.
8.4
Product sensor
For automatic product detection on the conveyor belt.
8.5
Testbox 2
Simulation of automatic operation.
9.1 Dispensing module with dispensing adapter PS5
To apply labels on packaging on a conveyor belt.
The product sensor triggers the printing process.
Labeling is started and at the same time the next label is printed.
Conveyor speed and print speed need to be synchronized.
A5104 A5106
Application A4+ A6+
Label width mm 25 - 116 50 - 176
Label height mm 25 - 200
Product surface flat
Product height fixed
Product during labeling in motion with synchronized speed to printer
9.2 All-round print and apply system
Together with the A1000 applicator the all-round print and apply system
enables to apply labels on cylindrical objects around the entire
circumference of 360°. The product is put on the rolls and labeling is
started via hand or foot switch.
All-round labeler
Application A2+, A4+ with applicator A1000-220
Product diameter mm 12 - 40
Product surface cylindrical
Product during labeling in rotary motion
Tamp pad A1021 / WxH
Label width mm 25 - 116
Label height mm 25 - 140
19Applicator A1000
9.3 Real-time application
Together with the A2+, A4+ and A6+ printers the A1000 applicator
means a cost-effective solution for both semi-automatic operation and
for integration into automated product lines.
For operation compressed air of 4,5 bar is needed.
1 1 Long service life
The ball-bearing guide bars are low-wearing.
2 2 Variable product heights
The lifting cylinder allows labeling at different heights.
Different stroke heights are available.
3 Pre-dispensing button
For testing the labeling. Pushing the button the first time causes the
label to be printed and held by the pad. Pushing the button again
starts the application.
4 Compressed air regulation unit
The microfilters prevent contamination, the compressed air regulator
ensures the labeling quality.
5 High process reliability
The supporting air jet stream, induction air and lifting speed can be
adjusted. The pressure can be reduced to less than 10N (1 kg) for
highly sensitive products and packaging. To avoid contamination of
the vacuum holes, these are cleaned with air pressure after each
application.
3
6 Label sizes
Labels with a width of 25 – 176 mm and a height of 25 – 200 mm
4
can be applied.
5 7 Supporting air
is used for blowing the label to the pad.
6 8 Digital I/O Interface for applicator
A PLC, sensor or hand switch starts the labeling. At the same time,
status and error messages are issued.
7
Inputs Outputs
Start Printer not ready
Print first label Printer without job
8 External error Collective alarm
Stop (external error) Home position reached
External reset only for 25 pin Labeling position reached
Labeling error
Applicator A1000-220 A1000-300 A1000-400
Application A2+, A4+, A6+ A2+, A4+, A6+ A2+, A4+, A6+
Cylinder stroke mm 220 300 400
Tamp stroke below
70 150 250
device mm
Compressed air bar 4,5
20Accessories - Applicator A1000
9.4 Tamps
Labels are applied on the tamp and held by vacuum. The applicator
then moves the tamp with label to the product.
Universal tamp pad
The rasterized vacuum holes are covered by a foil and are pierced
according to the label size.
Tamp pads are manufactured according to the label size.
Universal tamp pad Tamp pad
A1021 / 70 x 60 A1021 / 90 x 90 A1021 / W x H
Application A2+ A4+ A4+ A2+ A4+ A6+
Label width mm 25 - 63 25 - 70 25 - 90 25 - 63 25 -116 50 -176
Label height mm 25 - 60 25 - 90 25 - 200
Product surface flat
Product height variable
Product during labeling not moving
9.5 Tamp spring-mounted
The spring deflection allows labeling even on inclined surfaces.
Universal tamp pad
The rasterized vacuum holes are covered by a foil and are pierced
according to the label size.
Tamp pads are manufactured according to the label size.
Universal tamp pad Tamp pad
A1321 / 116 x 102 A1321 / 116 x 152 A1321 / W x H
Application A4+ A4+ A4+ A6+
Label width mm 25 - 116 25 - 116 25 - 116 50 - 176
Label height mm 25 - 102 25 - 152 25 - 200
Product surface flat
Product height variable
Product during labeling not moving
9.6 Blow pad
The label can be blown on in case of pressure-sensitive products. The
blow pad moves to a fixed heigth. The product to be printed is positioned
about 10 mm below.
Blow pad A2021
Application A2+ A4+ A6+
Label width mm 25 - 63 25 - 116 50 - 176
Label height mm 25 - 100
Product surface flat
Product height fixed
Product during labeling not moving or moving
9.7 Roll-on pad
Using the roll-on pad the label is moved to below the roll. The pad moves
onto the product and the label is rolled on during transport.
Roll-on pad A1411
Application A4+ A6+
Label width mm 25 - 116 50 - 176
Label height mm 80 - 200 80 - 200
Product surface flat
Product height variable
Product during labeling moving
21Applicator A3200
9.8 Applicator A3200 – Real time application
The A3200 applicator is used to automatically apply labels that are
printed with the A2+ / A4+ printer.
4 3 2 1
A rotary cylinder allows positioning the label between 45° and 95° which
is then placed on the product via short stroke cylinder.
1 Long service life
The ball-bearing guides are low-wearing.
2 Variable angular position
The rotary cylinder allows labeling on horizontal, inclined and vertical
surfaces.
3 Pre-dispensing button
Pushing the button the first time causes the label to be printed and
held by the pad. Pushing the button again starts the application.
4 Compressed air regulation unit
The microfilters prevent contamination, the compressed air regulator
ensures the labeling quality.
5 High process reliability
The supporting air jet stream, induction air and lifting speed can be
adjusted. The pressure can be reduced to less than 10N (1 kg) for
highly sensitive products and packaging. To avoid contamination of
the vacuum holes, these are cleaned with air pressure after each
application.
6 Label sizes
5 6 7
Labels with a width of 4 – 116 mm and a height of 5 – 80 mm can
be applied.
7 Supporting air
is used for blowing the label to the pad.
8 Digital I/O Interface for applicator
A PLC, sensor or hand switch starts the labeling. At the same time,
status and error messages are issued.
8
Inputs Outputs
Start Printer not ready
Print first label Printer without job
External error Collective alarm
Stop (external error) Home position reached
External reset only for 25 pin Labeling position reached
Labeling error
Applicator A3200
Application A2+ / A4+
Rotary cylinder° 45 - 95°
Lifting cylinder mm up to 30
Compressed air bar 4,5
9.9 Tamp pads or other blow pads are manufactured according
to the label size.
9.10 Tamp pad A3221 Blow pad A3221
Application A2+ A4+ A2+ A4+
9.10
Label width mm 4 - 63 20 - 116 10 - 63 20 - 116
Label height mm 5 - 80 10 - 80
Product surface flat
Product during labeling not moving in motion
22Accessories - mounting equipment
10.1 Mounting foot (for A2+, A4+)
For fastening the print and apply system and product holder.
1 Mounting plate
The print and apply system is fastened on the mounting plate.
2 Profile
10.2 Standard lengths are 40, 80, 120 mm.
The aluminum square profile can also be manufactured in
other lengths upon request.
3 Base plate
For fastening the product holder
10.3 Standard size: 500 x 255 mm.
10.4 Floor stand
The floor stand enables the printer to be quickly and flexibly
integrated into any manufacturing line. Height and width of the
labeling position are easy to adjust. Four guide rollers at the
chassis provide for mobility. The floor stand is adjusted with
adjustable feet at the place of destination.
10.5 Floor stand 1600
Total height mm 1600
Labeling height up to mm 1400
Printer holder
Projection until middle of label mm 230 - 500
Chassis: Width x depth x height mm 600 x 860 x 140
10.5 Printer holder
The A2+, A4+ or A6+ label printers are
fixed on the plate and quicklocked.
23Label software cablabel® S3
The goal of cablabel® S3 is to concentrate the label design,
print control and monitoring of all cab marking systems into one
software package. The software will also be in sync with future
developments of new devices and features.
Highlights Products
cablabel® S3 features the full potential of the cab devices like no Every company designs and formats their label differently. For
other available software: the software utilizes the JScript code example, label creation and production are executed by diffe-
to the full extent. cablabel® S3 Pro can imports existing JScript rent employees. To adopt the software package to your needs,
files, so you can switch over from R2+ seamlessly. With the new cab offers different software packages.
layer technology the user designs a label which works for all cablabel® S3 Lite is offered free of costs with every cab printer
established devices and resolutions. The intelligent print control and allows you to create and print labels. With cost-saving ca-
evaluates the device and label parameters to reduce possible blabel® S3 Pro you create label designs for technical solutions.
sources of error. cablabel® S3 Viewer shows the preview of a label in the Win-
dows Explorer and is delivered free of costs with every cabla-
cablabel® S3 also maximizes the integration of database con- bel® S3. The Viewer may support you for showing examples
nections via Database Connector. After designing the label, the during the approval processes or supplier requirements.
software provides all files to be stored within the printer for data cablabel® S3 Print is provided for users in production or ware-
base connections. The software also supports the stand-alone house. The user interface is simplified and makes only those
feature as well using the same method. In Addition the software functions available which are required for label printing: You se-
creates interfaces which are easy to handle for the connection lect the label in a list and get the layout for visual control. Then
to SAP or other peripheral devices like SPC, scales and bar you enter the variable information and the amount you want to
code testers. print. This simplifies your work and reduces possible sources of
error.
Other products like cablabel® S3 Demo, Pro Laser, Print Laser
und Print Server are in preparation.
24Integration
No printer is isolated – in a productive environment it is con-
nected to other equipment or networks for control and monito-
ring. cab offers various possibilities to integrate the printer into
your environment.
Control 11.10 The Programmer's guide explains and describes com-
Every cab printer can be directly coded with the simple pro- mands for different printer models via direct programming with
gramming language JScript and an extensive instruction set. JScript and abc and additionally the connection of the printer to
The label software cablabel® S3 supports optimally JScript, databases via Database Connector.
but a JScript program may also be created with any text editor.
For the printer control via PC drivers are available for
As an integrated element of the firmware, the abc Basic com- established Windows operating systems, and for A+-printers
piler enables the printer to process data via BASIC program- CUPS-based drivers for Mac OS X and Linux. The drivers
ming before it is sent for print editing. That way, you replace ensure optimal stability on your operating system.
external printer languages or integrate data from other sys-
tems, e.g. balance or a PLC. Monitoring
Using standard programs such as the web browser or
11.4 In the stand-alone mode with additional network connec- FTP clients, the integrated HTTP and FTP server enables print
tion, the Database Connector enables printers to access data monitoring, configuration, firmware updates and memory card
directly from a central ODBC-, OLEDB compatible database administration. Status, warning and error messages are sent
and to print it as a label. to administrators or users as e-mails or SNMP datagrams via
SNMP and SMTP clients. A time server is used to synchronize
In cooperation with SAP cab developed the so-called replace time and date.
method to control cab printers quickly and easily from
SAPScript using SAP R/3. Using the replace method the host 11.6 The cab Network Manager enables the user to control a
computer only sends the JScript variable, respectively chan- number of printers across a network simultaneously. It
ged data to the printer. supports monitoring, configuration, firmware updates, memory
As a Silver Level partner in SAP's Printer Vendor Programm, card administration, file synchronization and PIN administration
cab has access to the SAP development environment for opti- centrally.
mum printer support in SAP environments.
* SAP is a registered trademark of SAP AG.
25Stand-alone operation
Printing without PC
Stand-alone operation is the ability of cab printers to print labels
even if these are not connected to the host system.
The label layout is designed with a special label software or direct
programming via PC.
Label formats, fonts, font-, text- and graphics data as well as data
base contents are saved or read on the CF memory card, USB
stick or internal data memory IFFS.
Only variable data to be printed is sent to the printer via keyboard
or host. Additionally, data sent by a barcode scanner or balance
can be processed.
Easy maintenance
Label sensor
If cleaning might come up the label sensor is unlocked and pulled
out with slight finger pressure.
Printhead
The printhead may be exchanged in just a few steps.
And no need of doing adjustments and settings.
Print roller
Three screws allow an easy and fast removing of the print
roller for cleaning or replacement.
No need for a service technician to perform routine
maintenance.
One single tool
For replacing wear parts or mounting peripherals the tool is directly
inserted in the printer and at the ready.
26Service
Our well-trained service engineers give world-wide support in
maintenance and repair of cab printers. Please send your
printer to one of cab's service centres or to one of the service
partners selected by us. We will check and repair your printer
within only a few working days. If requested, we will make a
temporary equivalent device available for the time of repair.
Training
We offer training in programming, different software tools,
printer drivers and label layout design. We can enhance your
knowledge on cab printers to make more effective use of our
printers.
We also offer seminars for maintenance and repair.
27Delivery program for label printers
Art.-No. Hardware dpi Art.-No. Spare parts Art.-No. Spare parts
5954511 Label printer A2+ / 300
5954105.001 Print head 2 / 300
5954512 Label printer A2+ / 300P 5954102.001 Print roller DR2
1.1
5954575 Label printer A2+ / 600 5954104.001 Rew. Ass. roller RR2
5958686.001 Print head 2 / 600
5954578 Label printer A2+ / 600P
5954500 Label printer A4+ / 200
5954081.001 Print head 4 / 203
5954505 Label printer A4+ / 200P
5954501 Label printer A4+ / 300
1.2 5954072.001 Print head 4 / 300
5954506 Label printer A4+ / 300P
5954502 Label printer A4+ / 600 5954180.001 Print roller DR4
5954077.001 Print head 4 / 600
5954507 Label printer A4+ / 600P 5954183.001 Rew. Ass. roller RR4
5954524 Label printer A4.3+ / 200
5954085.001 Print head 4.3 / 203
5954526 Label printer A4.3+ / 200P
1.2
5954525 Label printer A4.3+ / 300
5954089.001 Print head 4.3 / 300
5954527 Label printer A4.3+ / 300P
5954587 Label printer A6+ / 200
5954217.001 Print head 6 / 203
5954588 Label printer A6+ / 200P 5954245.001 Print roller DR6
1.3
5954513 Label printer A6+ / 300 5954246.001 Rew. Ass. roller RR6
5954106.001 Print head 6 / 300
5954514 Label printer A6+ / 300P
Label printer A8+ / 300
1.4 5954517.101 5954107.001 Print head 8 / 300 5954103.001 Print roller DR8
with metal cover
5954552 Label printer A4+M / 300 5954072.001 Print head 4 / 300 5954180.001 Print roller DR4
1.5
5954554 Label printer A4+M / 600 5954077.001 Print head 4 / 600 5954183.001 Rew. Ass. roller RR4
1.6 5959640 Label printer XD4 / 300 5954072.001 Print head 4 / 300 5954180.001 Print roller DR4
1.7 5954568 Label printer A4+T / 300 5954072.001 Print head 4 / 300 5954180.001 Print roller DR4
1.8 5959970 Label printer XD4T / 300 5954072.001 Print head 4 / 300 5954180.001 Print roller DR4
1.9 5965700 Label printer XC4 / 300 5954072.001 Print head 4 / 300 5954180.001 Print roller DR4
1.10 5965701 Label printer XC6 / 300 5954106.001 Print head 6 / 300 5954245.001 Print roller DR6
Art.-No. Special printers Scope of delivery: Label marker,
Power cable Type E+F, Length 1,8 m
Printer with metal cover Connecting cable USB, Length 1,8 m
1.11 59545xx.101
for A4+ / A4+M / A4+T / or A6+ Operation manual Ge/En
Operation manual in 21 different languages (only A+ series),
DVD:
Operation manual Ge/En/Fr, XD4 / XD4T
Label printer for
Configuration manual Ge/En/Fr,
1.12 595xxxx thermal direct printing
Service manual Ge/En,
on request
Spare parts list Ge/En,
Programmer's guide En,
Windows printer driver 32 / 64 bit in 19 different languages for
595xxxx Printer with RFID read-write unit Windows XP Server 2003
13,56 MHz Windows Vista Server 2008
Windows 7 Server 2008 R2
Windows 8 Server 2012
Mac OS X driver Ge/En/Fr (only A+ series),
Linux driver Ge/En/Fr (only A+ series),
Label software cablabel S3 Lite
Label software cablabel S3 Viewer
For current data please surf to www.cab.de
28Delivery program for accessories
Art.-No. Special equipment Art.-No. Rewinding, unwinding labels
Rewind guide plate RG2
5954012.001 Metal cover A4+ 5954108.001
2.1 for internal rewinding
5954013.001 Metal cover A6+ 6.1
5954190.001 Rewind guide plate RG4
for internal rewinding
5953700.001 Print roller DR4-M25
2.2 5953701.001 Print roller DR4-M50 5948102 External rewinder ER1 / 210
6.2 5943251 External rewinder ER2 / 210
5953702.001 Print roller DR4-M80
5945802 External rewinder ER3 / 210
Reflective label sensor
2.3 5958631
from top
5948100 External rewinder ER4 / 210
5946090 External rewinder ER4 / 300
2.4 5959622.001 Adapter 100
5946420 External rewinder ER6 / 300
6.3 5945804 External rewinder ER8 / 300
Memory card
2.5 5561043 5966077.001 Rewind guide plate RG4 XC4
CompactFlash Type I
5966078.001 Rewind guide plate RG6 XC6
Standard keyboard USB
2.6 5901626
German version
5946091 External unwinder EU4 / 300
2.7 5954380 External operation panel 6.4 5946421 External unwinder EU6 / 300
5945806 External unwinder EU8 / 300
2.8 5946146 Pause adapter PS7
5948170 Connection set for ER / EU
5571005 Barcode tester CC2 Art.-No. Dispensing labels
2.9
5571000 Barcode tester CC4 Peel-off adapter PS5
7.1 5946120
on demand
Art.-No. Interfaces
5958772 Extended peel-off plate A2+
3.1 5954200 Centronics Interface 7.2 5948830 Extended peel-off plate A4+
3.2 5954201 RS422 / RS485 Interface 595xxxx Extended peel-off plate A6+
Present sensor PS6
7.3 5942353
3.3 5954191 Label selection box – I / O box Manual / automatic operation
Present sensor PS8
7.4 5946900
3.4 5561041 WLAN Card 802.11 b / g Manual operation
Art.-No. Connecting cables
7.5 5948595 Present sensor PS9
Connecting cable RS232 C
4.1. 5550818
9 / 9 pin, length 3 m
Art.-No. Accessories for dispensing labels
4.2 5918008 Patch cable KAT 5e, 3 m gray
8.1 5942345 Hand switch TR1
Art.-No. Cutting, perforating, stacking
5948382 Cutter CU2
5948000 Cutter CU4 8.2 5535901 Foot switch
5.1
5948001 Cutter CU6
5948002 Cutter CU8
Interface connector
8.3 5917652 SUB-D plug 15 pin
5.2 5946995 Cutter tray 4 Phoenix Contact 2761606
5960050.351 Perforation cutter PCU4 / 2,5 8.4 5941526 Product sensor to start
5.3
5960050.352 Perforation cutter PCU4 / 10
Testbox 2
5541311 Stacker with cutter ST4 / L 8.5 5533240
5.4 Automatic operation
5541313 Stacker with cutter ST4 / M
55xxxxx Storage table ST4 / L, label WxH
5.4
55xxxxx Storage table ST4 / M, Label BxH
5.5 5958932 Base frame A4+
29Delivery program for accessories
Art.-No. Applicators and dispensing module Art.-No. Accessories dispensing/applicators
5949281 Dispensing module A5104 5969811 Mounting plate A2+
9.1 10.1
5949265 Dispensing module A5106 5958367 Mounting plate A4+
5958365 Profile 40
9.2 5941345 All-round print and apply system 5965929 Profile 80
10.2 5971136 Profile 120
5949001 Applicator A1000-220 on request 5xxxxxx Profile L
9.3 5949002 Applicator A1000-300
5949003 Applicator A1000-400
10.3 5961203 Base plate 500 x 255
Tamp pad
5xxxxxx
A1021 W x H
Universal tamp pad
9.4 5949072
A1021 70 x 60
Universal tamp pad
5949075 10.4 5947400 Floor stand 1600
A1021 90 x 90
Tamp pad
5xxxxxx
A1321 W x H
Universal tamp pad
9.5 5949076
A1321 116 x 102
8914422 Printer holder A2+
Universal tamp pad
5949077 10.5 8913693 Printer holder A4+
A1321 116 x 152
8914423 Printer holder A6+
Blow pad
9.6 5xxxxxx
A2021 W x H
Art.-No. Software
9.7 5xxxxxx Roll-on pad A1411 W x H Label Software
5588000 cablabel® S3 Lite
5588001 cablabel® S3 Pro 1 WS
5588150 1 additional WS S3 Pro
9.8 5976050 Applicator A3200 5588151 4 additional WS S3 Pro
11.7
from 2. quartal cablabel® S3 Print
2014 onwards 1 additional WS S3 Print
Tamp pad 4 additional WS S3 Print
9.9 5xxxxxx
A3221 W x H
from 2. quartal cablabel® S3 Print Server
Blow pad 2014 onwards
9.10 5xxxxxx
A3221 W x H
11.4 DL 40100 Database Connector Licence
11.6 5580215 Administration Network Manager
Programmer's guide, English
11.10 9008486
printed copy
30cab delivery program
Label printer EOS1 Label printer EOS4 Label printer EOS mobile Label printer A+ series
The compact for The cost-effective for Both EOS sizes with battery The universal
label rolls up to 155 mm Ø label rolls up to 210 mm Ø pack for mobile print
Label printer A+ M Label printer XD4 Textile printer A4+T Label printer XD4T
with centered material guide double-sided printing For textile material double-sided printing of
textile material
Label printer XC4 Label printer XC6 Label dispenser HS Label dispenser VS
two-color printing two-color printing Precise and easy dispensing in precise and easy dispensing in
horizontal direction vertical direction
up to a width of 180 mm up to a width of 180 mm
Print & apply system Hermes+ Print module PX series Labels / Transfer ribbons Label software cablabel® S3
for automation for integration into automatic precise printing with cab's standard and optional software
labeling systems labels and transfer ribbons
Laser marking system FL series Laser safety housing
Precise and fast The industrial solutionHeadquarters in Germany
cab offices
520 partners
in over 80 countries
cab maintains a presence in the world's
major economic areas.
For current data, please refer to www.cab.de
Germany France South Africa Asia
cab Produkttechnik cab technologies s.a.r.l. cab Technology (Pty.) Ltd. cab Technology Co, Ltd.
GmbH & Co KG 67350 Niedermodern 2125 Randburg
Postfach 1904 Téléphone +33 388 722 501 Phone +27 11-886-3580 Junghe, Taipei, Taiwan
76007 Karlsruhe www.cab.de/fr www.cab.de/za Phone +886 2 8227 3966
Wilhelm-Schickard-Str. 14 info.fr@cab.de info.za@cab.de www.cab.de/tw
76131 Karlsruhe info.asia@cab.de
Telefon +49 721 6626-0
Telefax +49 721 6626-249 USA China
www.cab.de cab Technology Inc. cab (Shanghai) Trading Co., Ltd
info@cab.de Tyngsboro MA, 01879
Phone +1 978 649 0293 Phone +86 21 6236-3161
Further partners www.cab.de/us www.cab.de/cn
on request info.us@cab.de info.cn@cab.de
This documentation and any translations hereof are the property of cab GmbH & Co KG.
The replication, processing, reproduction or distribution in whole or in parts requires our prior written consent. © Copyright by cab/9008476.
All delivery, design and technical specifications are compiled to the best of our current knowledge and are subject to change without prior notice.You can also read
