PRODUCT MARKING AND BARCODE IDENTIFICATION
Precision is
not a matter
of size
Expert in
small labels
from 4 mm
height
Print and Apply
Hermes A
Edition 3

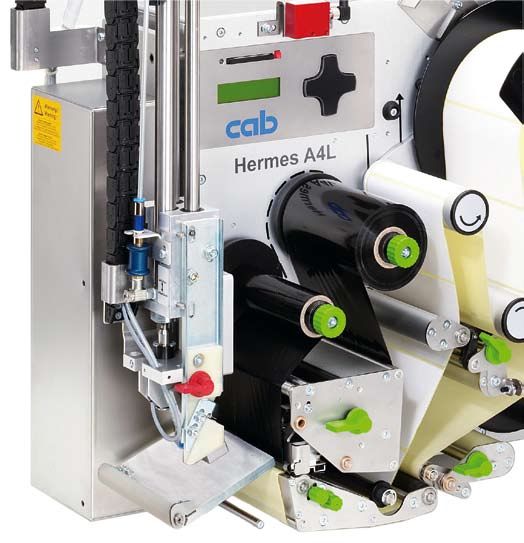

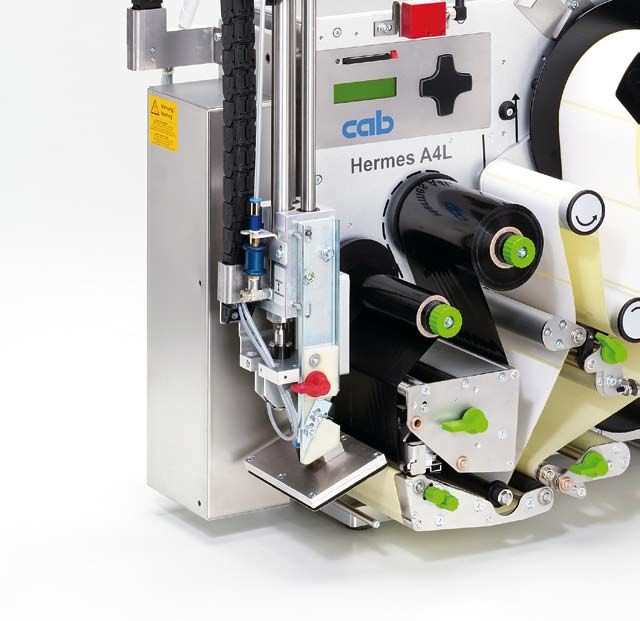

Hermes A: The cab print and apply system The Hermes A means the result of more than 30 years product deve- Precise label positioning and a robust design make the Hermes A lopment and technical know-how. The system is especially designed distinguishing for the high level industrial use, round the clock. for the fully-automed print and apply process in production lines.

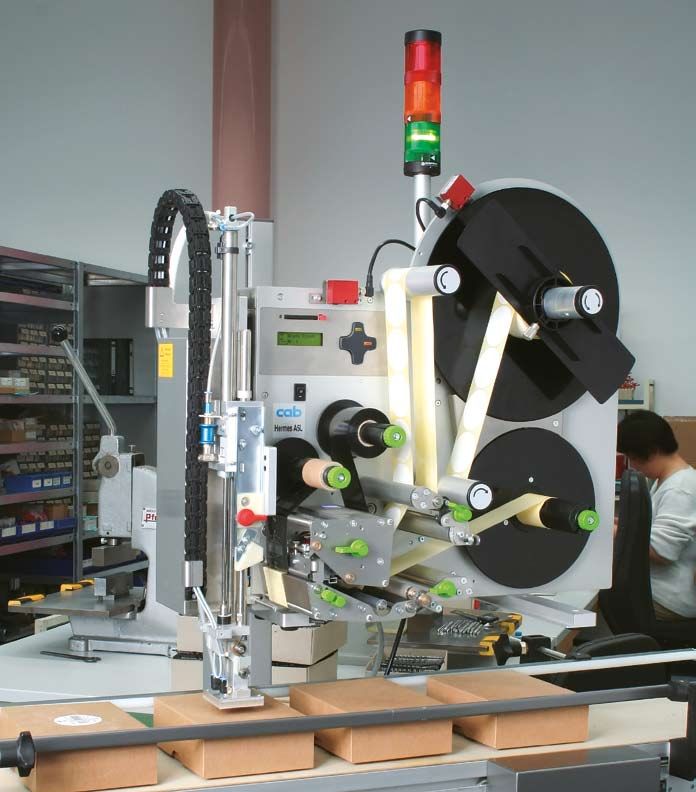

Print and apply:
Used in all kinds of industry
PCB Identifiation Label No matter how you turn it
Bild: Illustration
Smallest label size of 4 x 4 mm, if there is only little space.
Type plates
From bottom to top, top to bottom or from the side: The Hermes A
prints and applies in any assembly position and may therefore be
integrated in all kinds of production lines.
Host Connection or Stand-Alone Operation
Precise print and apply up to ± 0,2 mm. Smallest fonts with highest
resolution with 600 dpi.
Packaging
For this, different software tools are available. Direct programming
is possible by using the cab printer language J-Script. Label layout,
Fast, faster, in second intervals: precise in every position graphics and special fonts can be downloaded to the CompactFlash
and in real time. Memory Card.
Transfer Printer Hermes A
Perfection in every detail
1
2
3
12
4
5
6
13
7
8
14
9
10
11
1. Navigator Pad 8. Printing Offset
Simple, interactive menu control. Applicable functions are illumi- After having changed the label roller the printing position is set up
nated by day/night design. Menu handling is easily comprehensible. automatically after a few printed labels. Even when switching off
the printer the position will be kept.
2. Slot for CompactFlash Memory Card
The memory card enables to memorize label formats, fonts, texts,
9. Printhead
graphics, programs or data bases. The printhead can be easily exchanged with just a few turns.
Therefore, adjustments and setups are not required.
3. Graphic Display with 120 x 32 dots
Displays the active printing status as well as notes for the operator.
10. Ribbon Saving by Printhead Lifting
To avoid smudgy printing when pulling back labels after the printing
4. Release Button for Test Mode process. So ribbon is saved in case of printing large labels
with a restricted printed area.
Serves for the test mode. First push releases printing of the label
and feeding forward to the peeling position. Second push causes 11. Transport System
a backfeed and printing of the next label.
The ball beared transport rollers ensure to reach an accurate
printing and a precise feeding process.
5. Ribbon Re- and Unwinder
Tensioning axes enable fast and easy exchange of the ribbon. 12. Label Unwinder
The inertial tensor arm and the integrated dynamic break make
6. Mounting Bracket sure that the labels are unwinded with constant force.
Taps to fix bracket at the printer for the overhanging assembly.
13. Rewinder
7. Mounting of Applicator The liner of a label roll is rewinded after the labels have been pealed
The applicator is mounted on the printer by the help of hinges and off. The tensioning axes enable an easy exchange of the finished roll.
easily exchangeable in case of maintenance.
14. Hermes Feet
The Hermes feet are used for standard upright applications and
are mounted at the printer chassis.
Interfaces
PC-Connections
1. Bi-directional Centronics interface in acc. with IEEE 1284
1 2. Serial RS232 C-interface up to 230.400 Baud
3. USB 2.0 Full Speed-slave interface
8
Network Connections
2 4. Ethernet 10/100 Base T interface with TCP/IP protocol
Printing with LPR/LPD or Raw IP-Printing
IP adress can be send manually or obtained via DHCP
3
Status inquiry and settings via internet browser
4 FTP for firmware updates, control of CF card files
5 Messages can be send via e-mail or SNMP
6 Time and date is synchronized with a time server
7 5. WLAN with optional bridge for every operation system
Industrial Serial Interface
9
6. Serial RS422 interface for long distance communication
10 7. Serial RS485 for networking up to 26 printers
11
12 Periphery Interfaces
8. USB-master interface for connecting PC-keyboards or barcode scanner
9. Sensor end of labels
10. Sensor end of ribbon
11. Indicator light
12. Digital I/O interface for applicators of other manufacturers
13 13. Interface for cab applicators
Prints and applies to the right or to the left

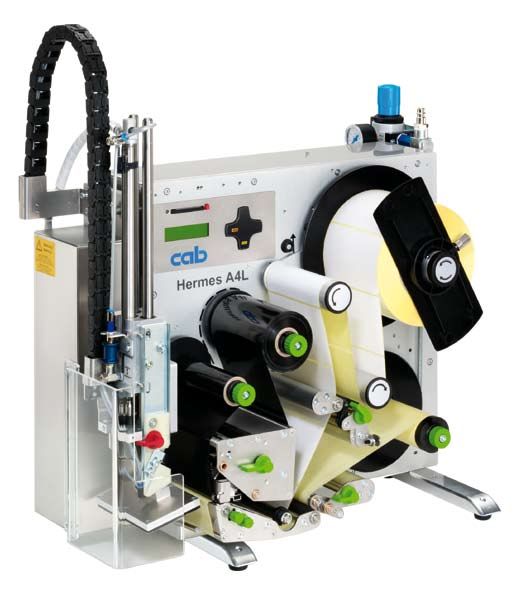

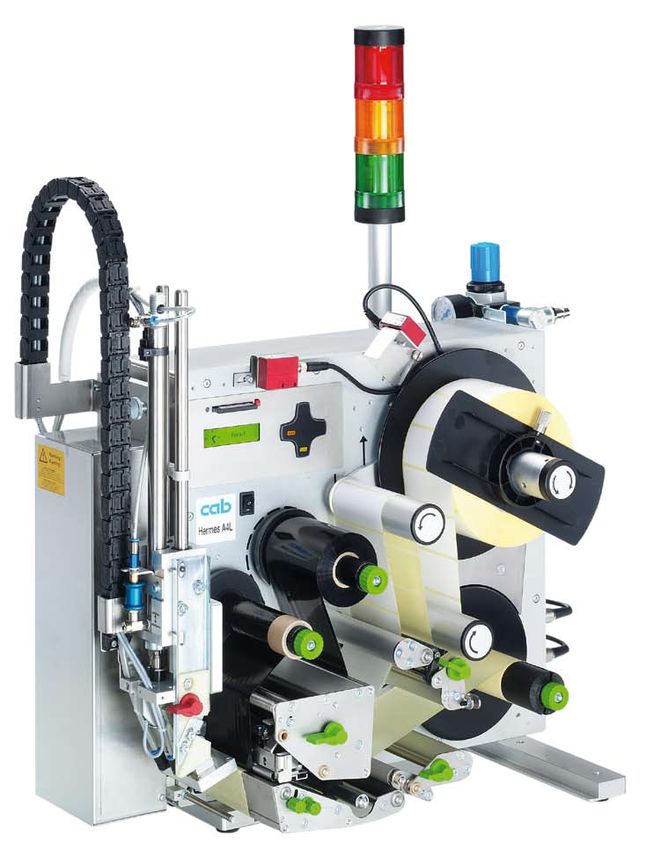

Hermes A4R Hermes A4L Hermes A5R Hermes A5L
For label rolls up to 210 mm Ø For label rolls up to 210 mm Ø For label rolls up to 300 mm Ø For label rolls up to 300 mm Ø
Dispensing direction to the right Dispensing direction to the left Dispensing direction to the right Dispensing direction to the left
Accessories

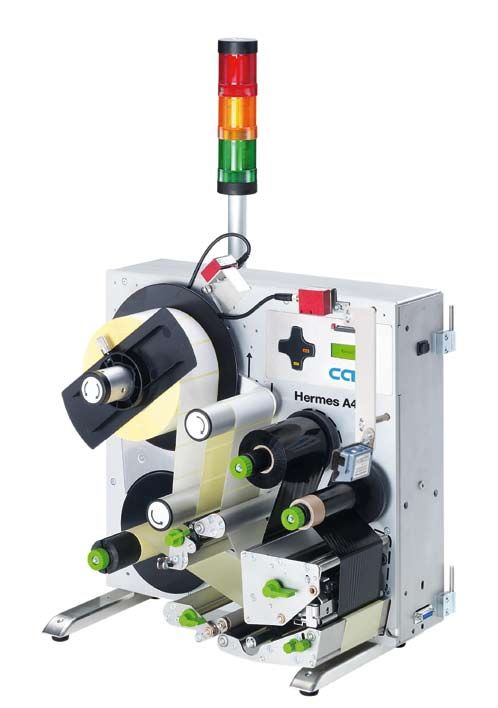

1 1. Indicator Light
Indicates the printer’s status and is installed
directly at the printer, the mounting bracket or
2 stand.
Red: error at the printer or applicator
Yellow: labels or ribbon are running out
Green: ready to operate
3
2. Pre-Warning Sensor Labels
Before the labels are running out, a warning
message is indicated both at the indicator light
and by means of the PLC interface whenever
the minimum of labels exceeds the lower level.
The minimum of labels can be adjusted.
3. Pre-Warning Sensor Ribbon
Before the ribbon is running out a warning
message is indicated both at the indicator light
and by means of the PLC interface whenever
the minimum of ribbon exceeds the lower level.
This level of ribbon can be adjusted.
4
4. Barcode Tester
Immediately after the printing process the
barcode can be tested on its readability and
contents. Type of scanner and further pro-
cessing are defined to customer’s
specifications.
5. RFID Read/Write Unit
For reading and writing transponders in smart
labels. Integration is made to customer’s
stipulations.
Adapter 100
For label rolls with a core diameter of 100 mm.
5
External Operation Panel Barcode-Scanner Memory Card up to 1 Gigabyte
This is used for devices with difficult access. Different scanners can be connected to the The CompactFlash Card enables to download
Connection by USB interface. Its function, USB interface for input. label formats, fonts, texts and graphics.
including memory card, Up- and downloads to the
correlates with the operating card can be effected 12 8
panel at the printer. at the printer or PC.
Numeric Keyboard USB Compact PC Keyboard USB PC Keyboard USB with integrated
For numerical data input in the stand- Direct input of variable data in the stand-alone 4-Port Hub
alone operation mode. operation mode. Includes 4 additional integrated USB interfaces
for further peripherals.
Technical Data Hermes A Self diagnostics Hermes A
Printing method Stop printing if Out of ribbon
Print head system: Thin film Out of labels
Thick film - on request - - Testing routines System diagnosis of memory and print head
Print resolution dpi 300 600 300 when switched on
Print speed up to mm/s 250 100 150 Print-out of system data
Print width up to mm 105,6 105,6 108,4 Status reports Total print length
Total operation hours
Labels Fonts
Material: Thermal- a. Standard paper, plastic foil e.g. PE, PP, PVC, PA, PI Font types 5 Bitmap fonts incl. OCR-A, OCR-B and
Material thickness1) mm / Weight g/m2 0,07 - 0,25 / 60 - 160 3 Vector fonts Swiss 721, Swiss 721 Bold
Media roll: Total diameter up to mm Hermes 4/5 210 / 300 and Monospace 821 available internally,
Core diameter mm 76 (100) loadable TrueType fonts.
Winding direction inside or outside Character sets Windows 1250 up to 1257, DOS 437, 737, 775,
Width of liner1) mm with a thickness of 0,07 - 0,35 mm 25 - 120 850, 852, 857, 862, 864, 866, 869, EBCDIC 500,
with a thickness of 0,25 - 0,35 mm 10 - 120 ISO 8859-1 up to -10 and -13 up to -16,
Label width mm 4 - 116 WinOEM 720, UTF-8, Macintosh Roman, DEC
Label height min. mm 4 MCS, K0I8-R. All West and East European, Latin,
Label height max. mm 1000 250 1000 Cyrillic, Greek, Hebrew and Arabic characters are
Ribbon supported.
Ink inside or outside Bitmap fonts Size of width and height 1 - 3 mm
Roll diameter up to mm 80 zoom 2-10
Core diameter mm 25 Orientation 0°, 90°, 180°, 270°
Ribbon length variable up to m 500 Vector-/TrueType fonts Size of width and height 0,9 - 128 mm
Width up to mm 114 variable zoom ,
Internal rewinder Orientation 360° in steps of 1°,
Total diameter up to mm Hermes 4/5 145 / 200 Font formats Bold, italic, underlined, outline, negative, grey,
Core diameter mm 38,1 vertical, depending on character fonts
Dimensions Font width Variable
Hermes 4, Height / Depth / Width mm 390 / 420 / 276
Hermes 5, Height / Depth / Width mm 542 / 527 / 276 Graphics
Weight kg Hermes 4 / 5 18 / 20 Graphic elements Line, arrow, box, circle, ellipse, filled,
Label sensor filled with fading
See-through/Reflective sensor, adjustable mm 4 - 57,5 Graphic formats PCX, IMG, BMP, TIF, MAC, GIF, PNG
Electronics Codes
Processor 32 Bit ColdFire/CPU Speed MHz 144 Linear barcodes Code 39, Code 93 Interleaved 2/5
RAM MB 16 Code 39 Full ASCII Ident and lead code
ROM MB Flash 4 Code 128 A, B, C of German Post
Real time clock, printout of time and date Codabar JAN 8, 13
Operation panel EAN 8, 13 MSI
Navigator pad: keys/illuminated 4/8 EAN/UCC 128 Plessey
LCD-graphic display Width x height in dots 120 x 32 EAN/UPC Appendix 2 Postnet
lines/characters 2 / ca. 20 EAN/UPC Appendix 5 RSS 14
Slot for memory card: CompactFlash Type I FIM UPC A, E, E0
Interfaces HIBC
Paralled Centronics bi-directional acc. to IEEE 2D Codes Aztec, Codablock F, Data Matrix, PDF 417, Micro
Serial RS 232 C 1.200 up to 230.400 baud/8 bit PDF 417, UPS Maxicode, QR-Code, RSS 14
USB 2.0 Full Speed-slave for PC connection All codes variable in height, module width and
Ethernet 10/100 Base T, LPD, RawIP-Printing, ratio. Orientation 0°, 90°, 180°, 270°. Optionally
DHCP, HTTP, FTP, SMTP, SNMP, Time client with check digit, printed characters and
RS 422, RS 485 1.200 up to 230.400 baud/8 bit Start/Stop code, depending on code type.
Peripheral connection Software
Wireless bridge 802.11b Programming J-Script Direct programming
USB Master for keyboard and scanner abc-Basic Compiler
Sensor end of labels Database Connector
Sensor end of ribbon System diagnostics/ cab-printer monitoring
Indicator light Administration cab Network Manager
Digital I/O interface for applicators of other manufactur. cab-Card Manager
Interface for cab applicators cab label software cablabel Lite
Twinax/Coax-Converter cablabel Professional,
Accessories Further label software Easylabel, Codesoft, Nicelabel,
Indicator light Bartender, Label Matrix, Labelview
Sensor end of labels Windows driver 98, ME, 2000, 2003, XP
Sensor end of ribbon Windows NT from version 4.0
Barcode reading tester Mac driver OS X printer driver from version 10.3
RFID read/write unit Linux driver Testet with Suse 9.0, CUPS based
External operation panel
PC-keyboard USB 4-port Hub Power supply 100 - 240 V ~ 50/60 Hz, PFC
Compact PC-keyboard USB Energy consumption max. max. 250 W
Operating temperature 10 - 35°C
Memory card Humidity not condensing 30 - 85%
CompactFlash Type I up to 1 GB Safety regulations CE, FCC class A
Subject to restrictions depending on label size, material and adhesive.
1)
Critical materials or applications need to be tested and released.
Standard Option
Optimal output by optimal input:
Software and tools
Printer Control Monitoring
Direct programming with J-Script cab printer monitoring with Intra and Internet
J Job Start
H 100 Geschwindigkeit (100 mm/Sek.)
OR Orientierung gedreht um 180°
S I1;0,0,68,70,100 Größe Etikett (100x68 mm, Lücke 2 mm)
T 10,10,0,5,pt20;sample Textobjekt/Schriftart: Swiss bold, 20 pt
B 10,20,0,EAN-13,SC2;401234512345 Barcode EAN 13, Größe SC 2
G 8,3.5,0;R:30,9,0.3,0.3 Grafik, Rechteck 30x9 mm,
Linienstärke 0,3 mm
A1 Anzahl Etiketten (in diesem Beispiel 1)
cab J-Scipt enables easy programming of the printer by text strings
and this independently from the label software. Labels can be
designed and the status of the printer can be enquired. The memory
card allows to safe layouts, complex graphics and special fonts. This
reduces the data transmission time.
cab printers provide to be monitored and configurated with standard
web browsers or FTP clients. Firmware updates or data management
on the memory card are easy to handle. By the use of SNMP- and
abc - Basic Compiler SMTP client, status, warning and error messages are sent by email or
SNMP telegram to the network.
Administration
cab-Network Manager
The cab network administration enables the administrator to manage at
the same time all printers connected to one network. With one mouse
click different printers are configurated or updated. Data on the memory
card is managed.
The cab Basic Compiler is always one step ahead. By means of an
easy basic programming data is operated or logically combined before
sent to the printer for further processing. cab-Card Manager
This offers e.g. the possibility to emulate other printers or to integrate
data strings from barcode readers or scales in printing processes. All
data received is printed in real time.
Database Connector
Via RS 232 port the memory card is fast and easily administrated.
Label layouts, special text fonts, complex graphics or databases can
be up- or downloaded.
The cab database connector enables to link up stand-alone printers
via TCP/IP interface to central SQL databases in the network. Data
can be requested, printed and written back during the printing
process.
Label Software
Quality made visible The software for creating labels
Perfect labels need to have optimized text Powerful functions enable the creation and cablabel Lite Professional
fonts. cab offers a large number of bitmap and printing of even complex labels within minutes. 32-bit platform compatibility
vector fonts. Height and width of the font can Label samples
be scaled and the object can be positioned Take advantage of using the multiple possibil- Online documentation
and orientated. Additional true type fonts can ties of cablabel for including simple texts, with tutorials
be downloaded to the memory card. barcodes, graphics and databases. cablabel is Multi-level Undo
Most of the country specific codepages are most flexible - and all this in 18 languages. number of levels 1 40
supported. Hidden (not printable)
MDI (Multiple Document Interface) helps to objects
open and handle several labels at the same
Graphic format import
cab Windows driver time. Objects may be copied, moved and
Color support
inserted into another label.
Color graphic reduction
TrueType font
cablabel has its own drivers with individual
Graphic barcodes
respond to all different functions of cab
printers. This most effective communication numbers 9 37
between software and printer enables to Native printer barcodes
achieve perfect results. Label preview
Graphics preview
cablabel Lite Languages: Arabic, CZ, D, DK,
Free of charge with every cab printer E, F, GB/USA, H, I, IL, N,
Windows printer drivers are in the contents
NL, P, PL, RUS, S, SF, TR
of delivery installed under Windows 98, ME,
2000, NT and XP. cablabel Professional Grid view/print
Database
Professional handling is supported by inclu-
ASCII database
ding databases into the label. There is an
interactive assistant that supports the creation ODBC (Microsoft Open Data-
Mac OS X driver base Connectivity)
of an UCC/EAN 128 barcode.
OLEDB
Database manager
Variables
Flexible date and time
stamping
Variable graphic images
Further label Software Shared serial files
Decimal value formating
For MAC OS X cab offers a CUPS based cab offers a range of additional label Software
(Easylabel, Codesoft, NiceLabel) enabling to Add an offset to a date
printer driver. Tools
program printers and print and apply
systems, too. Set input format
Minimum input length
Linux driver Default value proposal
Automatic prompt
User Input Fields
UCC/EAN 128 assistant
Font Downloader
Bi-directional communication
to the printer
Programming
OLE-Client
For LINUX cab offers a CUPS based
printer driver.
You require? We offer: Applicators 1 2 3 4 5 6 1. Compressed Air Supply Unit Assembly is made at the printer, frame or stand. The micro filter avoids contamination, the pressure regulator ensures the print and apply quality. 2. Long Service Life The guides have ball bearings and are therefore resistant to wear. 3. Variable Product Heights By means of the pneumatic cylinder it is possible to print and apply at different heights. The cylinder is available in different lengths. 4. High Process Reliability Supporting air jet streaming, vacuum as well as the speed of the cylinder are adjustable. Control is made by sensors. 5. Real Time Print and Apply Applicators for small and big label enabling to apply labels with a height of 4-250 mm and a width of 4-116 mm. 6.Protective Cover Used in the semi-automatic operation mode Standard size 1 for labels W x H up to 70 x 80 mm Size 2 for labels W x H up to 116 x 80 mm 7 Further sizes on demand. 7. Applicator with part to be turned away Easy and fast access to the printers mechanics for material change or for maintenance work is possible. 10
Tamp Pad Applicator Interface
1. Digitale I/O-
Interface
The print and apply process is
started and stopped by a host
control interface.
At the same time, status and
error messages are displayed
2. Release Button
is testing the print and apply pro-
cess. When actuating the release
The tamp pads are manufactured according to the label size. Depen- button the first time the label is
ding on size and application the tamp may be hard, damped or spring printed and taken by the applica-
mounted. The product is in fixed position during the print and apply tor. When actuating the release
process. button again the print and apply
process is executed.
Blow Pad
1
2
Accessories
Interface Plug
Sub-D Plug 15 pole
Easily connected by using clip
screws.
The print and apply process passes optionally with the product in
fixed position or in linear movement. The blow pad moves to a pre-
adjusted position while the product is in proper distance thereunder. Release Switch /
Foot Switch
Roll on Print and apply in the semi-
automatic operation mode
is released by means of a
release- or a foot switch.
Connection is possible at
the digital I/O Interface.
Light Barrier
The automatic print and
apply process on a con-
veyor belt is released by
a light barrier. Connection
is possible at the digital I/O
The label is pushed as far as underneath the roll. Now, the tamp pad interface.
moves on top of the product. The label is then rolled on and applied
by the movement of the product
11Applicators for applications
in real time
The applicators enable
labels to be applied down- Typ 1100 Typ 1300 Typ 1400 Typ 1500
wards, upwards as well as
sideways on the product.
The labels are taken
directly from the printer
to the tamp pad. The
size of the tamp pad is
customized to any label
dimension.
Tamp Tamp Roll on Tamp around
the corner
For applying small For applying larger-sized Real time incline appli- For applying larger-
labels on flat surfaces. labels, even on inclined cator with lifting cylinder sized labels around
The express changing surfaces, with spring- and pinch roller. the corner, e.g. sealing
system is recommen- mounted support to labels.
ded for different label compensate inclined
sizes or for mainte- surfaces.
nance.
Label transfer method Tamp Tamp Roll on Tamp
Label width mm 8 -116 75 -116 50 - 116 40 - 116
Label height mm 5 - 80 80 - 200 100 - 250 40 - 200
Stroke of tamp mm 100 - 400 100 - 400 100 - 400 100 - 400
Compressed air supply bar 5-6 5-6 5-6 5-6
Requirements on product surface flat flat flat/cylindrical flat/right angle
for transfer printer
A4L - label outlet left
A4R - label outlet right
A4L - label outlet left
A4R - label outlet right
Product height
variable
fixed - - - -
Product
fixed -
in motion - - -
in rotation - - -
Cycle time
Number of cycles/min 30 20 35 12
12Dispensing Module
Typ 2100 Typ 3100/3200 Typ 4200 Typ 5100
Tamp/Blow Tamp/Blow Tamp Roll on
Vertical swinging horizontal rotating
by 90° or 180° by 90° or 180°
Labels are tamped or Labels are tamped or For applying smallest Mechanical dispensing
blown contactless on the blown on the product, labels with additional module / printed labels
product. e.g. sideways. rotation to the printing are in the dispense buffer.
The express changing direction.
system is recommended
for different label sizes or
for maintenance.
Label transfer method Blow Tamp Blow Tamp Tamp Roll on
Label width mm 10 -116 8 - 116 10 -116 8 - 116 4 - 116 25 - 116
Label height mm 10 - 80 5 - 80 10 - 80 5 - 80 4 - 20 20 - 200
Stroke of tamp mm 100 - 400 100 - 400 - 10 100 - 400 -
Compressed air supply bar 5 - 6 5 - 6 5-6 -
Requirements on product surface flat flat flat flat
for transfer printer
A4L - label outlet left
A4R - label outlet right -
A5L - label outlet left
A5R - label outlet left -
Product height
variable - - -
fixed - -
Product
fixed -
in motion - - -
in rotation - - - - -
Cycle time
Number of cycles/min 30 30 12 60
13The Hermes Assembly aids
Print and Apply System upright Print and Apply System hanging
Bracket
Profile dimension: 50 x 50 mm
Supplier: Rose+Krieger
Article-No.: 4.08.5000
The bracket enables to mount the printer in hanging position.
Clamped Joint
Base Plate
Designed for integrating the printer within a production line. The printer
is fixed by two centering bolts and mounted by means of a knurled
screw from the bottom at the cover plate.
The clamped joint enables to mount the printer vertically, horizon-
Assembly Frame A
tally and turned by 90°. By moving the profiles in the cardan joint
the label can be positioned on the product.
Additional feet are mounted at the base plate. Height can be customi-
zed from 60 – 400 mm. Flanged Joint
Assembly Frame B
To enable the positioning of products which are different in size an The flanged joint enables to turn the printer additionally around
adjustable XY stopper is mounted. The adjusting range of the stopper the profile axis. Tolerances in angles are compensed, too.
in X and Y direction is 75 mm. As soon as the product is correctly
aligned, the print and apply process can be released by a switch.
14The Hermes Stand
The Hermes stand enables to use With bracket and clamp joint
the printer in a fast and flexible The printer is adjustable in right-angled in
manner at any kind of production three directions.
line. The print and apply position
is adjustable to the product in
height and width with just a few
turns. Four guide rolls at the
chassis ensure mobility. On site,
the stand is adjusted by mounting
footrests.
Maximum labeling height is about
1400 mm.
With bracket and flange joint
The printer can additionally be turned around
the support beam.
The Hermes stand for a flexible printer installation
Example: Print and apply in transport direction Example: Print and apply crosswise to the transport direction
15Delivery program
Transfer printer Accessories
L R Part No. Description L R Part No. Description
5949700 Transfer printer 5537747 Indicator light
Hermes A4L/300 dpi
5949701 Transfer printer
5537742 Sensor end of labels HA4L
Hermes A4L/600 dpi
5949702 Transfer printer 5942692 Sensor end of labels HA4R
Hermes A4R/300 dpi
5955300 Sensor end of labels HA5L
5949703 Transfer printer
Hermes A4R/600 dpi 5955301 Sensor end of labels HA5R
5949704 Transfer printer 5955302 Sensor end of ribbon Hermes AL
Hermes A5L/300 dpi
5955303 Sensor end of ribbon Hermes AR
5949705 Transfer printer
Hermes A5L/600 dpi
Barcode reader on request
5949706 Transfer printer
Hermes A5R/300 dpi
5949707 Transfer printer
Hermes A5R/600 dpi
59497xx.102 Transfer printer Hermes
with RFID 13,56 MHz/Ethernet
5946930 External operation panel
Spare parts with connecting cable 1,8 m
5946015 Print head 300 dpi, Type 4300S
5901626 PC keyboard USB with 4 port HUB
Cherry Classic Line G81 3000
5946006 Print head 600 dpi, Type 4600
5901630 Compact PC keyboard USB,
5537771 Drive roller Cherry Slim Line G84 4100
Connecting cables
5550818 Connecting cables: RS232 C, 5917909 Numeric keyboard USB
9/9-pin, length 3 m
5550771 connecting cables: Centronics 128 5561040 Memory card 128 MB
length 3 m
CompactFlash Type 1
Software
Interfaces
5942361 USB interface 5580210 Database Connector
with cable 1,8 m
5580215 Network Manager
5942360 RS422/485 interface
5580216 cab Card Manager
5580153 Label Software cablabel Lite
5942363 Fast-Ethernet interface 5580151 Label Software cablabel
Professional
5580105 Label Software Easylabel 5 silver
5561034 Wireless bridge
5580106 Label Software Easylabel 5 gold
with connecting cable
and power supply 5580107 Label Software Easylabel 5 platinum
16All specifications about delivery, design and technical data are
given to the best of our current knowledge and are subject to
change without prior notice
Applicators Accessories
L R Part No. Description Part No. Description
5947200 Tamp Applicator 1100L-100H
5947310 Cover Tamp Pad size 1L
5947202 Tamp Applicator 1100L-220H
5947311 Cover Tamp Pad size 2L
5947204 Tamp Applicator 1100L-300H
5947317 Cover Tamp Pad size 1R
5947220 Tamp Applicator 1100R-100H 5947318 Cover Tamp Pad size 2R
5947222 Tamp Applicator 1100R-220H
5947224 Tamp Applicator 1100R-300H 5537960 Air pressure regulator
Applicator Hermes L
5xxxxxx.101 Express changing system
5942689 Air pressure regulator
5xxxxxx Tamp Pad type 11xx size w x h Applicator Hermes R
5535706 Adapter Pad 11xxL (to type 1200) 5917652 Interface plug
5942858 Adapter Pad 11xxR (to type 1200) 15pole SUB-D-plug
5940625 Express changing system tamp pad Phönix Contact No. 27 61 60 6
5942345 Release switch TR1
5941000 Tamp Applicator 1300L-220H
5941001 Tamp Applicator 1300L-300H
5941100 Tamp Applicator 1300R-220H 5535901 Foot switch applicator PLC
5941131 Tamp Applicator 1300R-300H
5xxxxxx Tamp Pad type 13xx size w x h
5941526 Product sensor SPS
5945450 Inline Applicator 1400L-220H 5941153 Product sensor for
5945452 Inline Applicator 1400R-220H dispensing module 5100
5xxxxxx Tamp Pad type 14xx Format bxh
Assembly Aids
5941771 Base Plate
5945558 Overedge Applicator 1500L-220H
5945596 Overedge Applicator 1500L-300H
5941772 Assembly Frame A
5945561 Overedge Applicator 1500R-220H
Workpiece height 150 mm
5xxxxxx Tamp pad type 15xx size w x h
55xxxx Assembly Frame A
Workpiece height customer specific
5947210 Blow Applicator 2100L-220H
5947212 Blow Applicator 2100L-300H 5941773 Assembly Frame B
Workpiece height 150 mm
5947230 Blow Applicator 2100R-220H
with X-/Y-stopper
5947232 Blow Applicator 2100R-300H
and release switch
5xxxxxx.101 Express changing system
5xxxxxx Blow Pad type 21xx size bxh 55xxxx Assembly Frame B
5947494 Express changing system blow pad Workpiece height customer specific
with X-/Y-stopper
and release switch
5537966 Blow Swing Applicator 3100H
5xxxxxx Blow Pad type 31xx size w x h 5949798 Bracket
5537964 Blow Swing Applicator 3200H Profile Dimension: 50 x 50 mm
Supplier: Rose+Krieger Article-No 4.08.5000
8914443 Clamped Joint
5xxxxxx Tamp Pad type 32xx size w x h
Profile Dimension: 50 x 50 mm
5941965 Tamp Turn Applicator 4200-220H
Supplier: Rose+Krieger Article-No 4.08.5000
5941972 Tamp Turn Applicator 4200-300H
5xxxxxx Tamp Pad type 42xx size w x h 8914444 Flanged Joint
Profile Dimension: 50 x 50 mm
Supplier: Rose+Krieger Article-No 4.08.5000
5941150 Dispensing module 5100L
5941170 Dispensing module 5100R
5947400 Stand 1600
Spare Parts
5943827 Teflon glide foil size DIN A4 Testbox
594xxxx Teflon glide foil tamp size w x h
5943828 Absorbing foam size DIN A4 5533240 Testbox 2 for automatic operation
594xxxx Absorbing foam tamp size w x h
5xxxxxx Absorbing rubber
17Ribbons/Recommended types
Technical data: Many good reasons
Color: black for cab ribbons
Ink: inside The cab delivery program contains more than
Core Ø: 1“
20 different types of ribbon. For any kind of
Length: 360 m
application – whether it is for small or wide
labels, for the goods’ marking or typeplates –
we promise to have always the right ribbon.
The cab printers and the ribbons are optimally
matched and therefore able to ensure a con-
stantly good quality. The retightening strap has
been specially designed for cab devices and will
make sure that at the end of the ribbon any kind
of faulty printing or damage of the printhead is
avoided.
Due to their top quality back coating the cab
ribbons have a better heat transmission and,
at the same time, static load. The result: better
printing quality and longer lifetime.
Gold and Silver Colored Ribbon Colored Ribbons
These ribbons are used instead of hot Available in wax, resin/wax and resin quality
stamping films for a particularly high in the following colors:
quality printing on labels which are used green, blue, red, brown
as jewellery or decoration. grey and white on request
Wax Ribbon Resin/Wax Ribbon Resin Ribbon
For the economic and high contrast For high resistance against abrasion and For high printing resistance on plastic
printing on vellum or other coated papers. scratching on chromated or coated label materials and for labels with coated,
papers and plastic label material respectively glossy surface.
W41 High optical density
W42 Better wiping resistance RW62 good optical density R71 universal use
B11 0 AX univeral use B11 0 C/CX highest scratch-resistance
For fine fonts and smooth graphic elements
Wax black Resin/Wax black Resin black
W 41 W 42 RW62 B 110 AX R71 B 110 C B 110 CX
Width Article- PU Article- PU Article- PU Article- PU Article- PU Article- PU Article- PU
mm no. no. no. no. no. no. no.
25 5556560 45 5556011 48 5556668 20
38 5556561 30 5556012 48 5556160 20 5556673 20 5556760 20 5556360 20
51 5300302 36 5556013 36
55 5556512 30 5556161 20 5556661 20 5556761 20 5556361 20
64 5556014 36
76 5556564 15 5300304 24 5556015 24 5556162 10 5556662 10 5556762 10 5556362 10
89 5556565 15 5300305 24 5556016 24 5556663 10
90 5556163 10 5556763 10 5556363 10
100 5556172 20 5556765 10 5556365 10
102 5556566 15 5556017 24 5556666 10
110 5556527 15 5556695 10
114 5300307 12 5556018 12 5556174 10 5556764 10 5556364 10
130 5556528 15 5300310 12 5556697 10
152 5300311 12
154 5556529 15 5556696 10
165 5556530 15 5300312 12 5556806 10
190 5556531 15 5556698 10
220 5556117 15 5300313 12 5556807 10
18Self-Adhesive Labels /
Recommended types
Thousand reasons to buy
cab labels
Our delivery program contains all usual
qualities and formats, also in small quanti-
ties. Whether you need standard, blank or
preprinted labels, cab always supplies best
quality, fast and to a reasonable price.
For any kind of application – cab has the
right material.
Polyester white or silver.
PVC flexible and dimensionally instable.
Polyimid for high temperatures.
Paper white for universal use.
The following materials and formats are on
stock and can be express delivered.
Technical data:
Adhesive: strong / durable
Winding direction: Labels outside
Core diameter: 76 mm
Roll diameter: up to 200 mm
Paper M-Cote white Polyester white matt Polyester silver matt
Universal standard label, bright white with High quality polyester material for high Type- and rating plate for inside and
strong, durable adhesive. stress level, tearproof, dirt and water outside applications. Provides good
repellent, oil resistant, temperature resis- adhesive for smooth surfaces. Tempera-
M-Cote is used for shipping labels or tant between approx. –20°C up to 80°C. ture resistance of -40°C – 125 °C,
univeral product identification labels in according to UL and CSV guide lines.
industry, distribution and services. This Individual identification of goods in the
material is particularly suitable for all cab warehouse, products on consignment, in Mainly used for high quality, durable type
printer models. production areas or outside, and much plates, resp. instruction
more. labels on machines, tools, vehicles…
Paper Polyester
M-Cote white semi glossy white matt silver matt
3M 7818
Width Hight Labels/ Width Hight Labels/
Article no.
mm mm roll Article no. Article no. mm mm roll
5556470 25 10 7.000 5556485 5556495 25 8 10.000
5556471 40 20 3.500 5556486 5556496 50 30 2.500
5556472 54 35,5 2.250 5556487 5556497 60 40 2.000
5556473 68 58 1.400 5556488 5556498 85 50 1.500
5556474 75 35 2.300
5556475 89 36 2.500
5556476 85 50 1.500
5556477 100 42 2.000
5556480 100 150 500
5556478 110 68 1.200
5556479 115 99 800
W41 RW71
recommended ribbon RW62 recommended ribbon
W42 B110 CK
19The more demanding
you are, the more reason
you have to choose us.
For more than 30 years cab has been developing and
manufacturing product marking equipment for industry,
distribution and services.
The constantly growing market demands innovative
ideas that create the products of tomorrow.
Our experience and the aim to set technical standards
in the field of printers makes cab a worldwide leader in
these technologies.
With a skilled team of engineers cab is in a position to
provide reliable customer service and quality products
according to ISO 9001 – from the receipt of raw mate-
rial to the shipping of the final product.
cab Produkttechnik GmbH & Co KG
Postfach 1904
© Copyright bei cab/9008295/Ausgabe 3
D-76007 Karlsruhe
Wilhelm-Schickard-Straße 14
D-76131 Karlsruhe
Fon +49 721 6626-0
Fax +49 721 6626-249
www.cabgmbh.com
info@cabgmbh.comYou can also read
