Astrium GEO
UK Multi-Mission
PDGS Facilities and ServicesAstrium GEO UK-MM PDGS Facilities and
Services
• Introduction
– UK-MM-PAC ERS-1/2
– UK-MM-PAC ENVISAT
– Data Hosting Activities
– Future Activities
– Infoterra Archives
– LTDP Preparation
– Collaborative ActivitiesAstrium GEO UK-MM PDGS Facilities and
ServicesAstrium GEO UK-MM PDGS Facilities and
Services
• UK-MM-PAC ERS-1/2
– Since 1991 for ERS-1, Astrium GEO (then NRSC Ltd)
have performed Processing and Archiving Facilities
for ESA. In 1994 the facility was expanded to
support ERS-2.
• Archiving of both HR (SAR) and LR (ATSR-1/2, ALT,
GOME, WAVE,SCATT)
• On-Request SAR Processing
• Systematic ALT Processing
– Media types
• Exabyte
• Sony DIR1000
• DLT
• STK9940B
• STK T10KBAstrium GEO UK-MM PDGS Facilities and
Services
• UK-MM-PAC ENVISAT
– In 2002, UK-PAF became UK MultiMission Processing
and Archiving Centre with the addition of ENVISAT
operations
• Archiving of both HR (ASAR) and LR (AATSR, MERIS)
• On-Request ASAR Processing
• Systematic AATSR Processing
• On-Request MERIS Processing
• Systematic MERIS (MER_FRS) Processing
– Current Archive volume ~1.2 PB (Inc. ERS)
– Media types
• IBM NTP
• STK9940B
• STK T10KBAstrium GEO UK-MM PDGS Facilities and
Services

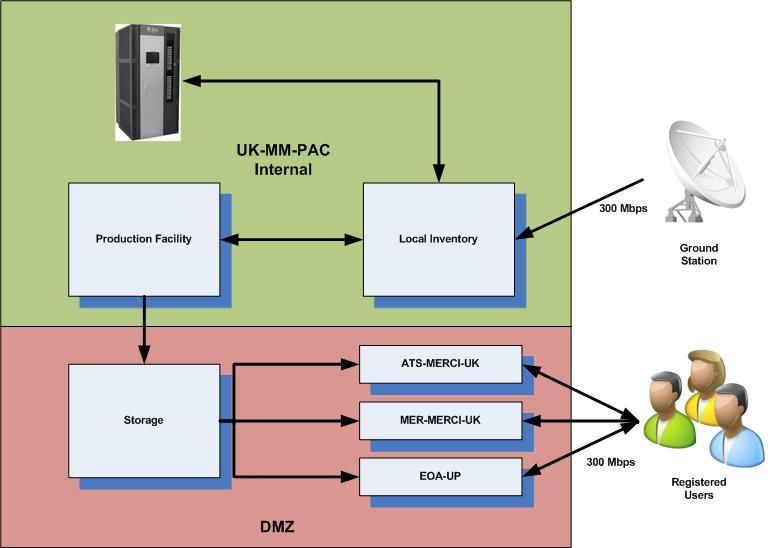

• UK-MM-PAC Data Hosting
– The following datasets are made available to Users
for FTP download
• ATSR-1 (L1B, L2, L2P) ~10TB
• ATSR-2 (L1B, L2, L2P) ~15TB
• AATSR (L1B, L2, L2P) ~22TB
• ERS ALT.WAP ~1TB
• ERS Wind Scatterometer ~1.5TB
• MERIS Reduced Resolution ~45TB
– Users granted access through the eoa-up and ats-
merci-uk servers
– Access via 300 Mbps link
– Additionally, provide backup copy of GEOHAZARD
dataset from CloudAstrium GEO UK-MM PDGS Facilities and
Services
• UK-MM-PAC Data Hosting Continued
– In addition to FTP Access to data, HTTP access to (A)
ATSR and MERIS RR datasets is provided through
two MERCI Servers
• atsr-merci-uk.eo.esa.int
• mer-merci-uk.eo.esa.int
• FTP downloads during Q1 2012 ~75TB
HMA Standards Summary TableAstrium GEO UK-MM PDGS Facilities and
Services
• Future Activities
– SWARM APDF
• Following the launch in Q4 2012, Astrium GEO will
provided operational support for the SWARM Mission
using MMFI infrastructure
– Sentinel-1 Offline PAC
• Astrium GEO will shortly commence site preparation
activities for the Sentinel-1 Mission including the
provision of an LTA facility
• Support will also be provided for the commissioning of
the PDGS following Launch
– Sentinel-2 Offline PAC
• Initial site preparation activities for the Sentinel-2
Mission will also be undertakenAstrium GEO UK-MM PDGS Facilities and
Services
• The Sentinel LTAs will be interfaced to the PAC
infrastructure via a set of web services.
• The LTAs have generic requirements – 30 TB/Day I/O,
transfer rate of min 220 Mbytes/sec, 10,000 files a day and
max file size of 200GBytes.
• The Infoterra LTA for Sentinel 1 consists of
– Web services to realise the interface
– Fast Network Infrastructure
– Disk Cache to support fast IO
– Hierarchical Global File System – to automate the archival and
retrieval of products
– Tape Archive
• Tape Archive to support Long Term Storage
– Tape archive based on i6000 LTO robotics
– Support for all LTO 5,6 products
– Scalable ( 96 Drives – 5300 Slots )
– LTO technology to deliver an Open format and long roadmapAstrium GEO UK-MM PDGS Facilities and
Services
• Sentinel LTA
StorNext Distributed
LAN Clients - upto 4
times NAS Performance Application
plus resiliance against Workstations
component and server Connecting via
failure CIFS or NFS
StorNext
Management
Servers
High
Linux or
Performance
Solaris
SAN Clients
Linux,
Windows,
UNIX or Mac
Fibre
LAN
Fabric
Switch
File System
Metadata & cfg
StorNext Storage Manager
Policy initiated movement of
Shared File High
content between disk tiers
System Perfomance
and tape.
FC Disk
Disk Array
SATA
Tape LibraryAstrium GEO UK-MM PDGS Facilities and
Services
• Infoterra Archive
– Based around a Heterogeneous Global File system,
supporting enterprise Hitachi Storage and Quantum
robotics (i6k) and LTO 5 Tape Storage. Allowing for
– 150 TB online storage
– 0.7 PB Near line storage
– Aerial Photography ( 25cm, 12.5cm and 10cm), CIR,
DEMs, DTM,s, Flood Data, OS Vector DataSets,LiDAR
datasets, etc....
– Served to Customers/Users via Public Internet, OGC
Web services, media or ftp.
– Also storage and distribution of national vector
datasets as well as asset management and insurance
applications.Astrium GEO UK-MM PDGS Facilities and
Services
• LTDP Preparations
– The following activities are currently being undertaken
• Reviewing Archive content against catalogue
• Preparation for reading of all Archived media
• Verification of previously transcribed datasets against
transcription records
• Identification of documentation
• Scanning of paper documentation
• Implemented virtualisation of Altimeter processing to
generate ERS-1/2 ALT-WAP products
• Further virtualisation being assessed
HMA Standards Summary TableAstrium GEO UK-MM PDGS Facilities and
Services
• Collaborative Activities
– Working with ISIC – CEMS Project
• The provision of computing
infrastructure for access to large-
volume EO and climate model datasets
co-located with high performance
computing facilities
• Collaboration of Commercial and
academic resources
• Data integrity service and metadata
infrastructure – FP7 Charm project.
• Full vCloud virtualisation for service the
commercial and academic user
communities
• User can ‘bring their own data’ to CEMS
for inclusion in their environment and to
develop ‘mash ups’ using EO data setsYou can also read
